FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769)

Export reference
From $46,431
MSRP ¥33.43M CNY
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 37.1ton
Wheelbase:: 2600+3100mm
Tire Size:: 12R22.5 Tubeless
rear axle allowable load:: 11500kg
Displacement:: 11.04L
Drive 6X2 (8 wheels)
Horsepower 350
Emission China V
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) is a Heavy truck featuring 6X2 (8 wheels) drive, 350 hp, 25t GVW and China V emissions. Its segment focus covers Standard, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6SM2-35E5N engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China V 350 LNG (liquefied natural gas) 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4252N2E5R5T3A90
Drive type: 6X2
Wheelbase: 2600+3100mm
engine: XichaiCA6SM2-35E5N
transmission: Fast Gear12JS160TA
Rear Axle Ratio: 4.769
Cab length: 8.02m
Cab width: 2.5m
Cab height: 3.07m
Front track width: 1930/1930mm
Gross Trailer Weight: 37.1ton
rear track: 1860mm
Curb Weight: 8.3ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
market segment:
Remarks: Highway/urban road; Cab color: Jade Willow Green; Air-suspended semi-floating cab; Driver air-suspension shock-absorbing seat; Double bunk; External sun visor; Power windows; Electric AC; Cable control; 90# fifth wheel with fixed base plate; 7-core cable; Spiral air hose; Rear work light; Front 1st & 2nd axle parabolic leaf springs, rear multi-leaf springs; 4-hole face gear φ108 driveshaft; Aluminum radiator; Heavy-duty power steering; Exhaust brake; Air handbrake; Air dryer; Air-to-air intercooler; Full-length constant-width straight frame rails; Dual 450L gas cylinders; Catwalk; Split rear fender (with upper splash guard); ABS
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6SM2-35E5N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 11.04L
Emission standard: China V
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1550N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JS160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: Stainless steel
Fuel tank capacity: 450L
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
upper bunk width: 600mm
Lower Bunk Width: 740mm
Chassis Specs
Suspension type: Leaf spring
Frame Dimensions: Triple-layer 300 (8+5+8)mm
rear axle description: 300 hub reduction single rear axle
rear axle allowable load: 11500kg
Axle ratio: 4.769
Leaf spring count: 4/4/8+9
clutch: Φ430
Tire
Tire Size: 12R22.5 Tubeless
Number of tires: 10pcs

Photos

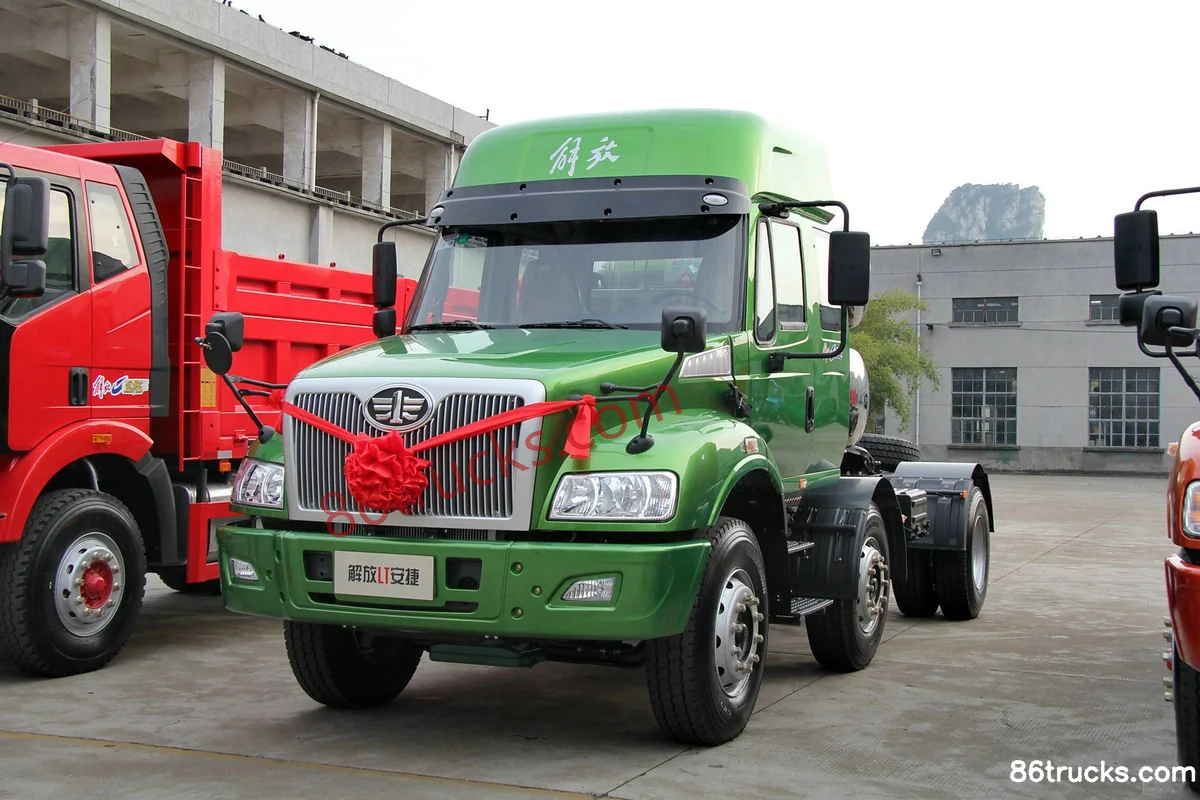

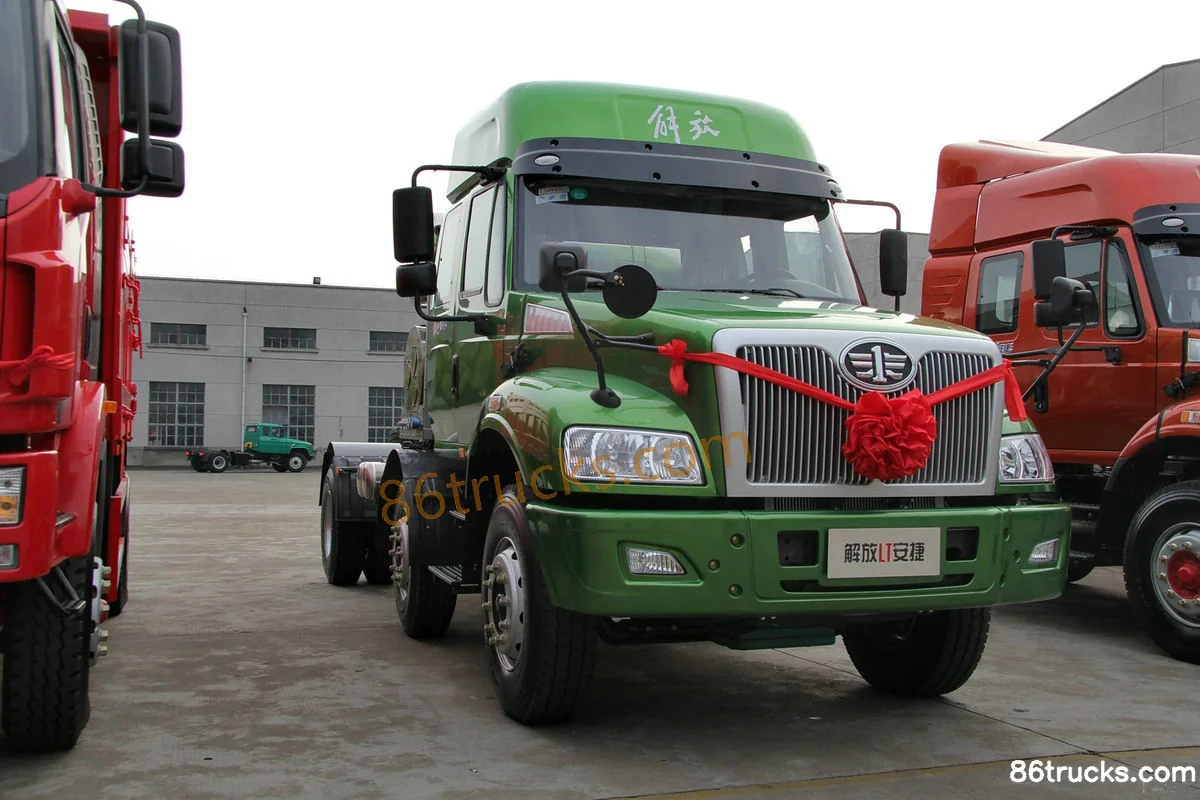

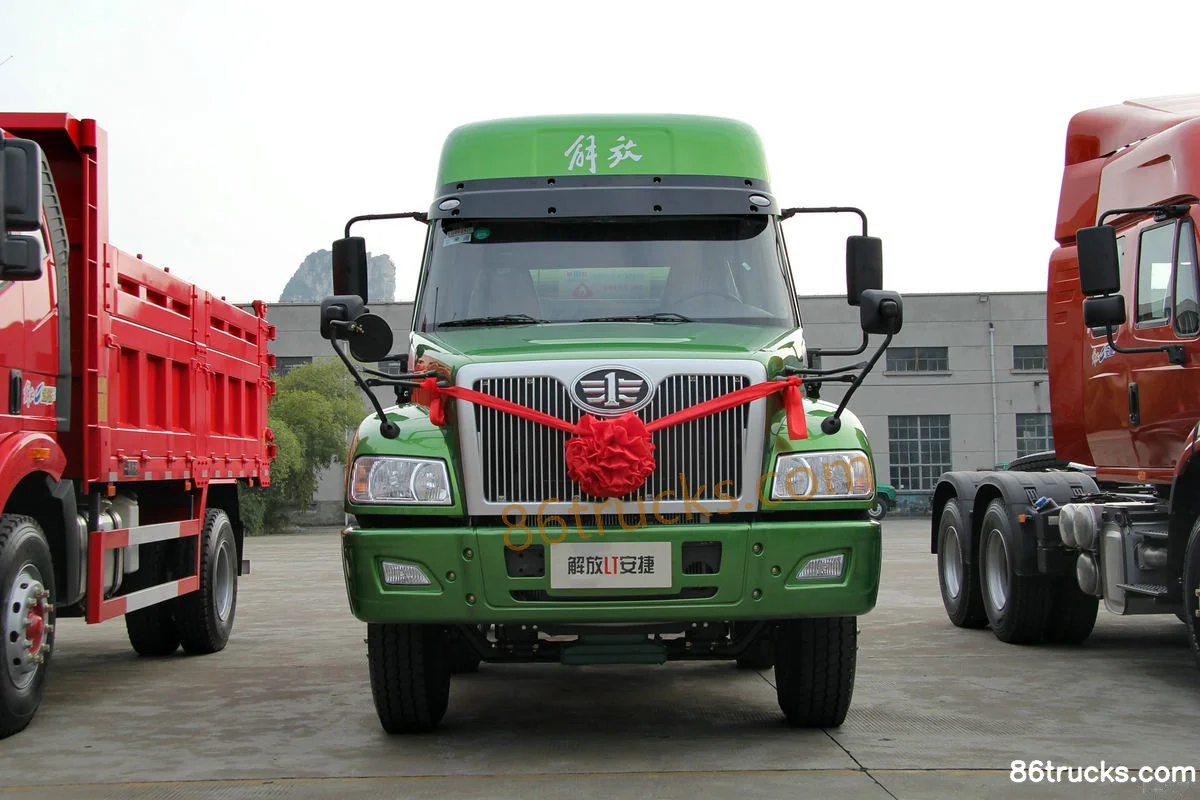

Exterior3

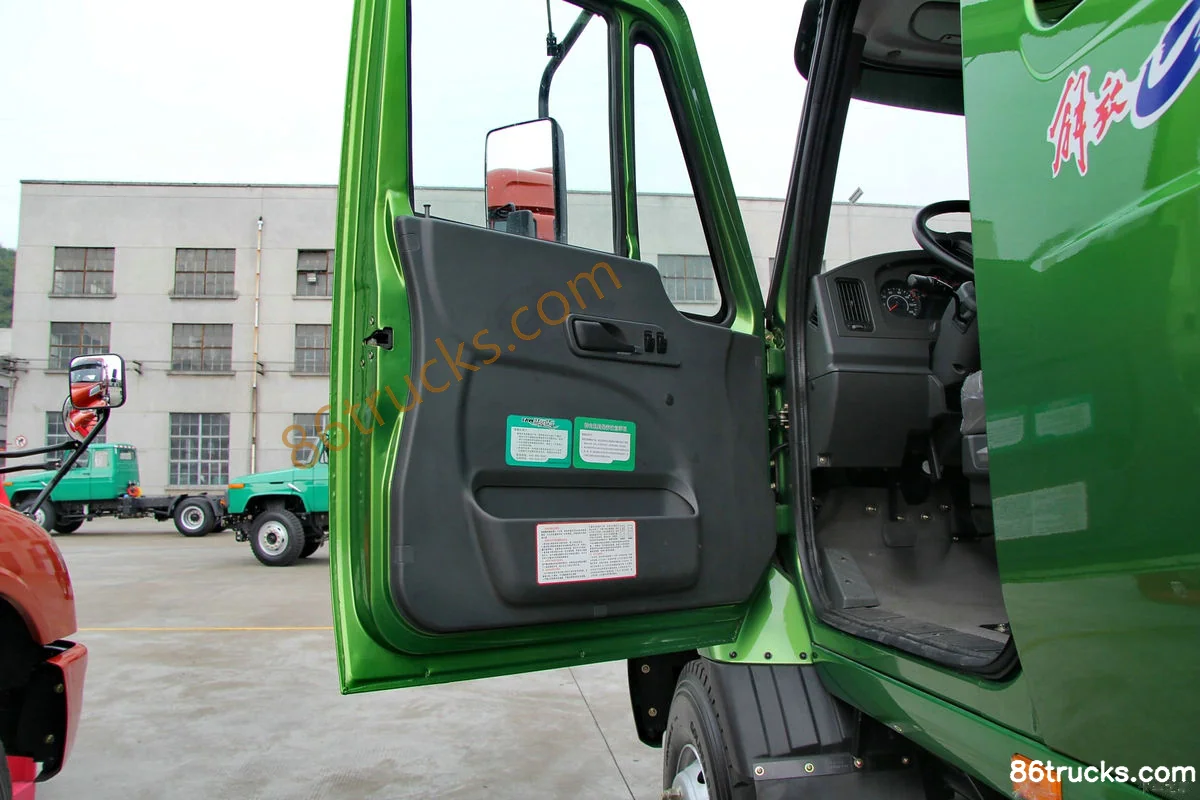

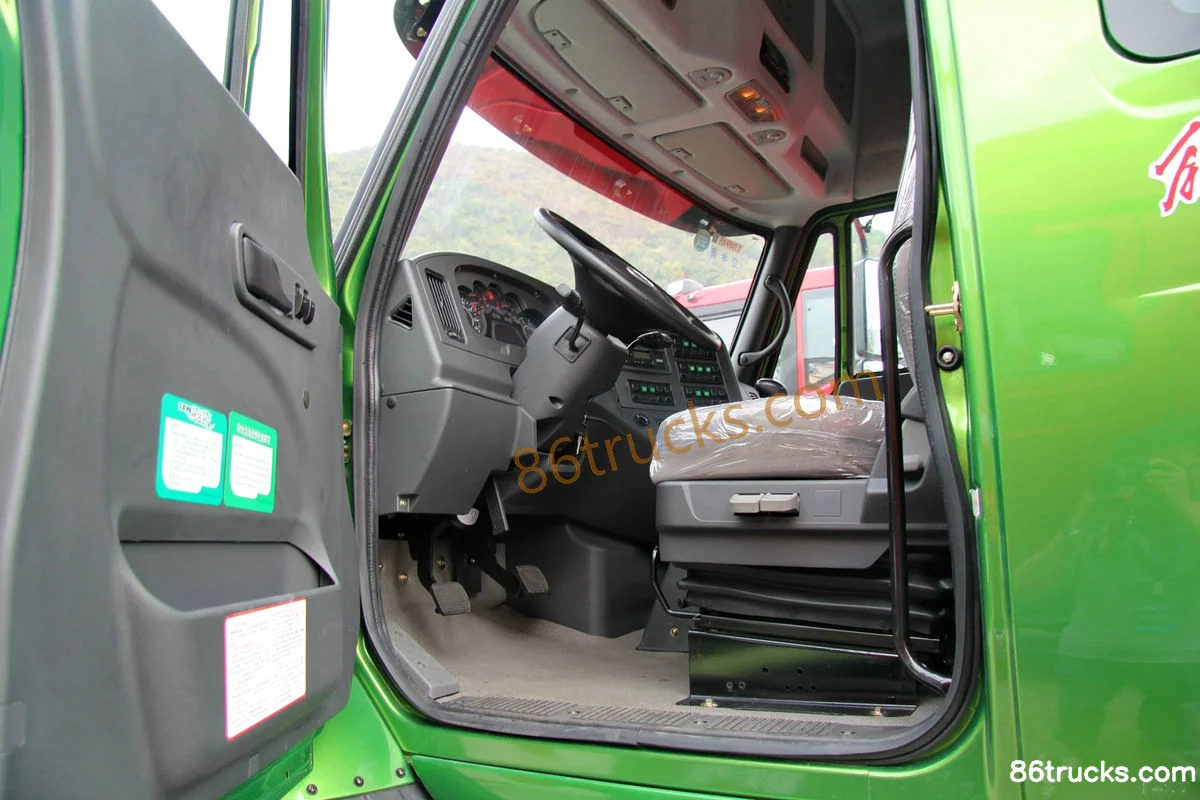

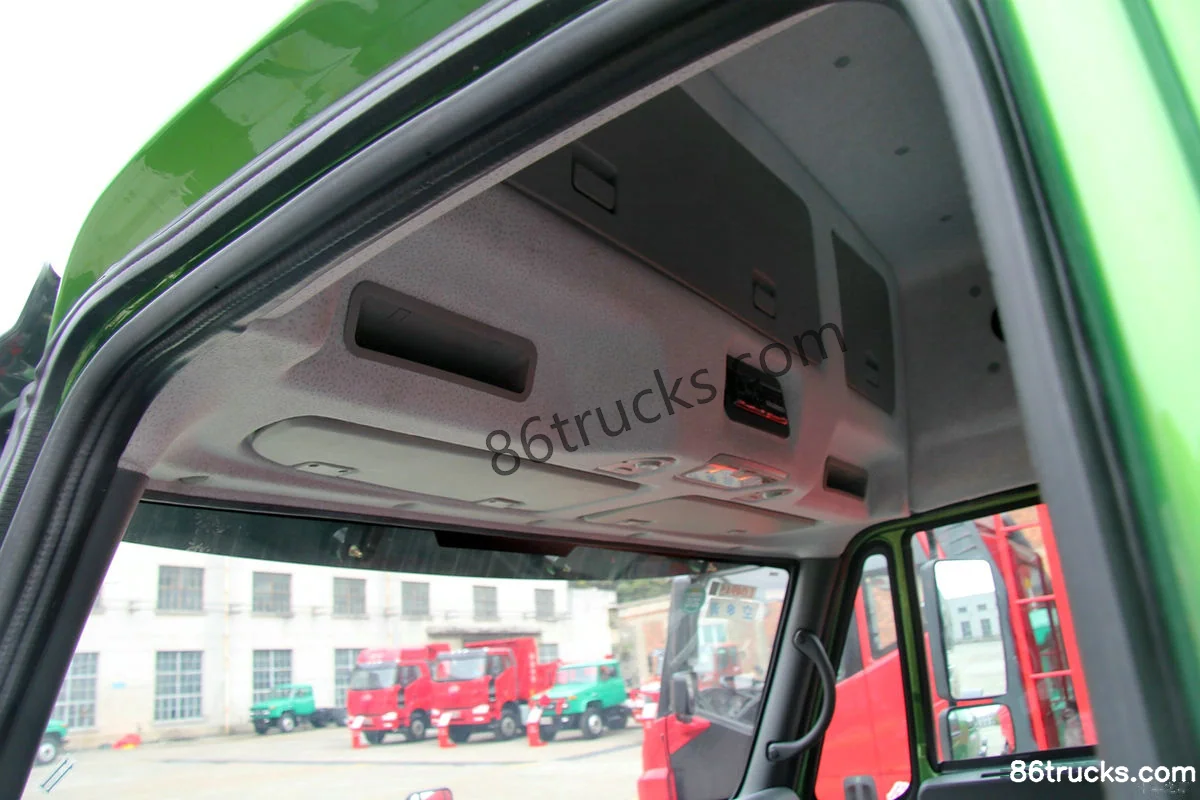

Cab3

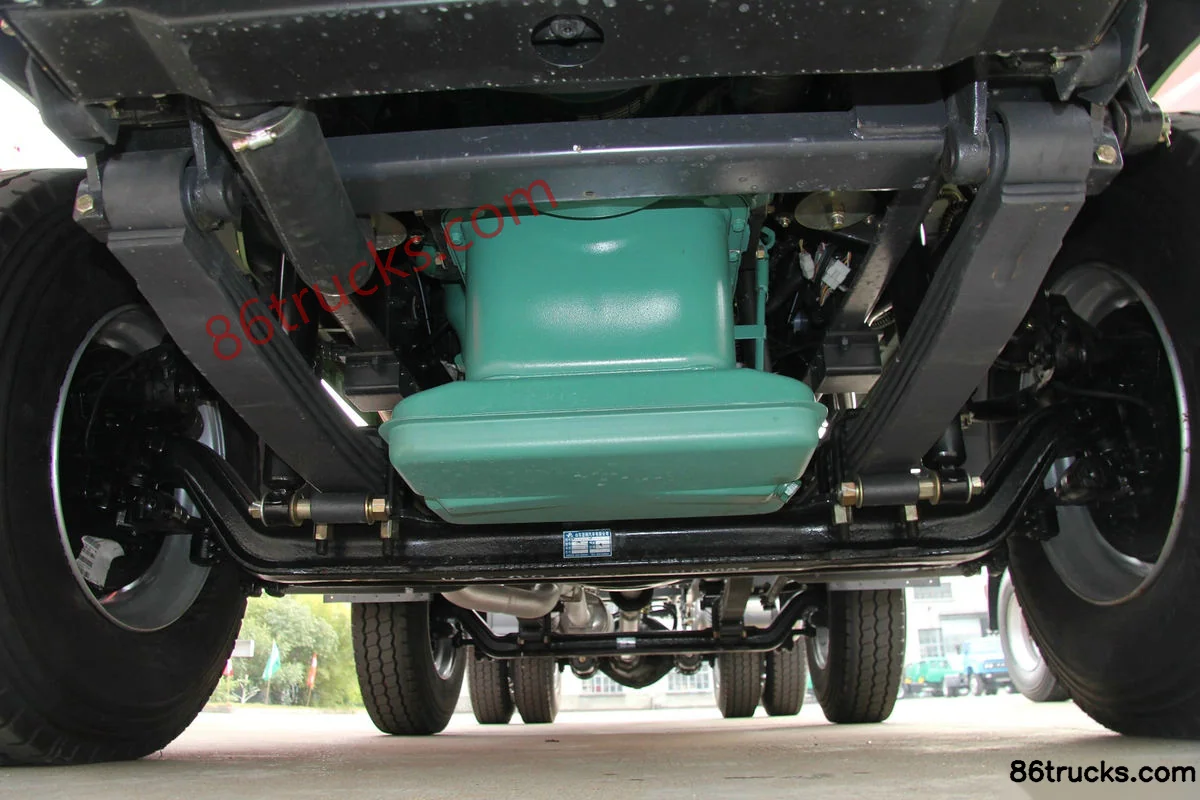

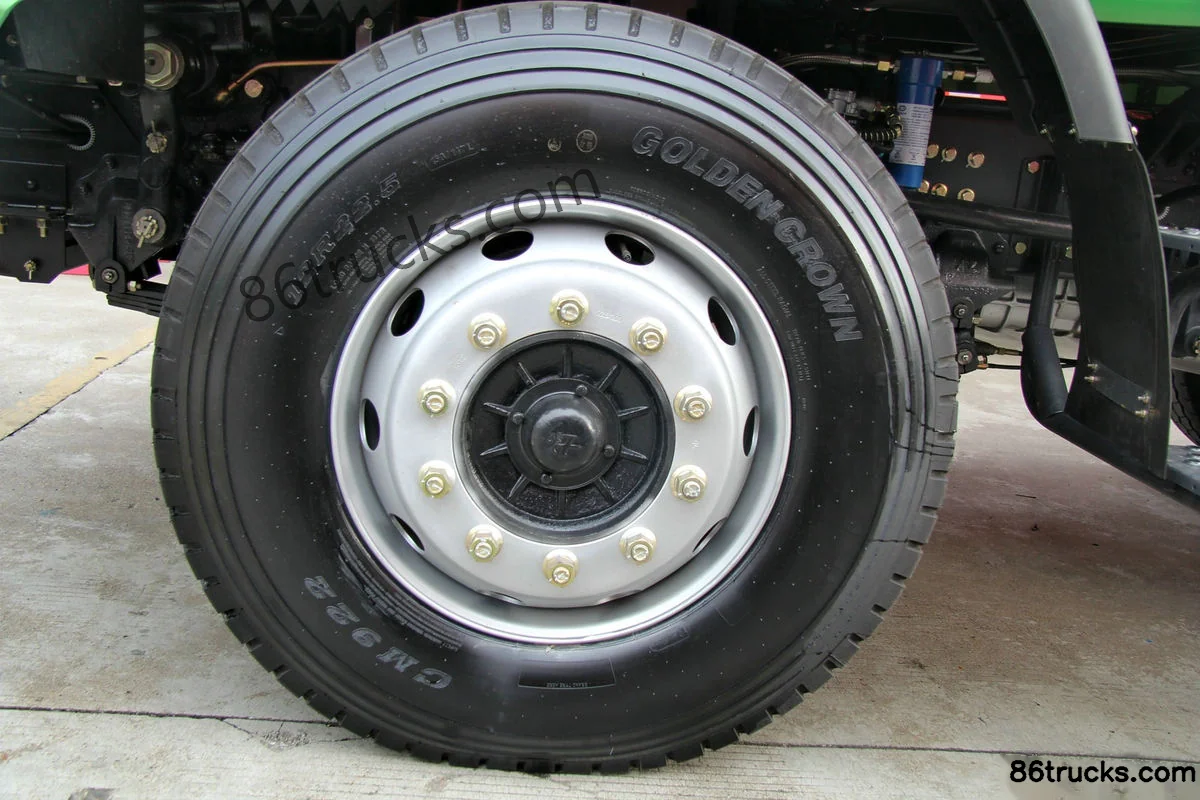

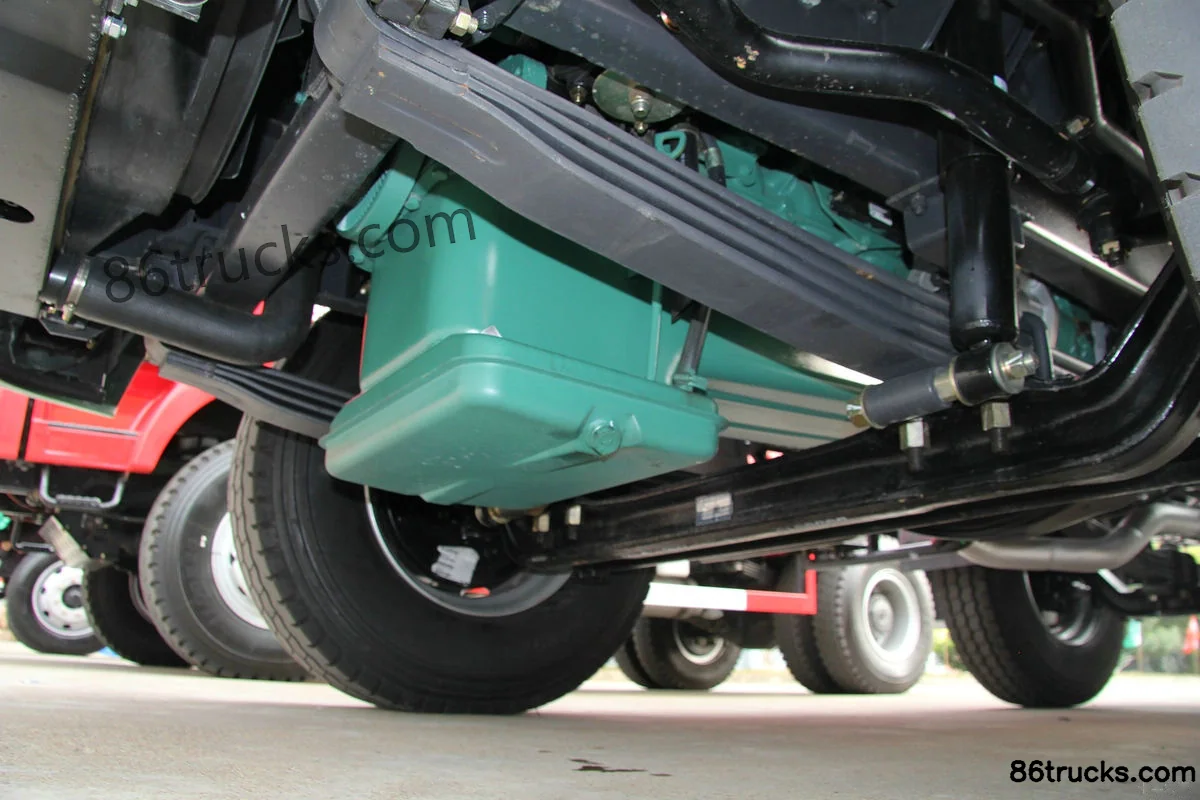

Chassis3

9 photos

FAQ

What is the export price of FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769), and what does it include?

FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) export reference is about From $46,431; MSRP is ¥33.43M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769)?

Key specs of FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769): Drive: 6x2; Horsepower: 350 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) suited for?

FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) differ from other variants in the same series?

FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769) belongs to FAW Jiefang Qingdao Anjie L5R Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute New Anjie (L5R) Heavy Truck 350 hp 6X2(8 wheels) LNG Long-Nose Tractor Truck (Ratio: 4.769)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
