Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed)

Export reference
From $17,889
MSRP ¥12.88M CNY
Horsepower: 168
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Fast Gear
Curb Weight:: 6.31ton
seating capacity: 3Personnel
Rated payload: 9.295ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) is a Medium-duty truck featuring 6.7m cargo length, Van body cargo body, 3Personnel volume and 9.295t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5165XXY-2
Type: Chassis
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.7m
engine: FotonISF3.8s4R168
transmission: Fast Gear6J70T
Rear Axle Ratio: 5.286
Cab length: 8.498m
Cab width: 2.5m
Cab height: 3.78m
Front track width: 1907mm
rear track: 1810mm
Curb Weight: 6.31ton
Rated payload: 9.295ton
GVWR: 15.8ton
Max. speed: 90km/h
Origin: Zhucheng, Shandong; Beijing; Zhucheng, Shandong
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 11°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport, daily industrial goods transport
Front/rear suspension: 1.350/2.148m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear6J70T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.7m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5800kg
Frame Dimensions: 234×70×6-865mm
rear axle description: 1092Z
rear axle allowable load: 10000kg
Axle ratio: 5.286
Leaf spring count: 8/10+3
Suspension (front/rear): Leaf spring
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

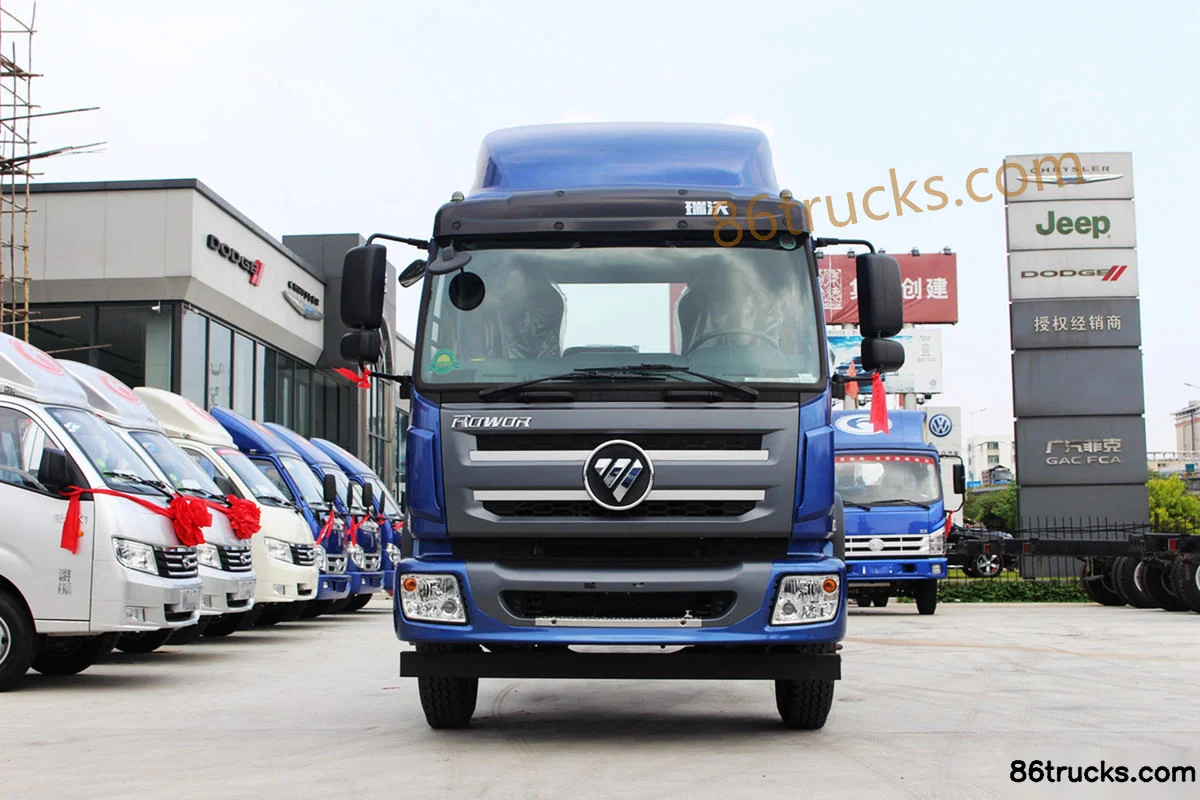

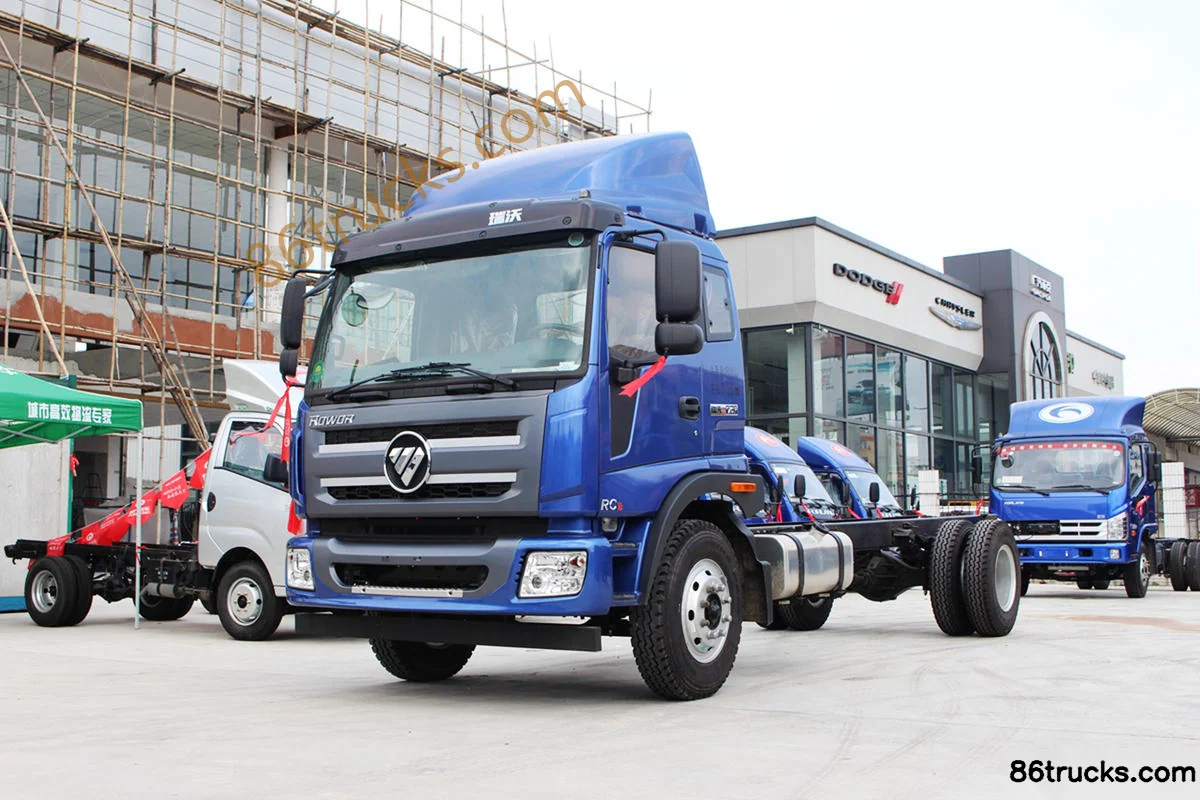

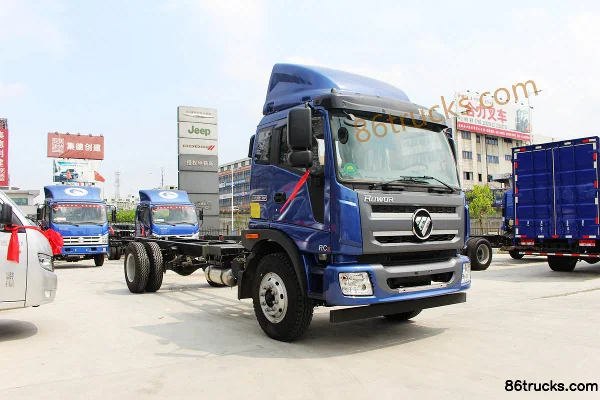

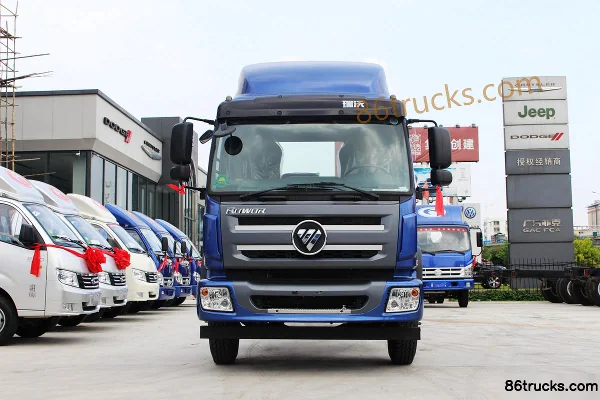

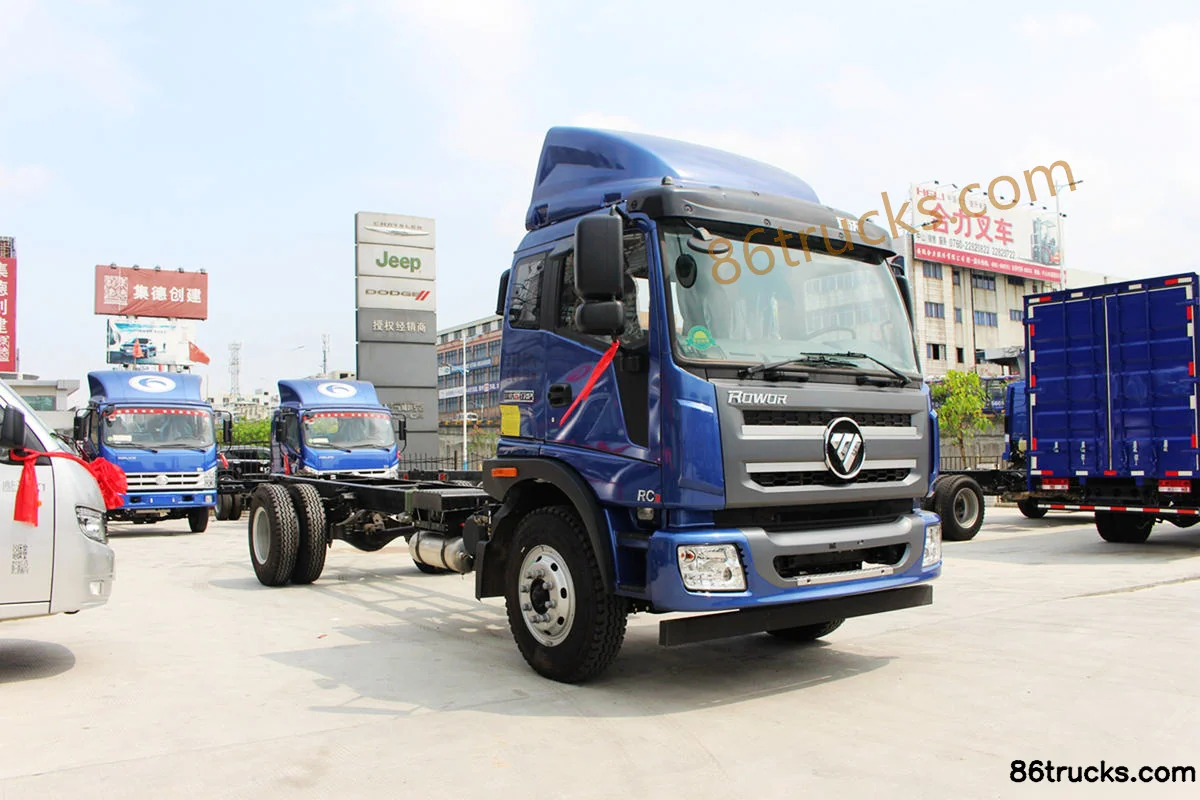

Exterior3

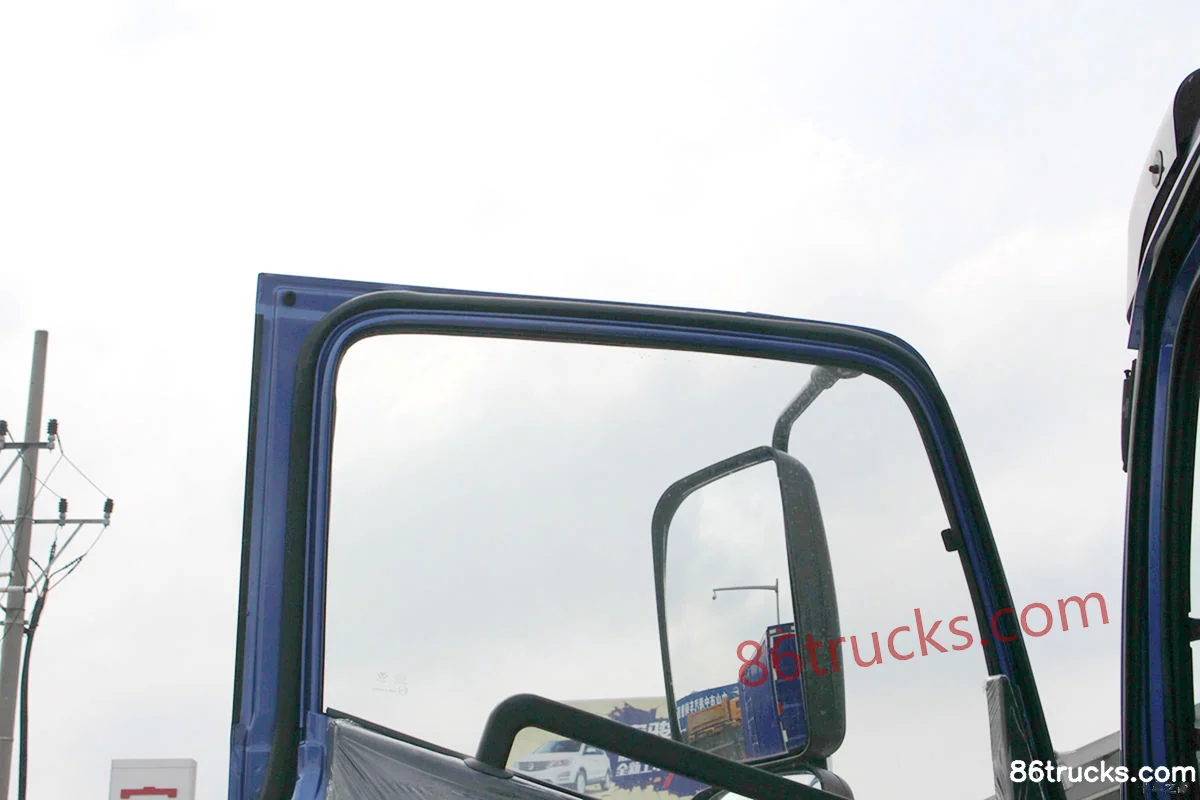

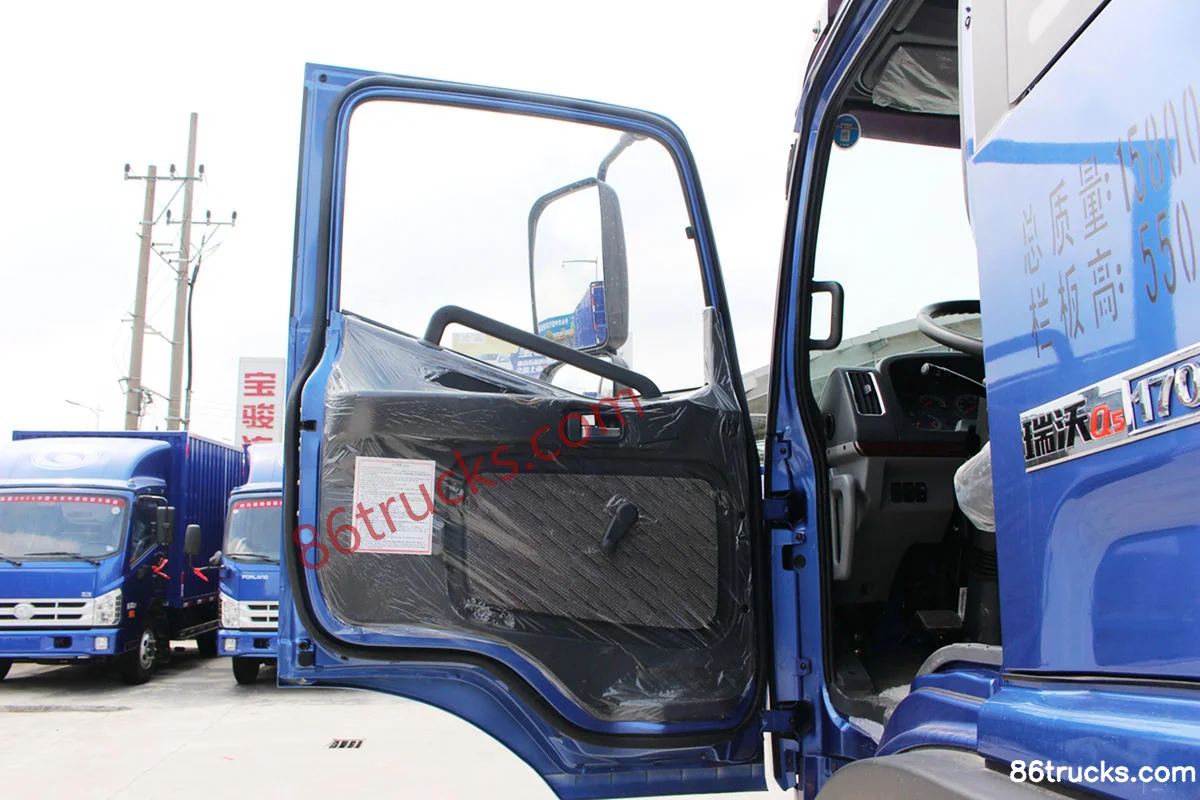

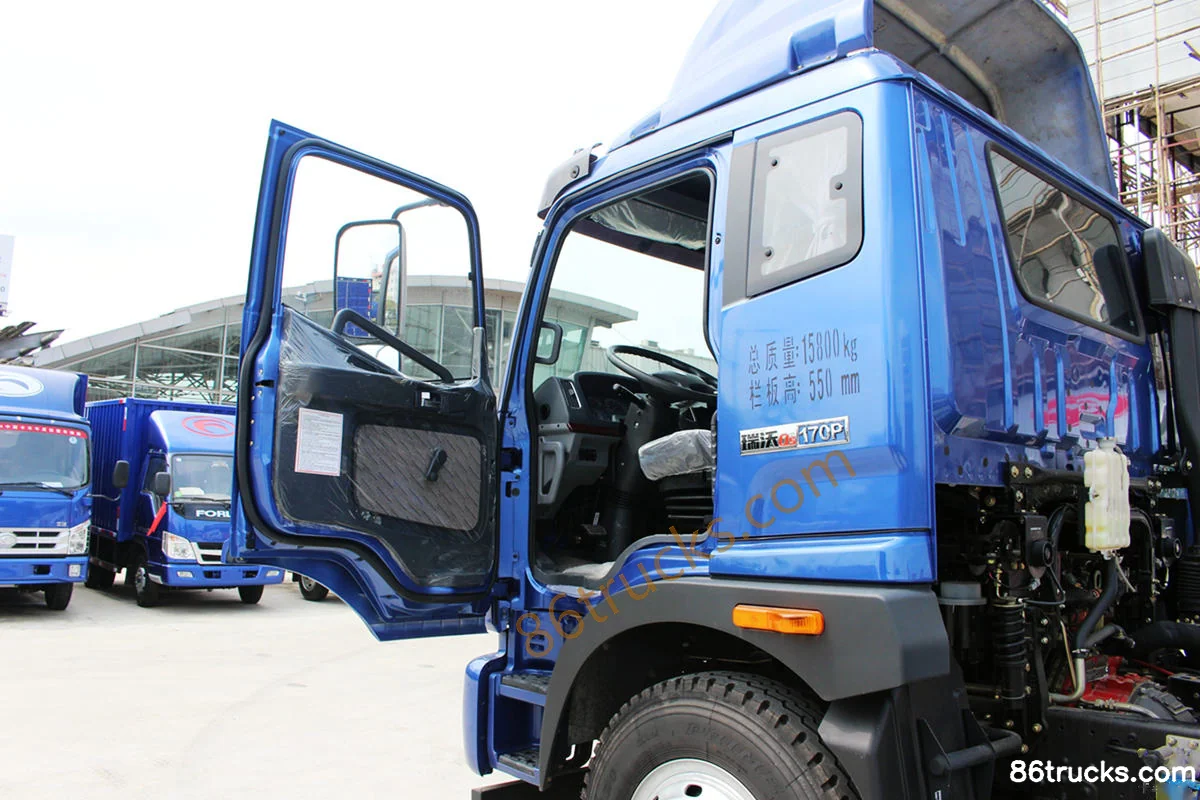

Cab3

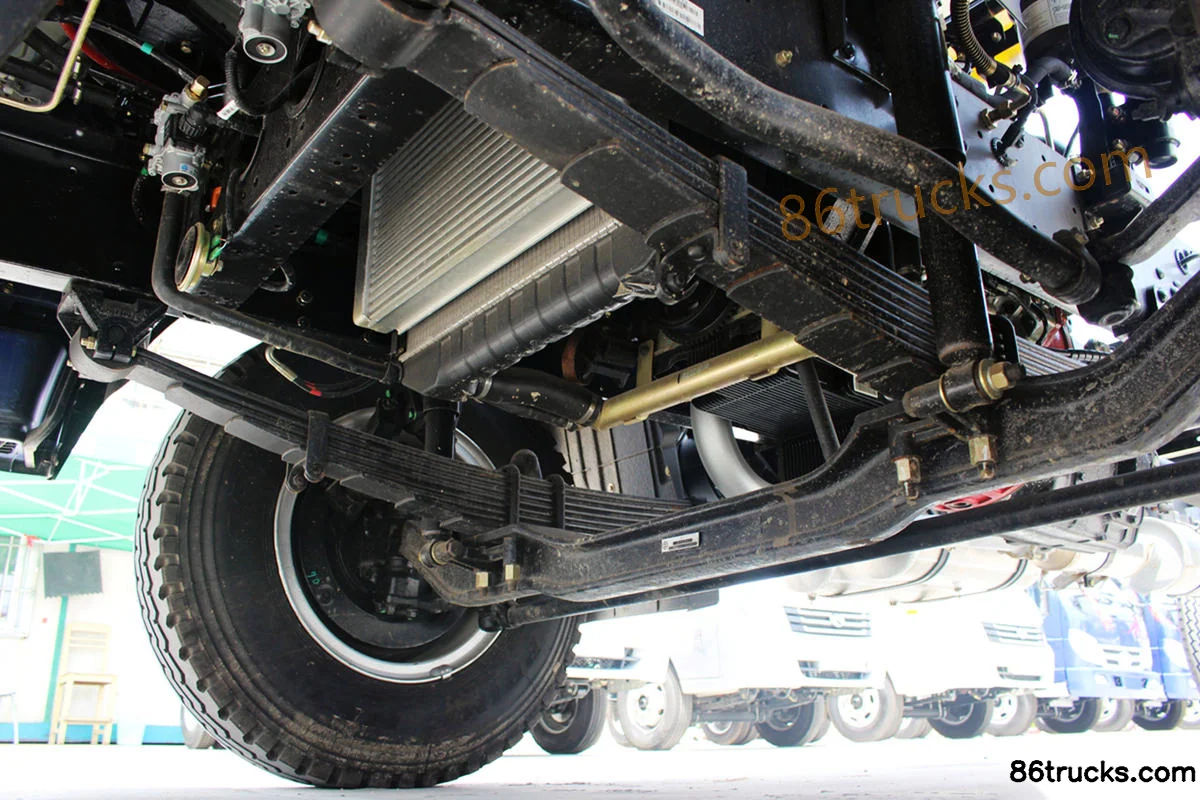

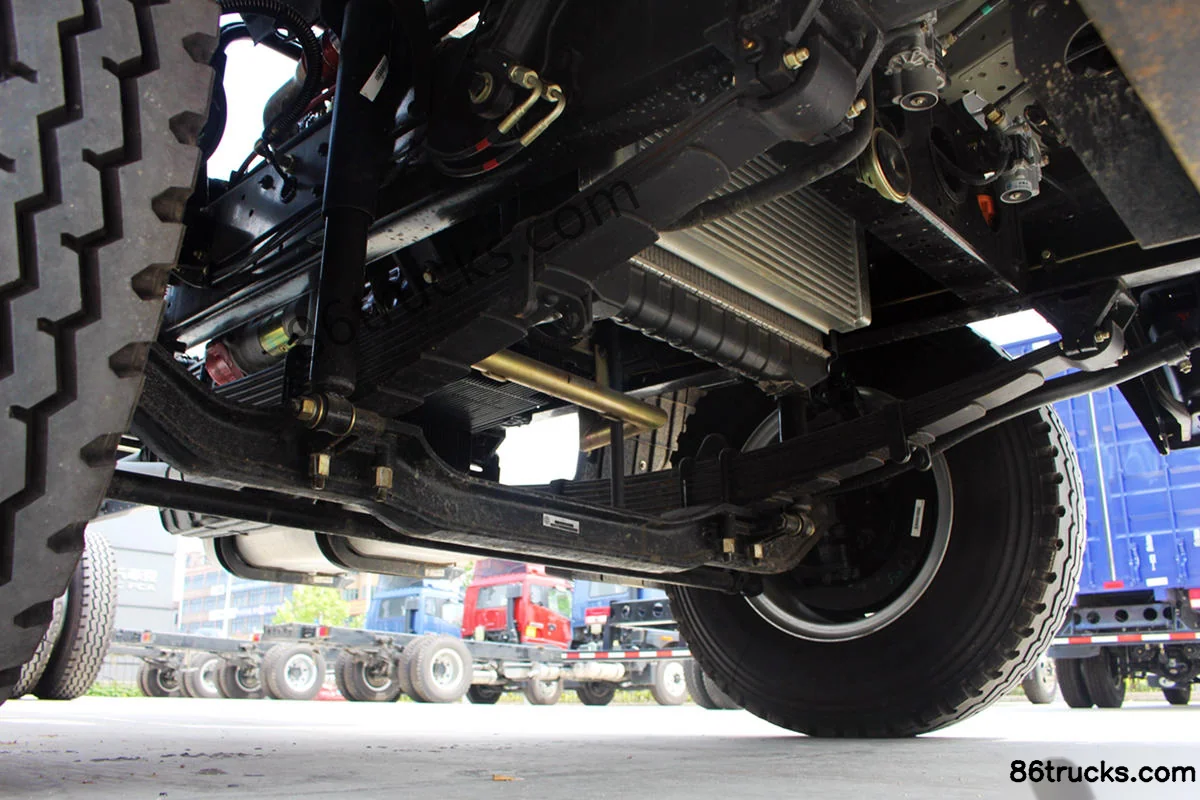

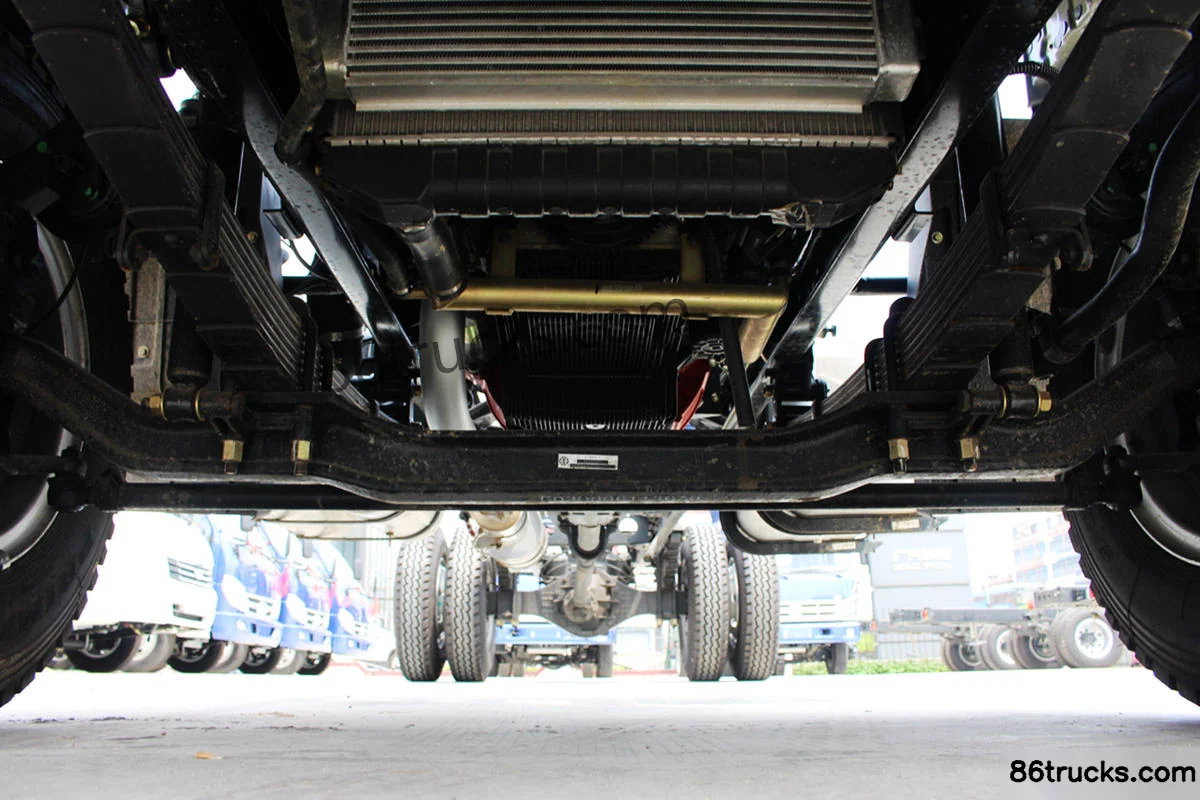

Chassis3

9 photos

FAQ

What is the export price of Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed), and what does it include?

Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) export reference is about From $17,889; MSRP is ¥12.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed)?

Key specs of Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed): Drive: 4x2; Horsepower: 168 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) suited for?

Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) differ from other variants in the same series?

Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed) belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruiwo Medium Truck 168hp 4X2(6 wheels) 6.7m Van Cargo Truck Chassis (6-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
