Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 168
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 5.82ton
Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck exterior
View more photos (6)
seating capacity: 3Personnel
Rated payload: 7.475ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck is a Medium-duty truck featuring 6.685m cargo length, Van body cargo body, 3Personnel volume and 7.475t payload. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 168 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJ5131XXYZQDDWZ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.7m
engine: FotonISF3.8s4R168
transmission: WLYWLY6G120
Rear Axle Ratio: 5.286
Cab length: 8.98m
Cab width: 2.475m
Cab height: 3.63m
Front track width: 1721mm
rear track: 1740mm
Curb Weight: 5.82ton
Rated payload: 7.475ton
GVWR: 13.49ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Front/rear suspension: 1.21/2.57m
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: WLYWLY6G120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.685m
Cargo box width: 2.29m
Cargo box height: 2.3m
*Cargo box interior width: 2.289999961853
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 4370kg
rear axle allowable load: 9120kg
Axle ratio: 5.286
Leaf spring count: 9/9+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Radio:
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

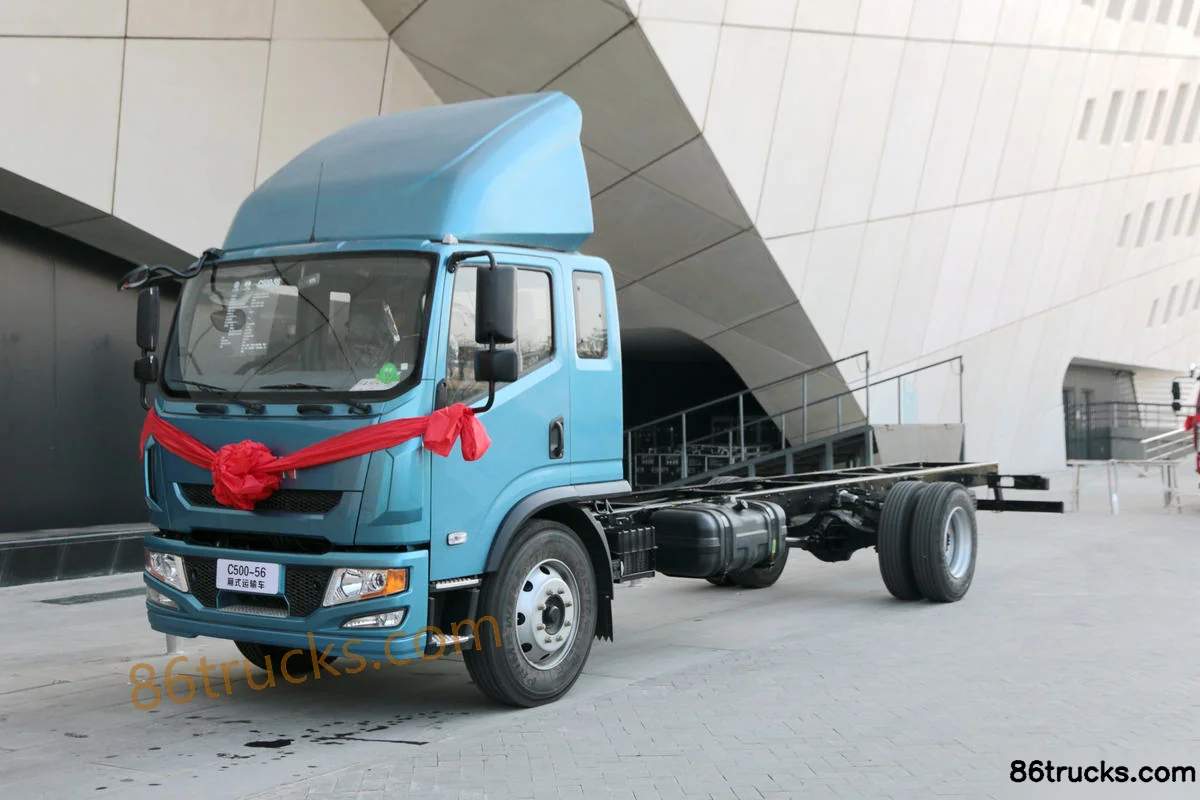

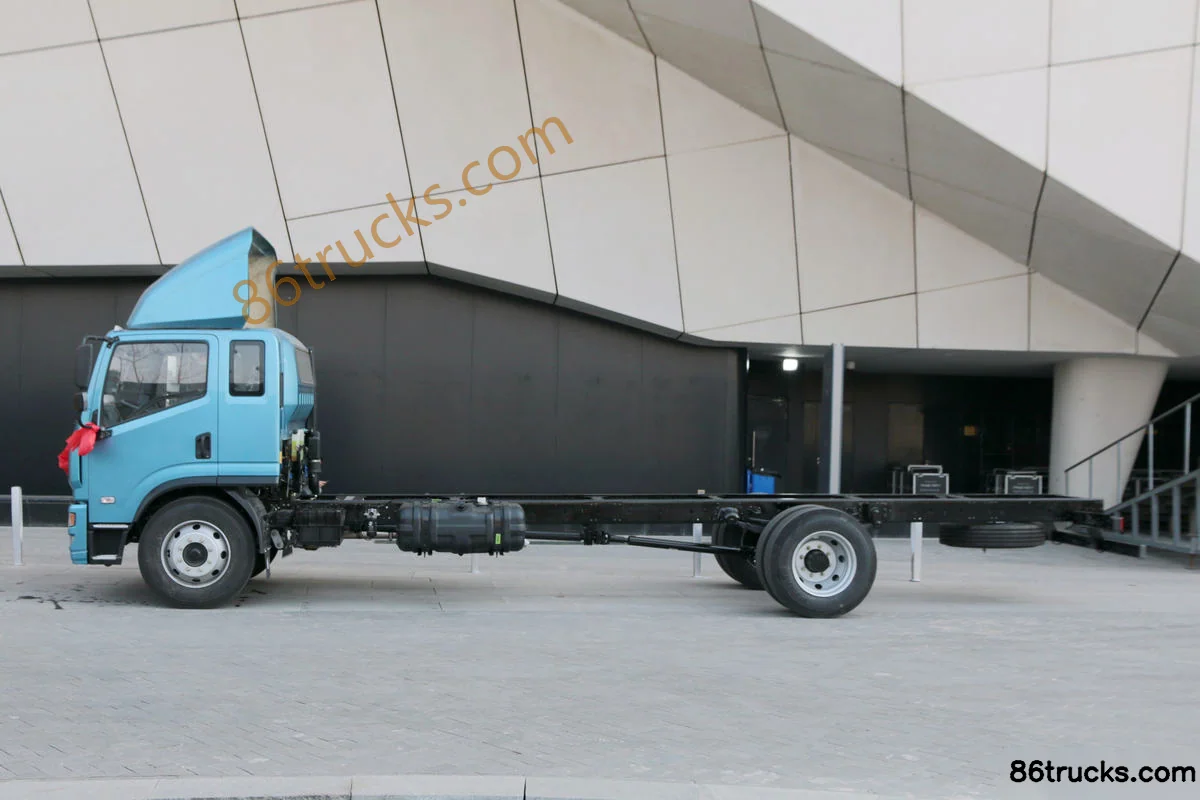

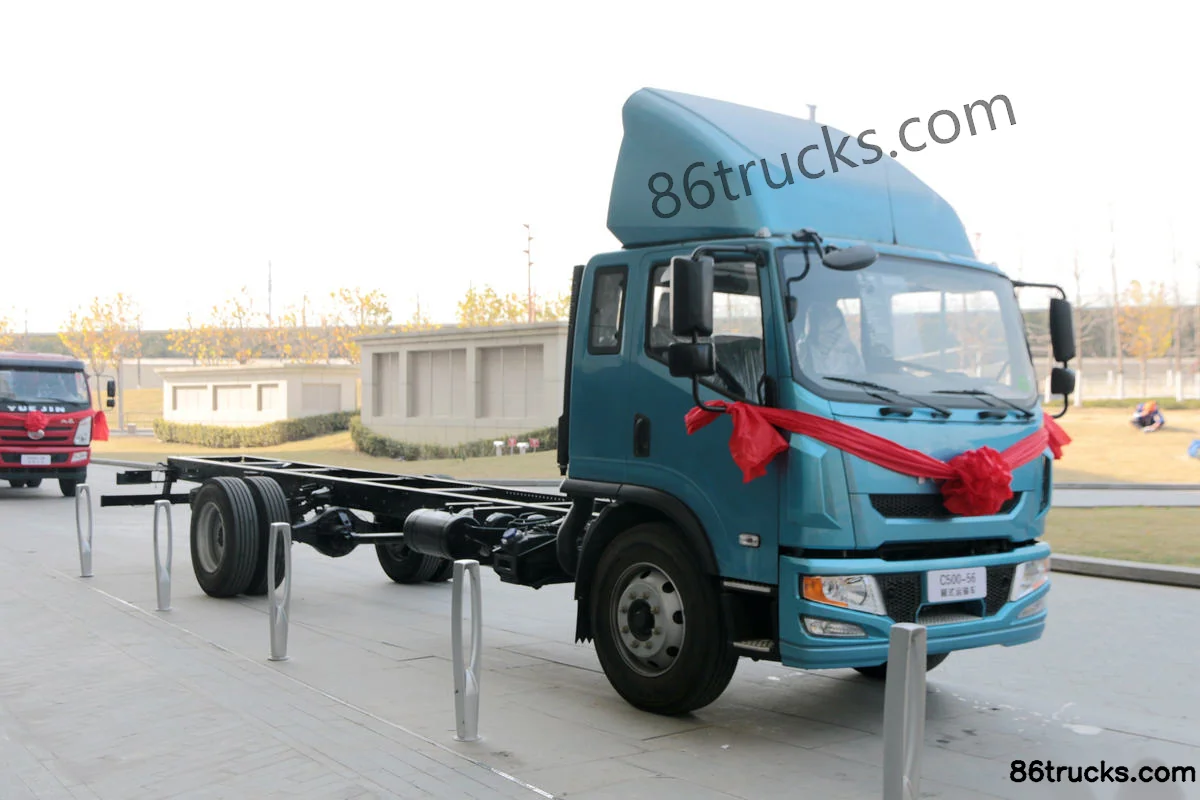

Exterior3

Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Exterior (1) | 86Trucks Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Exterior (2) | 86Trucks Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Exterior (3) | 86Trucks

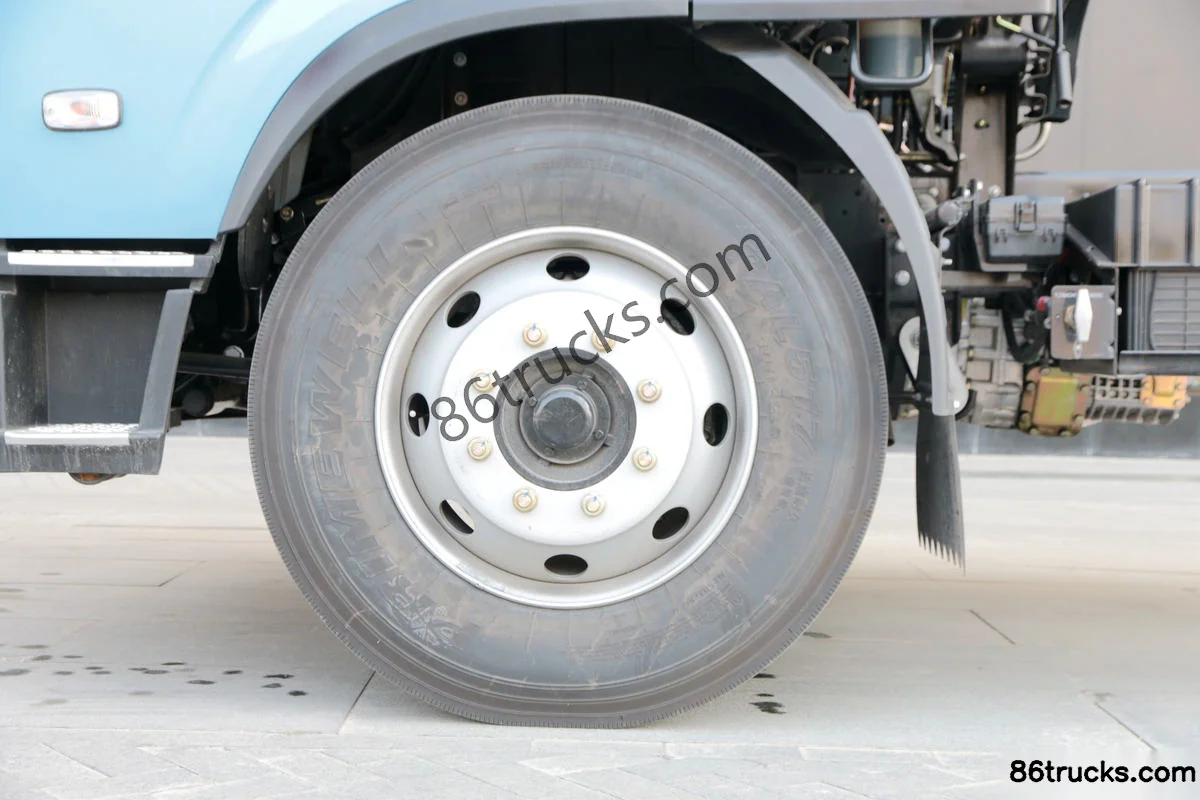

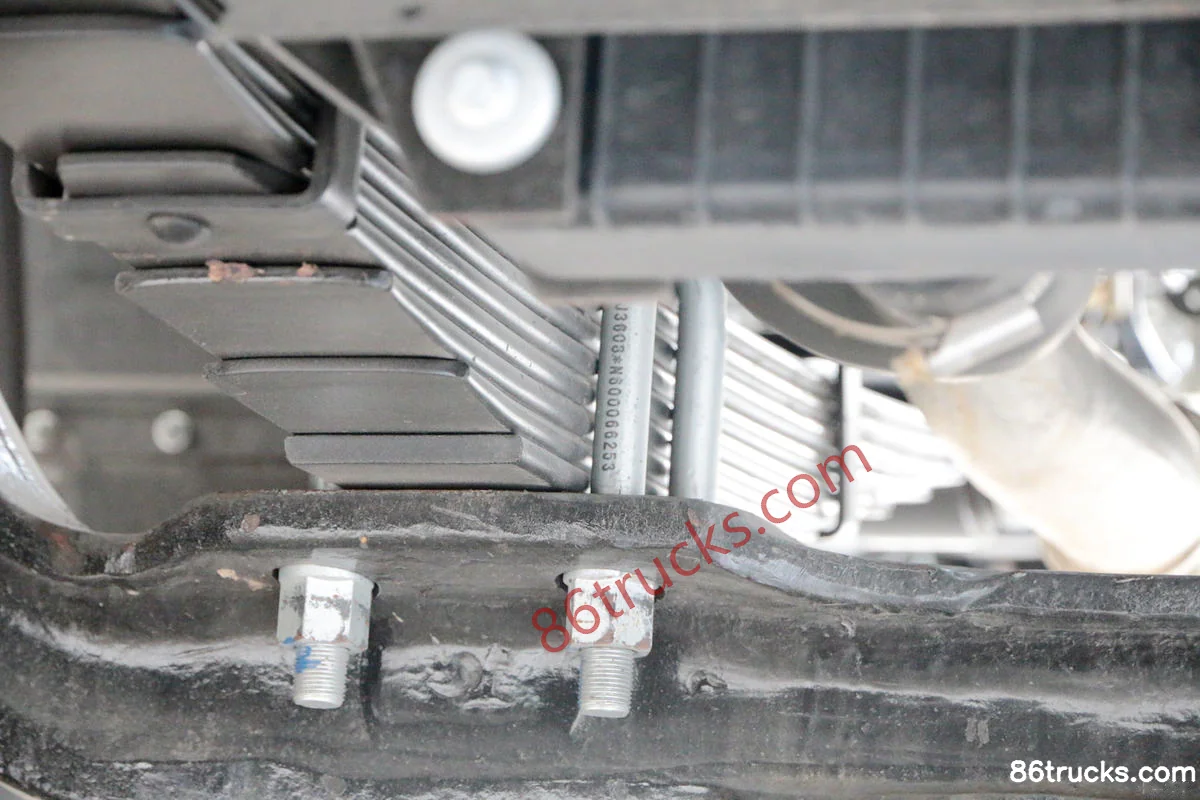

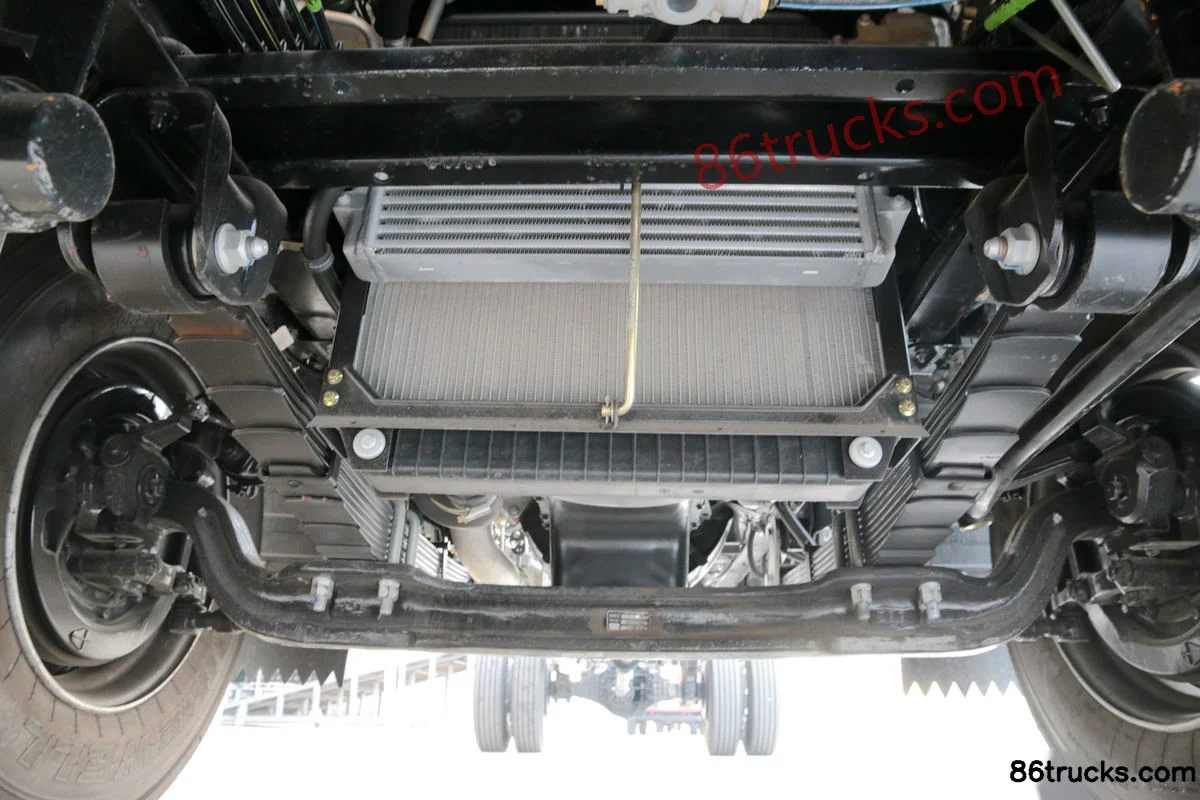

Chassis3

Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Chassis (1) | 86Trucks Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Chassis (2) | 86Trucks Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck?

Key specs of Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck: Drive: 4x2; Horsepower: 168 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck suited for?

Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck differ from other variants in the same series?

Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C500-52 Premium Edition 168 hp 4X2(6 wheels) 6.7m Semi-row Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
