Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific)

Export reference
MSRP N/A
Product ID:: S300
Max load capacity:: 4550kg
inner offset:: 134mm
Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) exterior
View more photos (1)
Specifications: 22.5x9.0
Material: aluminum alloy
bolt hole diameter: 26mm

Overview

The Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) is a parts product with spec 22.5x9.0, aluminum alloy material and 26mm size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Product ID: S300
Specifications: 22.5x9.0
Max load capacity: 4550kg
inner offset: 134mm
Weight: 30.6kg
bolt hole diameter: 26mm
Web plate thickness: 27mm
number of bolt holes: 10
Pitch circle diameter: 335mm
Center Hole Diameter: 281.2mm
Material: aluminum alloy
Reference tire specification: Michelin295/80R22.5 X LINE ENERGY Z；Michelin 11R22.5 X Coach Energy_Z；Michelin 315/80R22.5 XZA 2+ ENERGY；Michelin 12R22.5 X MULTI Z；
Remarks: Bolt hole diameters: 26mm and 32mm. Enhances front wheel load capacity, suitable for front wheels of medium- and long-haul vehicles. Features Powder Coating (PC) surface treatment, offering outstanding mechanical strength, adhesion, corrosion resistance, aging resistance, and weather resistance. The coating is soft, high-gloss, and not prone to peeling, with good acid and alkali resistance and corrosion resistance, making daily maintenance easier.

Photos

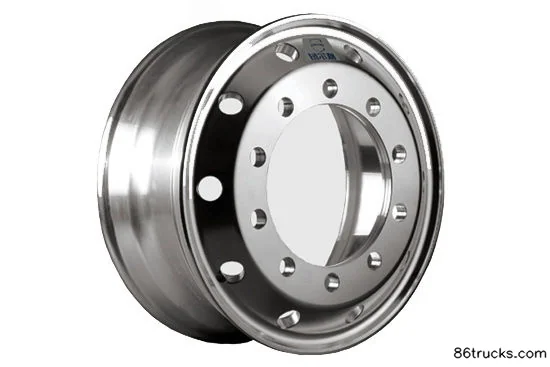

Exterior1

Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) suited for?

Match Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) differ from other variants in the same series?

Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific) belongs to Weirn 22.5-inch Wheel (Wheel). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Weirn 22.5x9(8 wheels).00 aluminum alloy wheel (Model: S300) (front wheel specific)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
