Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels)

Export reference
From $20,986
MSRP ¥15.11M CNY
Rated payload:: 1.79ton
Wheelbase:: 2900mm
Cargo box type:: Van body
Model code (announced):: BJ5045XXYEV56
Type:: enclosed cargo truck
Box length class:: 3.8m
Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Foton
Curb Weight: 2.48ton

Overview

The Foton Forland Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) is a Light Truck featuring 260km battery/range, Foton motor, 4X2 (6 wheels) drive and 1.79t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5045XXYEV56
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2900mm
Box length class: 3.8m
Cab length: 5.605m
Cab width: 1.97/2.06m
Cab height: 2.785m
CLTC range: 260km
Curb Weight: 2.48ton
Rated payload: 1.79ton
GVWR: 4.4ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Remarks: Standard: heated rearview mirrors
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP090A
Motor Type: Permanent magnet synchronous motor
total rated power: 45kW
Peak power: 90kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: EVE
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 66.53kWh
fast charge time: 1.35h
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.8m
Cargo box width: 1.87/1.96m
Cargo box height: 1.9m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1600kg
rear axle allowable load: 2800kg
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

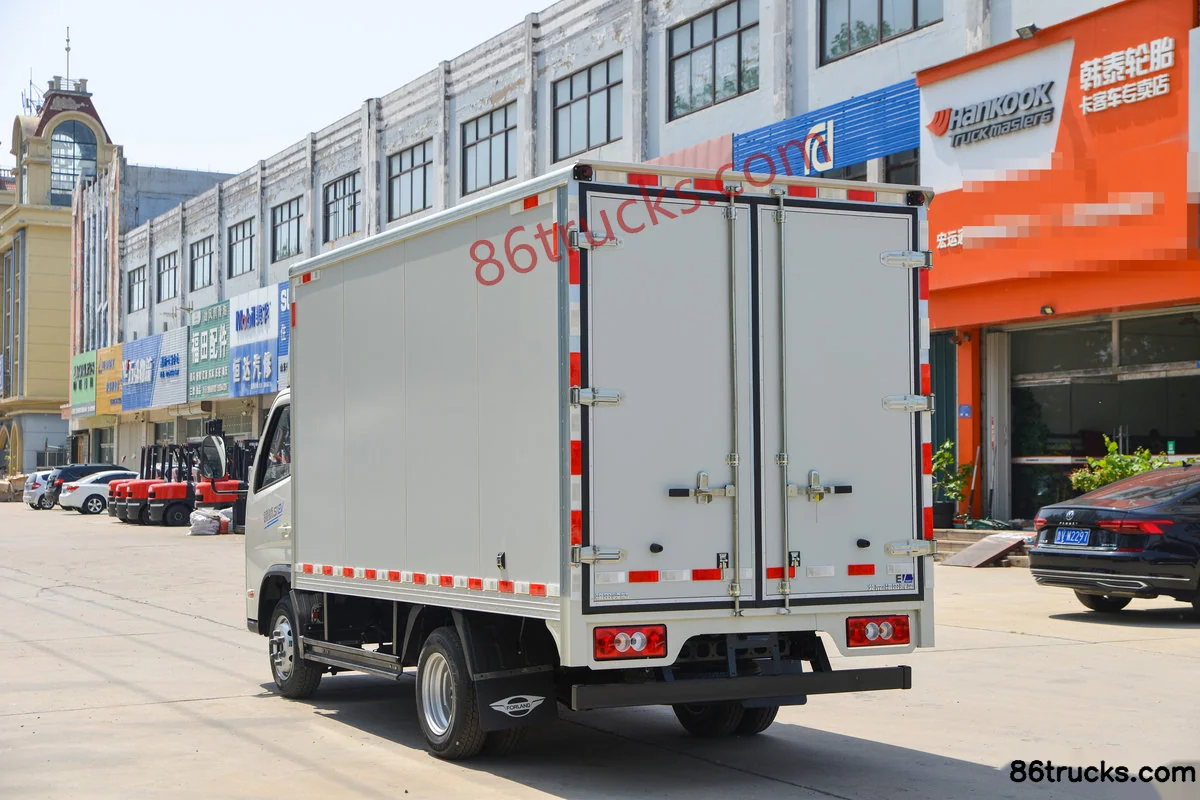

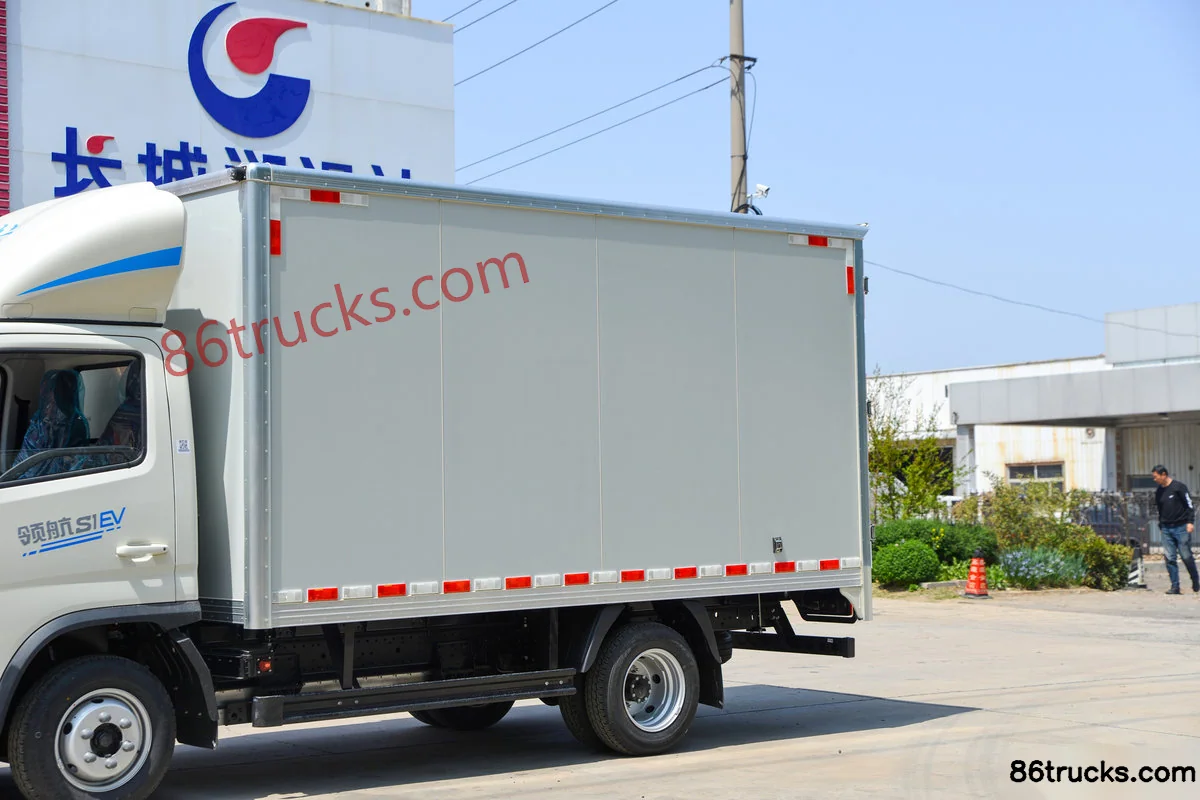

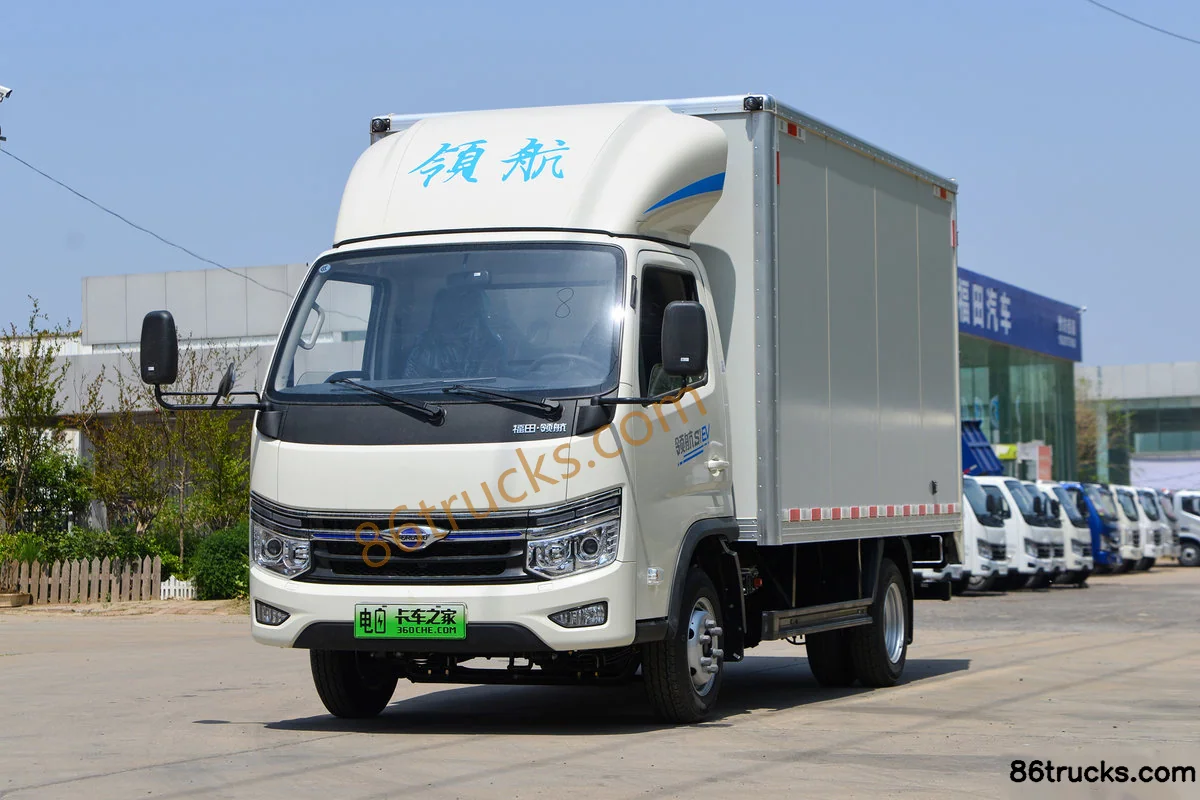

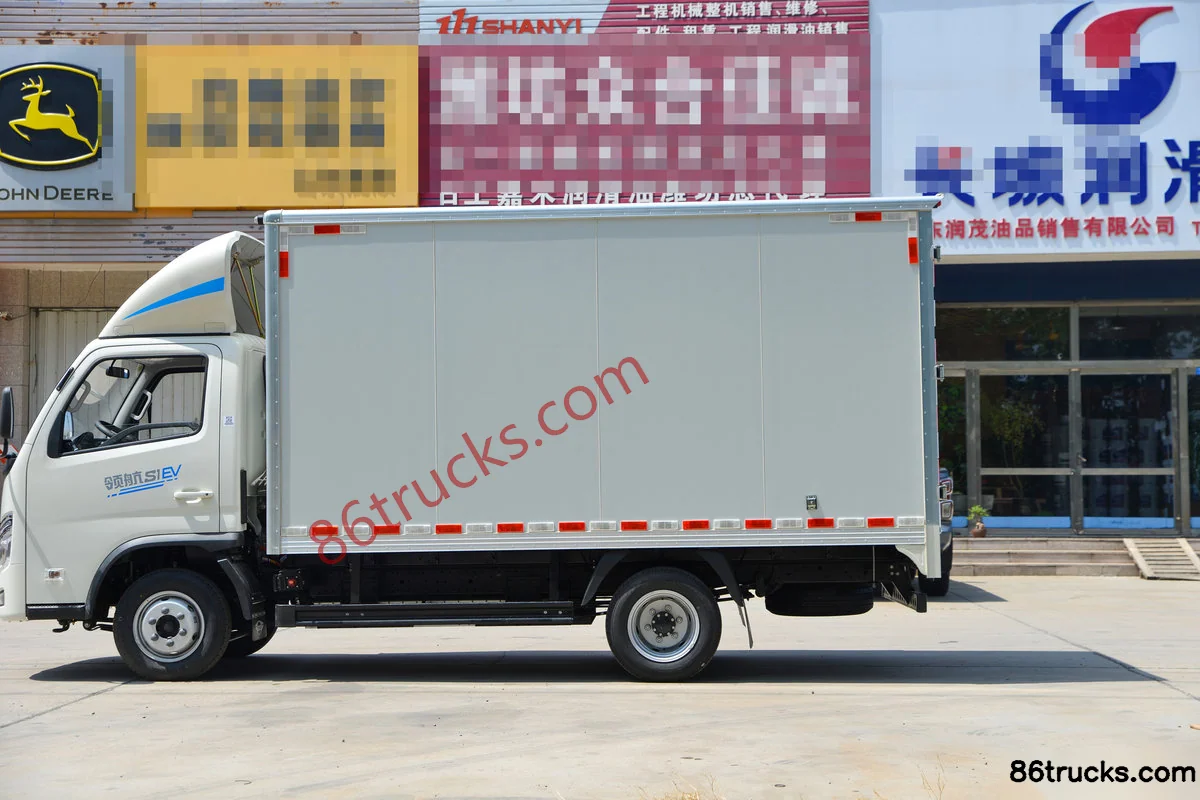

Exterior3

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Exterior (1) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Exterior (2) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Exterior (3) | 86Trucks

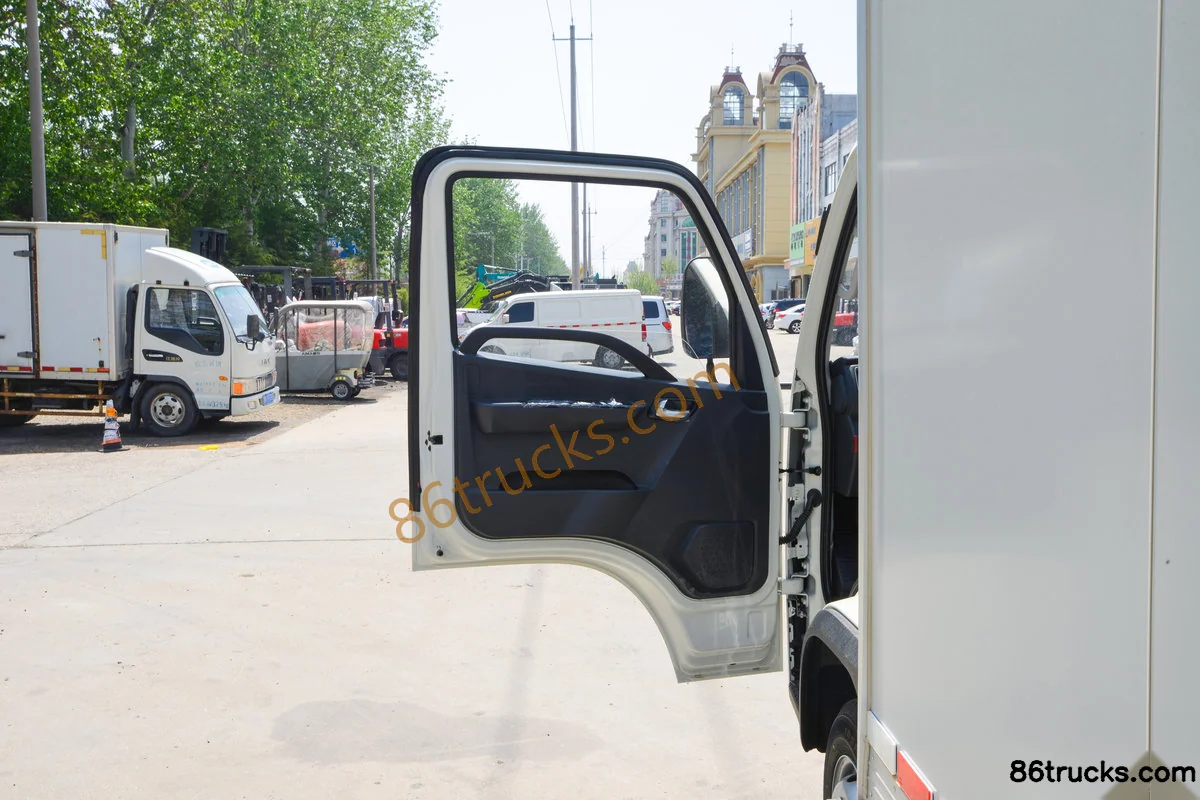

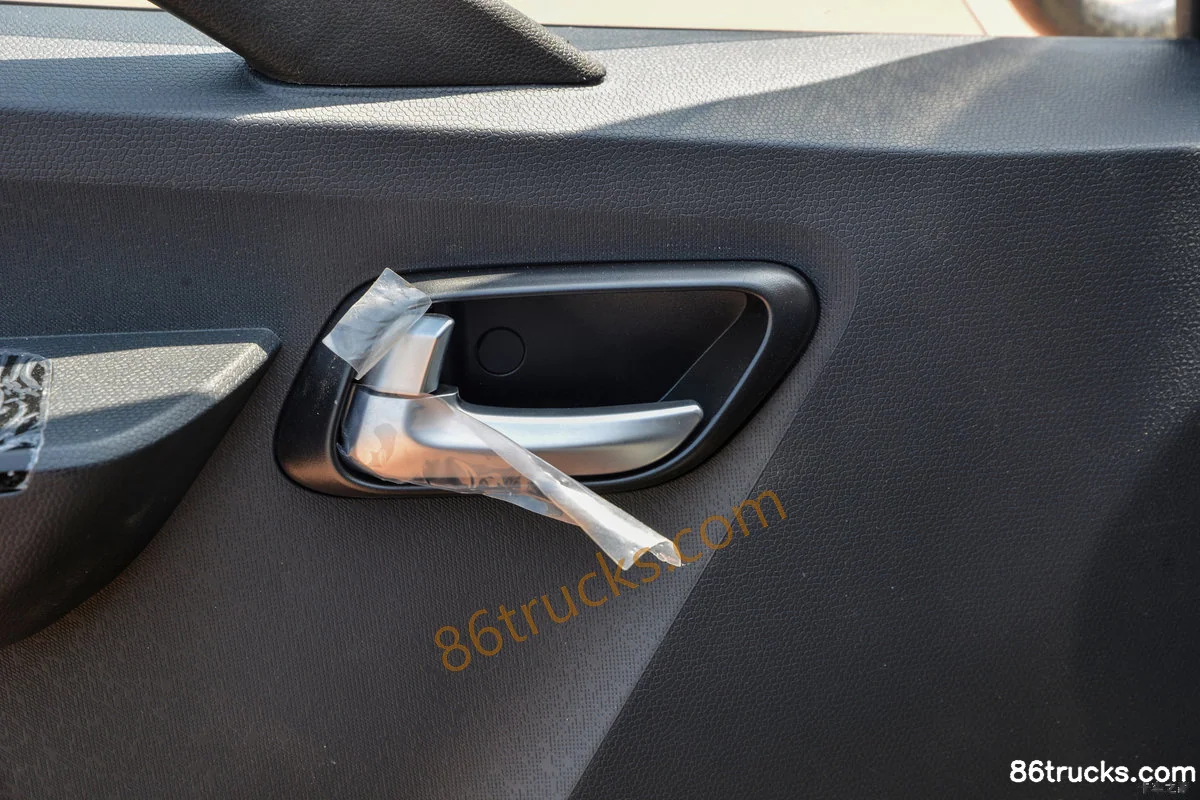

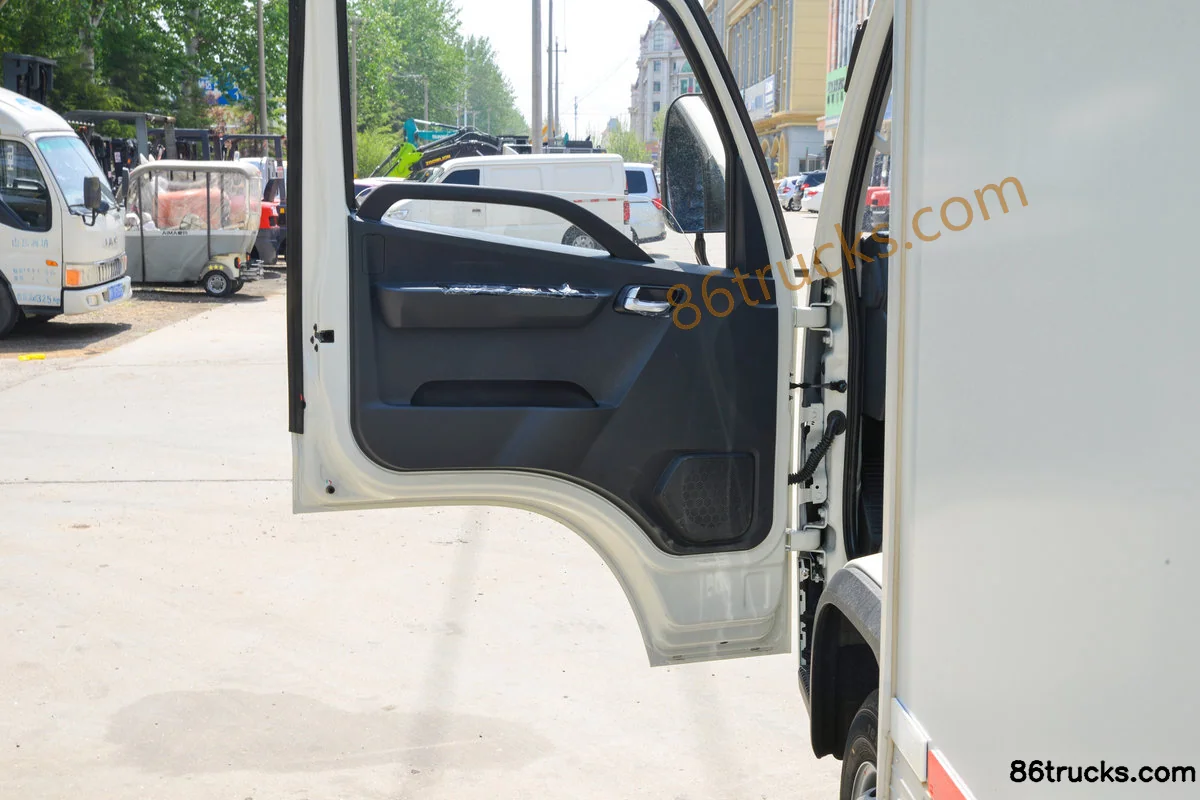

Cab3

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Cab (1) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Cab (2) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Cab (3) | 86Trucks

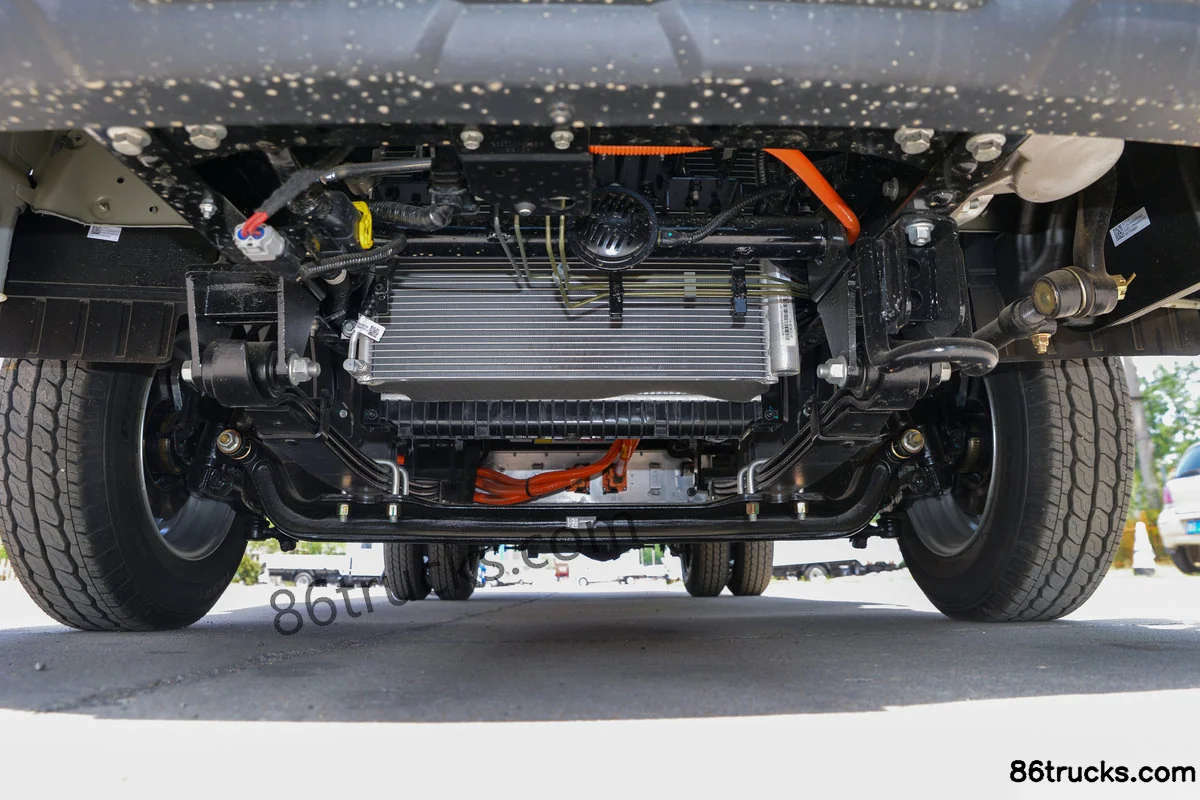

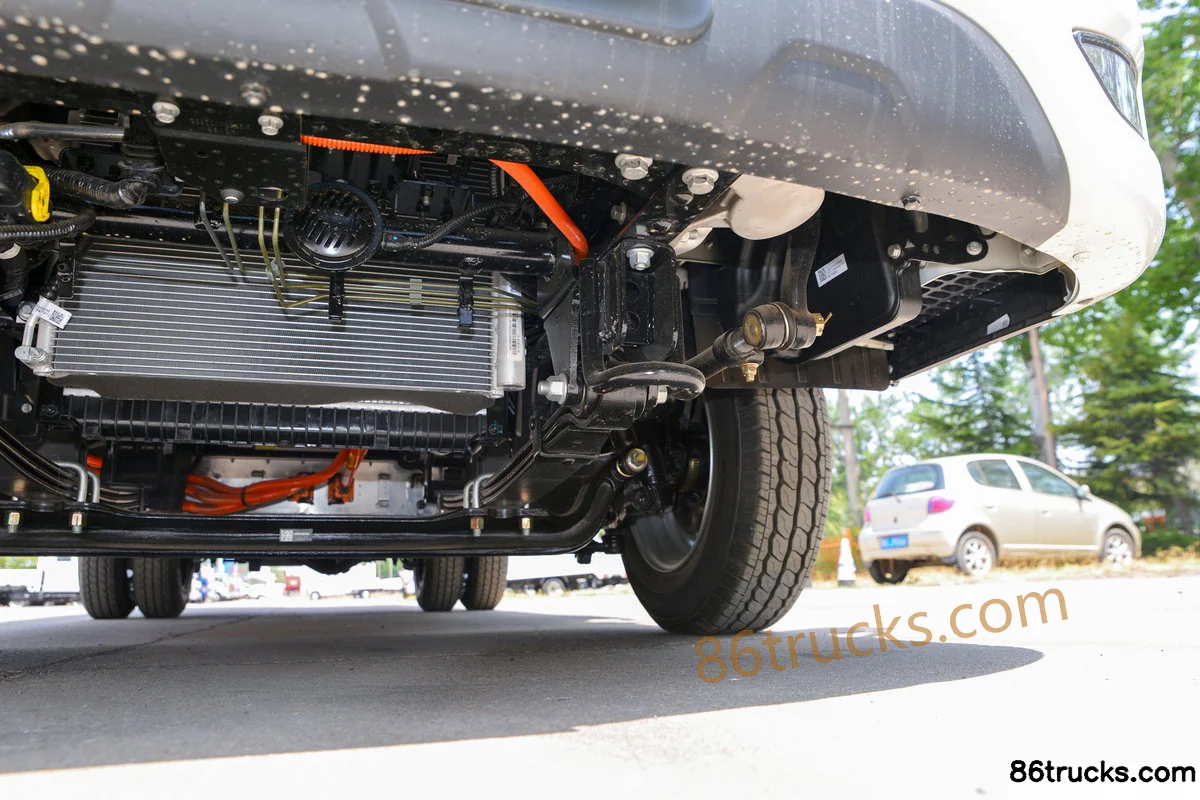

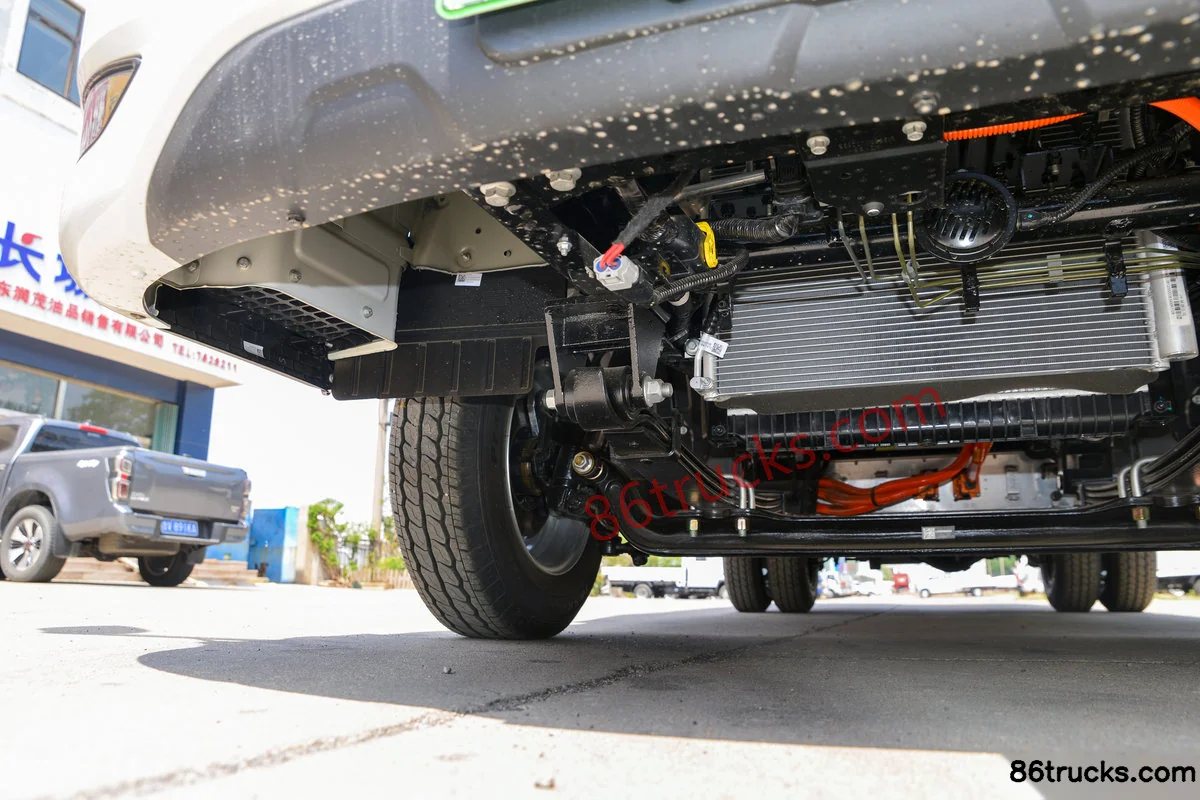

Chassis3

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Chassis (1) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Chassis (2) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Body (1) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Body (2) | 86Trucks Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels), and what does it include?

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) export reference is about From $20,986; MSRP is ¥15.11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels)?

Key specs of Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) suited for?

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels) belongs to Foton Times Pilot S1 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Linghang S1 hydraulic brake 3.8m single-row van mini truck EVE 66.53kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
