Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 9.955ton
Wheelbase:: 3950mm
Tire Size:: 9.00-20 10PR
Front axle allowable load:: 2800kg
Displacement:: 2.982L
Drive 4X2 (6 wheels)
Horsepower 115
Emission China V
Transmission Jiangkai

Overview

The Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) is a Medium-duty truck featuring 4X2 (6 wheels) drive, 115 hp, 6.26t GVW and China V emissions. On the powertrain side, it comes with a YuchaiYC4FA115-50 engine, Jiangkai transmission and Diesel fuel.

China V 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5100XLHF3
Drive type: 4X2
Wheelbase: 3950mm
engine: YuchaiYC4FA115-50
transmission: Jiangkai 5S420
Rear Axle Ratio: 6.83
Cab length: 6.14m
Cab width: 2.37m
Cab height: 2.4m
Front track width: 1820mm
Gross Trailer Weight: 9.955ton
rear track: 1800mm
Curb Weight: 3.5ton
GVWR: 6.26ton
Max. speed: 85km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA115-50
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.982L
Emission standard: China V
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 300N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Jiangkai 5S420
Transmission Brand: Jiangkai
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 160L
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Front axle description: 2.8T front axle
Front axle allowable load: 2800kg
Frame Dimensions: 232mm
rear axle description: 7t cast rear axle
rear axle allowable load: 7155kg
Axle ratio: 6.83
Leaf spring count: 9/11+8
Tire

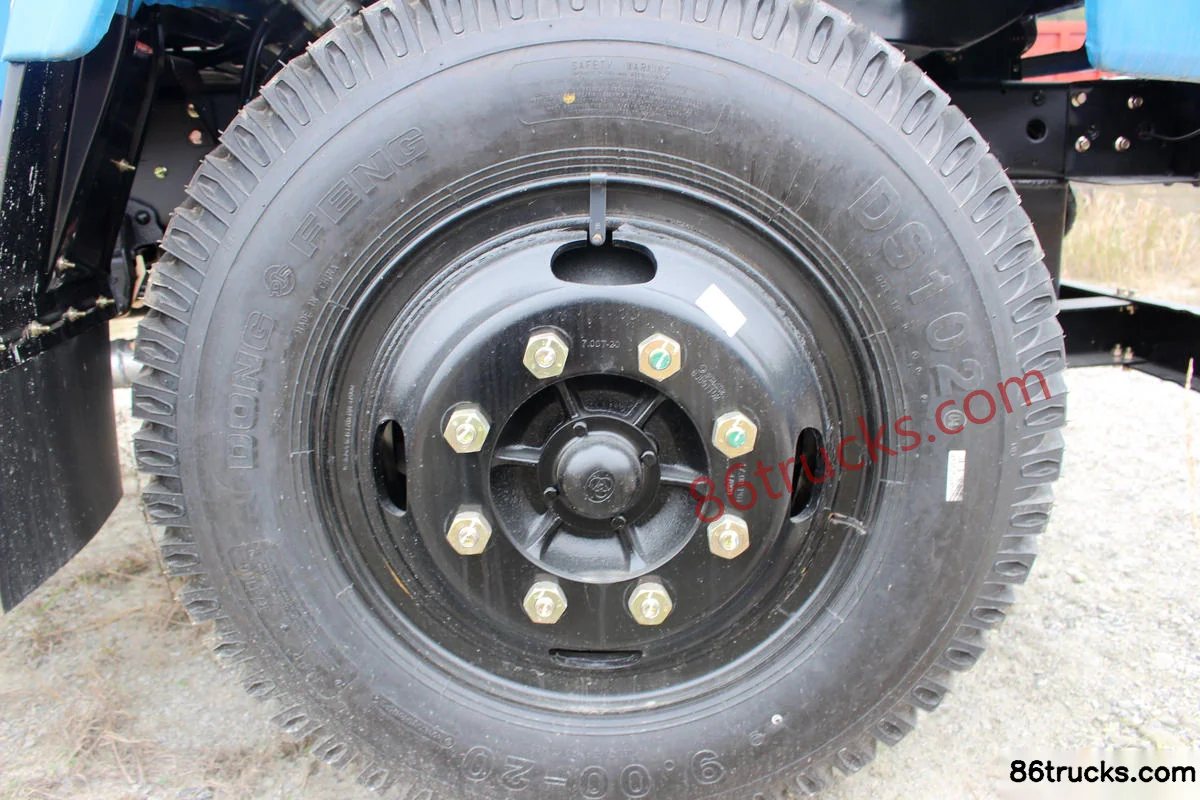

Tire Size: 9.00-20 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

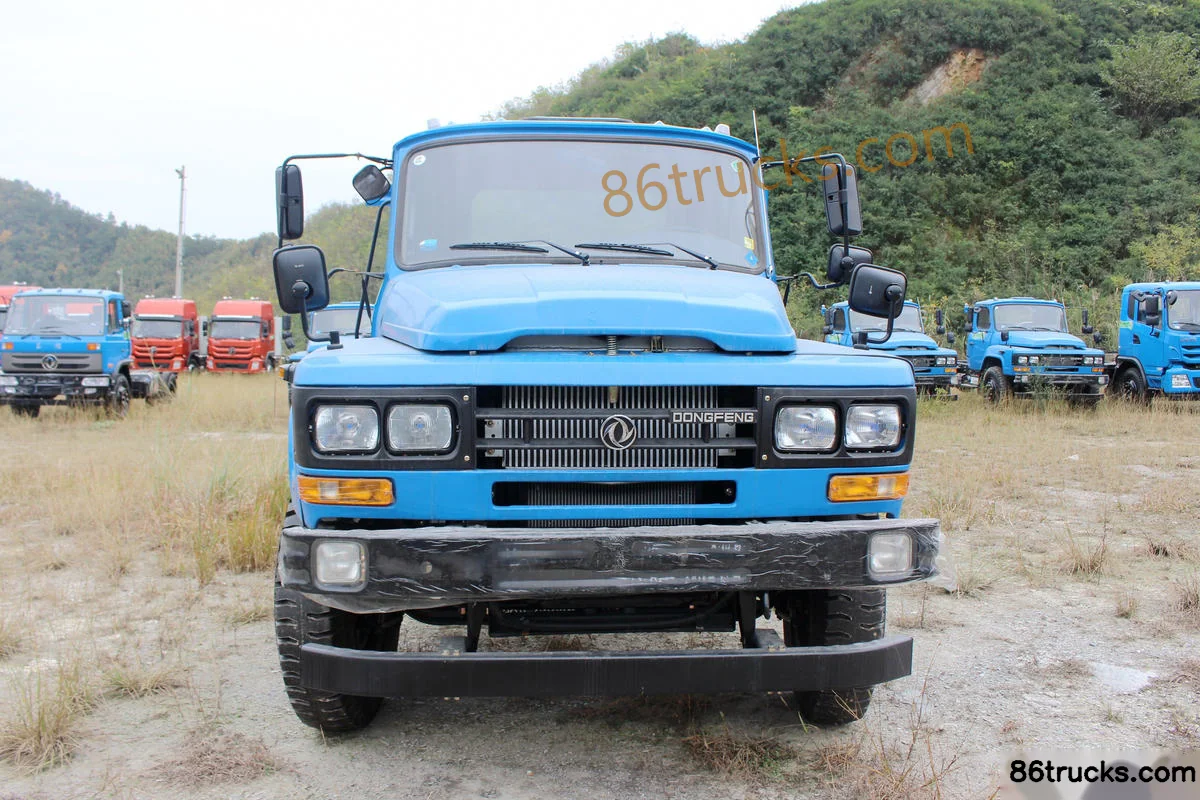

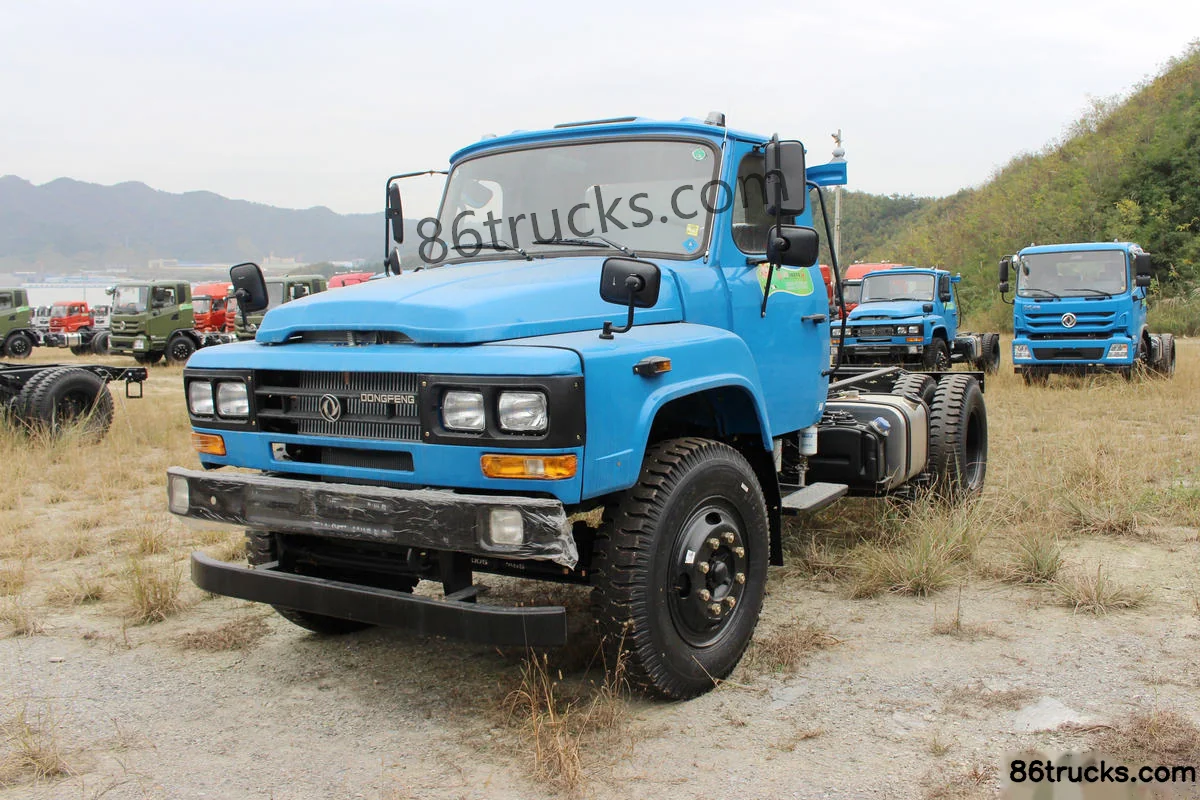

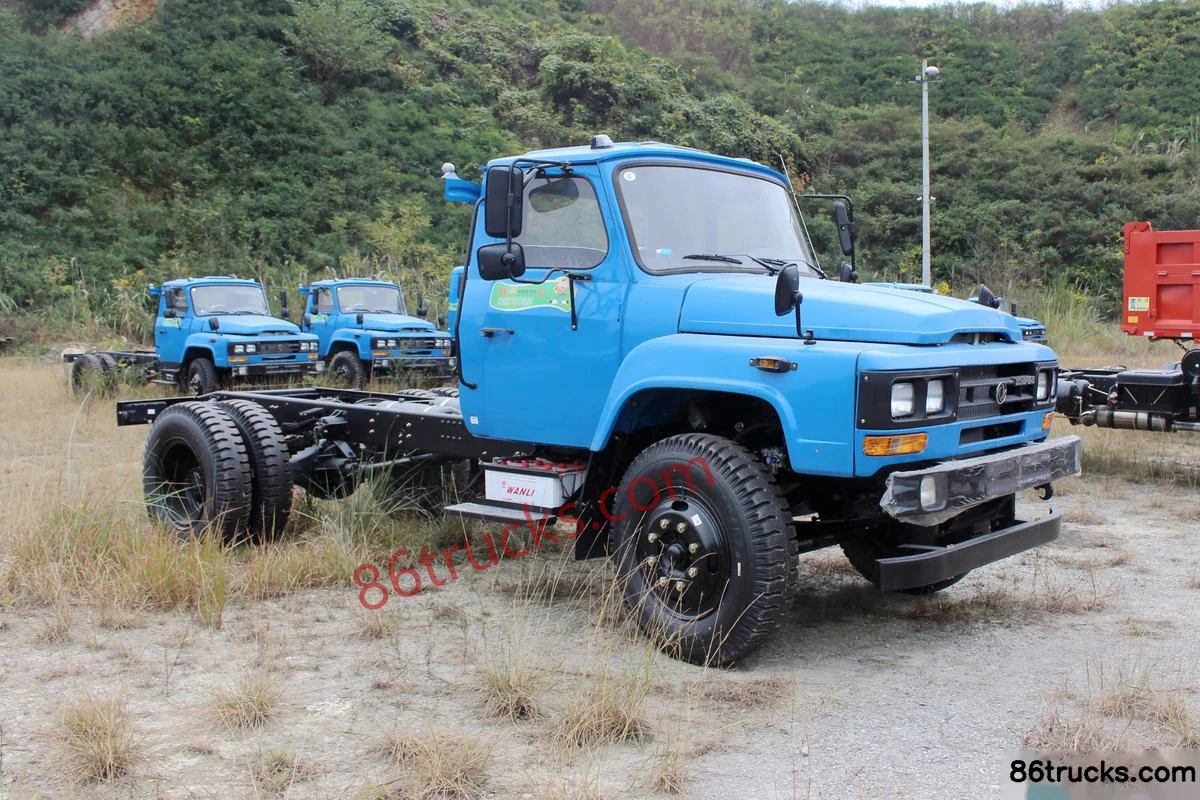

Exterior3

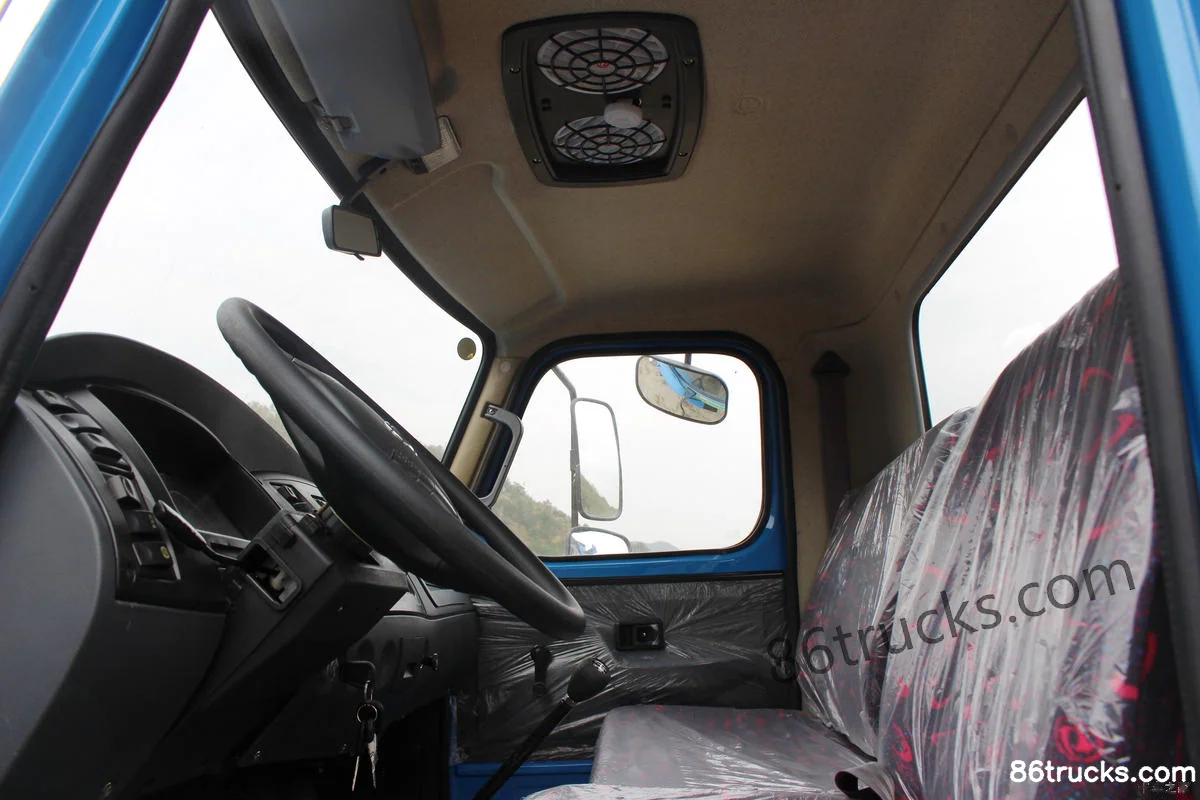

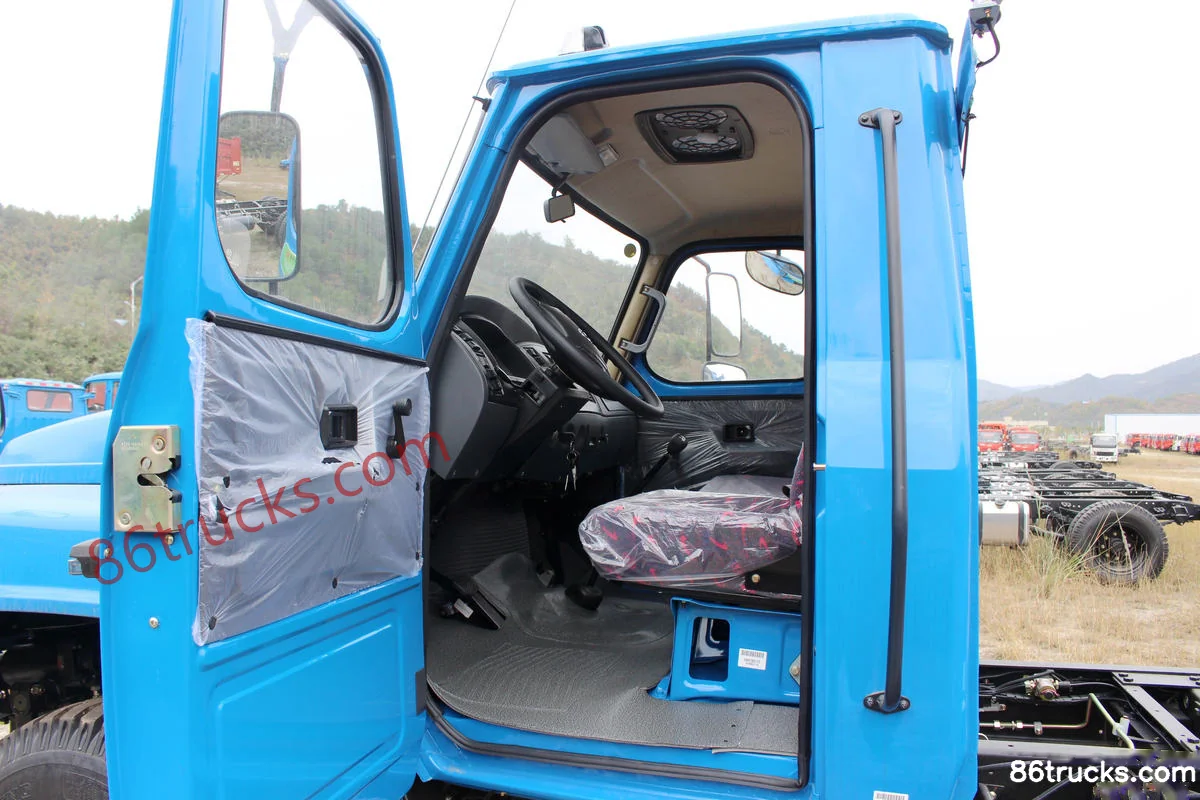

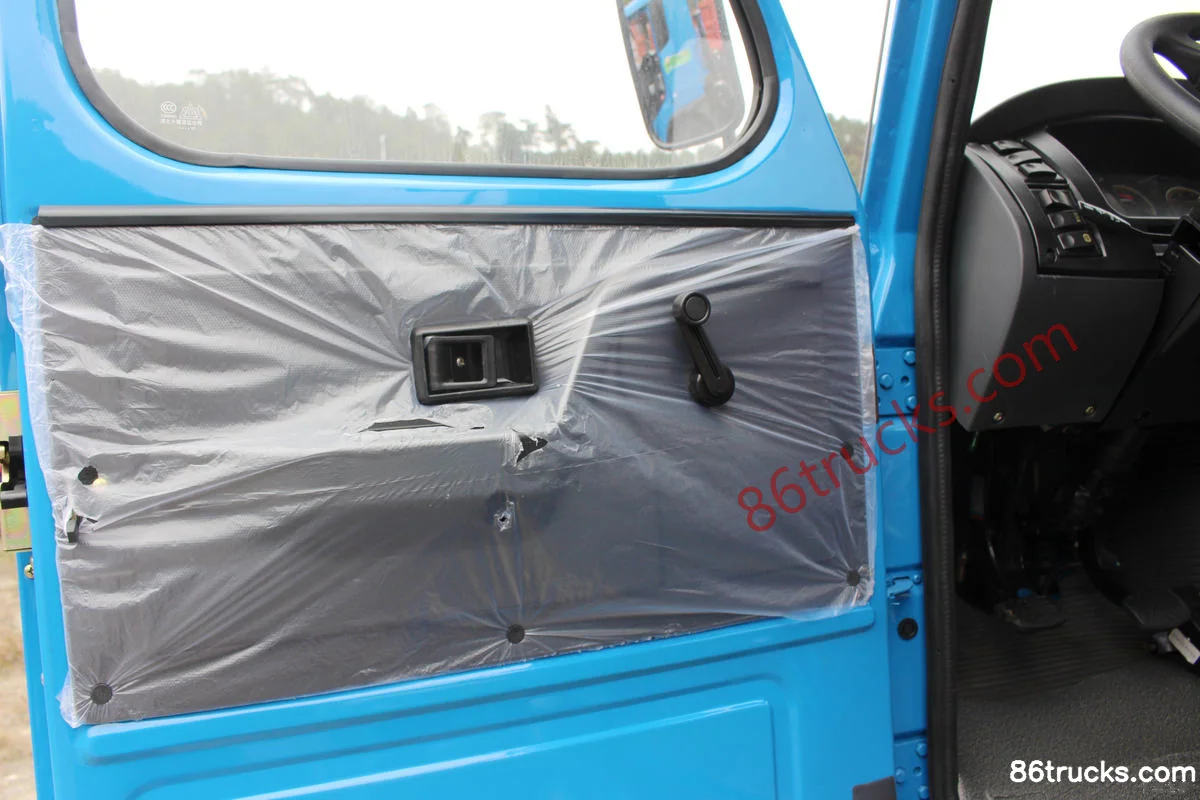

Cab3

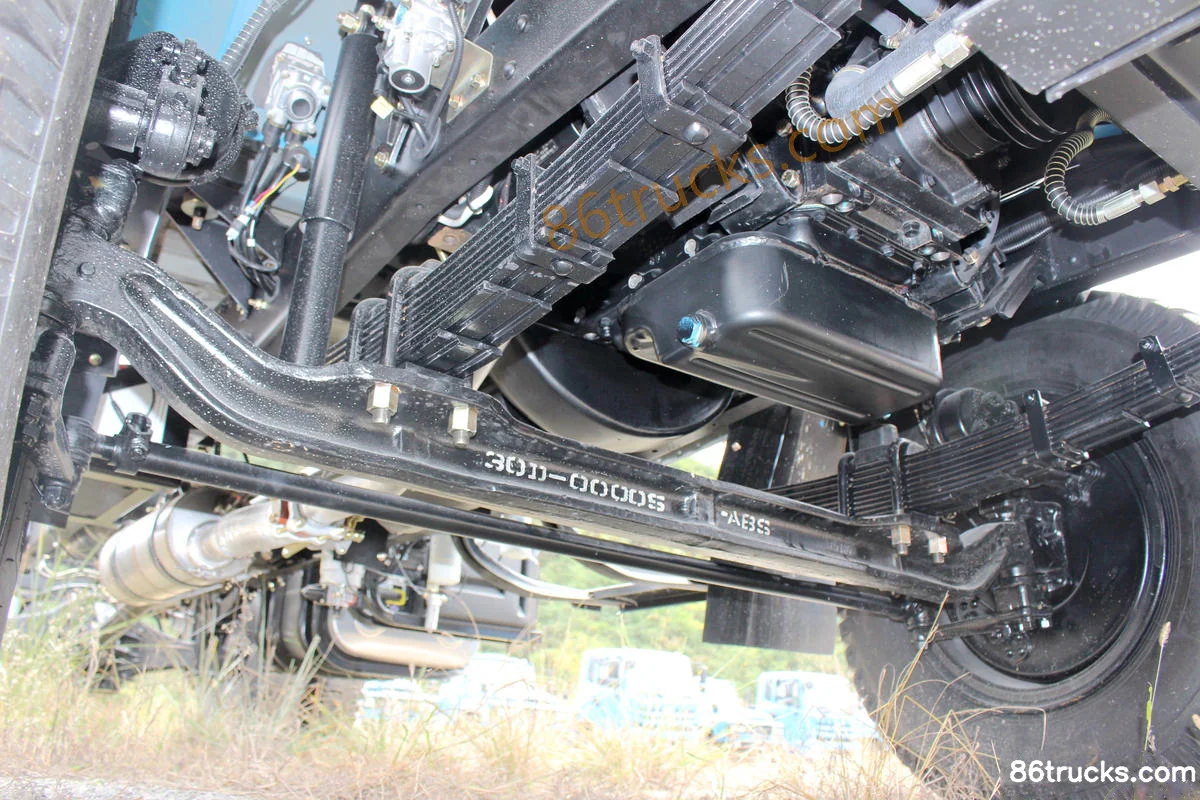

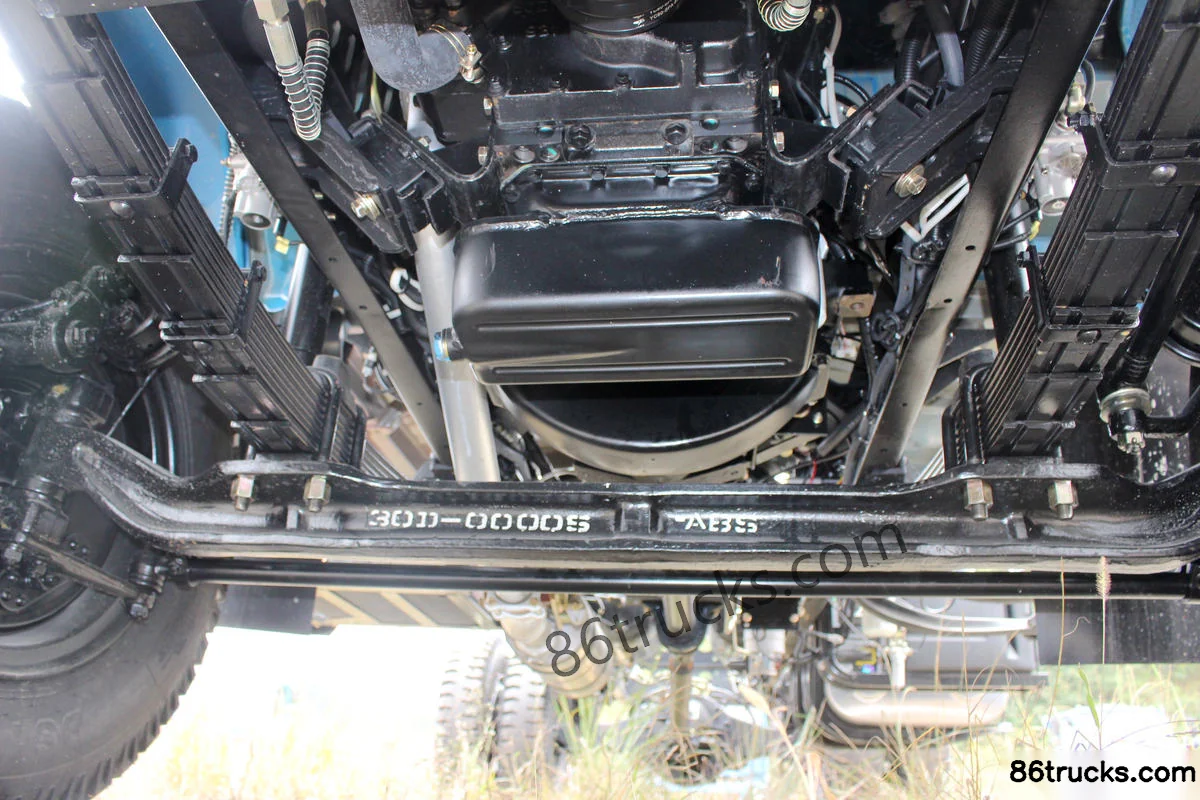

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3)?

Key specs of Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3): Drive: 4x2; Horsepower: 115 hp; Emission: China V; Fuel: Diesel; Transmission: Jiangkai. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) suited for?

Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) differ from other variants in the same series?

Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3) belongs to Dongfeng Jingying (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Jingying 115hp 4X2(6 wheels) long-nose tractor training truck (EQ5100XLHF3)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
