JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh

Export reference
From $18,056
MSRP ¥13M CNY
Wheelbase:: 3360mm
Cargo box volume:: 9
Model code (announced):: JX5031XXYTGFBEV
Cab length:: 5.185m
GVWR:: 1.96ton
Max. speed:: 95km/h
JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh exterior
View more photos (12)
CLTC range: 420km
Motor 1 Brand: Inovance
Curb Weight: 3.2ton
Rated payload: 1.11ton

Overview

The JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh is a Electric Panel Van featuring 420km battery/range, Inovance motor, 1.11t payload and 9 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5031XXYTGFBEV
Wheelbase: 3360mm
Cab length: 5.185m
Cab width: 1.89m
Cab height: 2.295m
CLTC range: 420km
Curb Weight: 3.2ton
Rated payload: 1.11ton
GVWR: 1.96ton
Max. speed: 95km/h
Remarks: Curb weight optional: 2.05 t or 2.08 t; rated load optional: 1.02 t or 0.99 t.
Front/rear suspension: 0.71/1.115m
Version: Blind window version
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS133
Motor Type: Permanent magnet synchronous motor
total rated power: 55kW
Peak power: 110kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 77.28kWh
fast charge time: 0.5h
Body parameters
Cargo box volume: 9
Max body depth: 3.13
Max body width: 1.745
Cargo Box Height: 1.61
Chassis Specs
steering assist type: Electric Power Steering
Front suspension type: MacPherson independent suspension
rear suspension type: Leaf spring non-independent suspension
Body Parameters
Cab structure: Unibody
Seat count: 2Seats
Door Parameters
side door type: Sliding side door
Tailgate type: split doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/75R16LT
Rear Wheel Specification: 195/75R16LT
Cab parameters
Seat rows:
Safety features
Driver airbag:
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
AC control type: Electric
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight height adjustment:

Photos

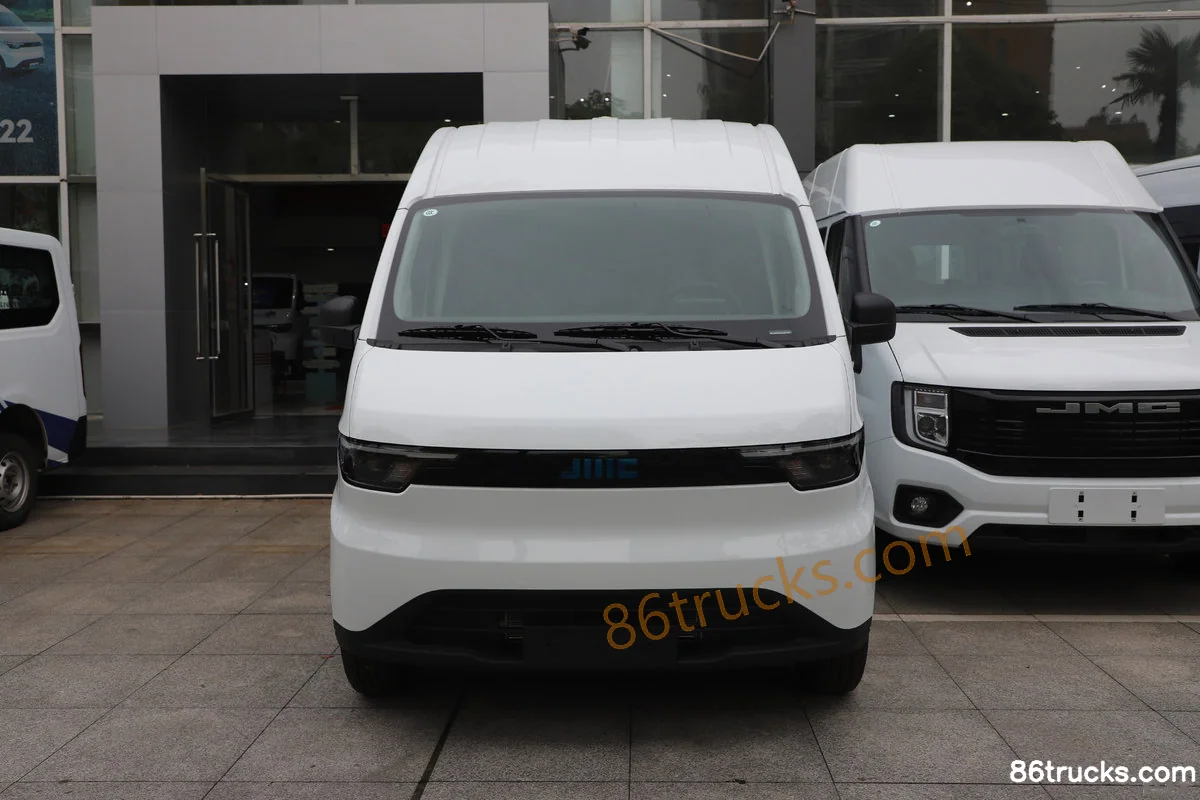

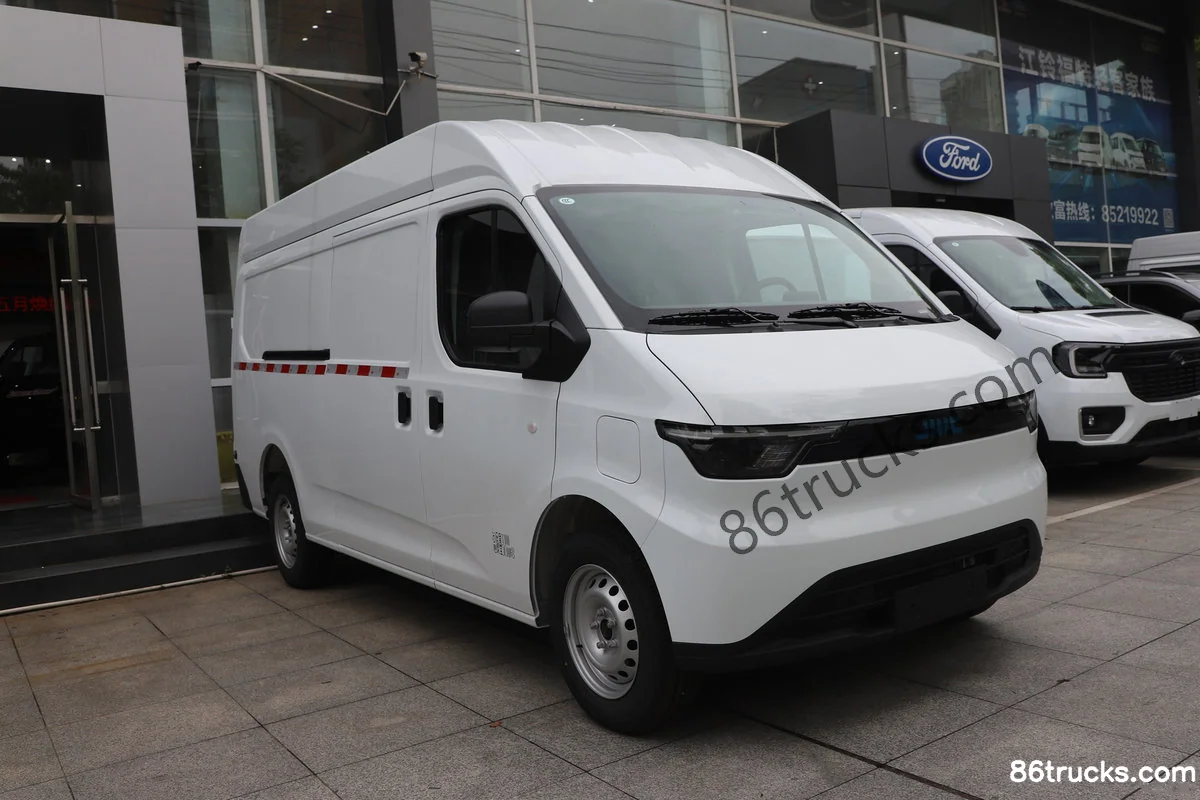

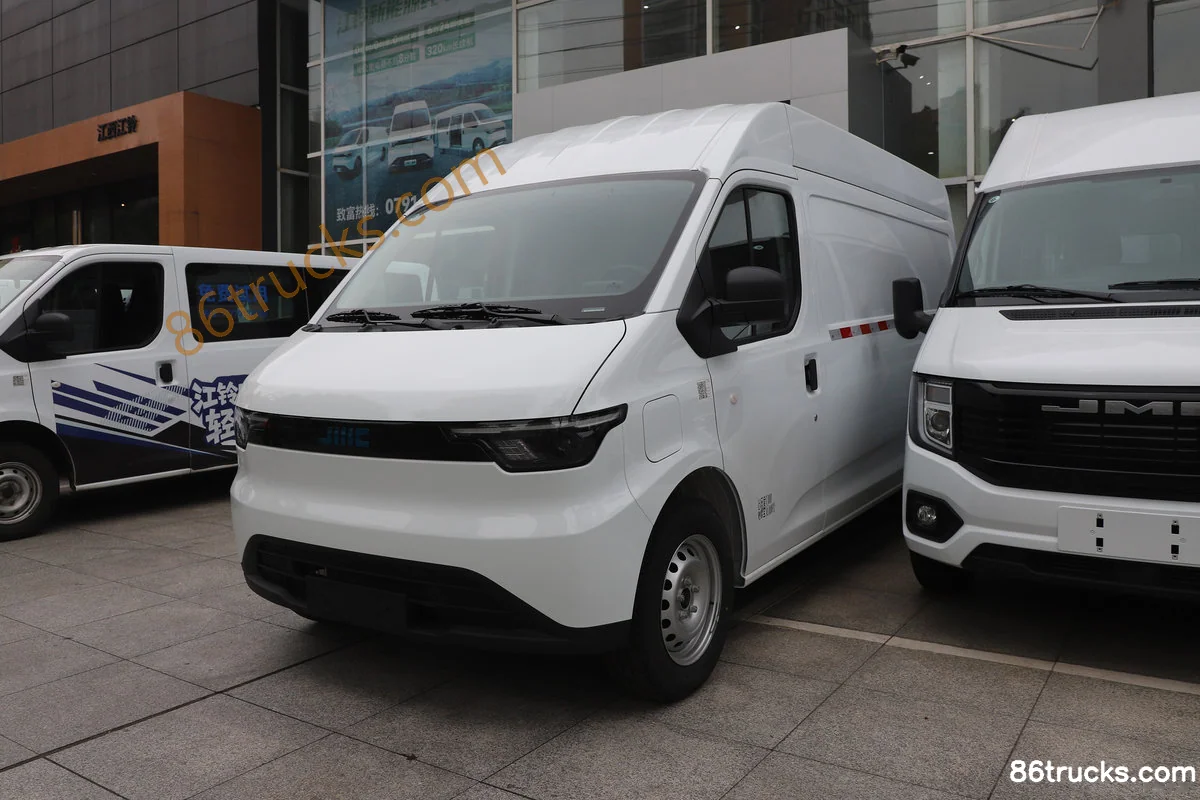

Exterior3

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Exterior (1) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Exterior (2) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Exterior (3) | 86Trucks

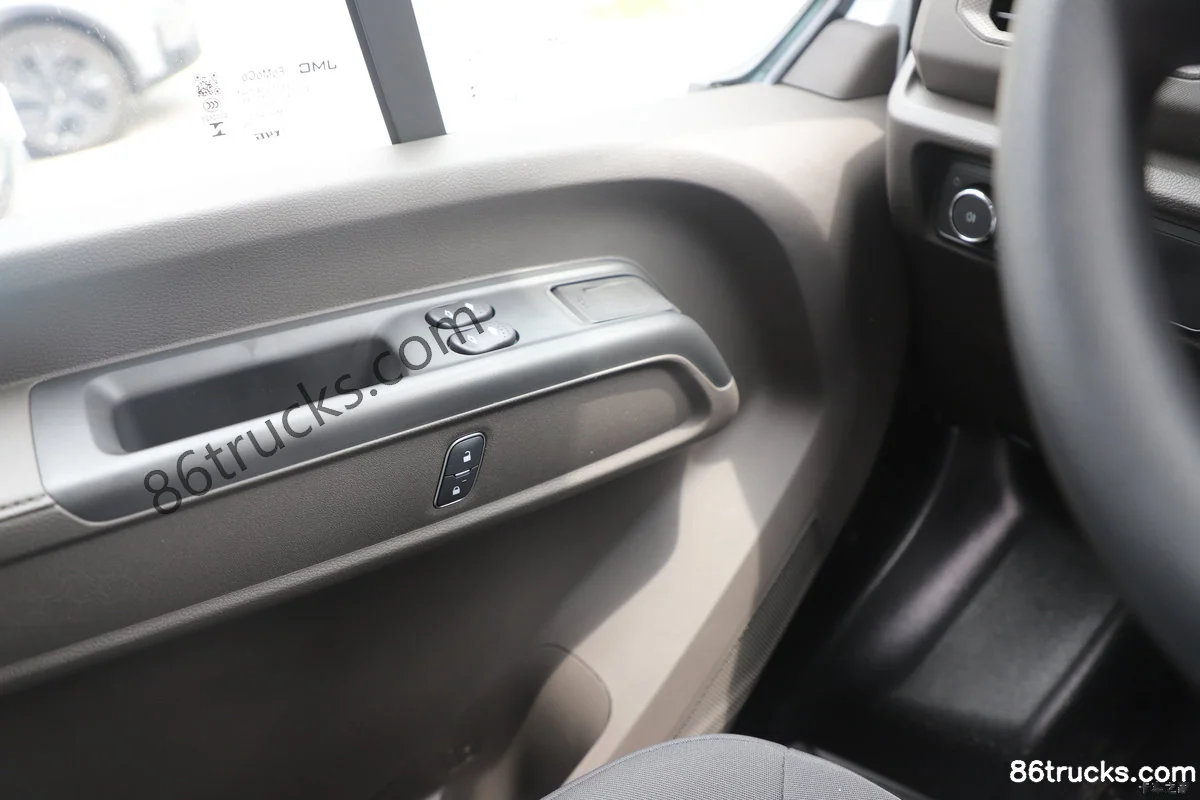

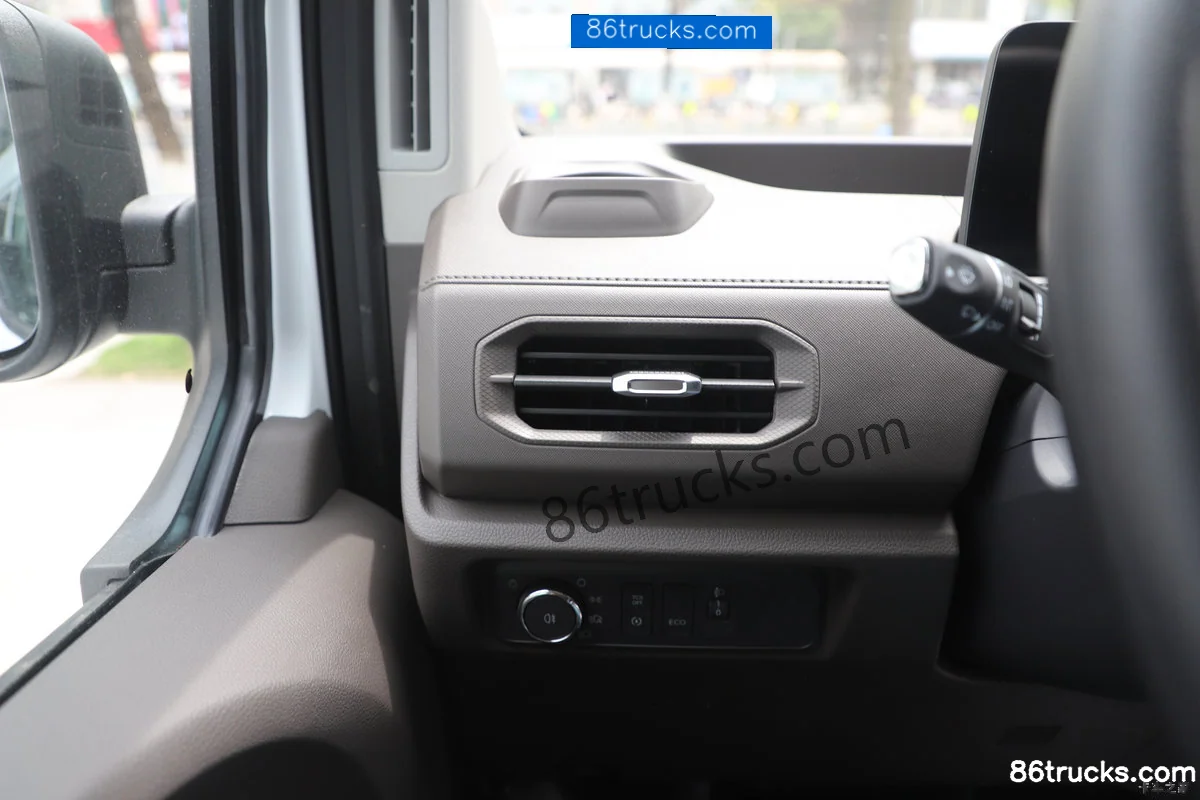

Cab3

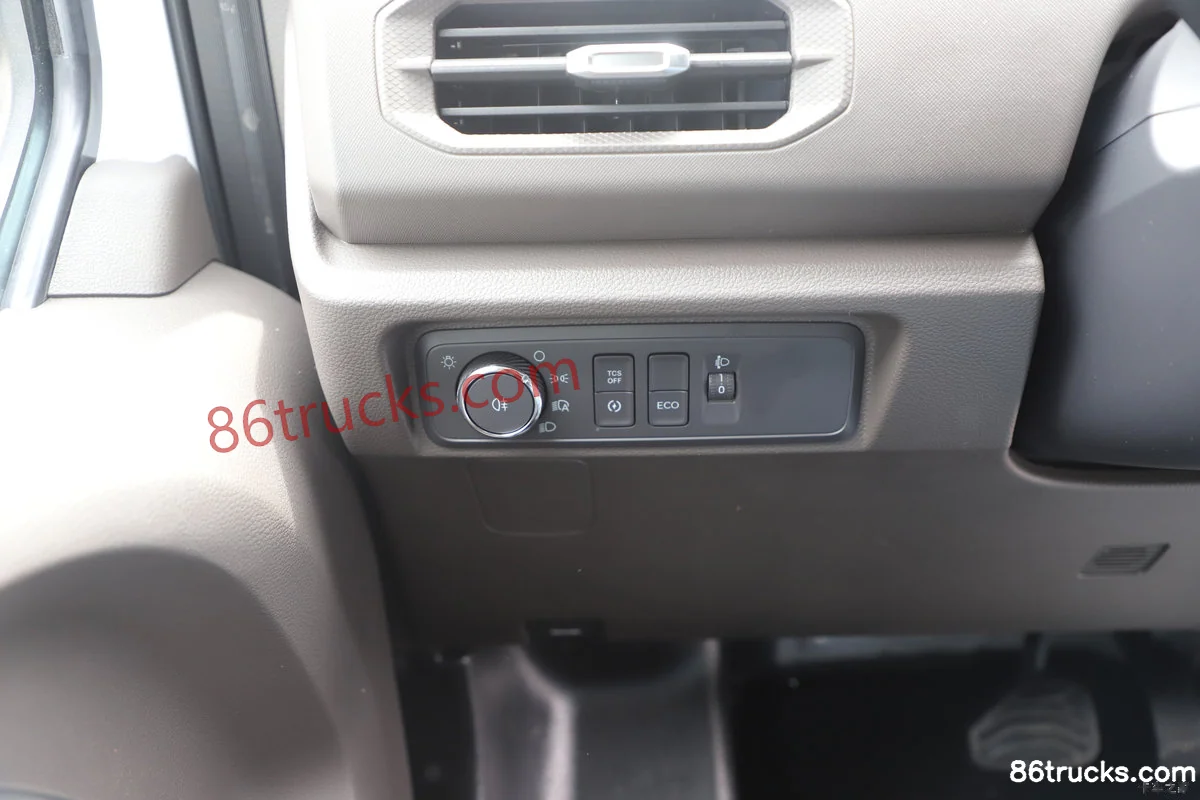

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cab (1) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cab (2) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cab (3) | 86Trucks

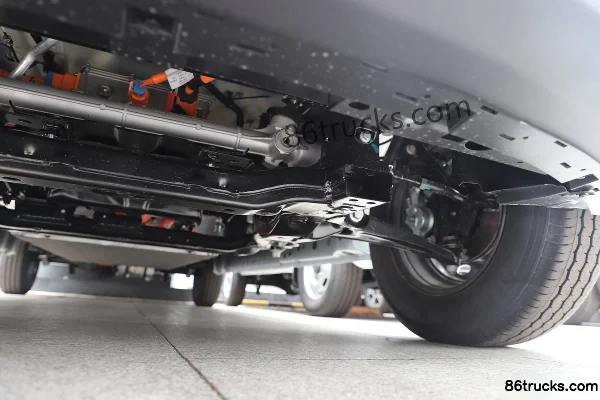

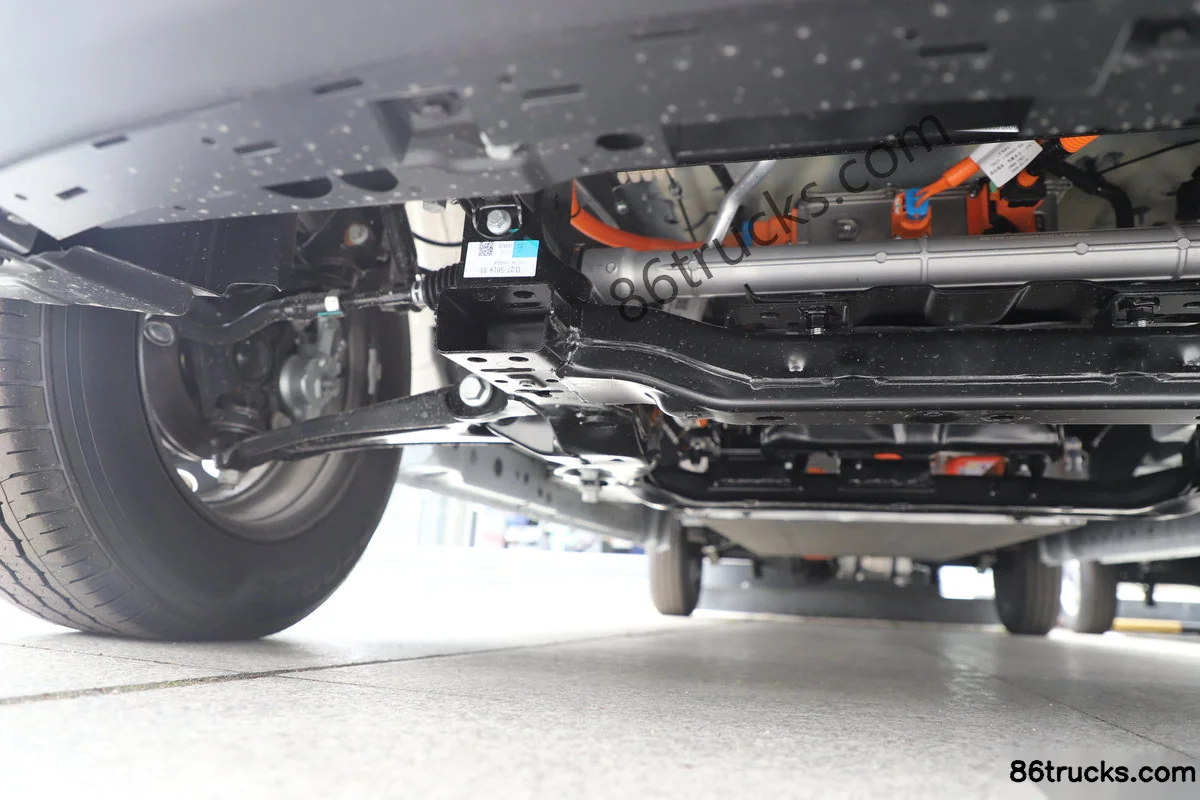

Chassis3

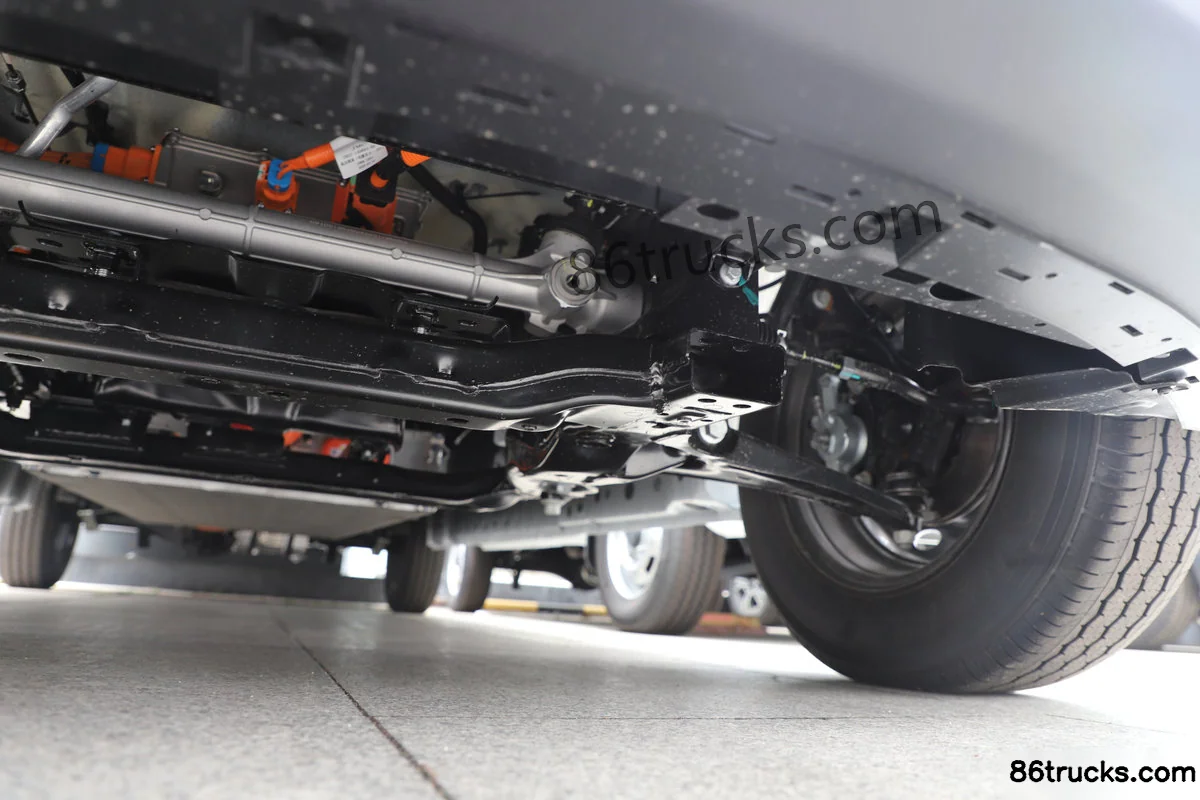

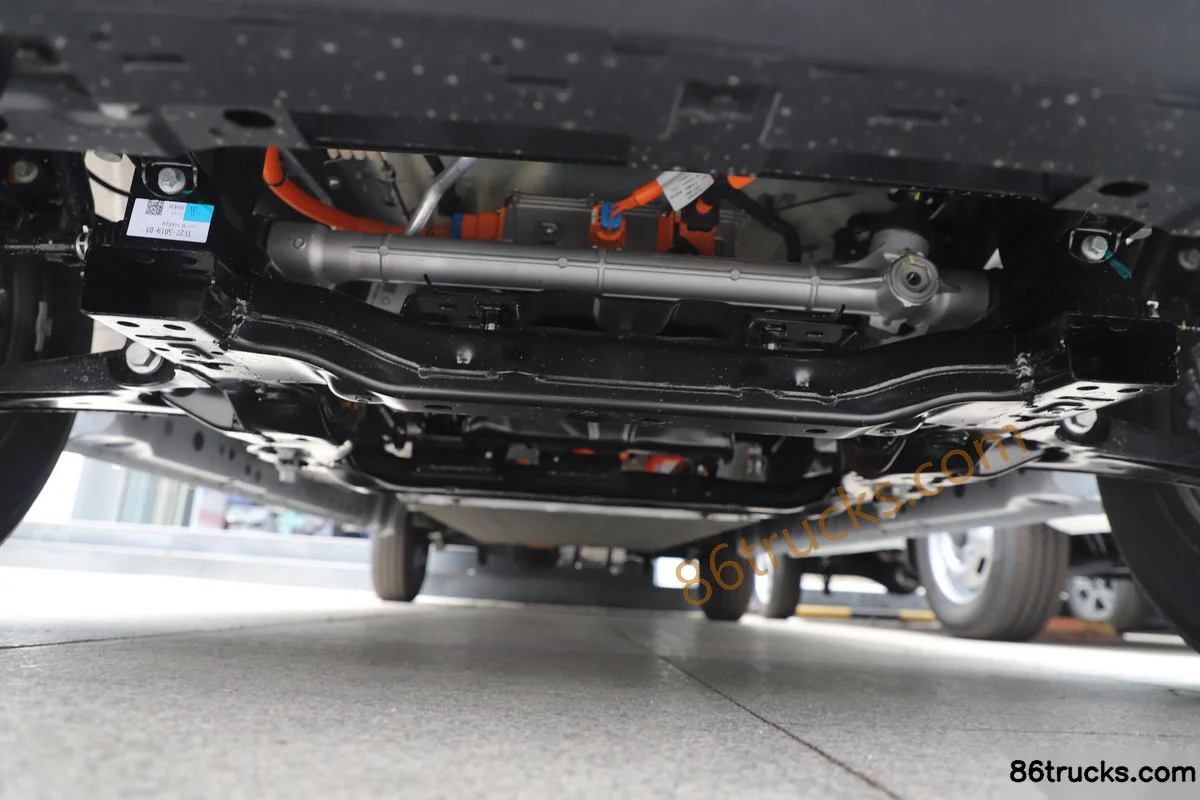

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Chassis (1) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Chassis (2) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Chassis (3) | 86Trucks

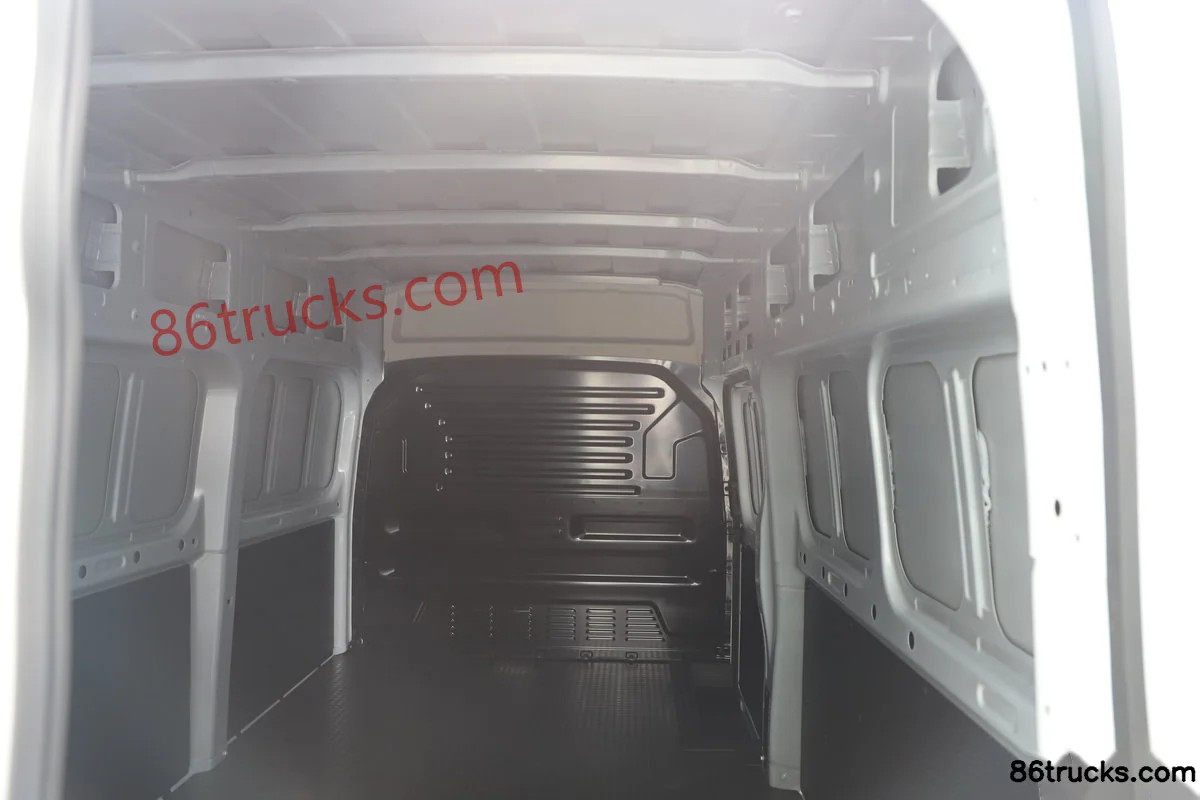

Cargo Box3

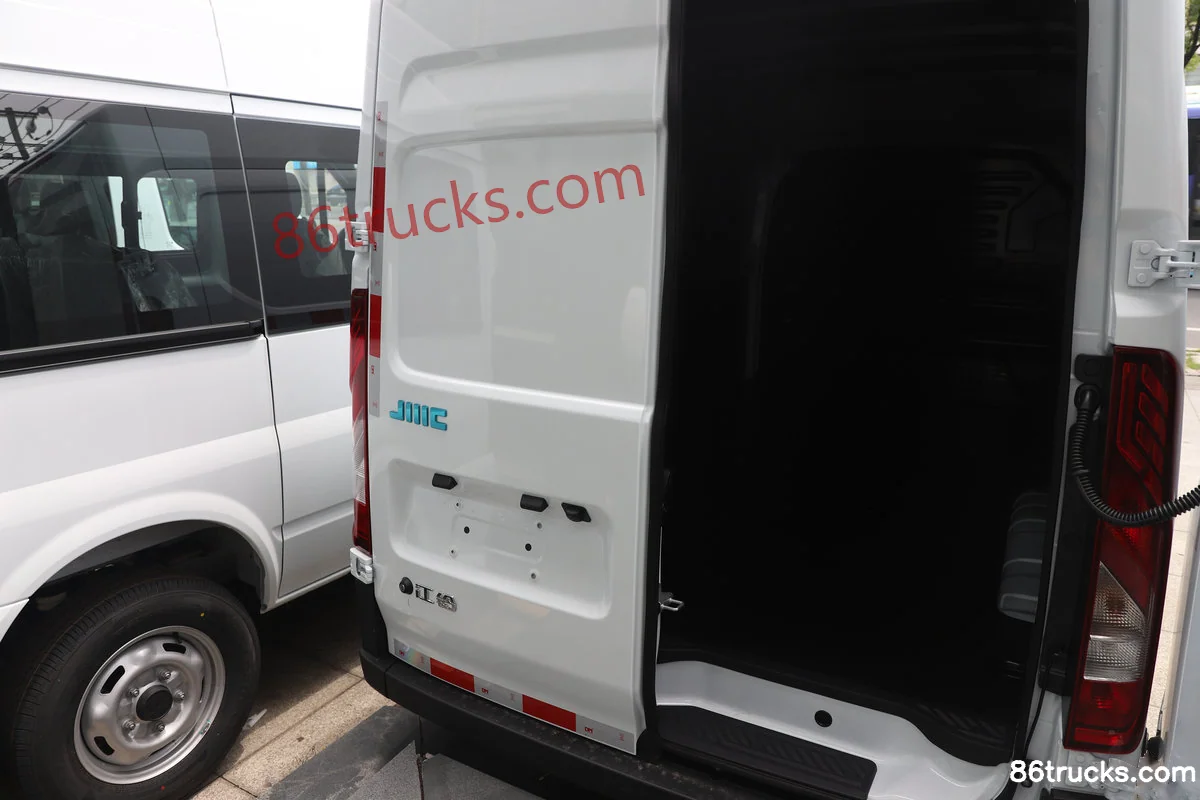

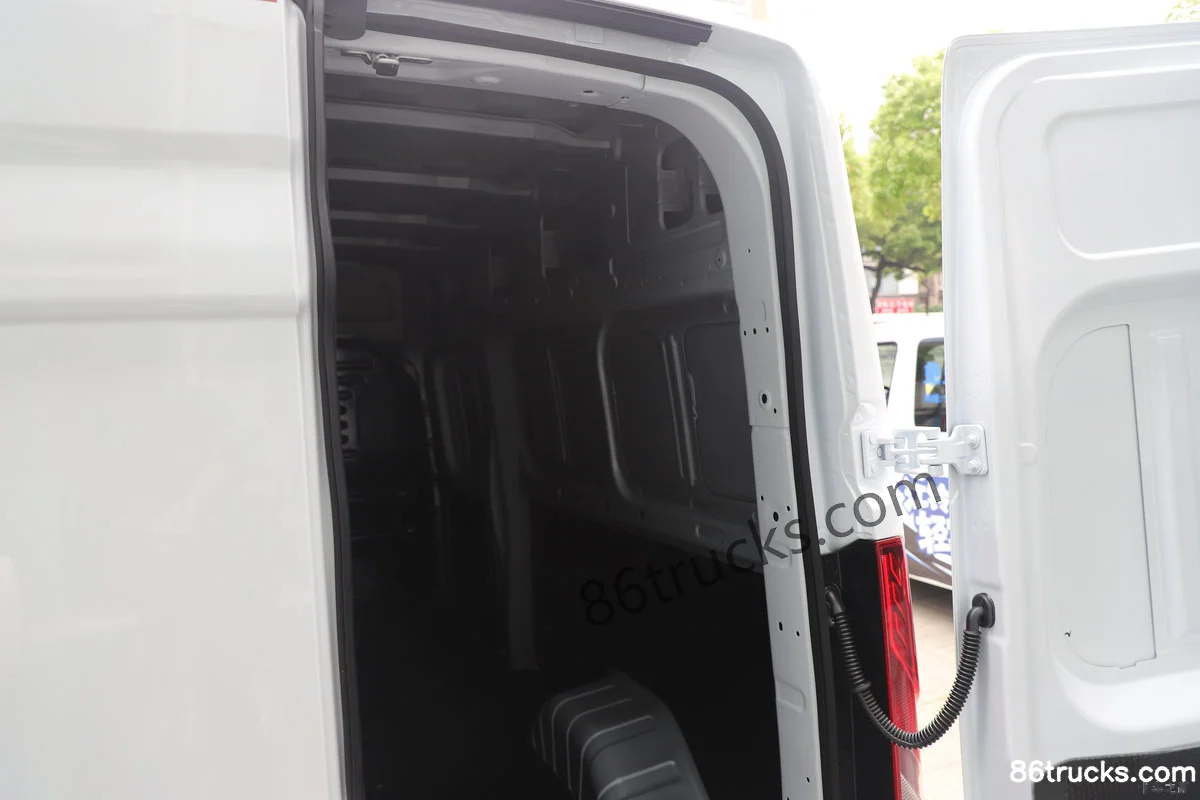

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cargo Box (1) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cargo Box (2) | 86Trucks JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh, and what does it include?

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh export reference is about From $18,056; MSRP is ¥13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh suited for?

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh differ from other variants in the same series?

JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh belongs to JMC E-Fushun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC E-Fushun 2025 Windowless 2-Seat Mid-Roof Mid-Wheelbase Electric Closed Van CATL 77.28kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
