Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 5000mm
Cab dimensions:: 8.995×2.496×3.385m
Type:: Truck with crane
GVWR:: 16ton
Lifting capacity: 8ton
Drive 4X2 (6 wheels)
Horsepower 210
Rated mass: 5.685ton

Overview

The Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) is a truck-mounted crane featuring 8ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 210 hp, China V emissions and Diesel fuel.

China V 210 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.995×2.496×3.385m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 5.685ton
GVWR: 16ton
Front/rear suspension: 1.43/2.565m
Energy Type: Diesel
Body Parameters
Crane model: ST 224
Lifting capacity: 8ton
Vehicle certification code: AB5160JSQ
Body Brand: Sinotruk牌
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.21-50
fuel type: Diesel
Displacement: 4.58L
Emission standard: China V
Max output power: 151kW
Max hp: 210Horsepower
Max torque: 830N·m
Max torque speed: 1300-1700rpm
Rated speed: 2400rpm
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: HOWO T5G
Chassis Model: ZZ1167K501GE1
Leaf spring count: 11/9+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: DachiDC6J95TC
Cab parameters
Cab: Flat roof cab
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

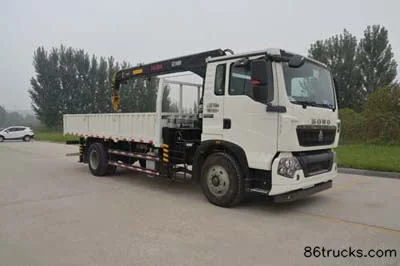

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand)?

Key specs of Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand): Drive: 4x2; Horsepower: 210 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) suited for?

Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) differ from other variants in the same series?

Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand) belongs to Sinotruk Sinotruk HOWO chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 210 hp 4X2(6 wheels) Truck-mounted Crane (ST224 Crane) (Sinotruk brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
