Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3350+1350mm
Model code (announced):: LZ4254H5DZBEV
Front/rear track width:: Front track: 2040mm; Rear track: 1860/1860mm
Cab length:: 6.94m
GVWR:: 25ton
Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
battery swap support: Charging
Motor 2 Brand: Dongfeng
Gross Trailer Weight: 39.37ton

Overview

The Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh is a Heavy truck featuring Charging battery/range, Dongfeng motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ4254H5DZBEV
Drive type: 6X4
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860mm
Wheelbase: 3350+1350mm
Cab length: 6.94m
Cab width: 2.525m
Cab height: 3.69m
Gross Trailer Weight: 39.37ton
Curb Weight: 9.5ton
GVWR: 25ton
Max. speed: 89km/h
battery swap support: Charging
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Rear-mounted battery
Version: Super Power Edition
Energy Type: Electric
electric motor
Motor 2 Brand: Dongfeng
Motor 2 Model: TZ240XYT1H
Motor 1 Brand: Dongfeng
Motor 1 Model: TZ240XYT1H
Motor Type: Permanent magnet synchronous motor
total rated power: 400kW
Peak power: 700kW
Motor 1 Peak Power: 350kW
Motor 2 Peak Power: 350kW
Number of drive motors: Single motor
Battery/Charging
Charging method: Fast Charge
Battery Brand: Dongfeng
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 422kWh
fast charge time: 0.5h
Battery Model: PT11L290
Transmission Parameters
shift method: AMT manual/auto
Forward gears: 2Gear
Number of Reverse Gears:
Cab parameters
Cab: Yiwei 5
seating capacity: 2Personnel
Chassis Specs
Front axle description: 457
Fifth wheel: 50#
Front axle allowable load: 7000kg
rear axle description: 2×EP35D integrated electric drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Tire Type: Front wheel reinforced, rear wheel lightweight steel rim
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Exterior features
Aluminum air tank:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

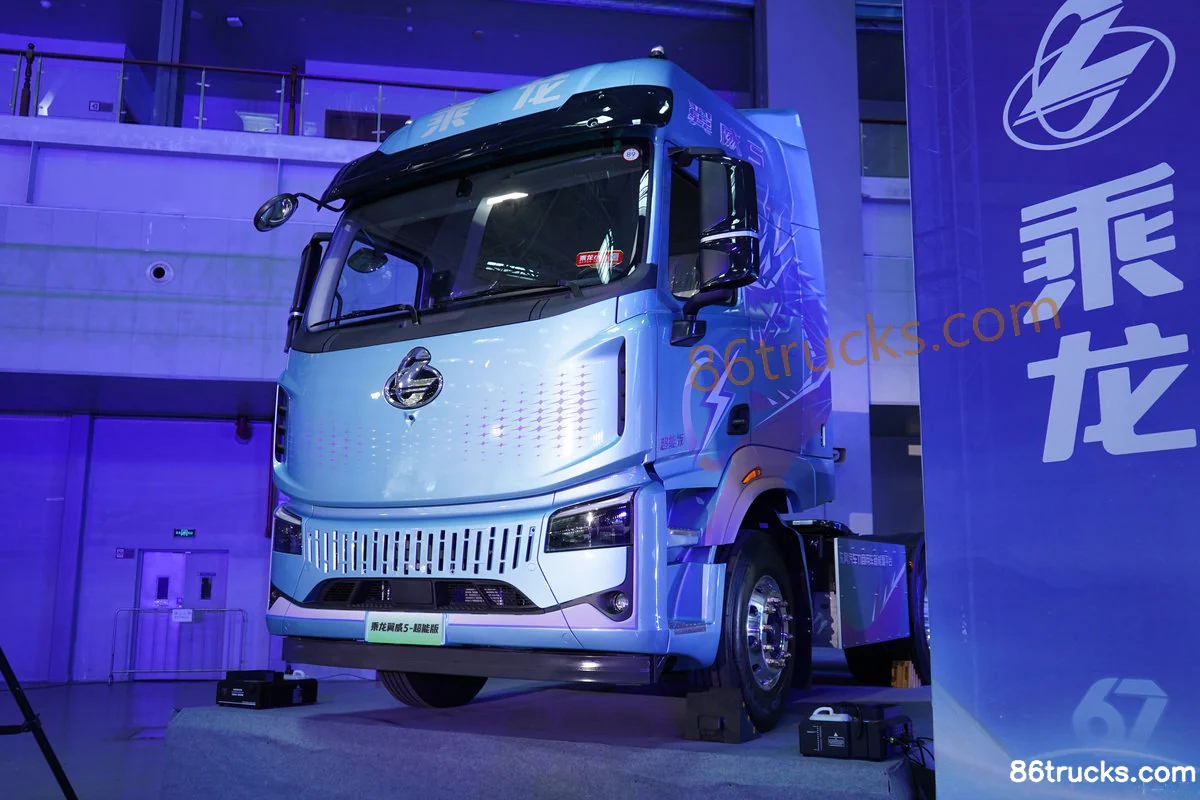

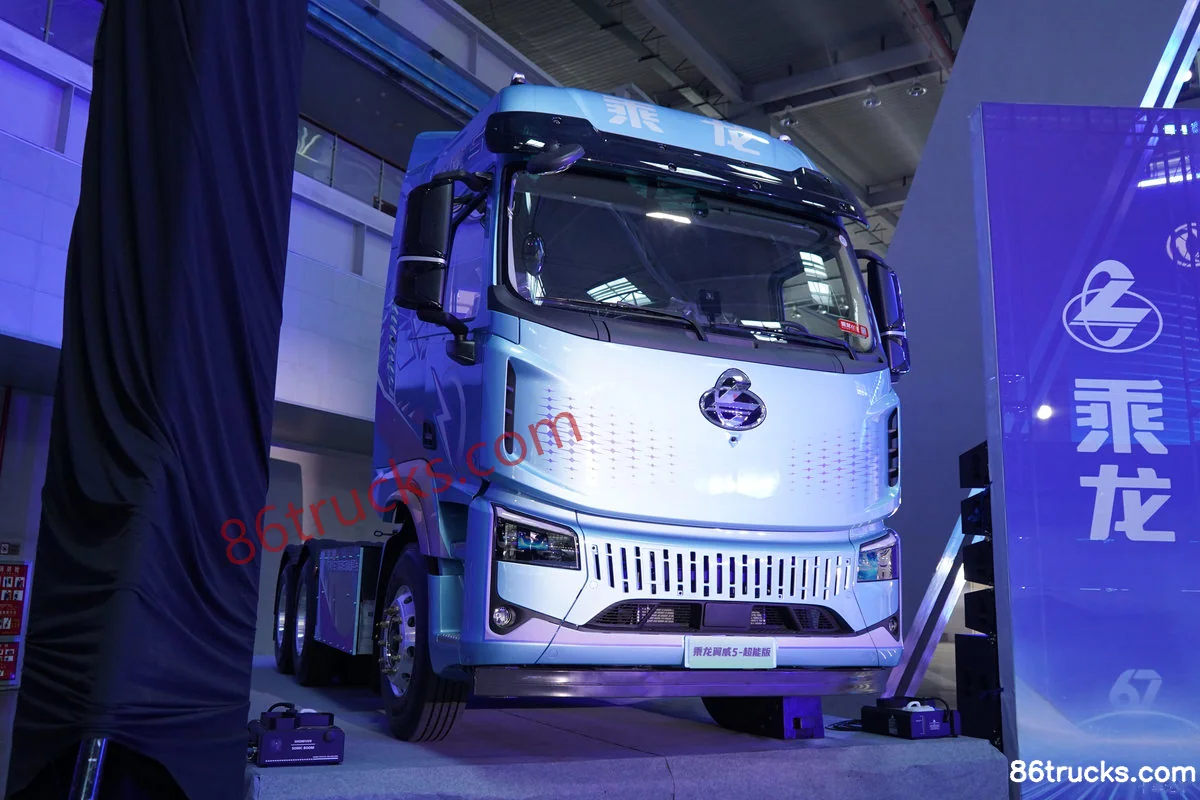

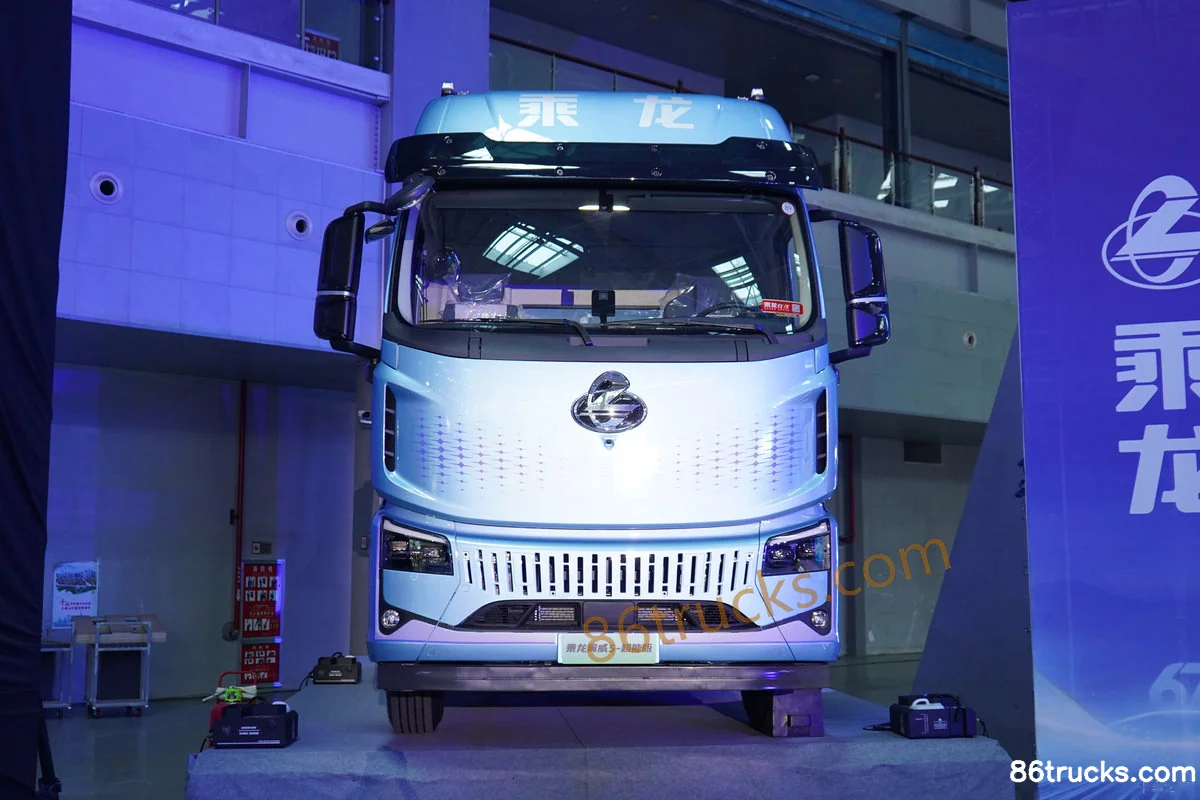

Exterior3

Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Exterior (1) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Exterior (2) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Exterior (3) | 86Trucks

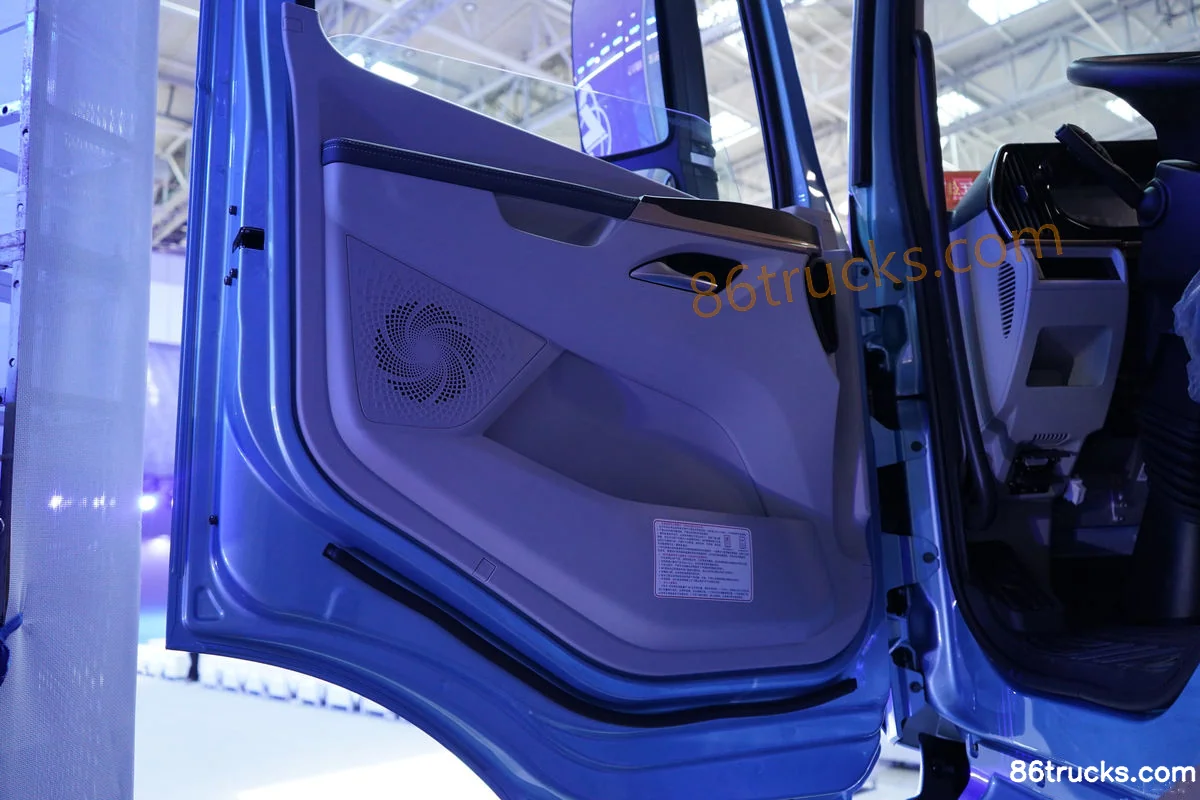

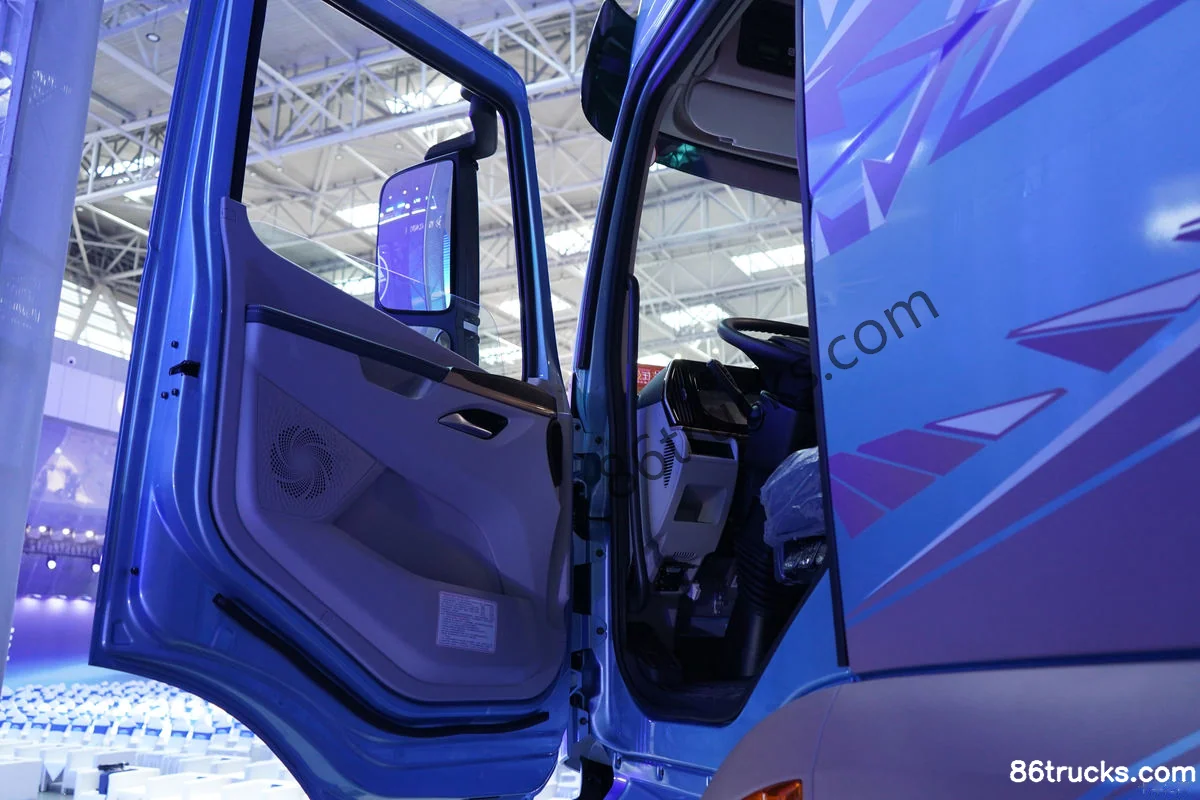

Cab3

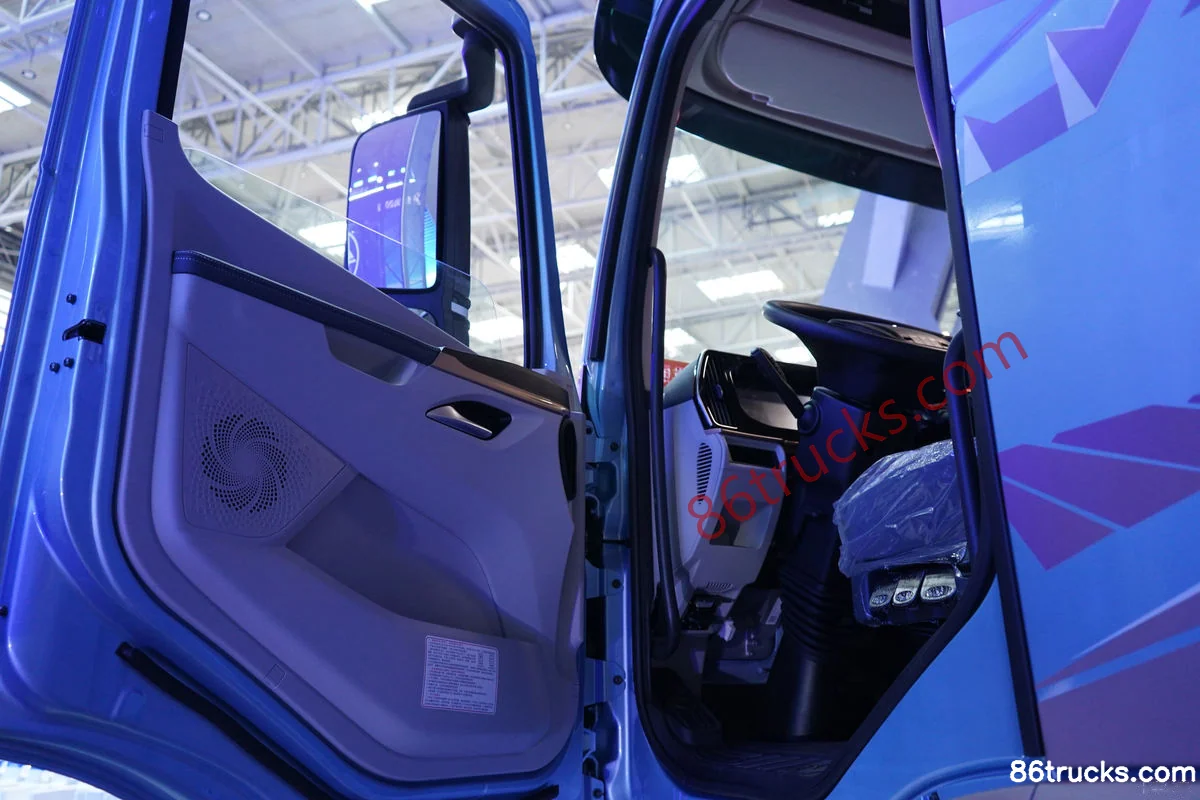

Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Cab (1) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Cab (2) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Cab (3) | 86Trucks

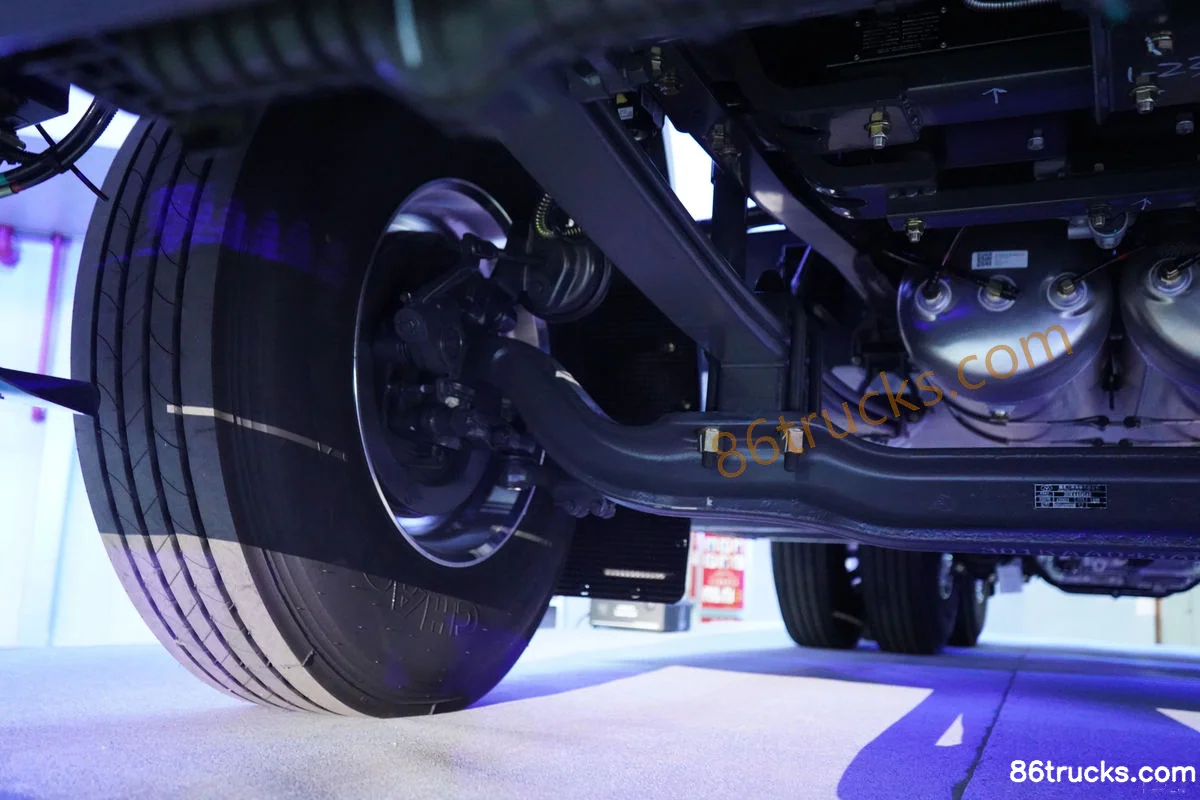

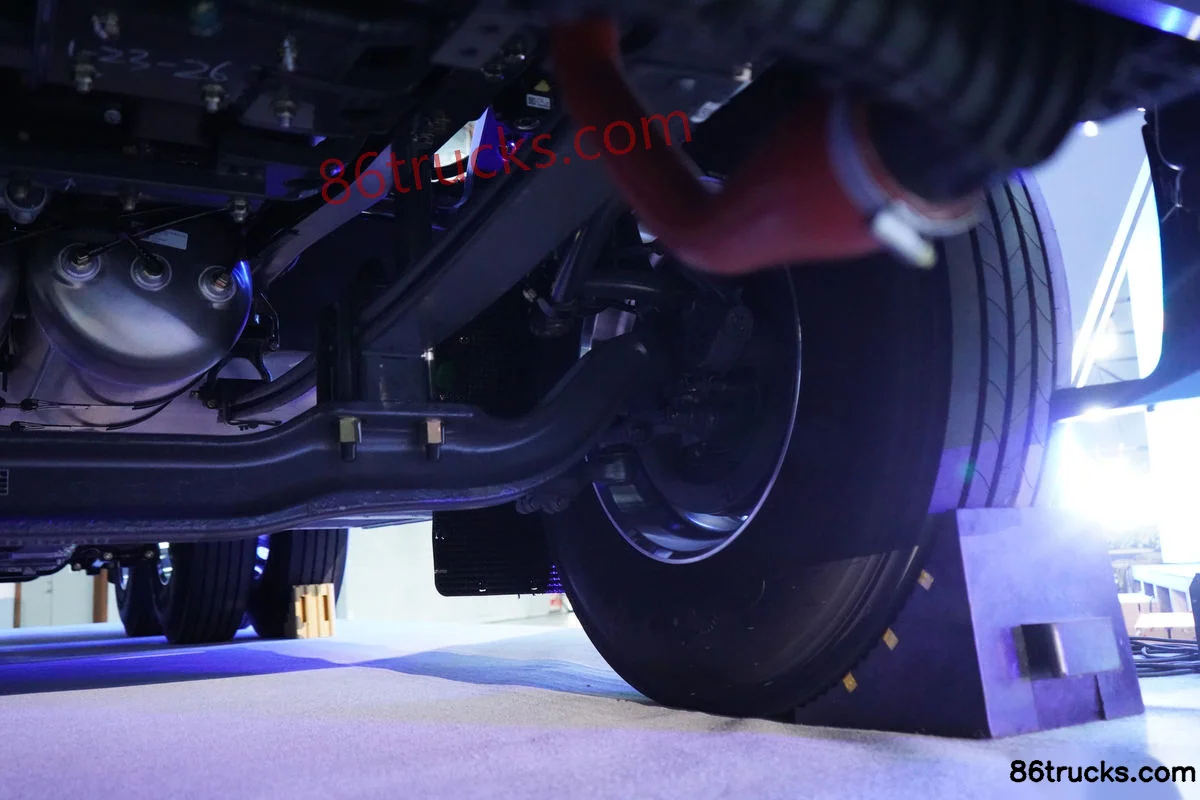

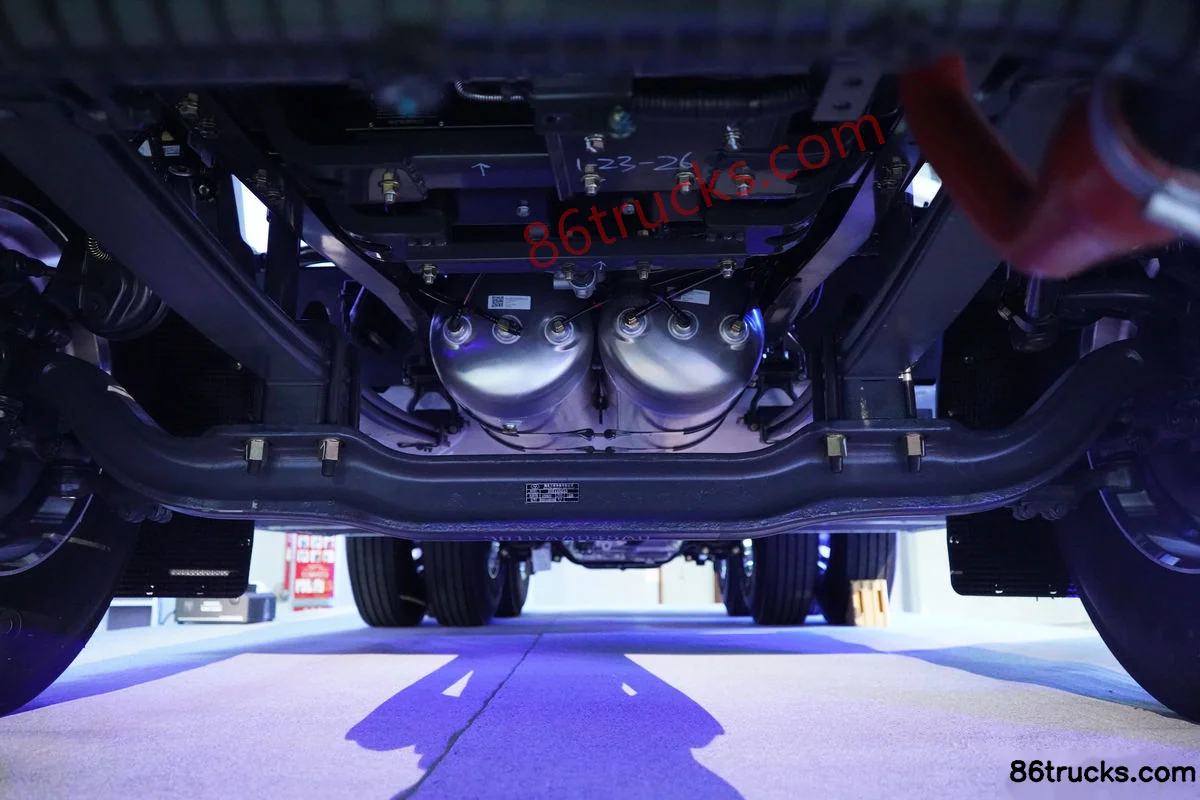

Chassis3

Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Chassis (1) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Chassis (2) | 86Trucks Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh?

Key specs of Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh suited for?

Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh differ from other variants in the same series?

Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh belongs to Dongfeng Yiwei 5 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yiwei 5 Super Power 6X4(10 wheels) Electric Tractor Truck Dongfeng 422kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
