HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh

Export reference
MSRP N/A
Wheelbase:: 3110mm
Model code (announced):: KLQ5041XXYBEV1
Cab length:: 5.5m
GVWR:: 3.52ton
Max. speed:: 100km/h
Energy Type:: Electric
CLTC range: 289km
Motor 1 Brand: Jingjin
Curb Weight: 2.2ton
Rated payload: 1.19ton

Overview

The HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh is a Electric Panel Van featuring 289km battery/range, Jingjin motor, 1.19t payload and 3.52t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KLQ5041XXYBEV1
Wheelbase: 3110mm
Cab length: 5.5m
Cab width: 1.7m
Cab height: 2.22m
CLTC range: 289km
Curb Weight: 2.2ton
Rated payload: 1.19ton
GVWR: 3.52ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XS606
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 140kW
total peak torque: 320N·m
Battery/Charging
Battery Brand: Jiangxi Hengdong
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 62.21kWh
Energy Density: 131.65
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195R15LT,195R15C
Rear Wheel Specification: 195R15LT,195R15C
Control configuration
ABS:

Photos

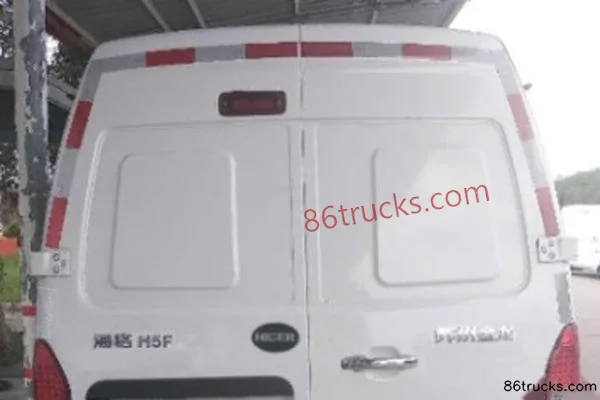

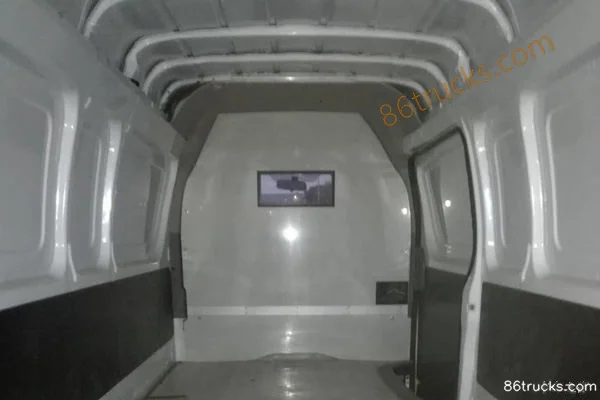

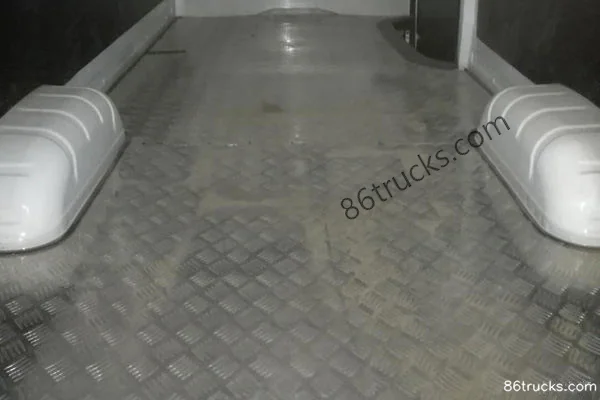

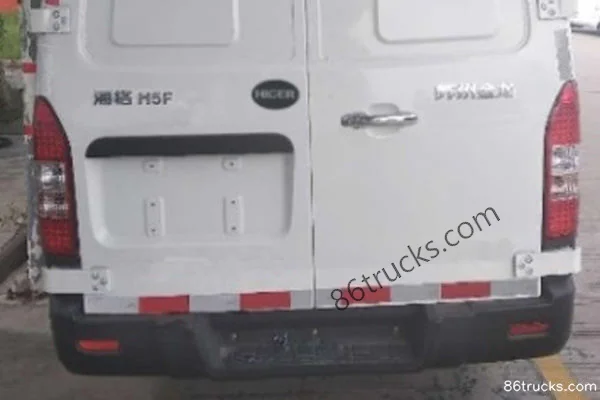

Exterior3

Cab2

5 photos

FAQ

What transport jobs is HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh suited for?

HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh differ from other variants in the same series?

HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh belongs to HIGERH5F (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export HIGER H5F 3.52T 5.5m pure electric enclosed van 62.21kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
