ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh

Export reference
MSRP N/A
Wheelbase:: 3350mm
Cargo box volume:: 7.5
Model code (announced):: BJ5038XXYEV2
Cab length:: 5.395m
GVWR:: 2.81ton
Max. speed:: 80km/h

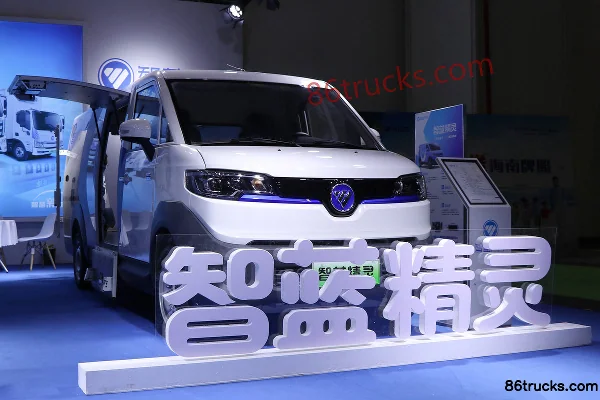

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh exterior
View more photos (12)
CLTC range: 341km
Motor 1 Brand: Foton
Curb Weight: 1.48ton
Rated payload: 1.2ton

Overview

The Tuyano ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh is a Electric Panel Van featuring 341km battery/range, Foton motor, 1.2t payload and 7.5 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5038XXYEV2
Wheelbase: 3350mm
Cab length: 5.395m
Cab width: 1.78m
Cab height: 1.955m
CLTC range: 341km
Curb Weight: 1.48ton
Rated payload: 1.2ton
GVWR: 2.81ton
Max. speed: 80km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP070A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total peak torque: 180N·m
total rated torque: 75N·m
Battery/Charging
Charging method: Fast/Slow Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 46.36kWh
fast charge time: 0.7h
Body parameters
Cargo box volume: 7.5
Max body depth: 3.01
Max body width: 1.71
Cargo Box Height: 1.4
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 185/65R15LT
Rear Wheel Specification: 185/65R15LT
Safety features
Tire Pressure Monitoring:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
AC control type: Manual
Power Windows:
lighting configuration
Headlight height adjustment:

Photos

Exterior3

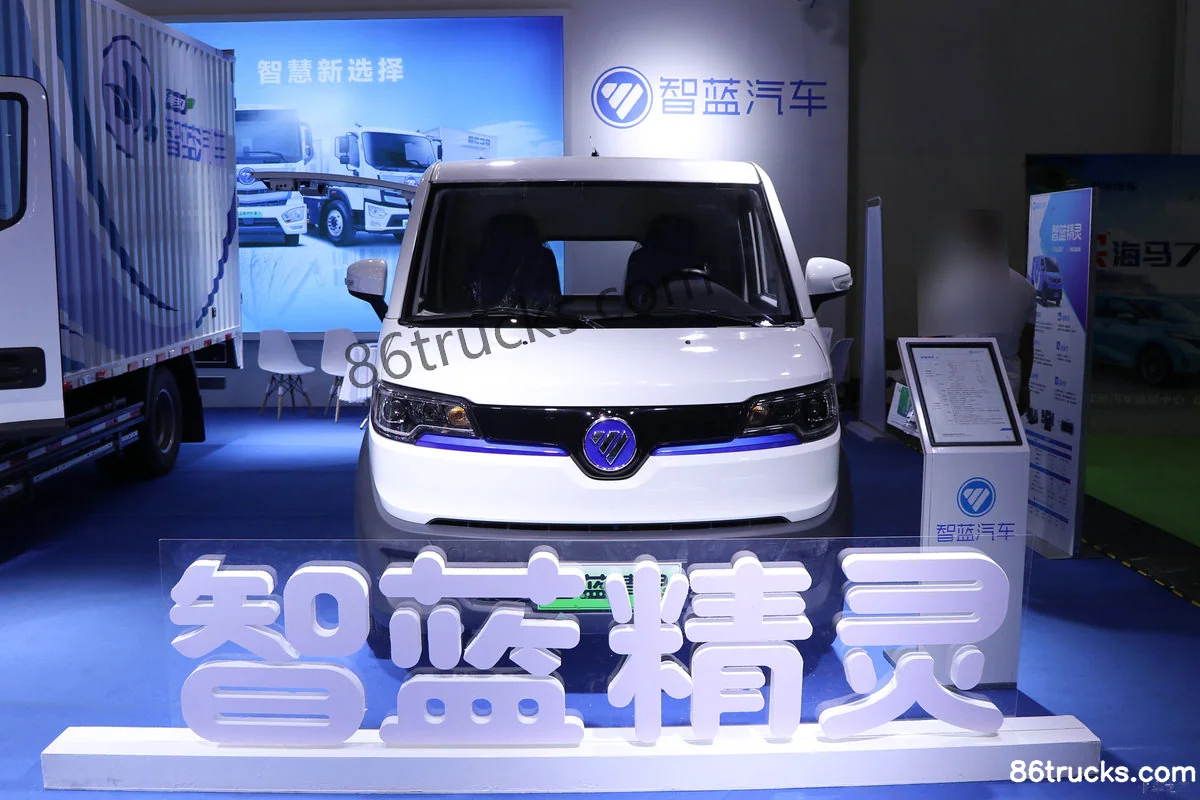

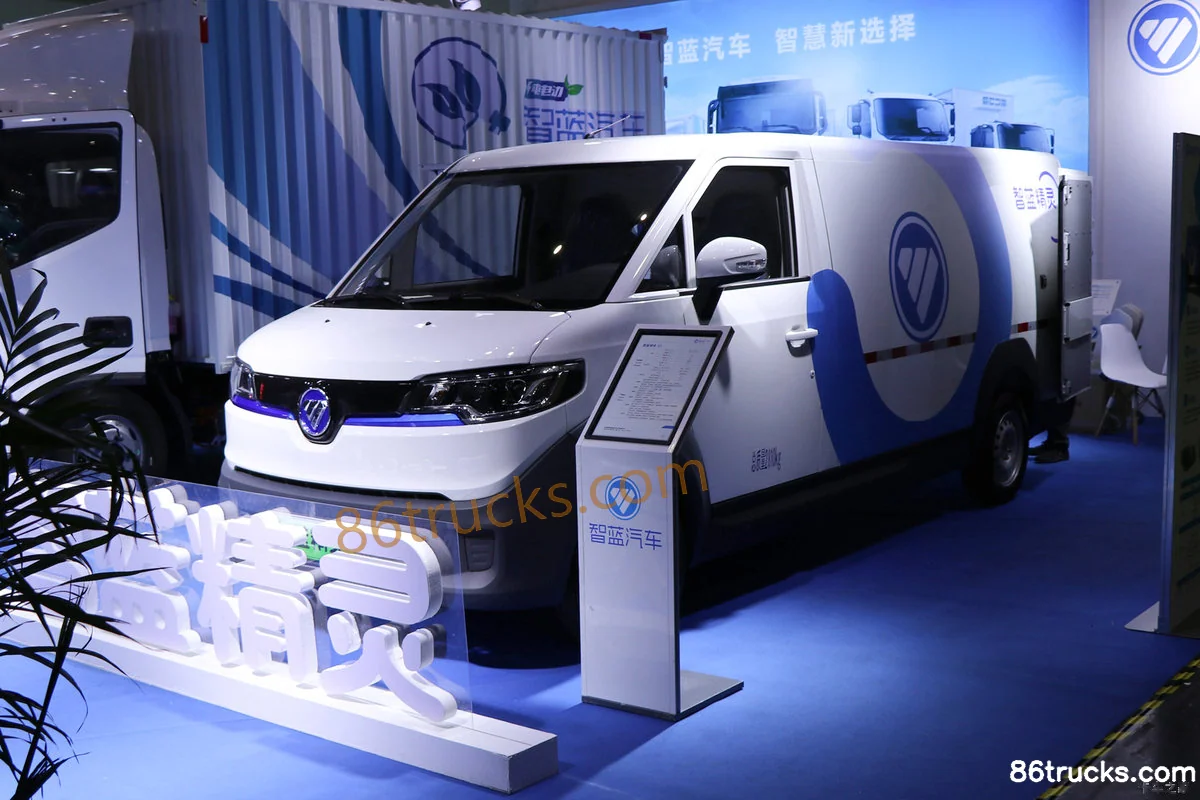

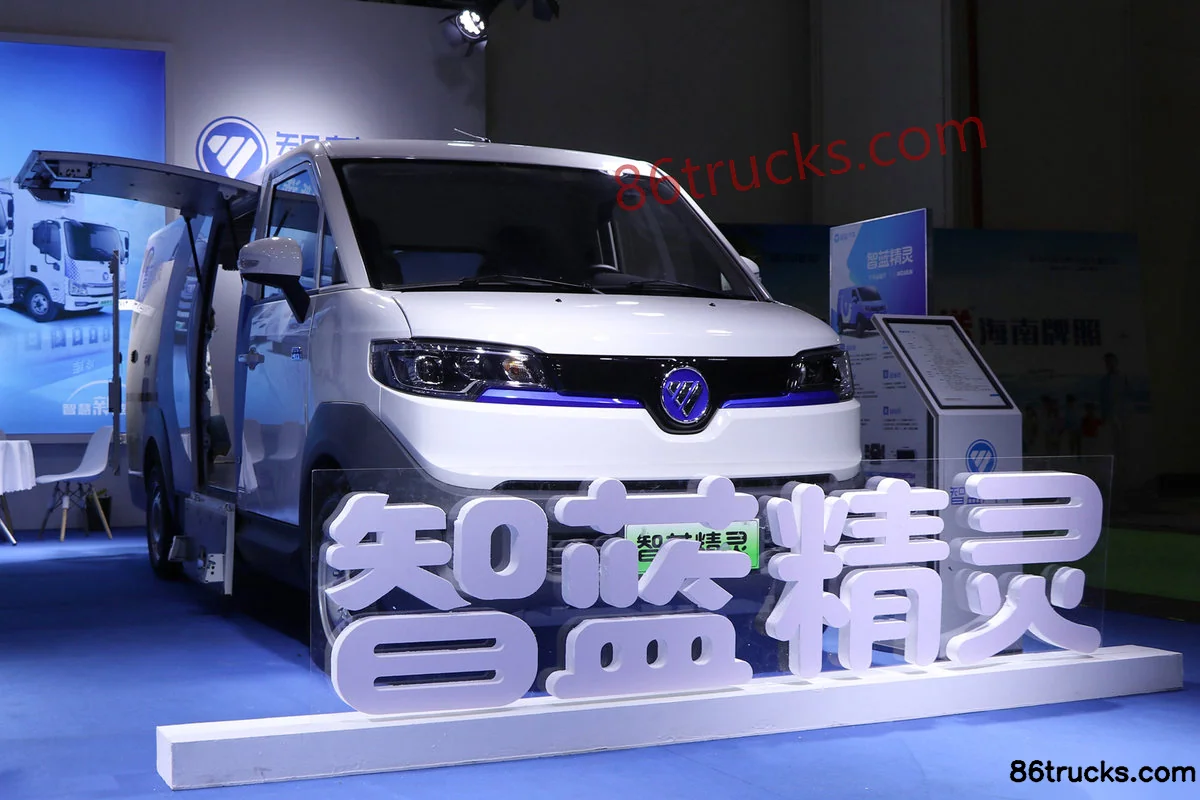

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Exterior (1) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Exterior (2) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Exterior (3) | 86Trucks

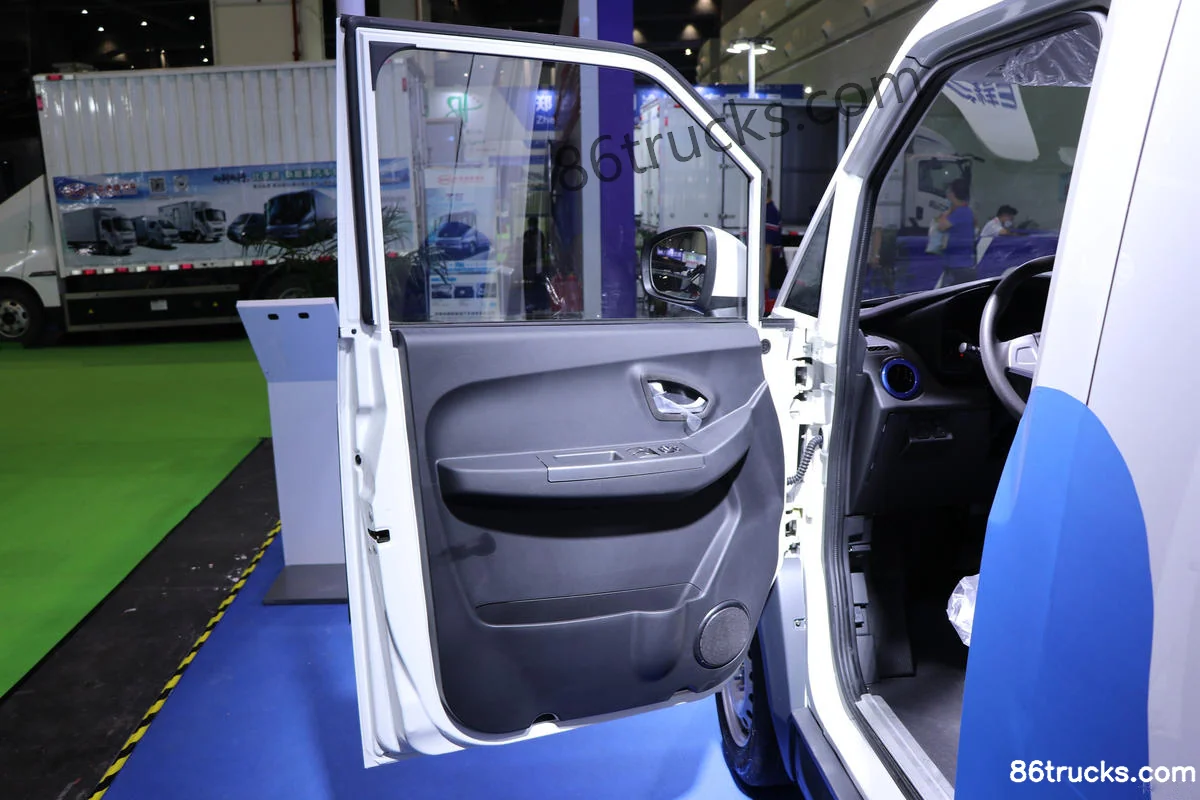

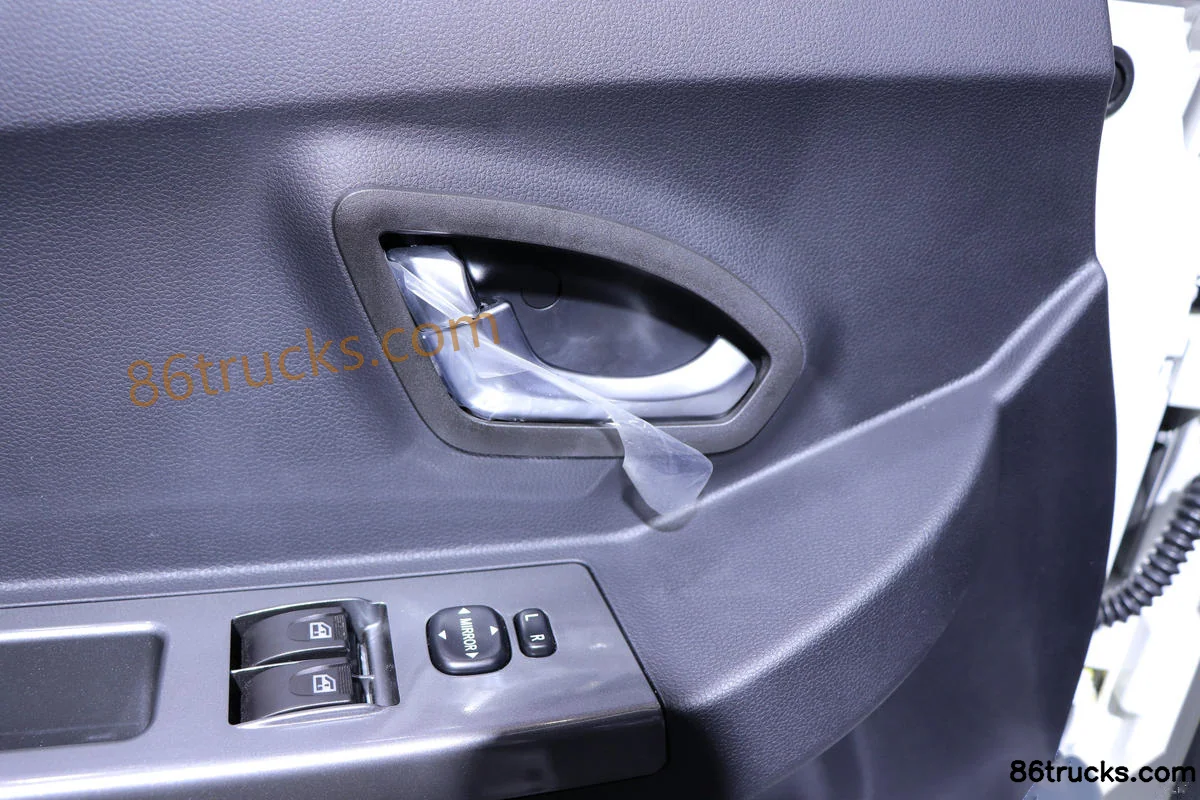

Cab3

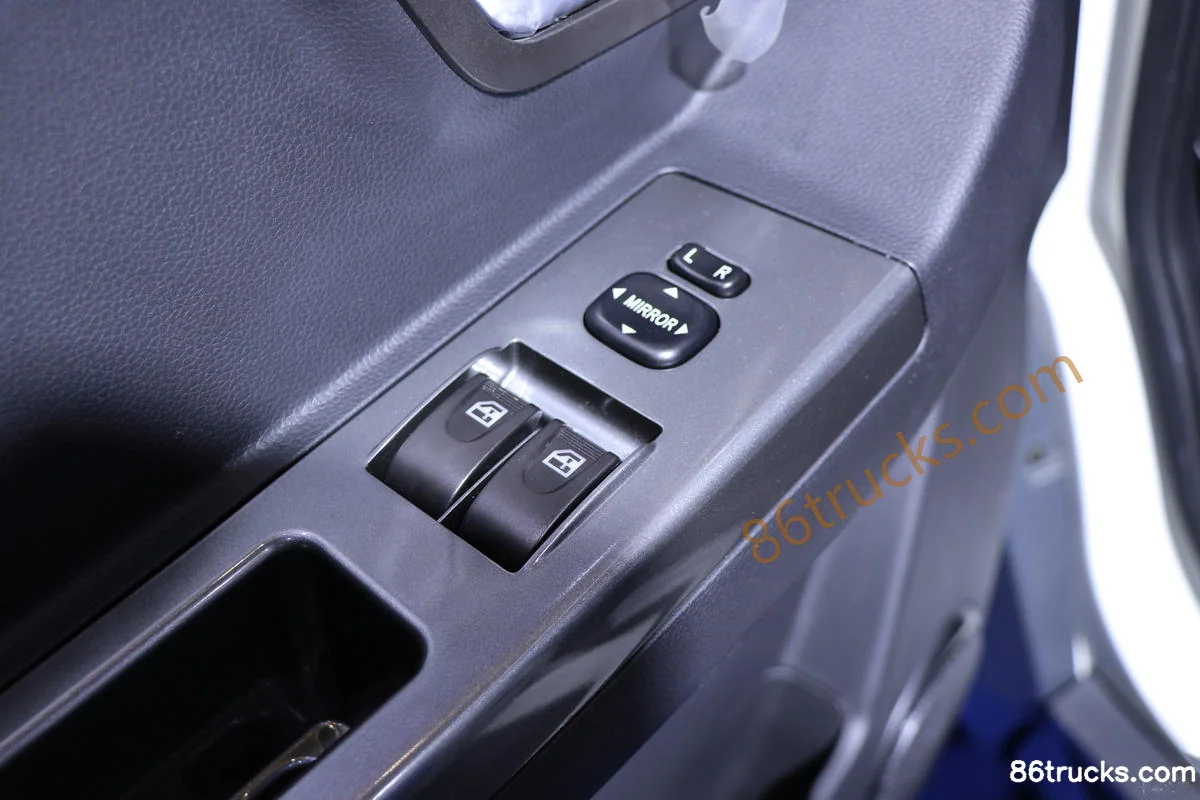

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cab (1) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cab (2) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cab (3) | 86Trucks

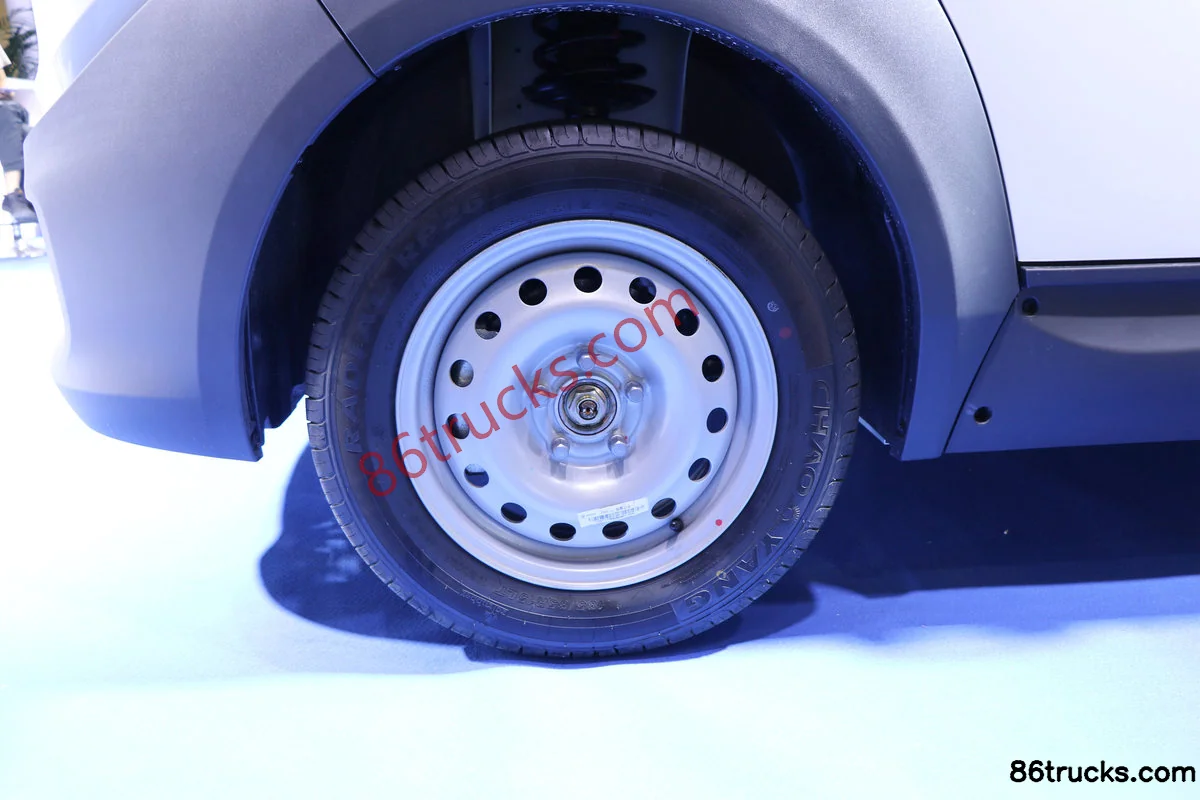

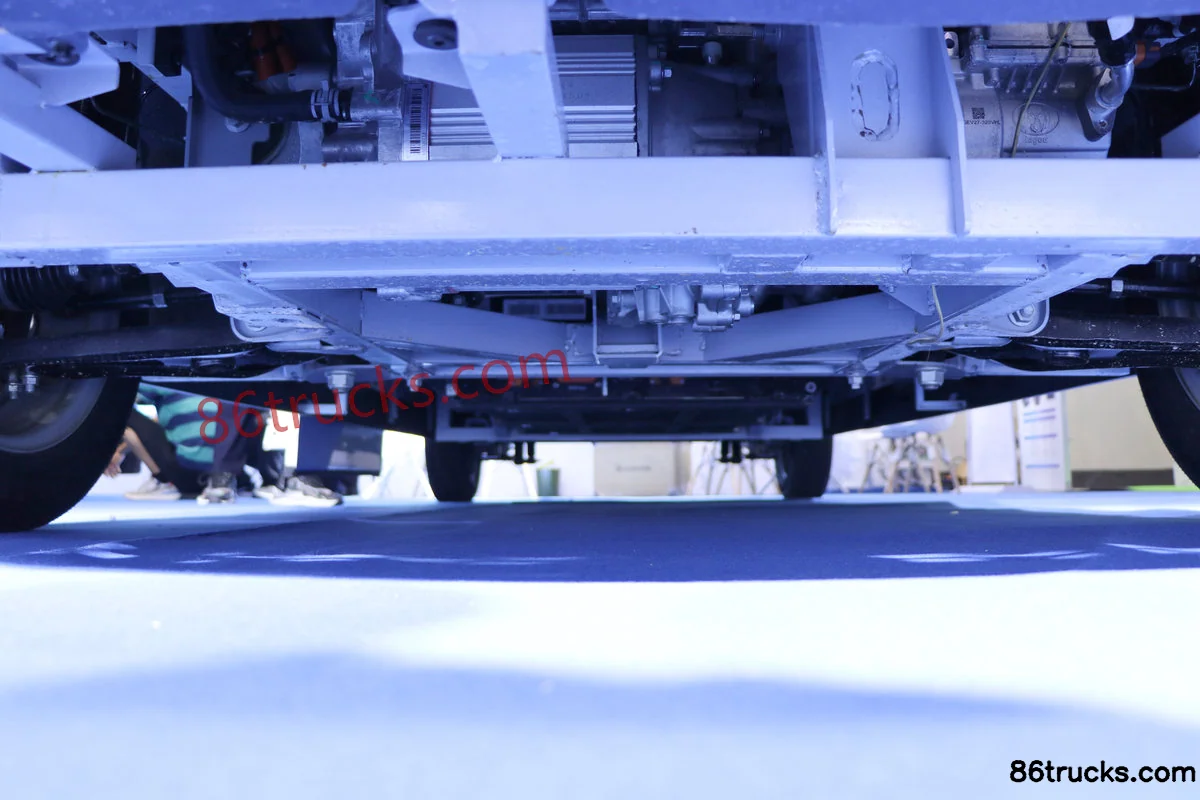

Chassis3

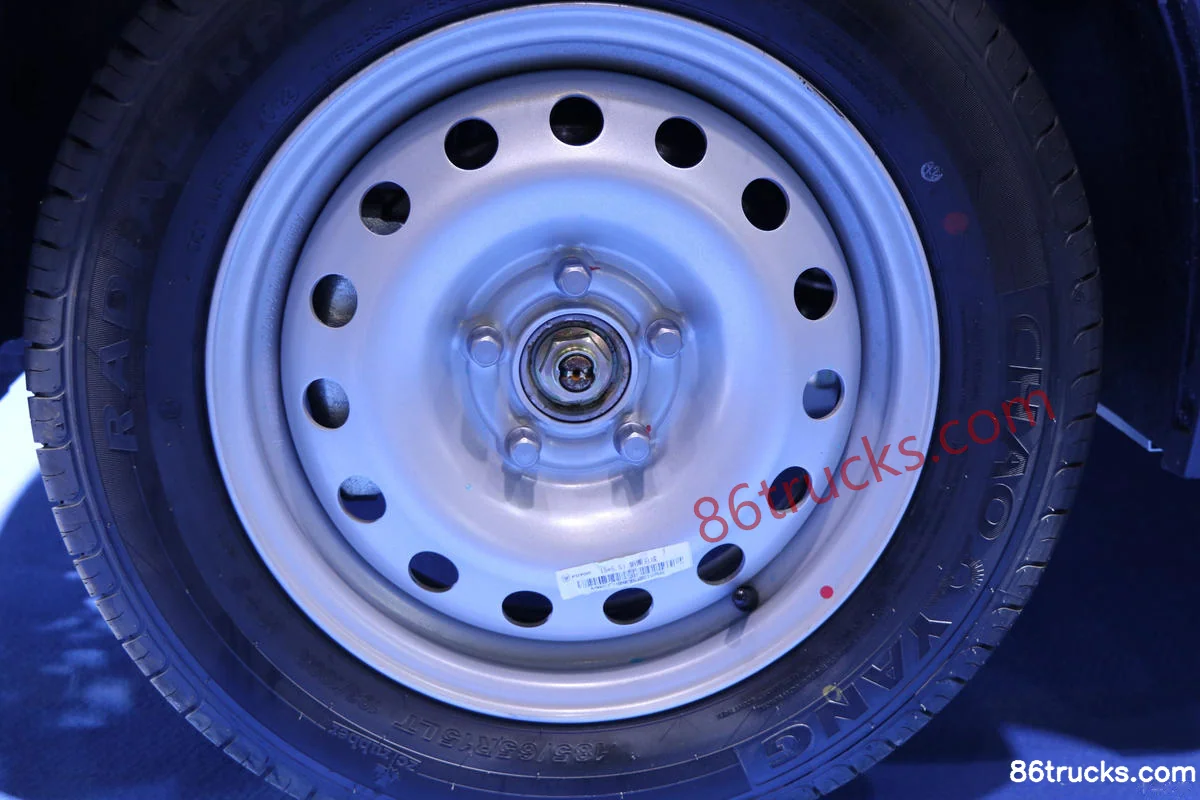

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Chassis (1) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Chassis (2) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Chassis (3) | 86Trucks

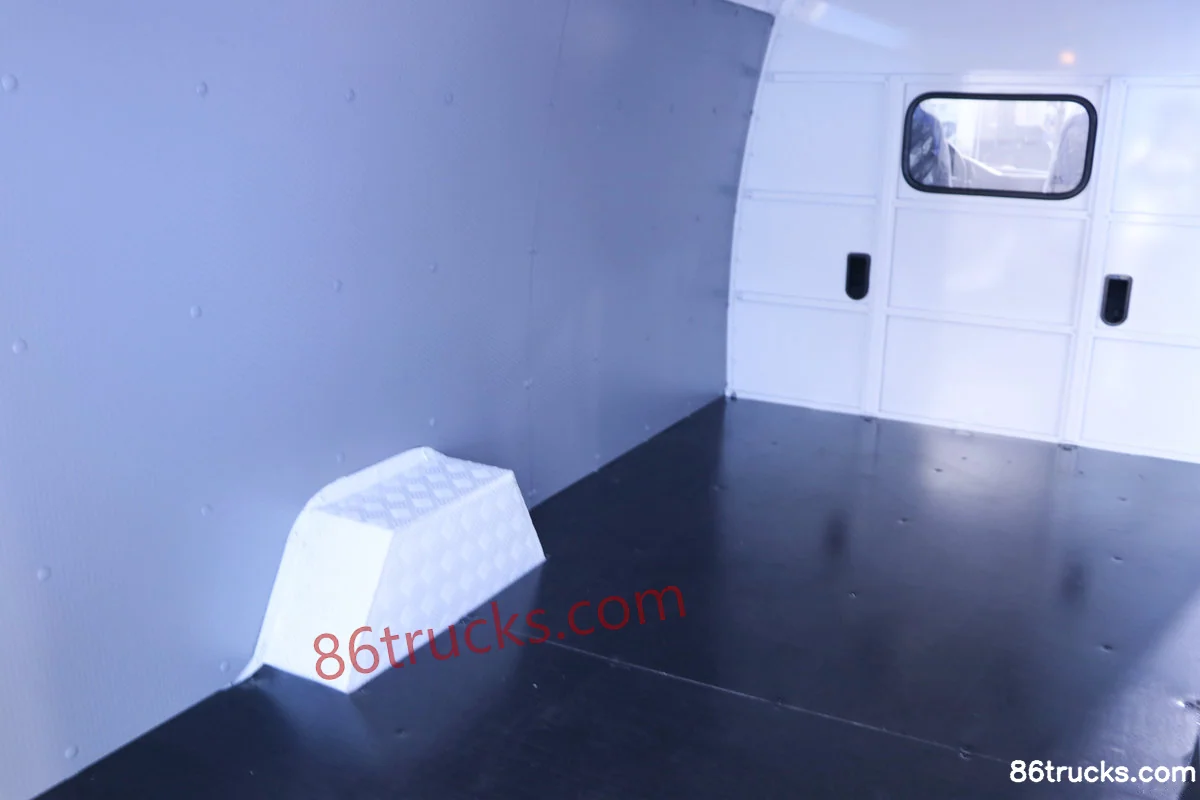

Cargo Box3

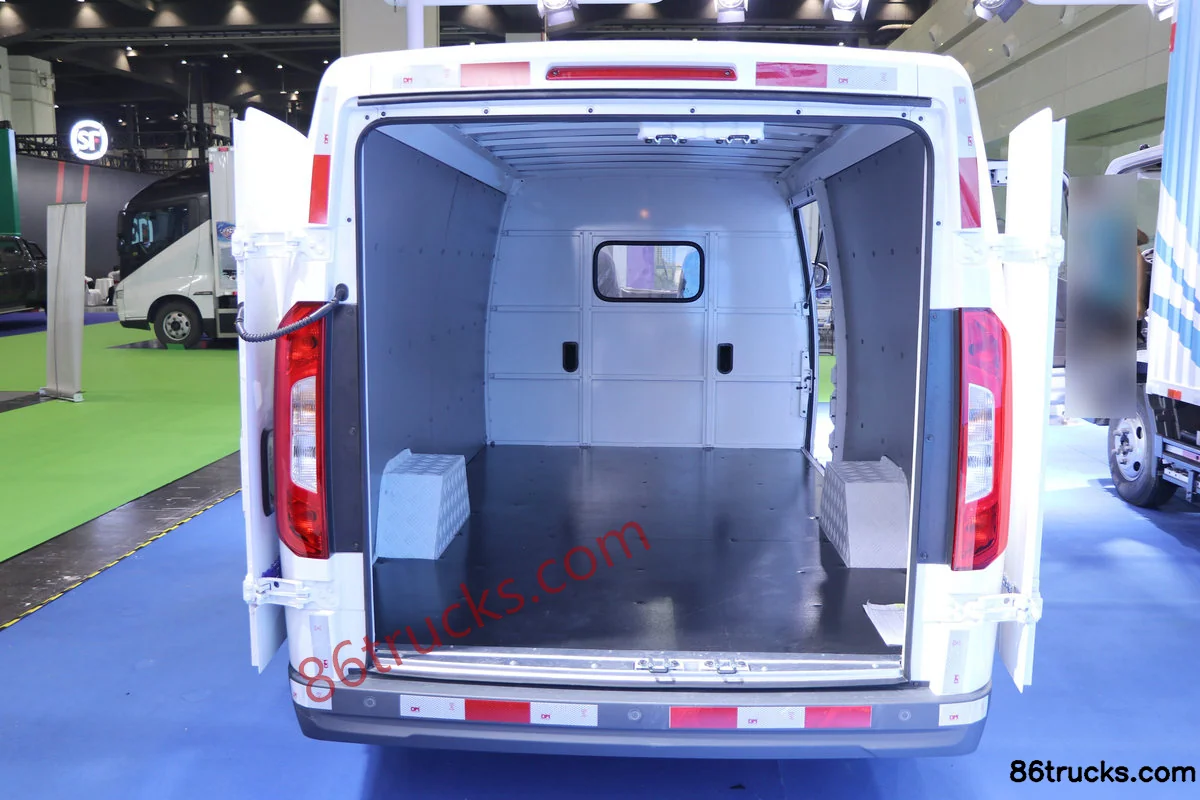

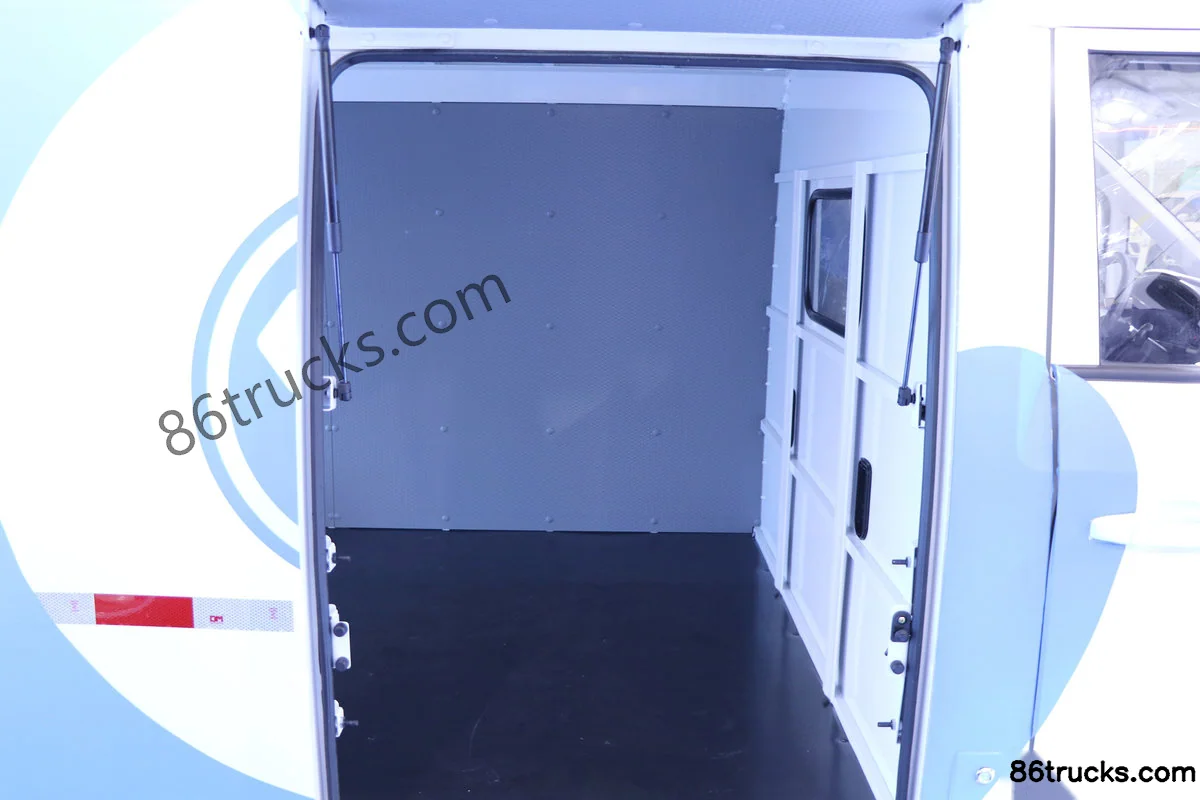

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cargo Box (1) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cargo Box (2) | 86Trucks ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What transport jobs is ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh suited for?

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh differ from other variants in the same series?

ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh belongs to Zhilan Elf (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZhiLan Auto ZhiLan Elf E7 5.395m Electric Cargo Van 46.36kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
