Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck

Export reference
MSRP N/A
Fuel: gasoline
Engine: Wuling Liuji1.1L
Transmission: Qingshan
Curb Weight:: 1.2ton
Wheelbase:: 2600mm
Tire Size:: 185R14

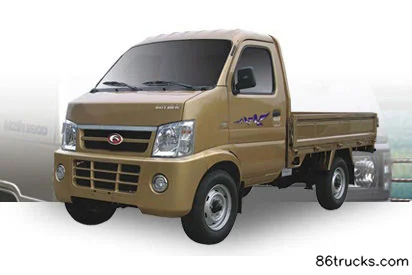

Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck exterior
View more photos (1)
Rated payload: 0.65ton
Drive 4X2 (6 wheels)
Cargo box type: stake body
Horsepower 52

Overview

The Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck is a mini truck featuring 2.4m cargo length, stake body cargo body, 0.65t payload and 2600mm wheelbase. On the powertrain side, it comes with a Wuling Liuji1.1L engine, 52 hp, 4X2 (6 wheels) drive and Qingshan transmission.

52 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1025V2KV3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2600mm
engine: Wuling LiujiLJ465Q-1AE1
transmission: QingshanMR509A
Cab length: 4.28m
Cab width: 1.665m
Cab height: 1.96m
Front track width: 1410mm
rear track: 1350mm
Curb Weight: 1.2ton
Rated payload: 0.65ton
GVWR: 1.98ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 28°
departure angle: 23°
Remarks: 1600 short-nose single-row forward-tilt cab, round-tube beam 1.0t front axle, integral 121 2.2t rear axle, riveted frame section: 120x50x4, non-independent leaf spring suspension, hydraulic drum brakes, optional A/C, 121 rear axle, with heater, antenna, radio, interior cargo box dome light, newly developed cargo box interior and rear lamps, optimized chassis wiring layout.
Front/rear suspension: 0.56/1.12m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ465Q-1AE1
Engine info: Wuling Liuji1.1L
fuel type: gasoline
Displacement: 1.051L
Max output power: 38.5kW
Max hp: 52Horsepower
Transmission Parameters
Transmission Model: QingshanMR509A
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.4m
Cargo box width: 1.56m
Cargo box height: 0.34m
*Cargo box interior width: 1.56
Cab parameters
Seat rows: Single Row
Chassis Specs
Leaf spring count: 5/5+1
Tire
Tire Size: 185R14
Number of tires: 4pcs

Photos

Exterior1

Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck Exterior (1) | 86Trucks

1 photos

FAQ

What are the key specs of Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck?

Key specs of Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 52 hp; Fuel: gasoline; Engine: Wuling Liuji1.1L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck suited for?

Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck differ from other variants in the same series?

Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck belongs to Forland Dika Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Forland Dika 1.0L 52 hp 4X2(6 wheels) Gasoline Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
