FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 1900+4300+1350mm
Cab dimensions:: 10.745×2.455×2.75m
Truck Type:: chemical liquid transport truck
Vehicle origin:: Hubei
Front/rear track width:: Front track: 1928/1928; Rear track: 1928/1847mm
Tank Size: 9.1×2.3×1.45m
Rated payload: 12ton
Drive 8X2 (10 wheels)
Horsepower 240

Overview

The FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) is a liquid transport truck featuring 9.1×2.3×1.45m tank capacity, 12t payload, 20.3m³ volume and 14t GVW. On the powertrain side, it comes with 240 hp, 8X2 (10 wheels) drive and China III / Euro III emissions.

China III / Euro III 240 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.745×2.455×2.75m
Drive type: 8X2
Truck Type: chemical liquid transport truck
Vehicle origin: Hubei
Wheelbase: 1900+4300+1350mm
Front/rear track width: Front track: 1928/1928; Rear track: 1928/1847mm
Rated payload: 12ton
GVWR: 14ton
Max. speed: 90km/h
Front/rear suspension: 1.375/2.855m
Body Parameters
Tank Size: 9.1×2.3×1.45m
Tank Volume: 20.3m3
Transport medium: Pentane
Medium Density: 0.62ton/cubic meter
Vehicle certification code: HLQ5240GHYC
Body Brand: Shenhu Brand
Others: Optional cab with chassis.
Chassis Specs
Front/rear axle description: Front axle 5T / Rear axle 13T
Chassis Brand: FAW Jiefang
Chassis Series: J5M
Chassis Model: CA1243P7K2L11T9E
Leaf spring count: 12/12/12/10+9,4/4/12/10+9,12/12/2+-/10+9,4/4/2+-/10+9
Engine parameters
Engine Model: Xichai CA6DE3-24E3
Number of cylinders: 6cylinder
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 188kW
Max hp: 240Horsepower
Transmission Parameters
Number of gears: 7Gear
Transmission Model: Fast Gear
Tire
Tire Size: 11.00-20
Number of tires: 10pcs

Photos

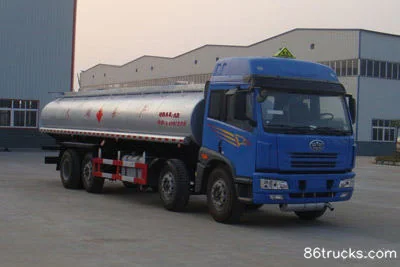

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand)?

Key specs of FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand): Drive: 8x2; Horsepower: 240 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) suited for?

FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) is a liquid transport truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) differ from other variants in the same series?

FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand) belongs to Shenhu FAW Jiefang chassis (liquid transport truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei (J5M) 240 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Shenhu brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
