FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck

Export reference
From $22,361
MSRP ¥16.1M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 3Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck is a Medium-duty truck featuring 5.2m cargo length, Stake type cargo body, 3Personnel volume and 9.925t payload. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180CCYP28K8L2E6A90
Type: stake truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: YuchaiYCS04240-66
transmission: Fast Gear8JS85C
Rear Axle Ratio: 4.333
Cab length: 7.5m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1938mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.925ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
Front/rear suspension: 1.41/1.89m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04240-66
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.295L
Emission standard: China VI
Max output power: 173kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.2m
Cargo box width: 2.4m
*Cargo box interior width: 2.4
Cab parameters
Cab: JK6 high-roof full-floating cab
Cab width: 2300mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 385 upgraded cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/7+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

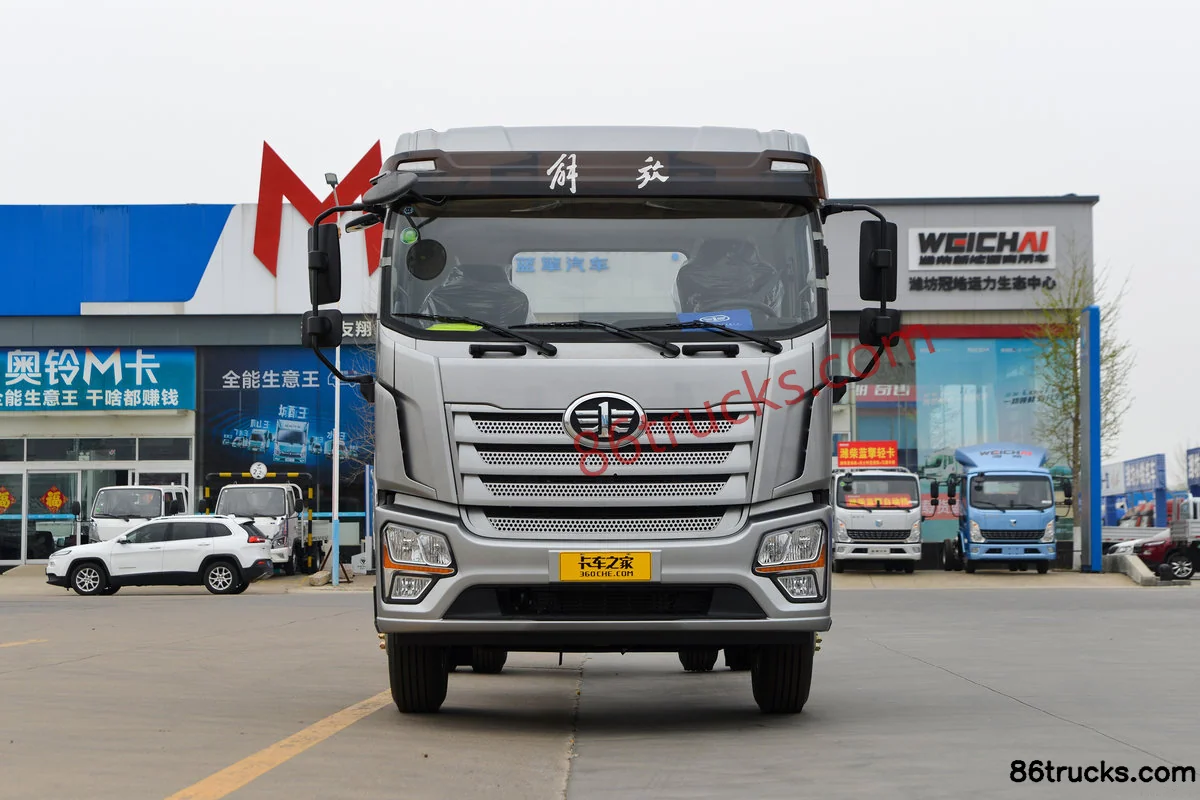

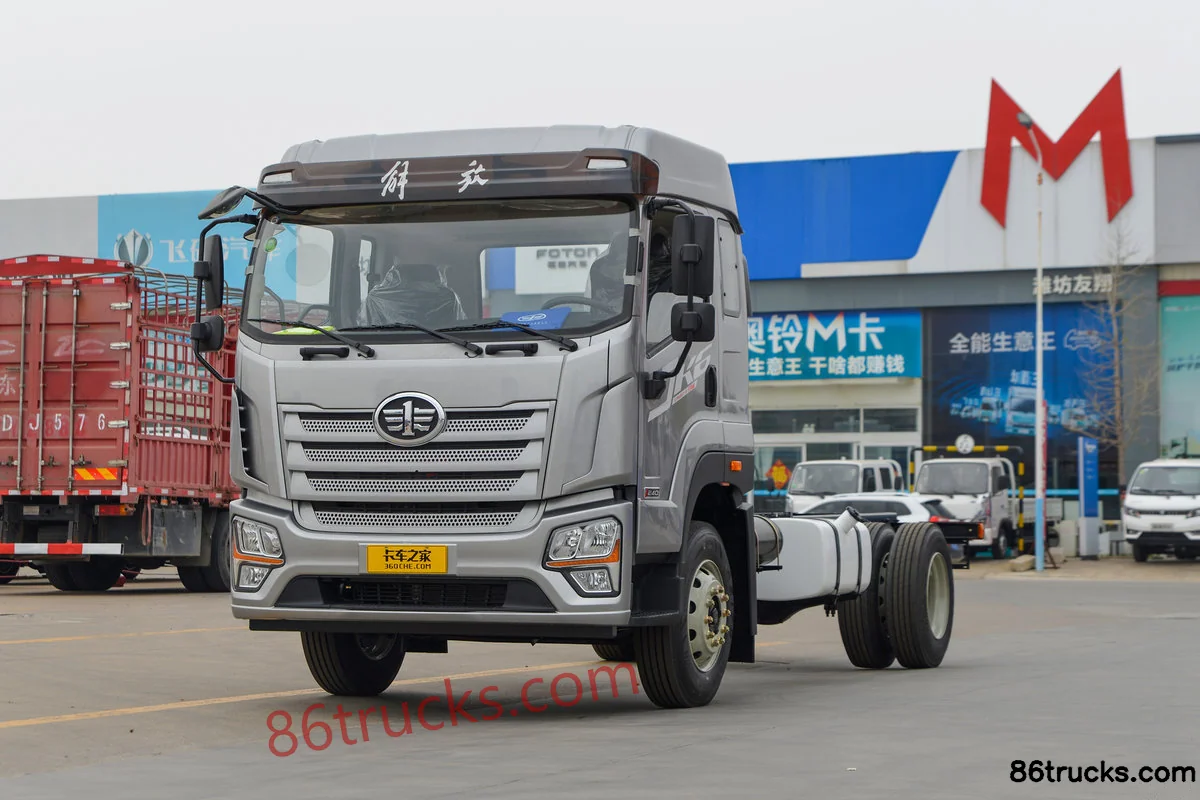

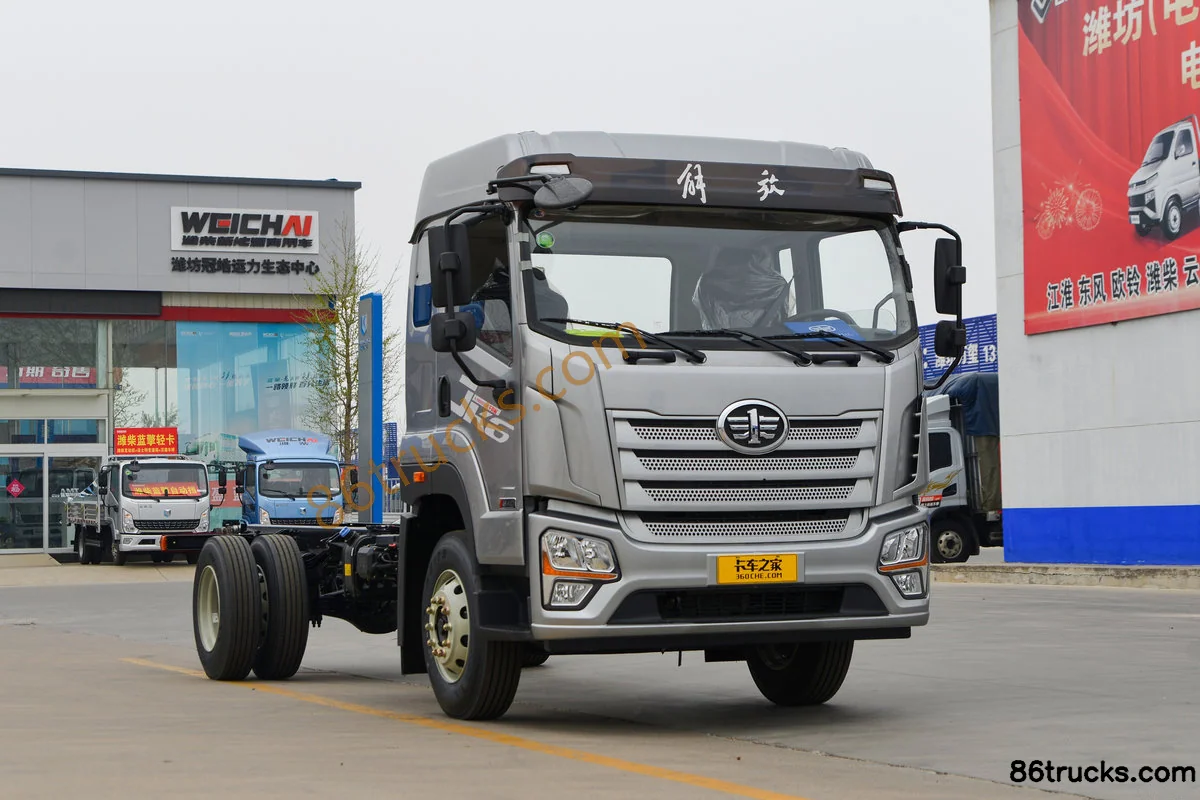

Exterior3

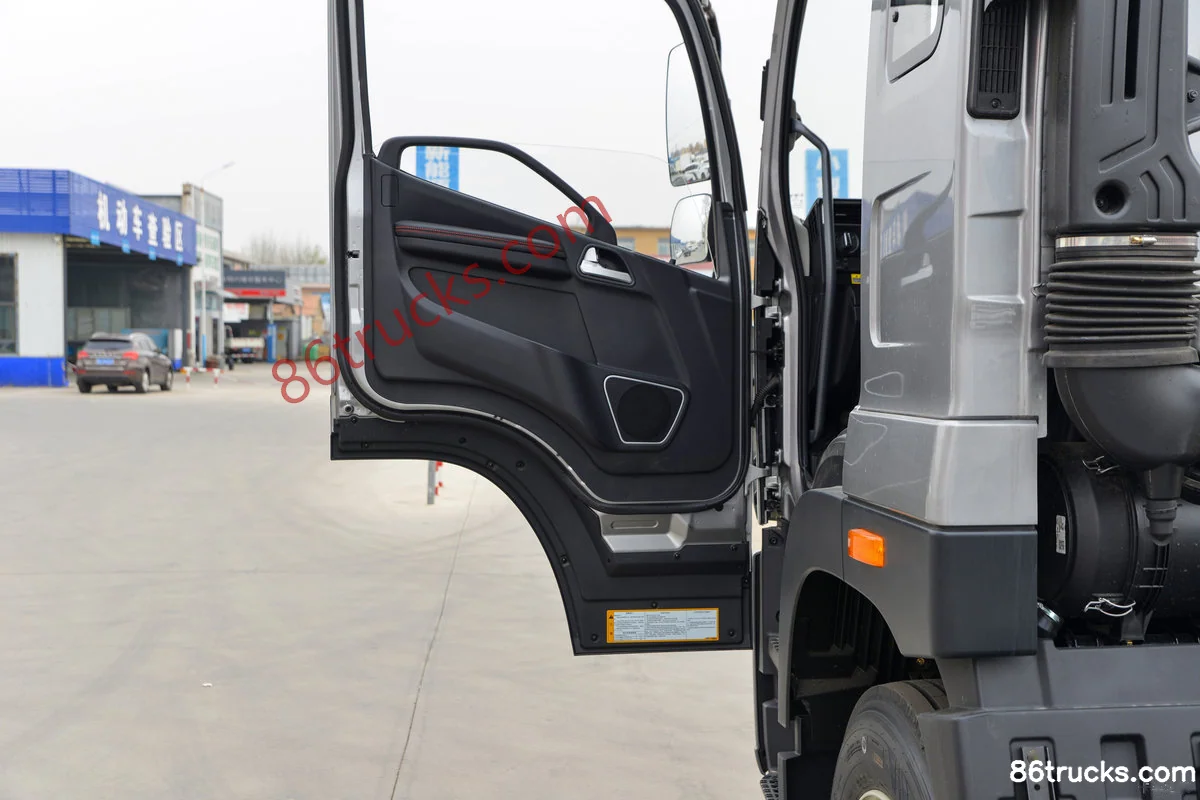

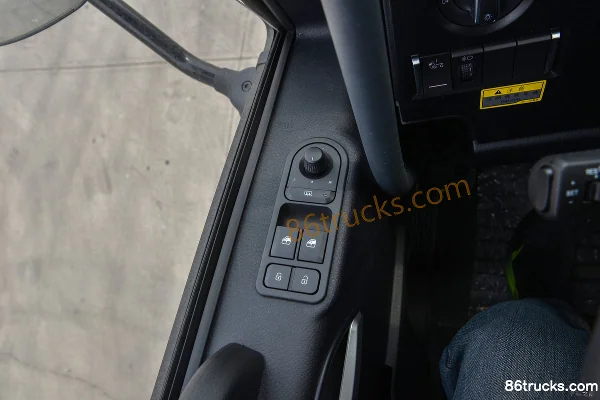

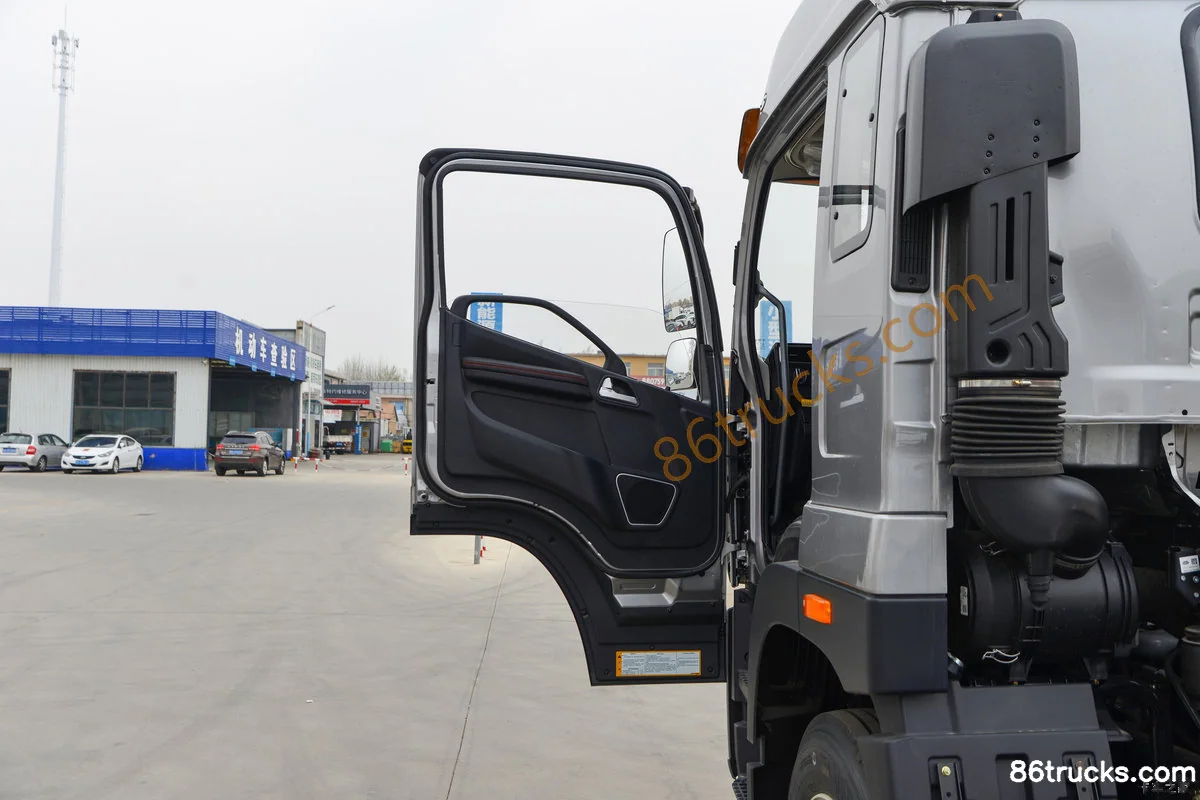

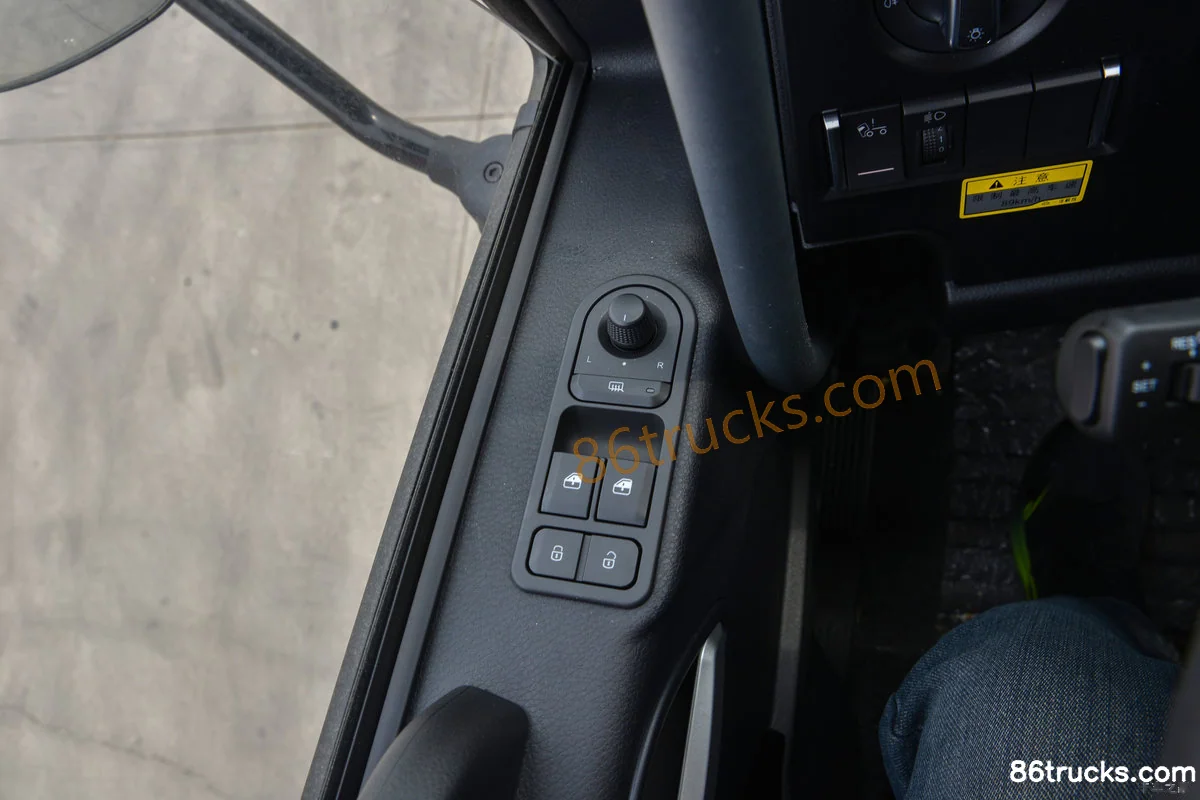

Cab3

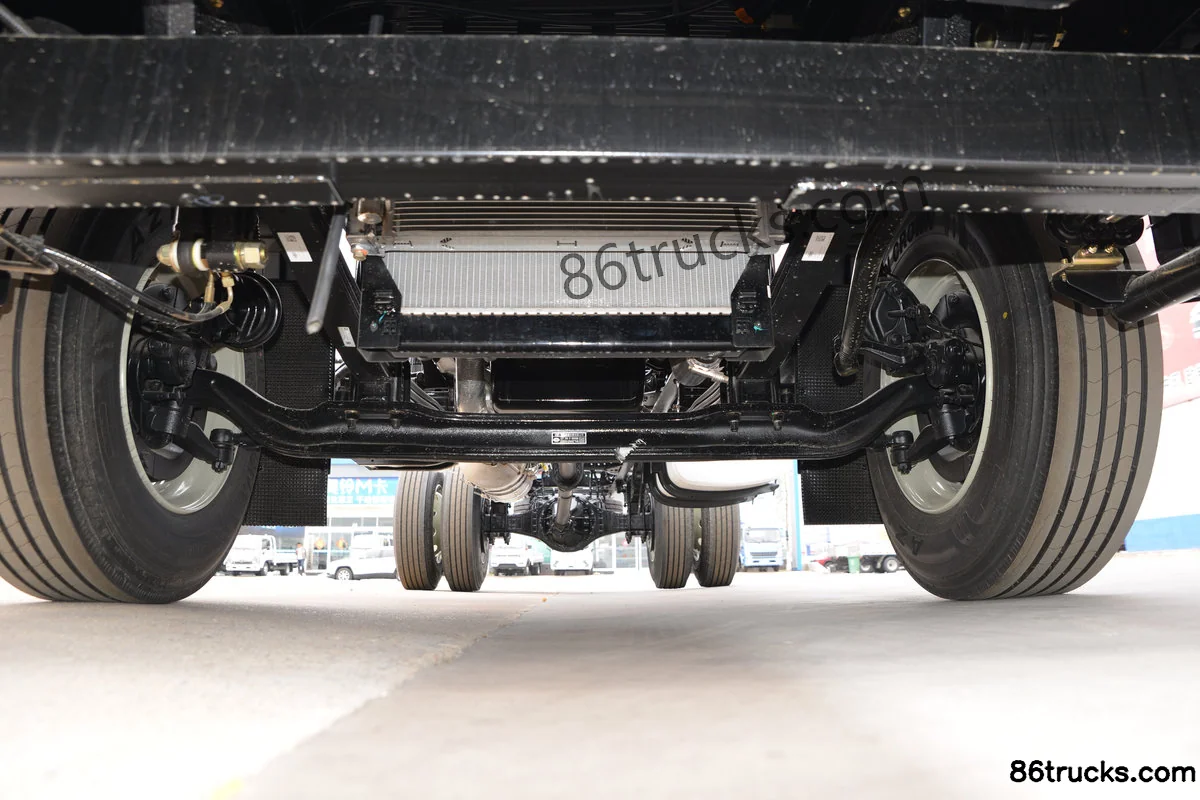

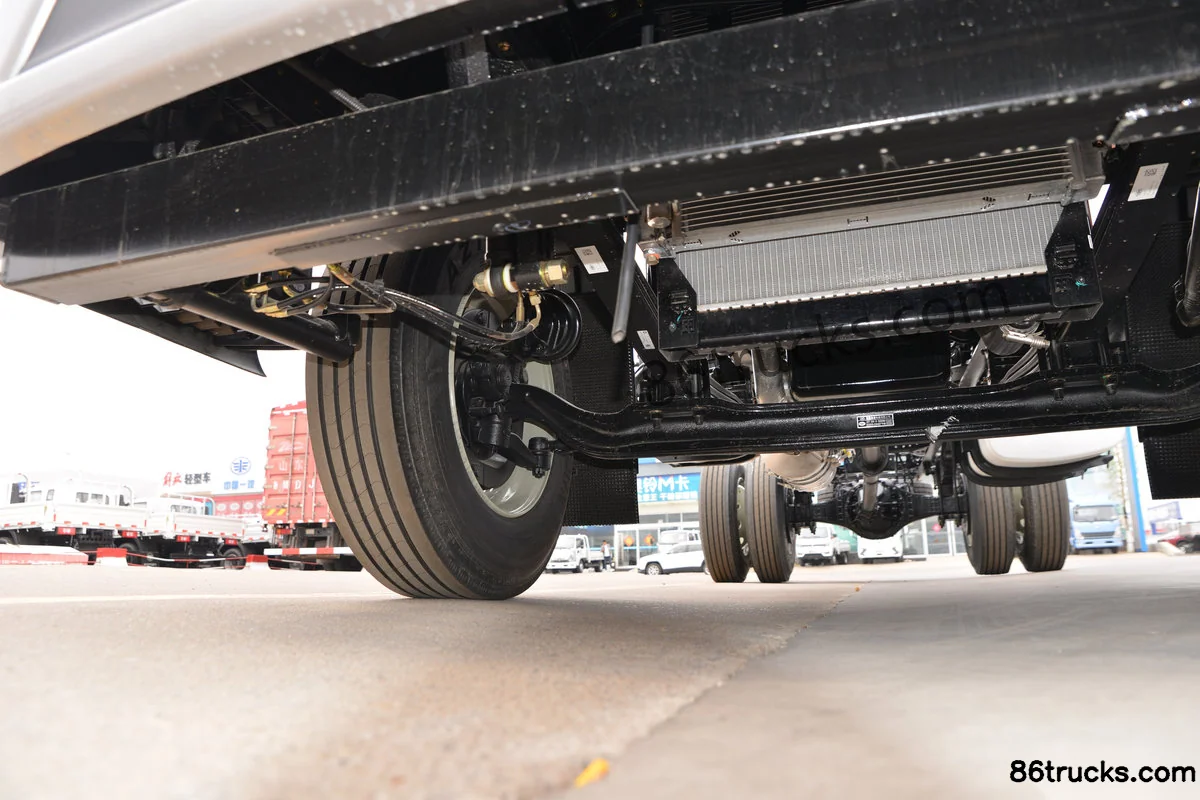

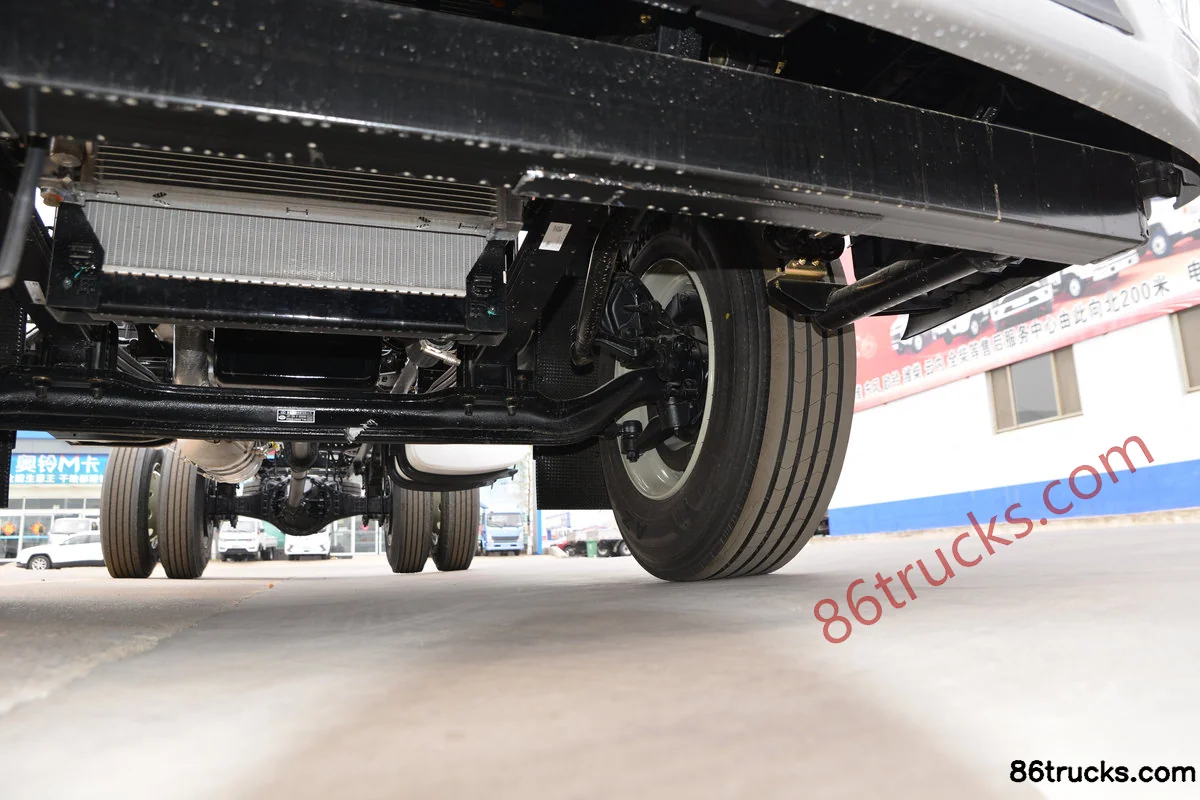

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck, and what does it include?

FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck export reference is about From $22,361; MSRP is ¥16.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck suited for?

FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 240hp 4X2(6 wheels) 5.2m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
