Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh

Export reference
MSRP N/A
Rated payload:: 9.99ton
Wheelbase:: 5100mm
Cargo box volume:: 41.8m³
Model code (announced):: LZ5180XXYH5AUHEV101
Type:: Cargo Trucks
Box length class:: 6.8m

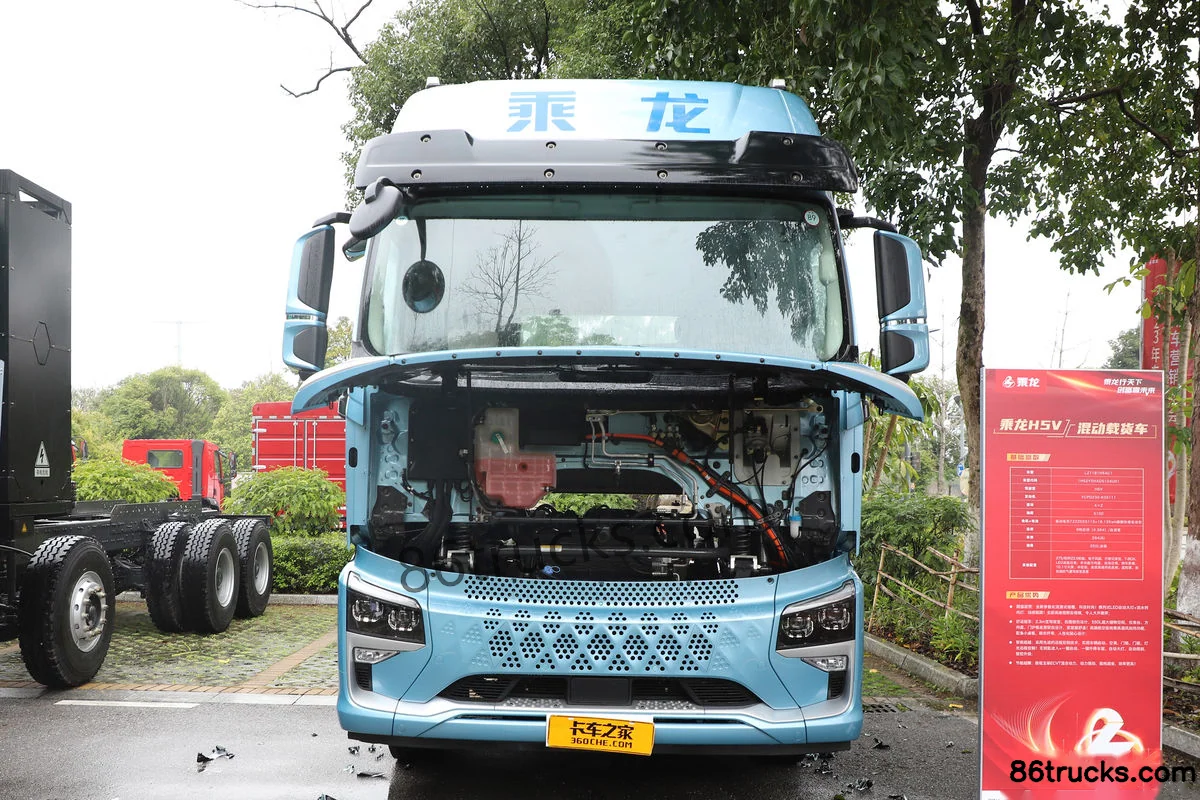

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh exterior
View more photos (9)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Model: TZ220XS115
Curb Weight: 7.88ton

Overview

The Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh is a Medium-duty truck featuring CATL battery/range, TZ220XS115 motor, 4X2 (6 wheels) drive and 9.99t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5180XXYH5AUHEV101
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 6.8m
Cab length: 9m
Cab width: 2.55m
Cab height: 3.68m
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Remarks: 350L fuel tank, leather seat, sun visor, auto headlights, auto wipers
Energy Type: Hybrid
electric motor
Motor 1 Model: TZ220XS115
Motor Type: Permanent magnet synchronous motor
total rated power: 115kW
Peak power: 157kW
total rated torque: 220N·m
total peak torque: 300N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 16.12kWh
Cargo box parameters
Cargo box volume: 41.8m³
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.46m
Cargo box height: 2.5m
Cab parameters
Cab width: 2300mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 9T (4.364)/self-adjusting arm
rear axle allowable load: 11500kg
Aluminum wheels:
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
smart configuration
Telematics System:
Cruise control (CCS):

Photos

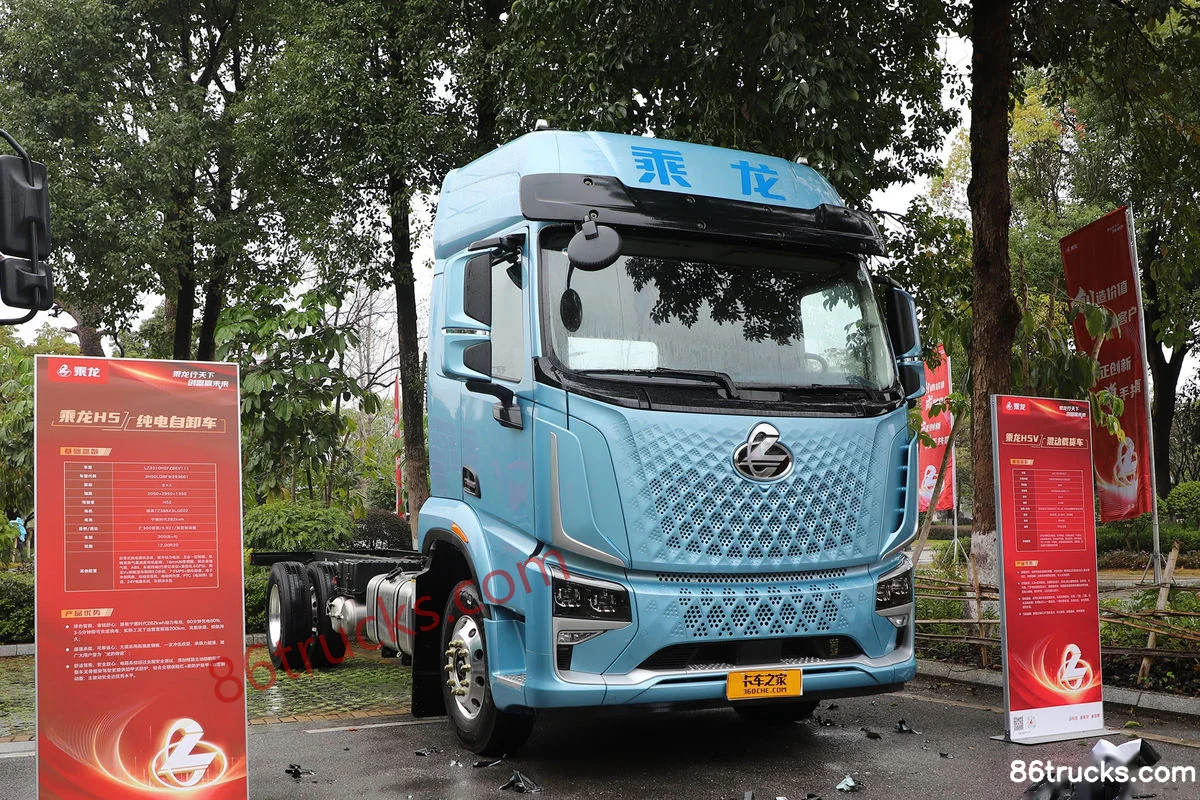

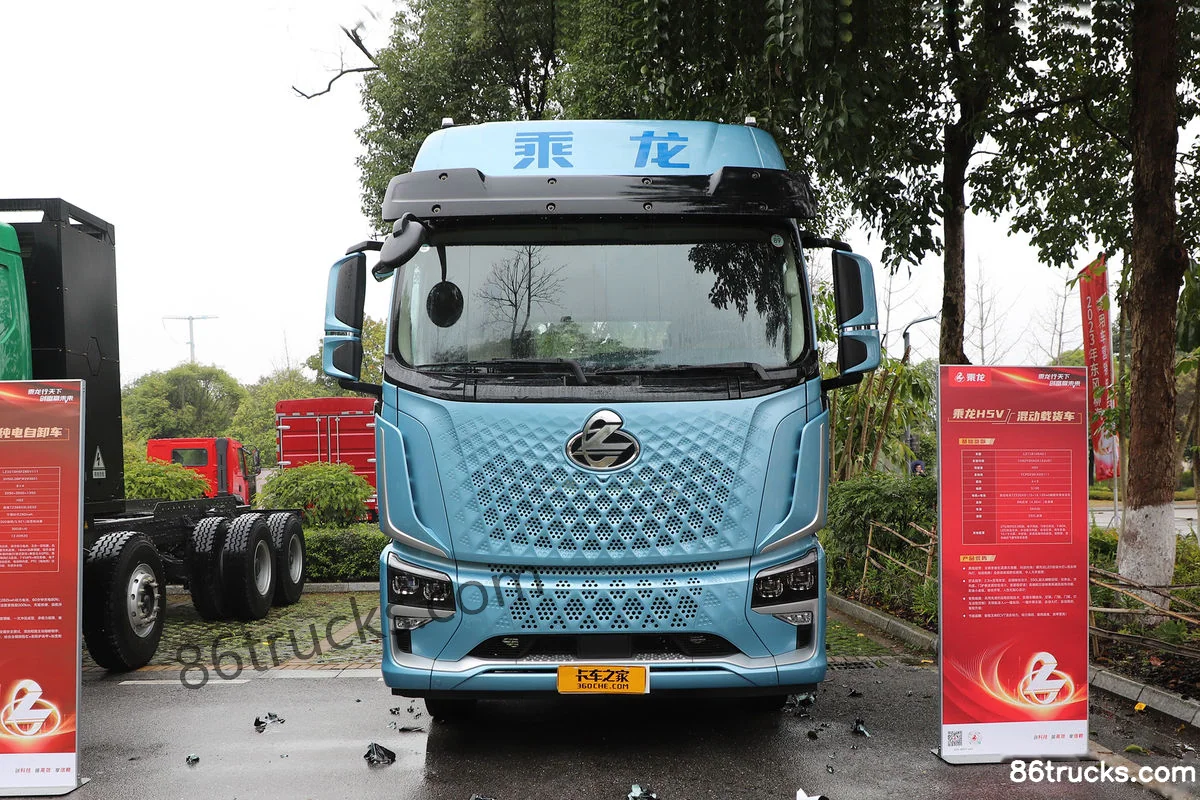

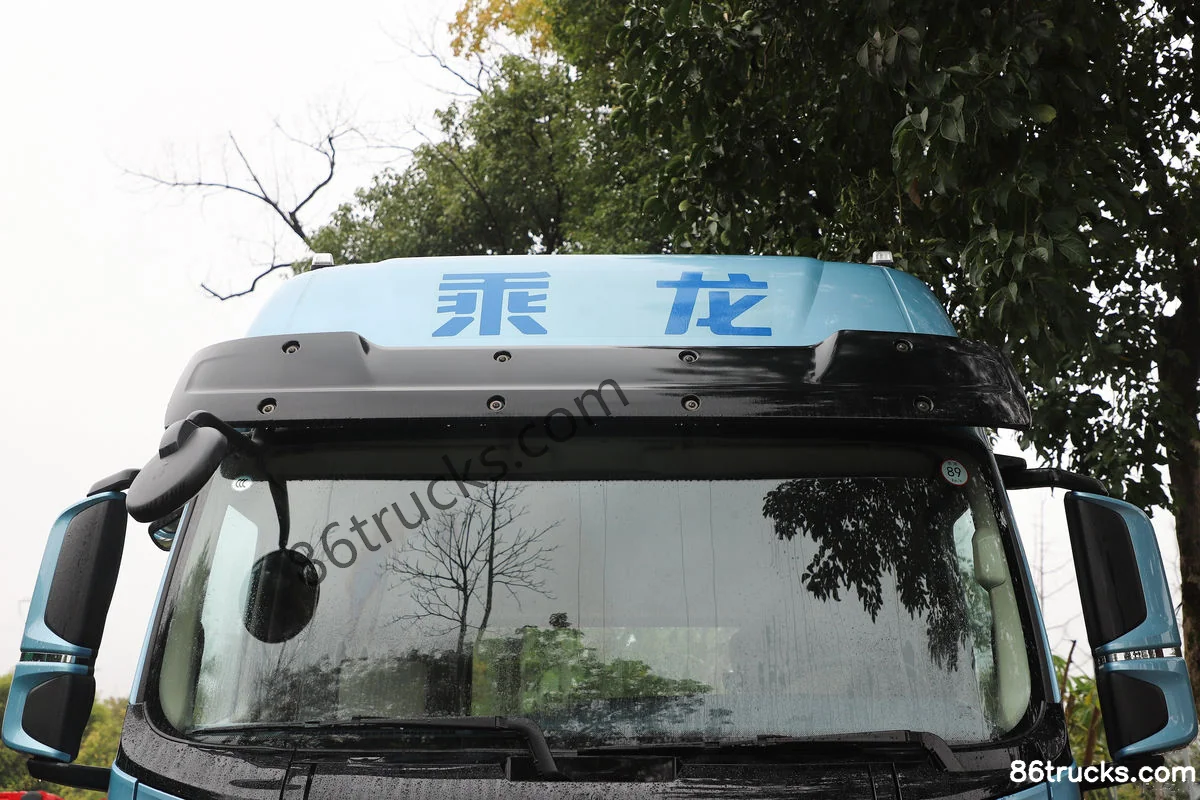

Exterior3

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Exterior (1) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Exterior (2) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Exterior (3) | 86Trucks

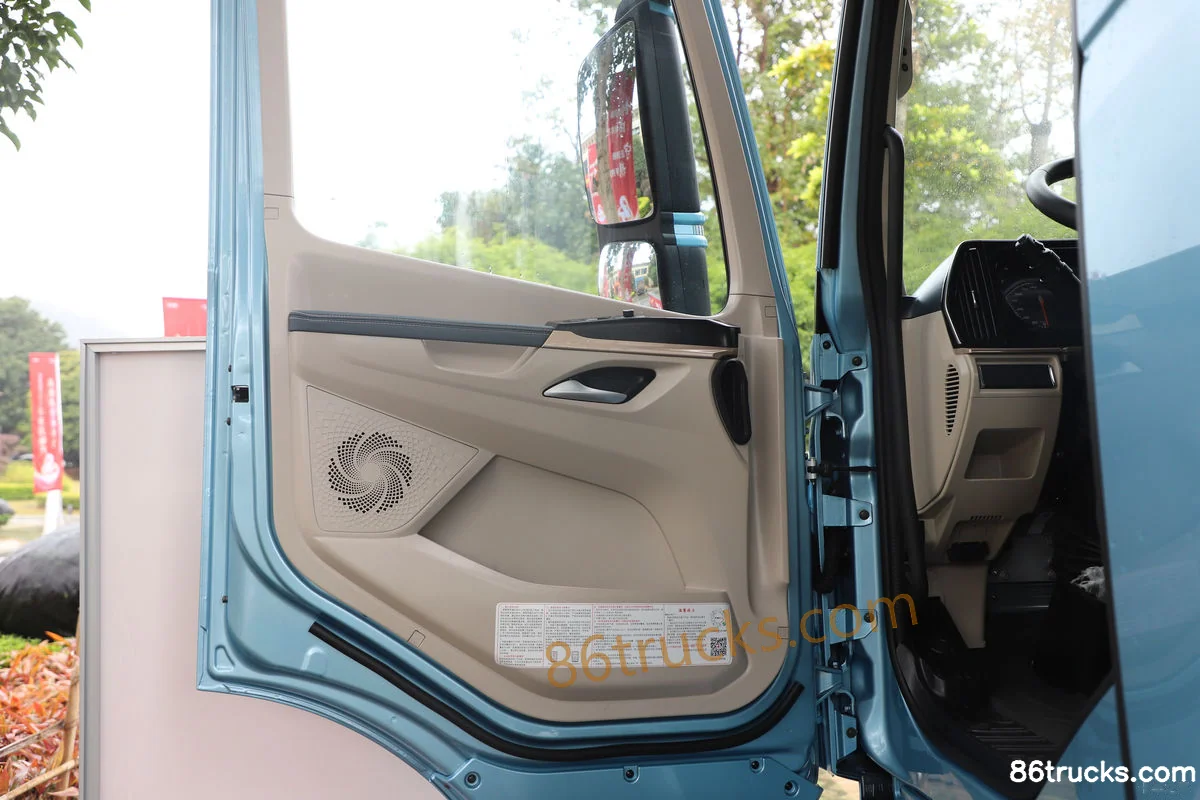

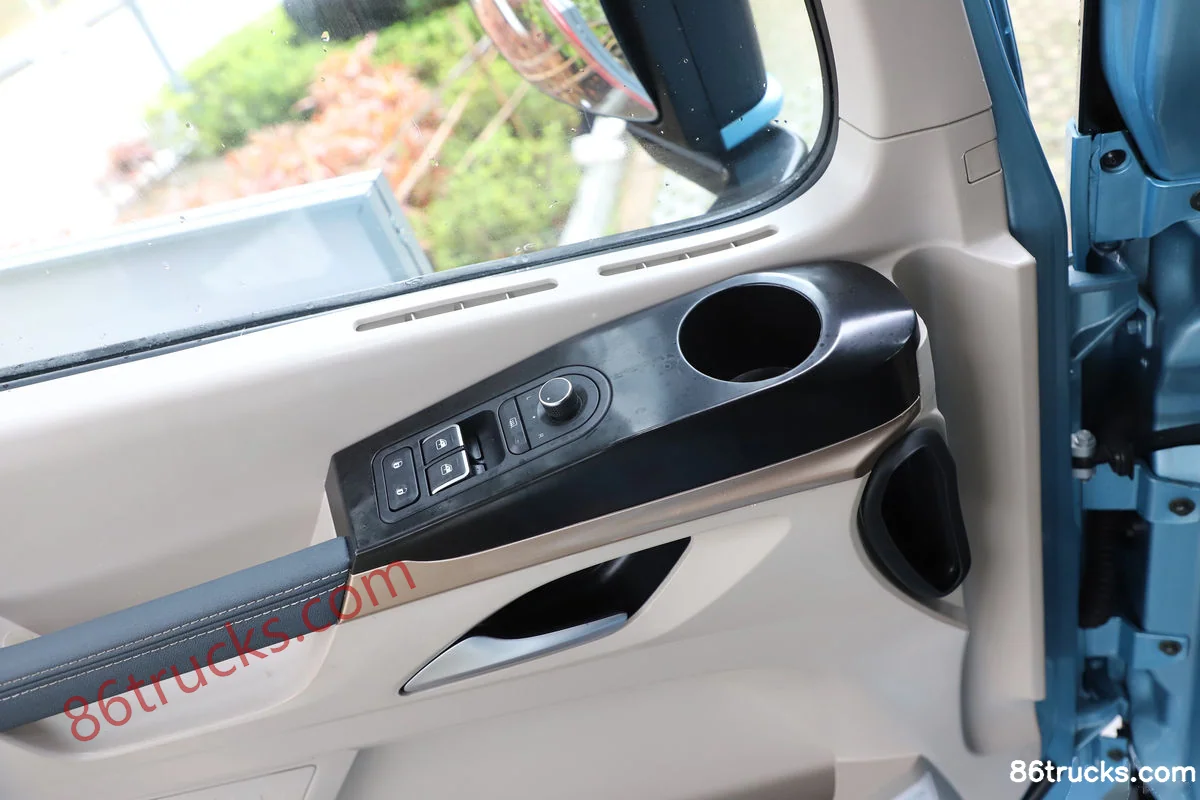

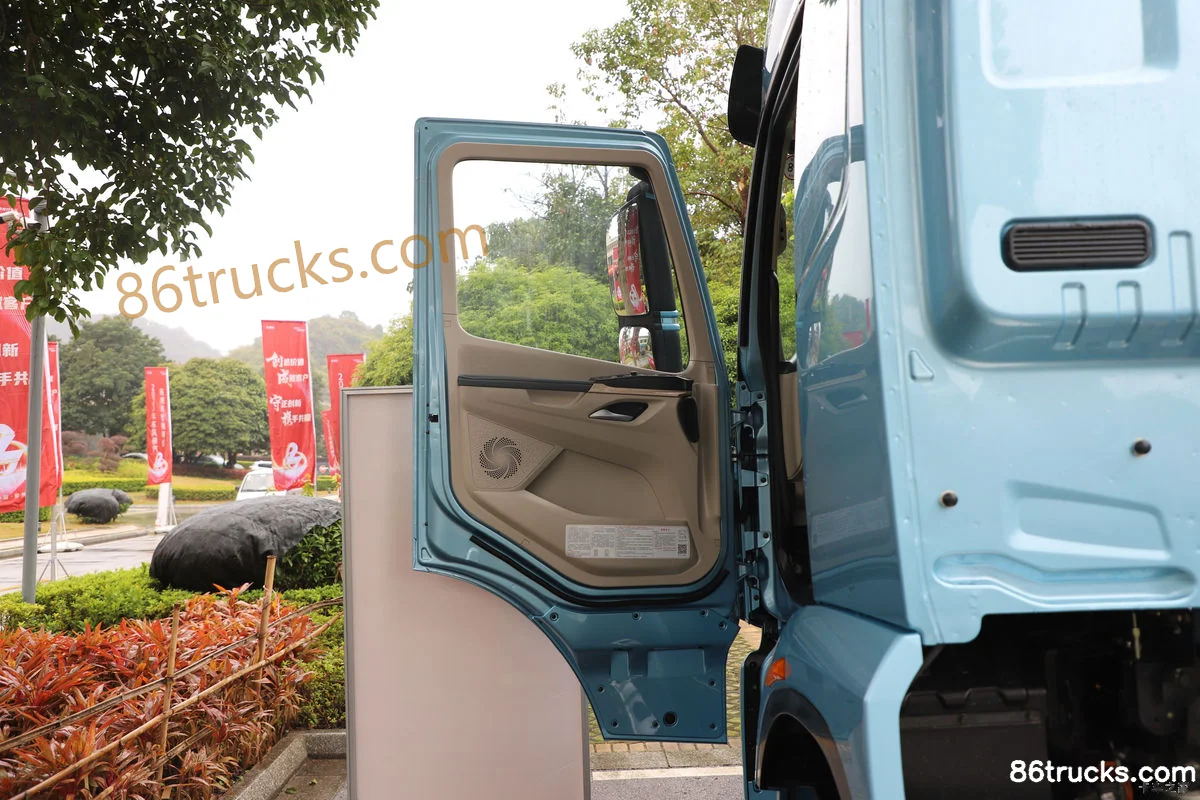

Interior3

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Interior (1) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Interior (2) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Interior (3) | 86Trucks

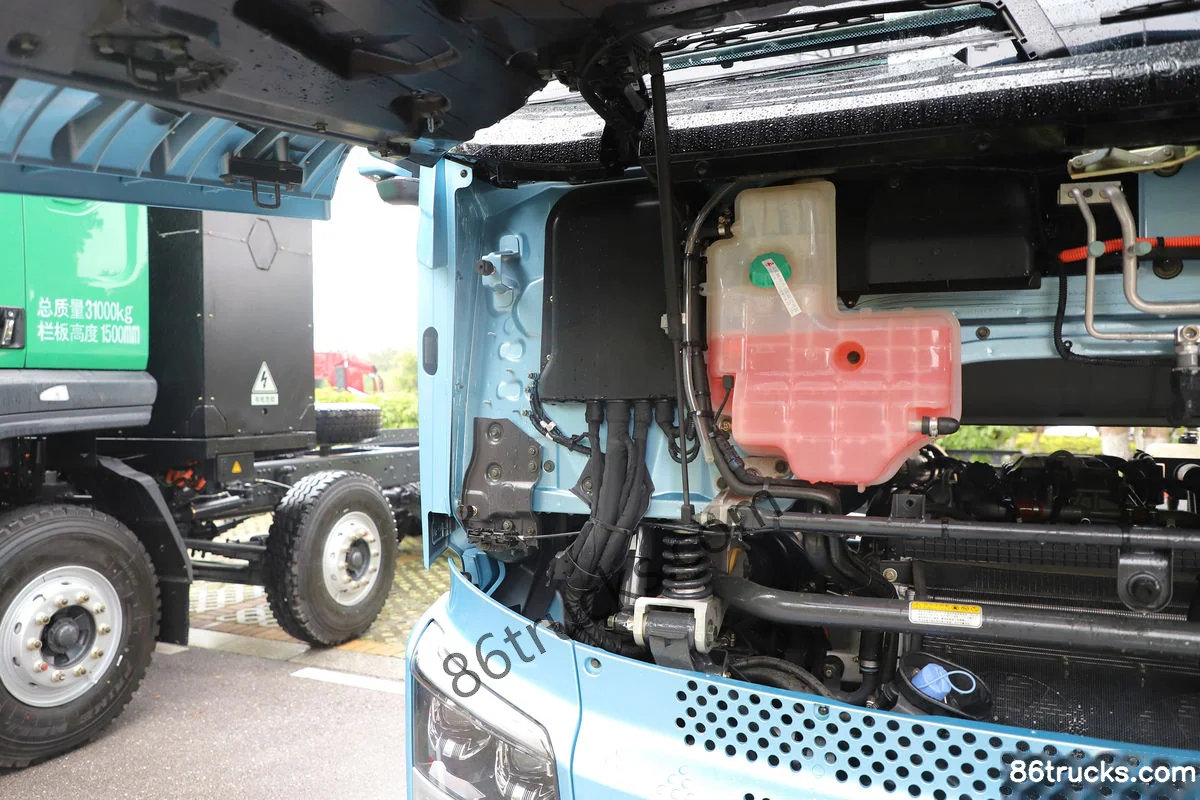

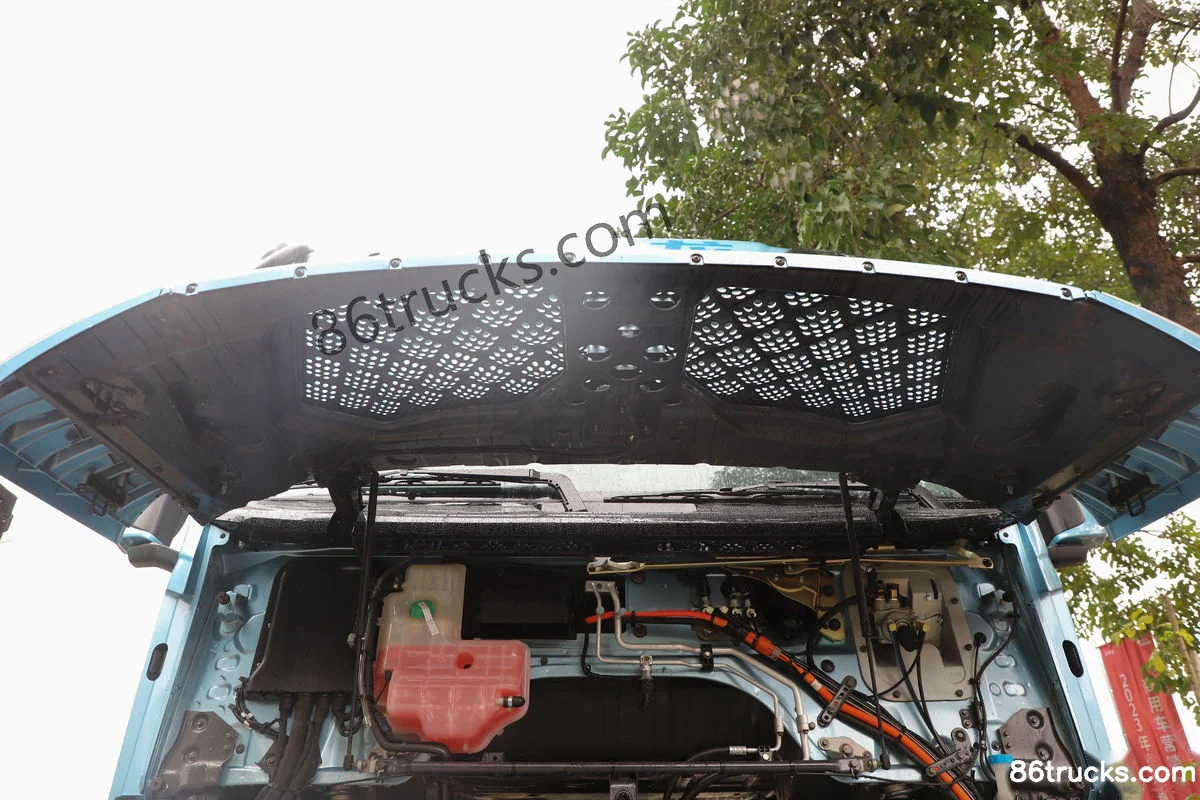

Chassis3

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Chassis (1) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Chassis (2) | 86Trucks Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh?

Key specs of Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh suited for?

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh belongs to DongfengH5V (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5V 4X2(6 wheels) 6.8m Hybrid Cargo Truck 16.12kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
