Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck

Export reference
From $23,611
MSRP ¥17M CNY
Horsepower: 240
Fuel: Diesel
Engine: Dongfeng4.8L
Transmission: Fast Gear
Curb Weight:: 7.18ton
Wheelbase:: 5000mm
Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.925t payload. On the powertrain side, it comes with a Dongfeng4.8L engine, 240 hp, 4X2 (6 wheels) drive and Fast Gear transmission.

240 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFH1180EX5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengDDi47E240-60
transmission: Fast Gear8JS85TE-C
Rear Axle Ratio: 4.33
Cab length: 9m
Cab width: 2.55m
Cab height: 3m
Front track width: 1815mm
rear track: 1800mm
Curb Weight: 7.18ton
Rated payload: 9.925ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 10°
Front/rear suspension: 1.4/2.6m
Version: Xingyao Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DDi47E240-60
Engine info: Dongfeng4.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.75L
Max output power: 177kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: 8JS85TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.45
Cab parameters
Cab: High roof double bunk
Cab suspension: Four-point air suspension
Cab width: 2290mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 8 tons
rear axle allowable load: 11500kg
Axle ratio: 4.33
Leaf spring count: 8/10+8
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Multimedia features
Center Console Color Screen:

Photos

Exterior3

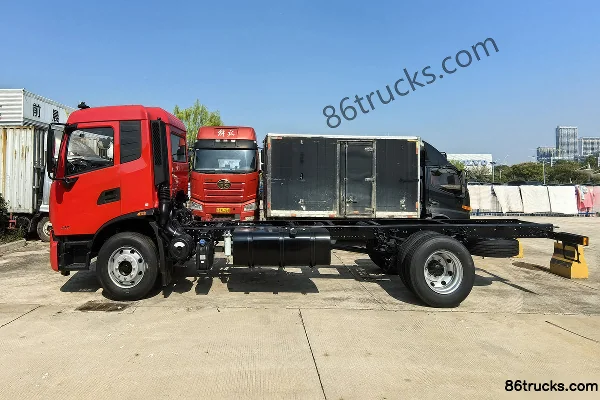

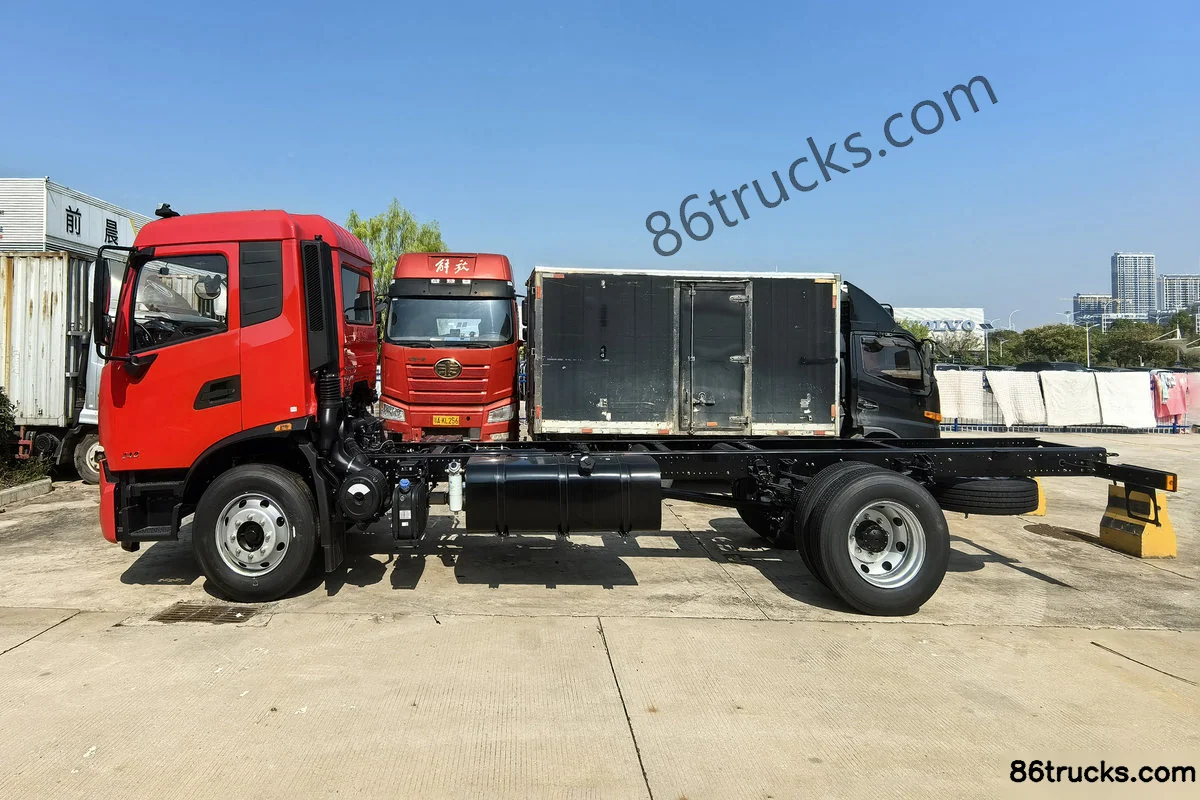

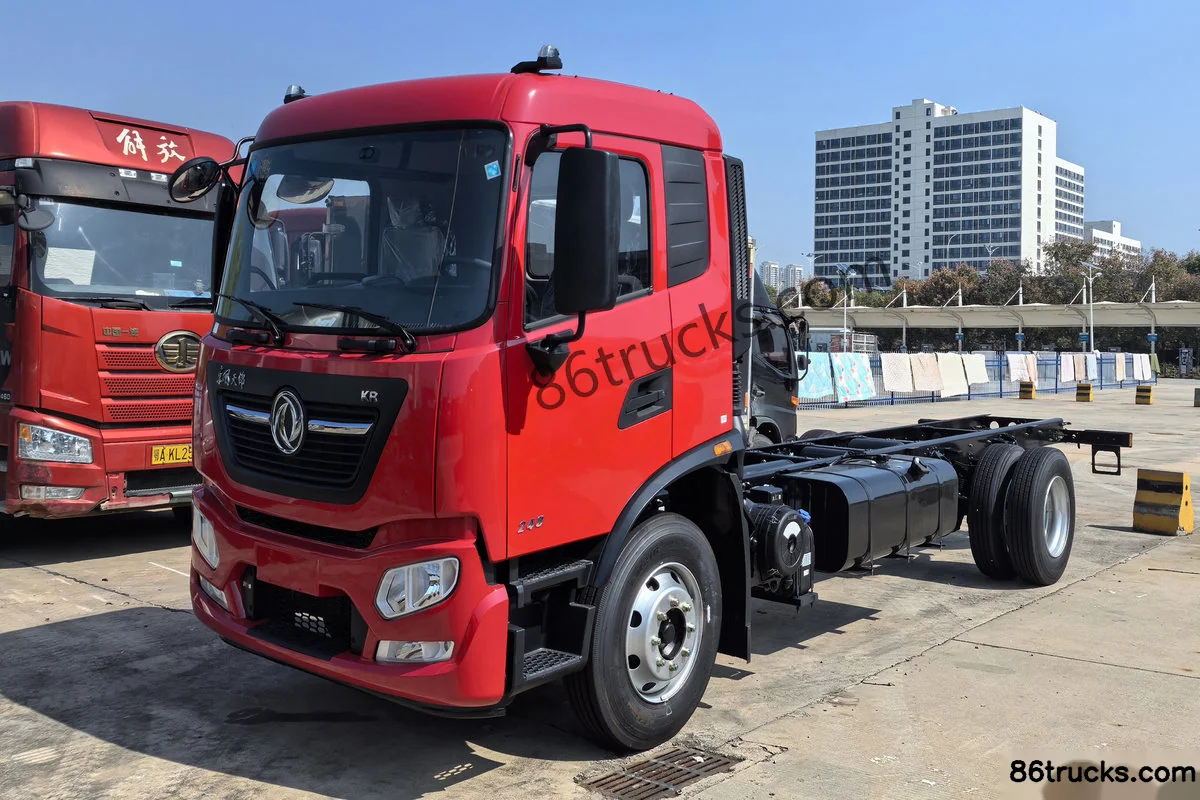

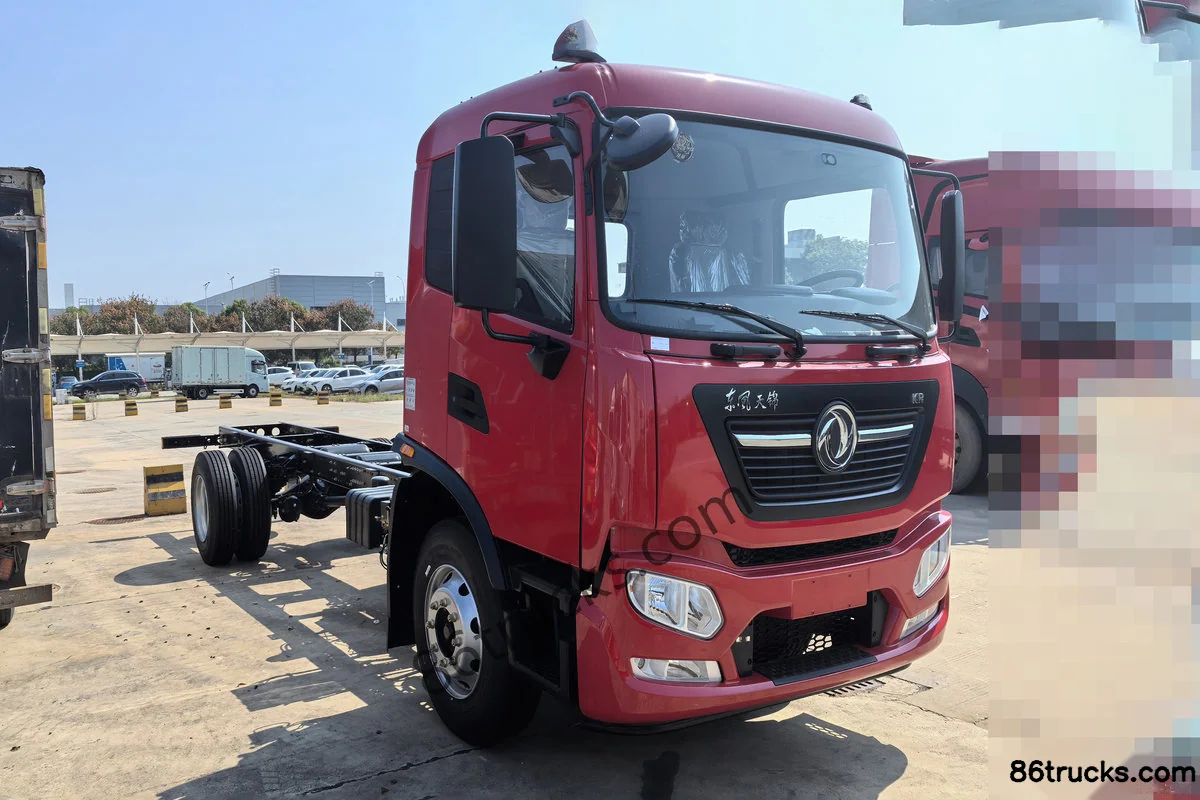

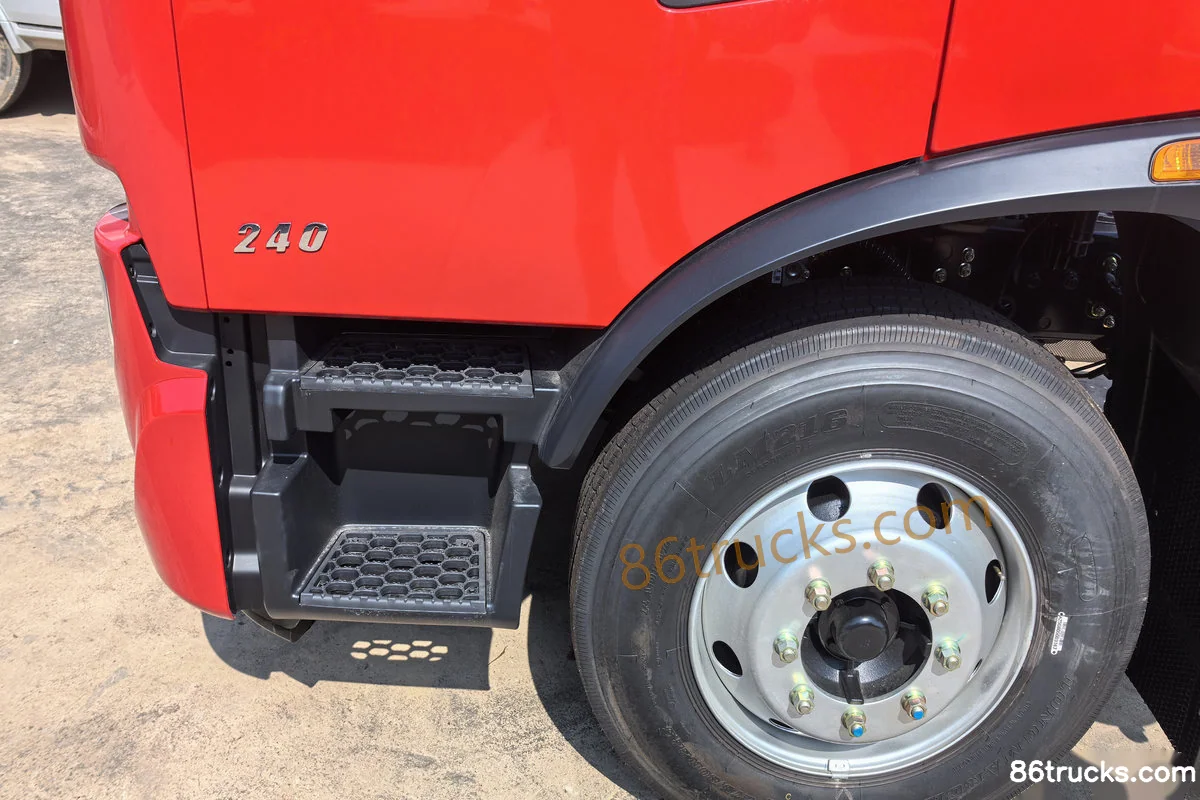

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Exterior (1) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Exterior (2) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Exterior (3) | 86Trucks

Cab3

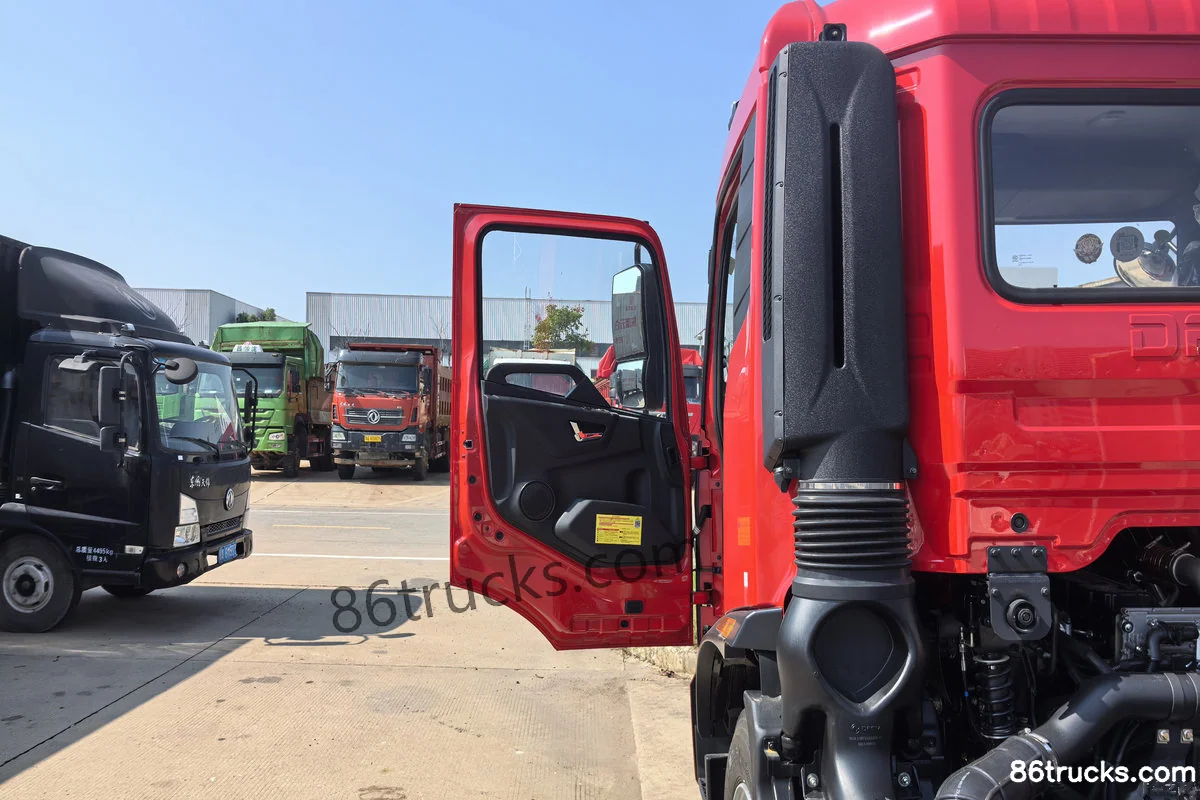

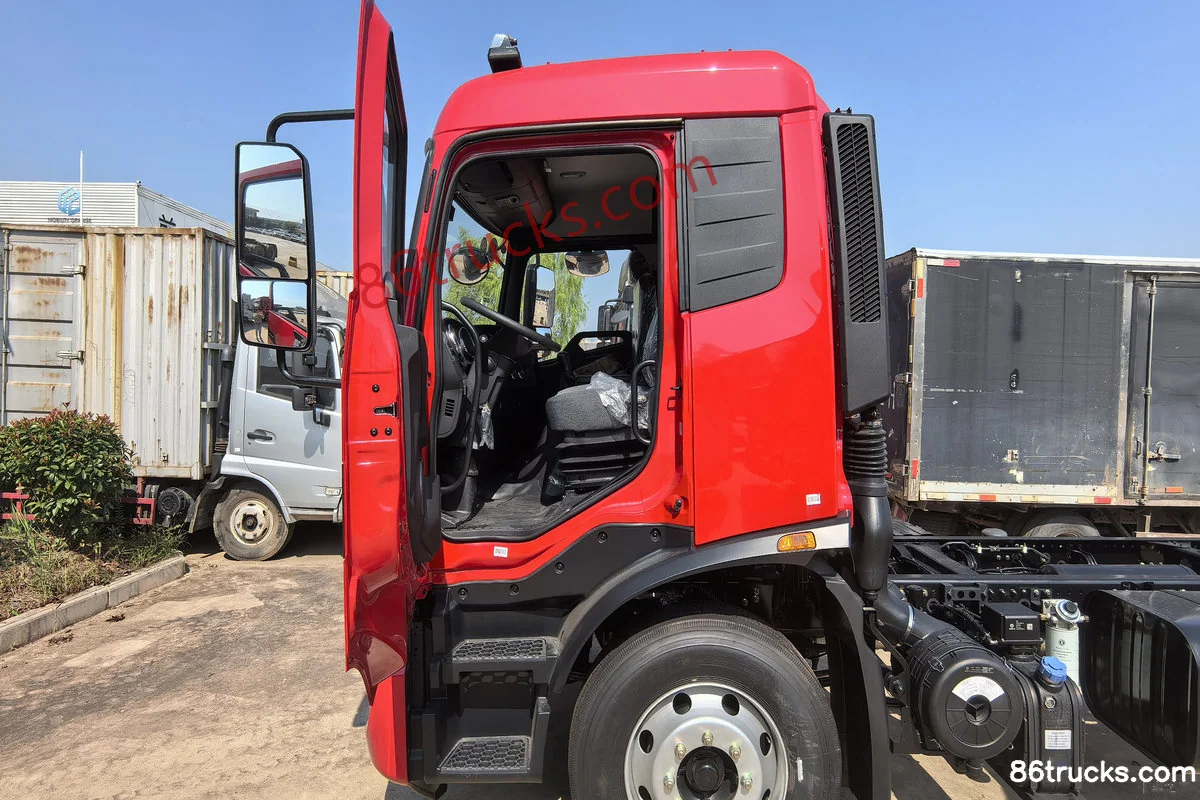

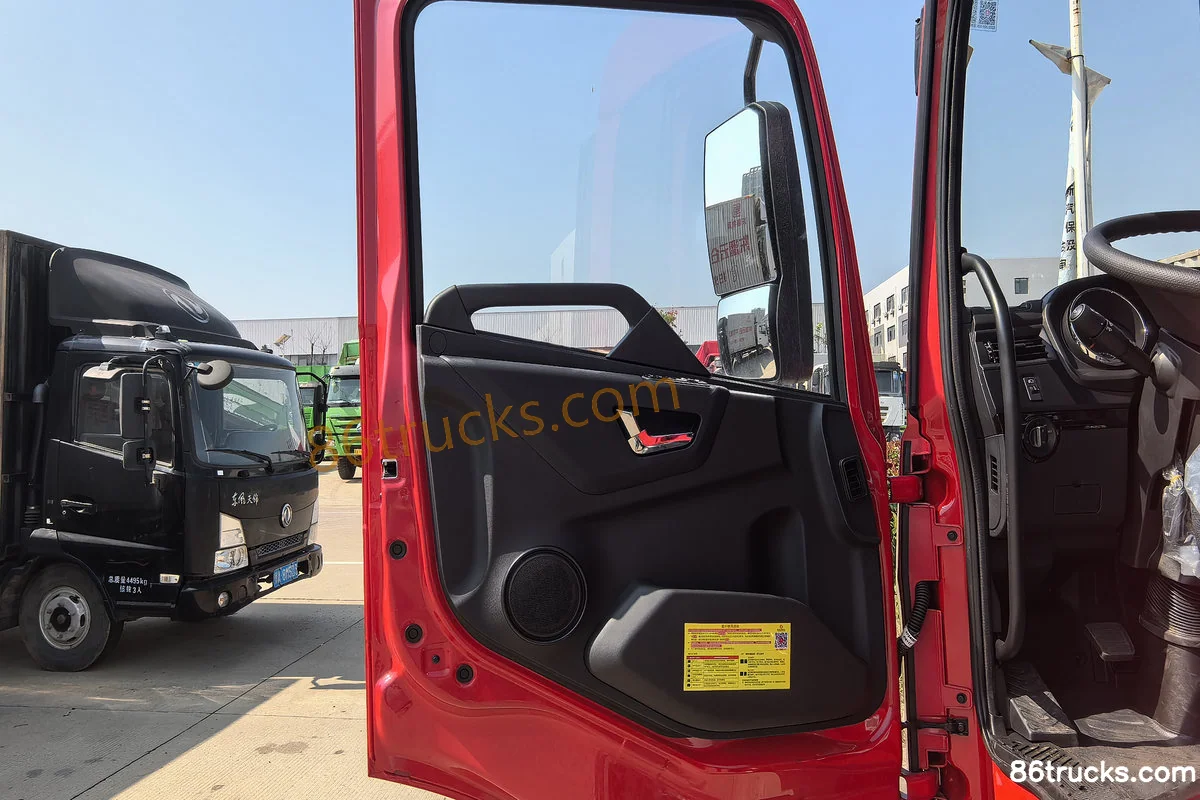

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Cab (1) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Cab (2) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Cab (3) | 86Trucks

Chassis3

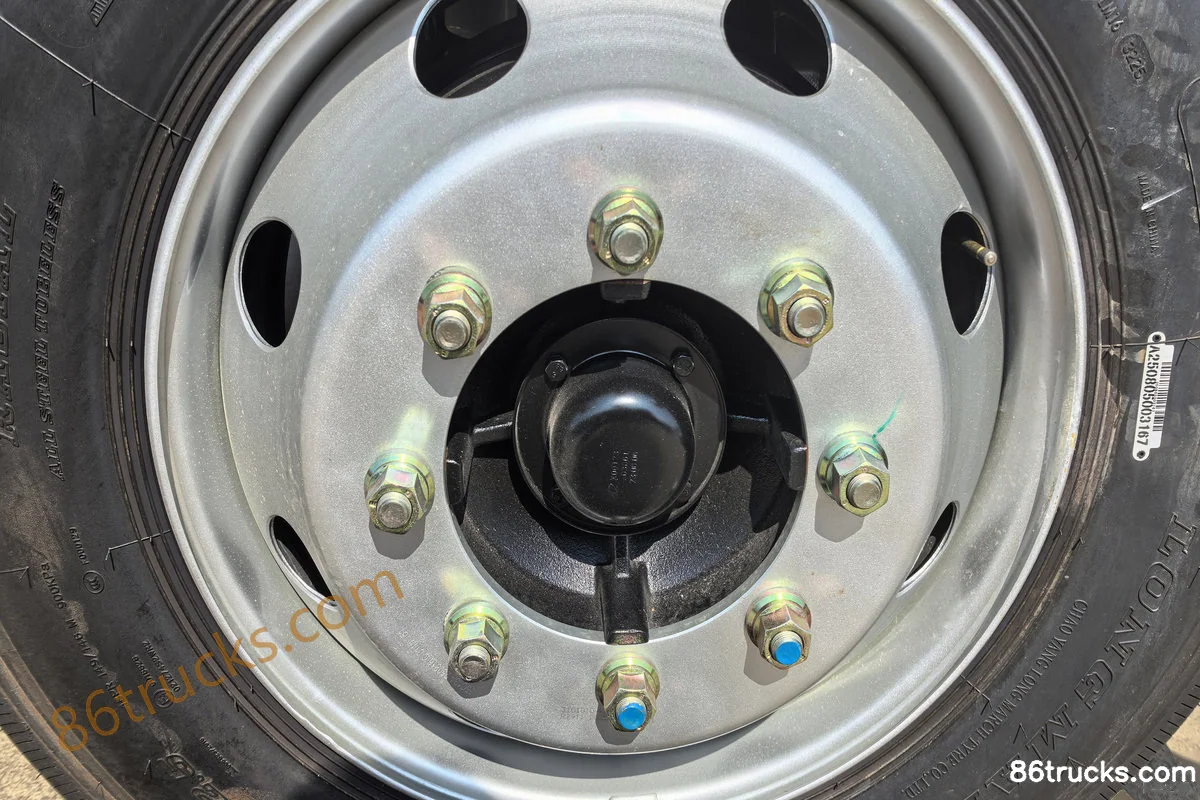

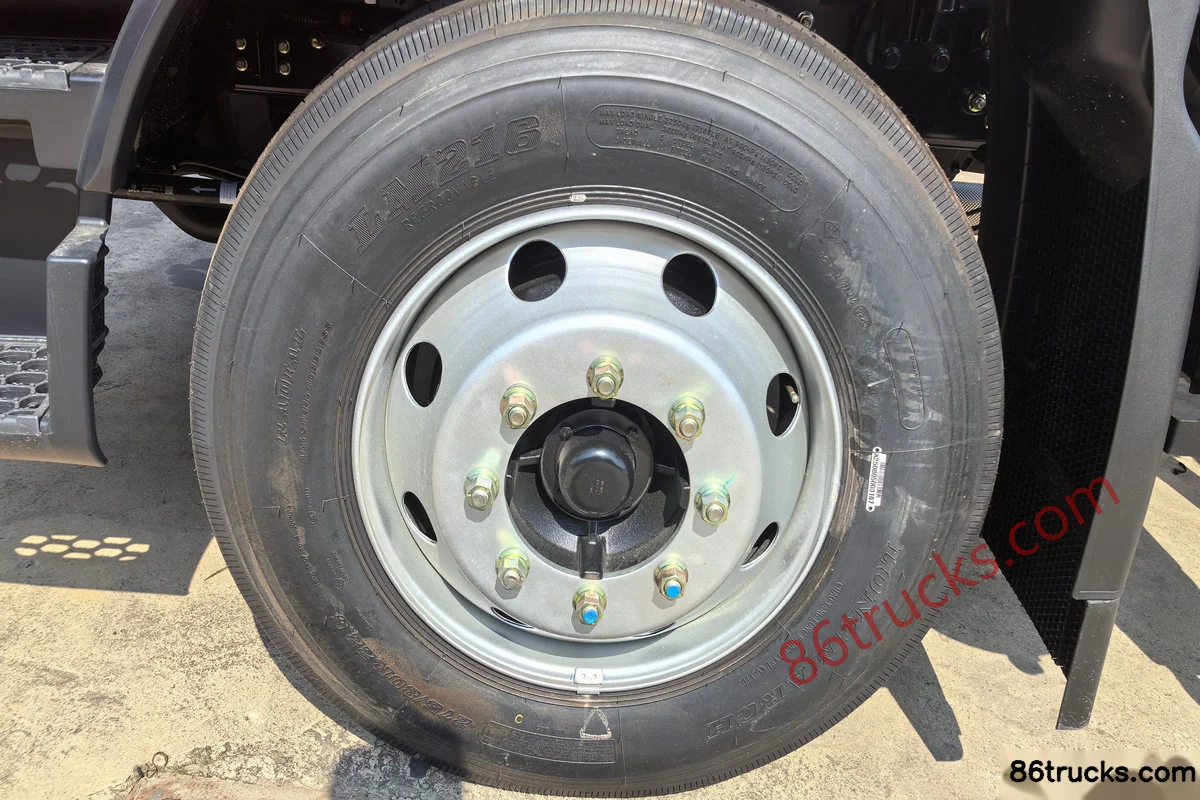

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Chassis (1) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Chassis (2) | 86Trucks Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck, and what does it include?

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck export reference is about From $23,611; MSRP is ¥17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck?

Key specs of Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Fuel: Diesel; Engine: Dongfeng4.8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck suited for?

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck differ from other variants in the same series?

Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck belongs to Dongfeng Tianjin KR (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KR Star Edition 4.8L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
