Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.725ton
Wheelbase:: 2950mm
Model code (announced):: LZL5030ZZZBEV
Truck Type:: electric self-loading garbage truck
Cab length:: 4.555m
GVWR:: 2.505ton
Drive 4X2 (6 wheels)
CLTC range: 235km
Motor 1 Brand: Inbol
Curb Weight: 1.65ton

Overview

The Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 235km battery/range, Inbol motor, 4X2 (6 wheels) drive and 0.725t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZL5030ZZZBEV
Truck Type: electric self-loading garbage truck
Drive type: 4X2
Wheelbase: 2950mm
Cab length: 4.555m
Cab width: 1.52m
Cab height: 1.995m
CLTC range: 235km
Curb Weight: 1.65ton
Rated payload: 0.725ton
GVWR: 2.505ton
Max. speed: 80km/h
Origin: Liuzhou, Guangxi
Energy Type: Electric
electric motor
Motor 1 Brand: Inbol
Motor 1 Model: Y13120007
Motor Type: AC induction motor
total rated power: 18kW
Peak power: 50kW
total peak torque: 200N·m
Body Parameters
Special Function Description: This vehicle is equipped with rear-loading mechanism and other special devices for garbage collection, transfer, and dumping. Reflective marking parameters.
Body Brand: Yanlong Auto
Battery/Charging
Charging method: Slow charge, fast charge
Battery Brand: Lishen
Battery type: NMC lithium battery pack
Battery capacity: 41.11kWh
fast charge time: 2.5h
Energy Density: 140.94
Battery total voltage: 321.2V
Chassis Specs
Front axle load: 1190ton
Rear Axle Load: 1315ton
Chassis Series: Yanlong
Chassis Model: CL1030JBEV
Leaf spring count: -/5
Tire
Tire Size: 165R13C
Number of tires: 4pcs

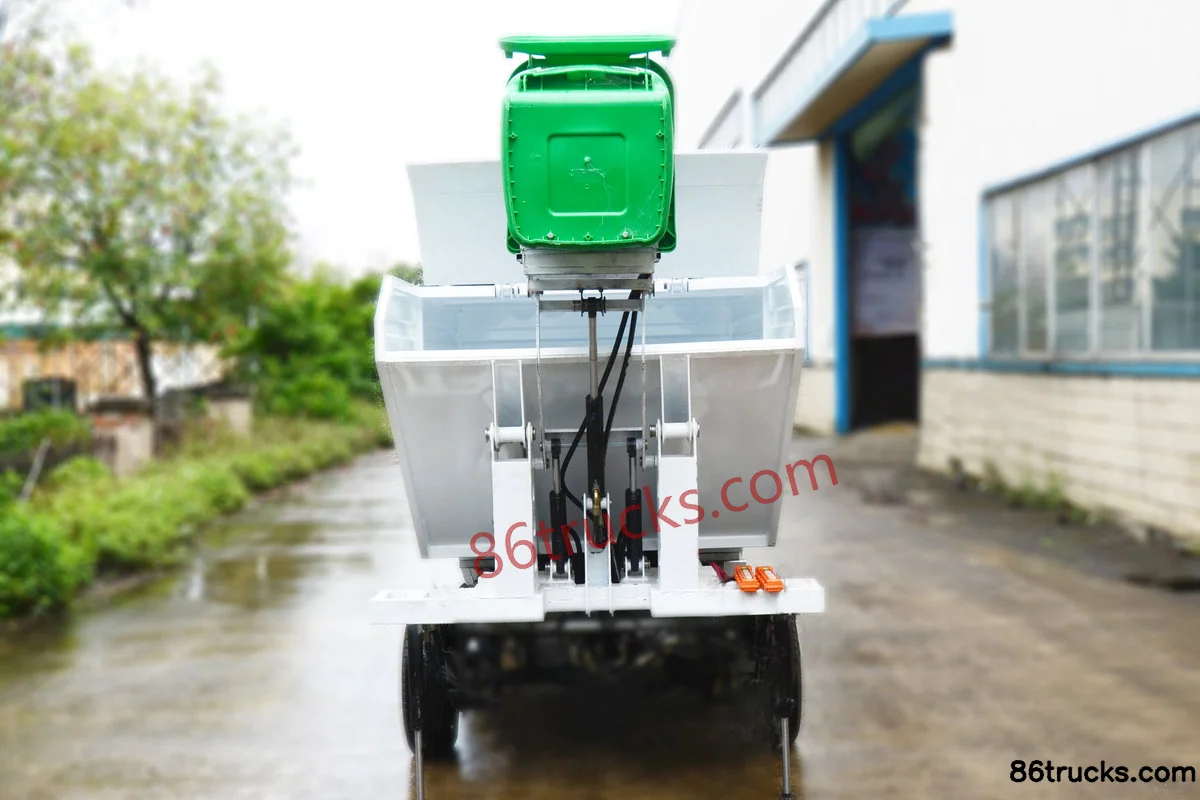

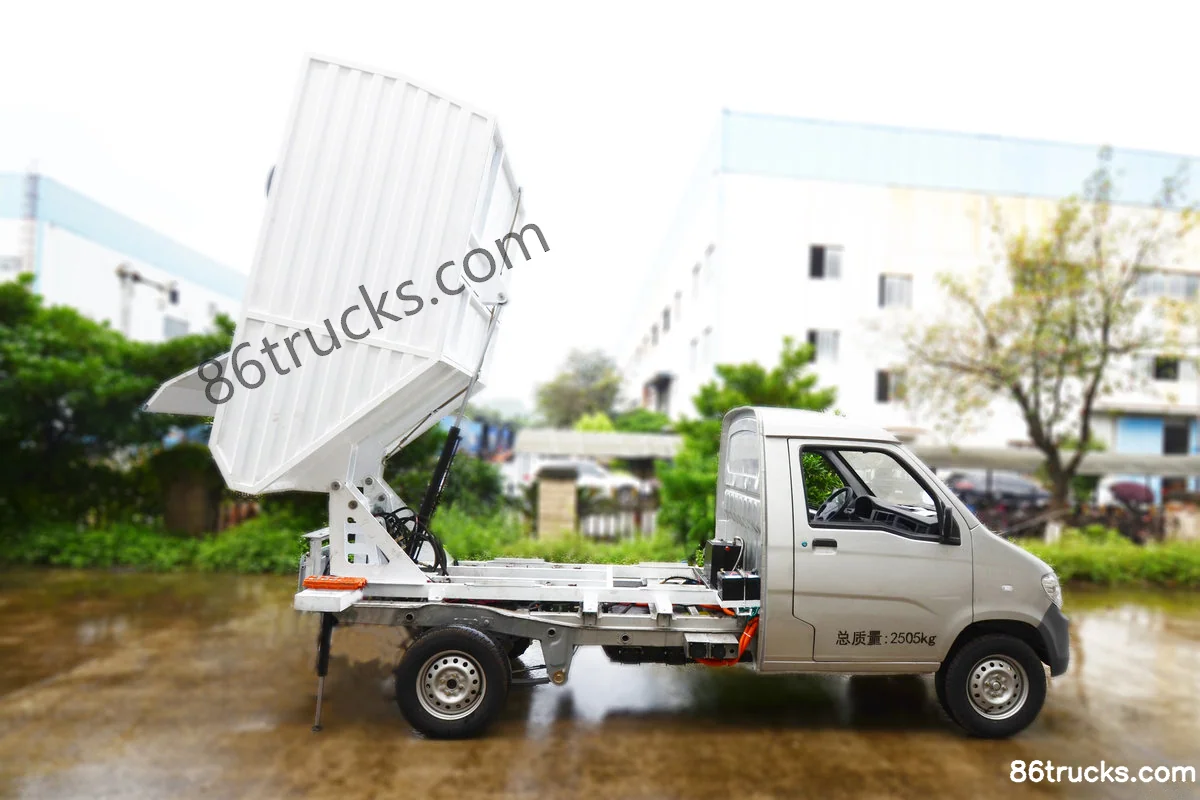

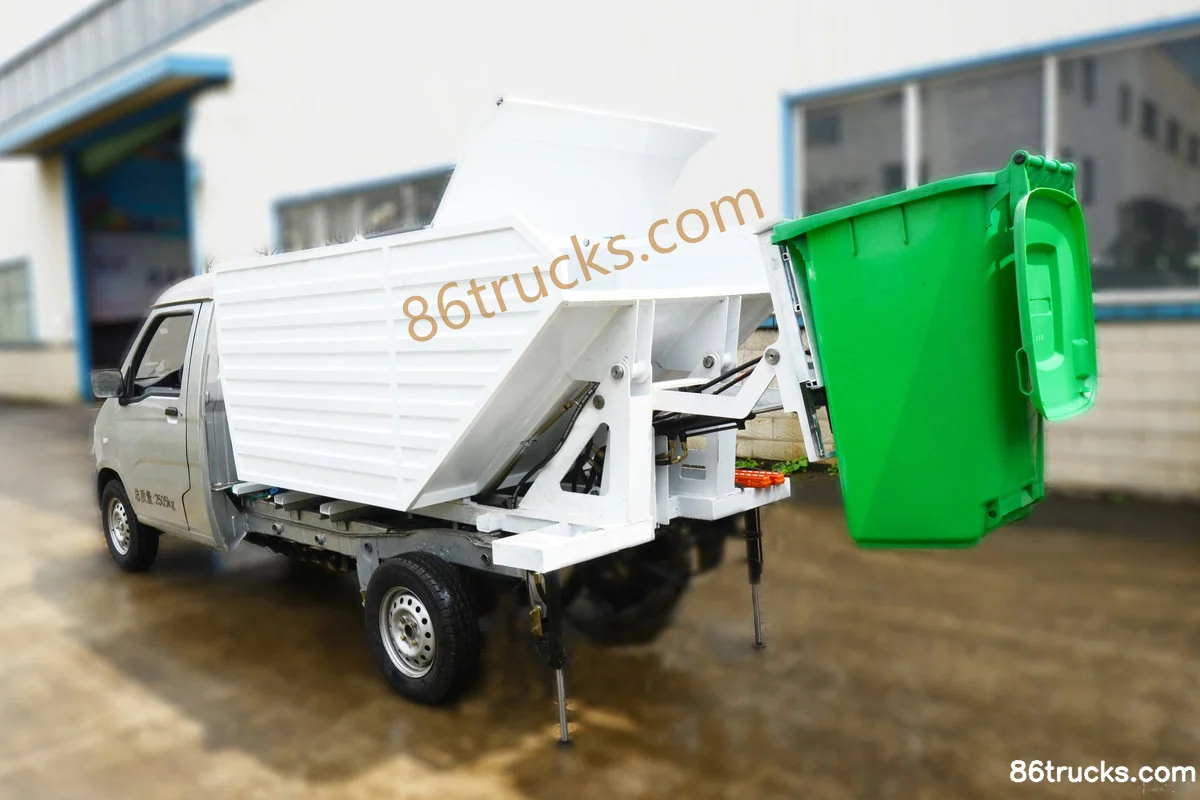

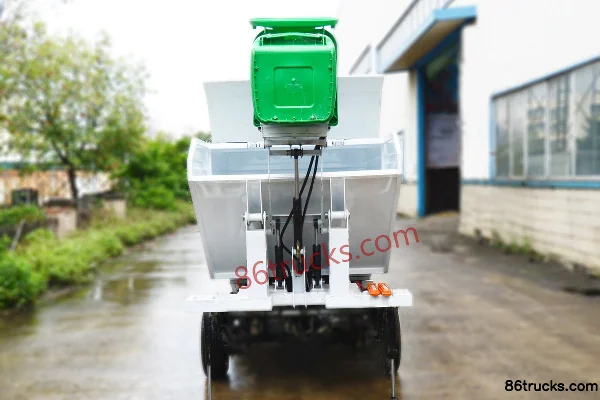

Photos

Exterior3

3 photos

FAQ

What are the key specs of Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels)?

Key specs of Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels) suited for?

Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels) differ from other variants in the same series?

Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels) belongs to Yanlong Auto Yanlong Micro Truck (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yanlong Auto 2.5T Single Row Pure Electric Self Loading Garbage Truck 41.11kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
