Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI)

Export reference
From $35,417
MSRP ¥25.5M CNY
Horsepower: 270
Emission: China VI
Fuel: Diesel
Engine: Weichai6.8L
Transmission: Fast Gear
Curb Weight:: 11.5ton
seating capacity: 3Personnel
Rated payload: 19.305ton
Drive 8X2 (10 wheels)
Cargo box type: Stake type

Overview

The Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 19.305t payload. On the powertrain side, it comes with a Weichai6.8L engine, 270 hp, 8X2 (10 wheels) drive and China VI emissions.

China VI 270 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): WS5314CCYGB
Type: stake truck
Drive type: 8X2
Wheelbase: 1800+4500+1300mm
Box length class: 9.6m
engine: WeichaiWP7H270E62
transmission: Fast Gear9JS119B
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 1970/1970mm
rear track: 1850/1850mm
Curb Weight: 11.5ton
Rated payload: 19.305ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xiaogan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 16°
Front/rear suspension: 1.45/2.95m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7H270E62
Engine info: Weichai6.8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.8L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Transmission Parameters
Transmission Model: Fast Gear9JS119B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.8m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 457 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Leaf spring count: 9/9/7/10+8
Tire
Tire Size: 11R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

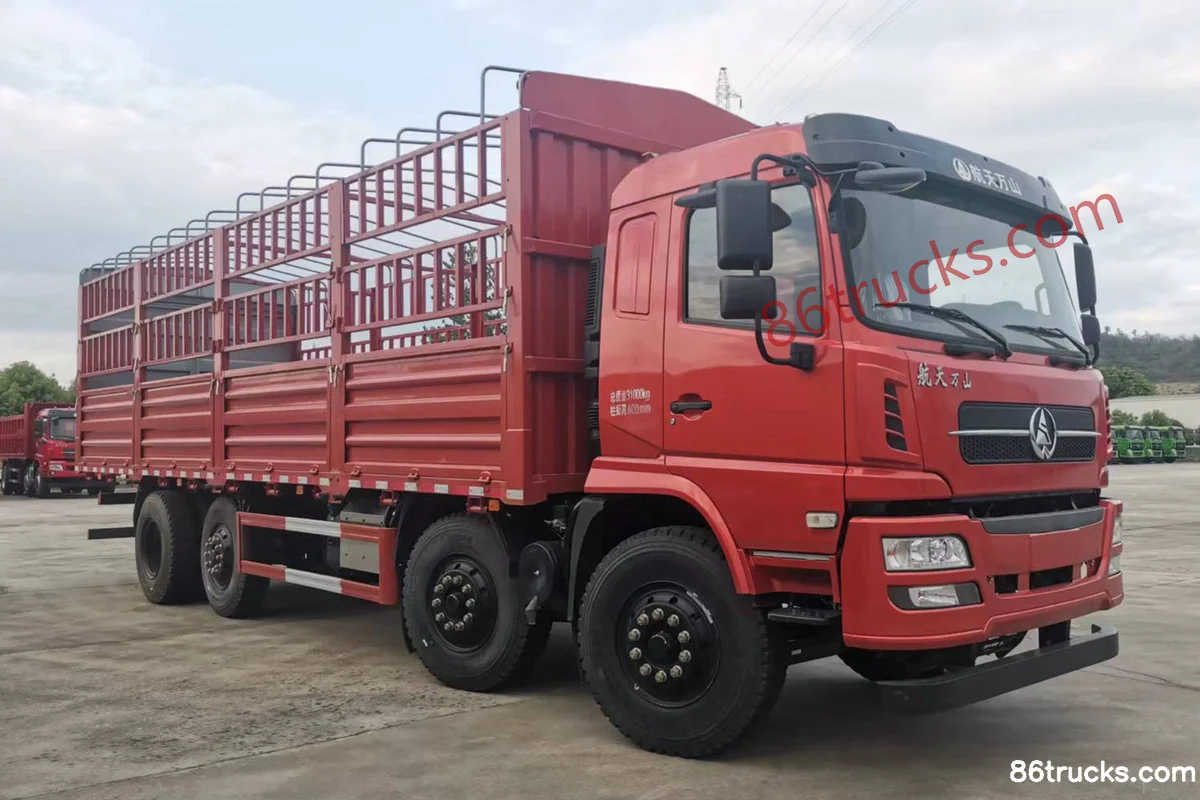

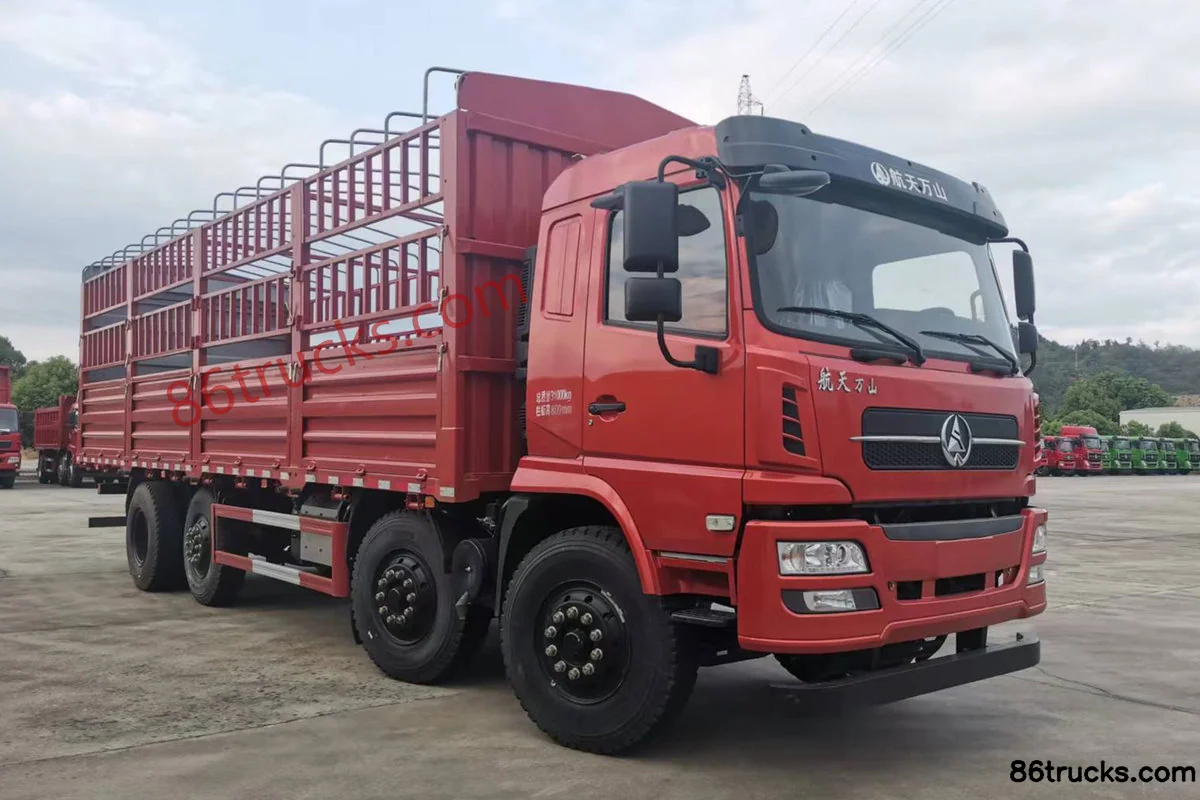

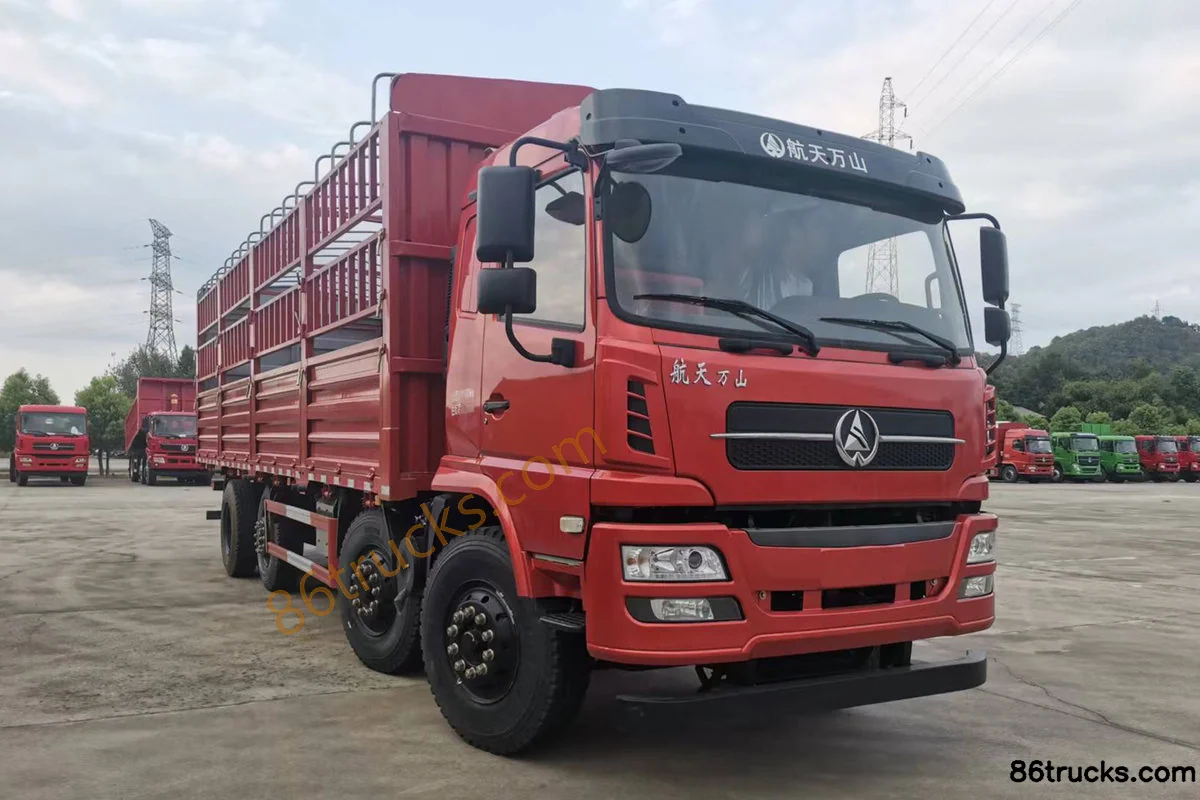

Photos

Exterior3

3 photos

FAQ

What is the export price of Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI), and what does it include?

Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) export reference is about From $35,417; MSRP is ¥25.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI)?

Key specs of Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI): Drive: 8x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai6.8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) suited for?

Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) differ from other variants in the same series?

Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI) belongs to Aerospace Wanshan WS series heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Aerospace Wanshan WS series 270 hp 8X2(10 wheels) 9.6m stake truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
