Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 4200mm
Cab dimensions:: 7.68×2.35×3.08m
Type:: suction sewage truck
Front/rear track width:: Front: 1800mm; Rear: 1645
Tank Size: 5.05×1.66×3.175m
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 4.745ton

Overview

The Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) is a suction/septic tank truck featuring 5.05×1.66×3.175m tank capacity, 5.85m³ volume, 11.995t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.68×2.35×3.08m
Type: suction sewage truck
Drive type: 4X2
Wheelbase: 4200mm
Front/rear track width: Front: 1800mm; Rear: 1645
Rated mass: 4.745ton
GVWR: 11.995ton
Front/rear suspension: 1.18/2.47m
Energy Type: Diesel
Body Parameters
Tank Size: 5.05×1.66×3.175m
Tank Volume: 5.85m3
Transport medium: Liquid waste
Vehicle certification code: JYJ5127GQWF
Body Brand: Luye Brand
Engine parameters
Engine Model: WeichaiWP3NQ160E61
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan
Chassis Model: ZZ1127K4515F1Z
Leaf spring count: 11/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs

Photos

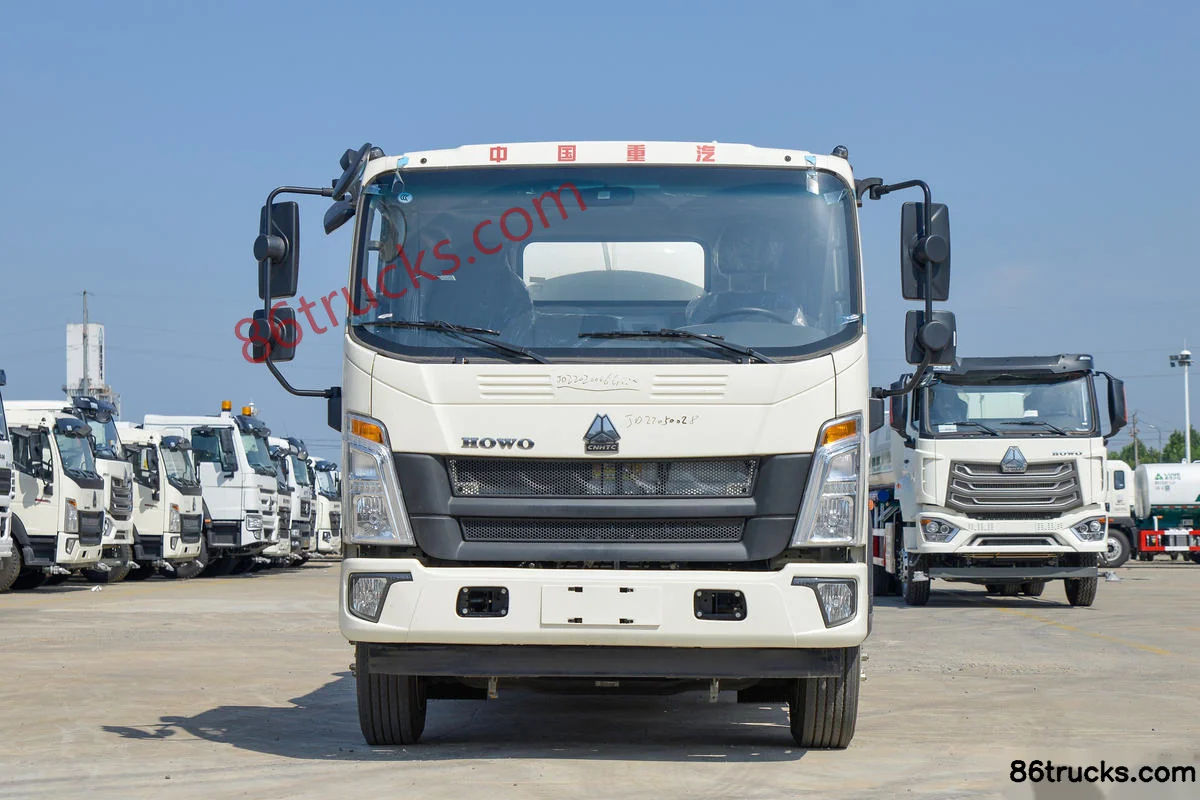

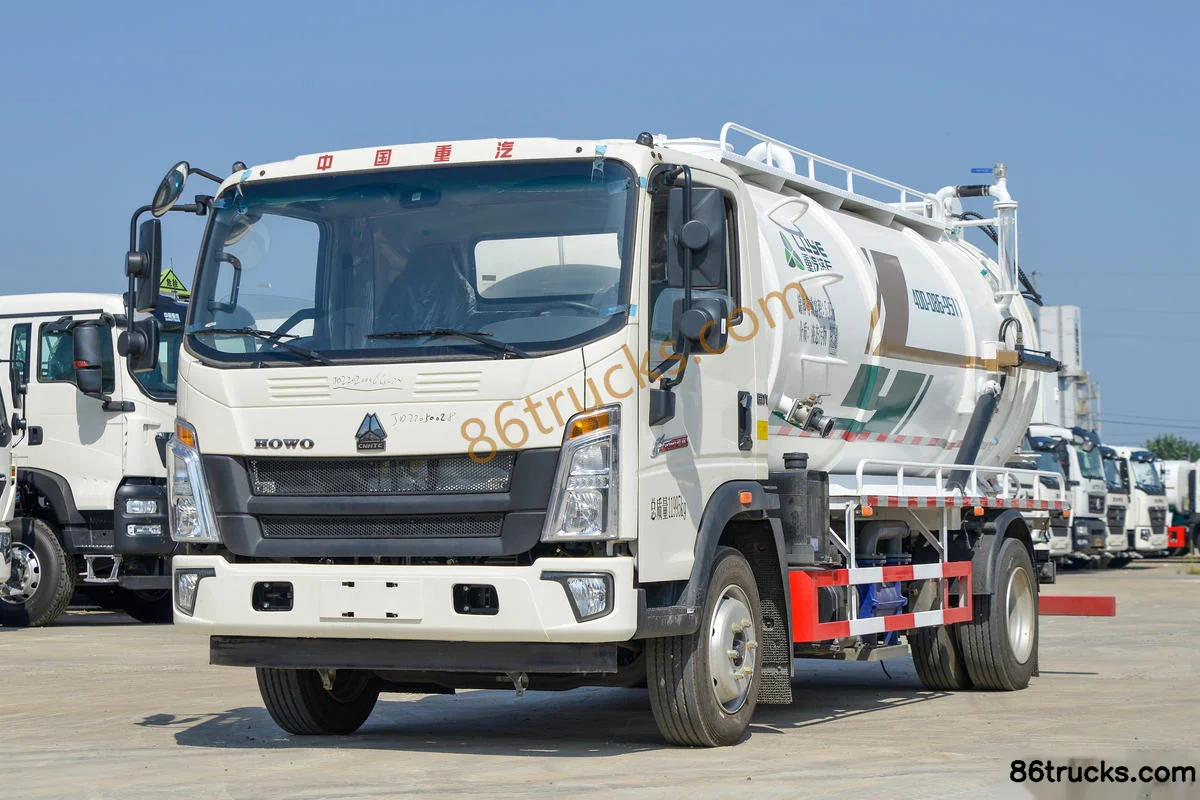

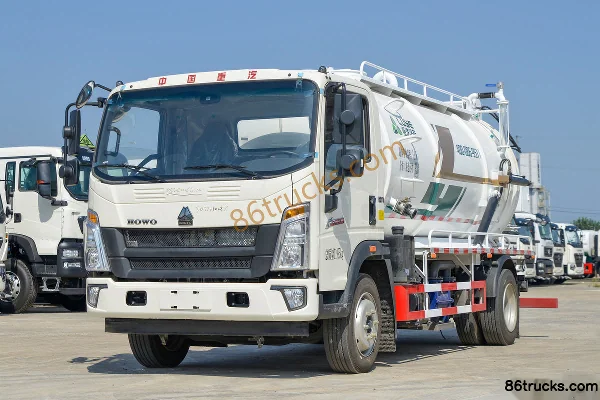

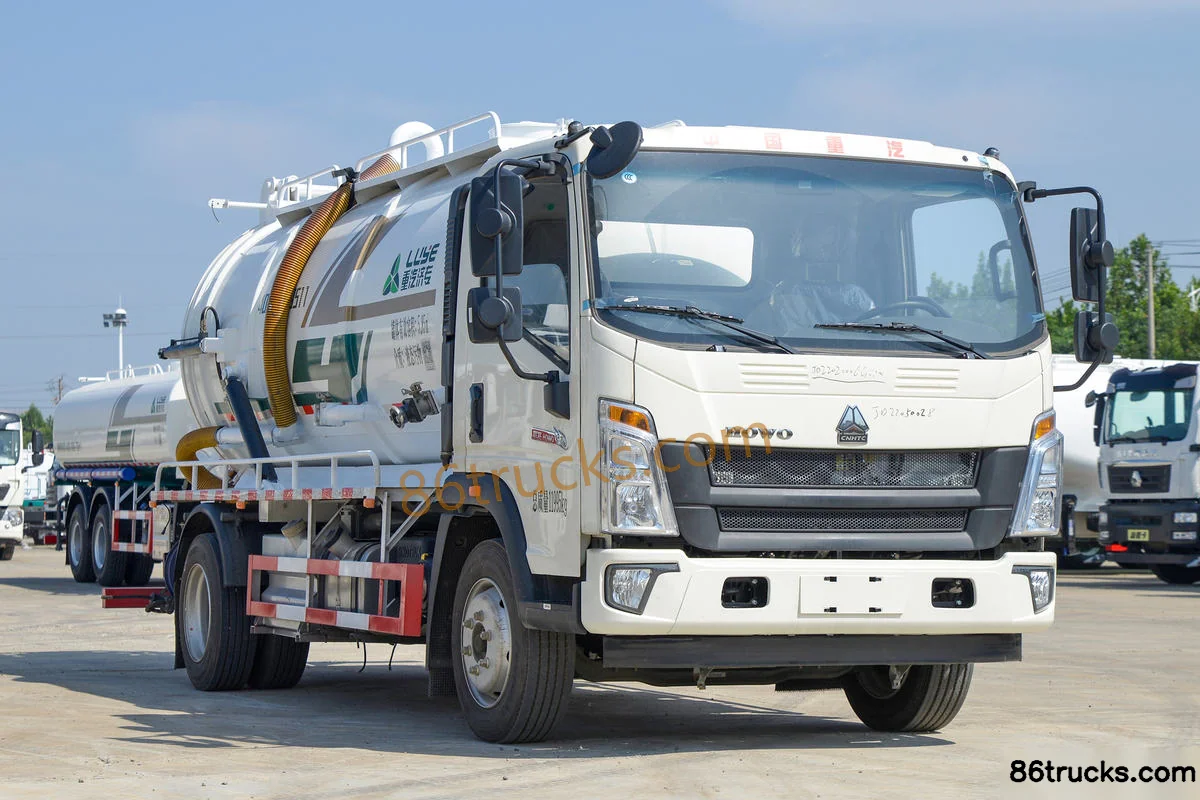

Exterior3

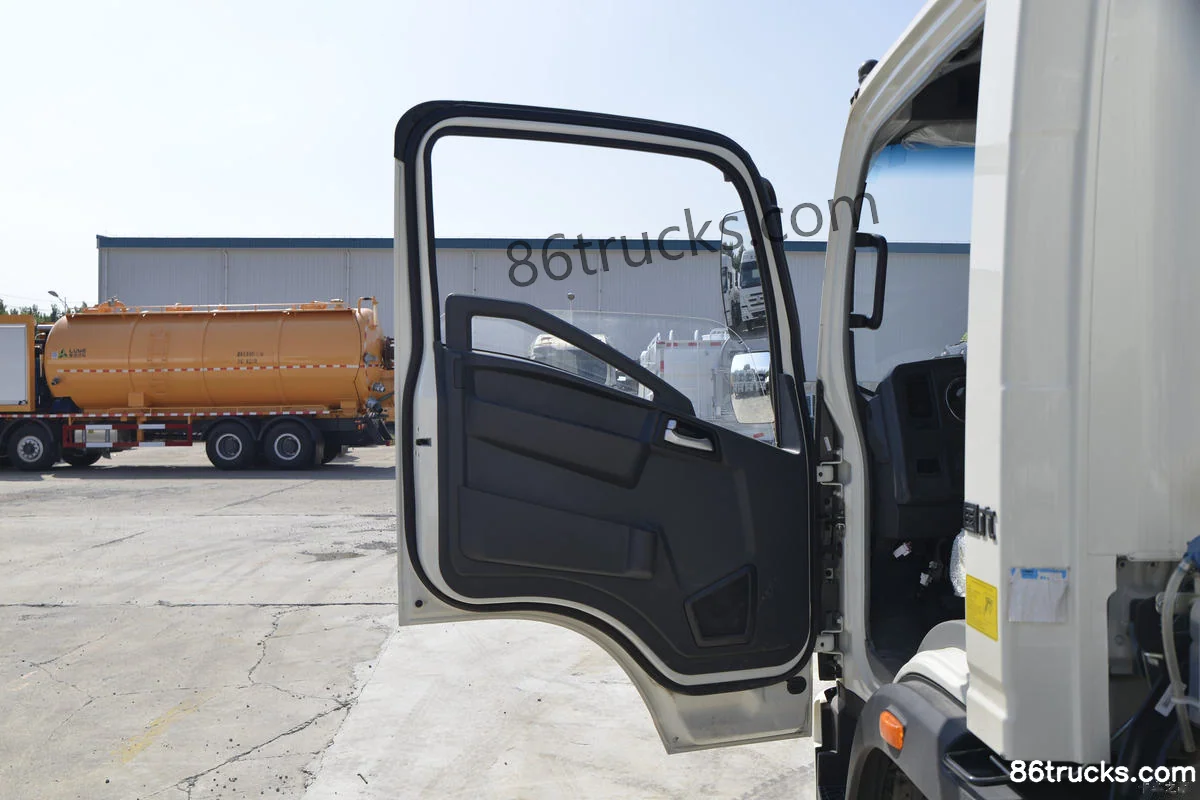

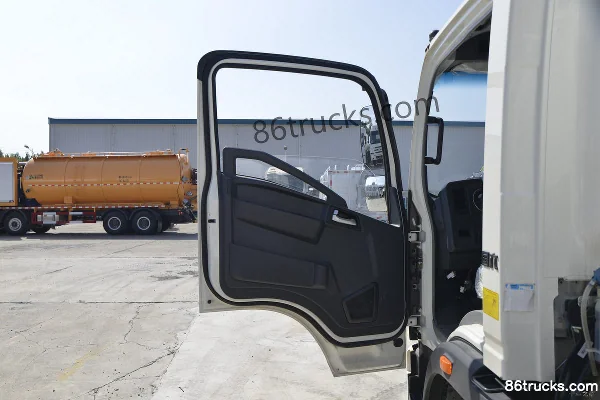

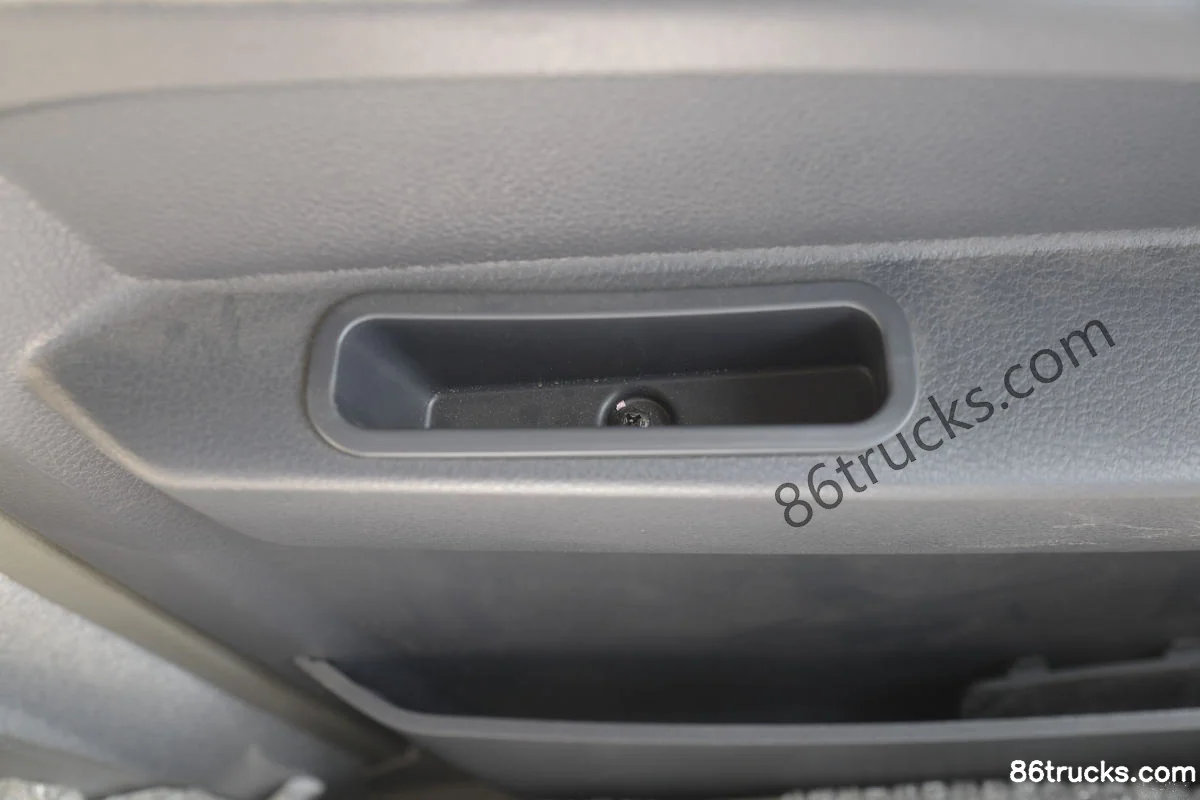

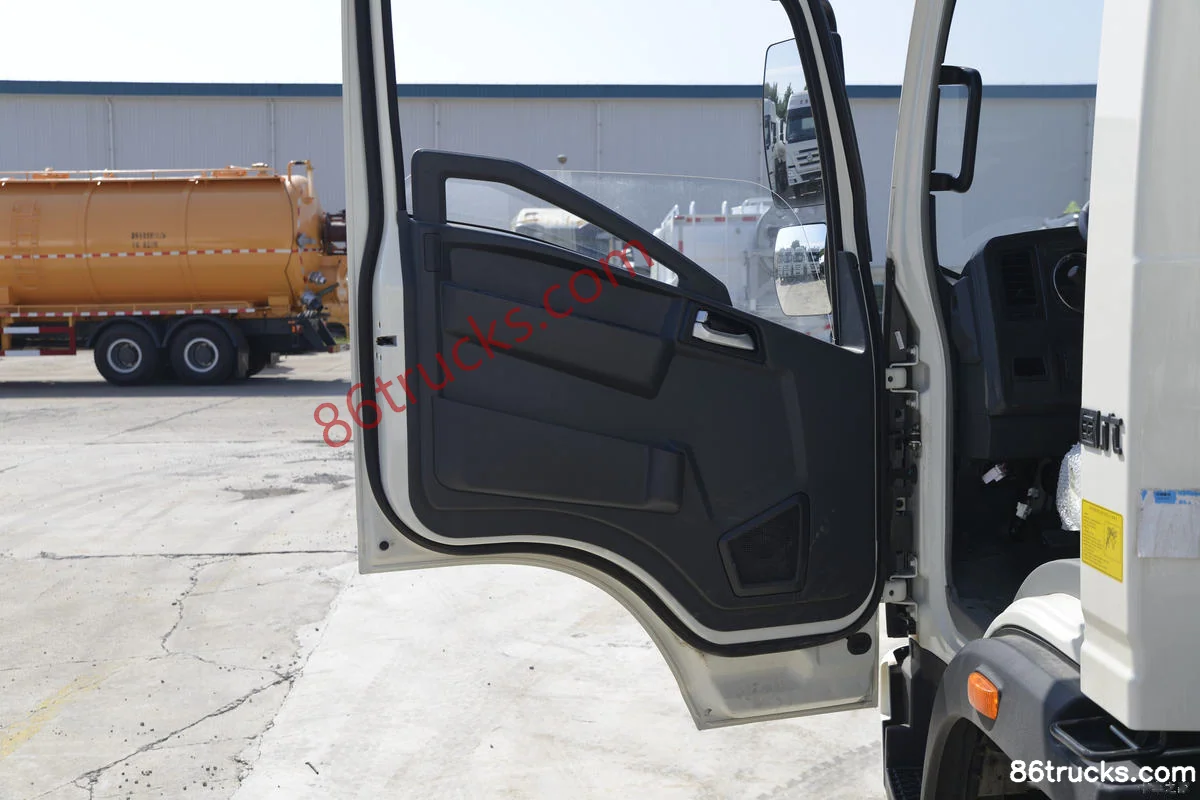

Cab3

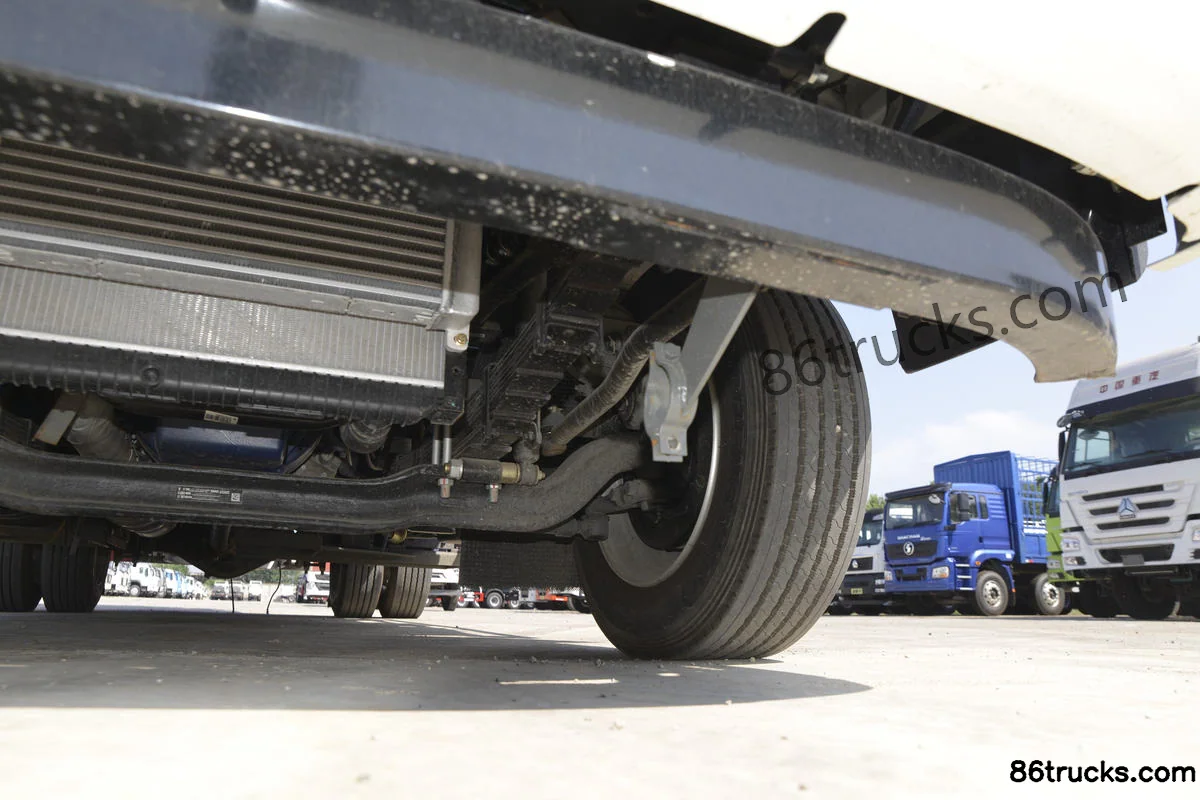

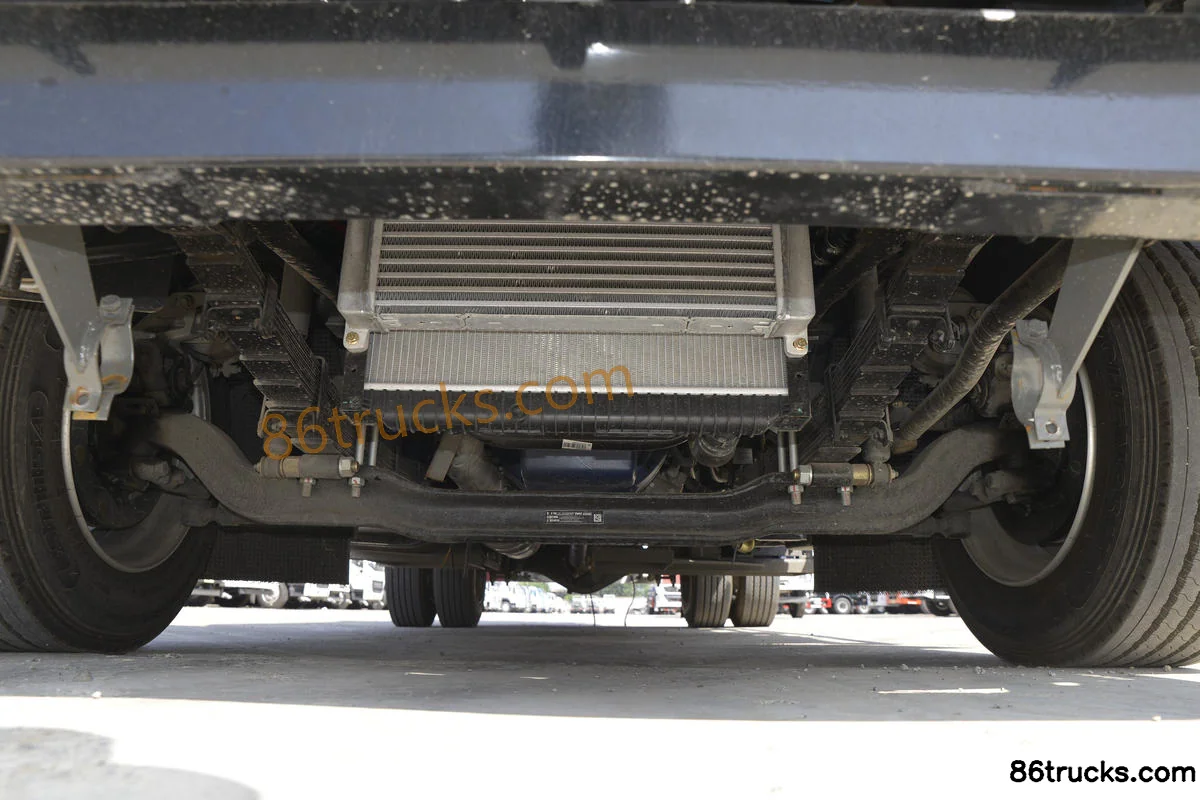

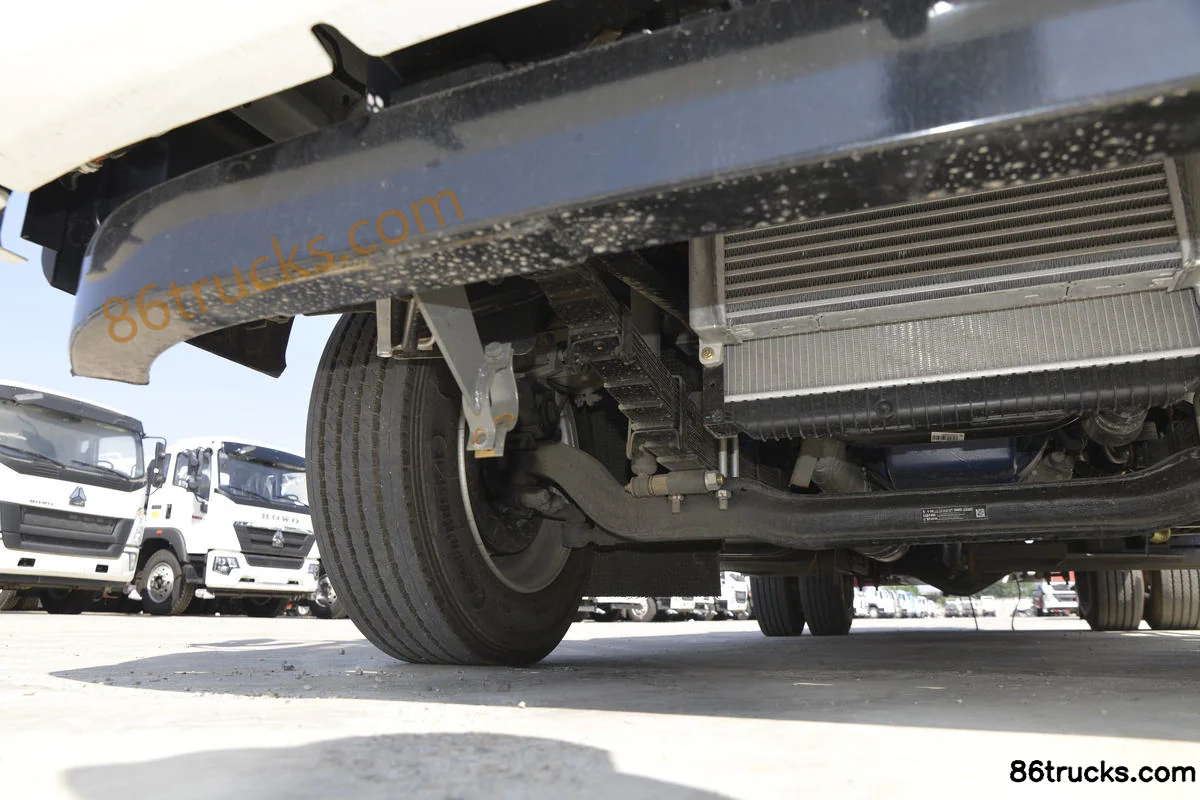

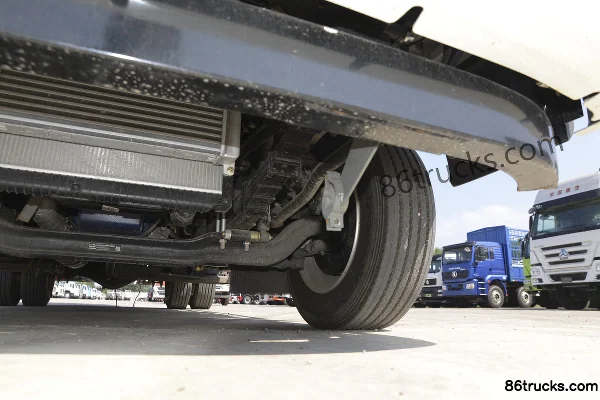

Chassis3

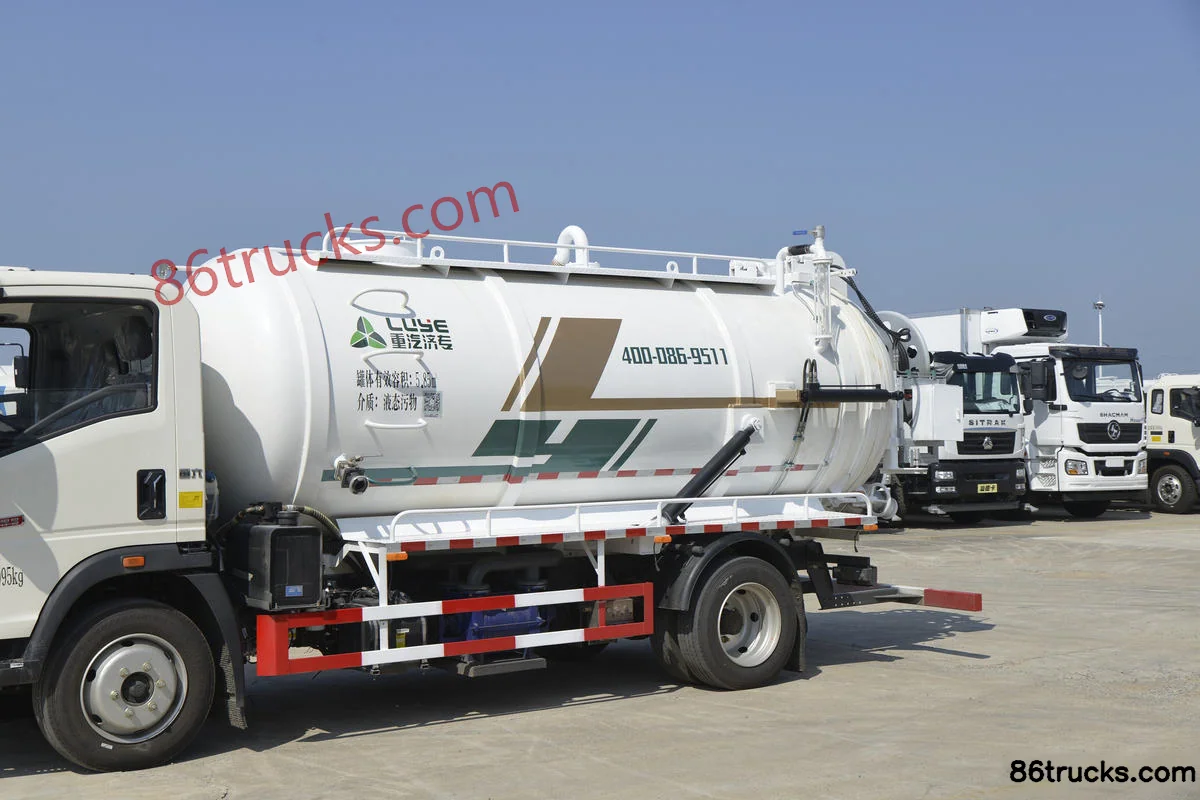

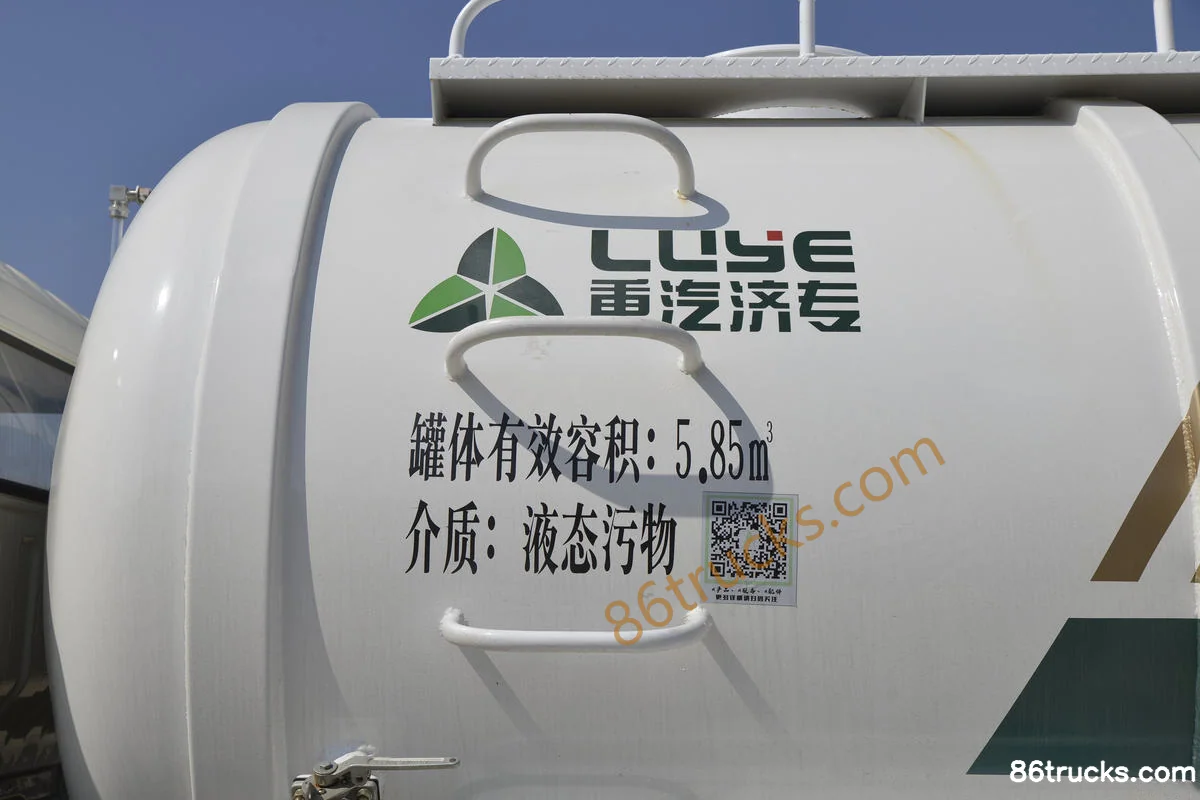

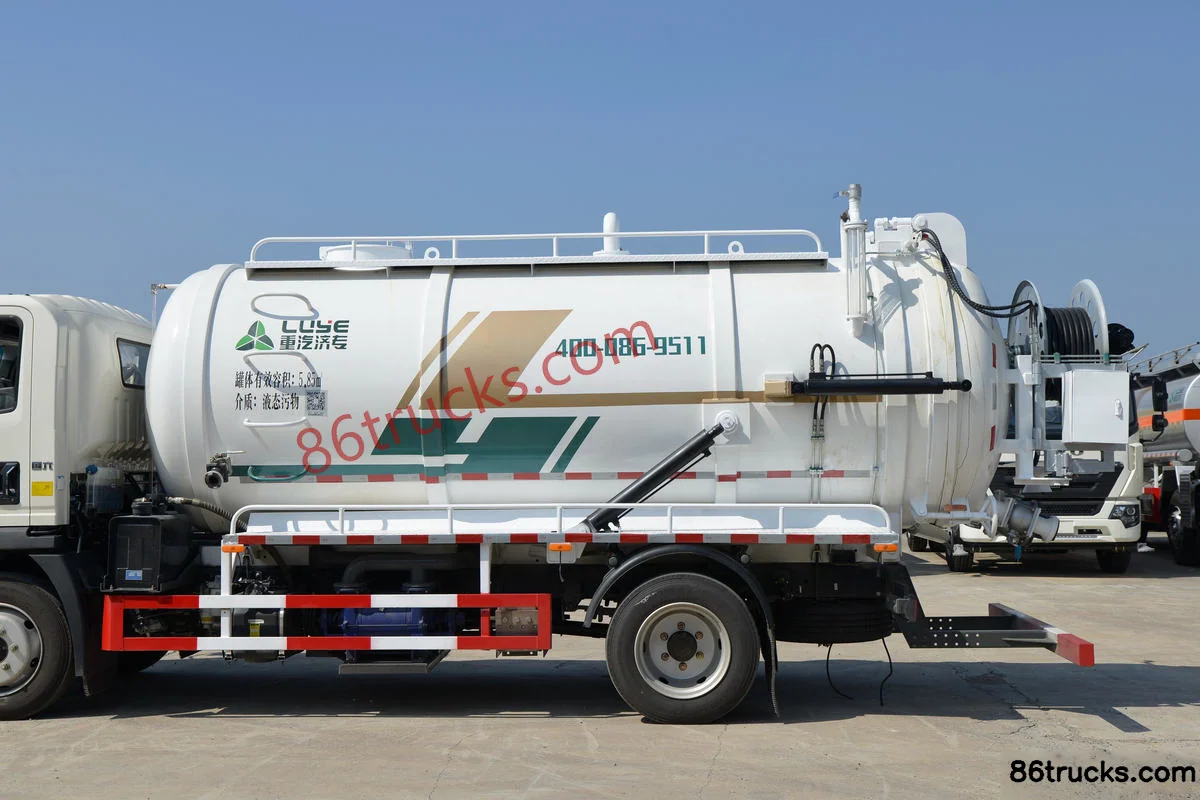

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand)?

Key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) suited for?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) is a suction/septic tank truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand) belongs to Jinan Sinotruk (Lvye Brand) Jinan Sinotruk (Lvye Brand) (suction/septic tank truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Vacuum Truck (Lvye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
