Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels))

Export reference
MSRP N/A
Max travel speed:: 90km/h
Max gradeability:: 46%
Min turning radius:: 12m
Min ground clearance:: 300cm
Rated lifting capacity:: 55ton
Min working radius:: 3m
Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) exterior
View more photos (2)
total counterweight: 44ton
Max output power: 276kW
Machine dimensions: L×W×H: 14.45×2.8×3.85m
Model: 55X5

Overview

The Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) is a crane truck featuring 44ton GVW and 276kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 14.45×2.8×3.85m
Model: 55X5
total counterweight: 44ton
Max travel speed: 90km/h
Max gradeability: 46%
Min turning radius: 12m
Min ground clearance: 300cm
Lifting capacity
Rated lifting capacity: 55ton
Min working radius: 3m
Max lift height - base boom: 14.7m
Max lift height: 50.5m
Max lifting height - main boom + jib: 64.5m
Boom length - main boom: 12.2m
Boom length - fully extended: 48m
Operating Parameters
Max hoisting speed of main winch: 130m/min
Auxiliary winch max lift speed: 130m/min
Outrigger span: longitudinal × lateral: 7.6×6.25m
Engine parameters
Engine Model: WeichaiWP10H375E50
Max output power: 276kW
Rated speed: 1900rpm

Photos

Exterior2

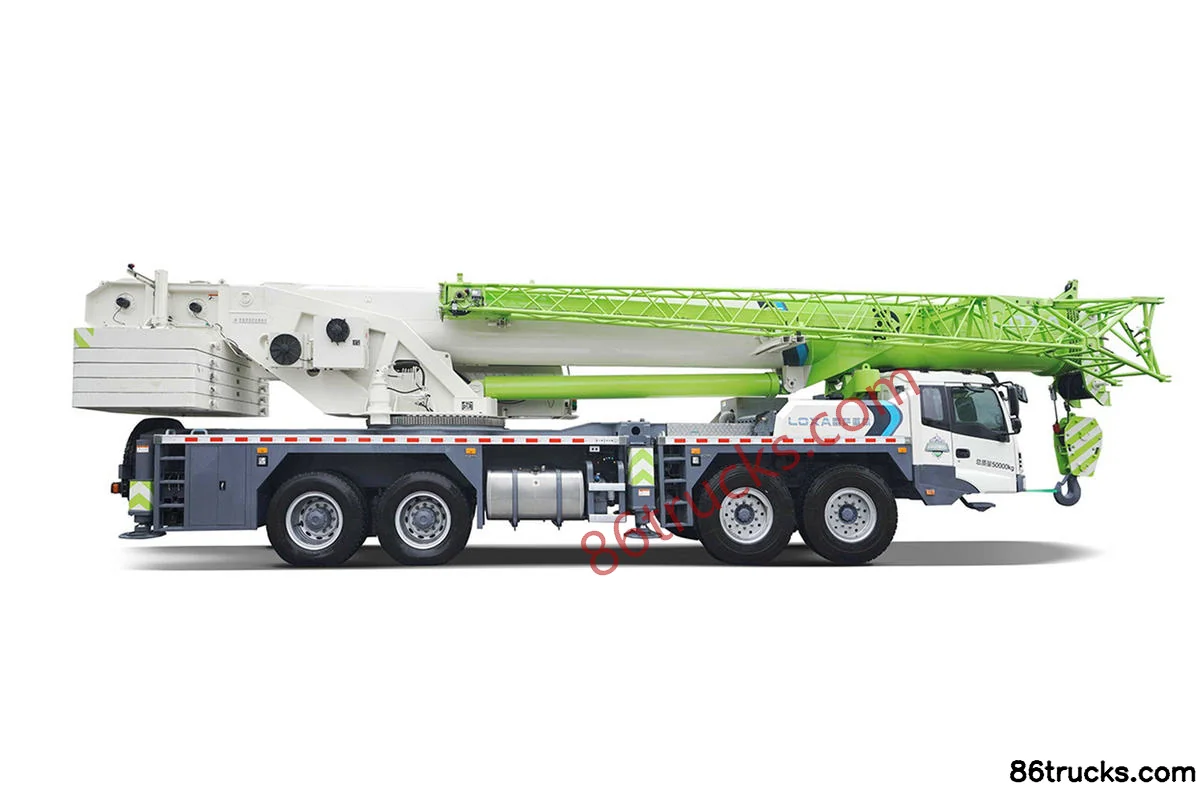

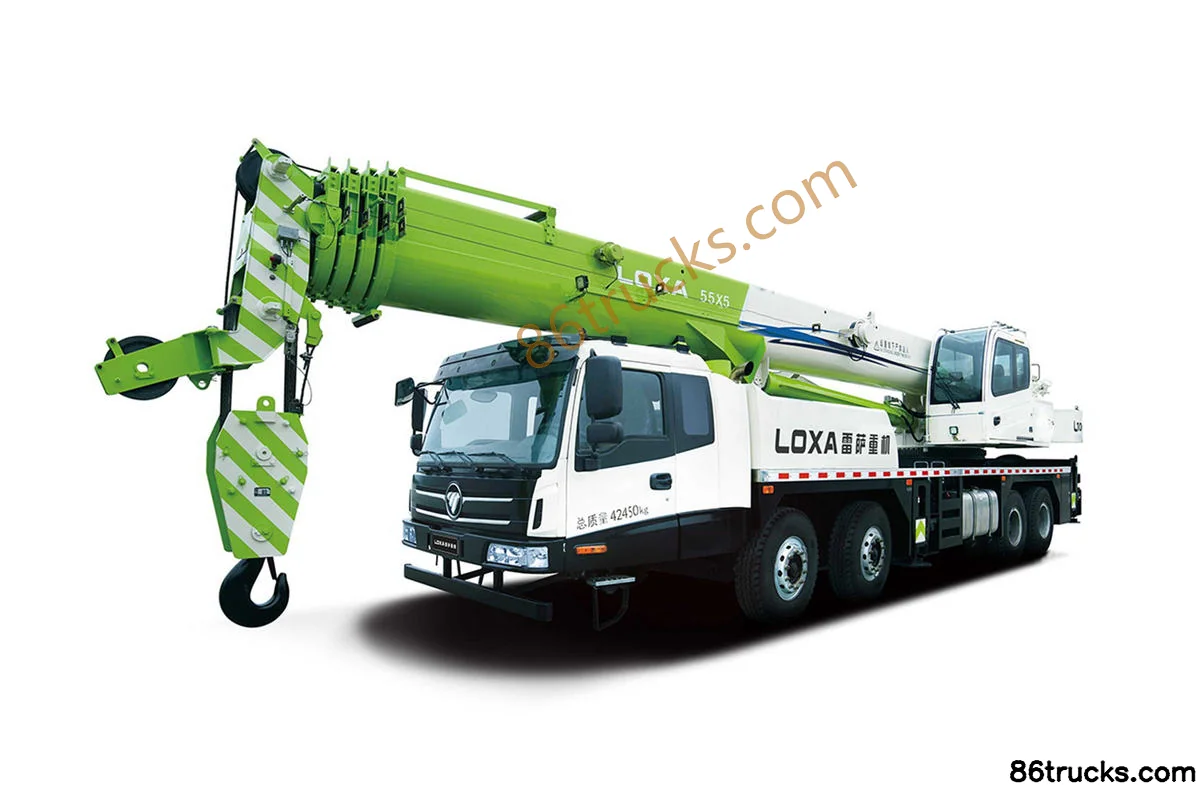

Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) Exterior (1) | 86Trucks Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) Exterior (2) | 86Trucks

2 photos

FAQ

What transport jobs is Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) suited for?

Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) differ from other variants in the same series?

Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels)) belongs to Loxa Heavy Machinery Loxa (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels))?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Loxa Heavy Machinery 55 ton truck crane (55X5(108 wheels))?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
