Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck

Export reference
MSRP N/A
Horsepower: 200
Fuel: Diesel
Engine: Yuchai4.2L
Transmission: Fast Gear
Curb Weight:: 6.52ton
Wheelbase:: 5200mm
Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 11.285ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck is a Heavy truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 11.285t payload. On the powertrain side, it comes with a Yuchai4.2L engine, 200 hp, 4X2 (6 wheels) drive and Fast Gear transmission.

200 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ1181L10Y2N6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.8m
engine: YuchaiYCS04200-68
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.55m
Cab height: 2.8m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 6.52ton
Rated payload: 11.285ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 14°
Front/rear suspension: 1.49/2.31m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04200-68
Engine info: Yuchai4.2L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.16L
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.45
Cab parameters
Cab: Mid-roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 145 single front axle
Front axle allowable load: 6500kg
Frame Dimensions: 250 (6) high-strength platemm
rear axle description: 145
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 8/11+8
Tire
Tire Size: 11R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

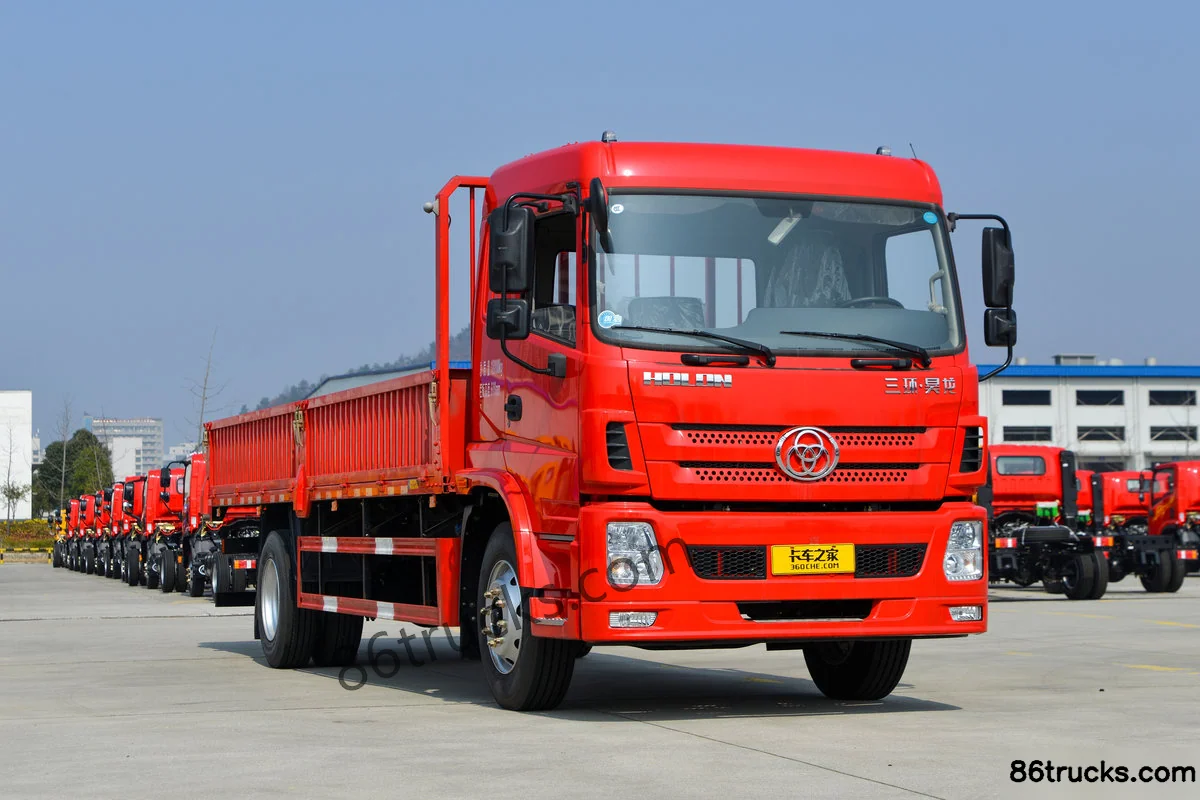

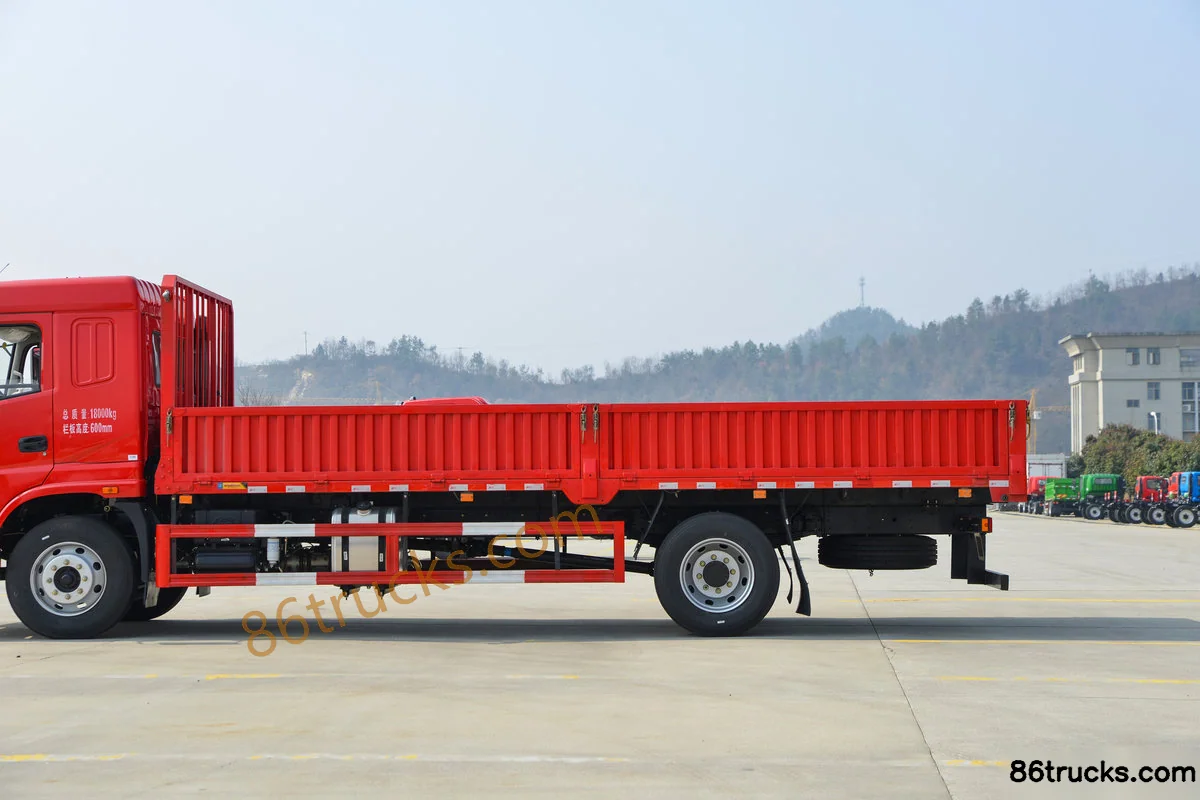

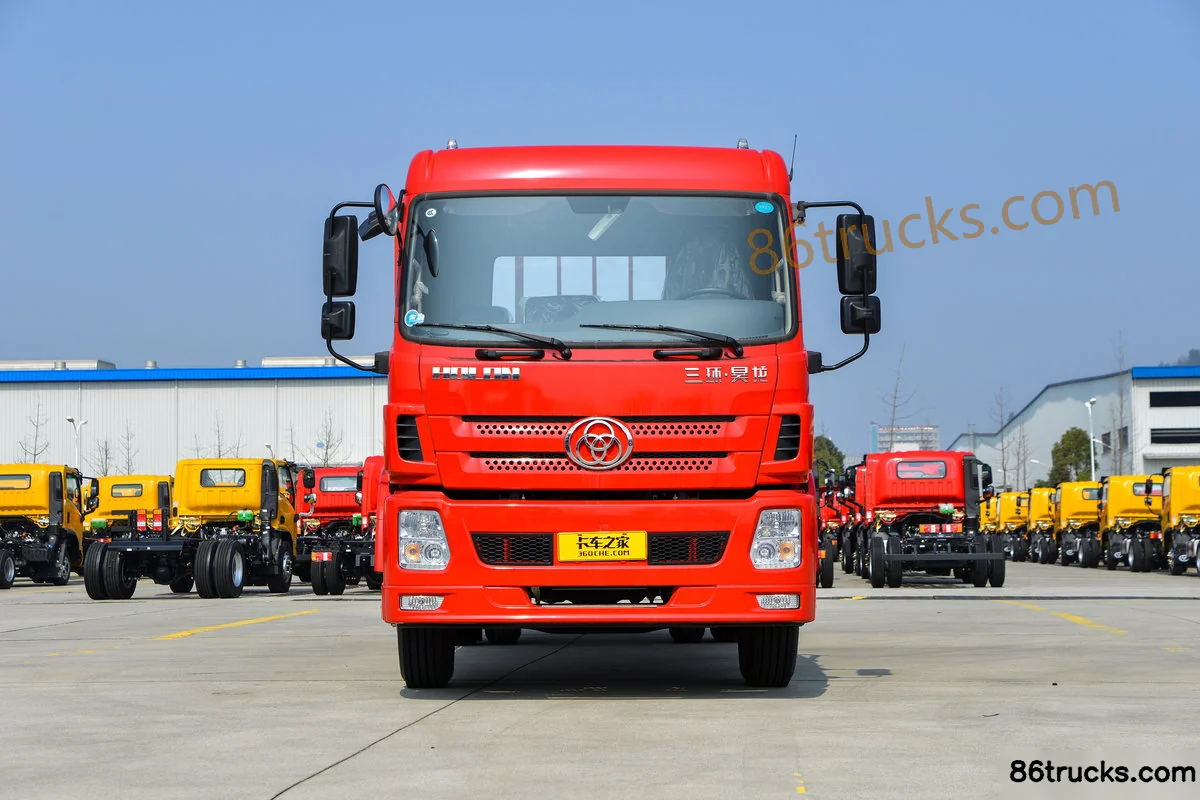

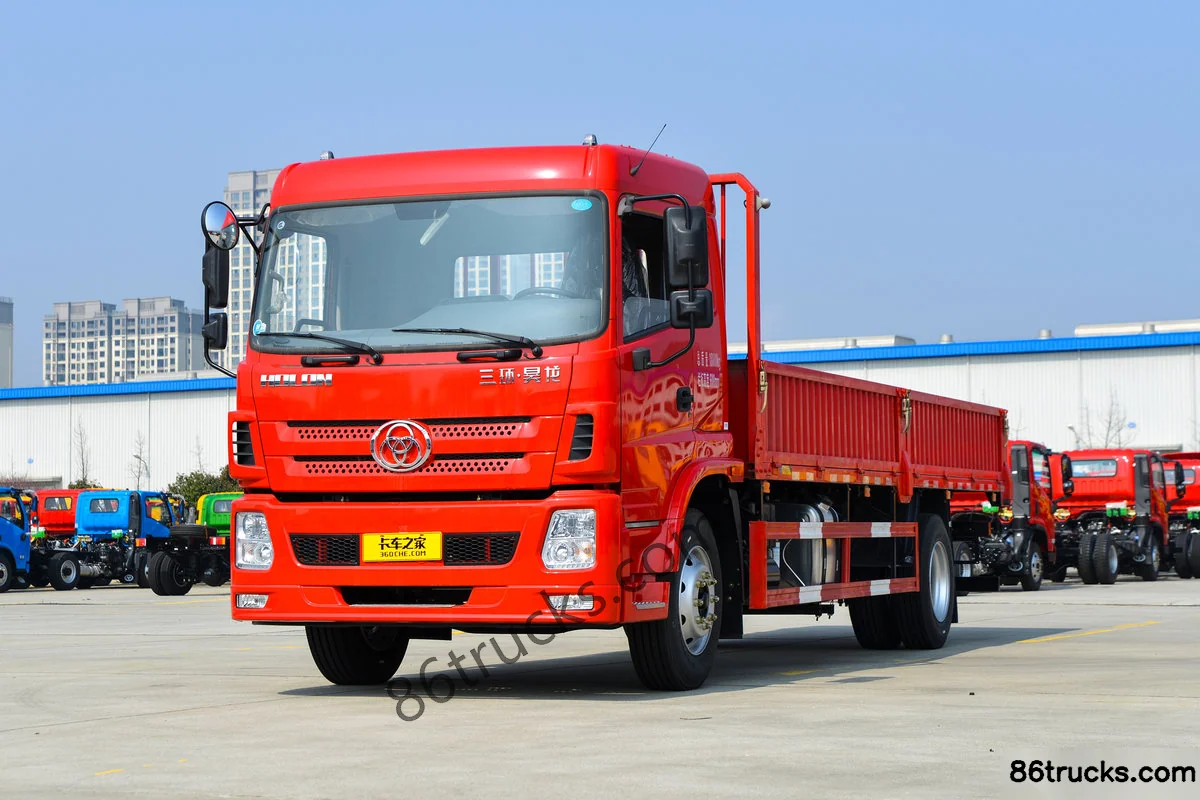

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Exterior (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Exterior (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Exterior (3) | 86Trucks

Cab3

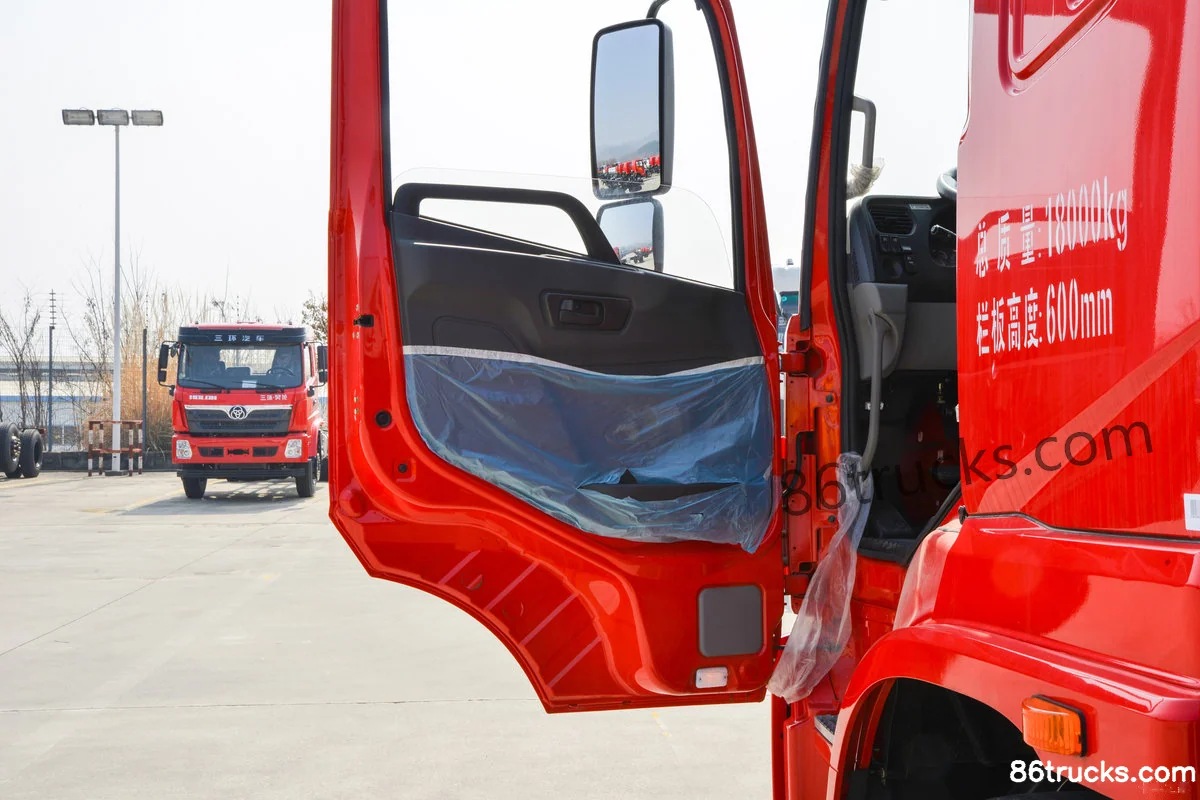

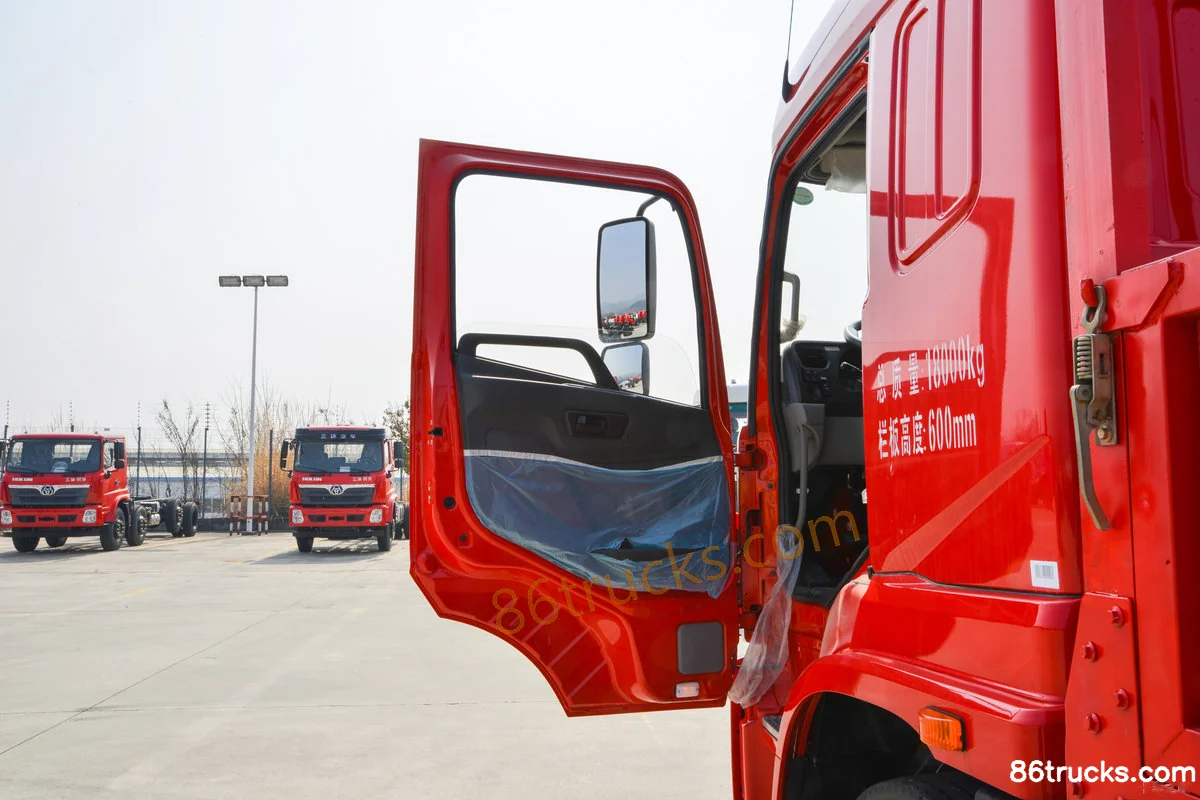

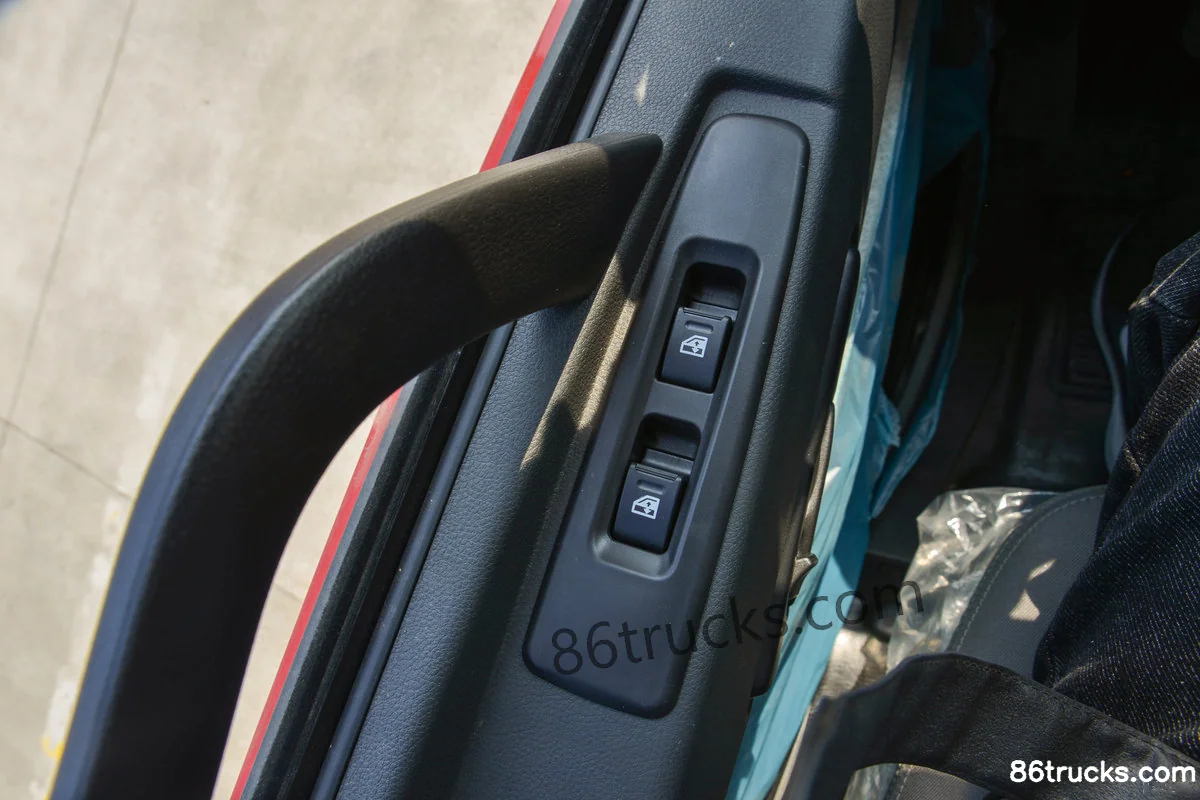

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Cab (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Cab (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Cab (3) | 86Trucks

Chassis3

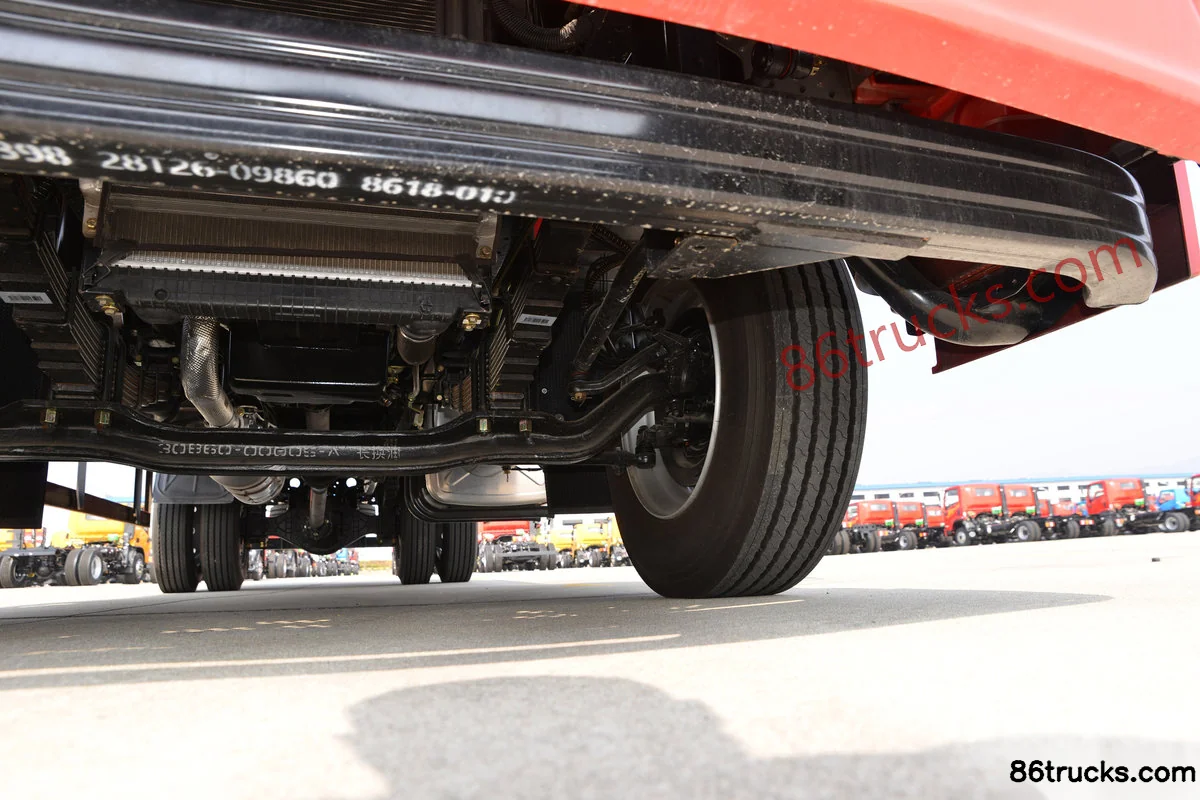

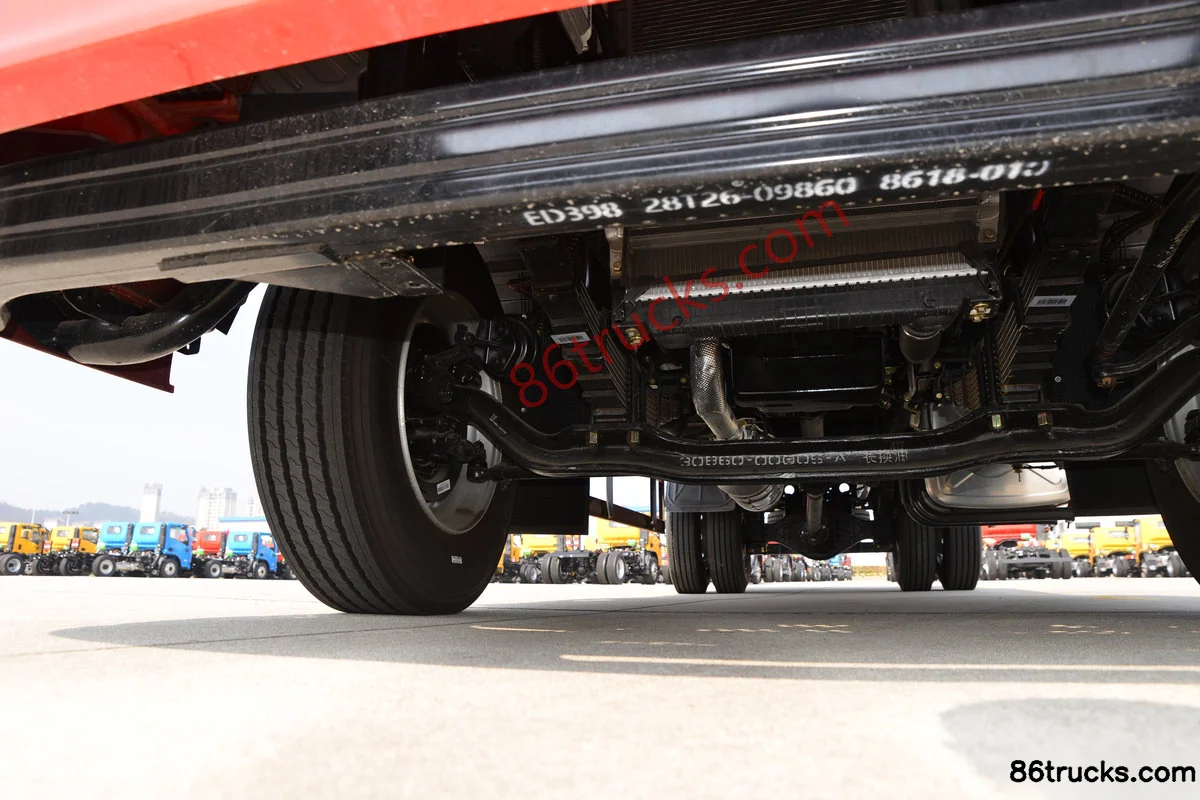

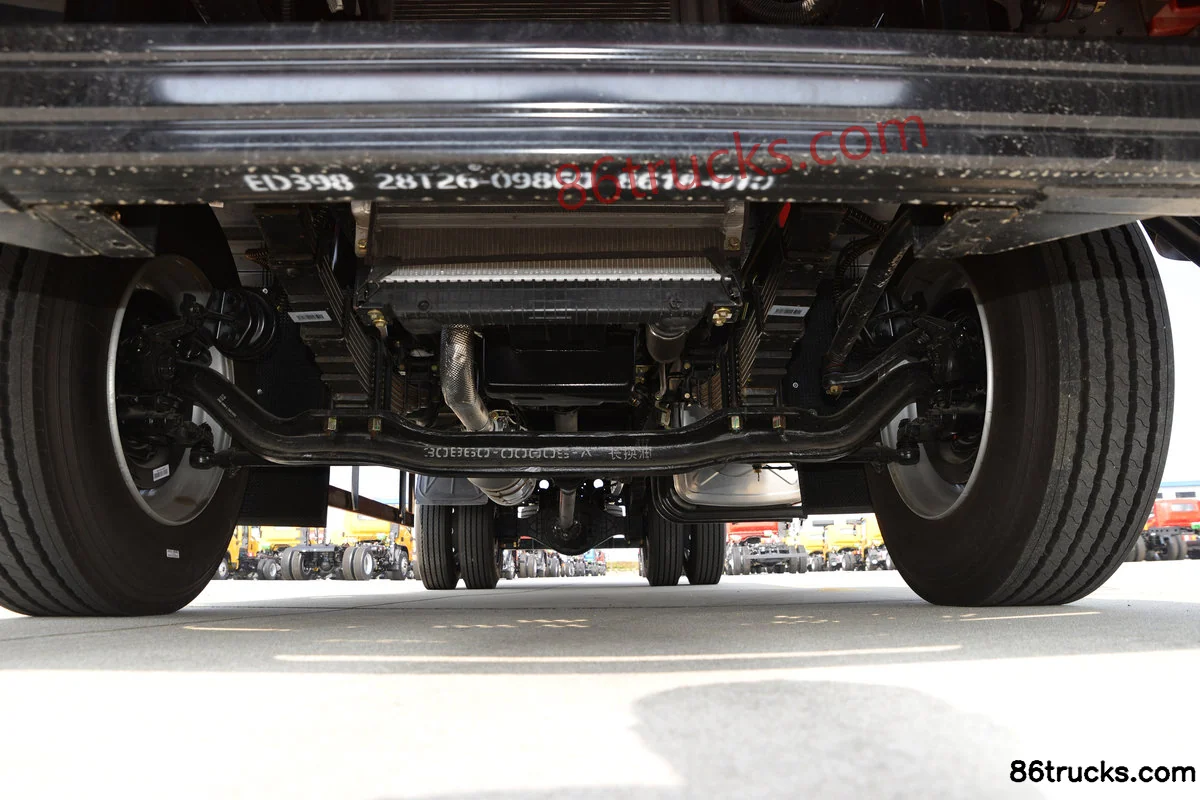

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Chassis (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Chassis (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Chassis (3) | 86Trucks

Body3

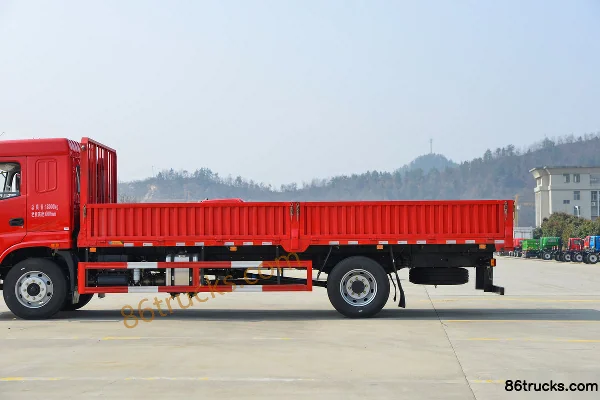

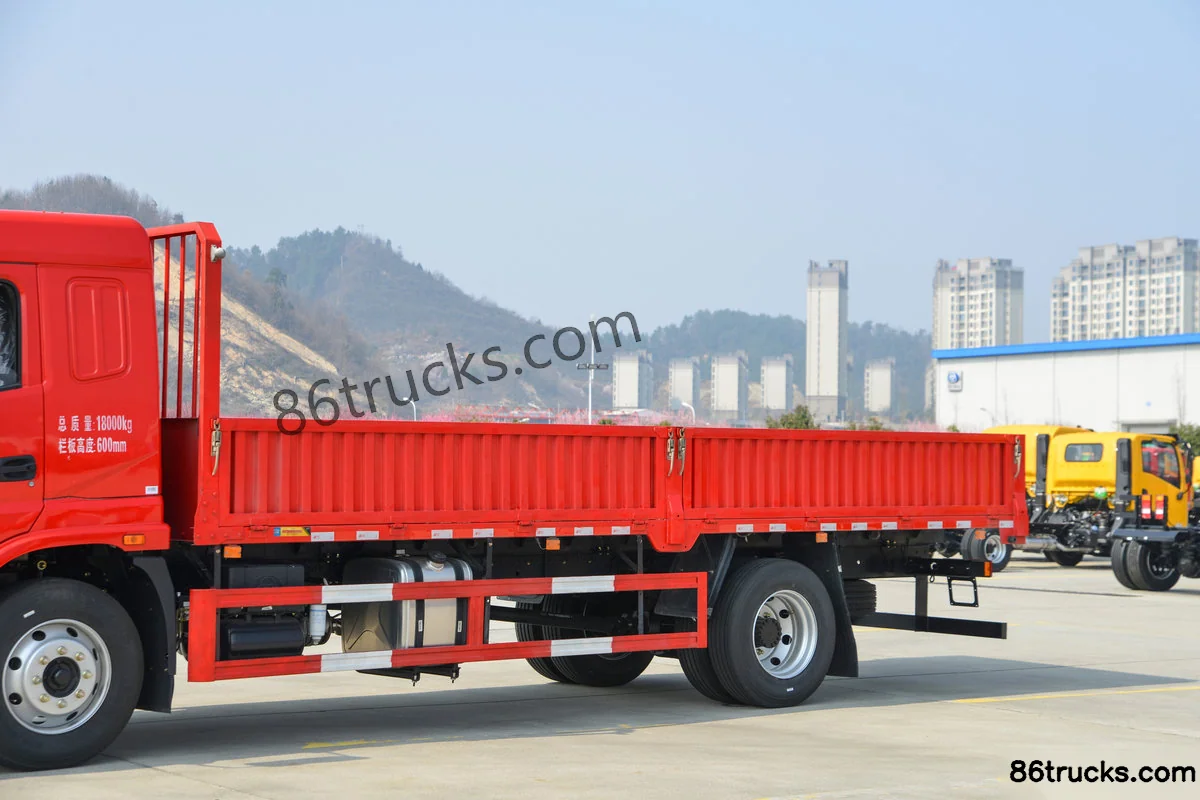

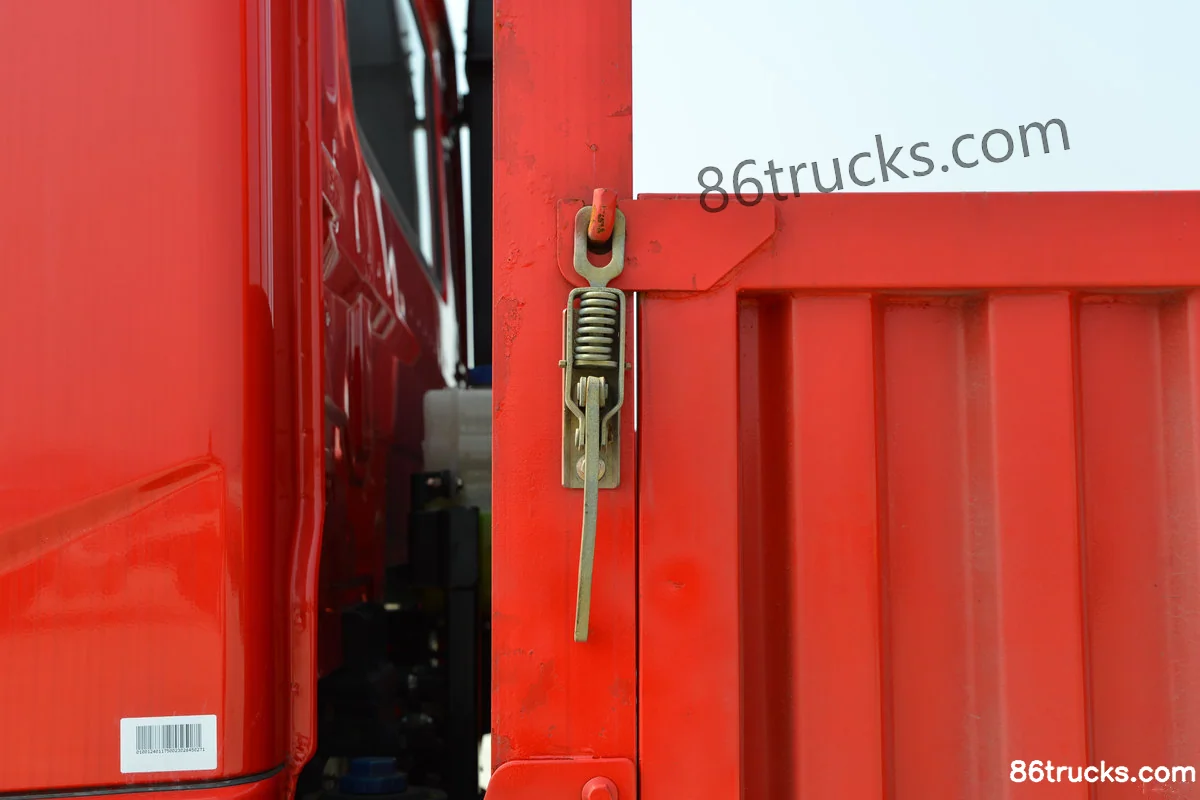

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Body (1) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Body (2) | 86Trucks Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck?

Key specs of Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck: Drive: 4x2; Horsepower: 200 hp; Fuel: Diesel; Engine: Yuchai4.2L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck suited for?

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck differ from other variants in the same series?

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck belongs to Sanhuan Shitong Haolong Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 6.75m Side Panel Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
