SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck

Export reference
From $37,861
MSRP ¥27.26M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 10.6ton
Wheelbase:: 1800+5400mm
Tire Size:: 12R22.5
Cab dimensions:: 12×2.6×4m
Rated payload: 14.27ton
Drive 6X2 (8 wheels)
Cargo box dimensions: 9.5×2.43×2.45m
Horsepower 285

Overview

The SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck is a Refrigerated Truck featuring 9.5×2.43×2.45m cargo body, 14.27t payload, TJG161/H semi-high roof cab and 1800+5400mm wheelbase. On the powertrain side, it comes with 285 hp, 6X2 (8 wheels) drive, China V emissions and Diesel fuel.

China V 285 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 6X2
Wheelbase: 1800+5400mm
Vehicle origin: Xi'an, Shaanxi
Front track width: 2023/2023mm
rear track: 1860mm
Curb Weight: 10.6ton
Rated payload: 14.27ton
Max. speed: 95km/h
Front/rear suspension: 1.54/3.26m
Energy Type: Diesel
Engine parameters
Engine Model: DongfengISD285 50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 6.7L
Emission standard: China V
Max output power: 210kW
Max hp: 285Horsepower
Max torque: 1020N·m
Rated speed: 2500rpm
Engine Type: 2500
Cargo box parameters
Cargo box dimensions: 9.5×2.43×2.45m
Cargo box width: 2.43m
Cargo box height: 2.45m
Body Parameters
Vehicle certification code: SX5250XLCMP5549
Body Brand: SHACMAN Commercial Vehicle
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande X3
Chassis Model: SX1250MP5
rear axle description: 153B
Axle ratio: 4.11
Leaf spring count: 9/9/10+8
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS119TB
Cab parameters
Cab: TJG161/H semi-high roof
Tire
Tire Size: 12R22.5
Number of tires: 6pcs

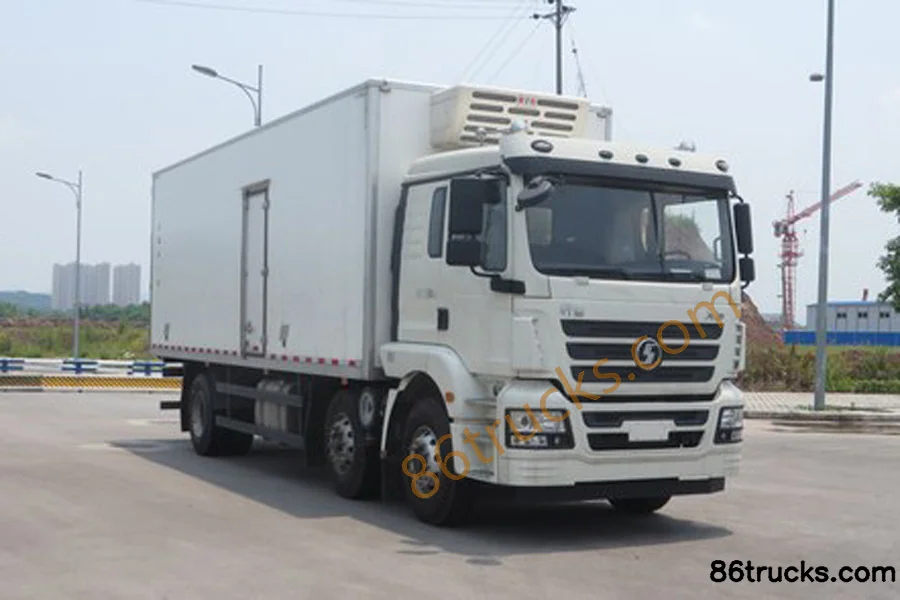

Photos

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck export reference is about From $37,861; MSRP is ¥27.26M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck?

Key specs of SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck: Drive: 6x2; Horsepower: 285 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck suited for?

SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck belongs to SHACMAN Xuande X3 Quasi-Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X3 285 hp 6X2(8 wheels) 9.5m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
