Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh

Export reference
From $38,889
MSRP ¥28M CNY
Curb Weight:: 3.805ton
Rated payload:: 0.495ton
Wheelbase:: 3490mm
Cargo box volume:: 18.3m³
Emission: China IV
Model code (announced):: FD5040XXYW78SHEV-1
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: CATL
Horsepower 122

Overview

The Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh is a Light Truck featuring 280km battery/range, CATL motor, 4X2 (6 wheels) drive and 0.495t payload. On the powertrain side, it comes with 122 hp.

China IV 122 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5040XXYW78SHEV-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3490mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.18m
CLTC range: 280km
Curb Weight: 3.805ton
Rated payload: 0.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: CATL
Motor 1 Model: TZ220XS-HD003
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Electronic Control
ECU Brand: Inovance
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.96kWh
fast charge time: 0.67h
Engine parameters
Engine Model: Chongqing Sokon Power H15RT
Number of cylinders: 4cylinder
Displacement: 1.5L
Emission standard: China IV
Max output power: 90kW
Max hp: 122Horsepower
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1930kg
rear axle description: 5-ton electric drive axle
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Steering Wheel Material: ABS plastic
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Electric

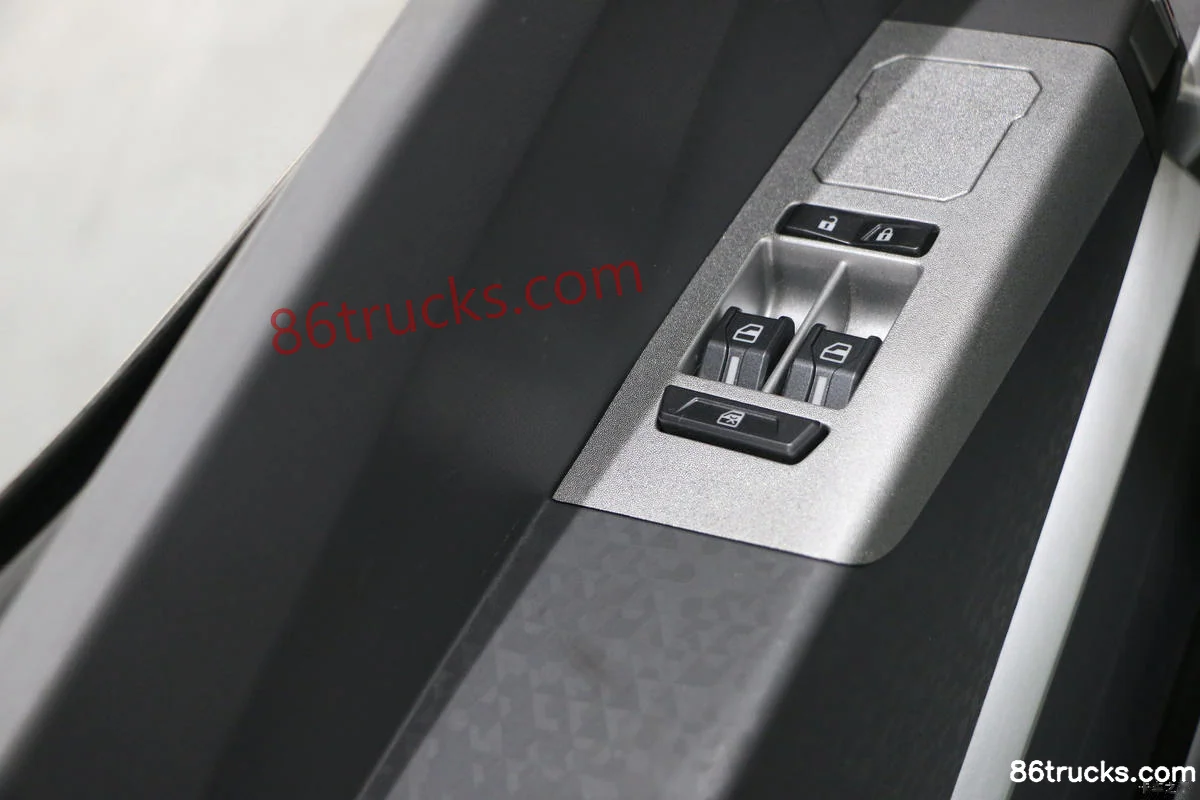

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

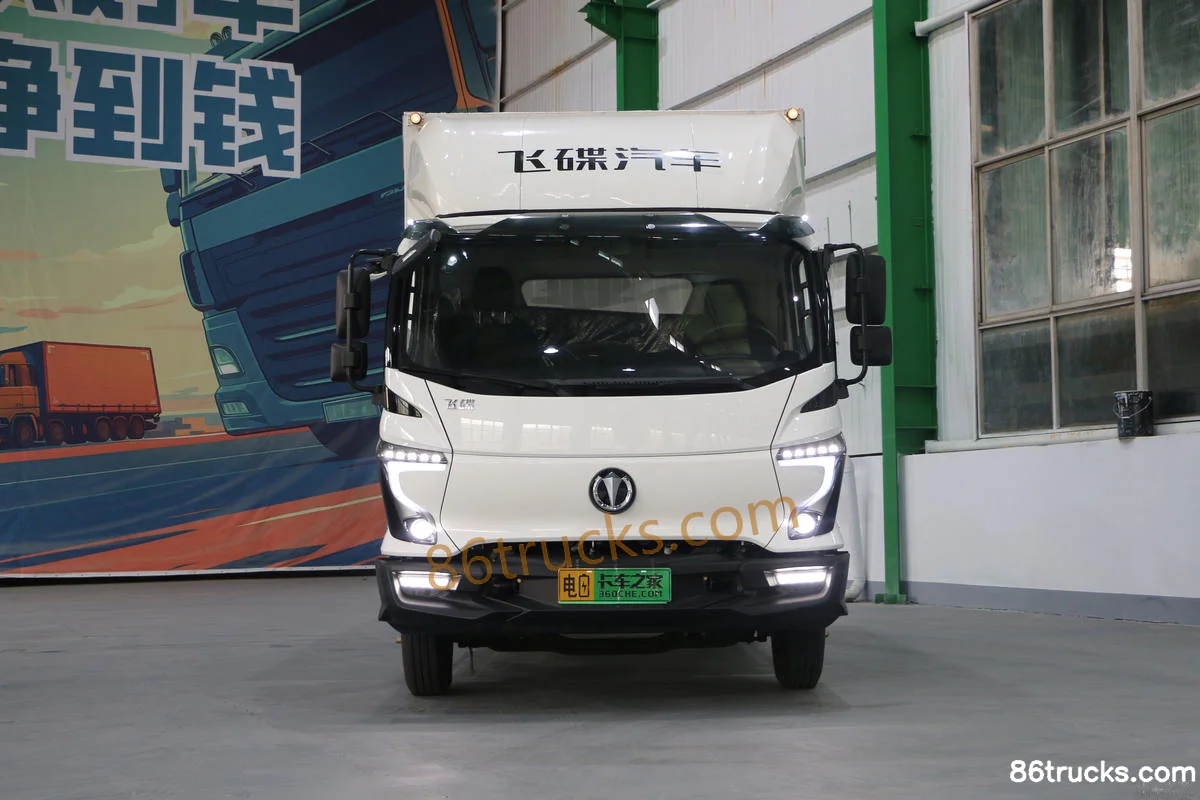

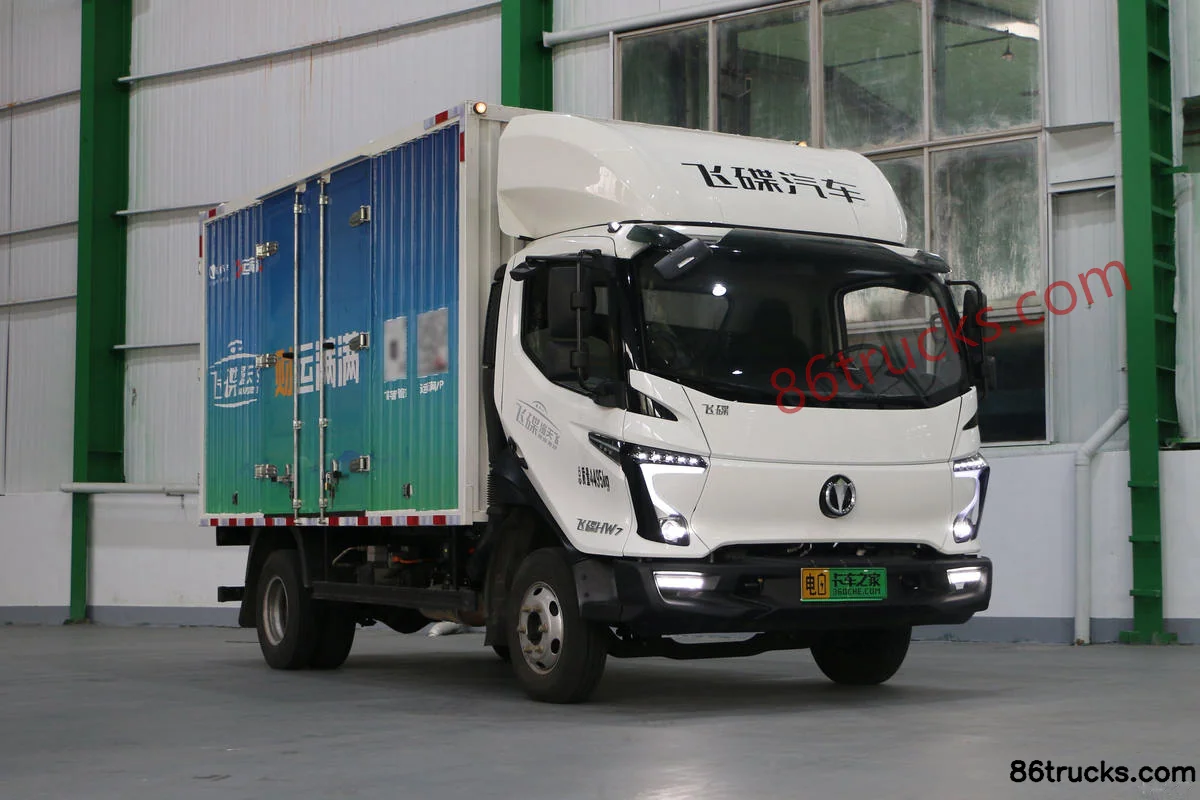

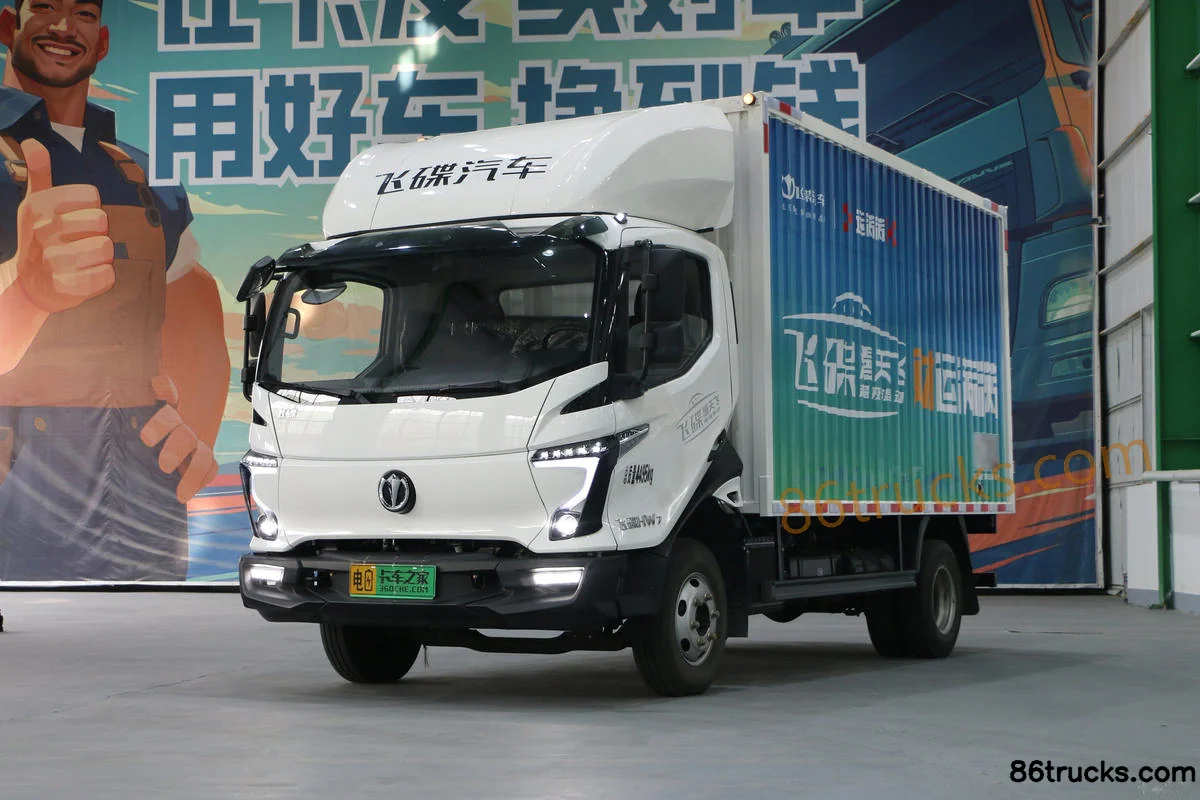

Exterior3

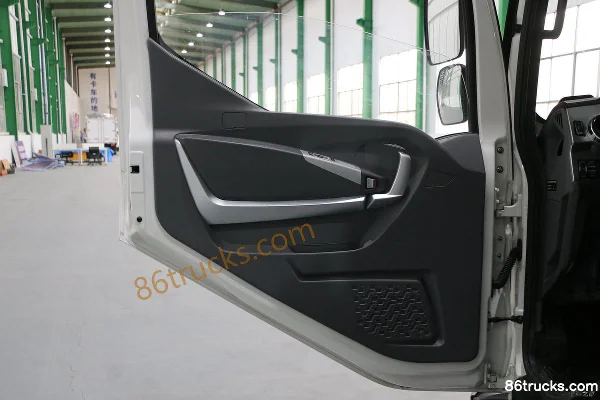

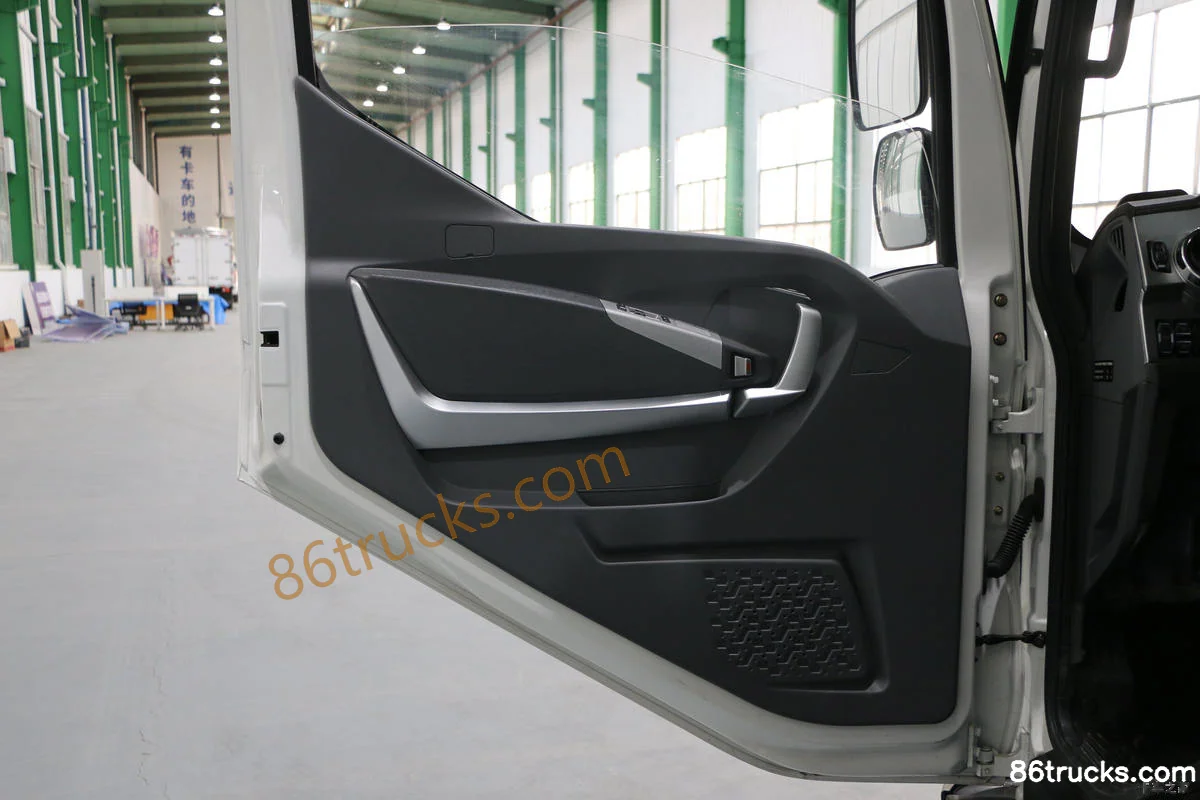

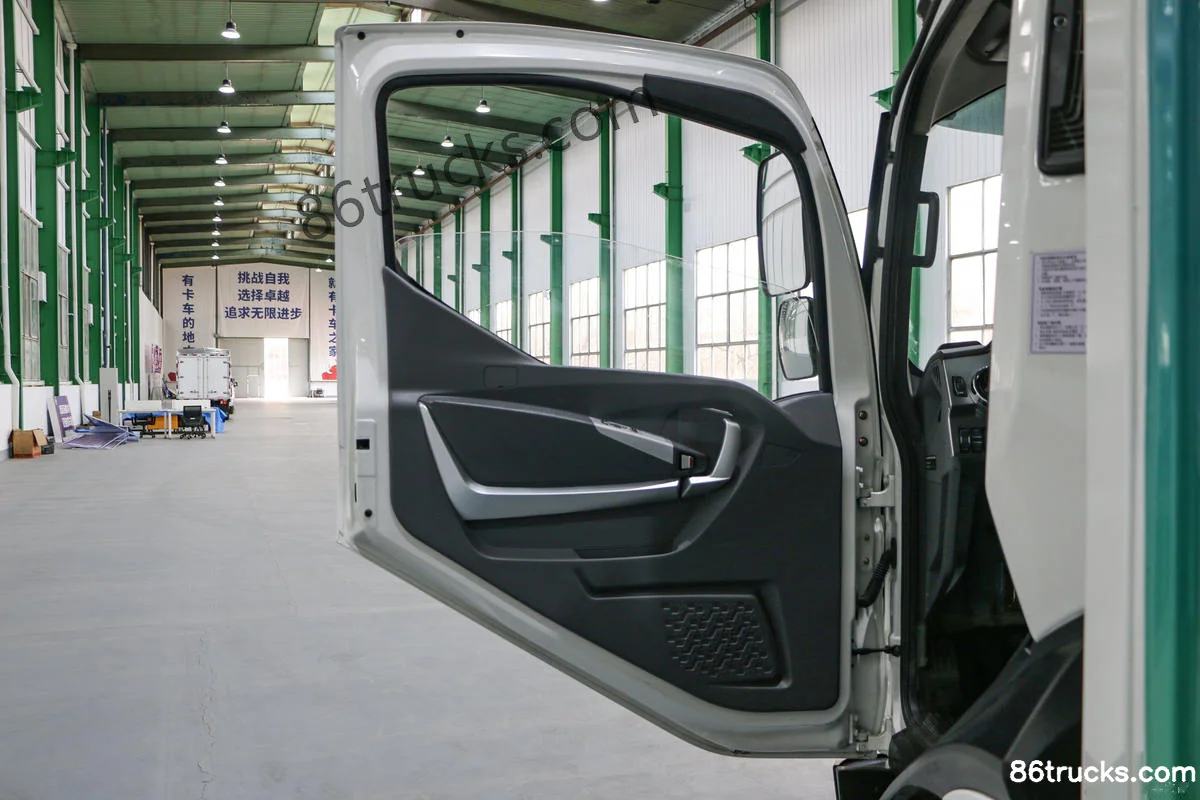

Cab3

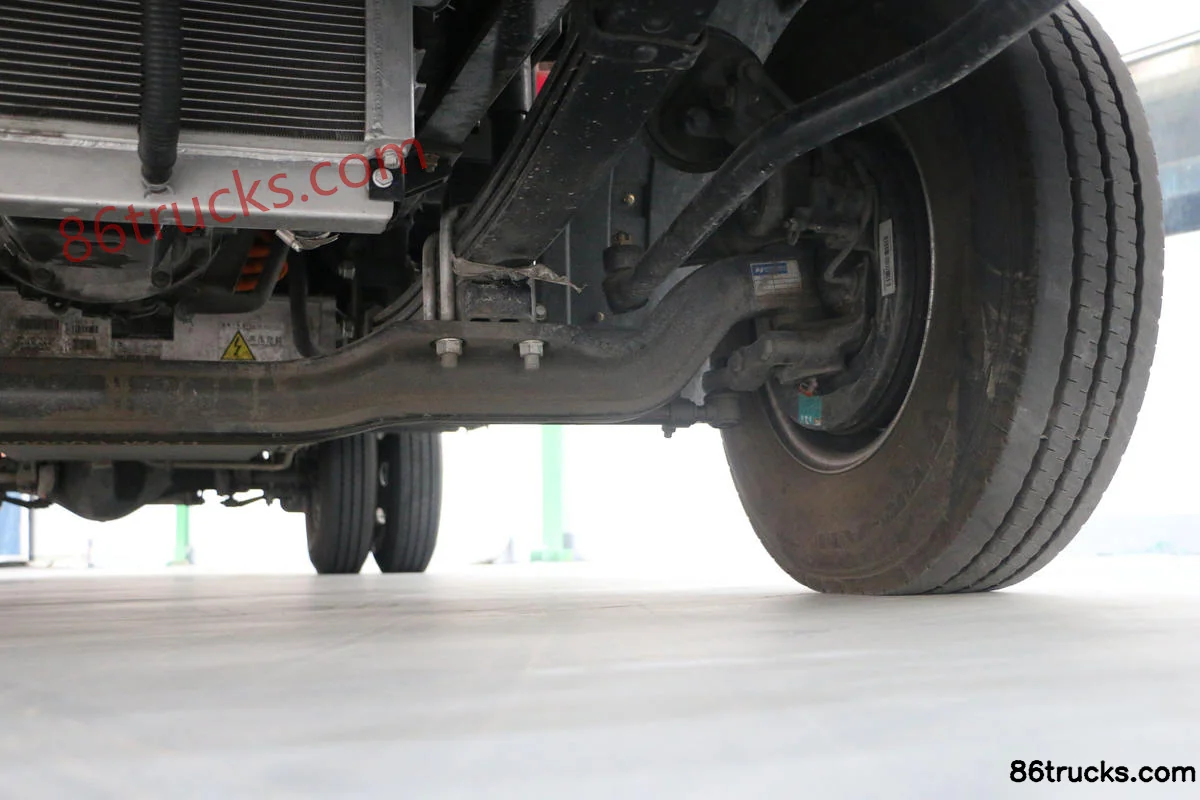

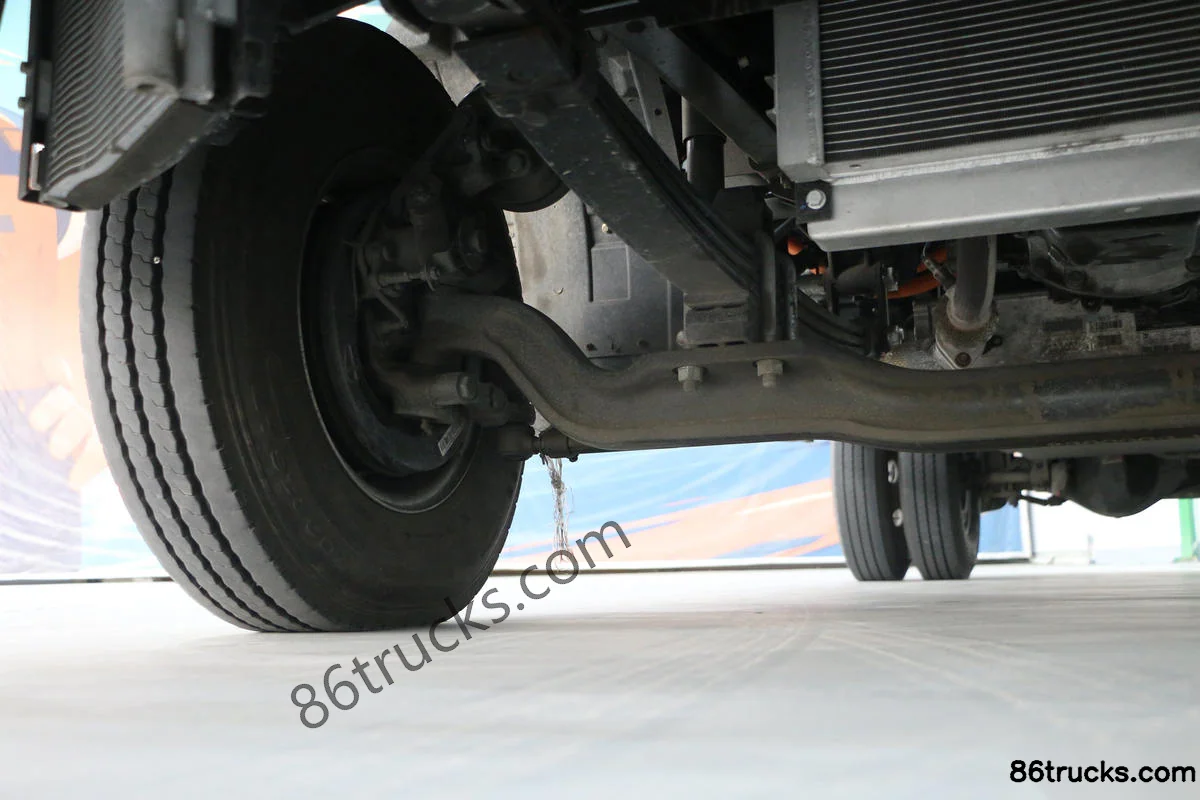

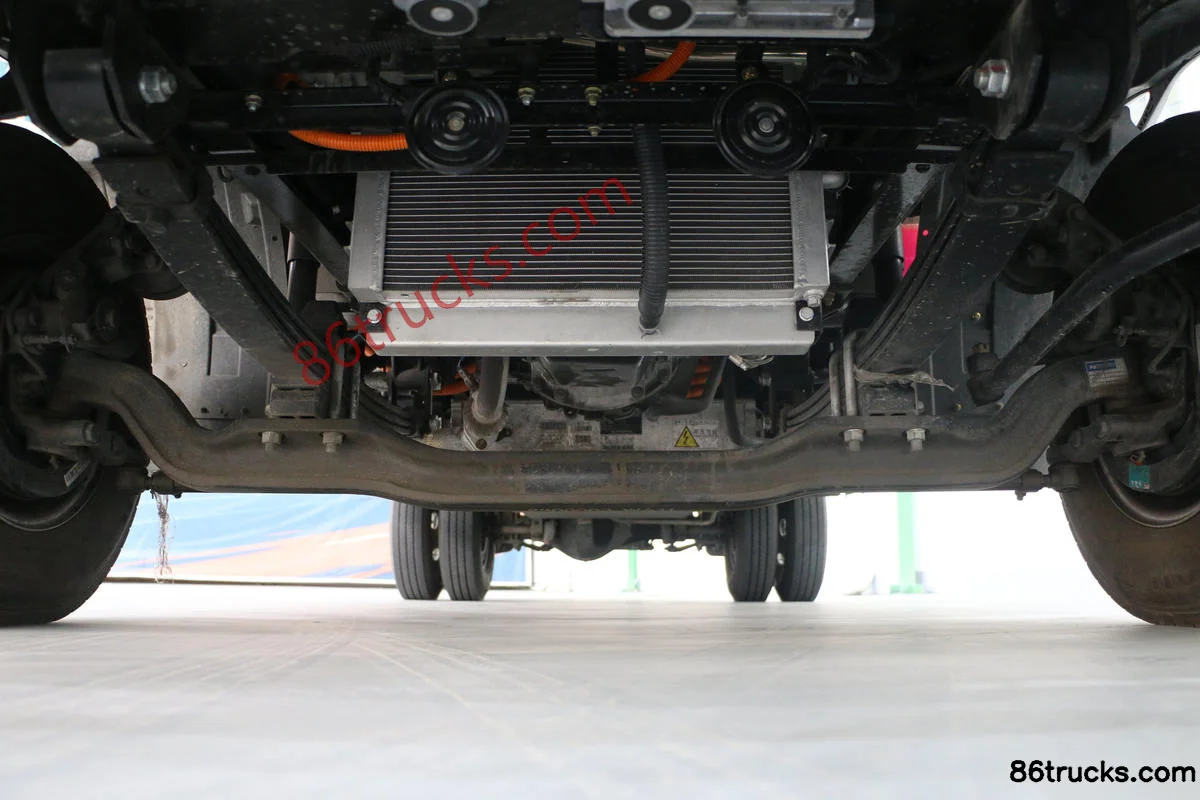

Chassis3

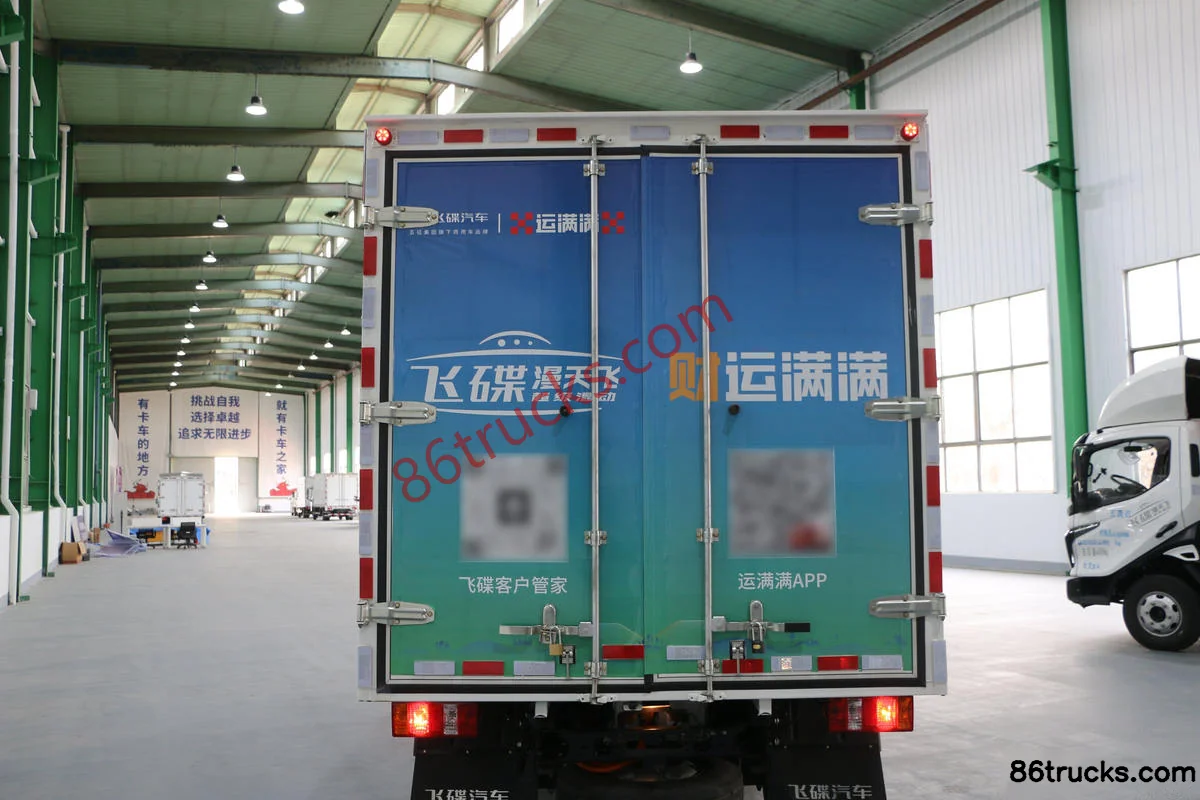

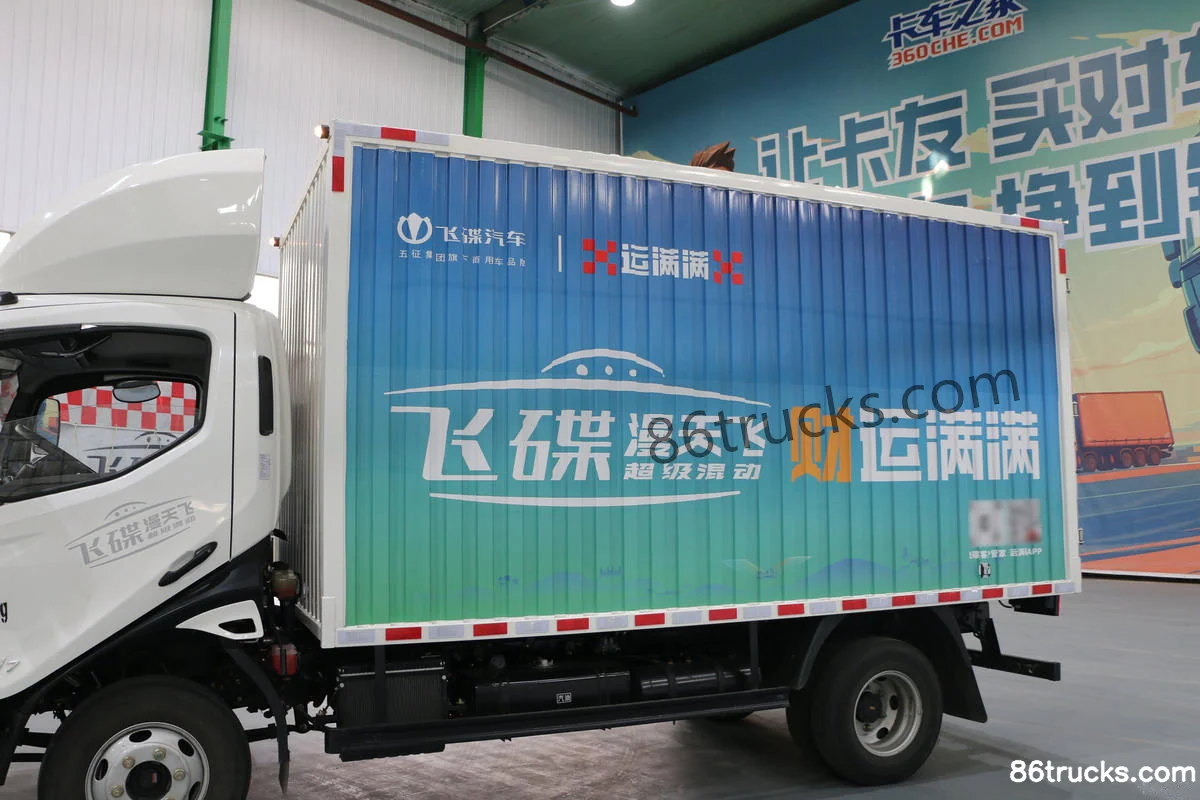

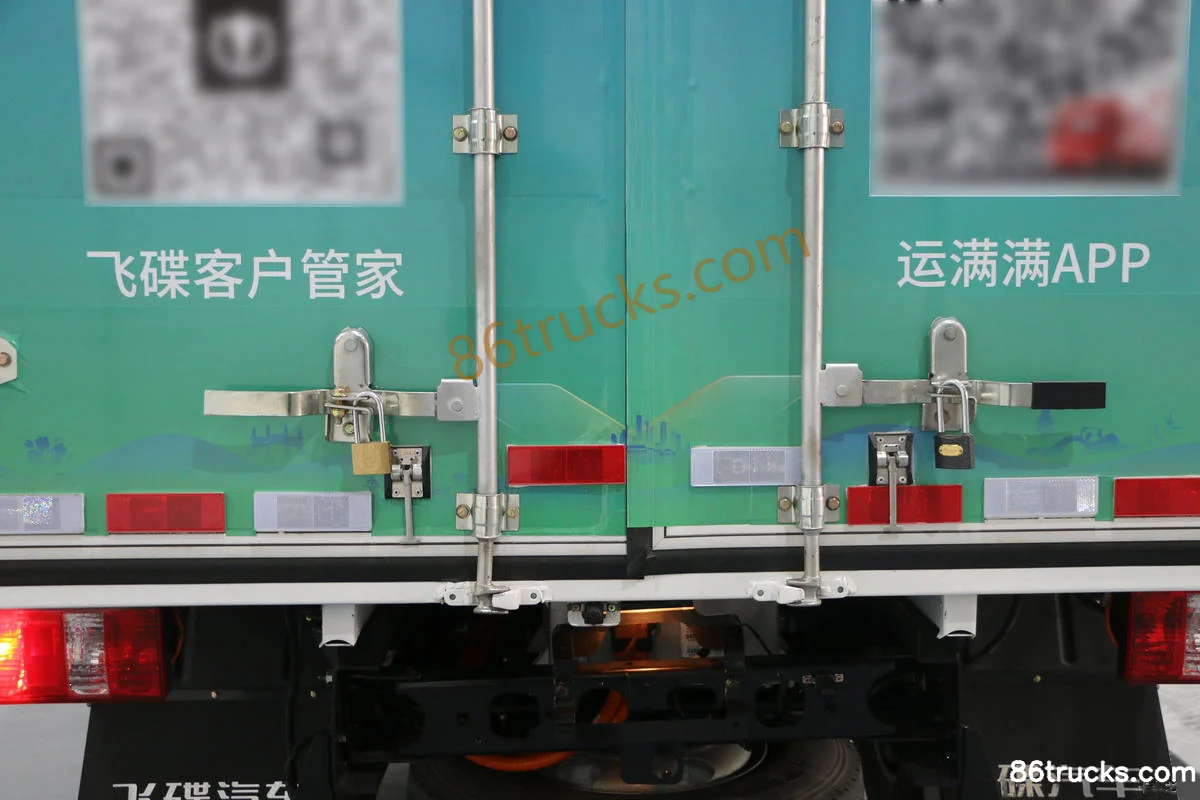

Body3

12 photos

FAQ

What is the export price of Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh, and what does it include?

Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh export reference is about From $38,889; MSRP is ¥28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh?

Key specs of Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh: Drive: 4x2; Horsepower: 122 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh suited for?

Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh differ from other variants in the same series?

Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh belongs to Feidi Mantianfei (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi Mantianfei 4X2(6 wheels) 4.15m single-row plug-in hybrid range-extended box light truck CATL 100.96kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
