Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100)

Export reference
MSRP N/A
Product ID:: S100
Max load capacity:: 5300kg
Weight:: 34kg
Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) exterior
View more photos (1)
Specifications: 22.5x13.00
Material: aluminum alloy
bolt hole diameter: 26mm

Overview

The Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) is a parts product with spec 22.5x13.00, aluminum alloy material and 26mm size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Product ID: S100
Specifications: 22.5x13.00
Max load capacity: 5300kg
Weight: 34kg
Web plate thickness: 29mm
bolt hole diameter: 26mm
number of bolt holes: 10
Pitch circle diameter: 335mm
Center Hole Diameter: 281.2mm
Material: aluminum alloy
Reference tire specification: Michelin 425/65R22.5 XTE 2；Goodyear 425/65R22.5 RHT II
Remarks: Follows tire development trends, suitable for dangerous goods transport vehicles. Uses powder coating surface treatment technology (referred to as 'PC surface treatment'), the product excels in mechanical strength, adhesion, corrosion resistance, aging resistance, weather resistance, etc., with a soft film layer, high gloss, non-peeling surface, good acid and alkali resistance, corrosion resistance, and easier daily maintenance.

Photos

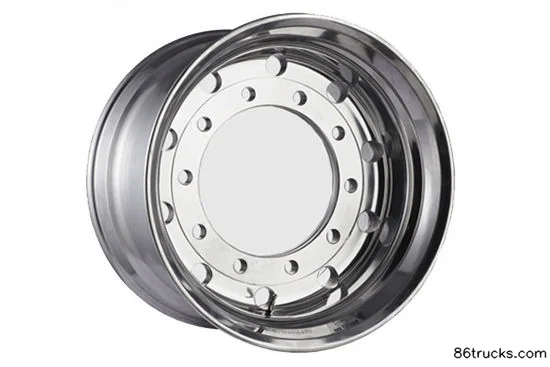

Exterior1

Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) suited for?

Match Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) differ from other variants in the same series?

Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100) belongs to Weirn 22.5-inch Wheel (Wheel). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Weirn 22.5x13(8 wheels).00 aluminum alloy wheel (Model: S100)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
