Fast Gear 12JSDX200T 12-Speed Manual Transmission

Export reference

MSRP N/A

Matching Range:: This transmission series is suitable for various models such as cargo trucks, special-purpose vehicles, truck cranes, and railway track vehicles.

Max input torque:: 2000N·m

1st gear ratio:: 15.53

Fast Gear 12JSDX200T 12-Speed Manual Transmission exterior

View more photos (3)

Transmission Model: 12JSDX200T

Transmission Brand: Fast Gear

Features: 1. Full aluminum alloy housing design reduces weight by over 110 kg, improving fuel economy. 2. Main and auxiliary box combination, auxiliary box uses large center distance helical gear design significantly improves auxiliary box strength and life, high transmission efficiency. 3. Twin countershafts, power split, unique structure. 4. Full synchronizer, smooth and flexible shifting; main box: double-cone lock-ring synchronizer with large synchronization capacity; auxiliary box: enhanced lock-pin inertia synchronizer with non-metallic friction material for high reliability. 5. Large first gear ratio for strong heavy-load climbing ability. 6. Well-arranged gear steps with small ratio steps for good fuel economy. 7. Fine-pitch gear design, auxiliary box helical gear design for smooth meshing and low noise. 8. Multiple PTO options for full configuration.

Overview

The Fast Gear 12JSDX200T 12-Speed Manual Transmission is a parts product with spec 12JSDX200T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters

Transmission Brand: Fast Gear

Transmission series: 12-speed series

Matching Range: This transmission series is suitable for various models such as cargo trucks, special-purpose vehicles, truck cranes, and railway track vehicles.

Max input torque: 2000N·m

1st gear ratio: 15.53

2nd gear ratio: 12.08

synchronizer: Yes

3rd gear ratio: 9.39

4th gear ratio: 7.33

5th gear ratio: 5.73

6th gear ratio: 4.46

7th gear ratio: 3.48

8th gear ratio: 2.71

Reverse Gear 1 Ratio: 14.86

Transmission weight: 260kg

9th gear ratio: 2.1

Transmission oil capacity: 16L

10-speed gear ratio: 1.64

11-speed gear ratio: 1.28

12-speed gear ratio:

Reverse Gear 2 Ratio: 3.33

Control type: Single H control, clear gear positions, flexible shifting

Number of gears: 12Gear

Transmission Model: 12JSDX200T

shift method: Manual

Forward gears: 12Gear

Number of Reverse Gears: 2pcs

Photos

Exterior3

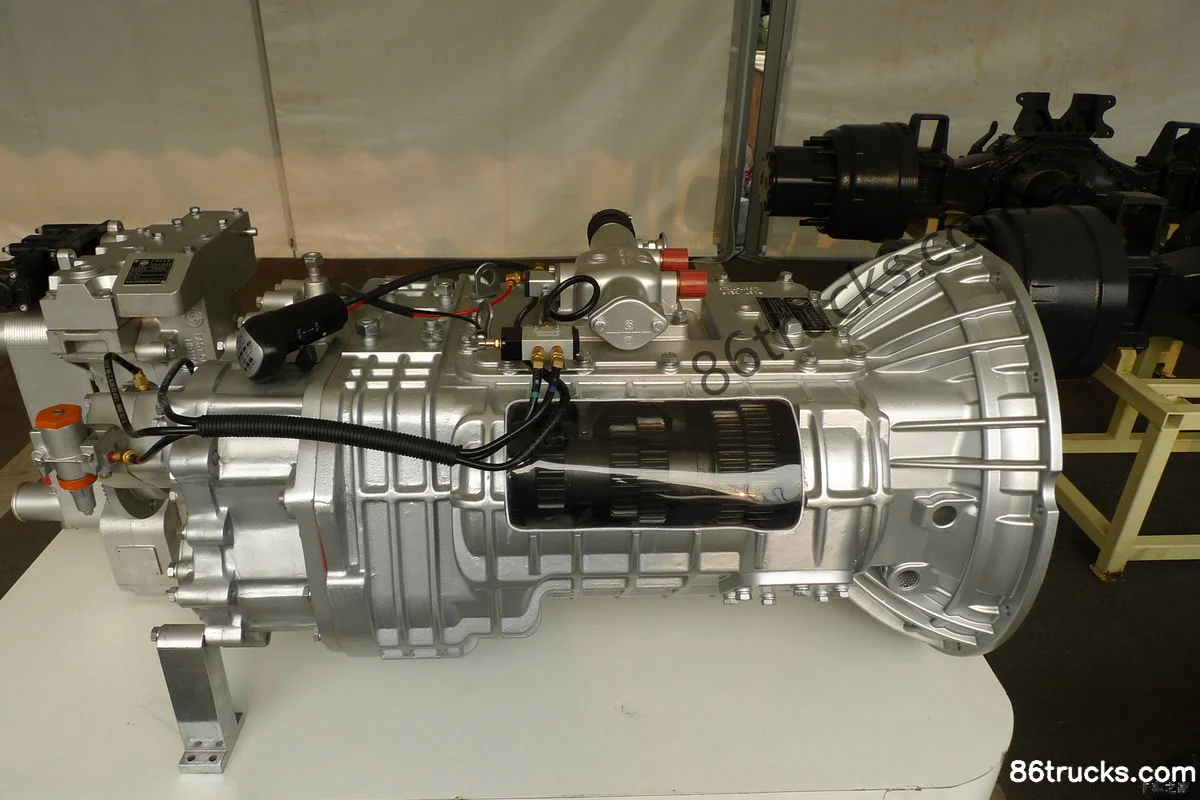

Fast Gear 12JSDX200T 12-Speed Manual Transmission Exterior (1) | 86Trucks

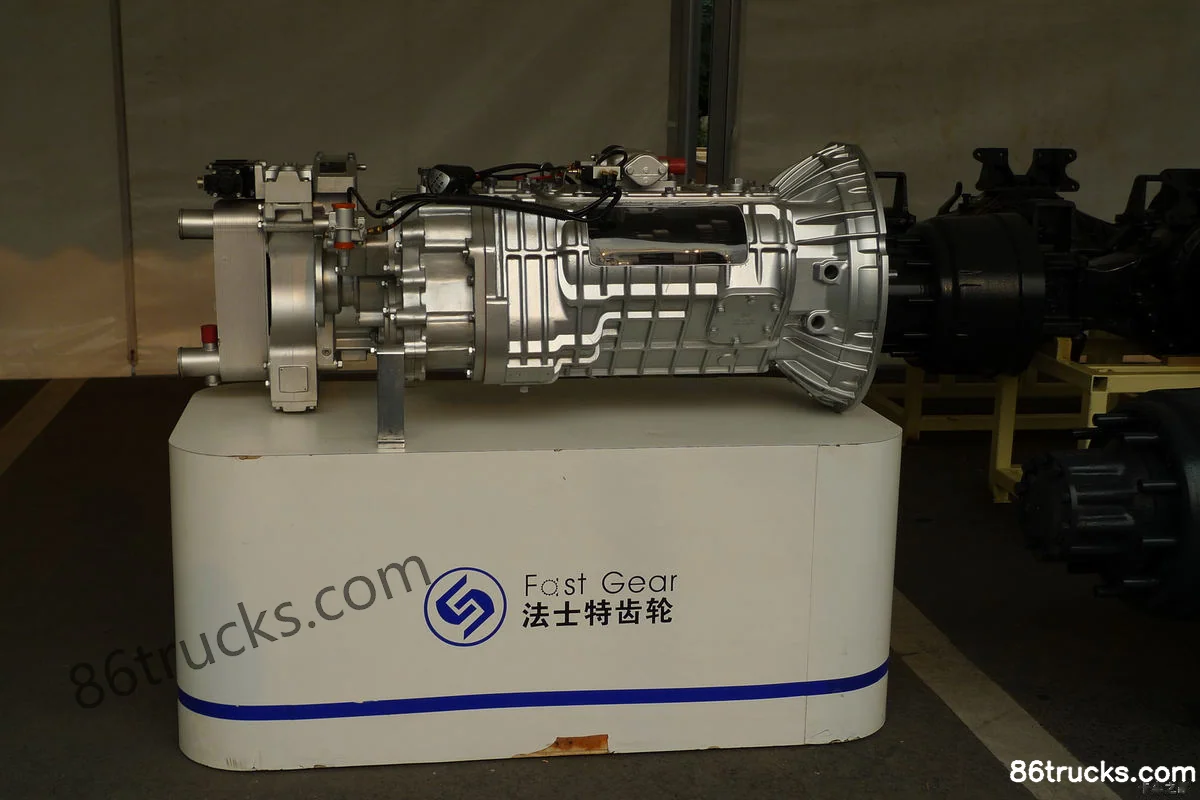

Fast Gear 12JSDX200T 12-Speed Manual Transmission Exterior (2) | 86Trucks

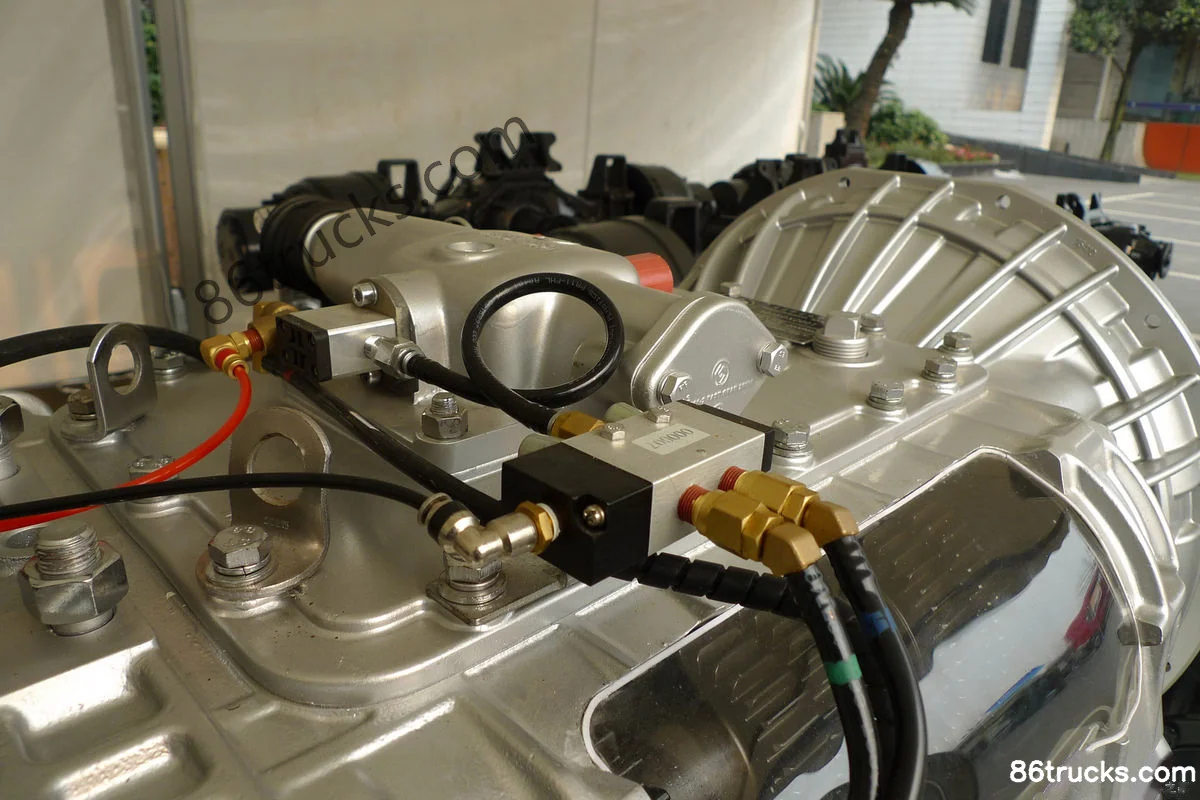

Fast Gear 12JSDX200T 12-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Fast Gear 12JSDX200T 12-Speed Manual Transmission suited for?

Match Fast Gear 12JSDX200T 12-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Fast Gear 12JSDX200T 12-Speed Manual Transmission differ from other variants in the same series?

Fast Gear 12JSDX200T 12-Speed Manual Transmission belongs to Fast Gear 12-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Fast Gear 12JSDX200T 12-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Fast Gear 12JSDX200T 12-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
