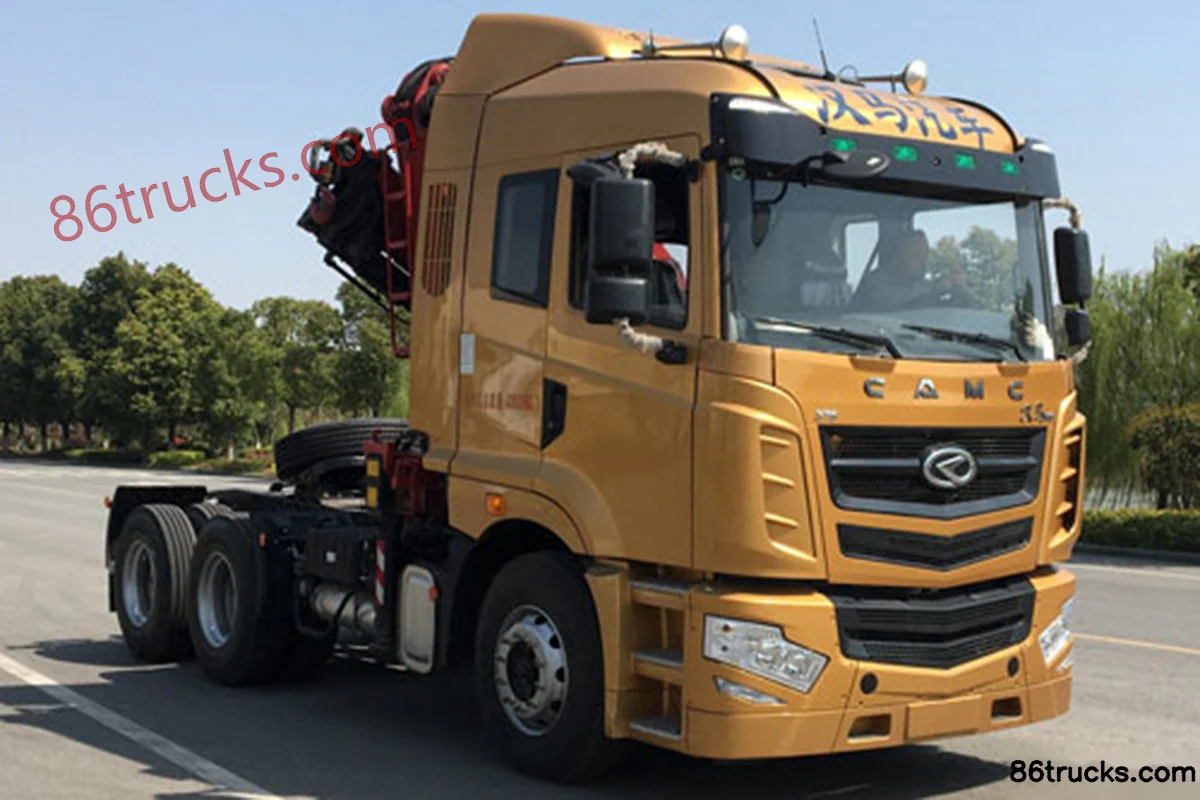

Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 30.7ton
Wheelbase:: 3600+1350mm
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 9.84L
Drive 6X4 (10 wheels)
Horsepower 420
Emission China V
Transmission Hanma

Overview

The Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 420 hp, 25t GVW and China V emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a HanmaCM6D18.420 50 engine, Hanma transmission and Diesel fuel.

China V 420 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN5250JQQHB42C6M5
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: HanmaCM6D18.420 50
transmission: Hanma16SOBY2250
Cab length: 7.265m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2065mm
rear track: 1860/1860mm
Gross Trailer Weight: 30.7ton
Curb Weight: 18.17ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Ma'anshan
tonnage class: Heavy truck
market segment: Logistics Freight
Remarks: Tractor truck with crane
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6D18.420 50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.84L
Emission standard: China V
Max output power: 309kW
Max hp: 420Horsepower
Max torque: 1840N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Hanma16SOBY2250
Transmission Brand: Hanma
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 9/12
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:

Photos

Exterior1

1 photos

FAQ

What emission standard does Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck?

Key specs of Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck: Drive: 6x4; Horsepower: 420 hp; Emission: China V; Fuel: Diesel; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck suited for?

Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck differ from other variants in the same series?

Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck belongs to Hualing Hanma H6 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Hanma H6 Heavy Truck 420hp 6X4(10 wheels) Crane Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
