Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 6.82ton
Wheelbase:: 1800+5000mm
seating capacity: 2Personnel
Drive 6X2 (8 wheels)
Cargo box type: Chassis
Horsepower 310

Overview

The Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume and 1800+5000mm wheelbase. On the powertrain side, it comes with a SinotrukMAN7L engine, 310 hp, 6X2 (8 wheels) drive and China V emissions.

China V 310 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1225N50C3E1
Type: Chassis
Drive type: 6X2
Wheelbase: 1800+5000mm
engine: SinotrukMC07.31-50
transmission: SinotrukHW19712C
Rear Axle Ratio: 4.11
Cab length: 10.85m
Cab width: 2.496m
Cab height: 2.75m
Front track width: 2068/2068mm
rear track: 1860mm
Curb Weight: 6.82ton
GVWR: 21.5ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 17°
Remarks: Guangda Hongyuan upper body
Front/rear suspension: 1.35/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19712C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Front axle description: H153 front axle
Front axle allowable load: 5000/5000kg
rear axle description: MC13
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 4/4/-
Tire
Tire Size: 295/60R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration

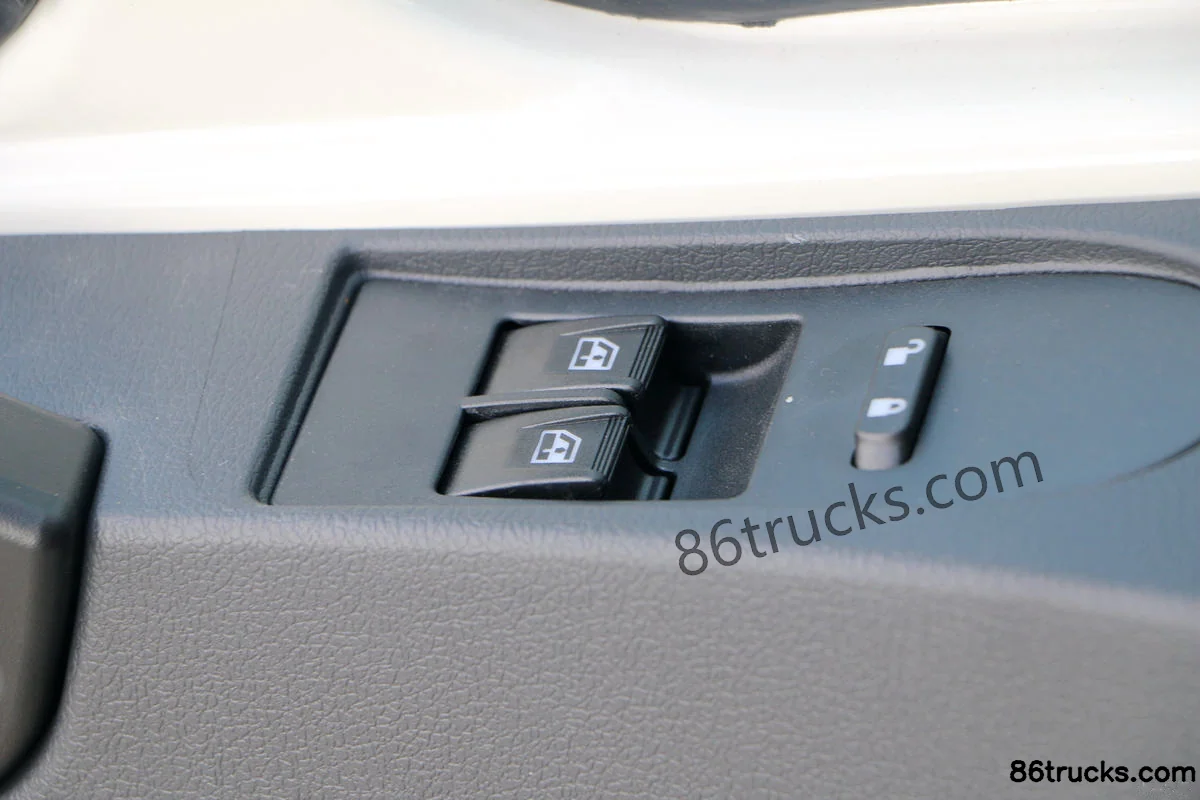

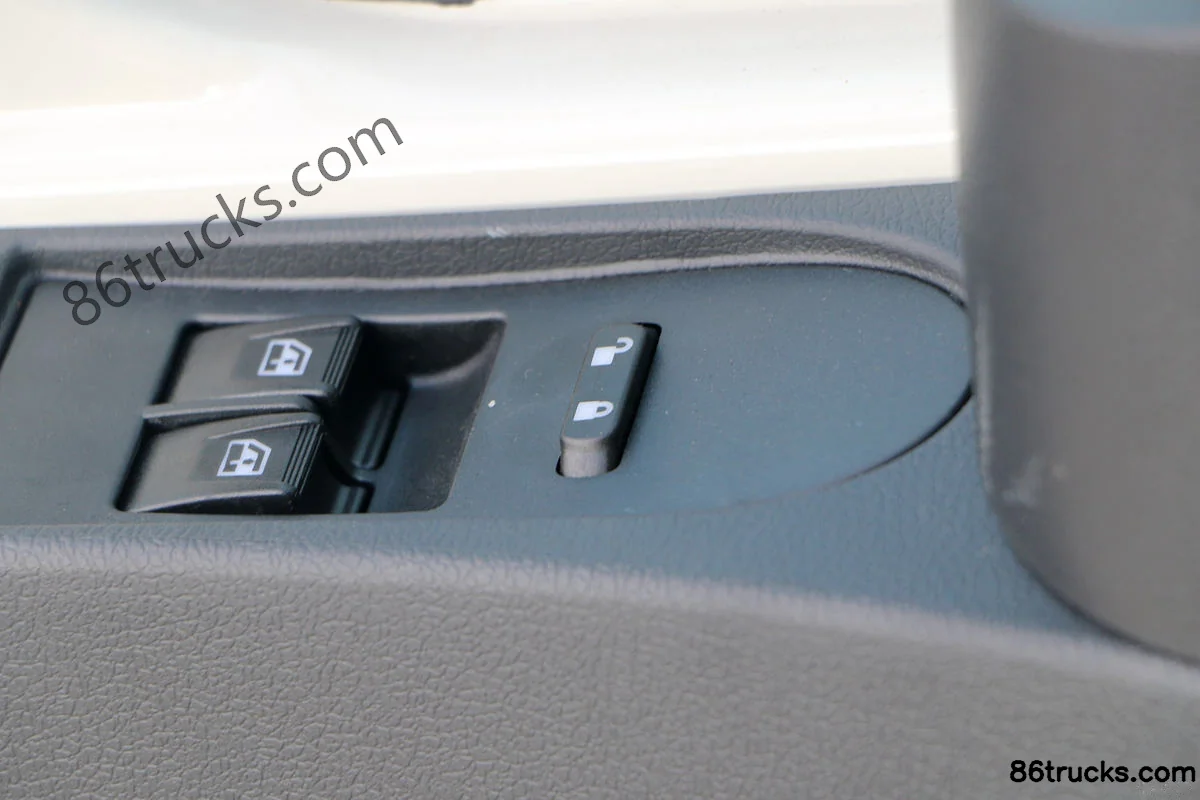

Electronic Central Lock:

Photos

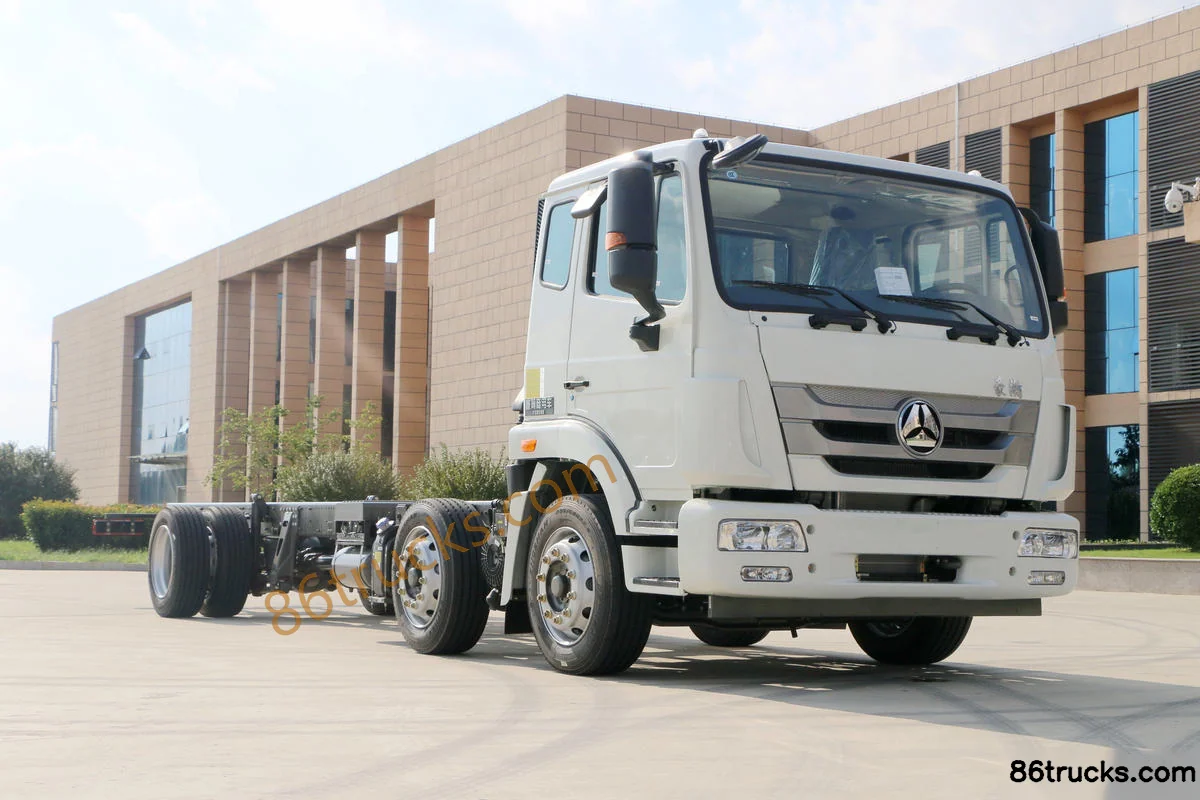

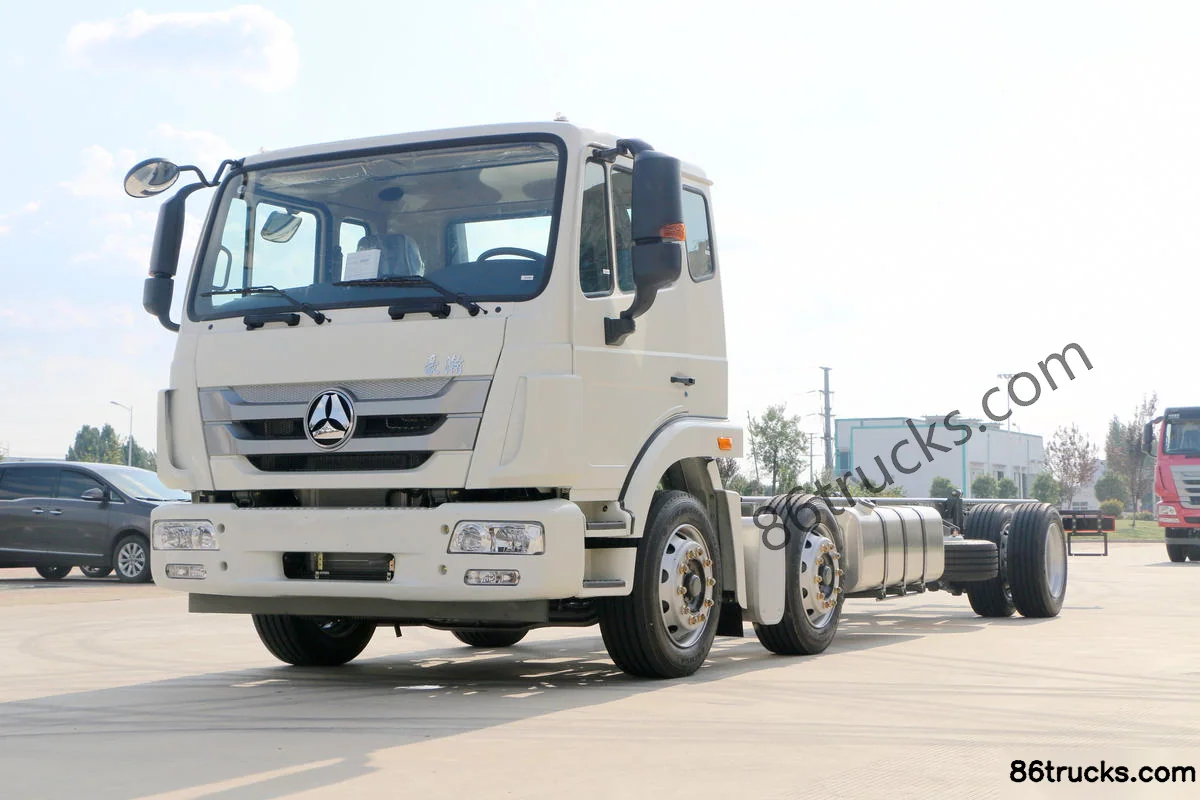

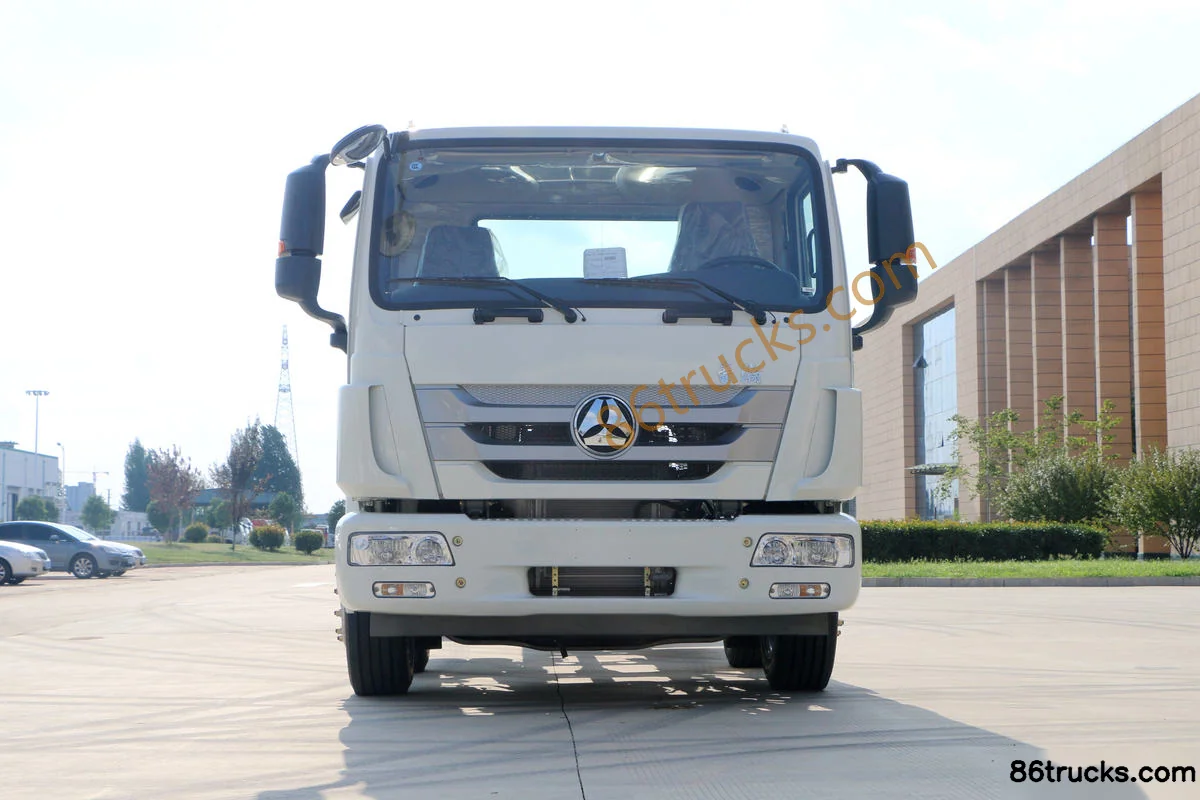

Exterior3

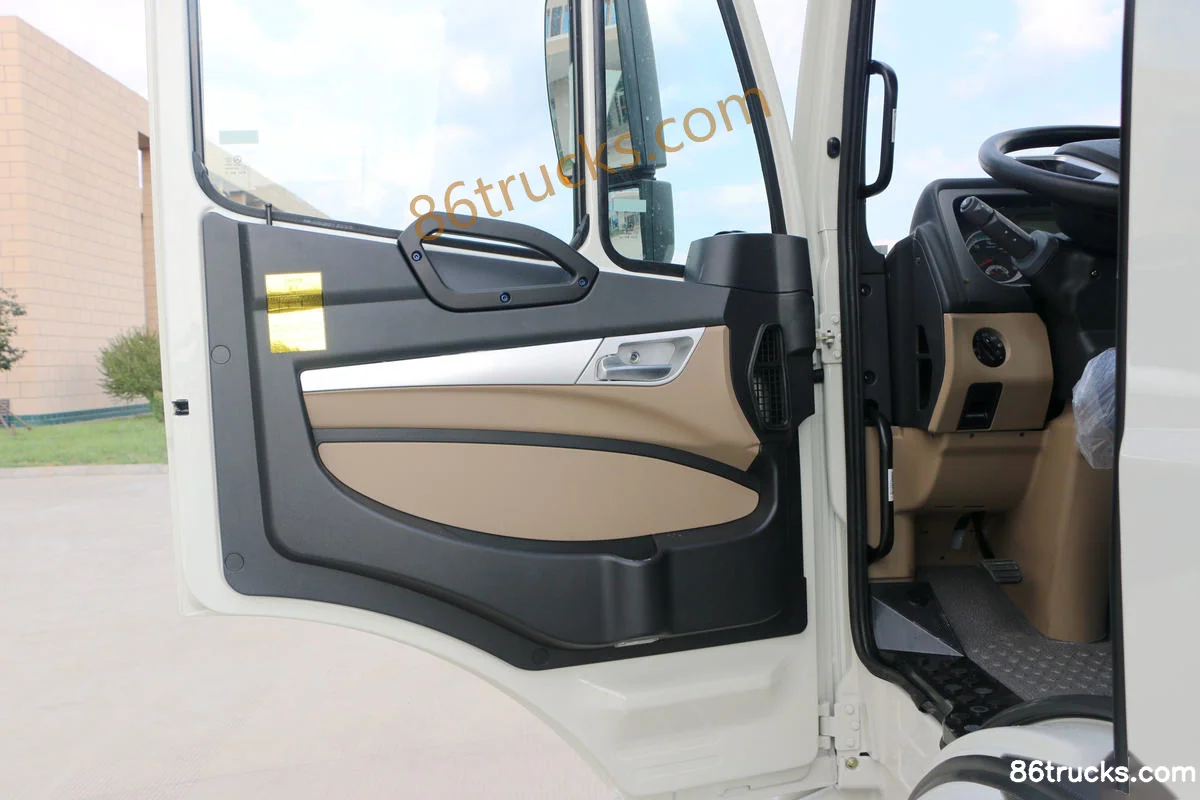

Cab3

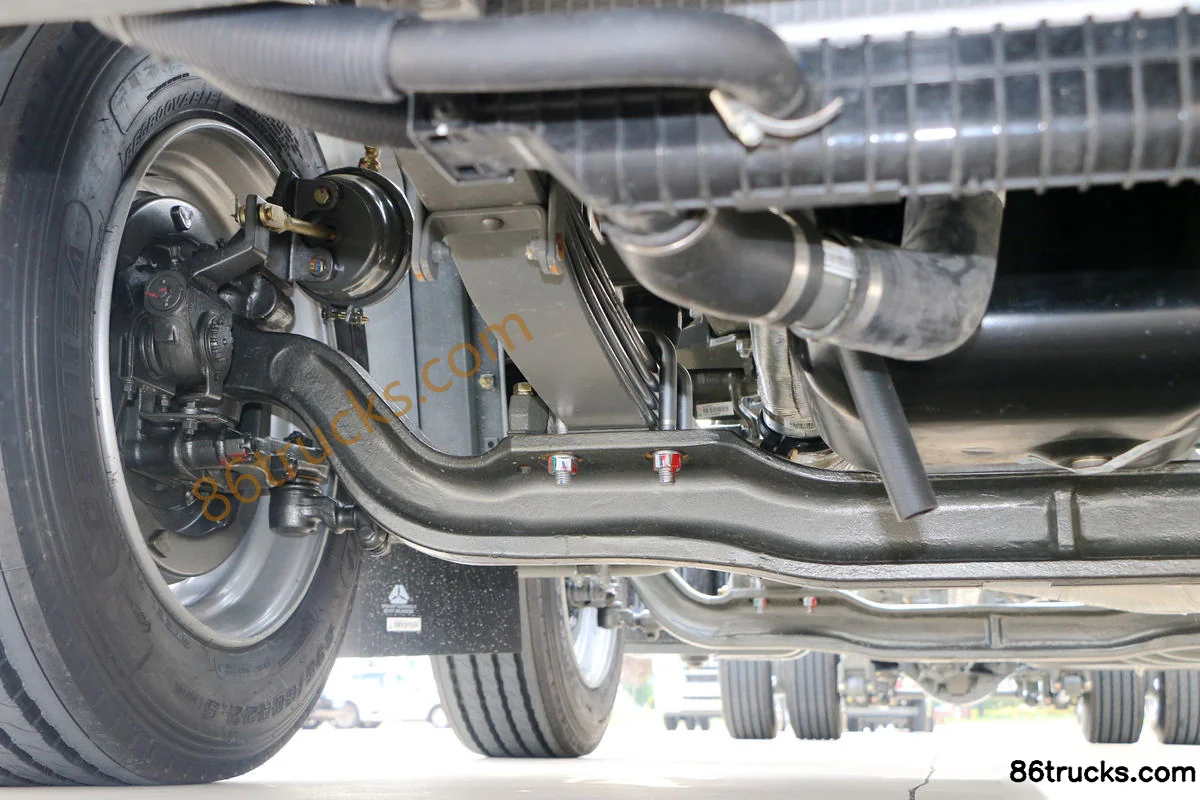

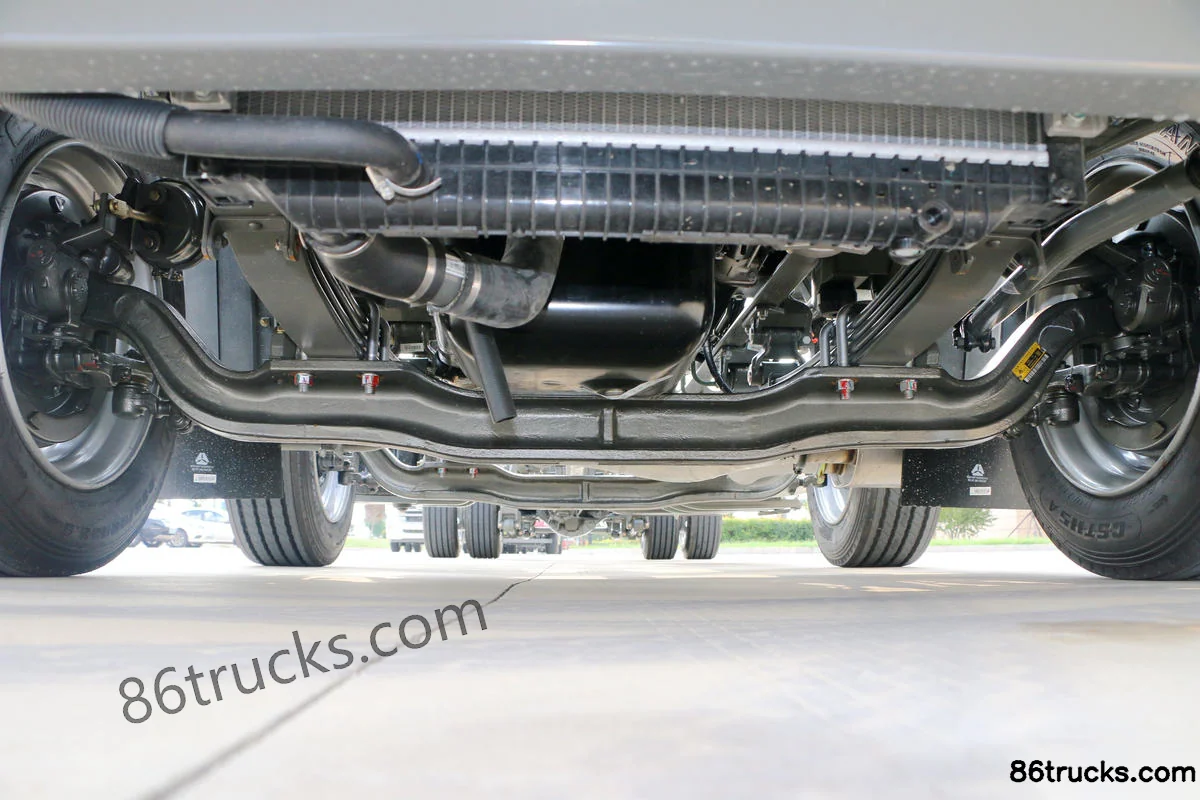

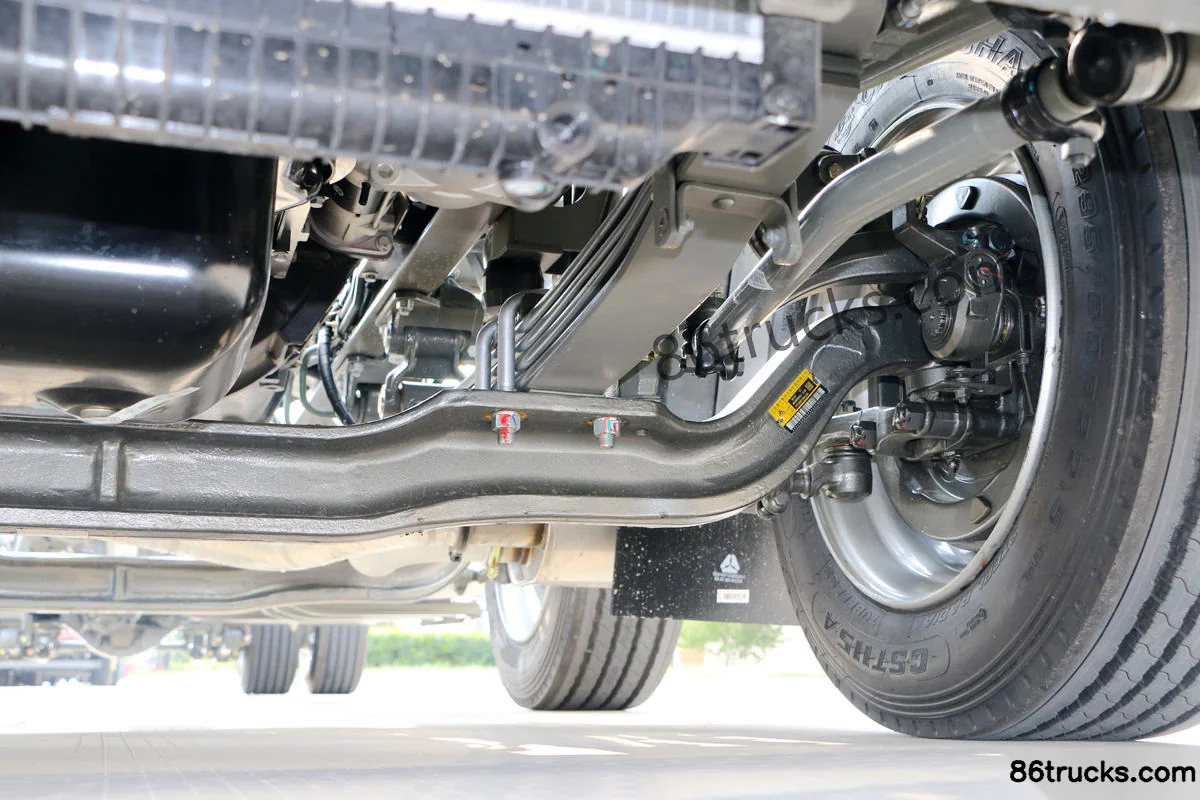

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis?

Key specs of Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis: Drive: 6x2; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis suited for?

Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis differ from other variants in the same series?

Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis belongs to Sinotruk J5G Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G Heavy Truck 310 hp 6X2(8 wheels) Center-axle Car Carrier Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
