FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels)

Export reference
MSRP N/A
Curb Weight:: 3.55ton
Rated payload:: 0.75ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Emission: China VI
Model code (announced):: JGL5042XXYSHEVGM6R2
Drive 4X2 (6 wheels)
CLTC range: 40km
Motor 1 Brand: Smart Core
Horsepower 176

Overview

The FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) is a Light Truck featuring 40km battery/range, Smart Core motor, 4X2 (6 wheels) drive and 0.75t payload. On the powertrain side, it comes with 176 hp.

China VI 176 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JGL5042XXYSHEVGM6R2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.13m
CLTC range: 40km
Curb Weight: 3.55ton
Rated payload: 0.75ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Jiangxi Shangrao
tonnage class: Light Truck
Energy Type: Methanol
electric motor
Motor 1 Brand: Smart Core
Motor 1 Model: TZ230XSZX02
Motor Type: Permanent magnet synchronous motor
total rated power: 100kW
Peak power: 185kW
Battery/Charging
Battery Brand: Smart Core
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 15kWh
Engine parameters
Engine Model: DHE20-PFZM
Number of cylinders: 4cylinder
Displacement: 2L
Emission standard: China VI
Max output power: 130kW
Max hp: 176Horsepower
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1900kg
rear axle allowable load: 2595kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

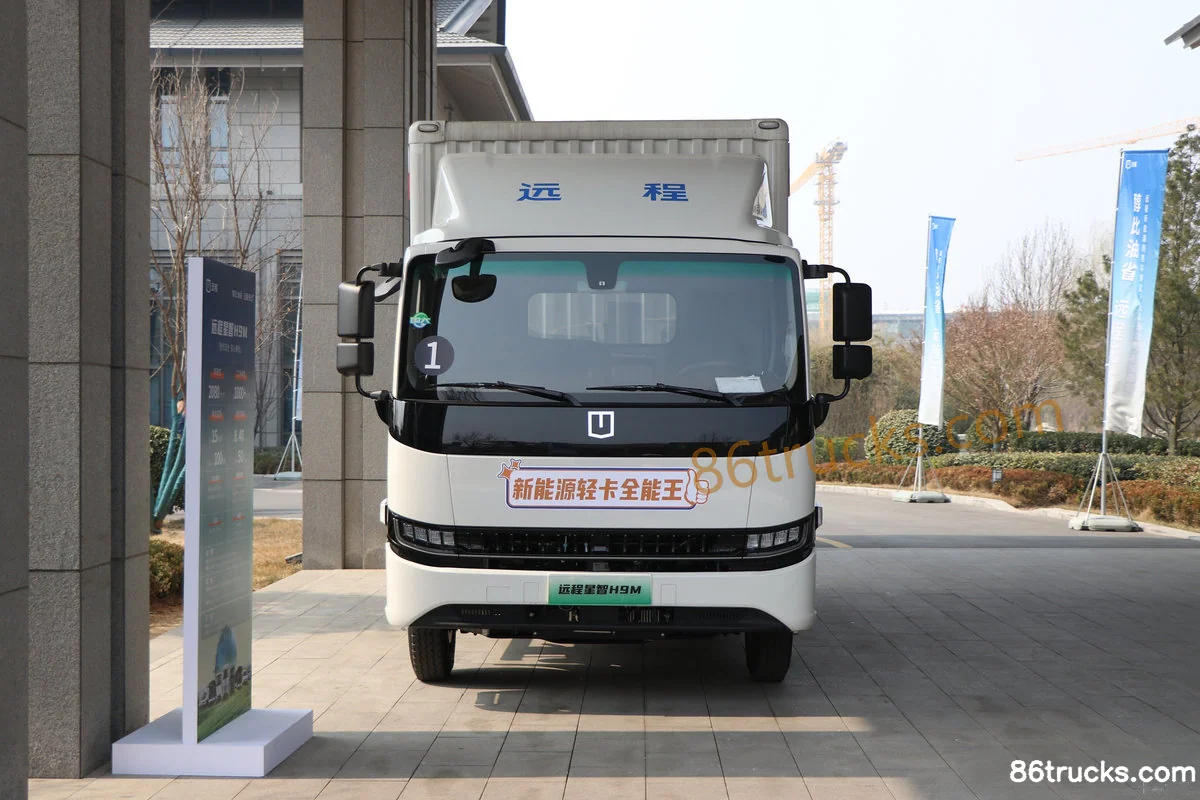

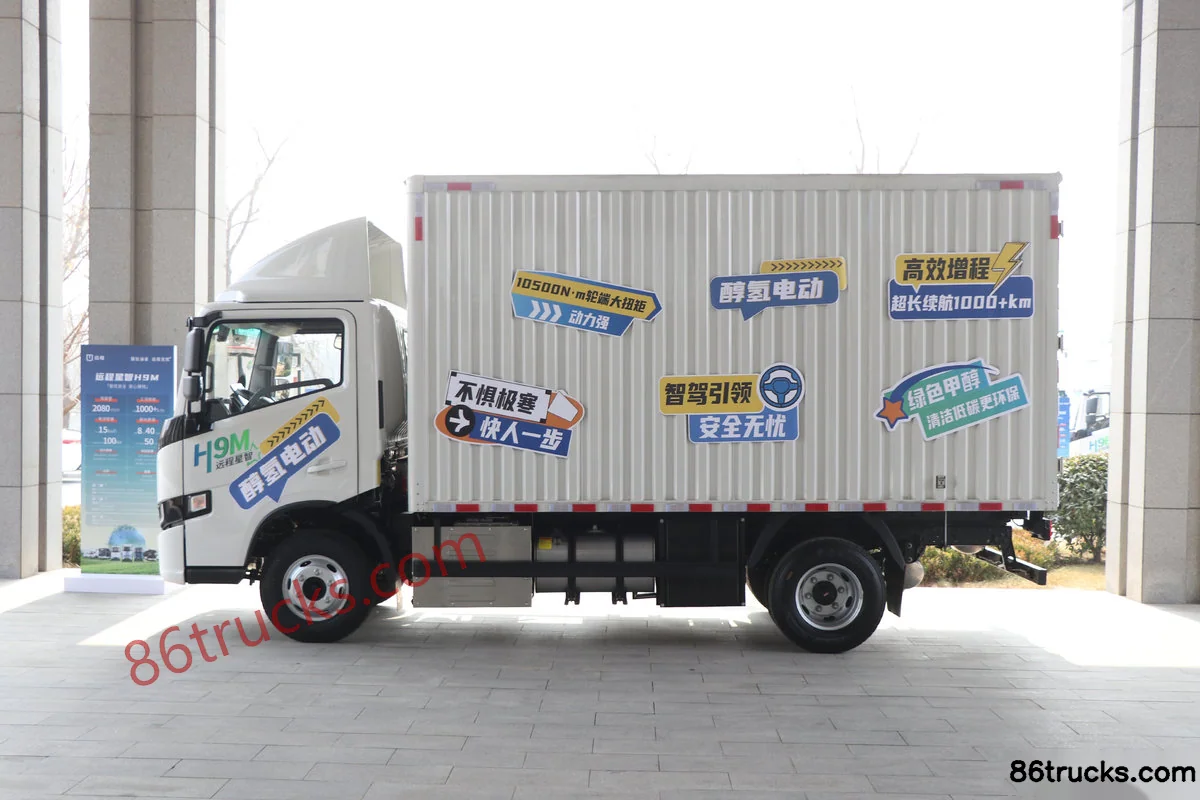

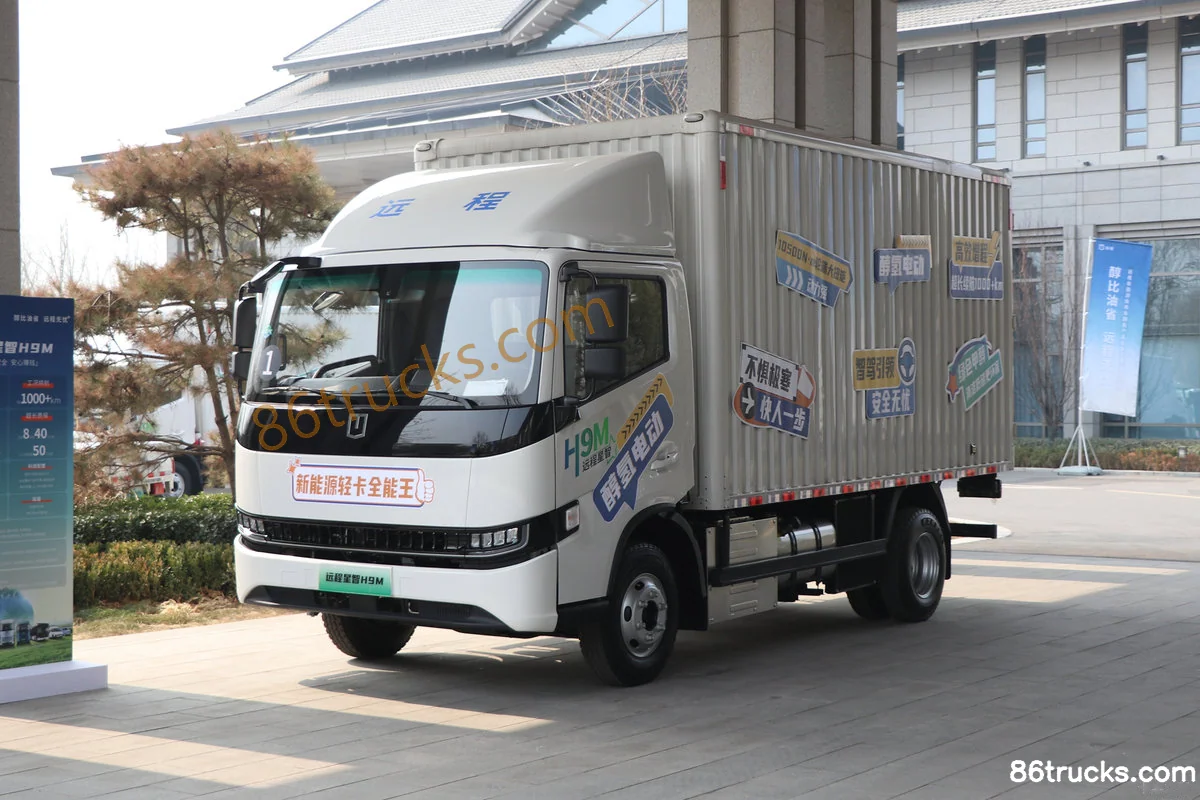

Exterior3

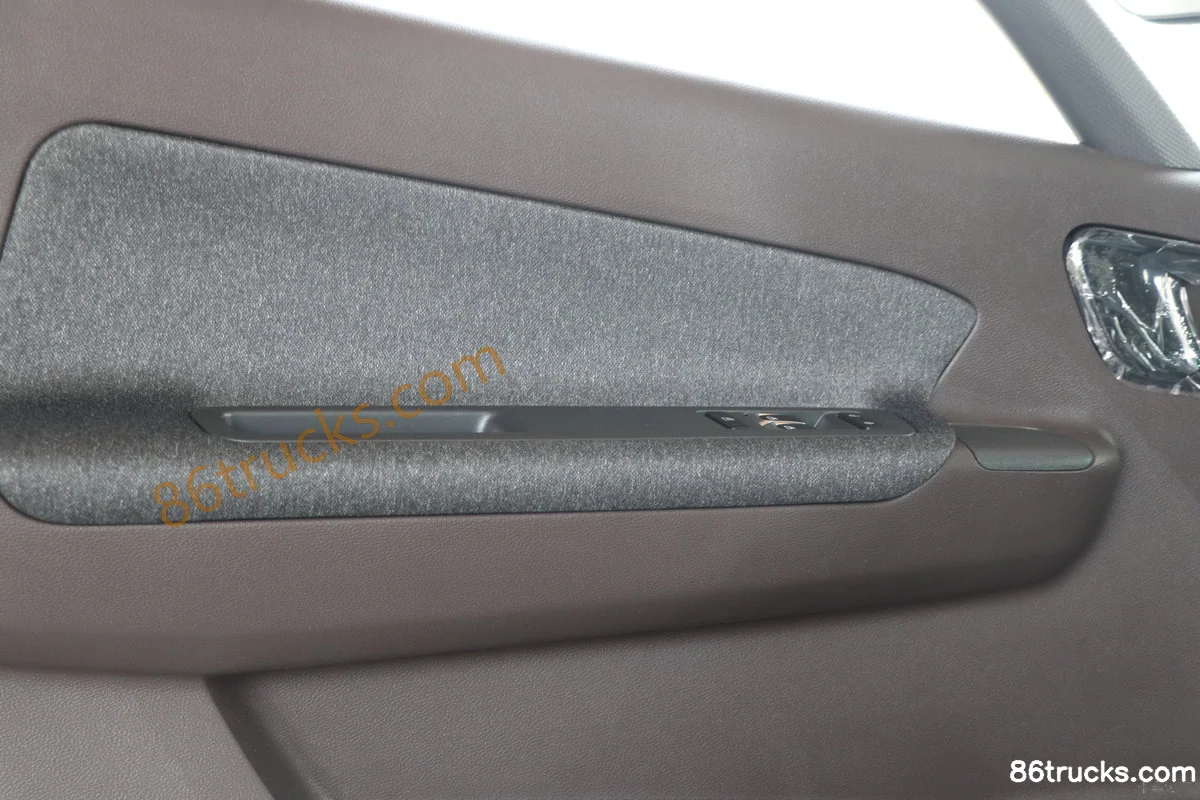

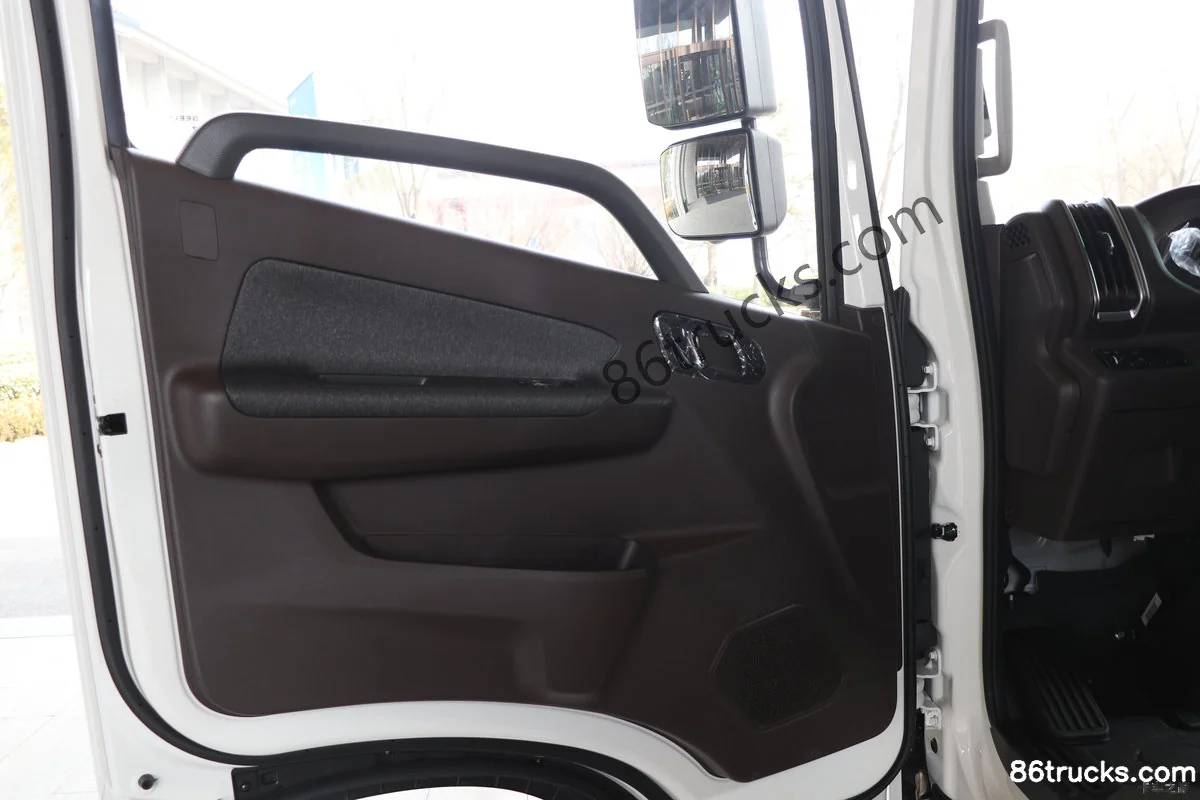

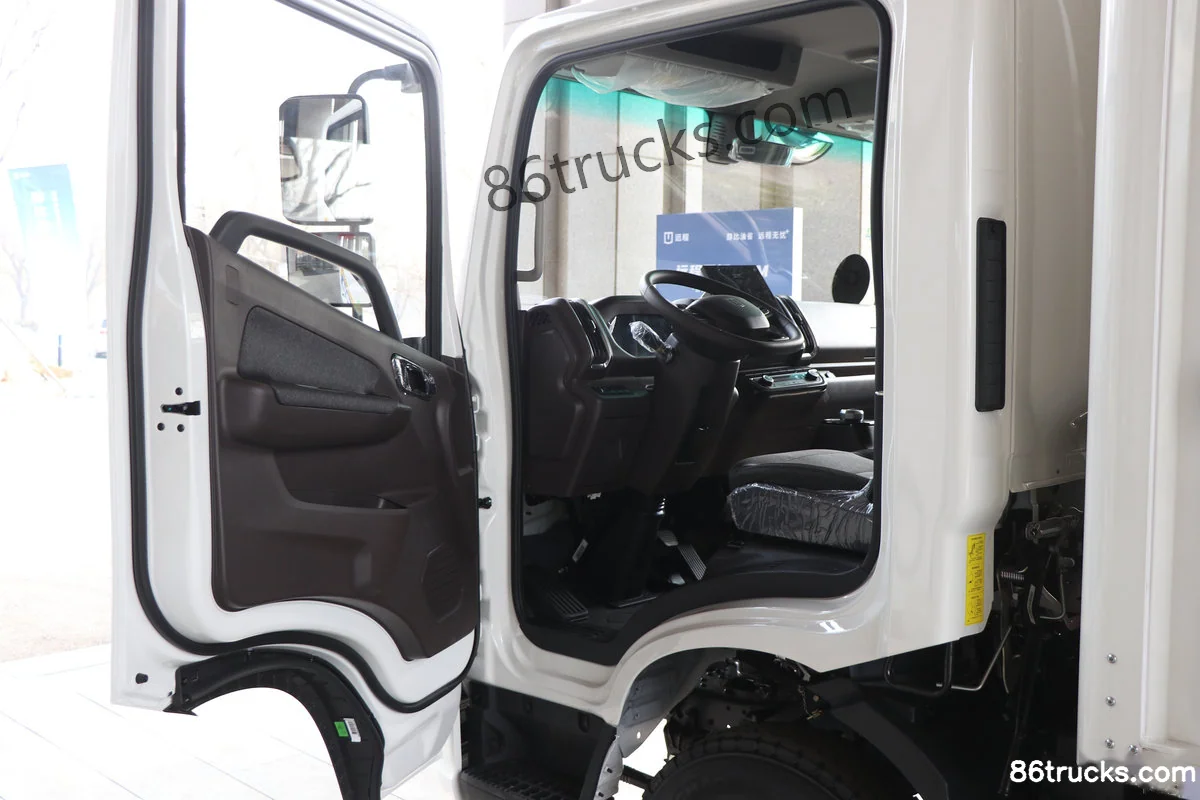

Cab3

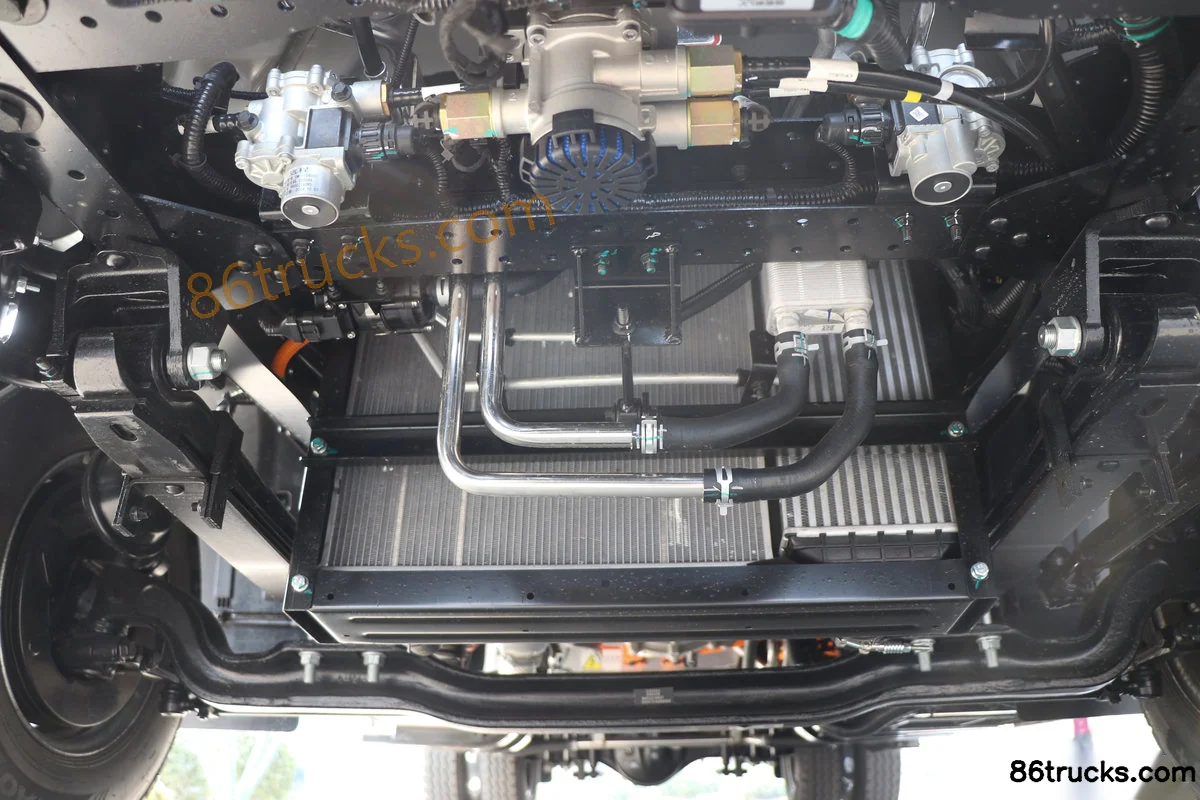

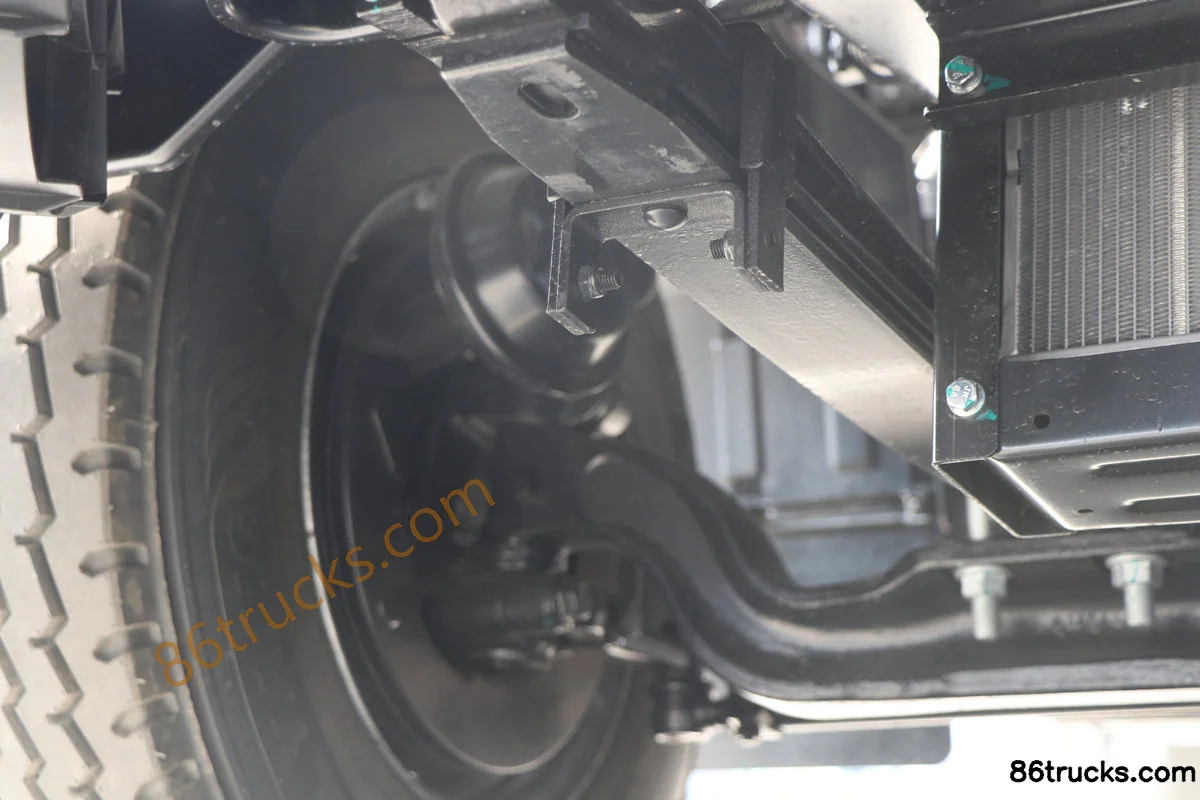

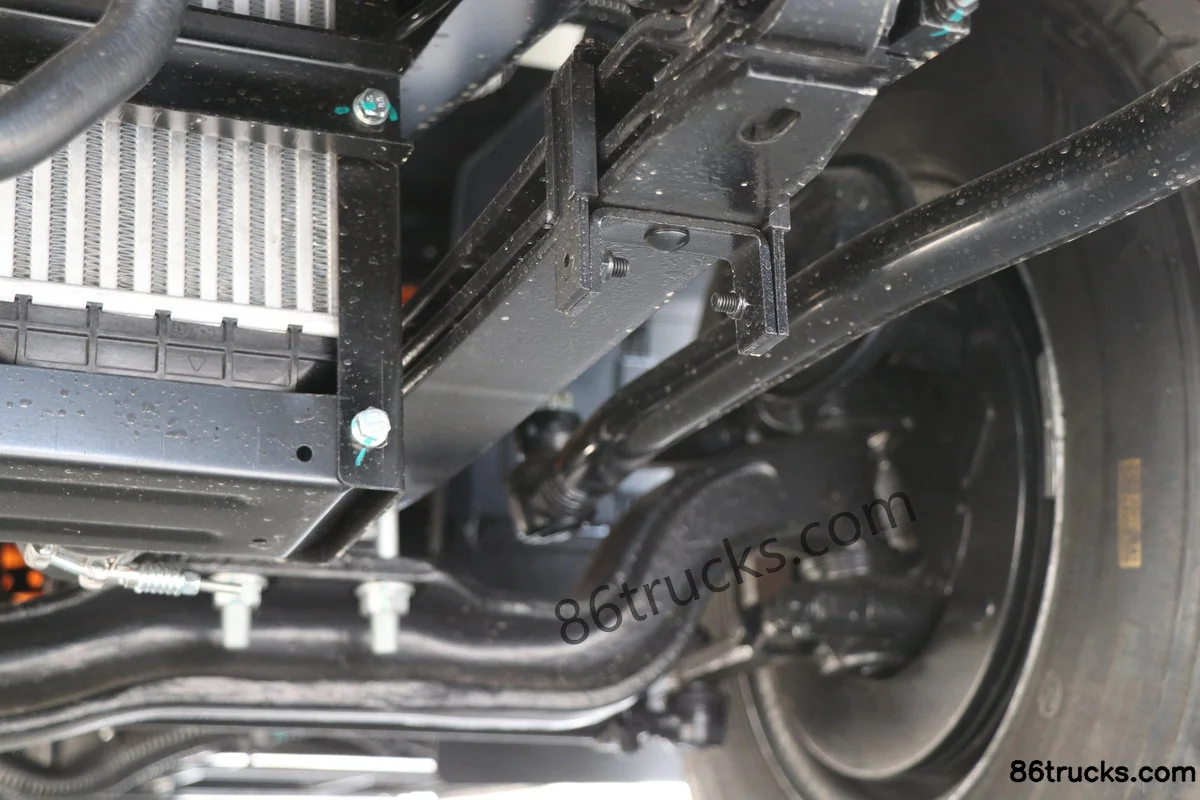

Chassis3

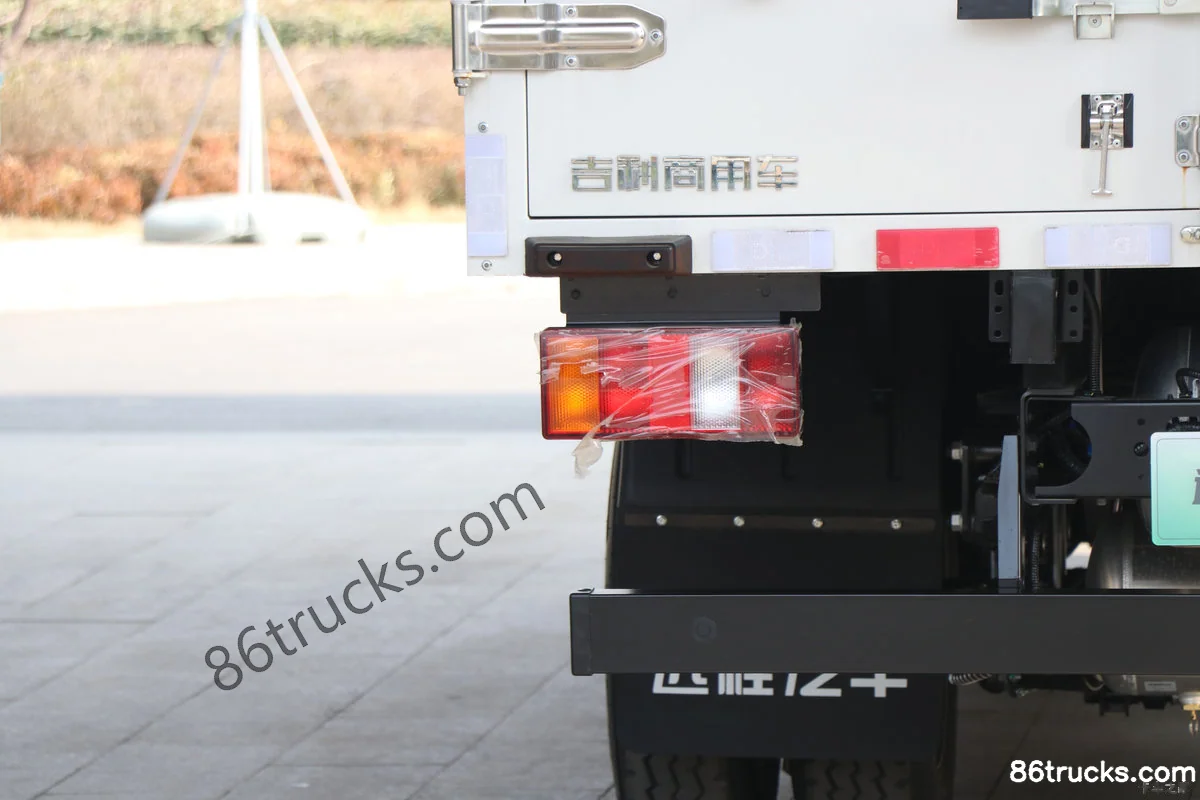

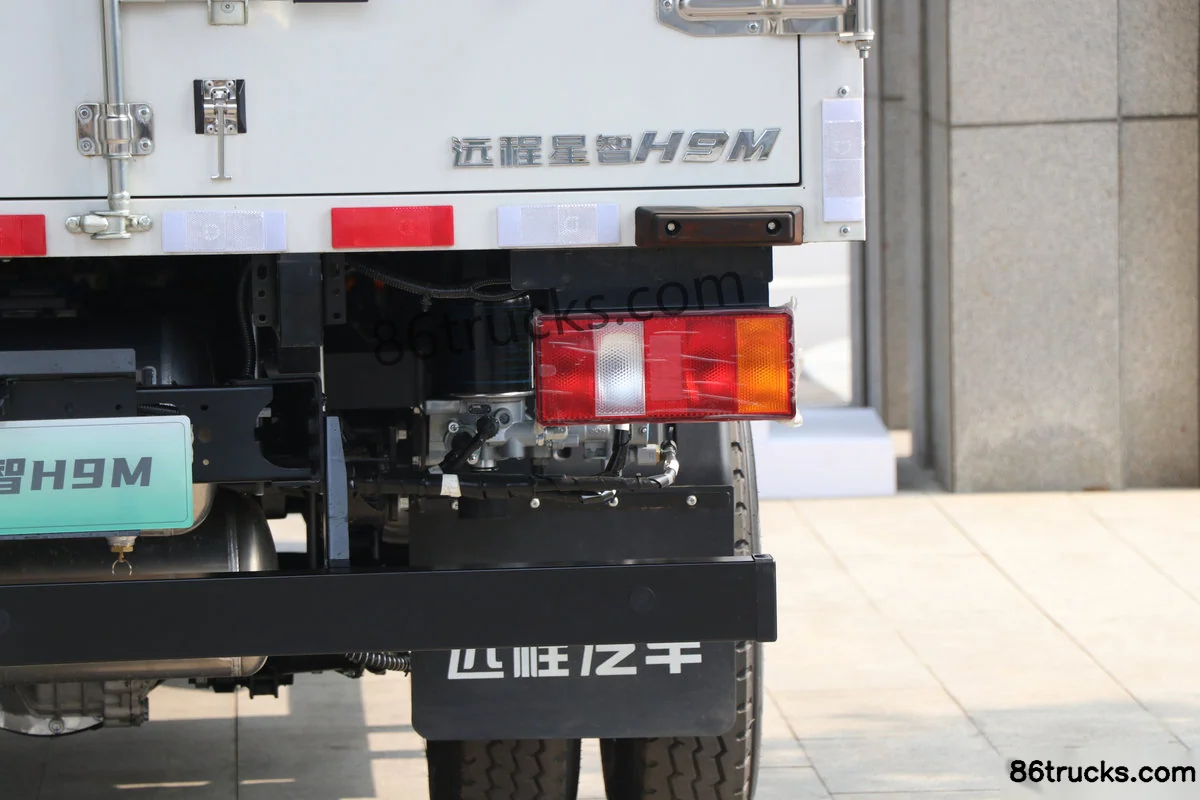

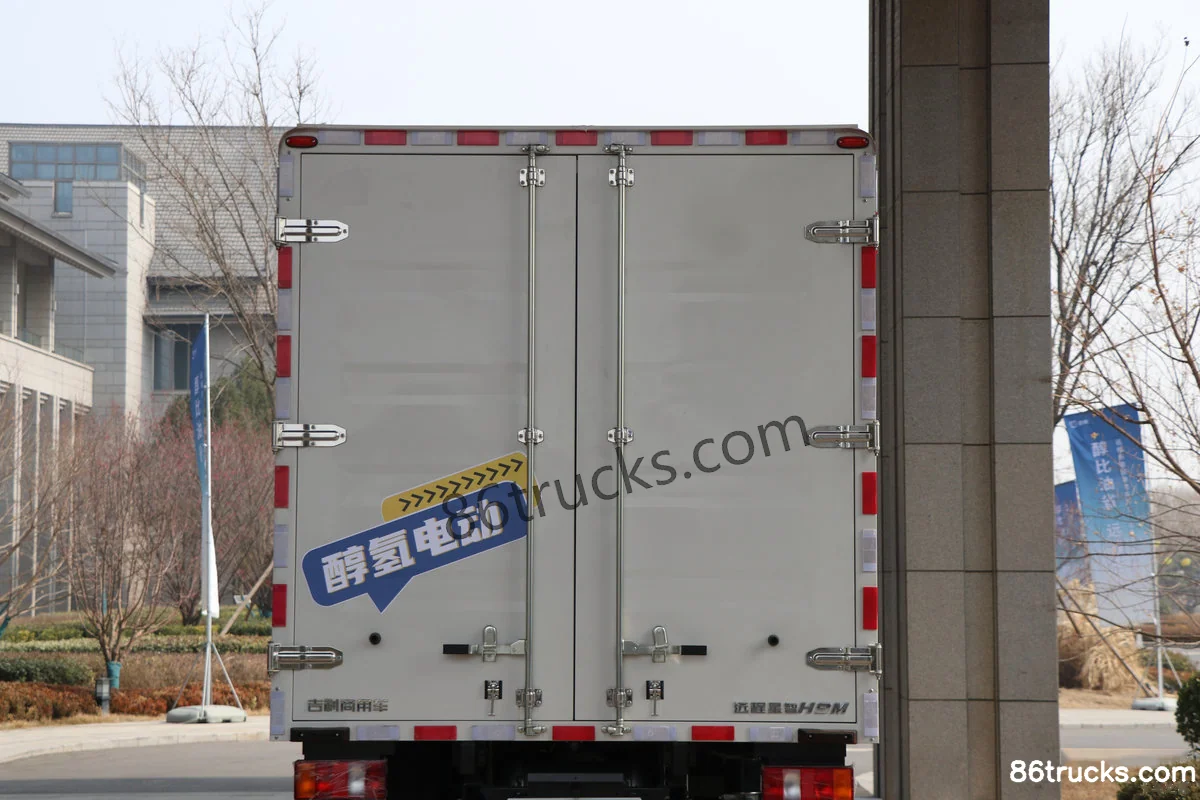

Body3

12 photos

FAQ

What emission standard does FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels)?

Key specs of FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 176 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) suited for?

FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) differ from other variants in the same series?

FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels) belongs to FARIZON Xingzhi H9M Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON Xingzhi H9M 4.5T 4.1m Single Row Methanol Plug-in Hybrid Box Truck Zhixin 15kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
