FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.905ton
Wheelbase:: 1800+3300mm
Tire Size:: 10.00-20
Rated payload: 12.9ton
Drive 6X2 (8 wheels)
Horsepower 190
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck is a Medium-duty truck featuring 12.9t payload, 25t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a XichaiCA6DF3-19E3F engine, 190 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 190 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3251PK2T3EA80
Drive type: 6X2
Wheelbase: 1800+3300mm
engine: XichaiCA6DF3-19E3F
transmission: Fast Gear8JS85E
Rear Axle Ratio: 5.833
Cab length: 8.812m
Cab width: 2.49m
Cab height: 3m
Front track width: 1816/1816mm
rear track: 1847mm
Curb Weight: 11.905ton
Rated payload: 12.9ton
GVWR: 25ton
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 26°
Remarks: Optional transmission Shaanchi 7DS100
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DF3-19E3F
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 147kW
Max hp: 190Horsepower
Max torque: 720N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.21m
Chassis Specs
rear axle description: 457 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 5.833
Leaf spring count: 11/11/11+10
Tire
Tire Size: 10.00-20
Number of tires: 8pcs

Photos

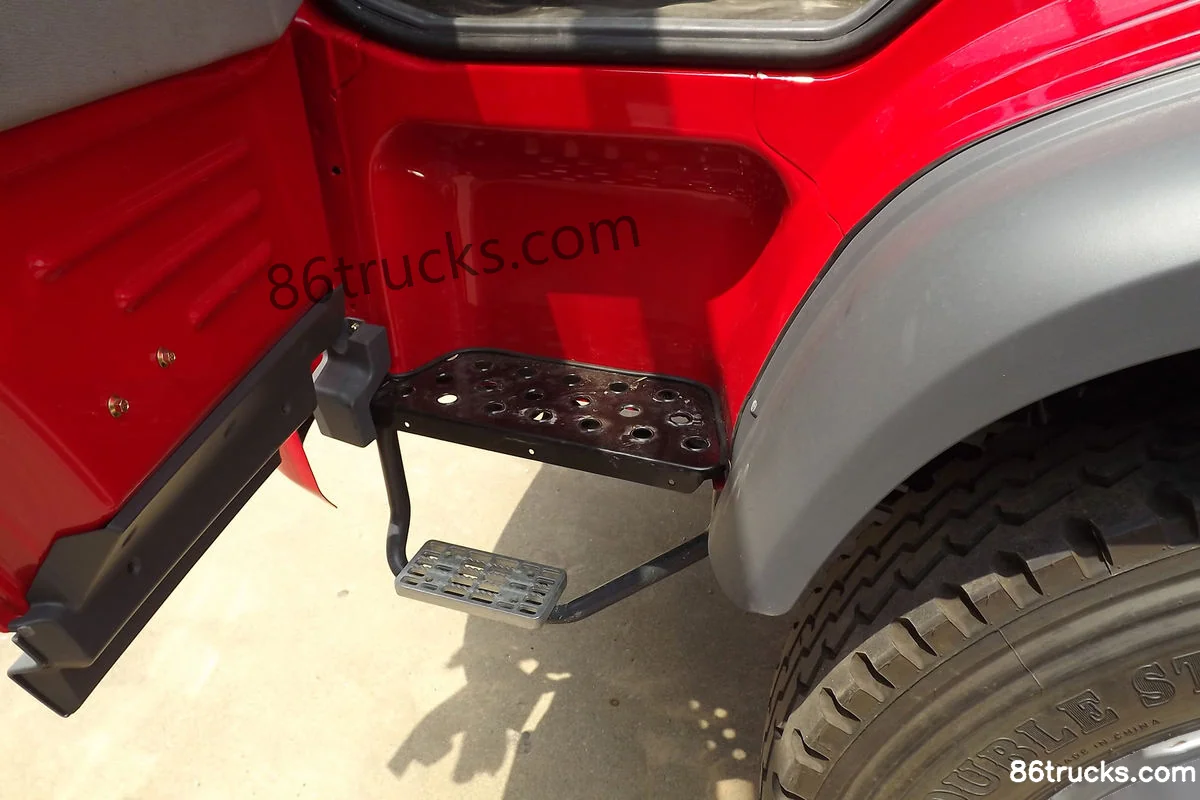

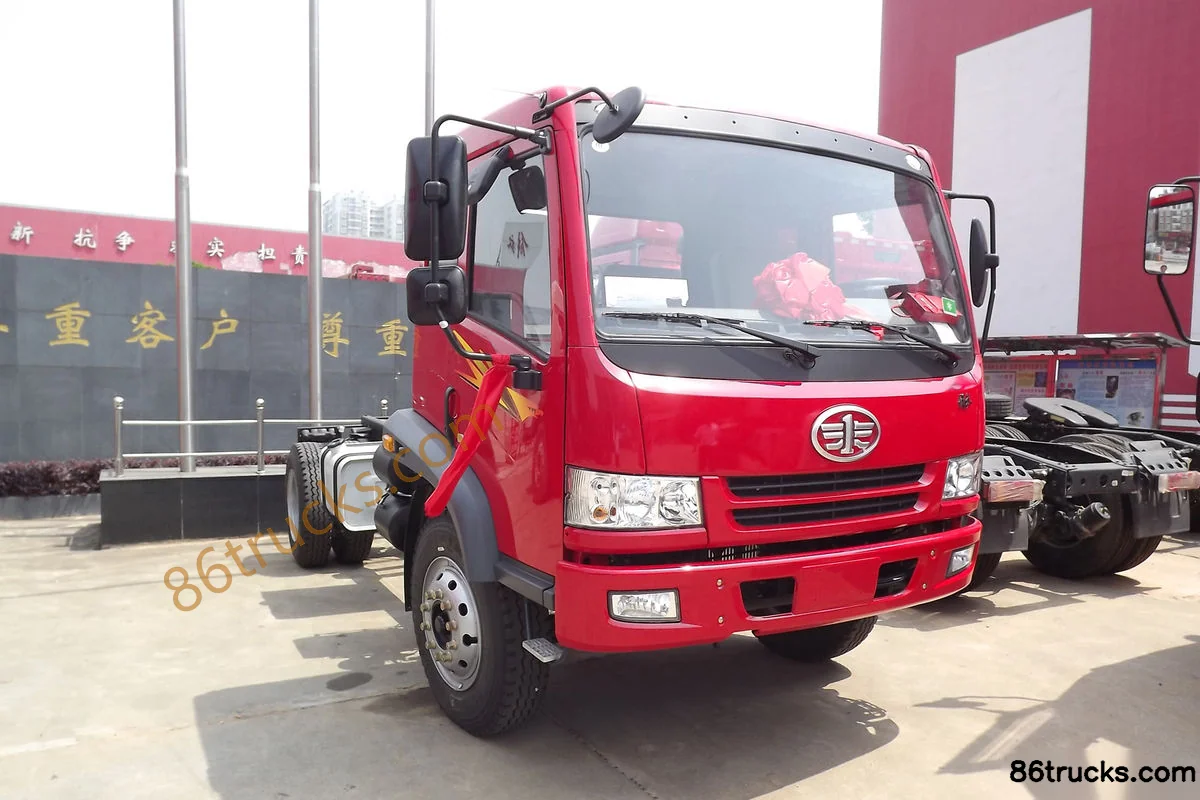

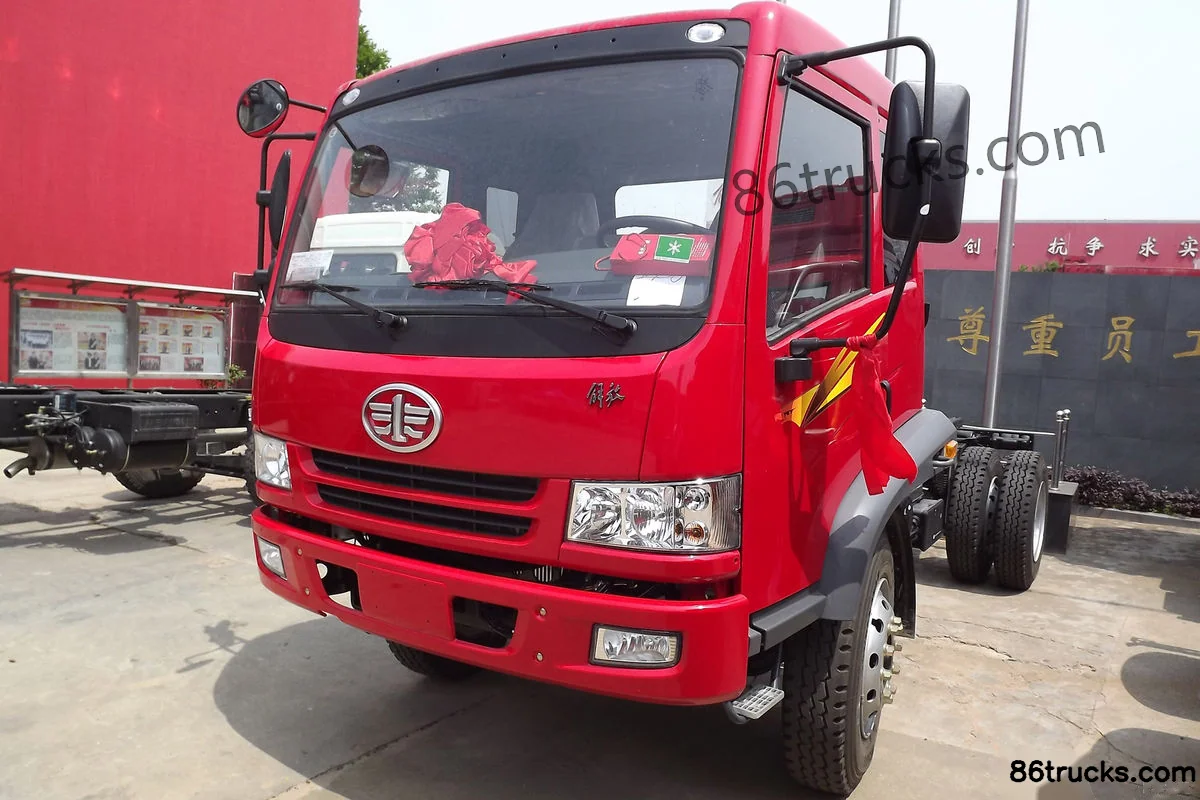

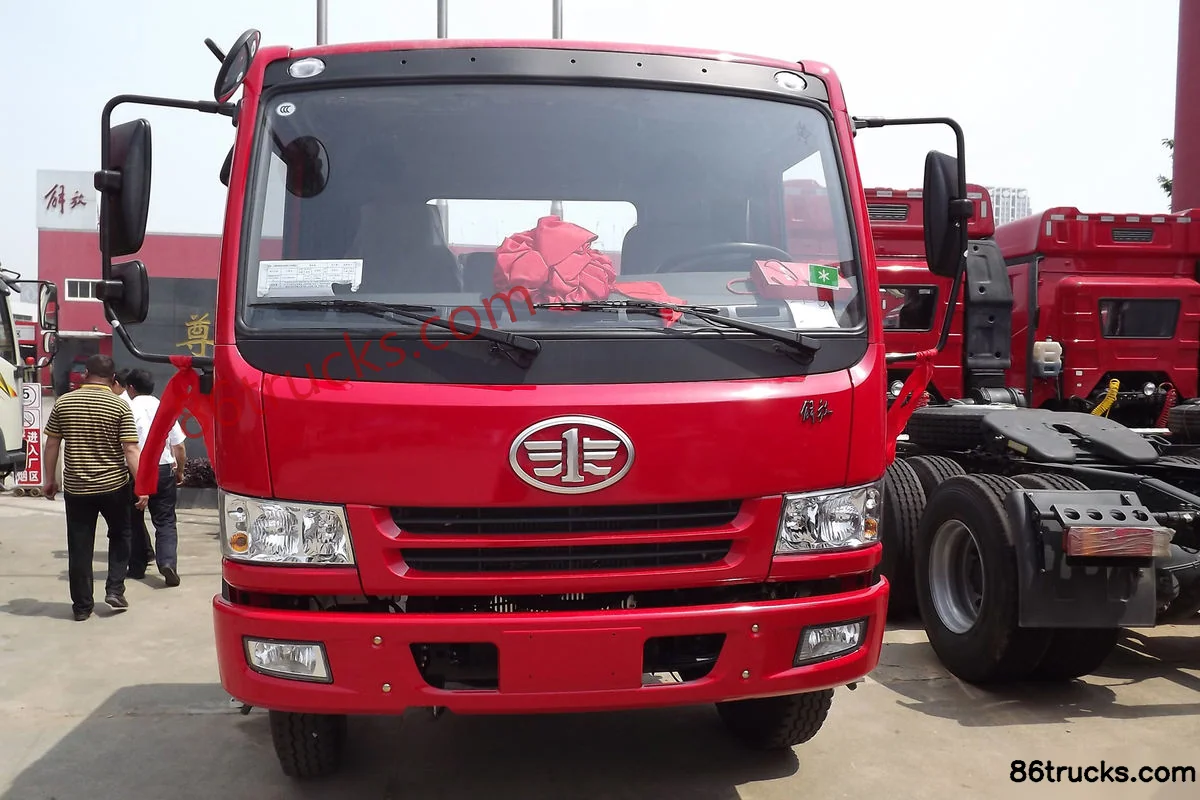

Exterior3

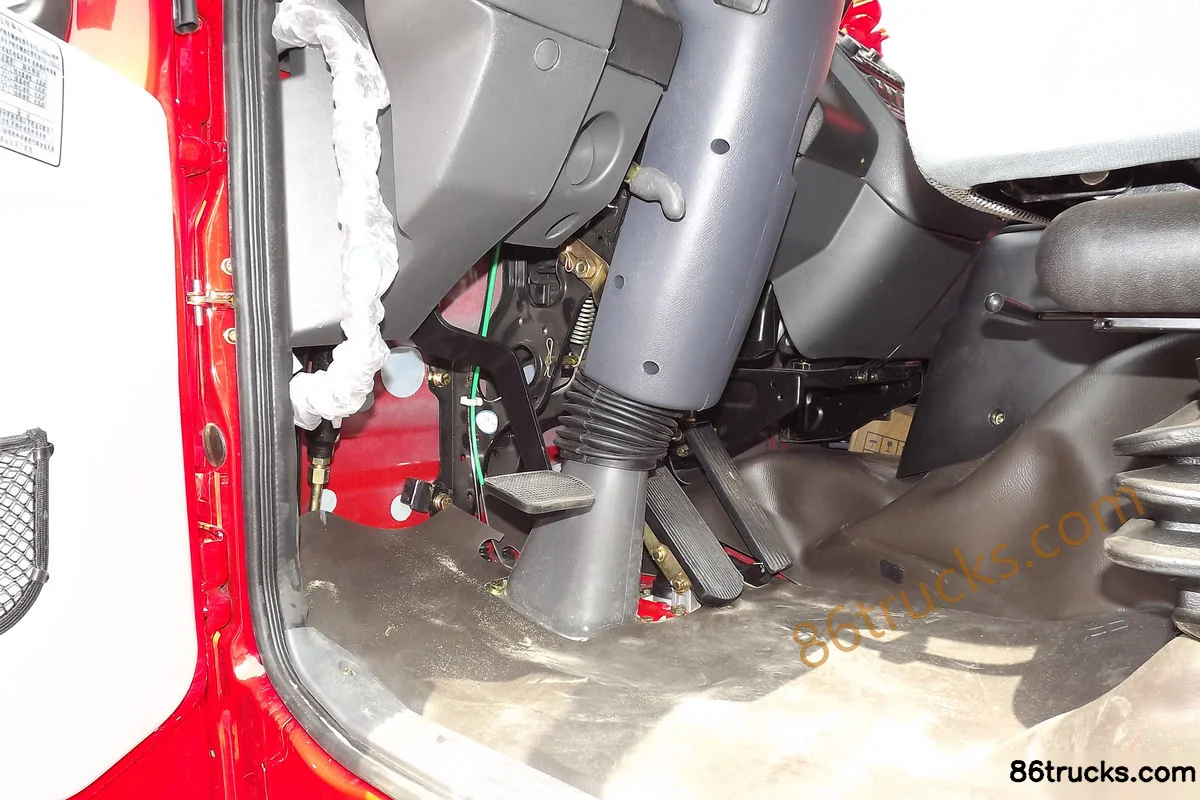

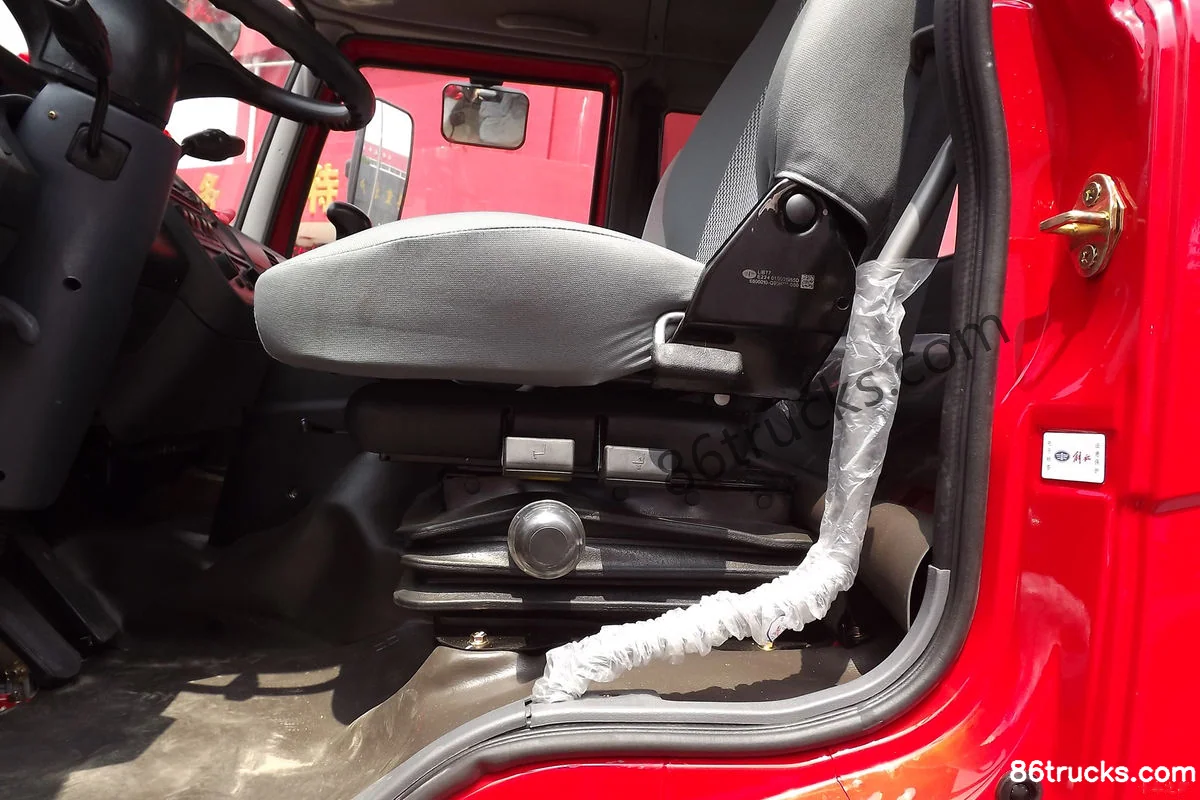

Cab3

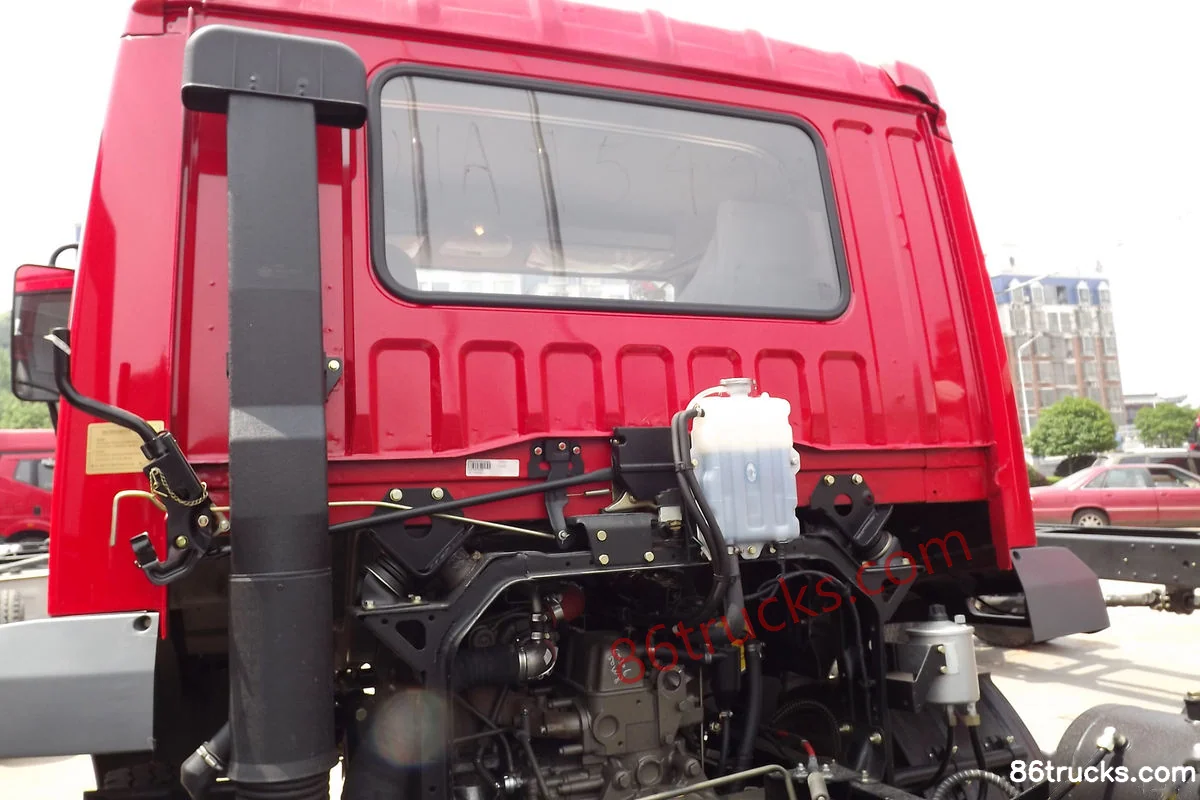

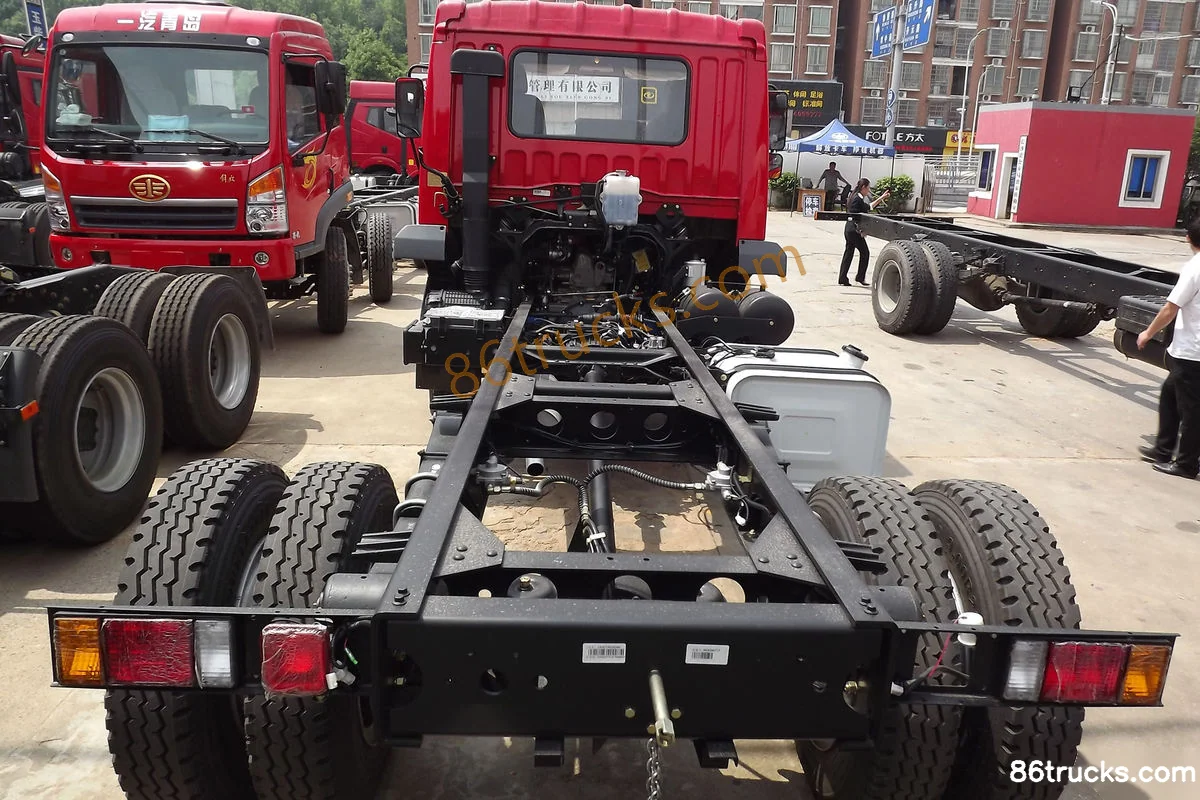

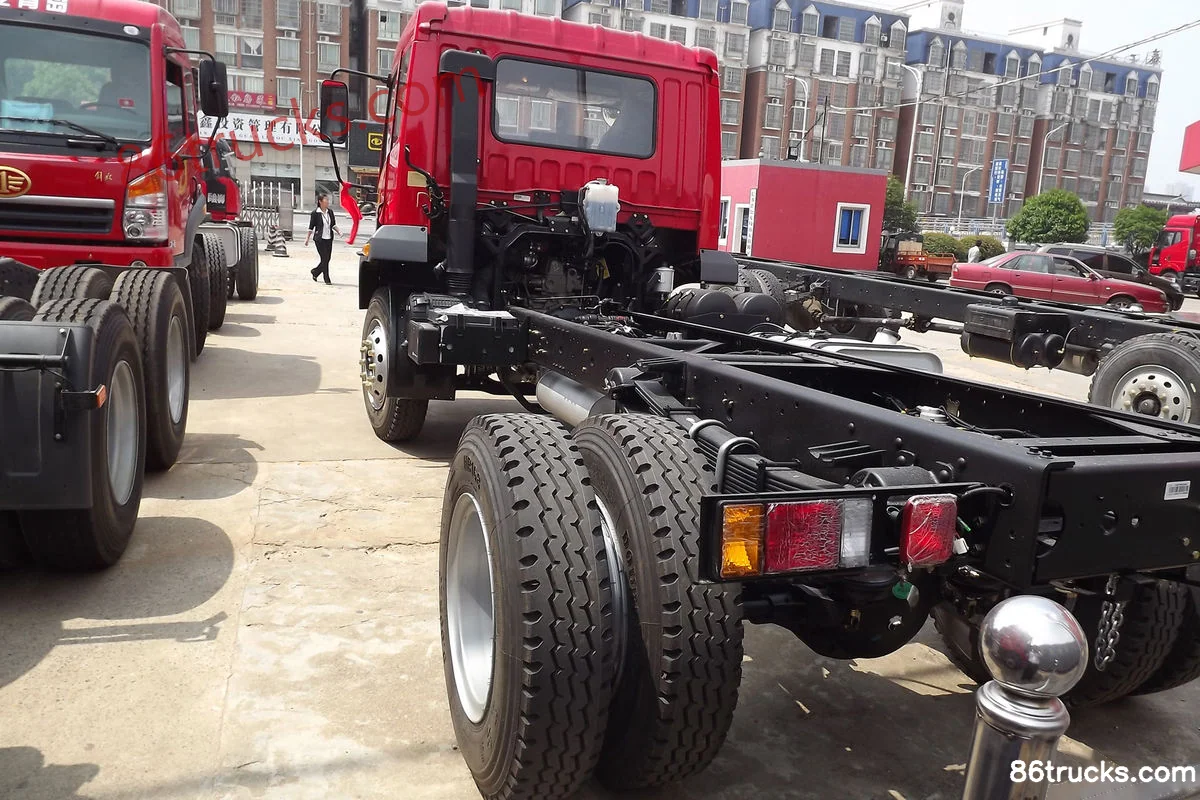

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck?

Key specs of FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck: Drive: 6x2; Horsepower: 190 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck suited for?

FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck differ from other variants in the same series?

FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck belongs to FAW Jiefang Qingdao Junwei J5K Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Junwei (J5K) Medium Truck 190 hp 6X2(8 wheels) 5.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
