Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)

Export reference
From $36,361
MSRP ¥26.18M CNY
Rated payload:: 1.18ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Model code (announced):: GK1042BB341BEV1
Type:: Cargo Trucks
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Ligong Tongyu
Curb Weight: 3.12ton

Overview

The Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, Ligong Tongyu motor, 4X2 (6 wheels) drive and 1.18t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): GK1042BB341BEV1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.37m
Curb Weight: 3.12ton
Rated payload: 1.18ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Gui'an, Guizhou
tonnage class: Light Truck
Version: Standard Fast Charge Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Ligong Tongyu
Motor 1 Model: TZ210XS1TY
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
total peak torque: 360N·m
total rated torque: 160N·m
Battery/Charging
Charging method: DC fast charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 120.27kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 4.5T, Hande electric drive axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

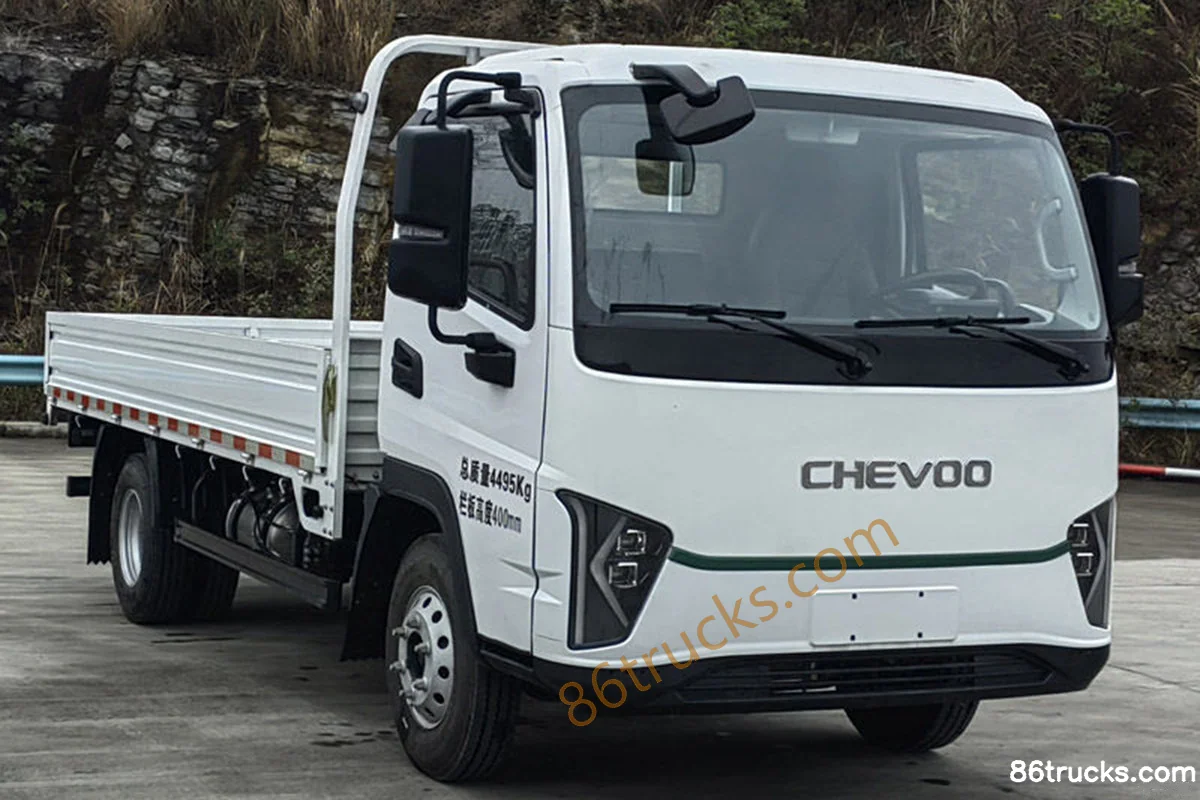

Exterior1

1 photos

FAQ

What is the export price of Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels), and what does it include?

Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) export reference is about From $36,361; MSRP is ¥26.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Key specs of Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) suited for?

Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) differ from other variants in the same series?

Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) belongs to Qiwei Changjiang No. 9 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qiwei Auto Changjiang 9 Standard Fast-Charge Air Brake 4.2m Single-Row Pure Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
