NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck

Export reference
From $12,153
MSRP ¥8.75M CNY
Horsepower: 102
Emission: China VI
Fuel: Diesel
Engine: De Wei D20
Transmission: WLY
Curb Weight:: 2.3ton
seating capacity: 5Personnel
Rated payload: 1.79ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck is a mini truck featuring 3.3m cargo length, stake body cargo body, 5Personnel volume and 1.79t payload. On the powertrain side, it comes with a De Wei D20 engine, 102 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA1040KS33A
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.3m
engine: Yunnei PowerD20TCIF14
transmission: WLY 5-speed
Rear Axle Ratio: 4.333
Cab length: 5.995m
Cab width: 1.95m
Cab height: 2.105m
Front track width: 1456mm
rear track: 1370mm
Curb Weight: 2.3ton
Rated payload: 1.79ton
GVWR: 4.415ton
Max. speed: 90km/h
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 17°
departure angle: 13°
Front/rear suspension: 1.075/1.57m
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF14
Engine info: De Wei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China VI
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.3m
Cargo box width: 1.85m
Cargo box height: 0.36m
Cargo box material: Tread floor plate
*Cargo box interior width: 1.85
Cab parameters
Cab width: 1680mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle description: 1058N
Front axle allowable load: 1580kg
rear axle description: 130N
rear axle allowable load: 2835kg
Axle ratio: 4.333
Leaf spring count: 3/5+2
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

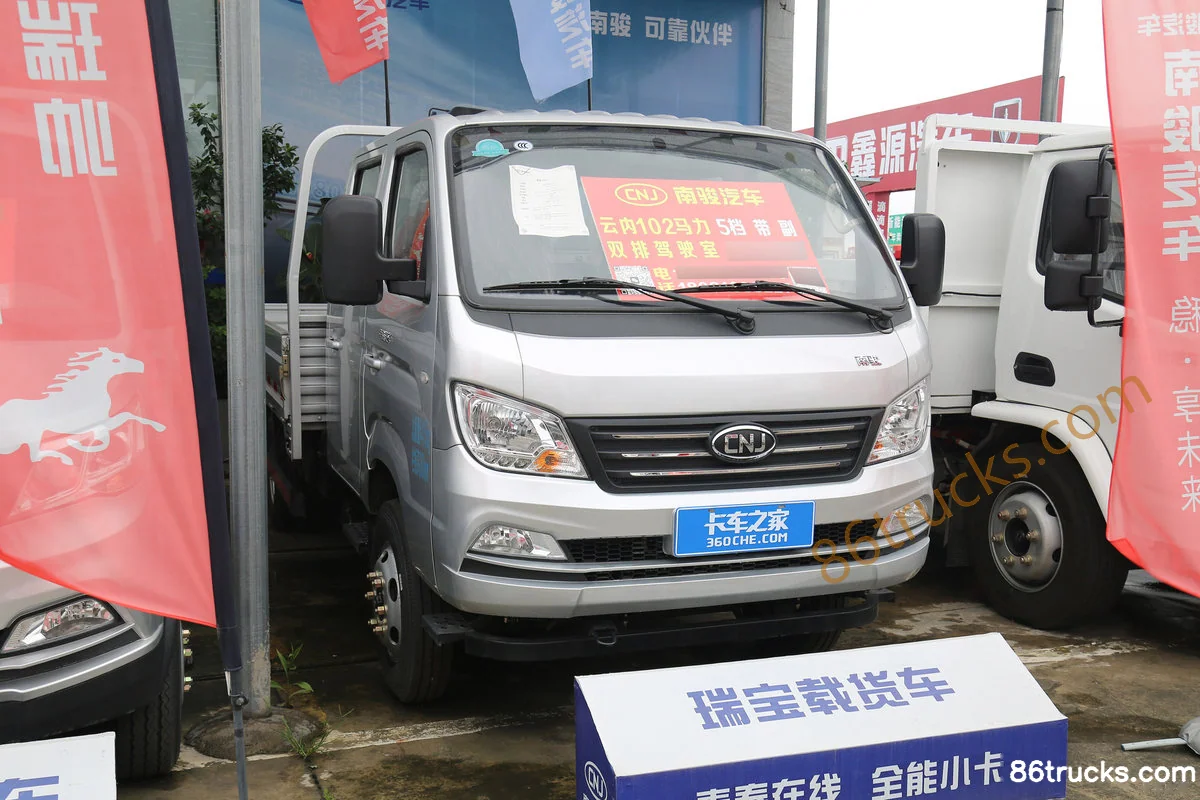

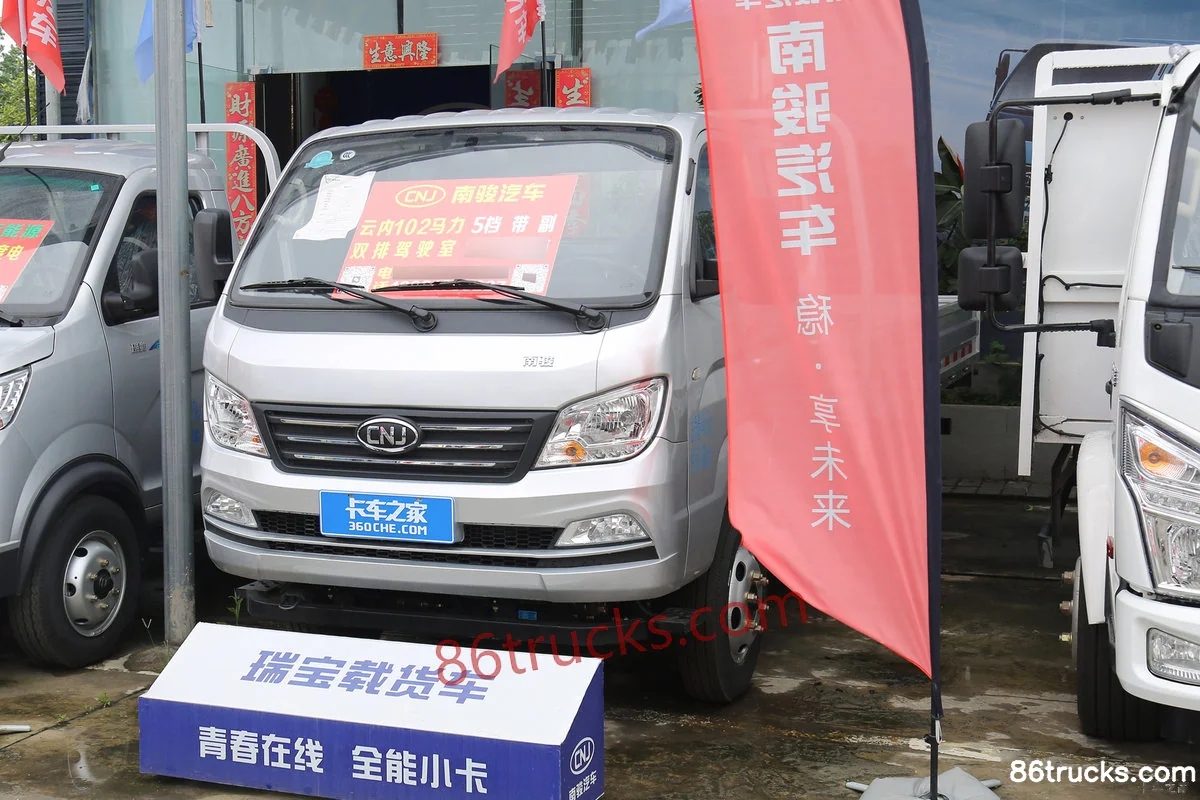

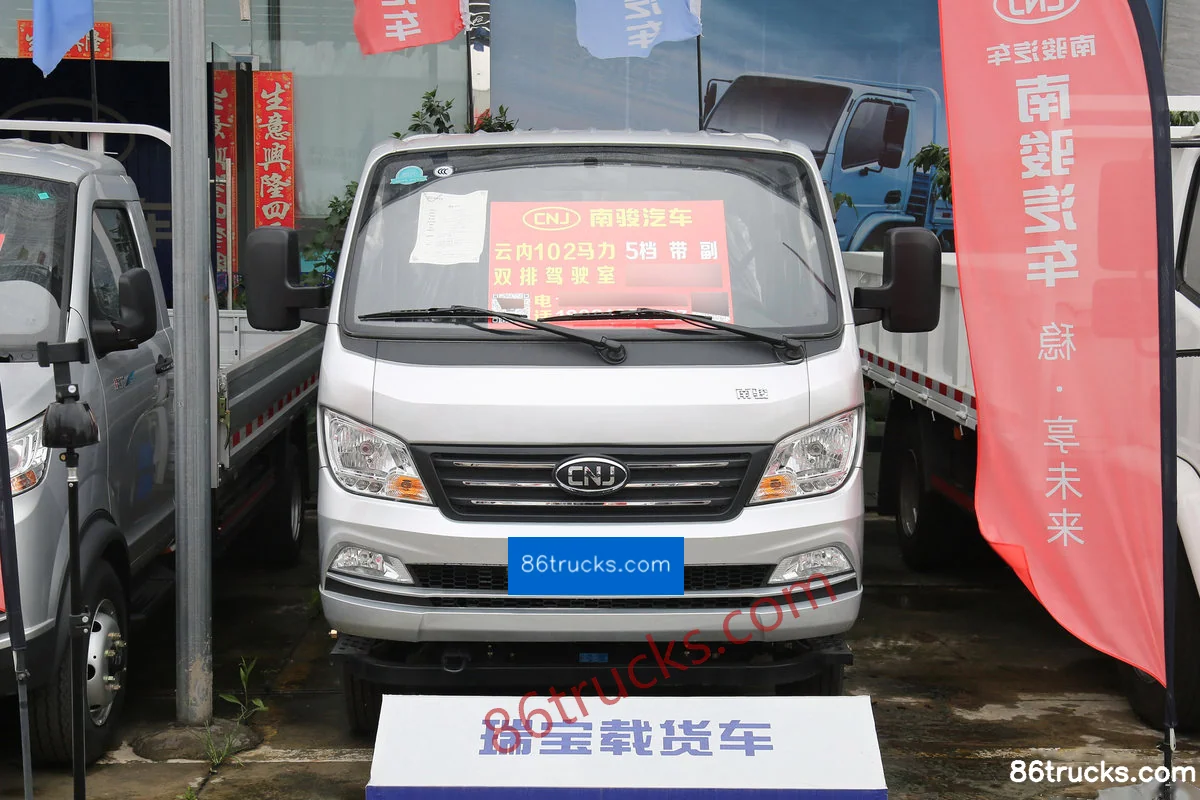

Exterior3

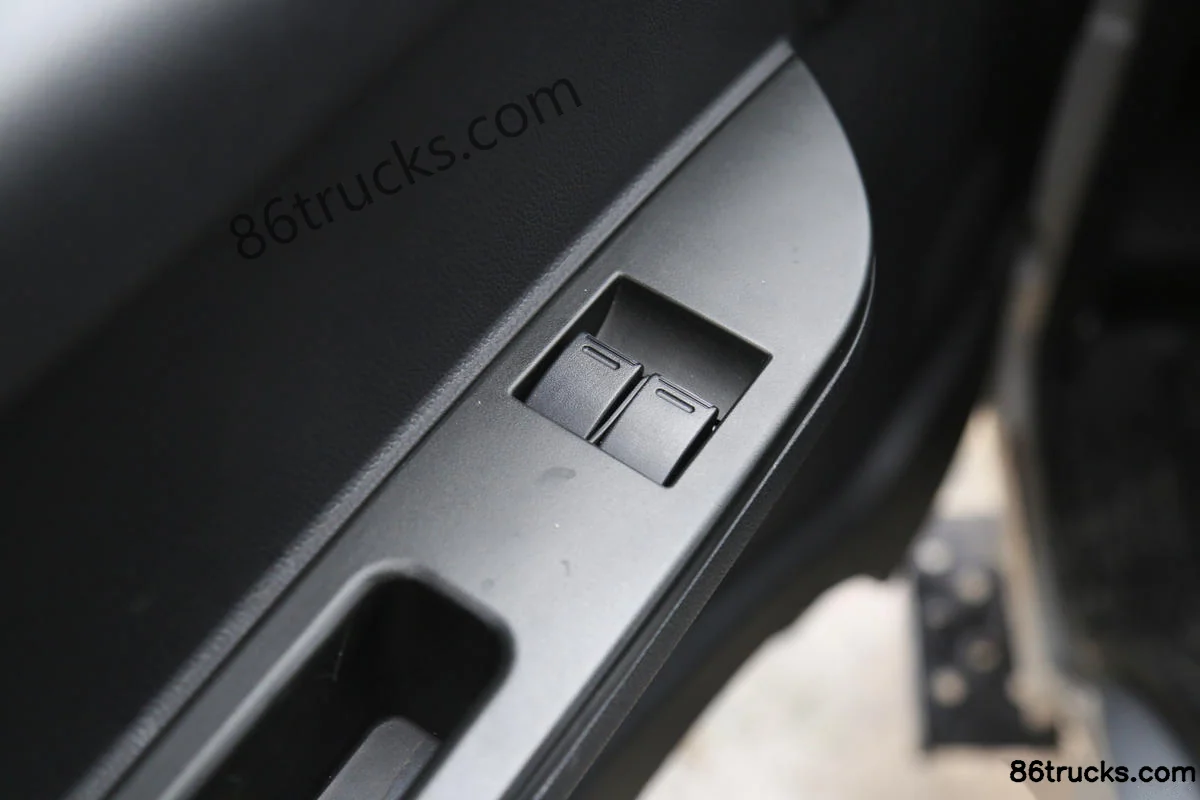

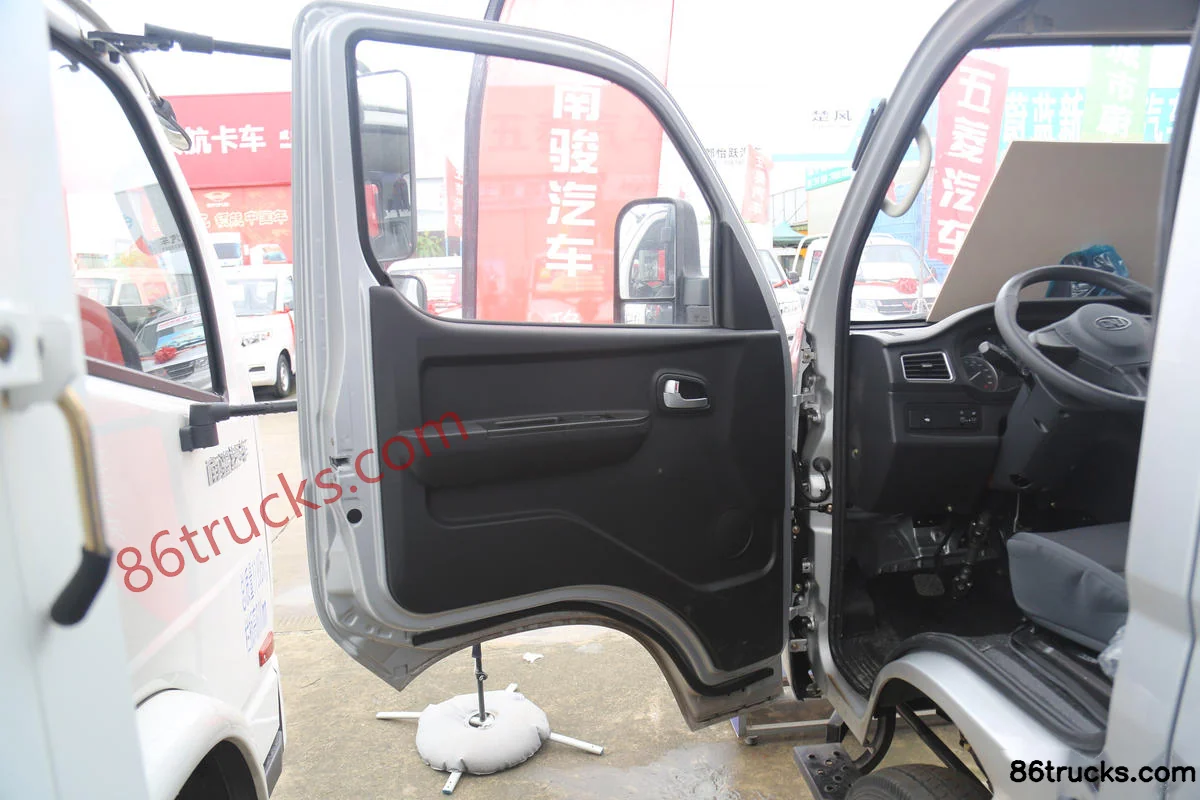

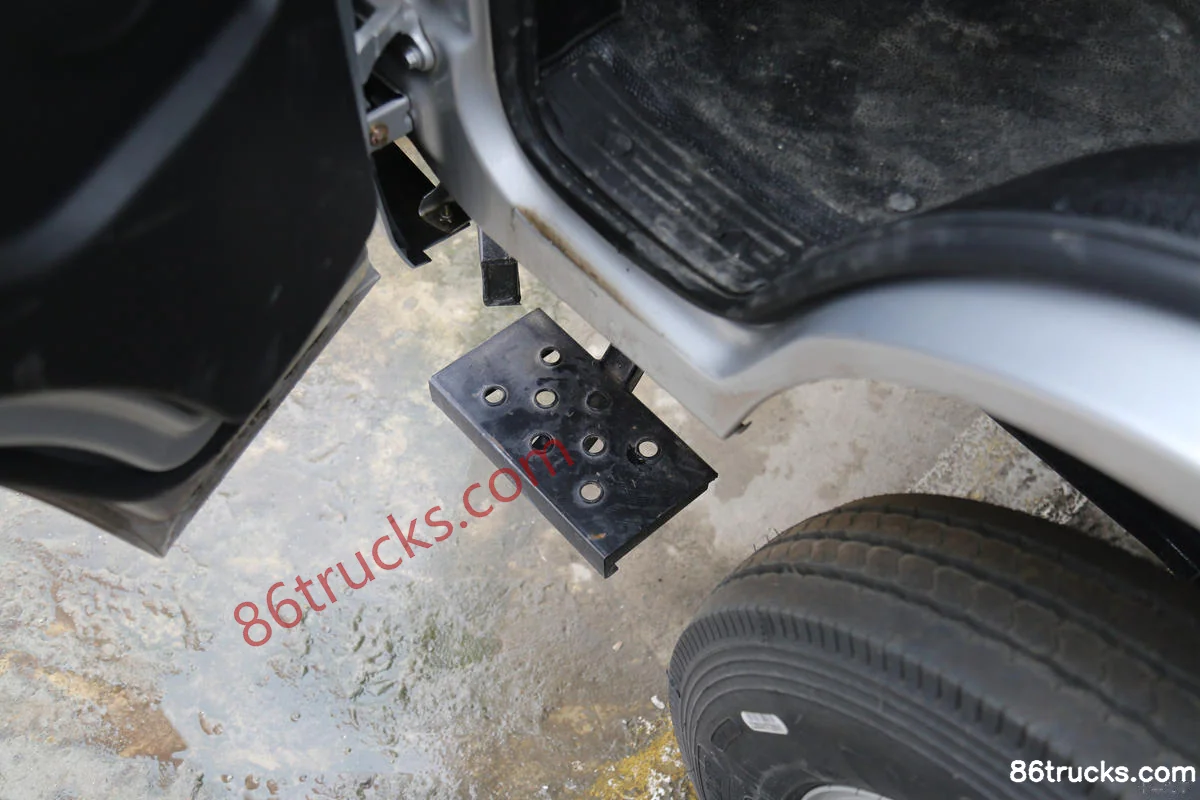

Cab3

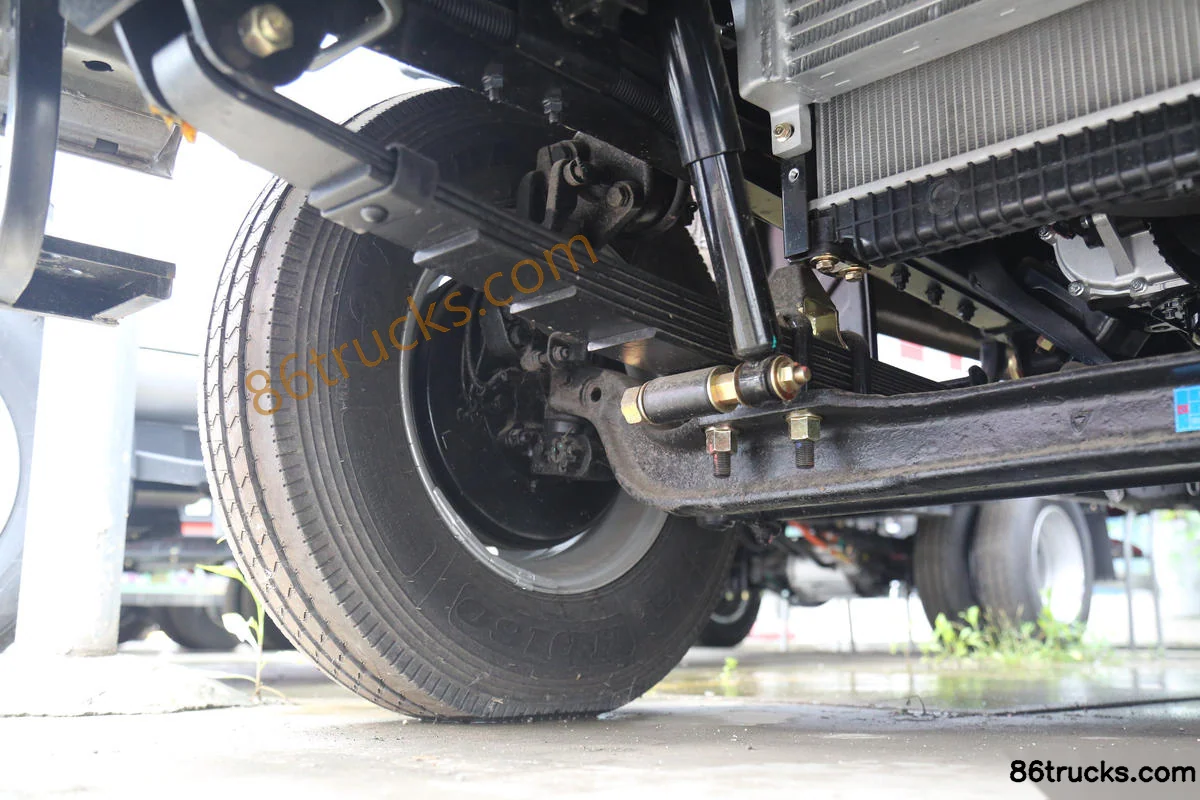

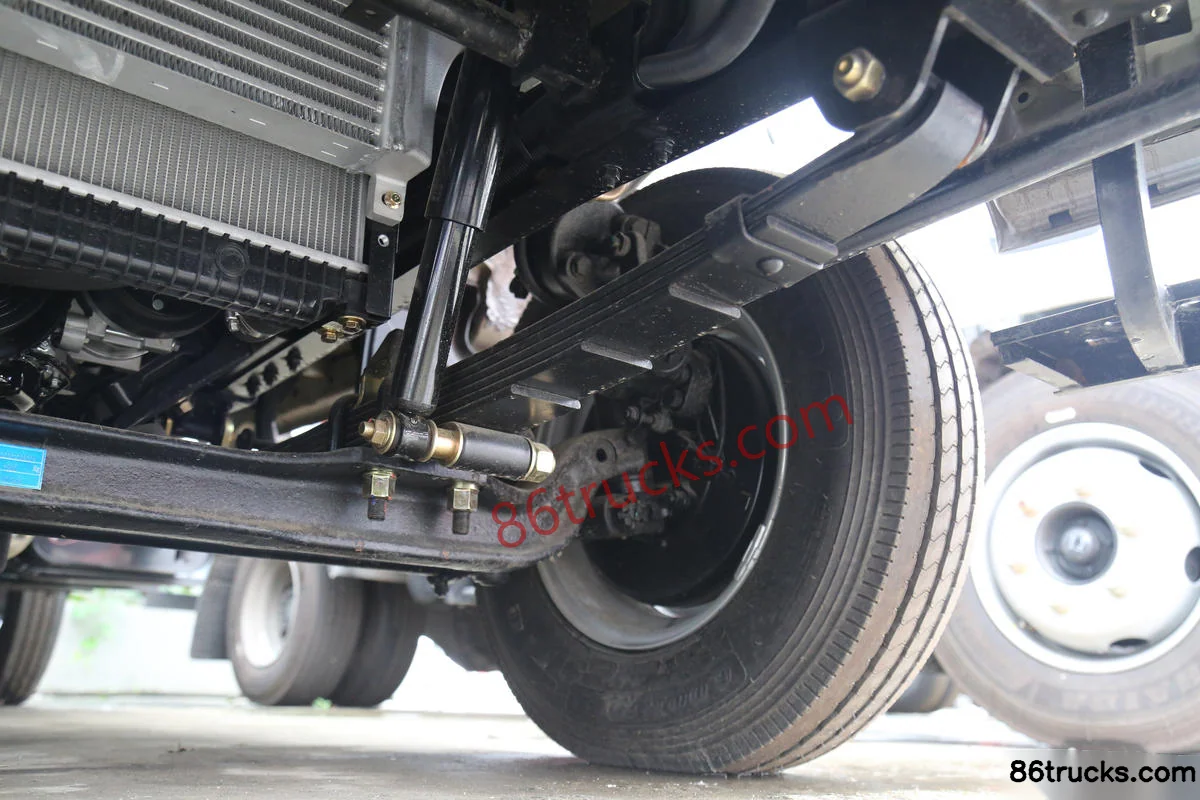

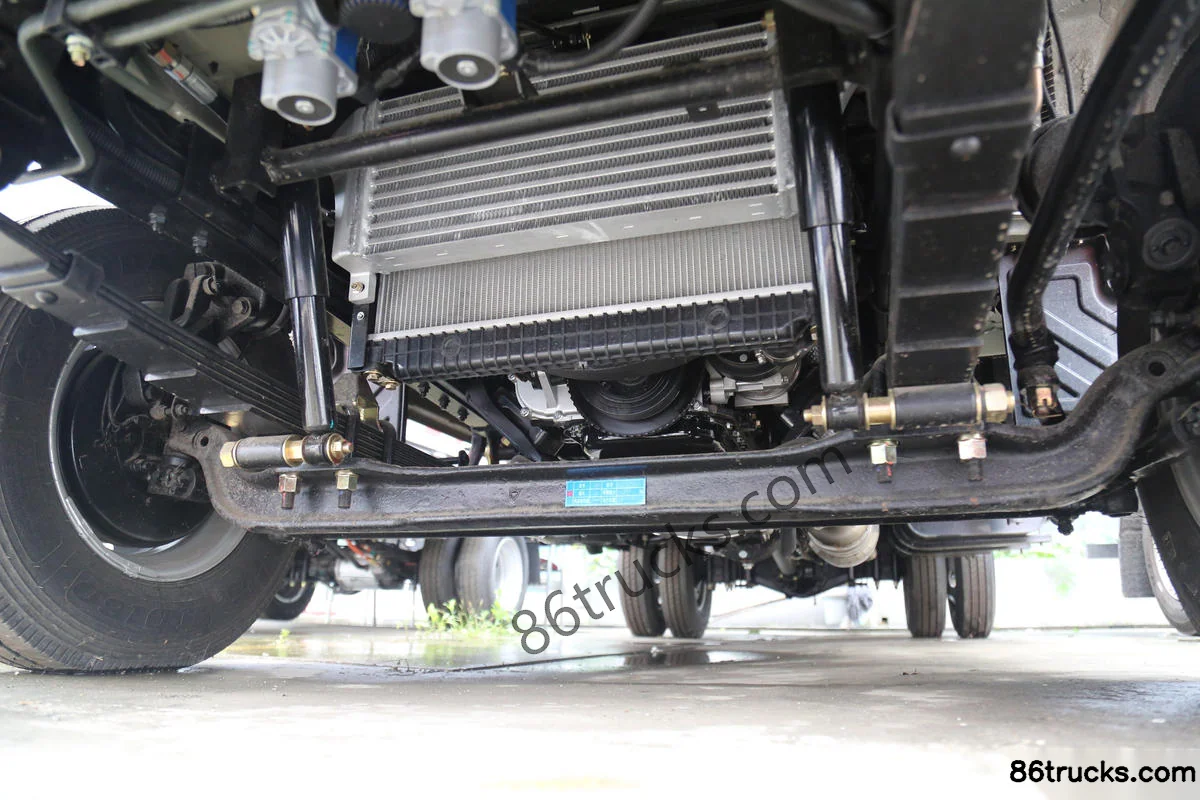

Chassis3

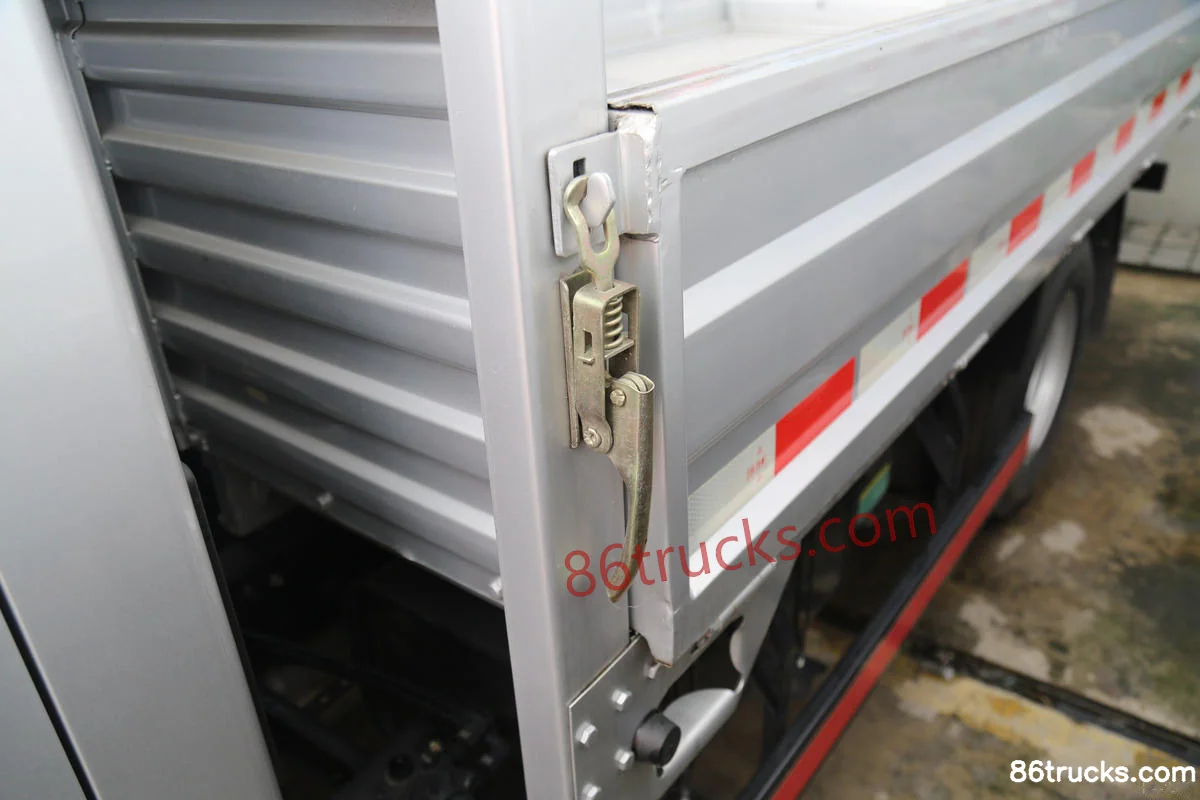

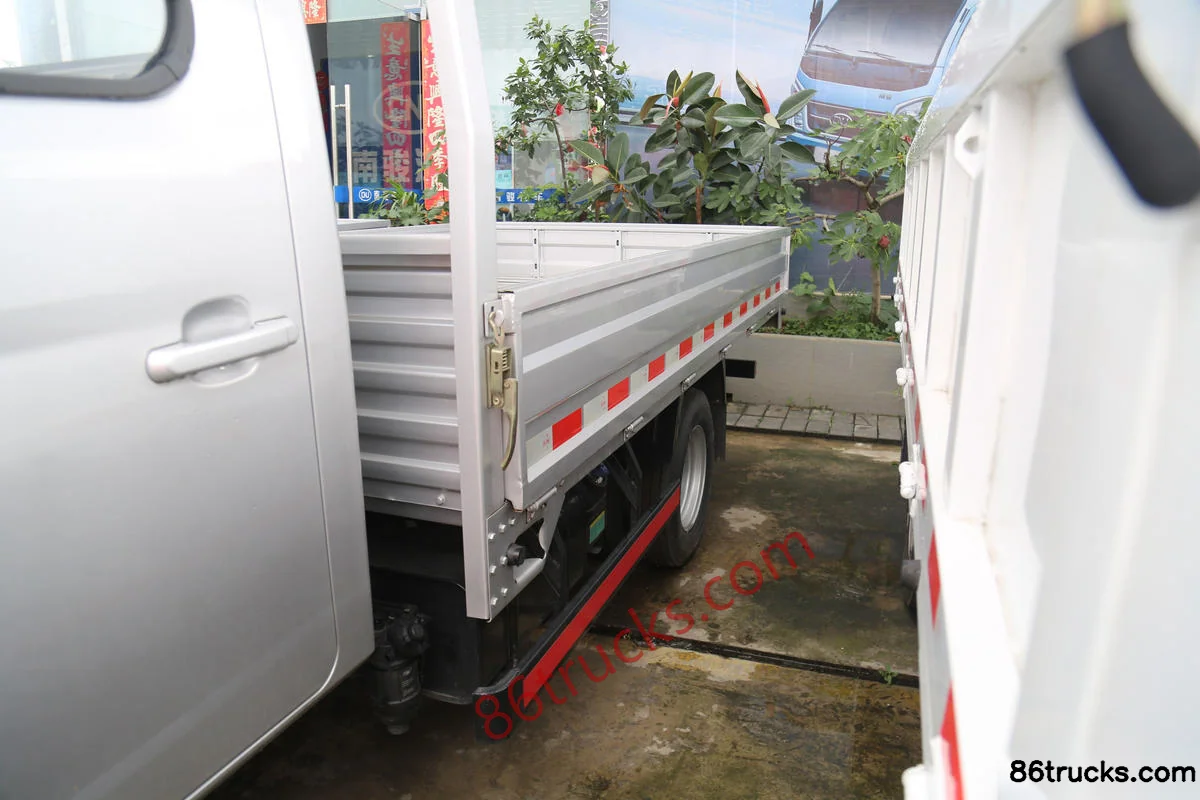

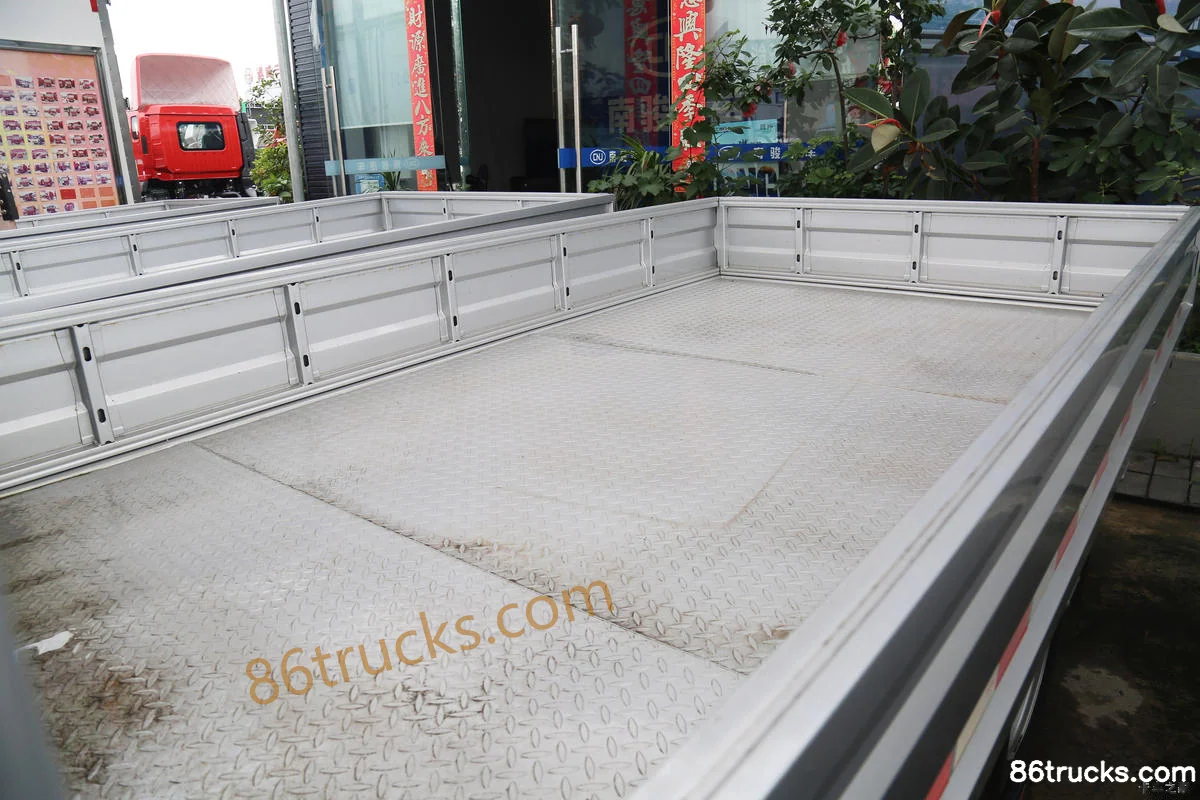

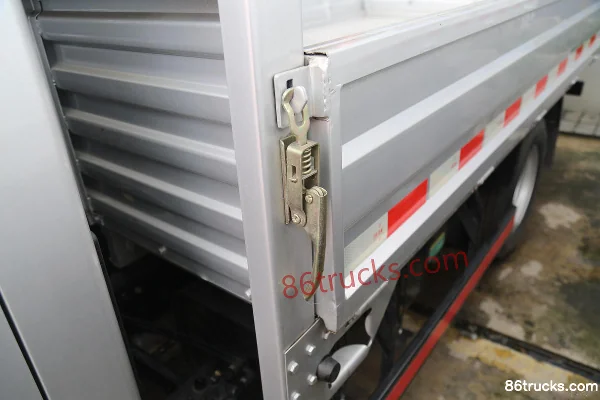

Body3

12 photos

FAQ

What is the export price of NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck, and what does it include?

NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck export reference is about From $12,153; MSRP is ¥8.75M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck?

Key specs of NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D20; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck suited for?

NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck differ from other variants in the same series?

NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck belongs to NanJun Ruibao Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruibao Deluxe Edition 102 hp 4X2(6 wheels) 3.3m Double Row Flatbed Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
