Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck

Export reference
From $76,389
MSRP ¥55M CNY
Horsepower: 350
Emission: China IV
Fuel: Diesel
Engine: Isuzu10L
Transmission: Fast Gear
Curb Weight:: 11.68ton
seating capacity: 3Personnel
Rated payload: 12.825ton
Drive 6X4 (10 wheels)
Cargo box type: Wing Van

Overview

The Qingling Isuzu Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.493m cargo length, Wing Van cargo body, 3Personnel volume and 12.825t payload. On the powertrain side, it comes with a Isuzu10L engine, 350 hp, 6X4 (10 wheels) drive and China IV emissions.

China IV 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LCL5250XYK
Type: enclosed cargo truck
Drive type: 6X4
Wheelbase: 5820+1300mm
Box length class: 9.5m
engine: Qingling Isuzu6UZ1-TCG40
transmission: Fast Gear9JS150TA-B
Rear Axle Ratio: 5.571
Cab length: 11.975m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2060mm
rear track: 1855/1855mm
Curb Weight: 11.68ton
Rated payload: 12.825ton
GVWR: 24.7ton
Max. speed: 102km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle:
Front/rear suspension: 1.37/3.485m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6UZ1-TCG40
Engine info: Isuzu10L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.839L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1422N·m
Max torque speed: 1400rpm
Rated speed: 2000rpm
Engine Type: Denso 1800bar high-pressure common rail, DOC (Diesel Oxidation Catalyst)
Transmission Parameters
Transmission Model: Fast Gear9JS150TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.493m
Cargo box width: 2.435m
Cargo box height: 2.466m
*Cargo box interior width: 2.4349999427795
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6700kg
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.571
Leaf spring count: 7/11
Suspension (front/rear): Leaf spring
Tire
Tire Size: 11.00R20
Number of tires: 10pcs
Exterior features
Air deflector:

Photos

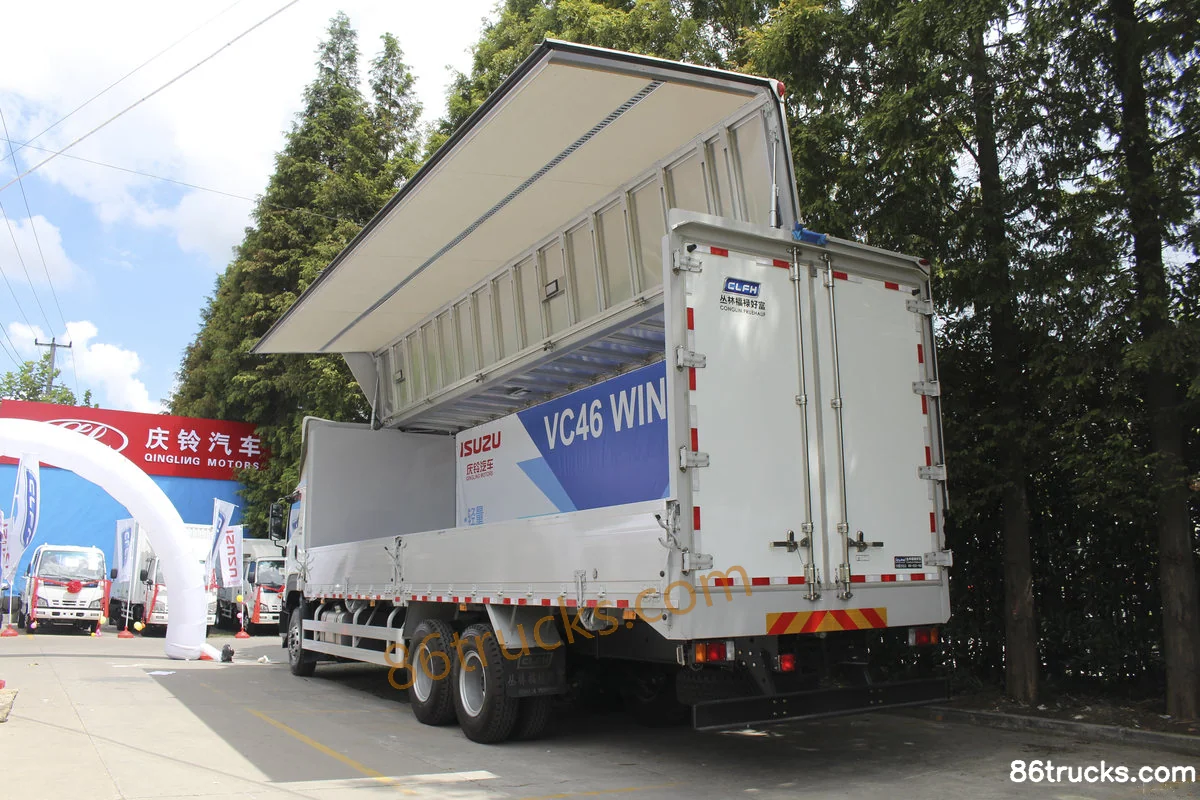

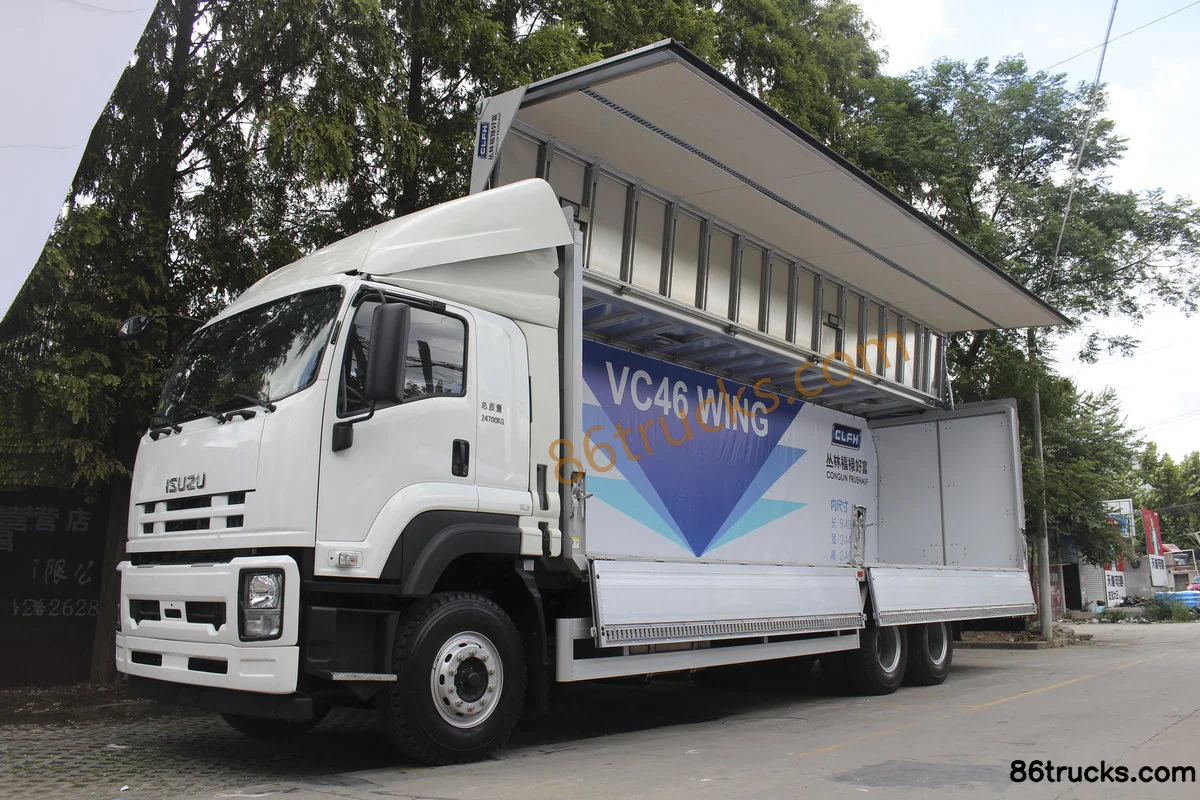

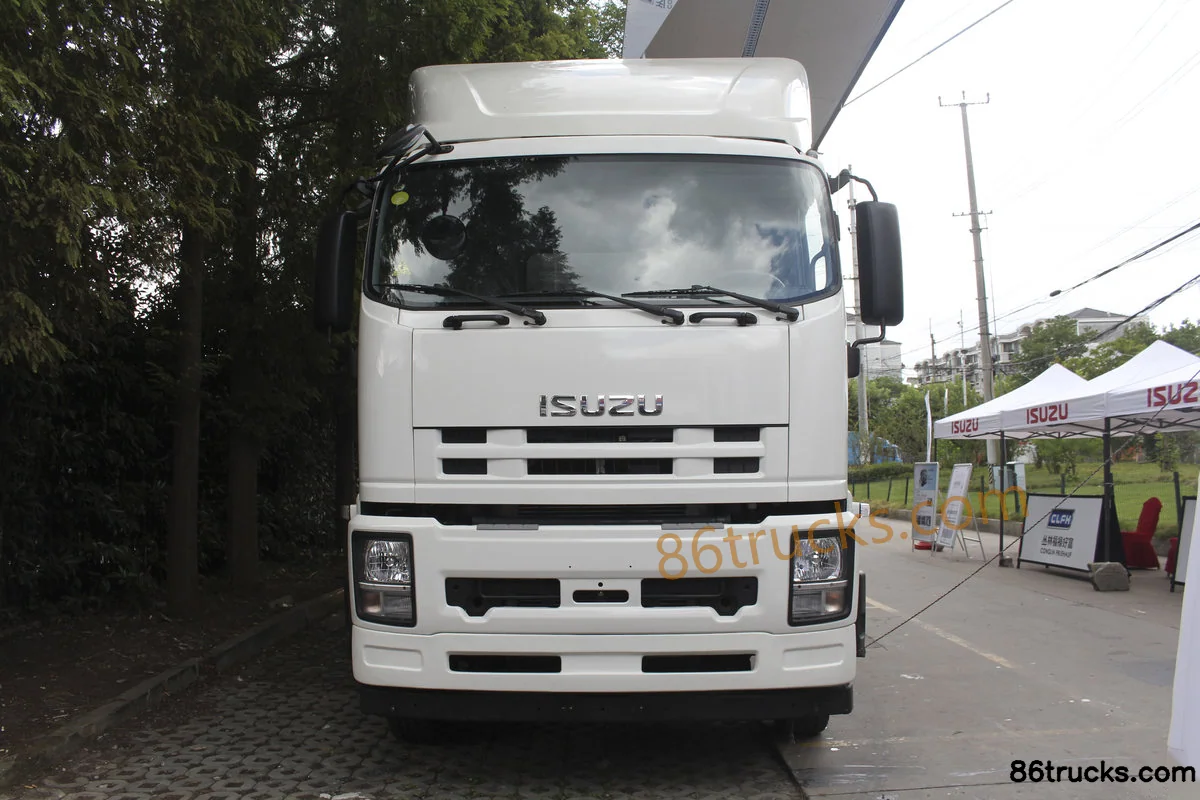

Exterior3

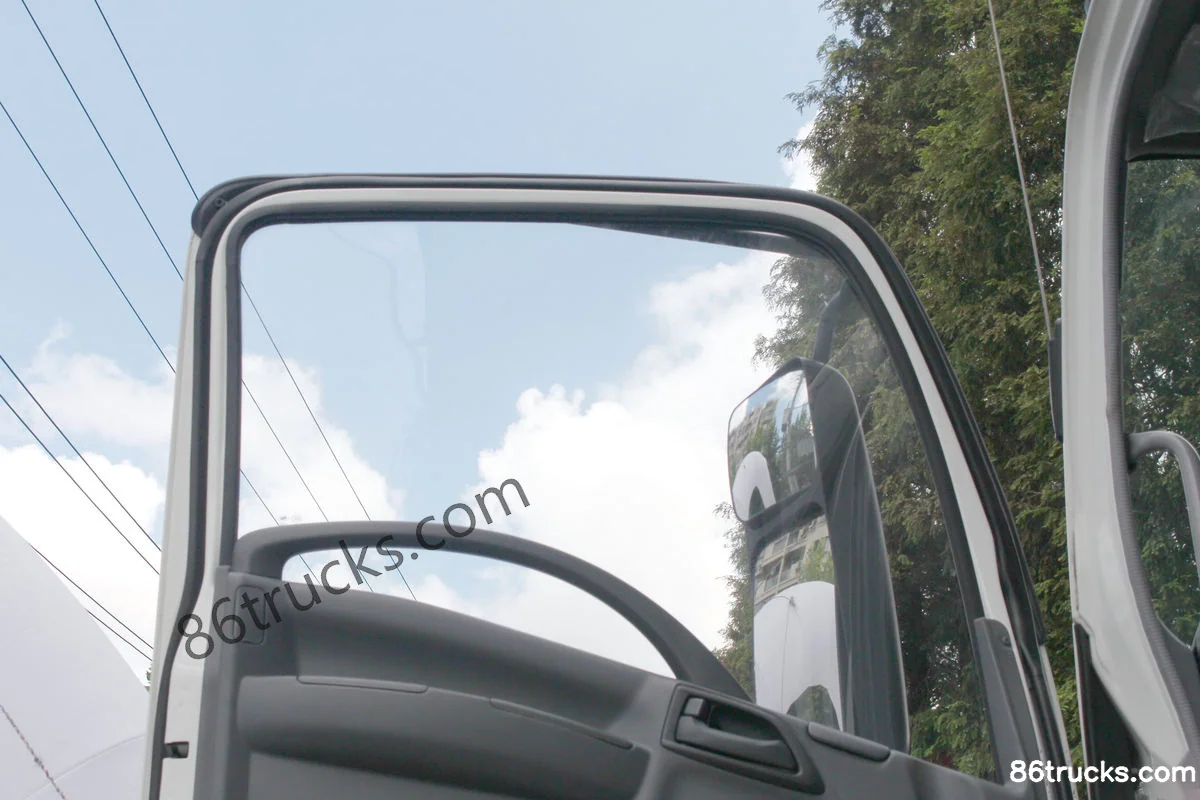

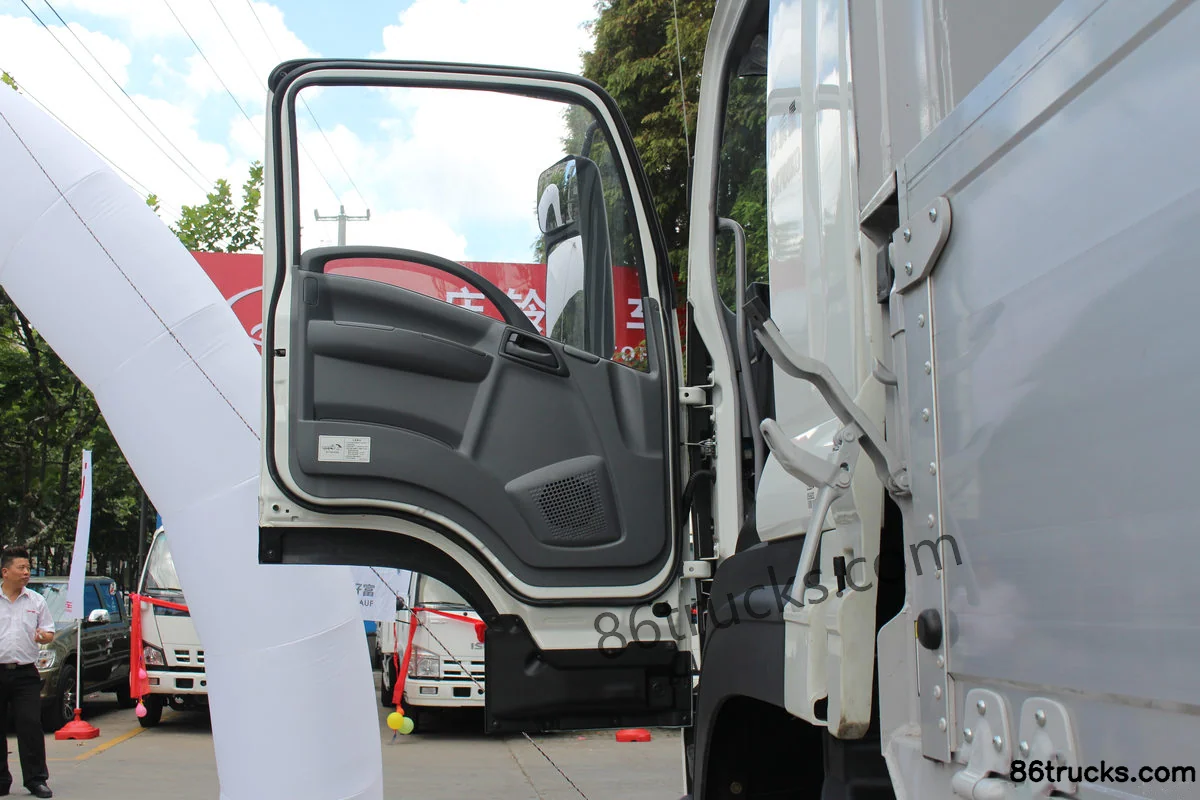

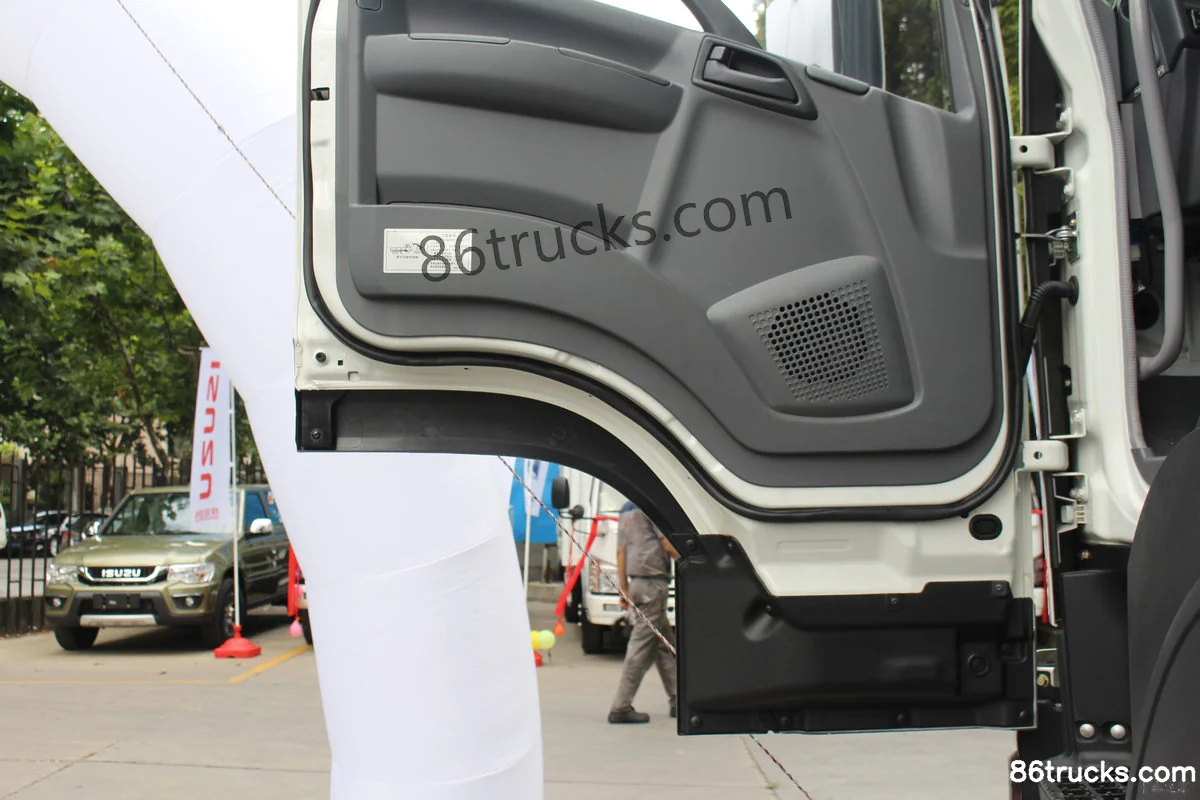

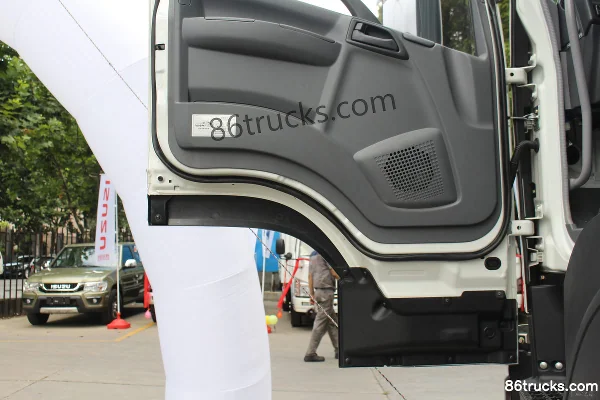

Cab3

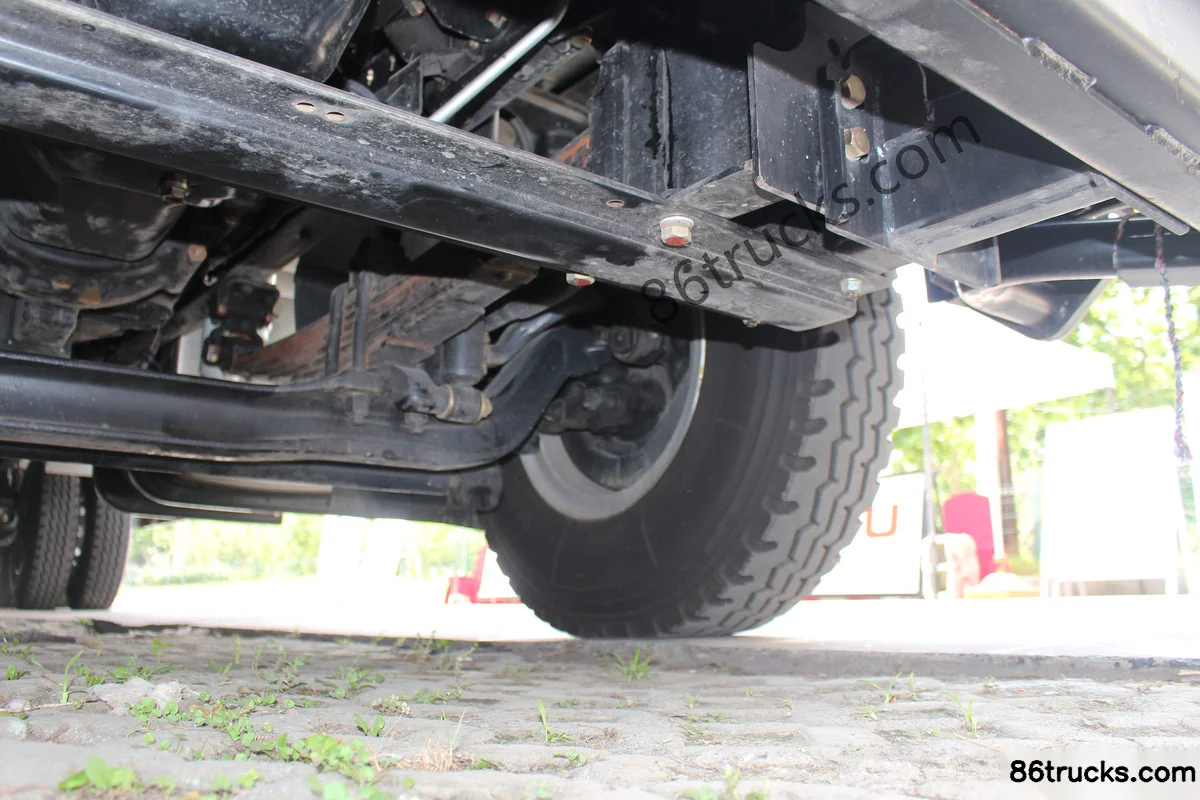

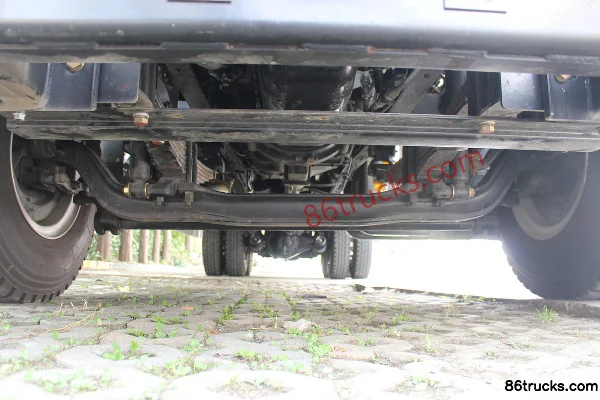

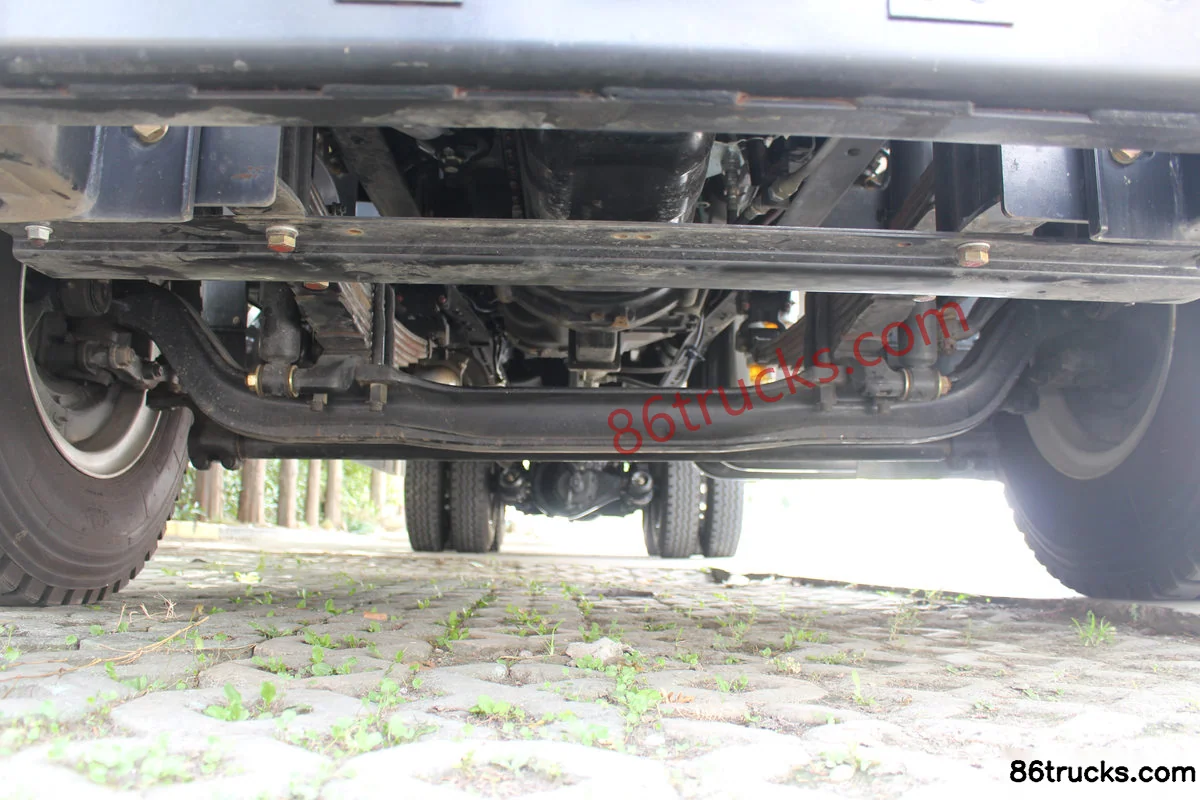

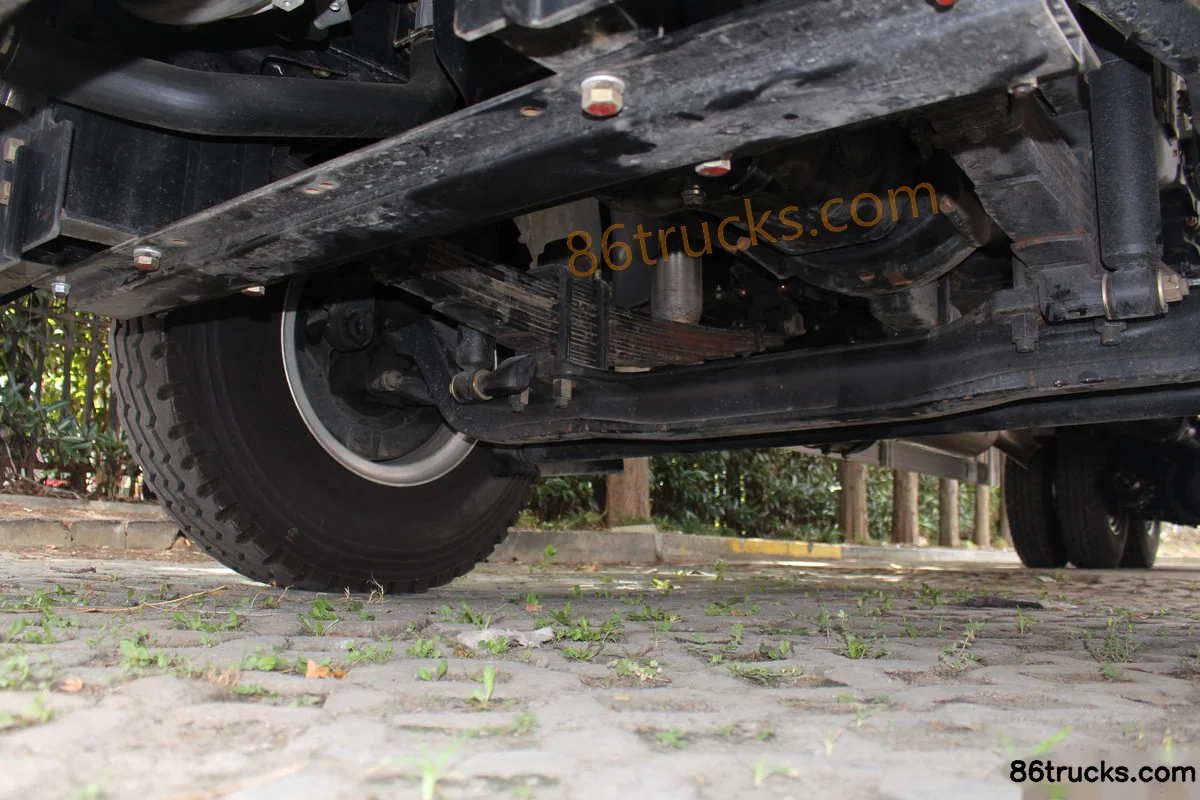

Chassis3

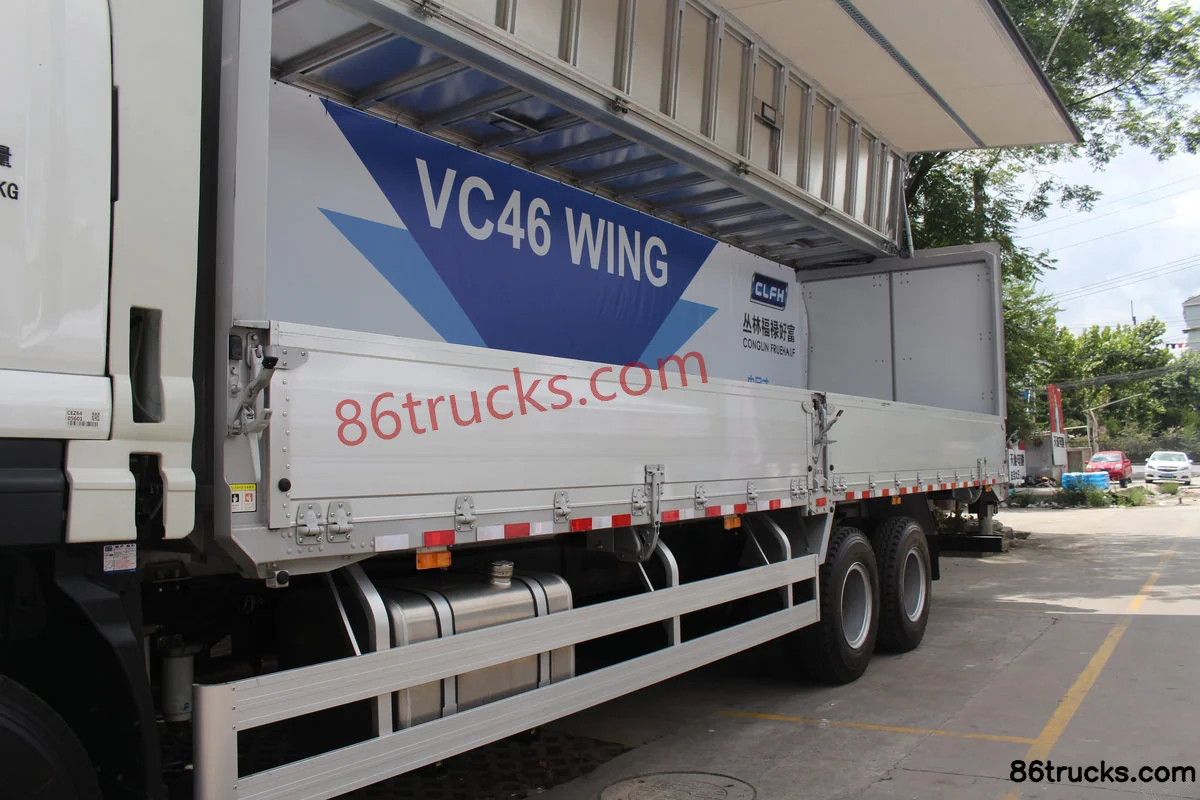

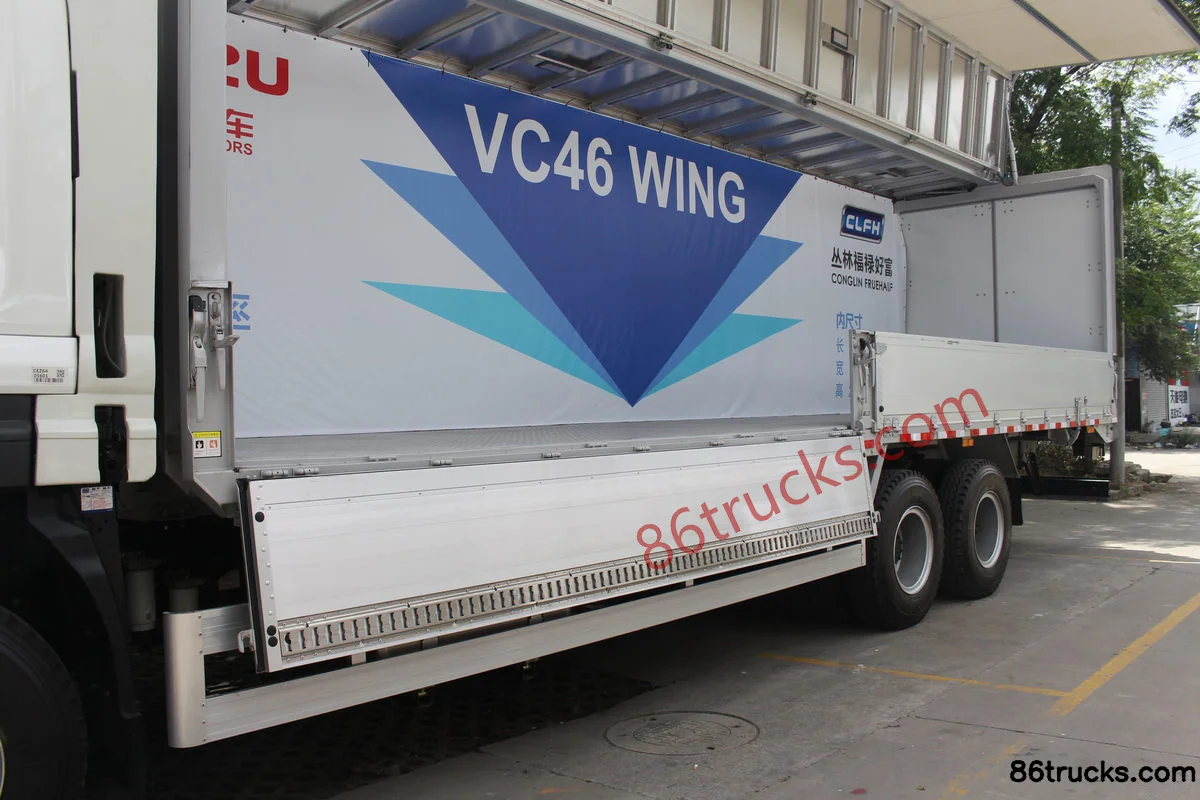

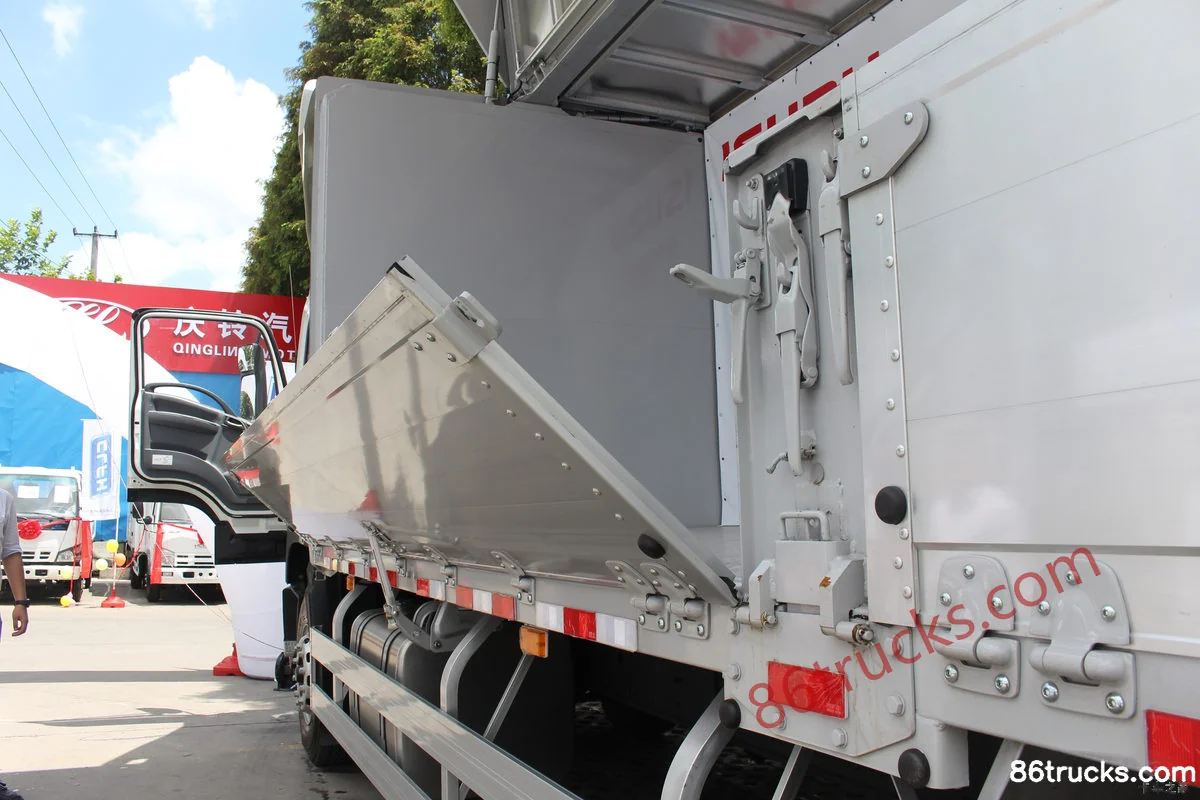

Body3

12 photos

FAQ

What is the export price of Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck, and what does it include?

Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck export reference is about From $76,389; MSRP is ¥55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck?

Key specs of Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Engine: Isuzu10L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck suited for?

Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck differ from other variants in the same series?

Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck belongs to Qingling Isuzu VC46 Light Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling VC46 Heavy Truck 350 hp 6X4(10 wheels) 9.5m Wing Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
