Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 4.6ton
Wheelbase:: 5700mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 160

Overview

The Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) is a Medium-duty truck featuring Chassis cargo body, 3Personnel volume, D701 cab and 5700mm wheelbase. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5160XXYLZ4DJ
Type: Chassis
Drive type: 4X2
Wheelbase: 5700mm
engine: YuchaiYC4E160-42
transmission: Fast Gear8JS85E
Cab length: 9.835m
Cab width: 2.47m
Cab height: 3.56m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 4.6ton
GVWR: 15.8ton
Max. speed: 90km/h
Origin: Hubei Laohekou
tonnage class: Medium-duty truck
Approach angle: 29°
departure angle: 21°
Front/rear suspension: 1.25/2.71m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-42
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: D701
seating capacity: 3Personnel
Chassis Specs
Leaf spring count: 9/11+8,9/12+9,9/10+8,9/10+-,9/-
Tire
Tire Size: 9.00-20 16PR,9.00R20 16PR,10.00-20 18PR,10.00R20 18PR,10R22.5 16PR
Number of tires: 6pcs

Photos

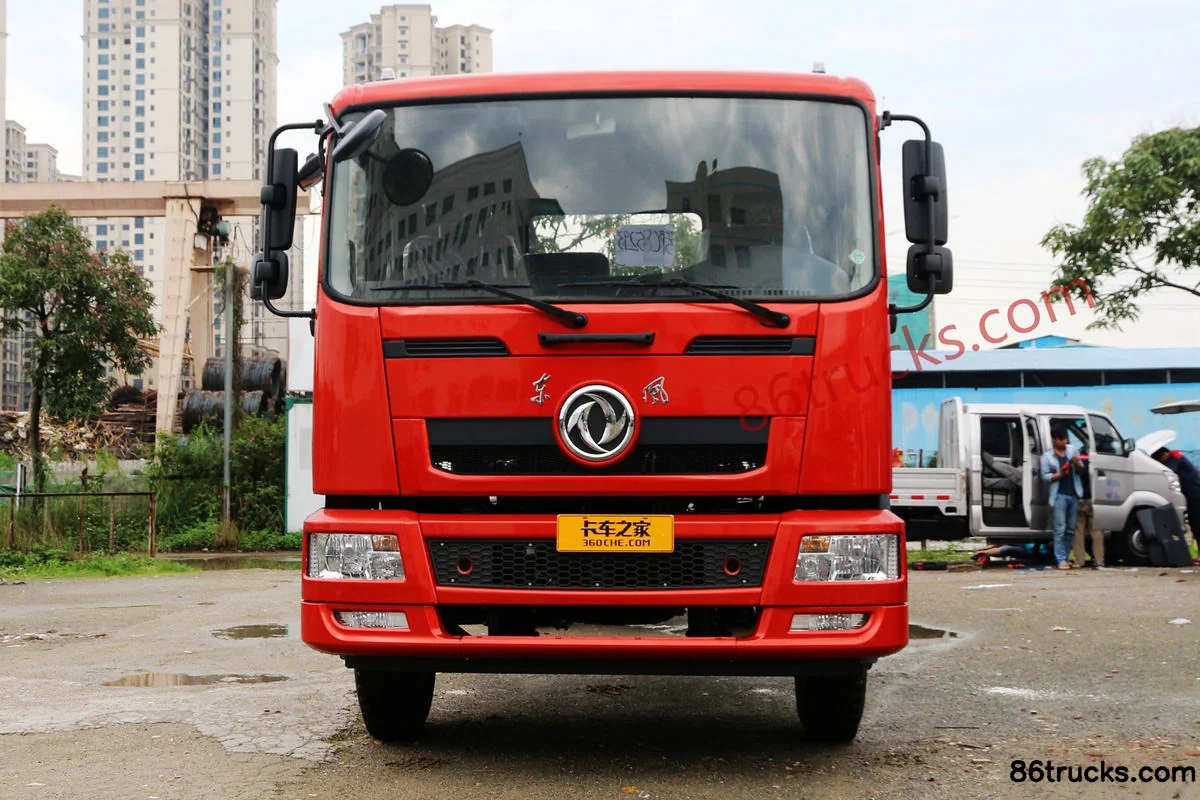

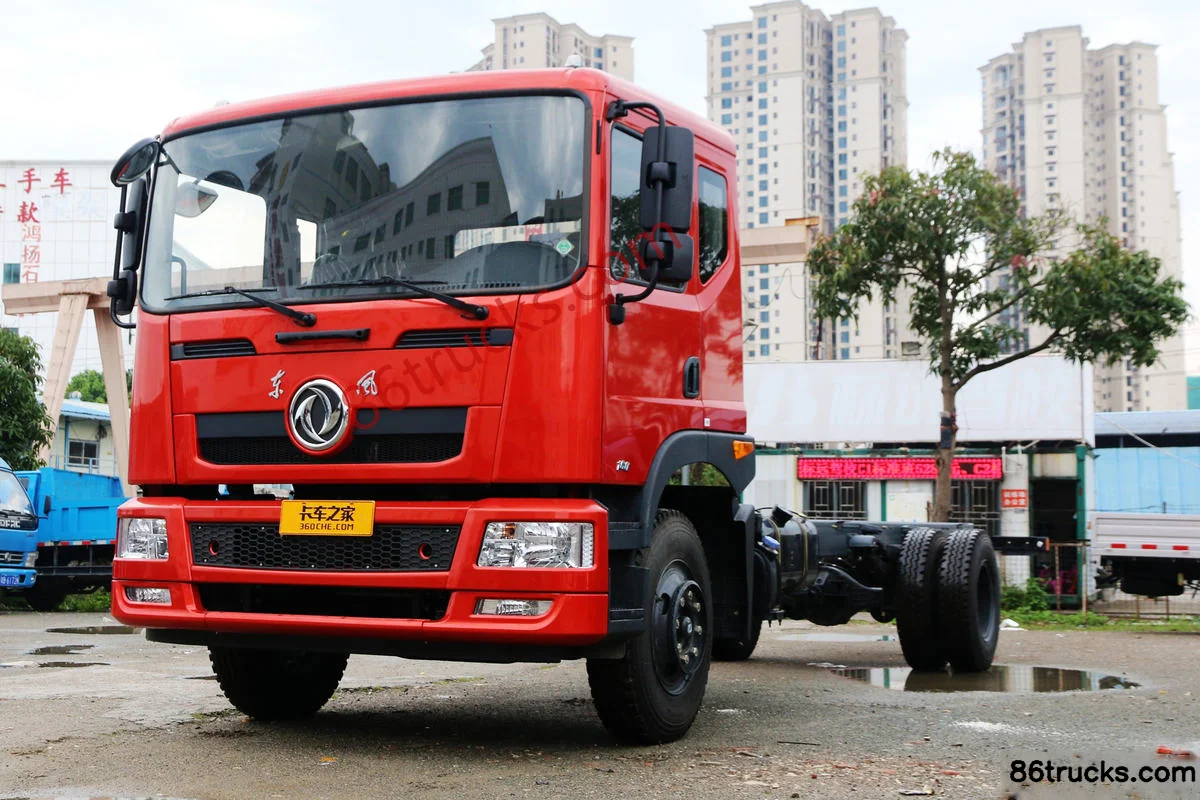

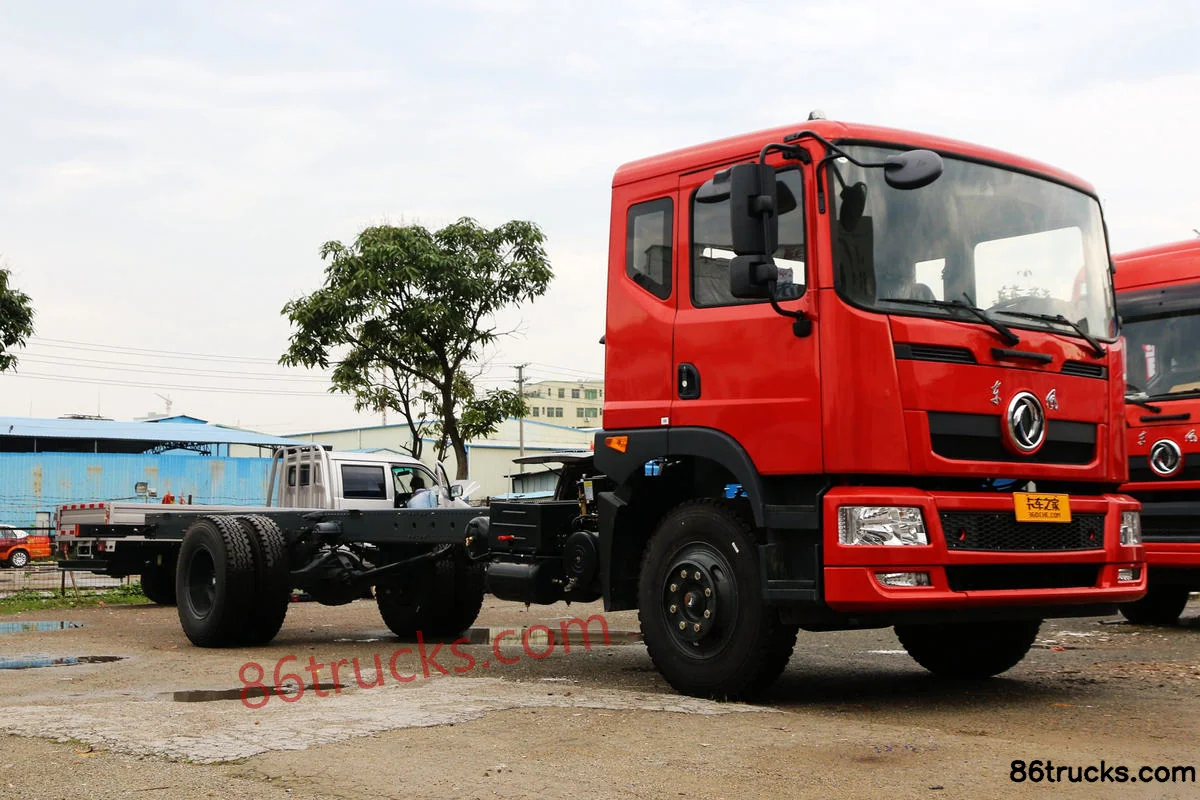

Exterior3

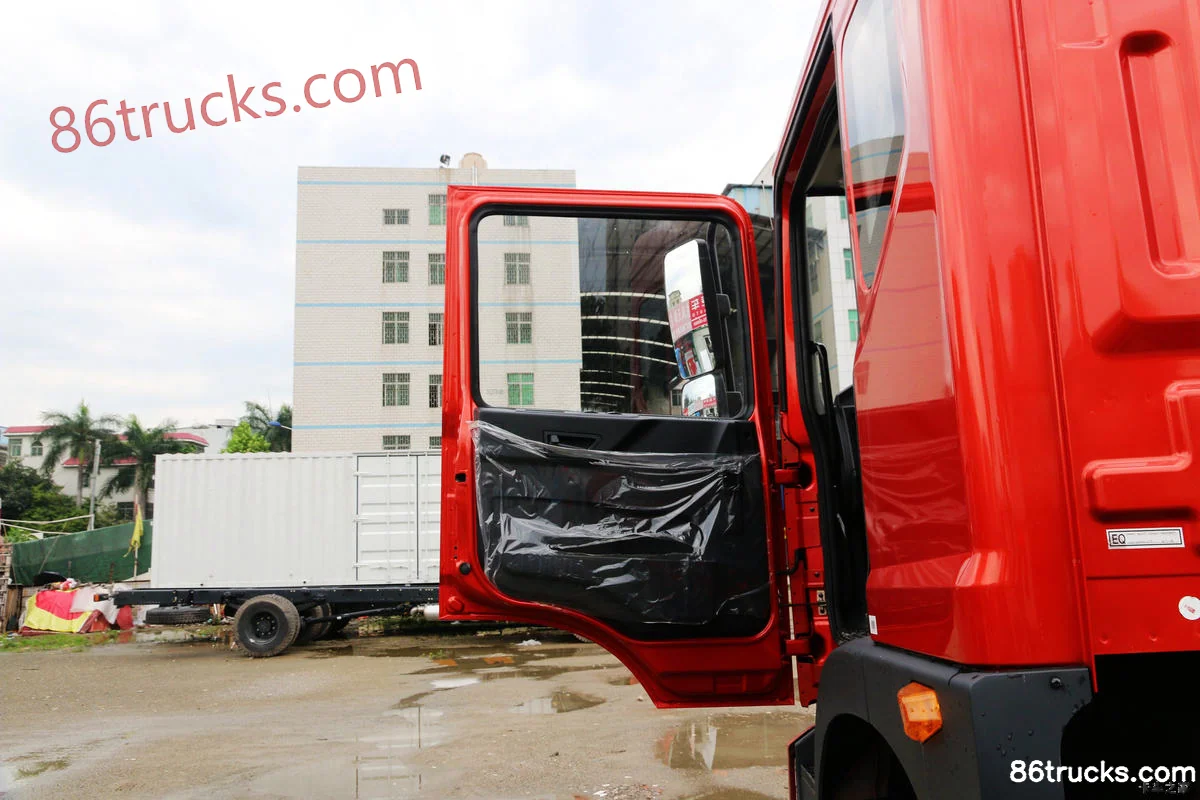

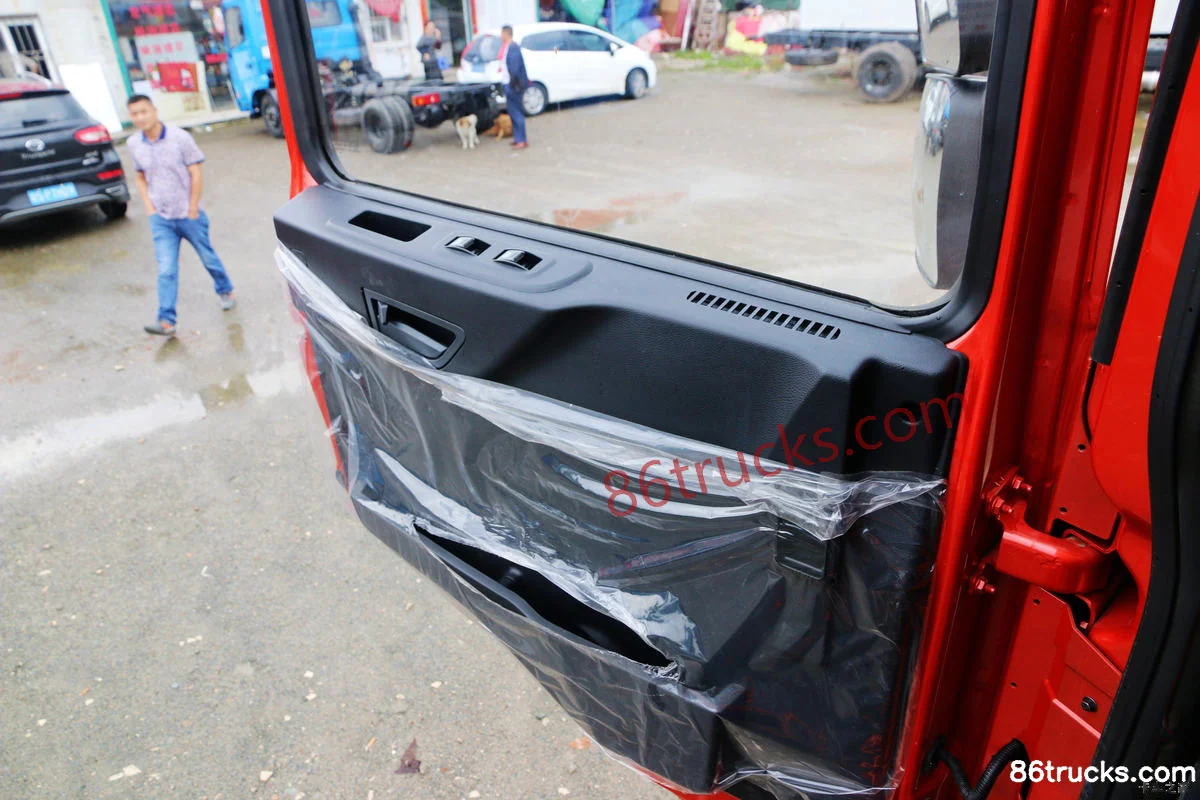

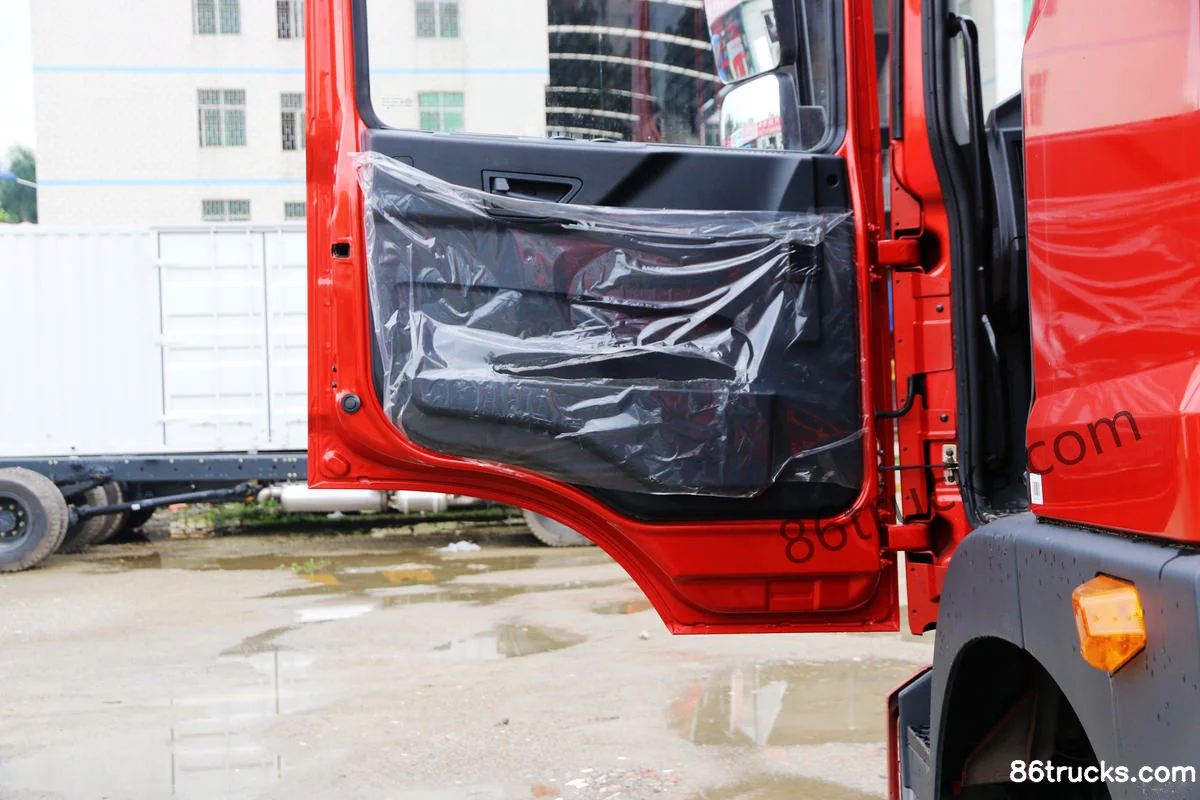

Cab3

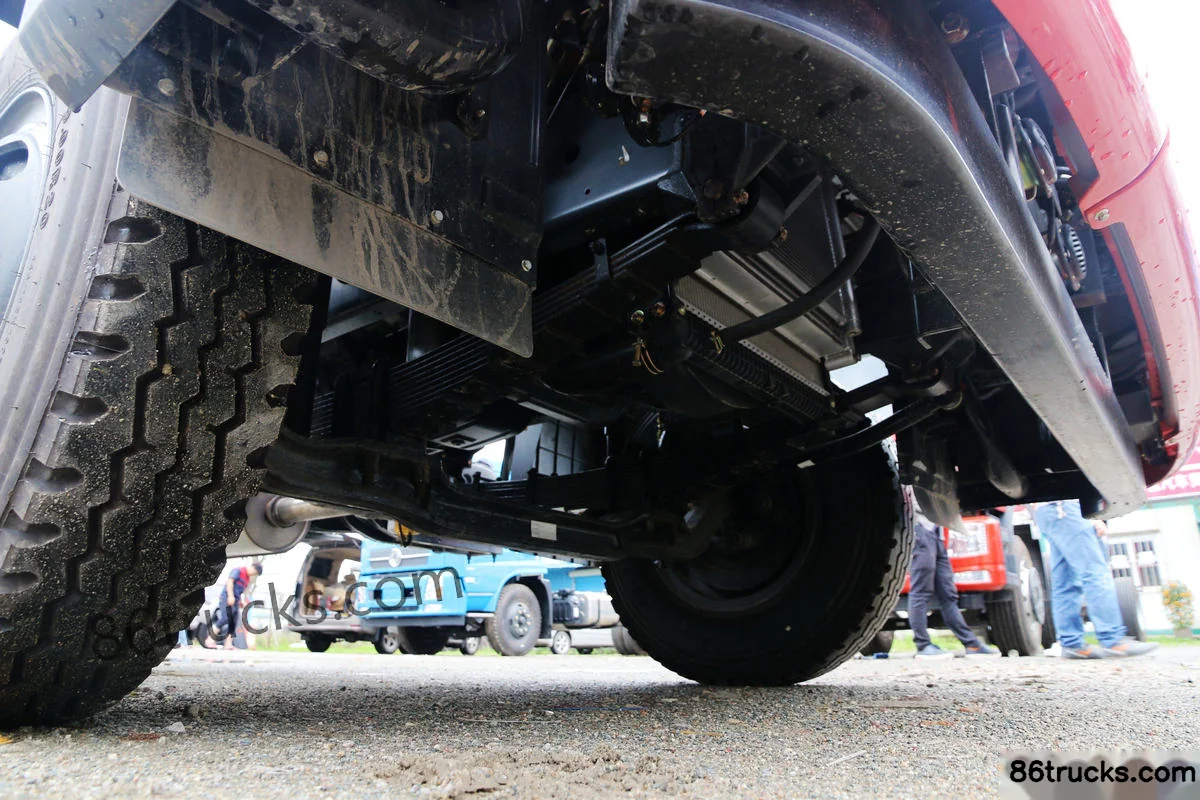

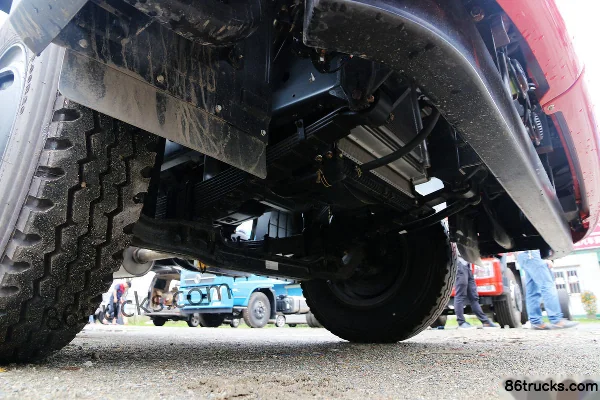

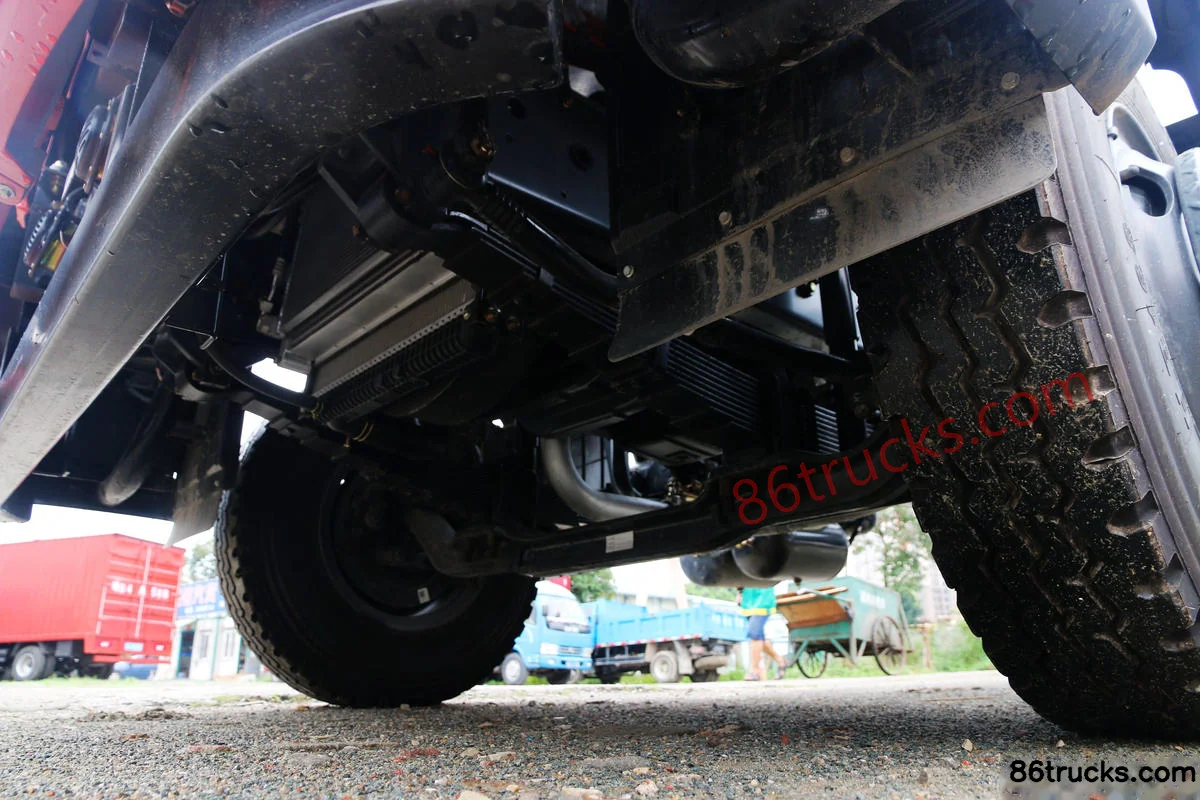

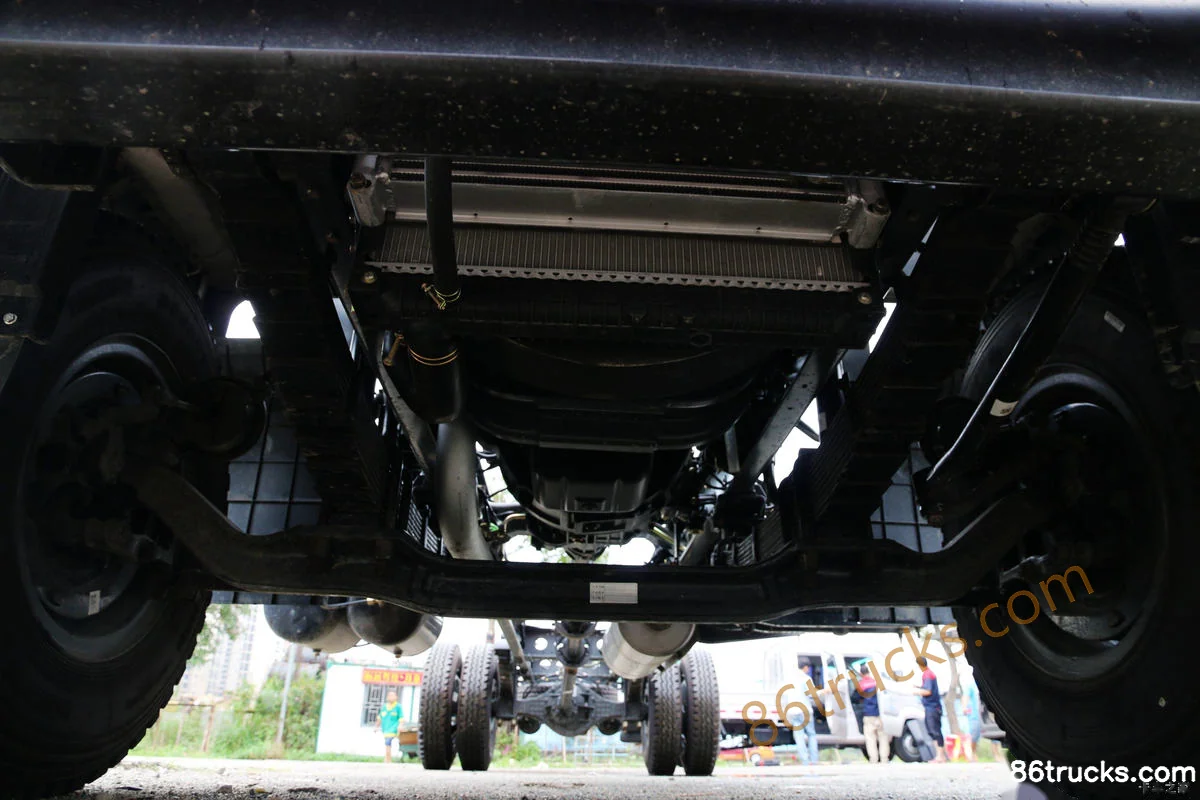

Chassis3

9 photos

FAQ

What emission standard does Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai)?

Key specs of Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai): Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) suited for?

Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) differ from other variants in the same series?

Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai) belongs to Dongfeng Chuangpu Near-heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (Yuanchuangpu) Medium Truck 160 hp 4X2(6 wheels) 5700mm wheelbase cargo truck chassis (Yuchai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
