NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.045ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: NJA5040XXYEDF33BEV
Type:: enclosed cargo truck
Box length class:: 4.1m
NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 367km
Motor 1 Model: TZ262XSSFZ01
Curb Weight: 3.32ton

Overview

The NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) is a Light Truck featuring 367km battery/range, TZ262XSSFZ01 motor, 4X2 (6 wheels) drive and 1.045t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJA5040XXYEDF33BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.1m
Cab length: 5.995m
Cab width: 2.36m
Cab height: 3.1m
CLTC range: 367km
Curb Weight: 3.32ton
Rated payload: 1.045ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Model: TZ262XSSFZ01
Max torque: 600N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98.04kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.1m
Cargo box width: 2.25m
Cargo box height: 2.05m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1930kg
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake

Photos

Exterior3

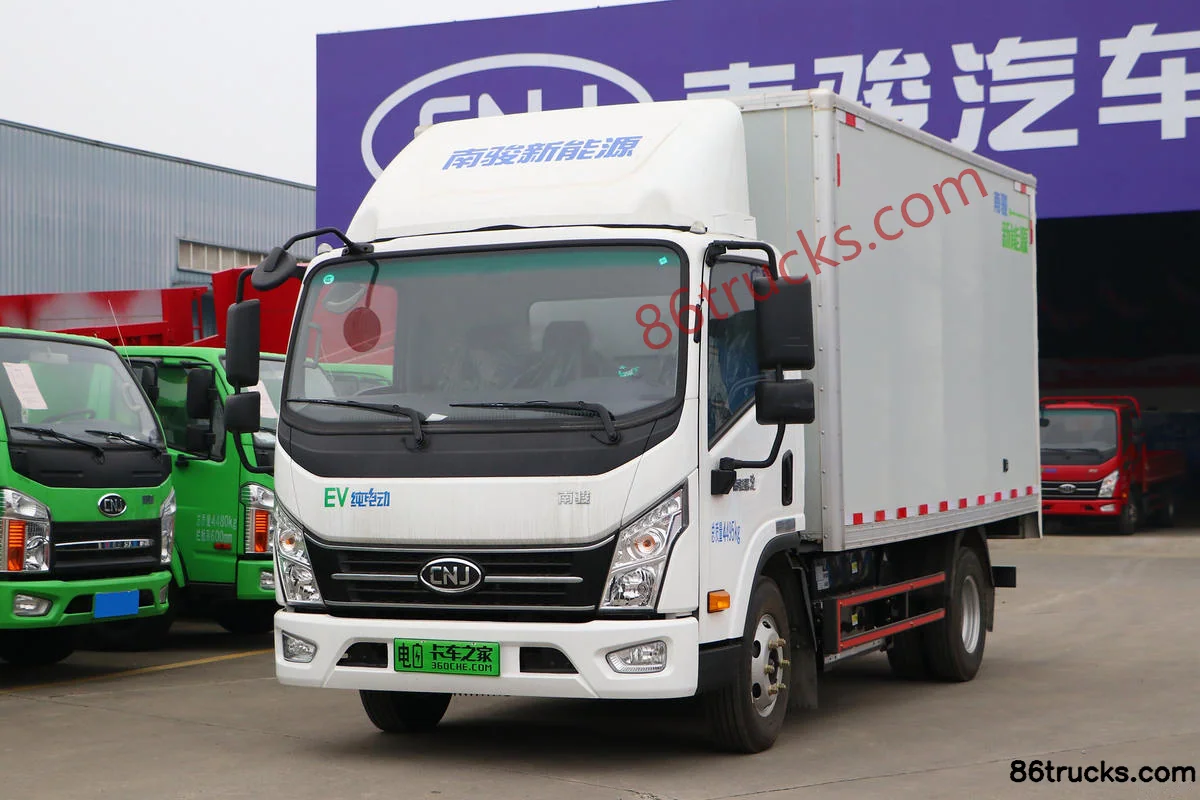

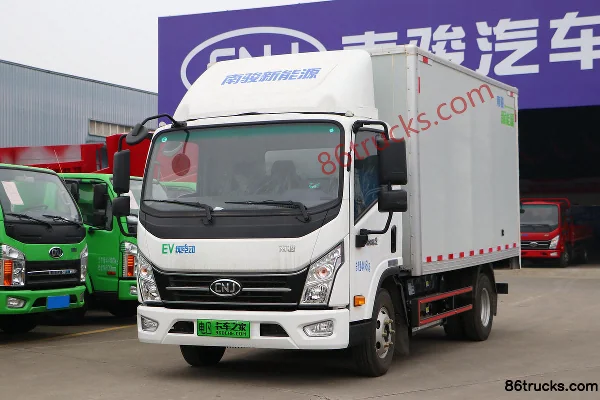

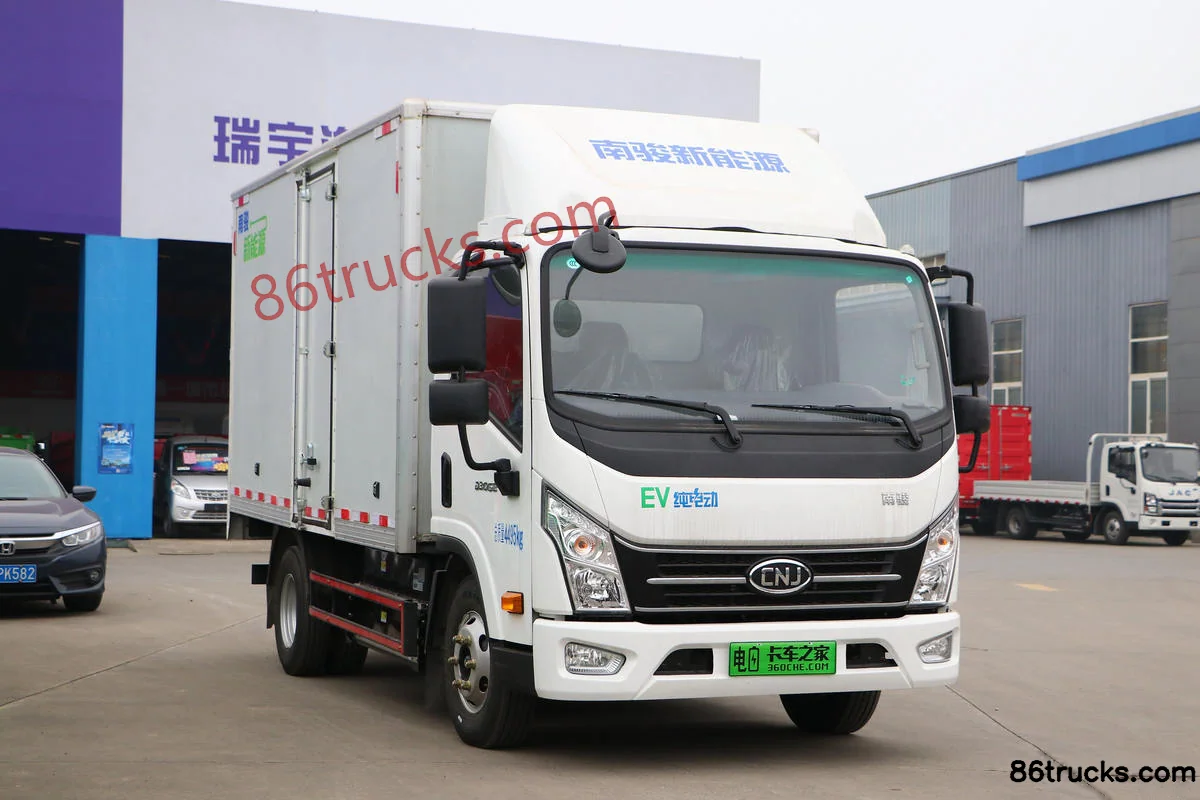

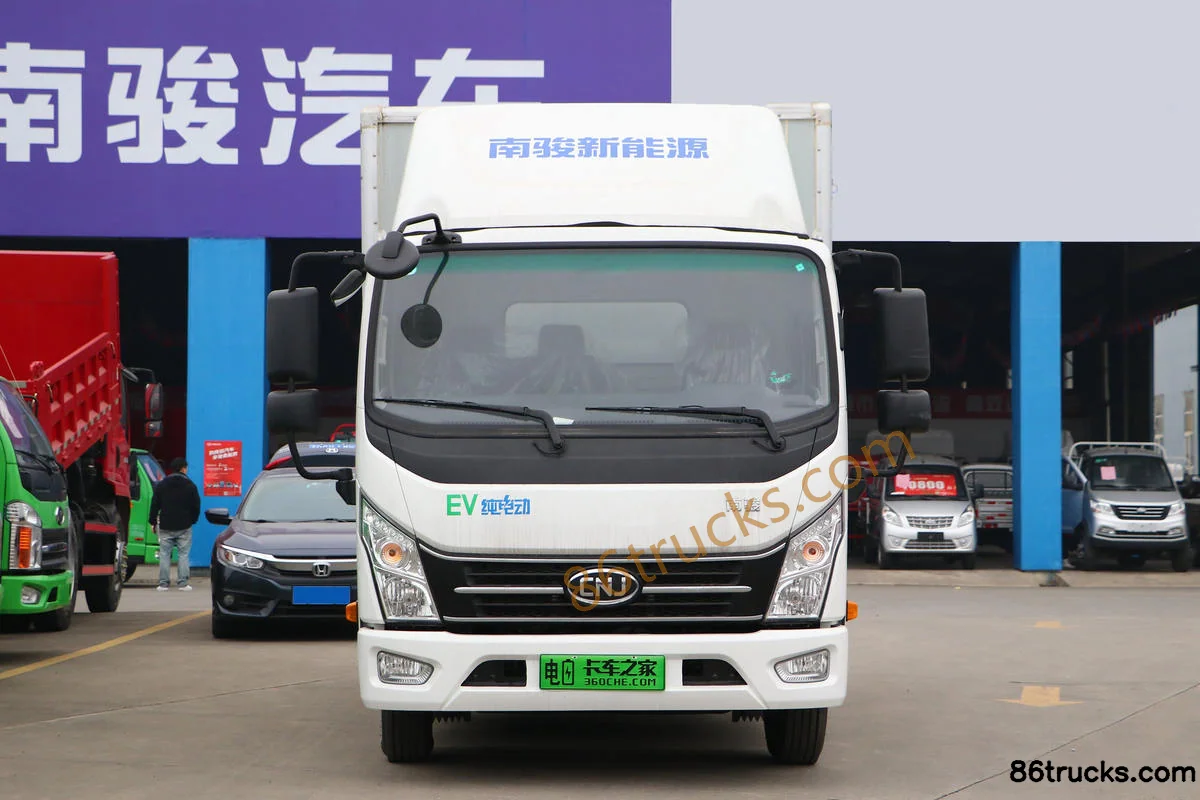

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Exterior (1) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Exterior (2) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

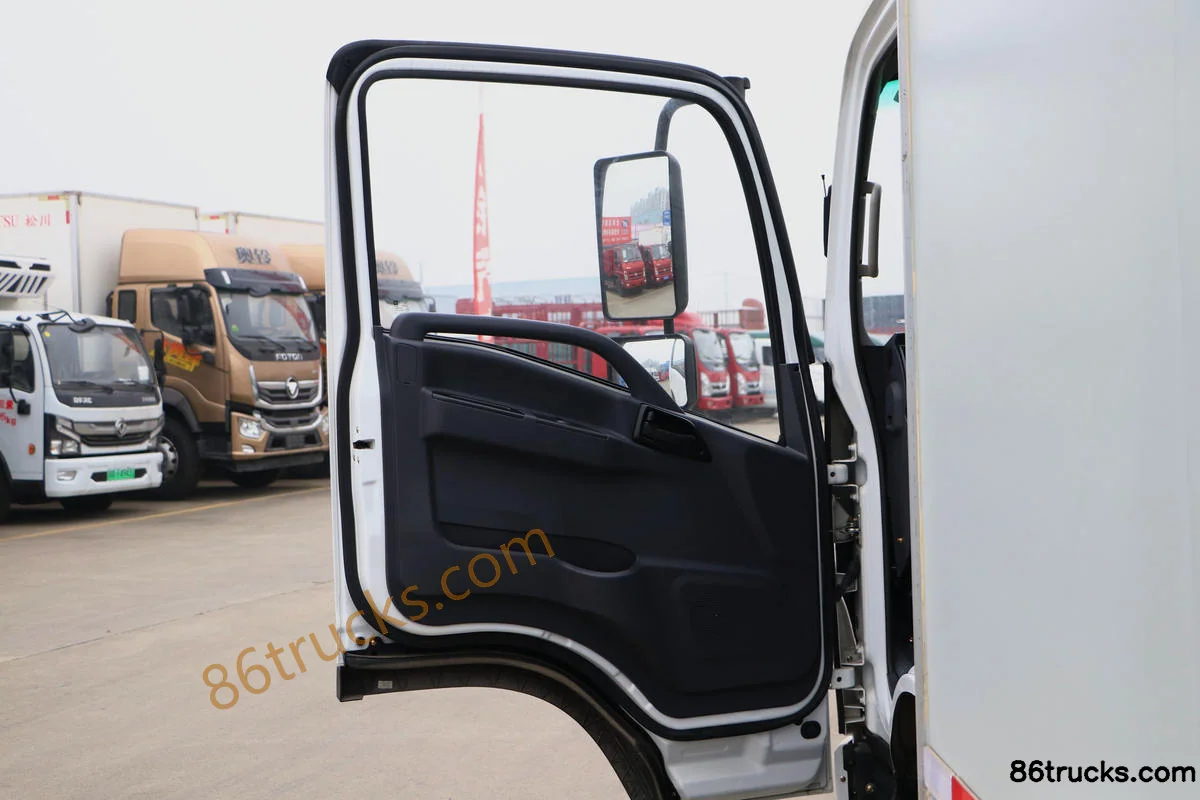

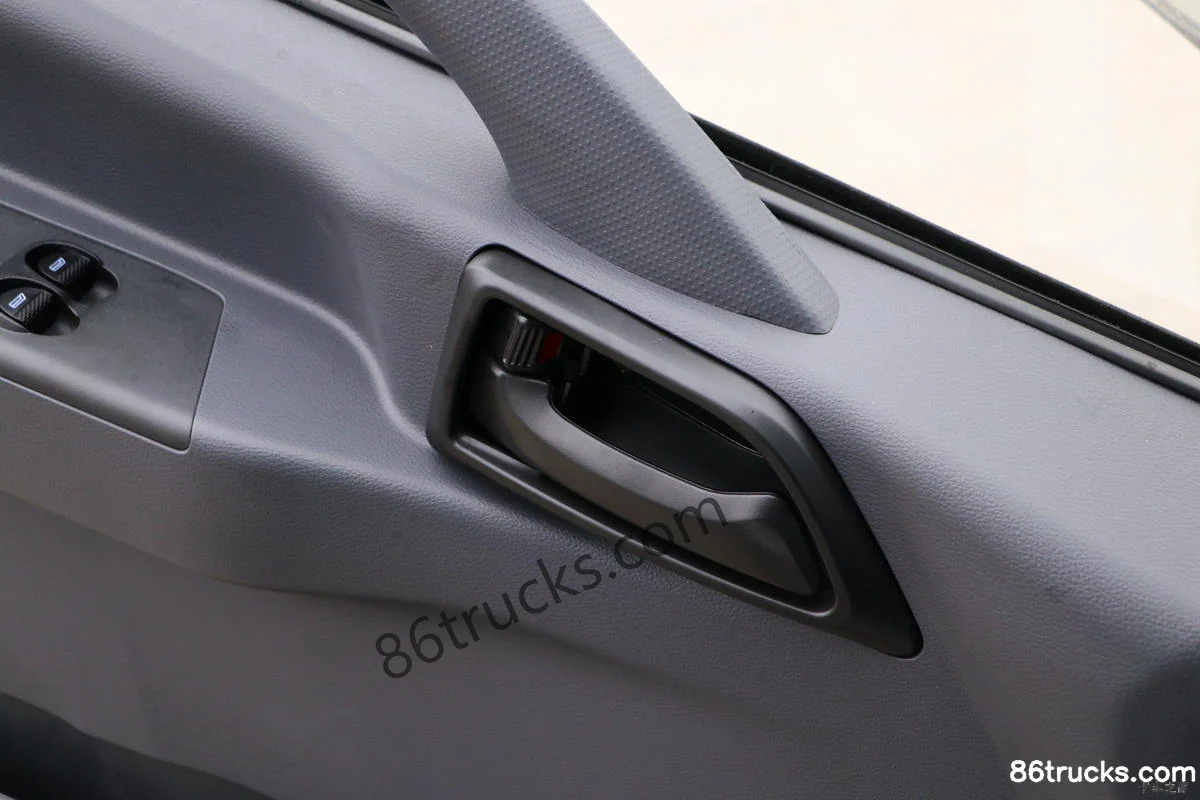

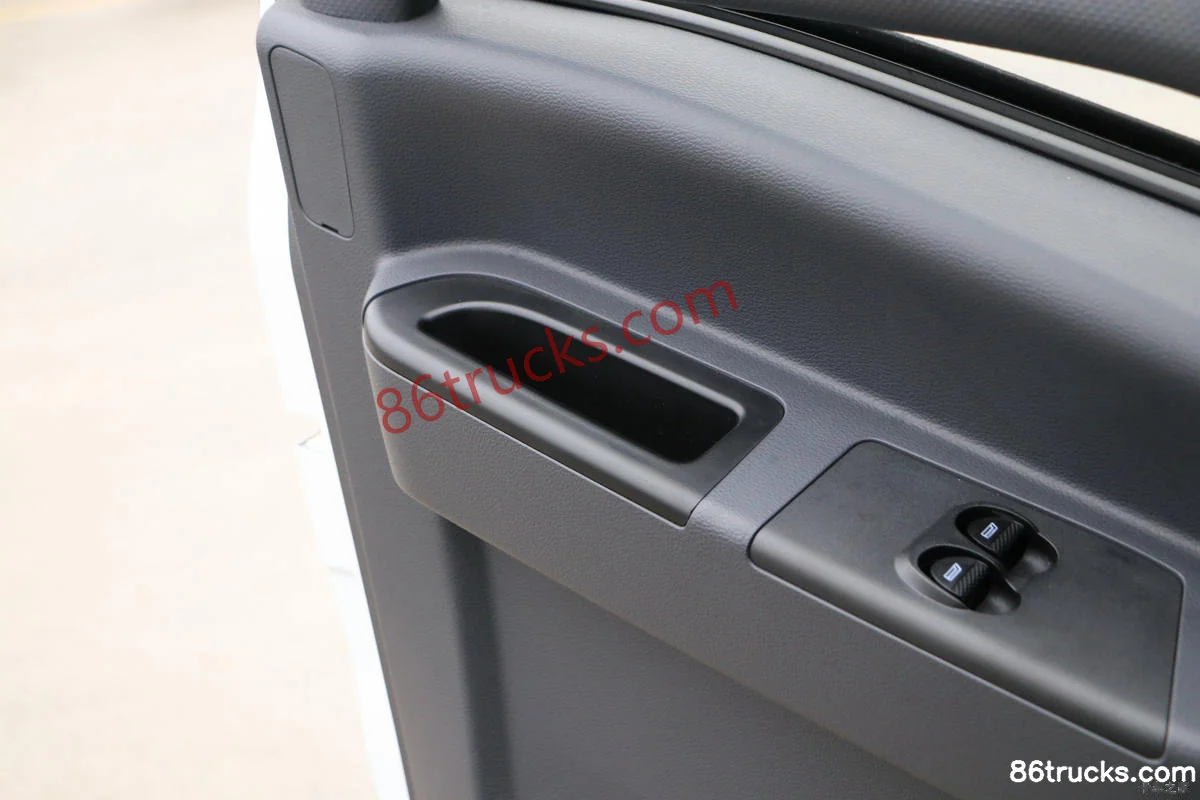

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Interior (1) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Interior (2) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

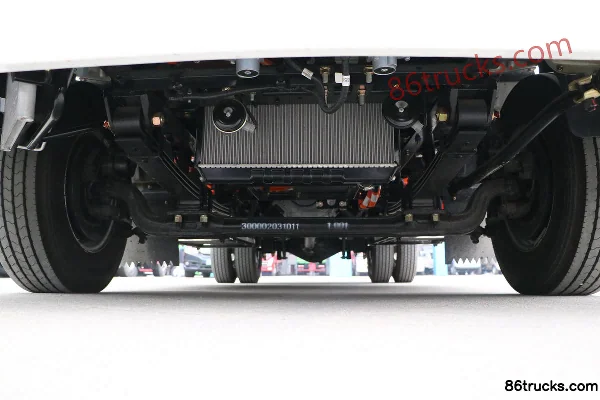

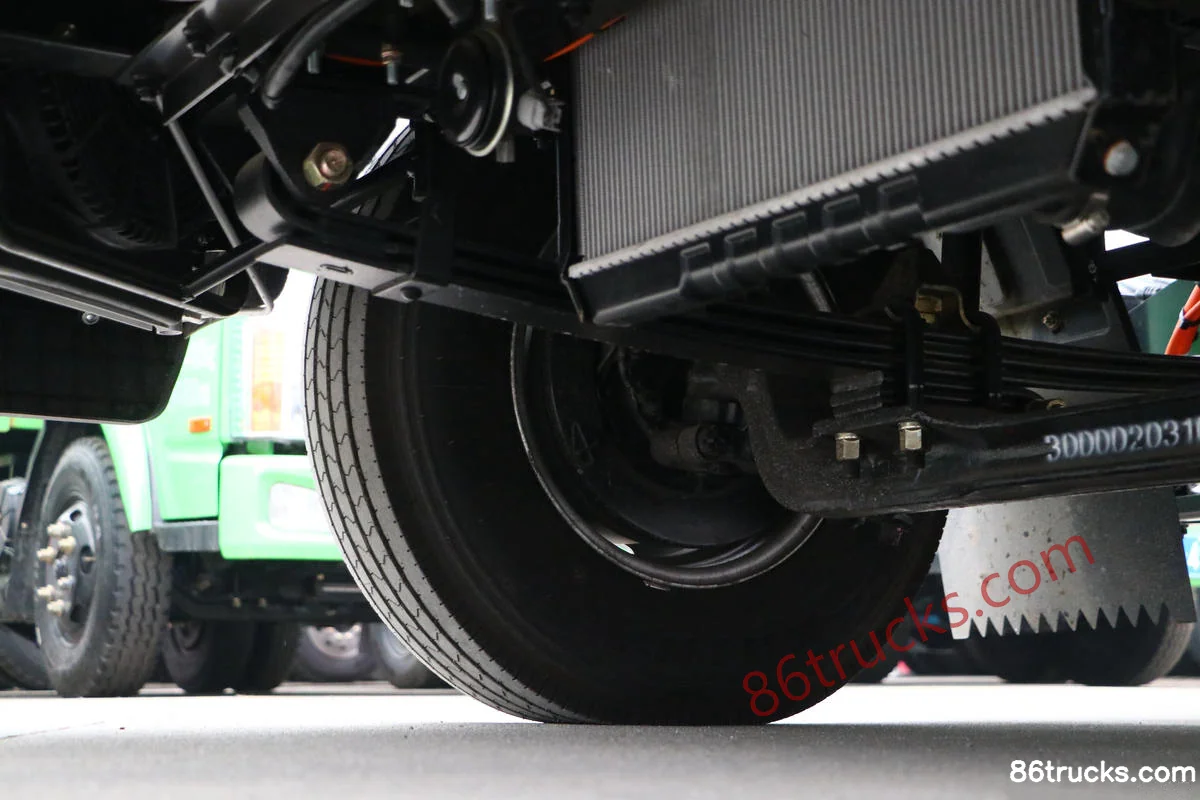

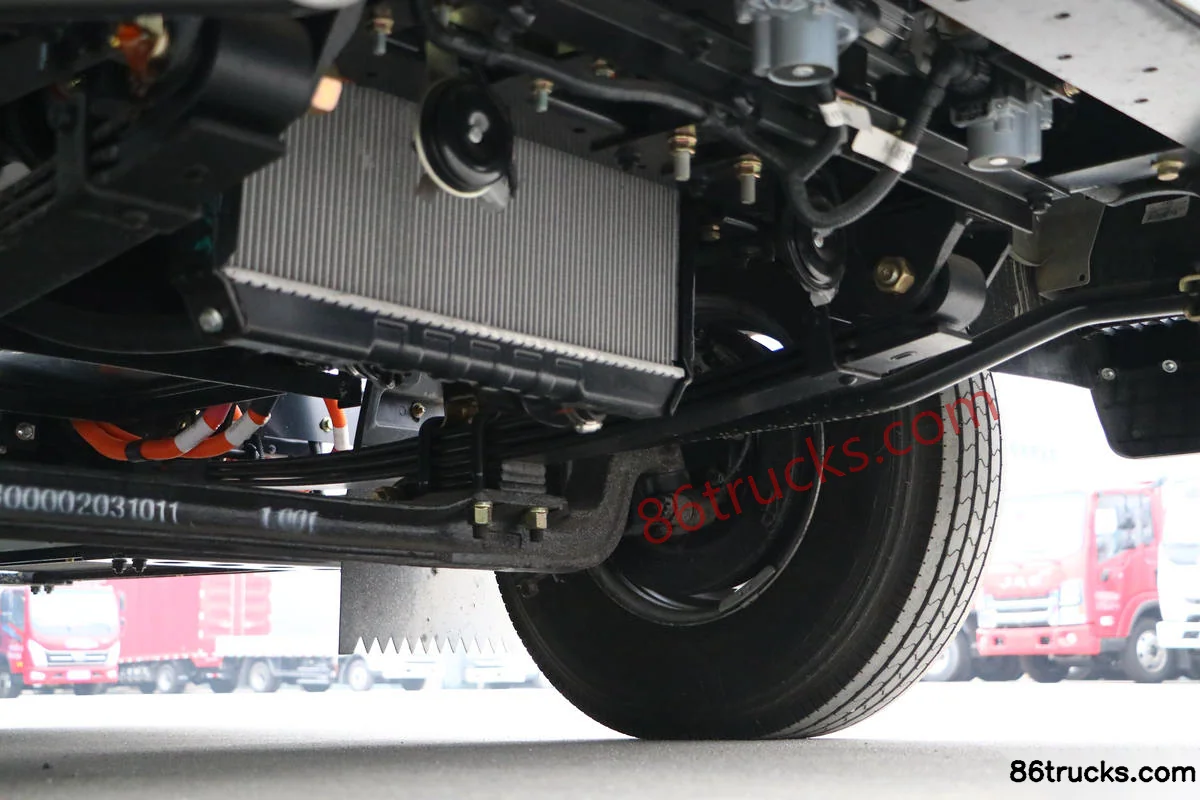

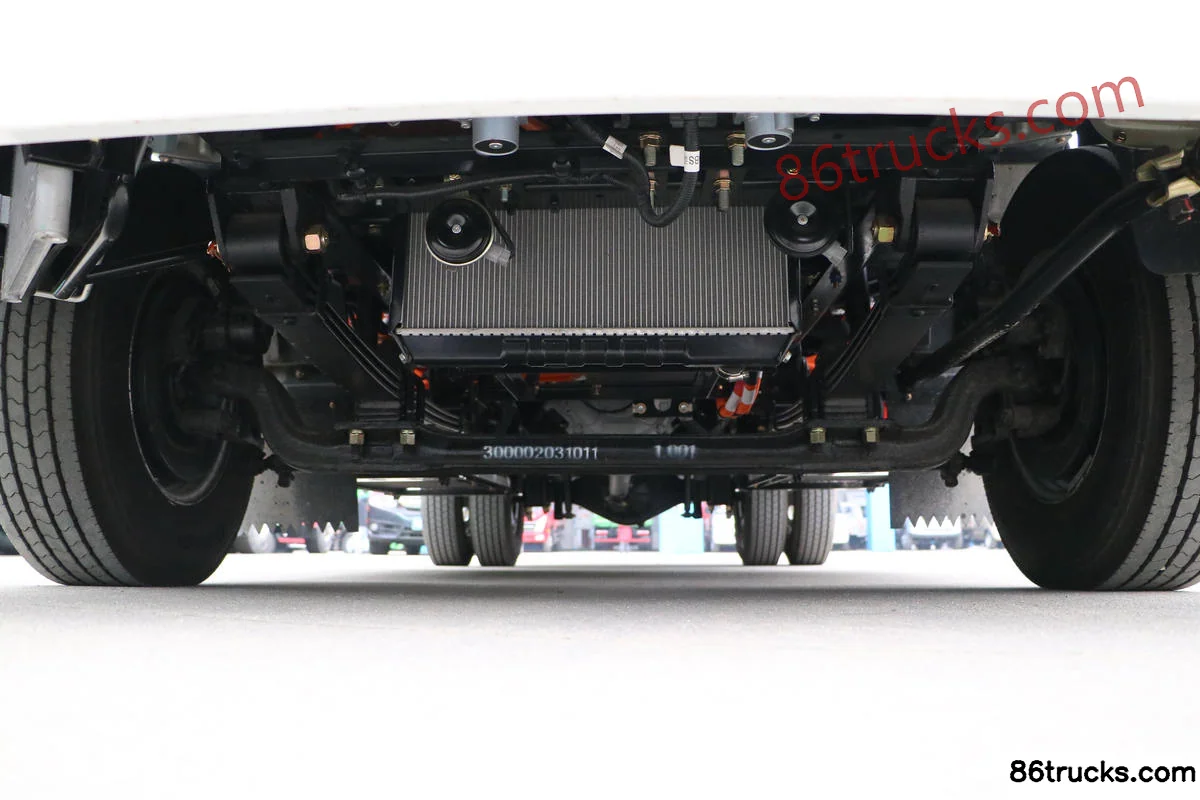

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Chassis (1) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Chassis (2) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

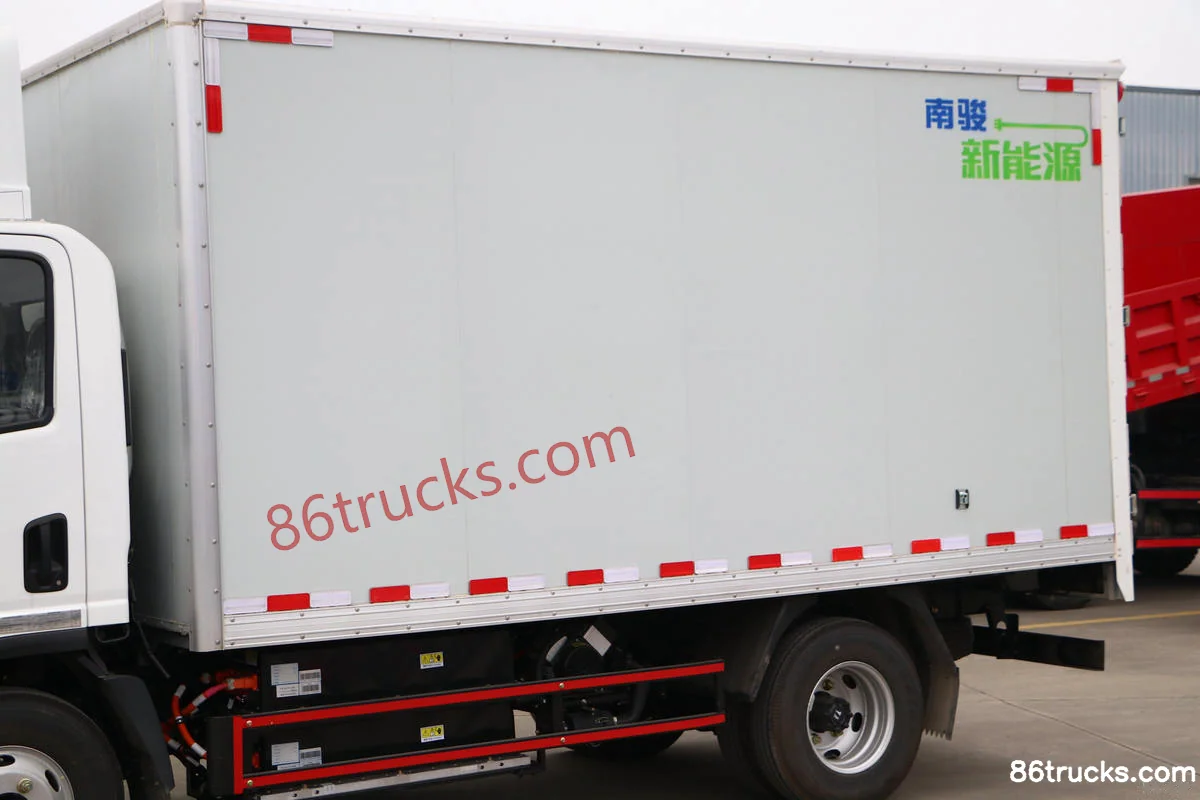

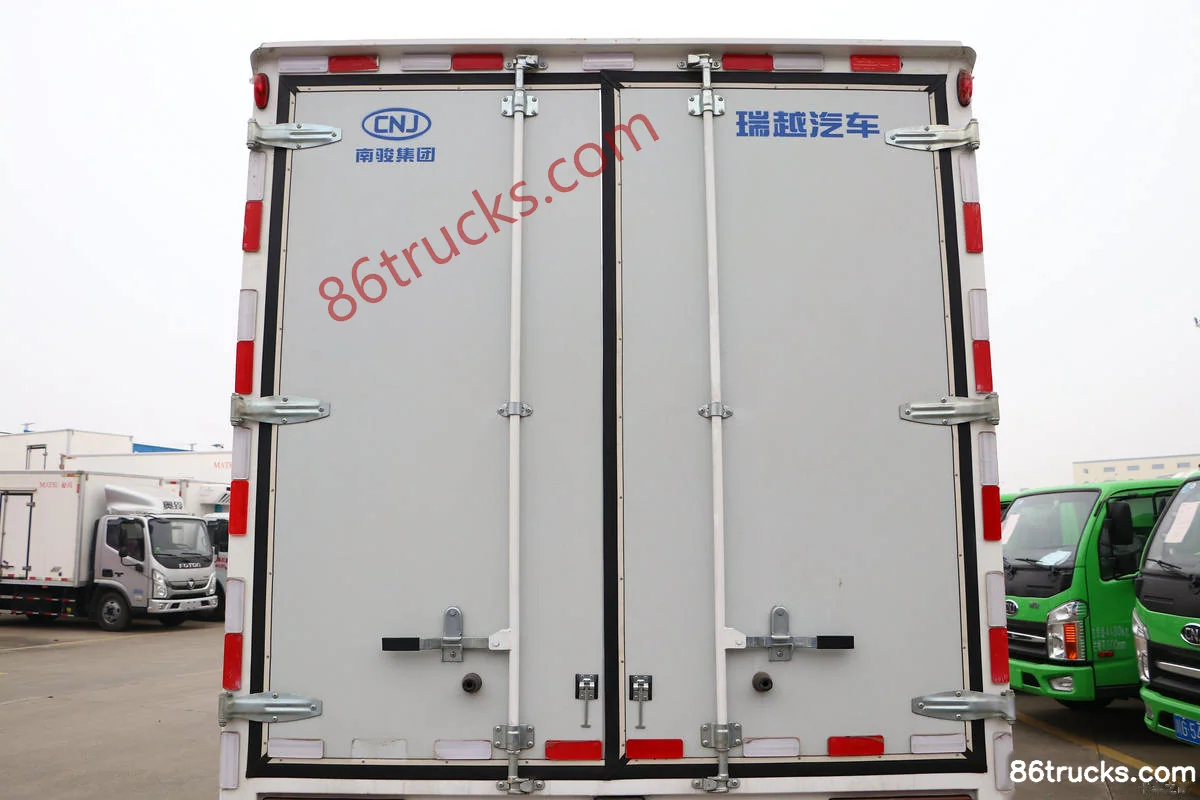

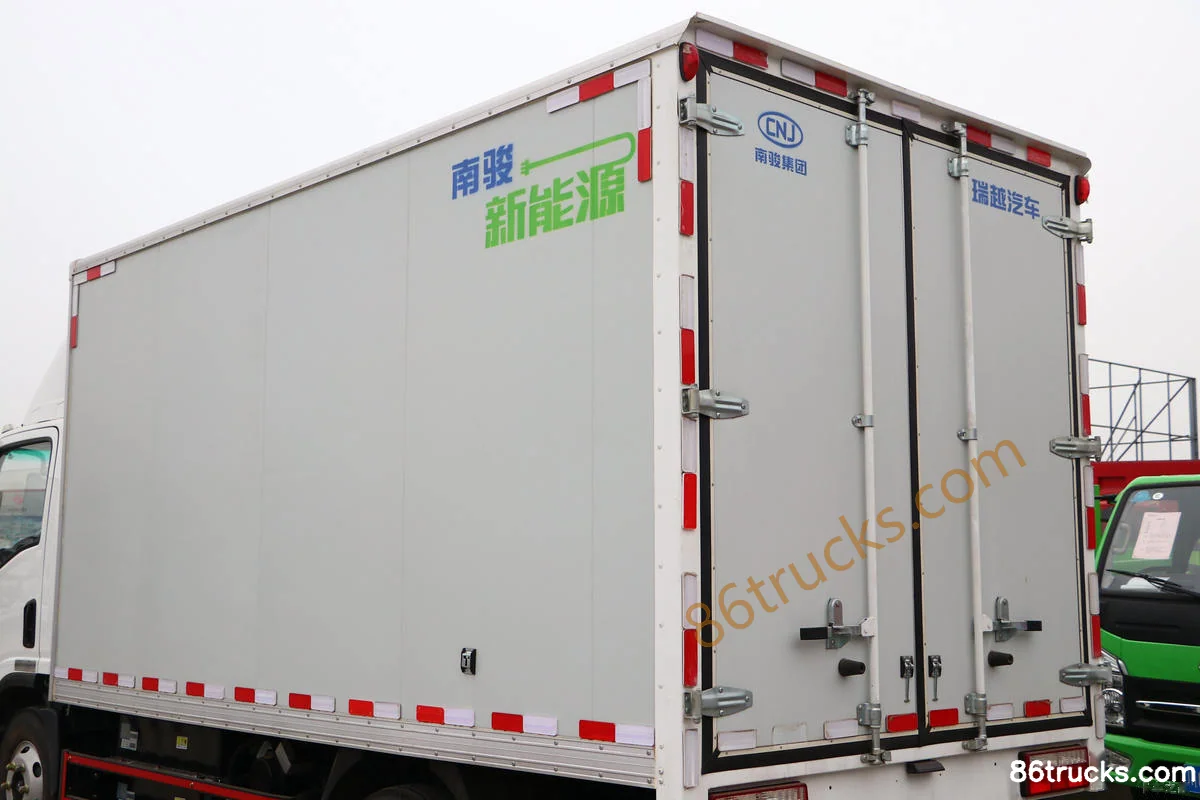

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Body (1) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Body (2) | 86Trucks NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels)?

Key specs of NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) suited for?

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) differ from other variants in the same series?

NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels) belongs to NanJun Ruijie D30 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D30GE 4.1m Single Row Pure Electric Box Van Light Truck 98.04kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
