FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh

Export reference
MSRP N/A
Rated payload:: 6.22ton
Wheelbase:: 7150mm
Cargo box type:: Wing Van
Model code (announced):: HN5182XYKH32G1BEVY
Type:: Wing-opening cargo truck
Box length class:: 9.6m
FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: Xuanwu
Motor 1 Brand: Anhui Hualing
Curb Weight: 11.65ton

Overview

The FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh is a Medium-duty truck featuring Xuanwu battery/range, Anhui Hualing motor, 4X2 (6 wheels) drive and 6.22t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HN5182XYKH32G1BEVY
Type: Wing-opening cargo truck
Drive type: 4X2
Wheelbase: 7150mm
Box length class: 9.6m
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 11.65ton
Rated payload: 6.22ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Ma'anshan City
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Anhui Hualing
Motor 1 Model: TZ270XSHME13
total rated power: 168kW
Peak power: 325kW
Battery/Charging
Battery Brand: Xuanwu
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 403kWh
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.6m
Cargo box width: 2.5m
Cargo box height: 2.7m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80 R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Mirrors:
Reverse Camera:
Multimedia features
Center Console Color Screen:
smart configuration
Cruise control (CCS):

Photos

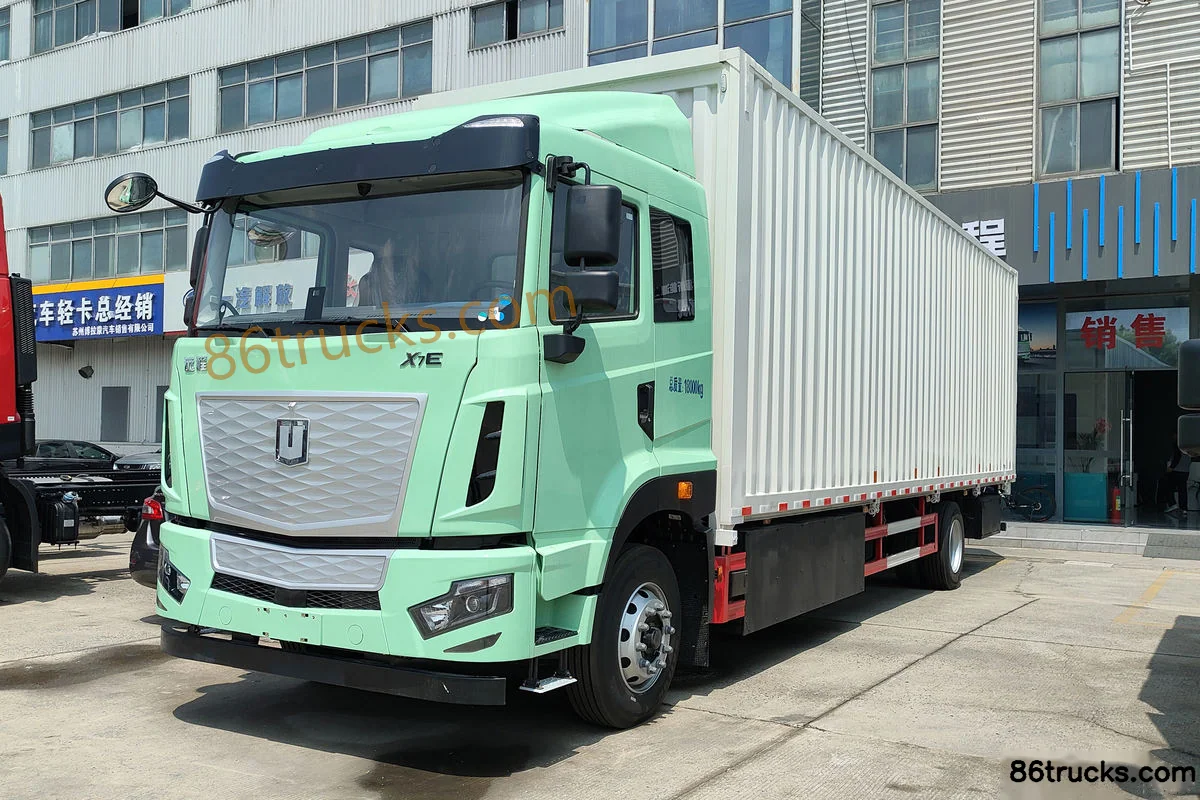

Exterior3

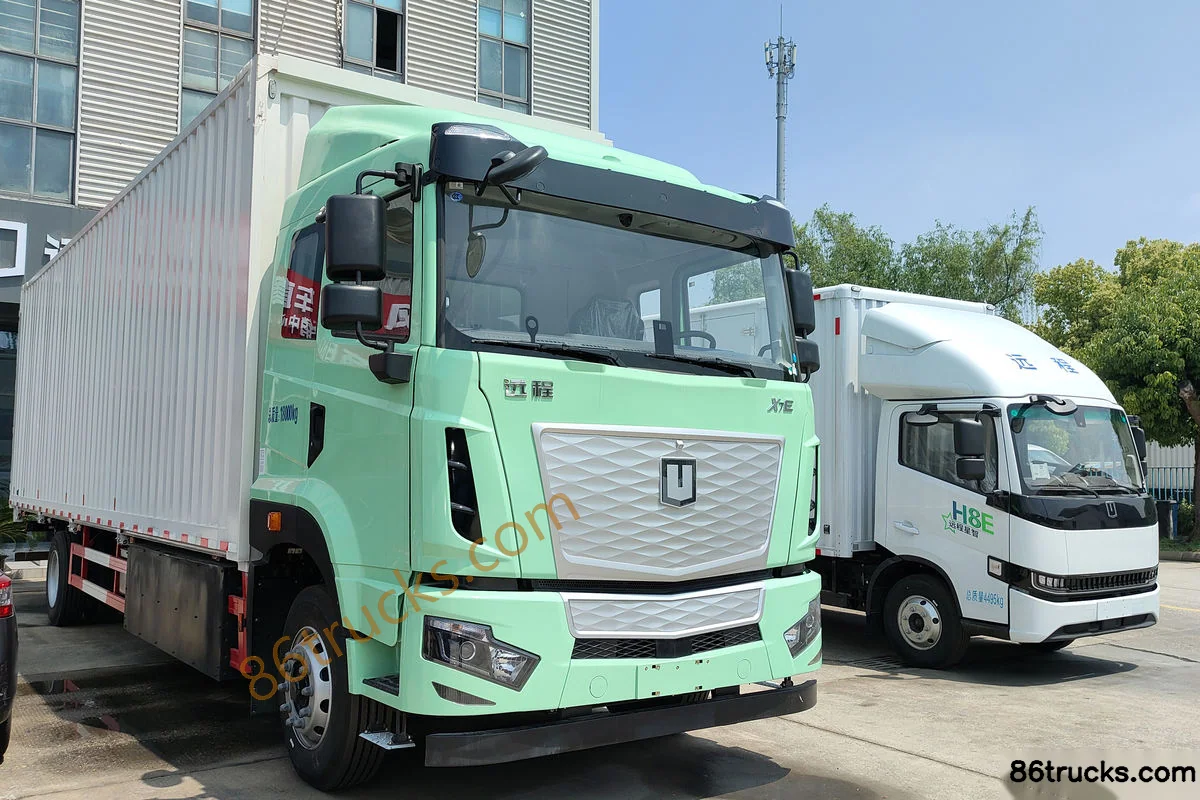

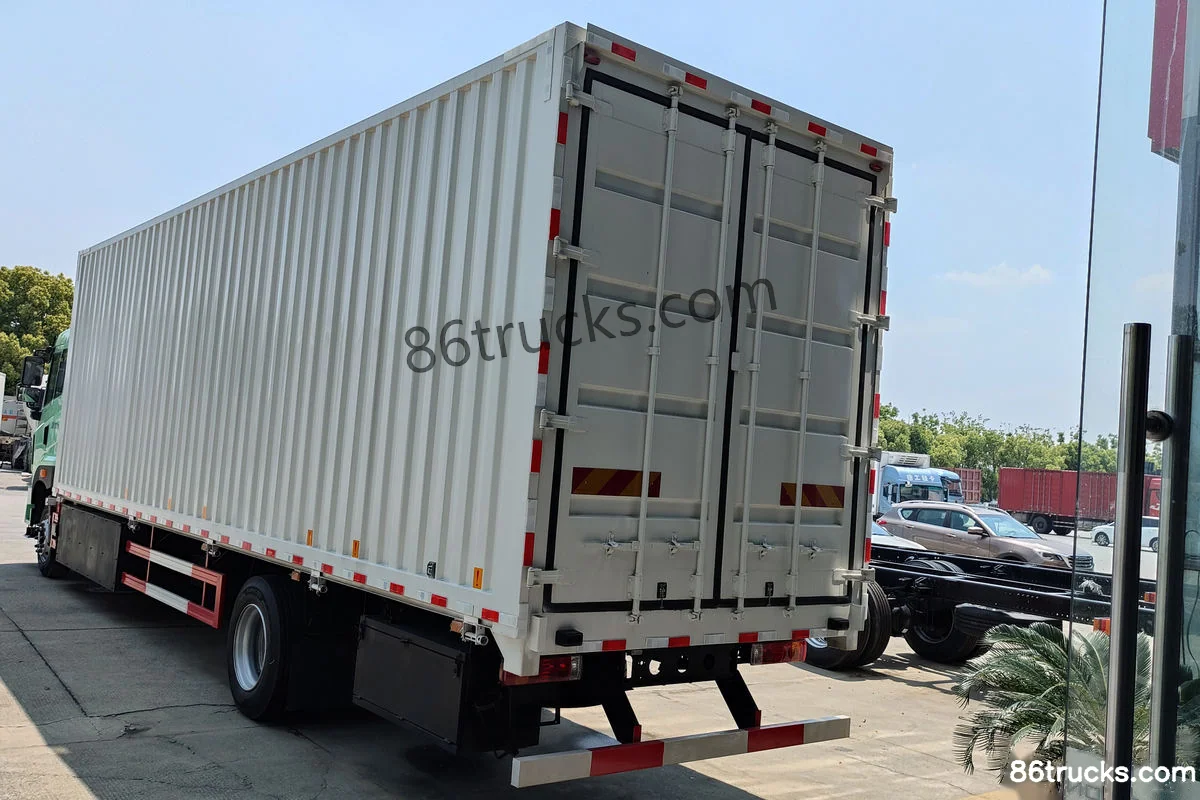

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Exterior (1) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Exterior (2) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Exterior (3) | 86Trucks

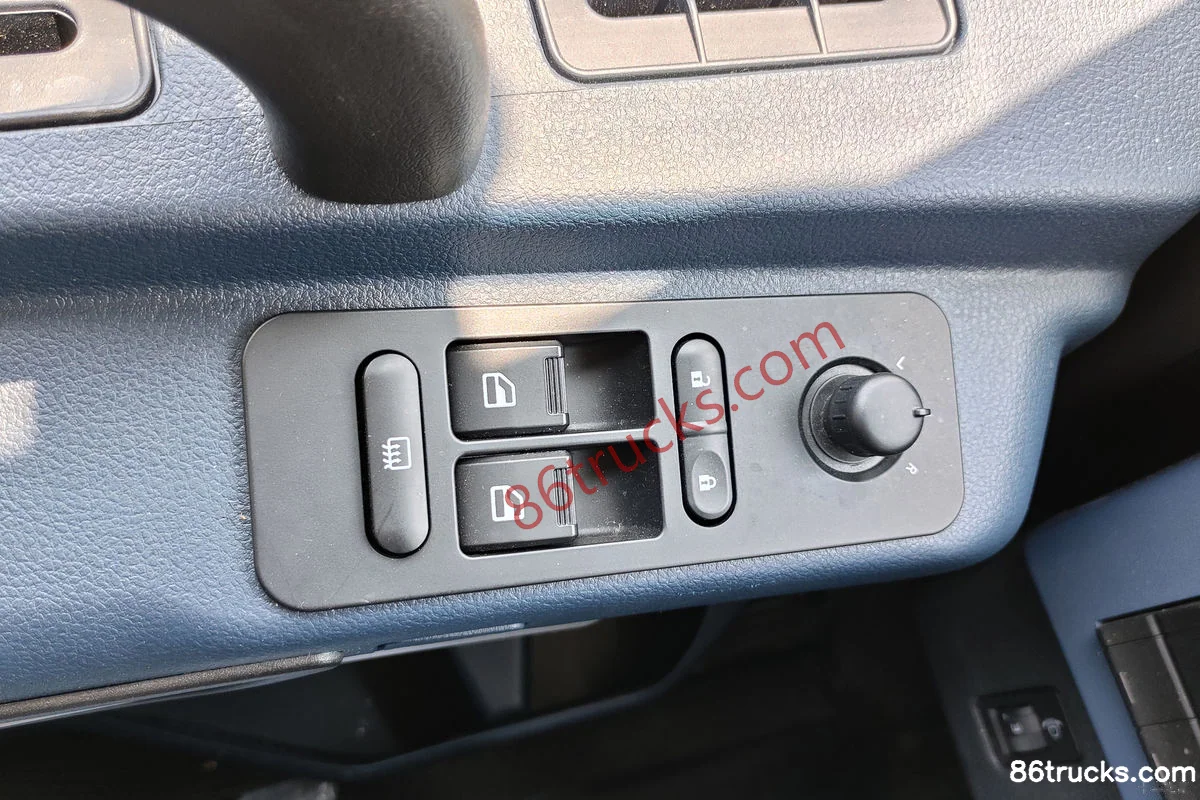

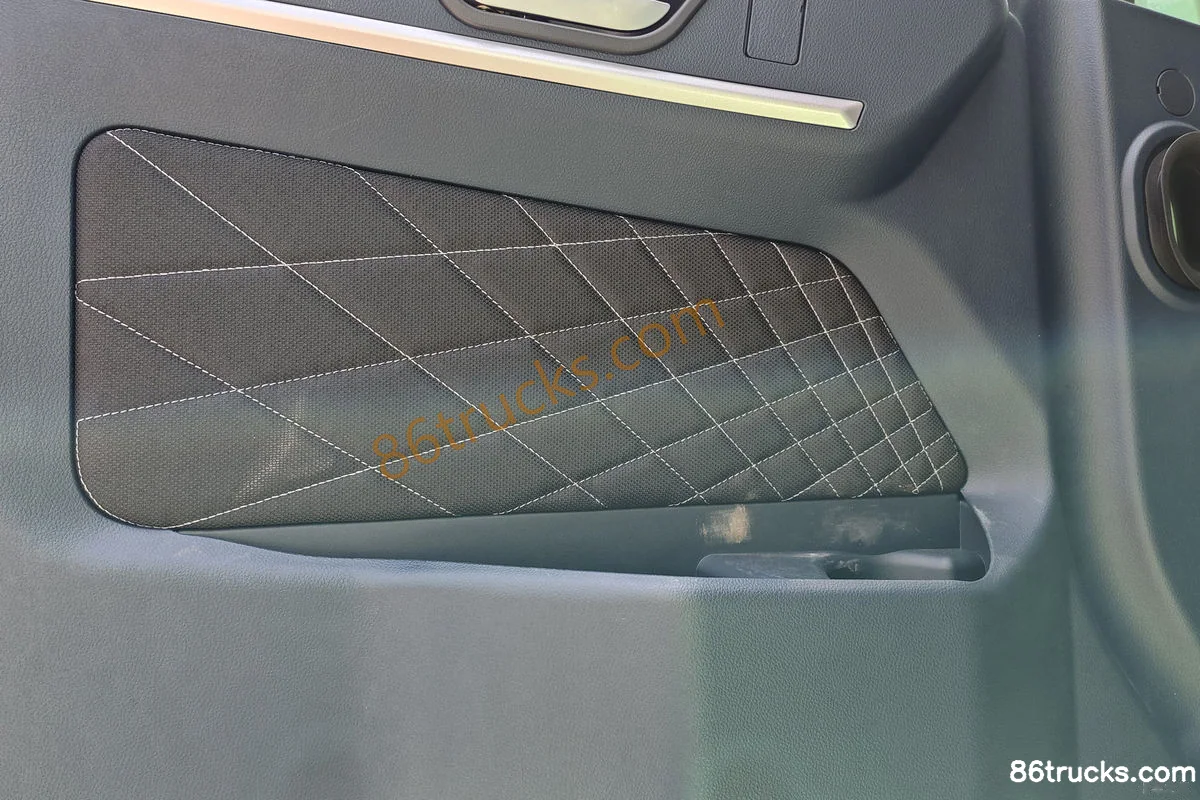

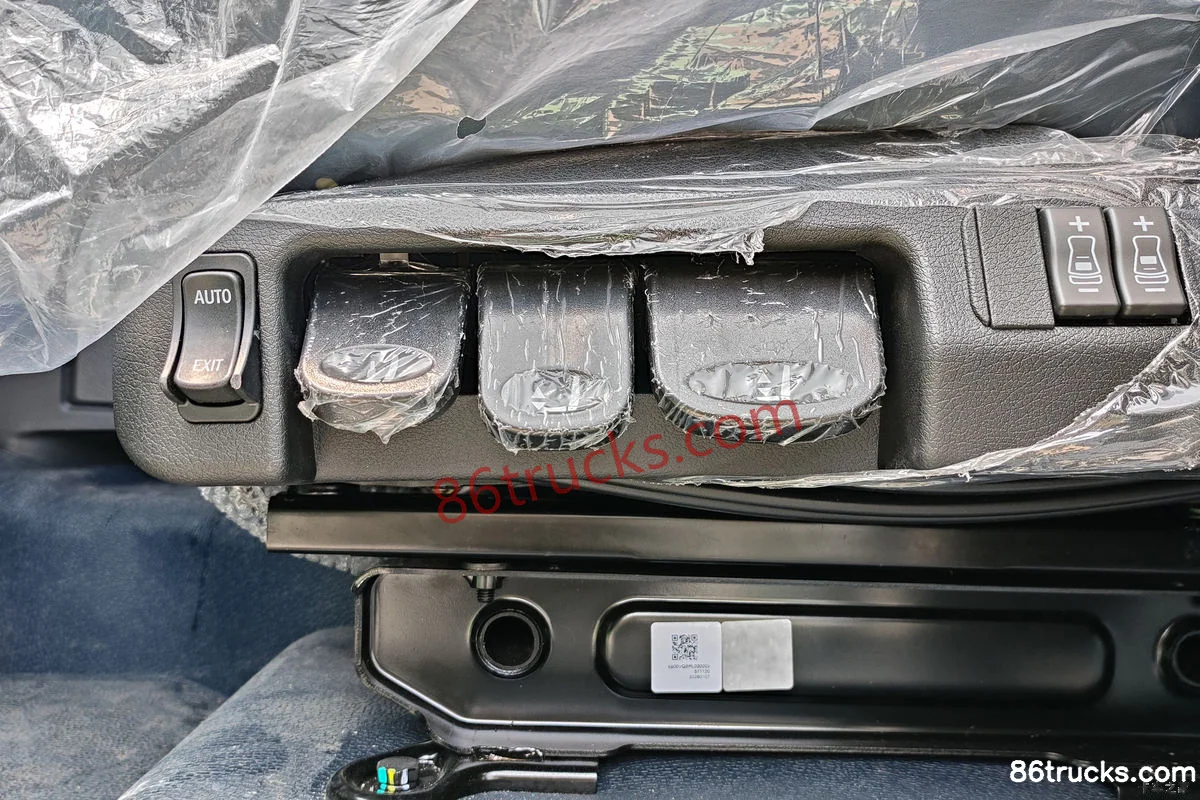

Cab3

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Cab (1) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Cab (2) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Cab (3) | 86Trucks

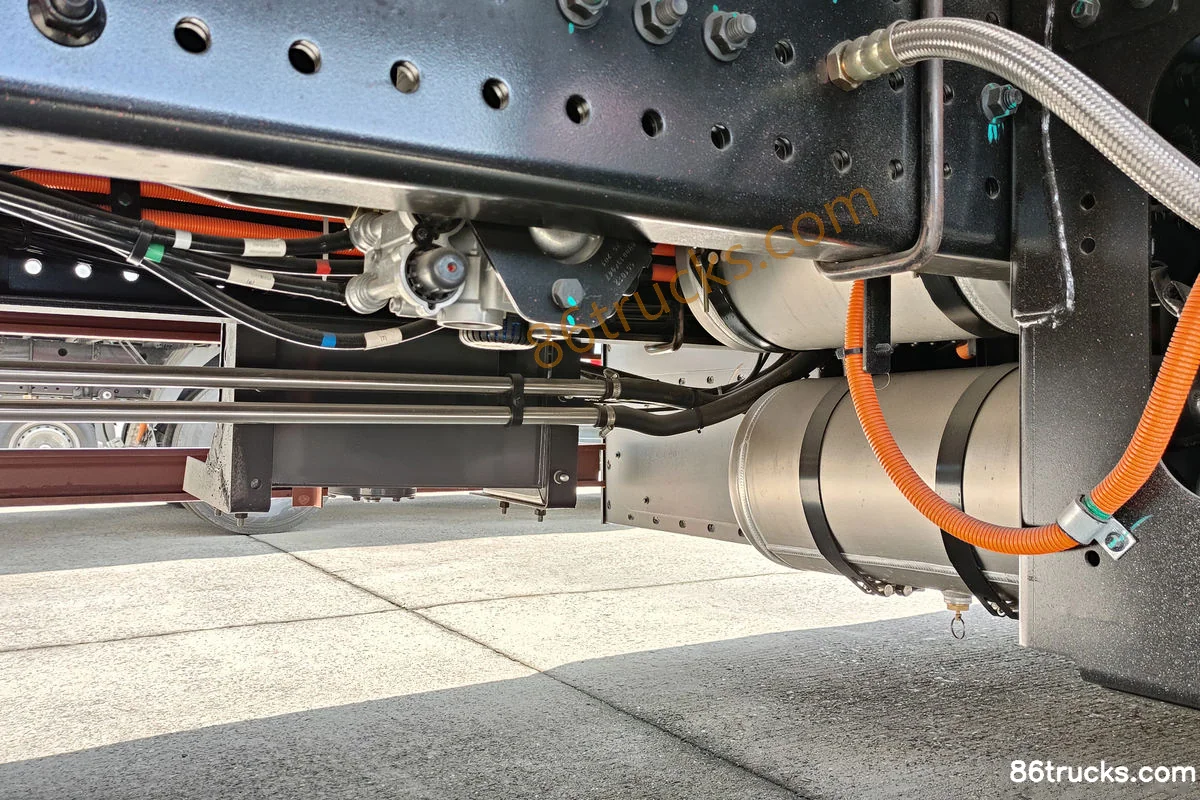

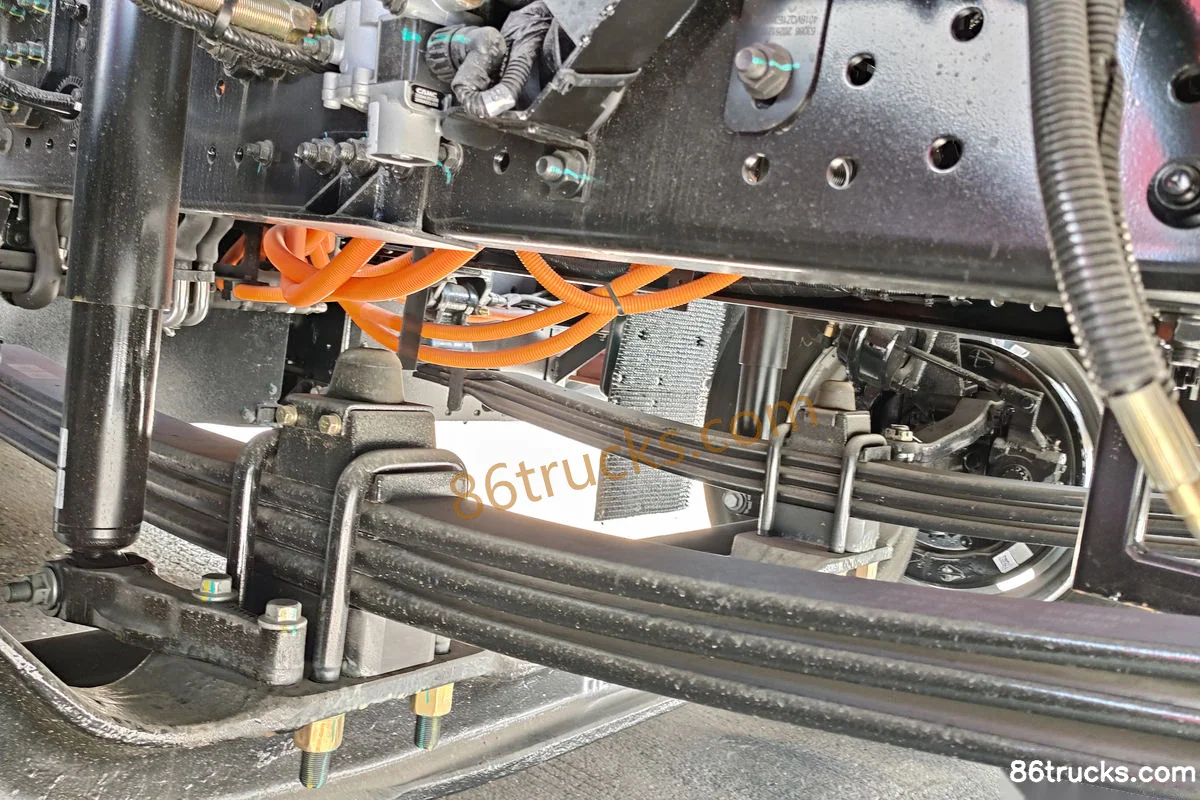

Chassis3

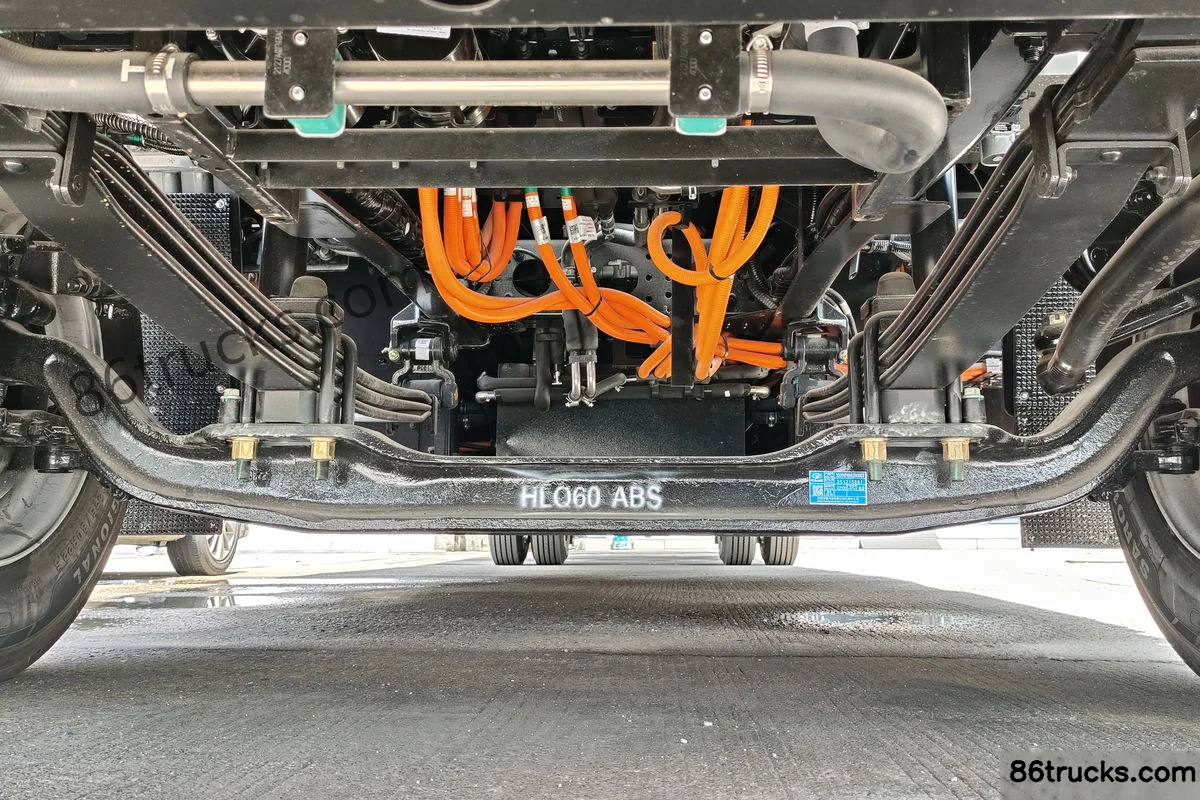

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Chassis (1) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Chassis (2) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Chassis (3) | 86Trucks

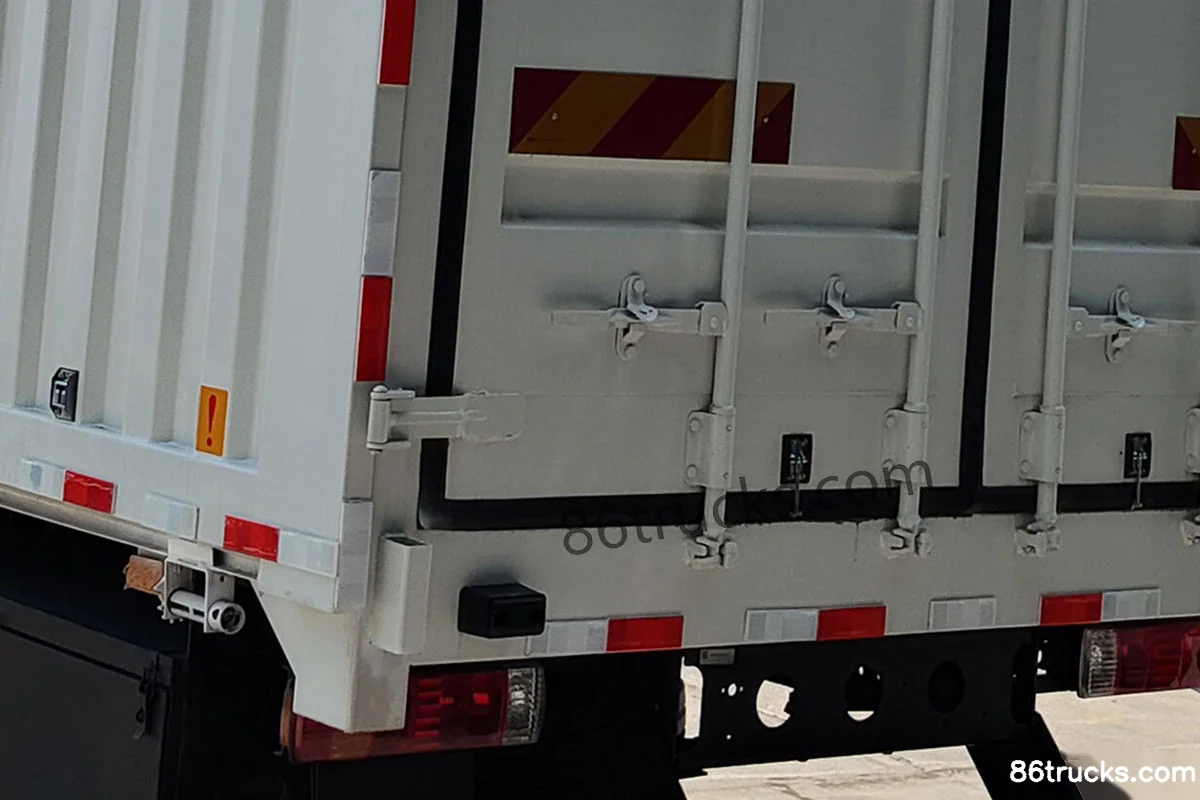

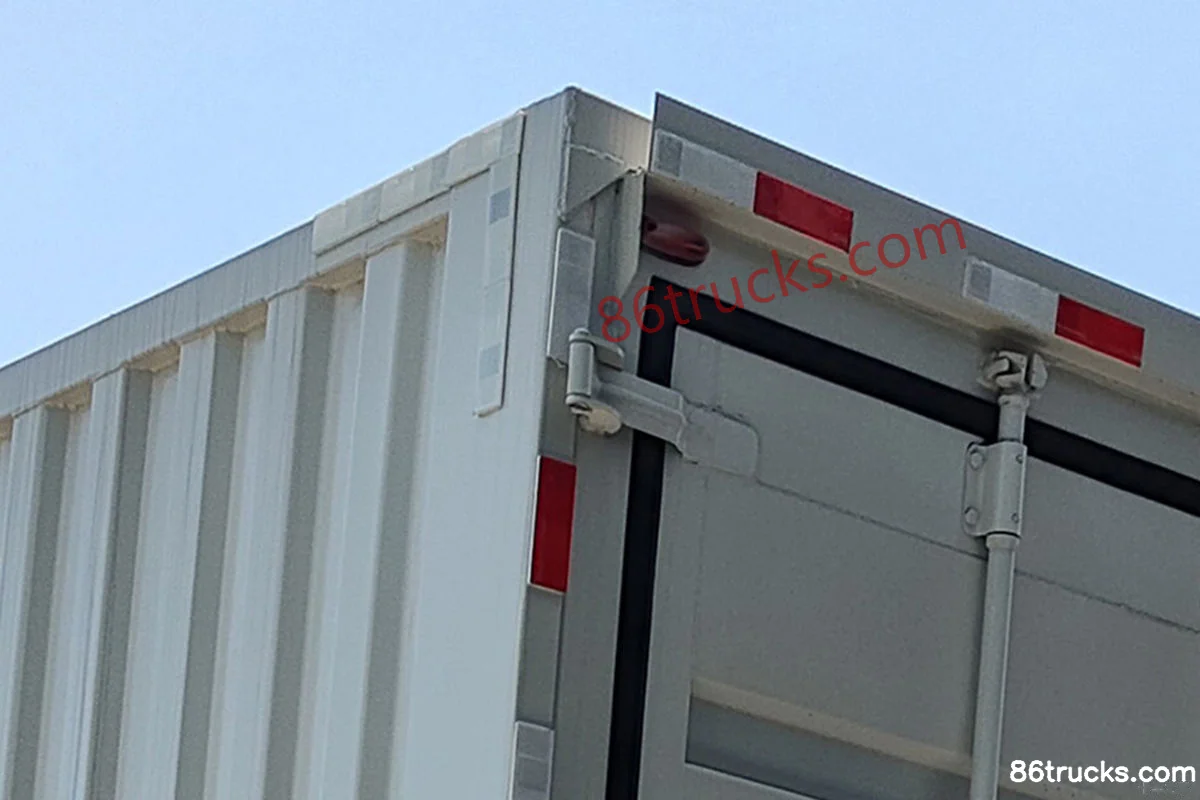

Body3

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Body (1) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Body (2) | 86Trucks FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh?

Key specs of FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh suited for?

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh differ from other variants in the same series?

FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh belongs to FARIZONX7E (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON X7E 4X2(6 wheels) 9.6m Battery Swap Electric Wing Box Truck Xuanwu 403kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
