Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels)

Export reference
From $23,167
MSRP ¥16.68M CNY
Rated payload:: 1.14ton
Wheelbase:: 2950mm
Cargo box volume:: 6.3m³
Model code (announced):: CL5030XXYBEV
Type:: enclosed cargo truck
Box length class:: 2.8m
Drive 4X2 (6 wheels)
CLTC range: 235km
Motor 1 Brand: Inbol
Curb Weight: 1.235ton

Overview

The Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) is a mini truck featuring 235km battery/range, Inbol motor, 4X2 (6 wheels) drive and 1.14t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CL5030XXYBEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2950mm
Box length class: 2.8m
Cab length: 4.74m
Cab width: 1.51m
Cab height: 2.36m
CLTC range: 235km
Curb Weight: 1.235ton
Rated payload: 1.14ton
GVWR: 2.505ton
Max. speed: 80km/h
Origin: Suizhou, Hubei
tonnage class: mini truck
Version: Lightweight version
Energy Type: Electric
electric motor
Motor 1 Brand: Inbol
Motor 1 Model: Y13120007
Max torque: 200N·m
Motor Type: AC induction motor
Fuel Type: Electric
total rated power: 18kW
Peak power: 50kW
total rated torque: 58N·m
total peak torque: 200N·m
Electronic Control
ECU Brand: Inbol
Battery/Charging
Battery Brand: Lishen
Charging method: Slow charge, fast charge
Battery type: NMC lithium battery pack
Battery capacity: 41.11kWh
fast charge time: 2h
Battery rated voltage: 321.2V
Energy Density: 140.94
Battery total voltage: 364V
Battery Model: LSHD088S032P-01-B1
Slow charge time: 12h
Cargo box parameters
Cargo box volume: 6.3m³
Cargo box type: Van body
Cargo box length: 2.75m
Cargo box width: 1.44m
Cargo box height: 1.61m
Cab parameters
Cab: conventional single-row cab
Cab width: 1300mm
seating capacity: 2Personnel
Seat rows: Single Row
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1190kg
rear axle description: Solid axle
rear axle allowable load: 1315kg
Aluminum wheels:
Tire
Tire Size: 165R13C
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

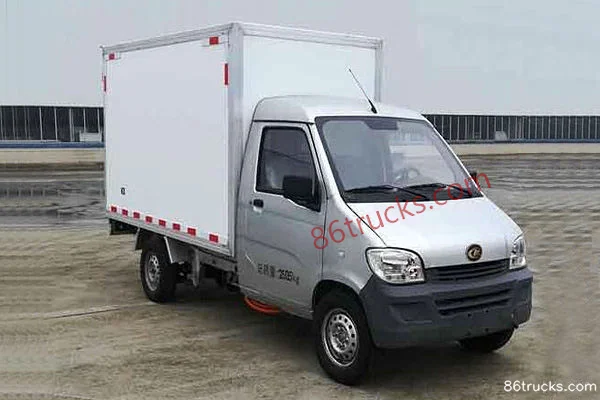

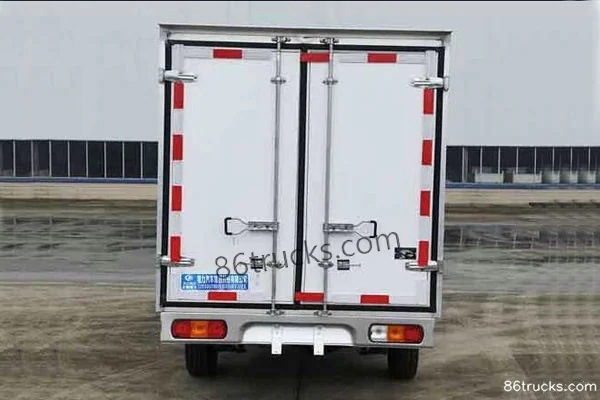

Exterior2

2 photos

FAQ

What is the export price of Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels), and what does it include?

Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) export reference is about From $23,167; MSRP is ¥16.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels)?

Key specs of Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) suited for?

Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) differ from other variants in the same series?

Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels) belongs to Chengli Chengli Special Vehicle Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengli New Energy Lightweight Edition 2.51T 2.75m Single Row Pure Electric Van Truck 41.11kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
