SANY Truck Mini Battery Swap Station-J312

Export reference
MSRP N/A
Charging time:: <1h (for 282 model)
Service capability:: Total mileage 14000KM/day (power consumption at 1.6kWh/km)
Swap operation mode:: Fully automatic battery swap, unattended operation, cloud monitoring

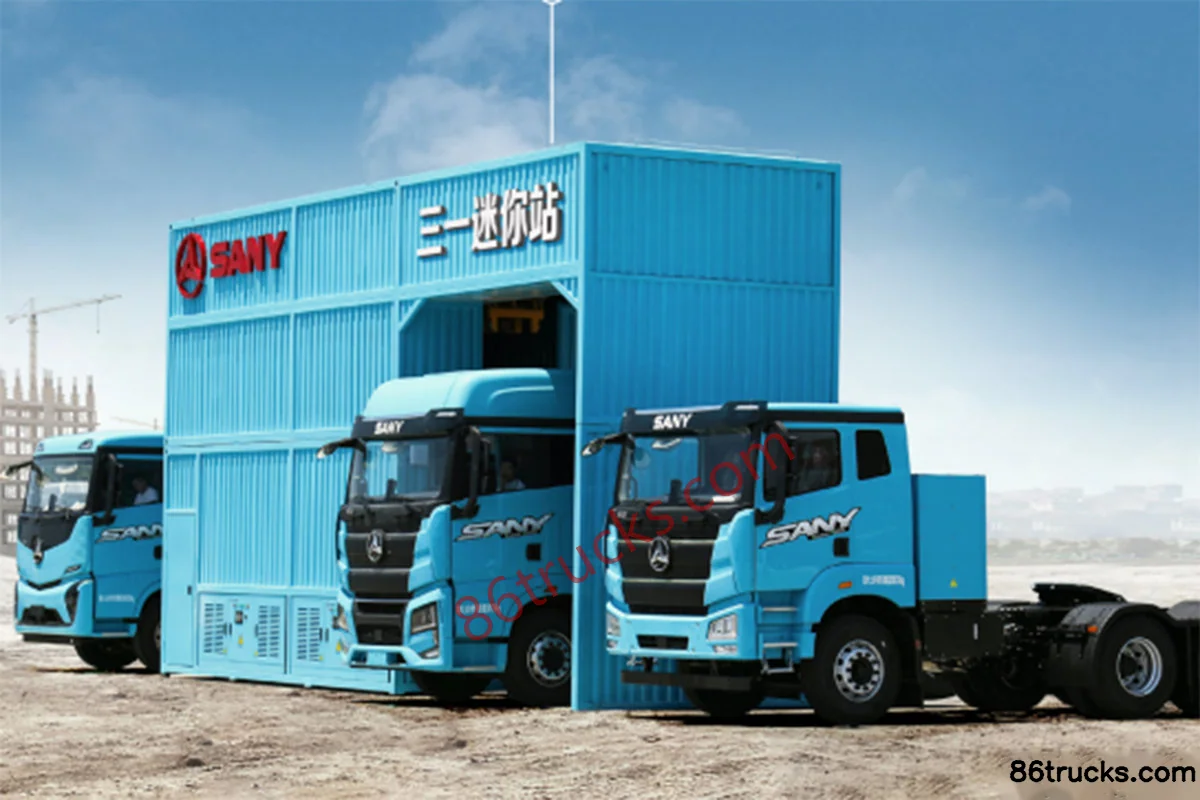

SANY Truck Mini Battery Swap Station-J312 exterior
View more photos (1)
Suitable Vehicle Model: SANY tractor trucks, dump trucks, mixer trucks, etc.
Swap station type: Compact
battery swap mode: Overhead type

Overview

The SANY Truck Mini Battery Swap Station-J312 is a parts product with fit for SANY tractor trucks, dump trucks, mixer trucks, etc..

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Swap station type: Compact
battery swap mode: Overhead type
battery swap time: ≤300S
battery swap success rate: ≥99%
Charging time: <1h (for 282 model)
basic battery station config: 3+1 battery slots + 2 charging terminals (expandable to 8)
battery station service
Service capability: Total mileage 14000KM/day (power consumption at 1.6kWh/km)
Service vehicle range: 10-30 units (based on 282 model)
Swap operation mode: Fully automatic battery swap, unattended operation, cloud monitoring
Unlocking method: Automatic coupling/uncoupling
Vehicle Positioning: Remote positioning + voice prompt + guide light
Battery location: Vision + remote sensing positioning + voice prompts
starting method: Keyless, scan, one-button start
Suitable Vehicle Model: SANY tractor trucks, dump trucks, mixer trucks, etc.
Station construction requirements: Site, power (box transformer, external lines, etc.), base station, station battery
Station construction period: 12h
other battery station info
Station dimensions: 10.7m×3.3m×6m
Floor Space: 35.3㎡
Station weight: 13T
Ambient Temperature: Normal temp: -5℃~55℃ Low temp: -30℃~55℃
Altitude: ≤3000m
Power source: AC380V,50Hz
Rated power demand: 1250KVA

Photos

Exterior1

SANY Truck Mini Battery Swap Station-J312 Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is SANY Truck Mini Battery Swap Station-J312 suited for?

Match SANY Truck Mini Battery Swap Station-J312 to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does SANY Truck Mini Battery Swap Station-J312 differ from other variants in the same series?

SANY Truck Mini Battery Swap Station-J312 belongs to SANY Truck (battery swap station). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Truck Mini Battery Swap Station-J312?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Truck Mini Battery Swap Station-J312?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
