FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck

Export reference
From $27,778
MSRP ¥20M CNY
Horsepower: 260
Emission: China VI
Fuel: Diesel
Engine: Dachai5.2L
Transmission: Fast Gear
Curb Weight:: 8.66ton
seating capacity: 3Personnel
Rated payload: 9.21ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck is a Medium-duty truck featuring 9.78m cargo length, Van body cargo body, 3Personnel volume and 9.21t payload. On the powertrain side, it comes with a Dachai5.2L engine, 260 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 260 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XXYP28K2L8E6A80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.8m
engine: DachaiCA4DK2-26E65
transmission: Fast Gear8JSX95TC
Rear Axle Ratio: 4.333
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1950mm
rear track: 1860mm
Curb Weight: 8.66ton
Rated payload: 9.21ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 14°
Front/rear suspension: 1.41/3.485m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: CA4DK2-26E65
Engine info: Dachai5.2L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.17L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 950N·m
Rated speed: 2200rpm
Engine Type: DOC+DPF+Hi-SCR
Transmission Parameters
Transmission Model: Fast Gear8JSX95TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.78m
Cargo box width: 2.45m
Cargo box height: 2.65m
Cab parameters
Cab: JK6 flat-floor high-roof full-floating cab
Cab width: 2300mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: F4N front axle
Front axle allowable load: 6500kg
Frame Dimensions: 237*75*(6.5+4)mm
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

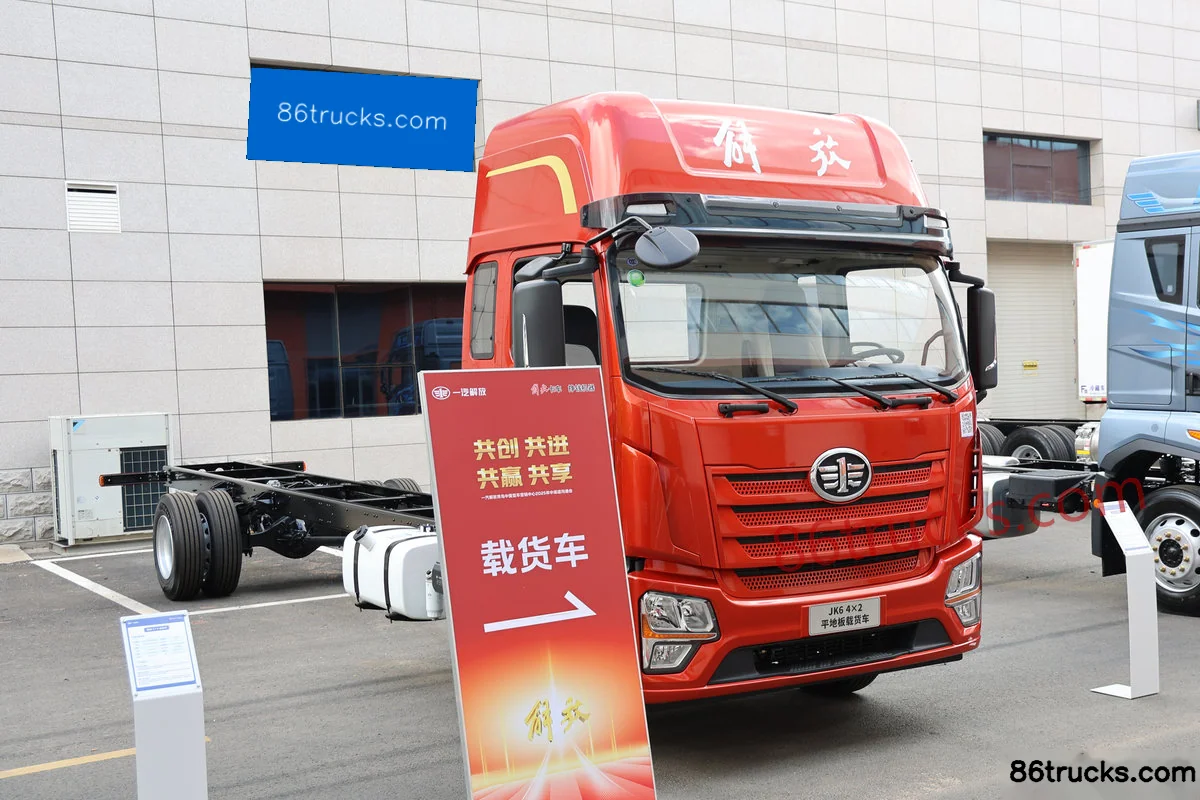

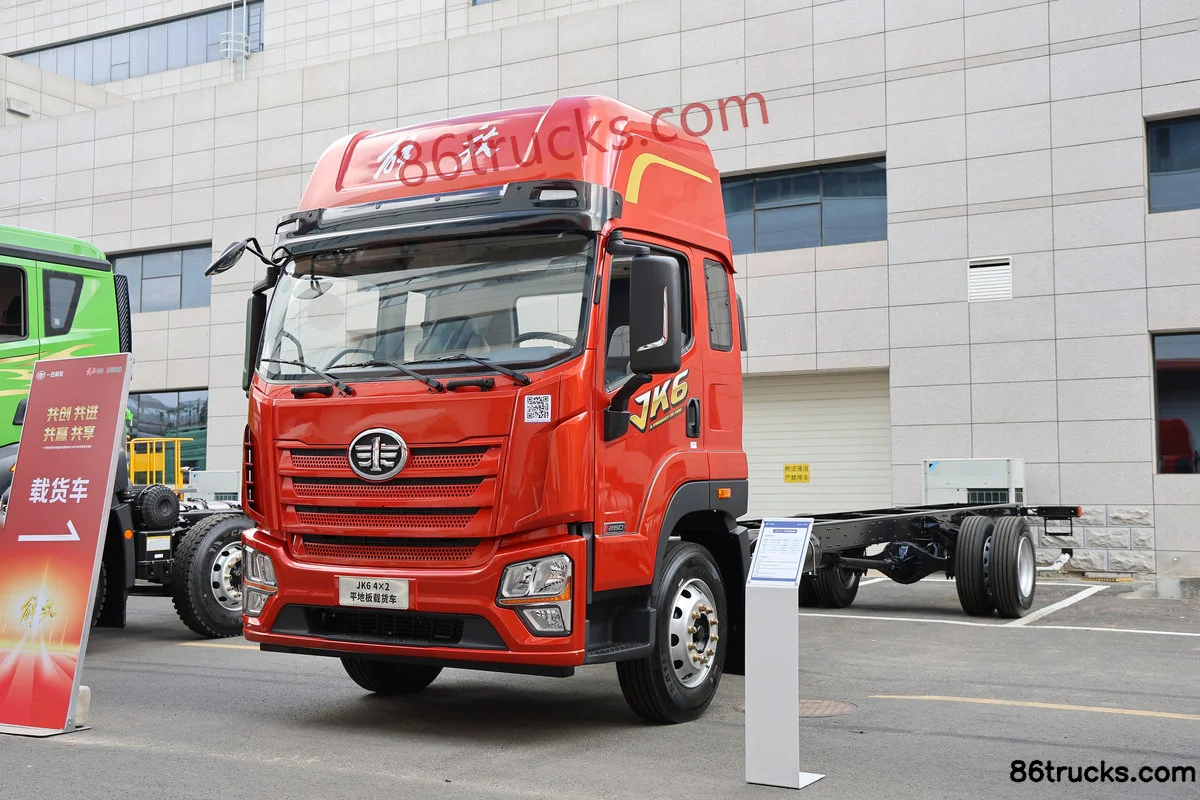

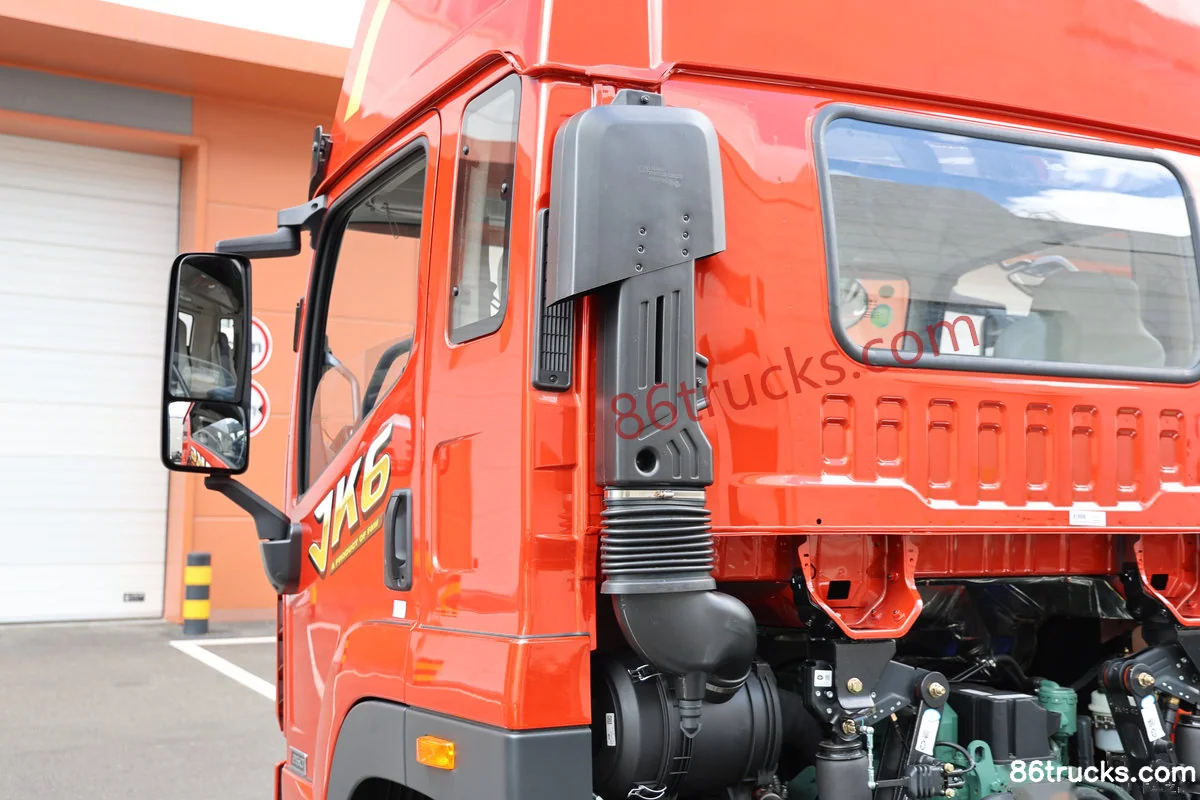

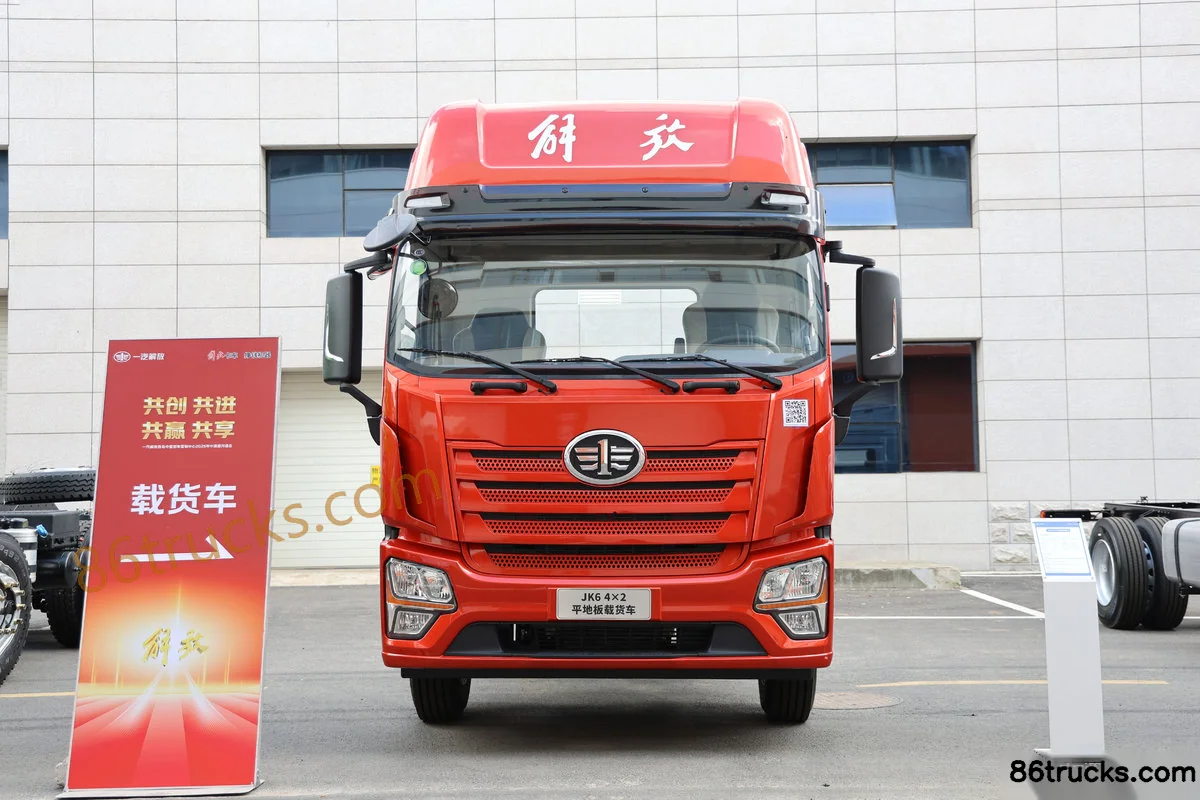

Exterior3

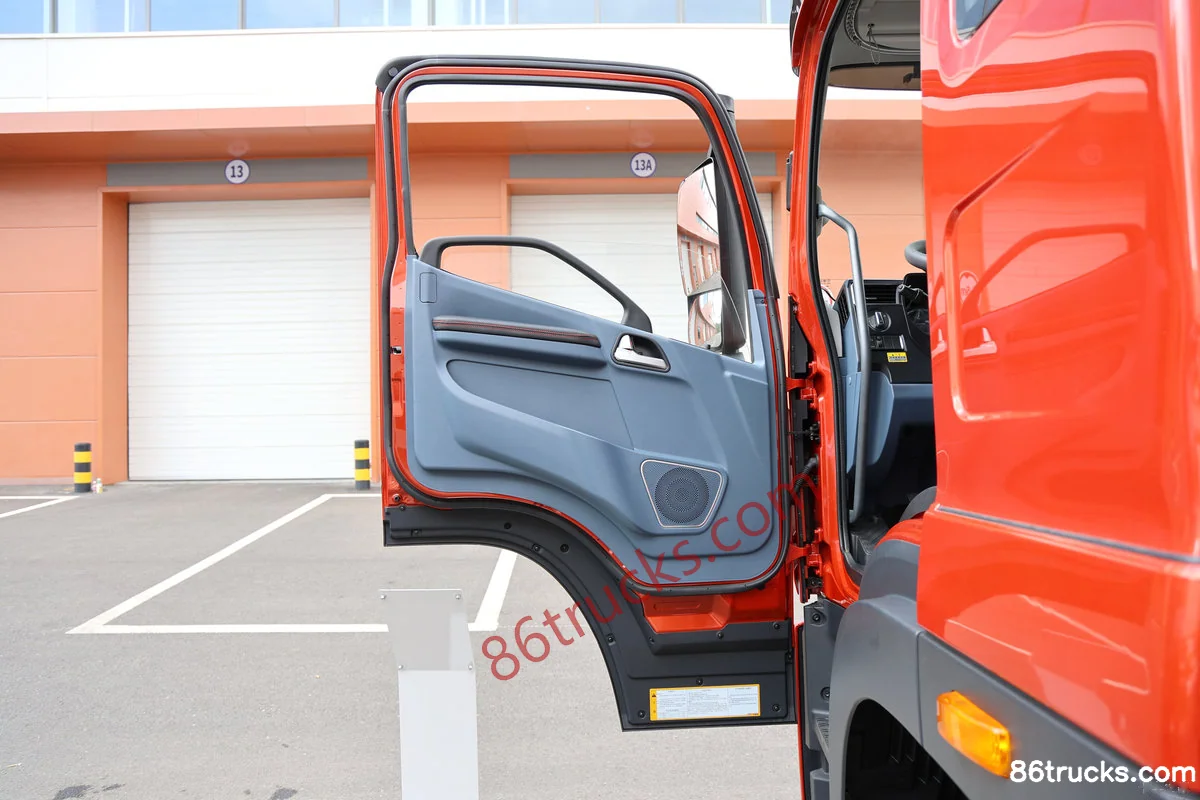

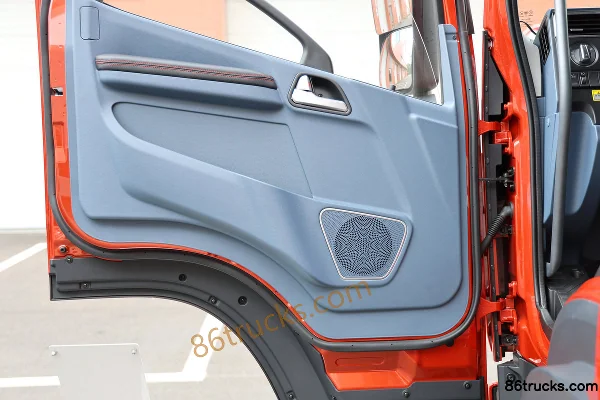

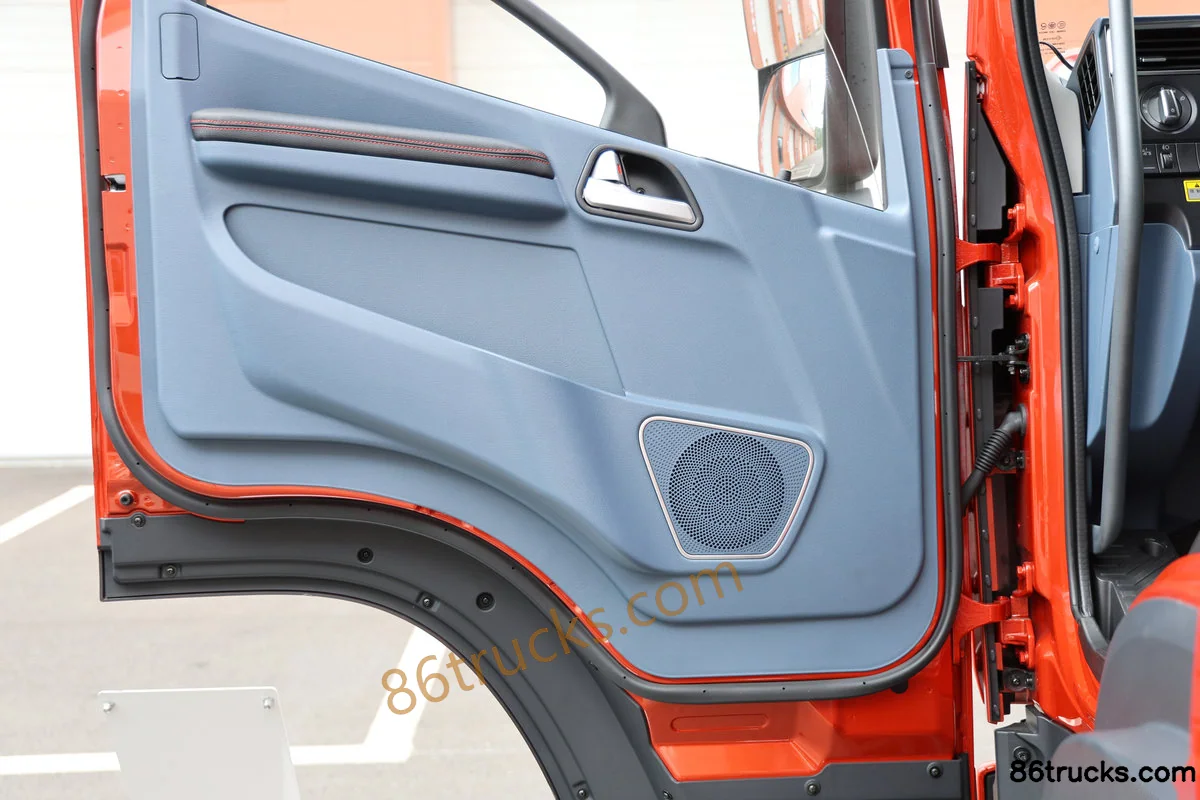

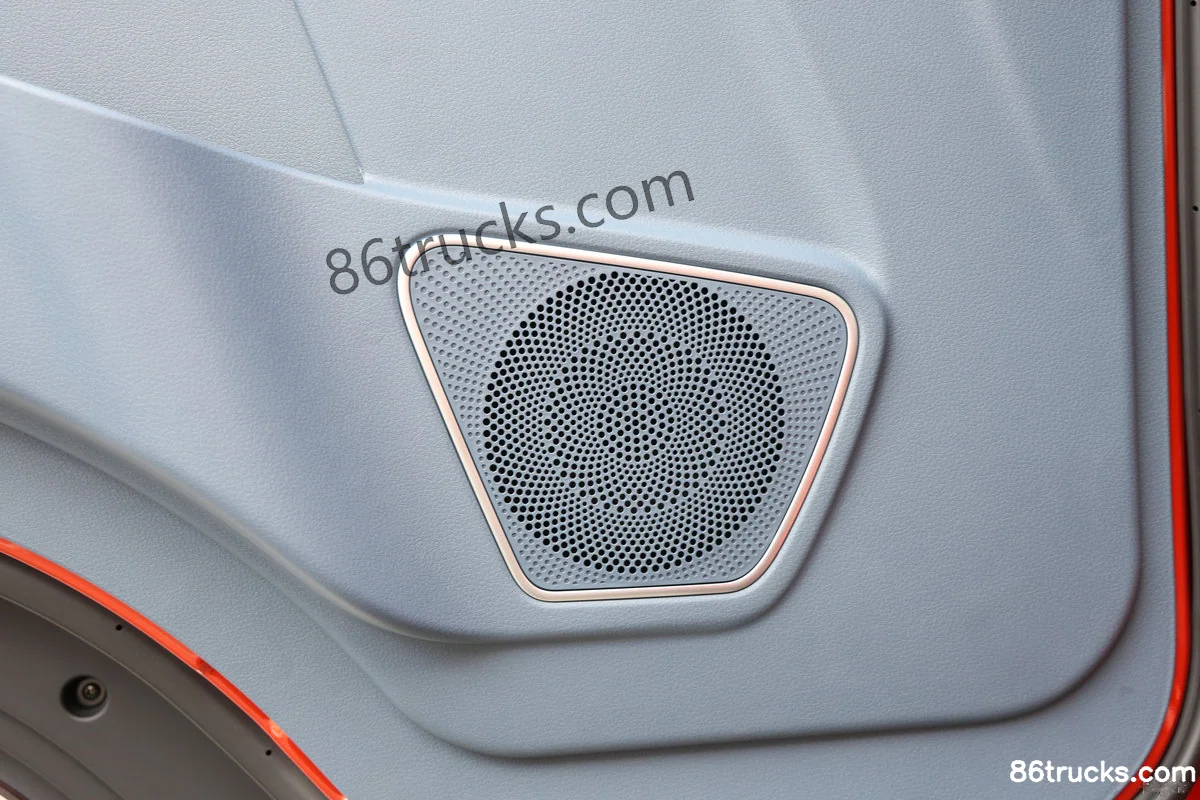

Cab3

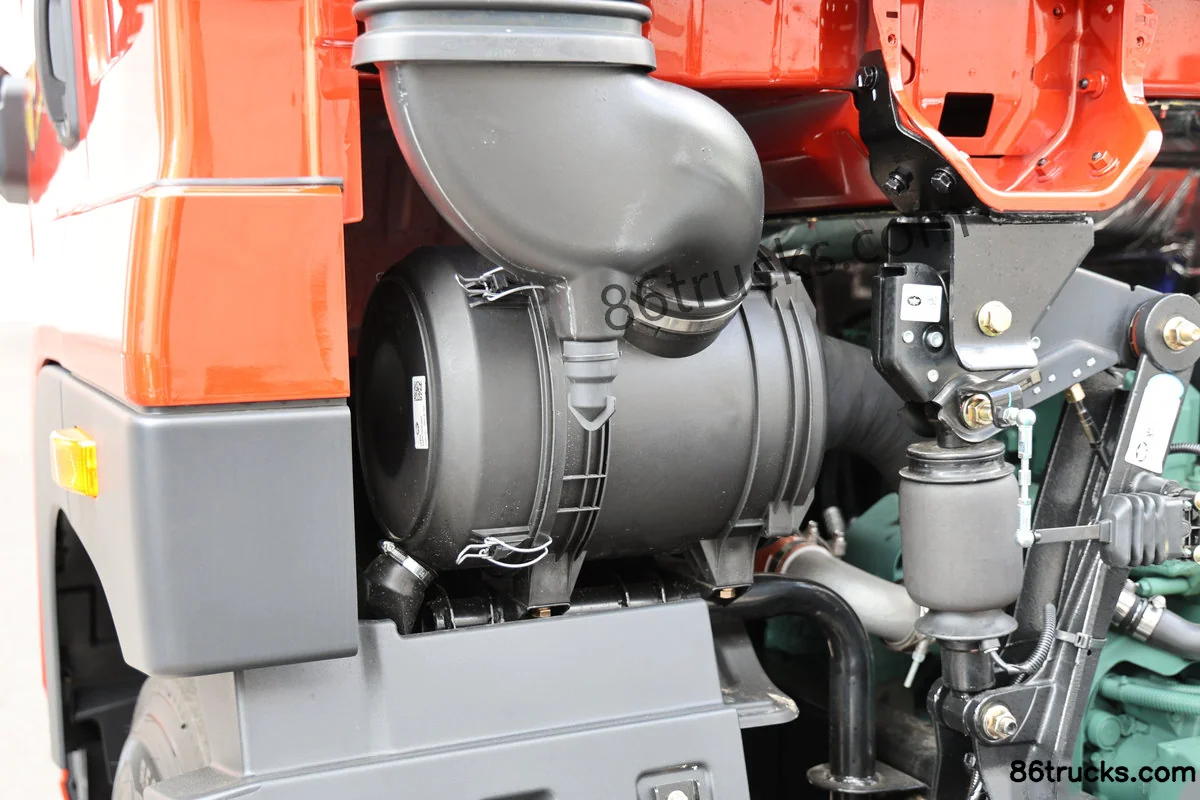

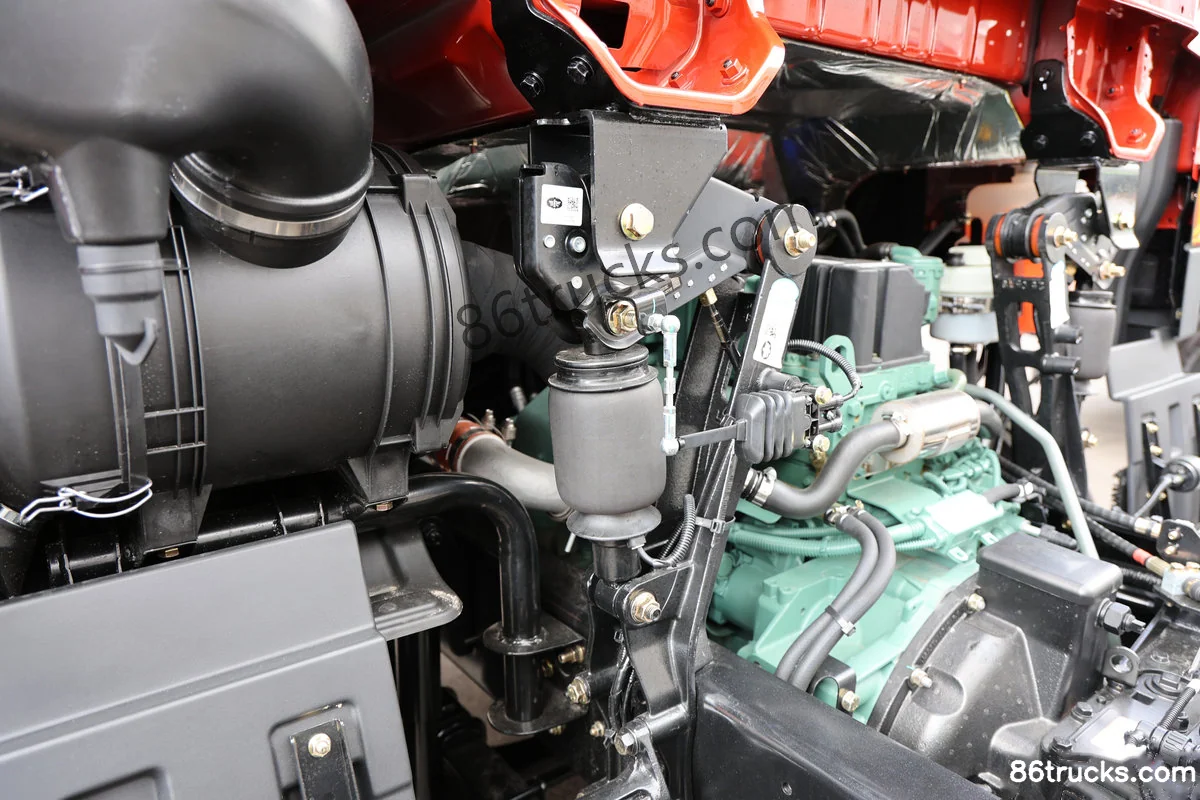

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck, and what does it include?

FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck export reference is about From $27,778; MSRP is ¥20M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck?

Key specs of FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck: Drive: 4x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai5.2L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck suited for?

FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang JK6 5.2L Diesel 260hp 4X2(6 wheels) Fast Gear 8-Speed 9.78m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
