Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh

Export reference
From $27,750
MSRP ¥19.98M CNY
Rated payload:: 0.8ton
Model code (announced):: ZB1034BEVFP2
Cab length:: 5.26m
Front track width:: 1614mm
CLTC range:: 560km
rear track:: 1620mm

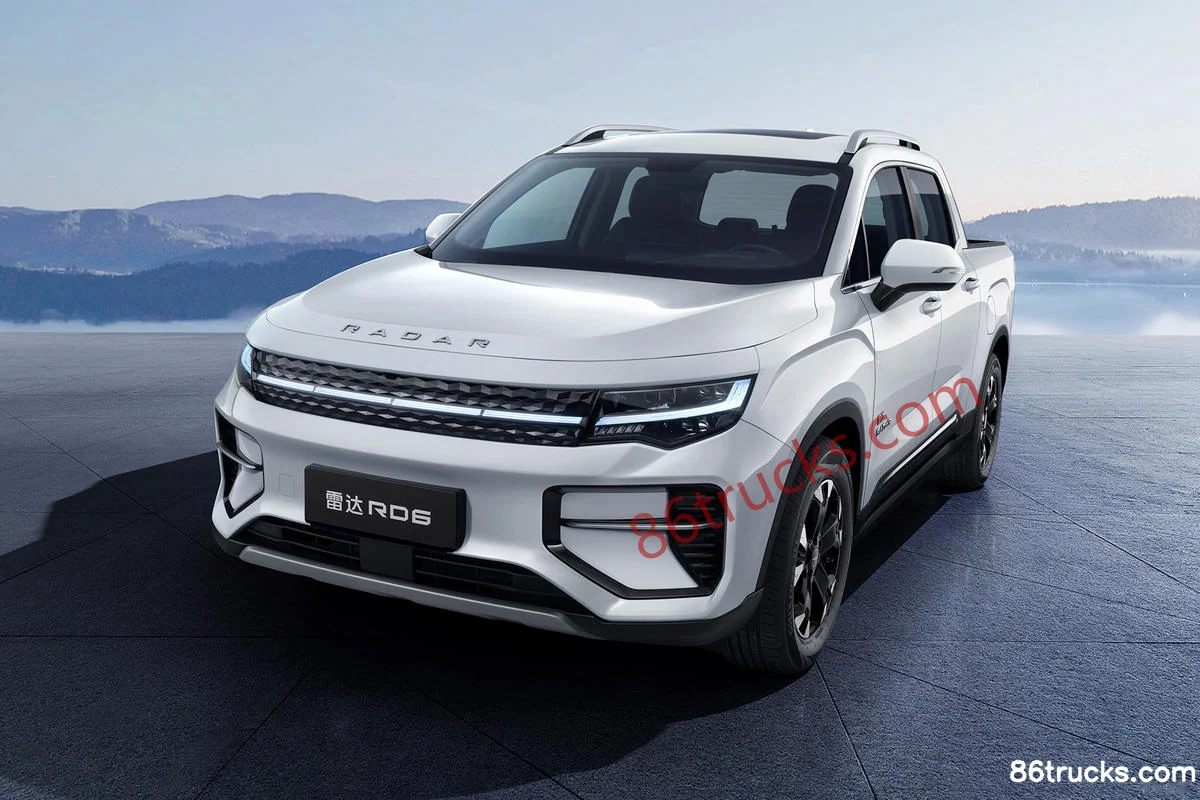

Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh exterior
View more photos (1)
Drive 2WD
Curb Weight: 2.025ton
Wheelbase: 3120mm
Front tire specification: 225/65 R17

Overview

The Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh is a Electric Pickup Truck featuring 2WD drive, 3.15t GVW, 3120mm wheelbase and 5.26m cab.

2WD

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZB1034BEVFP2
Drive type: 2WD
Wheelbase: 3120mm
Cab length: 5.26m
Cab width: 1.9m
Cab height: 1.865m
Front track width: 1614mm
CLTC range: 560km
rear track: 1620mm
Curb Weight: 2.025ton
Rated payload: 0.8ton
GVWR: 3.15ton
Max. speed: 185km/h
Origin: Zibo, Shandong
Approach angle: 22°
departure angle: 25°
Model Year: 2024
Front/rear suspension: 0.96/1.18m
Version: Tech Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Aosiweier
Motor 1 Model: TZ220XS200
Motor Type: Permanent magnet synchronous motor
Peak power: 200kW
total peak torque: 385N·m
acceleration time: 7.3sec
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 63kWh
Transmission Parameters
shift type: AT automatic
Chassis Specs
Front axle suspension type: MacPherson independent suspension
rear axle suspension type: Multi-link independent suspension
power steering type: Electric Power Steering
Aluminum wheels:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.525m
Cargo box width: 1.45m
Cargo box height: 0.54m
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Wheel brake
Front brake type: Disc
rear brake type: Disc
Front tire specification: 225/65 R17
Rear Wheel Specification: 225/65 R17
Safety features
keyless start system:
Driver airbag:
passenger airbag:
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
Stability control (ESP/DSC/VSC etc.):
Traction Control (ASR/TCS/TRC etc.):
Exterior features
Power Sunroof:
interior configuration
Seat height adjustment:
Power-Adjustable Rearview Mirror:
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: leather
Reverse Camera:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:

Photos

Exterior1

Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh, and what does it include?

Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh export reference is about From $27,750; MSRP is ¥19.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh?

Key specs of Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh: Drive: 2WD. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh suited for?

Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh is a Electric Pickup Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh differ from other variants in the same series?

Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh belongs to Geely Horizon (Electric Pickup Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Geely Horizon 2024 Tech Edition 2WD Double Row Pure Electric Pickup 86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
