Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh

Export reference
From $33,028
MSRP ¥23.78M CNY
Model code (announced):: BJ6552EVAA1
Cab length:: 5.49m
GVWR:: 3.495ton
Max. speed:: 100km/h
Front/rear suspension:: 0.93/1.05m
Energy Type:: Electric
Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh exterior
View more photos (12)
Battery Brand: CATL
Motor 1 Brand: Foton
Curb Weight: 2.45ton
Wheelbase: 3510mm

Overview

The Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh is a Electric Panel Van featuring CATL battery/range, Foton motor and 3.495t GVW.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ6552EVAA1
Wheelbase: 3510mm
Cab length: 5.49m
Cab width: 1.98m
Cab height: 2.195m
Curb Weight: 2.45ton
GVWR: 3.495ton
Max. speed: 100km/h
Front/rear suspension: 0.93/1.05m
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP135B
Motor Type: Permanent magnet synchronous motor
total rated power: 70kW
Peak power: 135kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 77.28kWh
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Aluminum wheels:
Body Parameters
Cab structure: Unibody
Seat count: 9Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
Tailgate type: top-hinged door
Wheel brake
Front brake type: Disc brake
rear brake type: Disc brake
Front tire specification: 215/75R16LT
Rear Wheel Specification: 215/75R16LT
Cab parameters
Seat rows: 4
Safety features
Driver airbag:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:

Photos

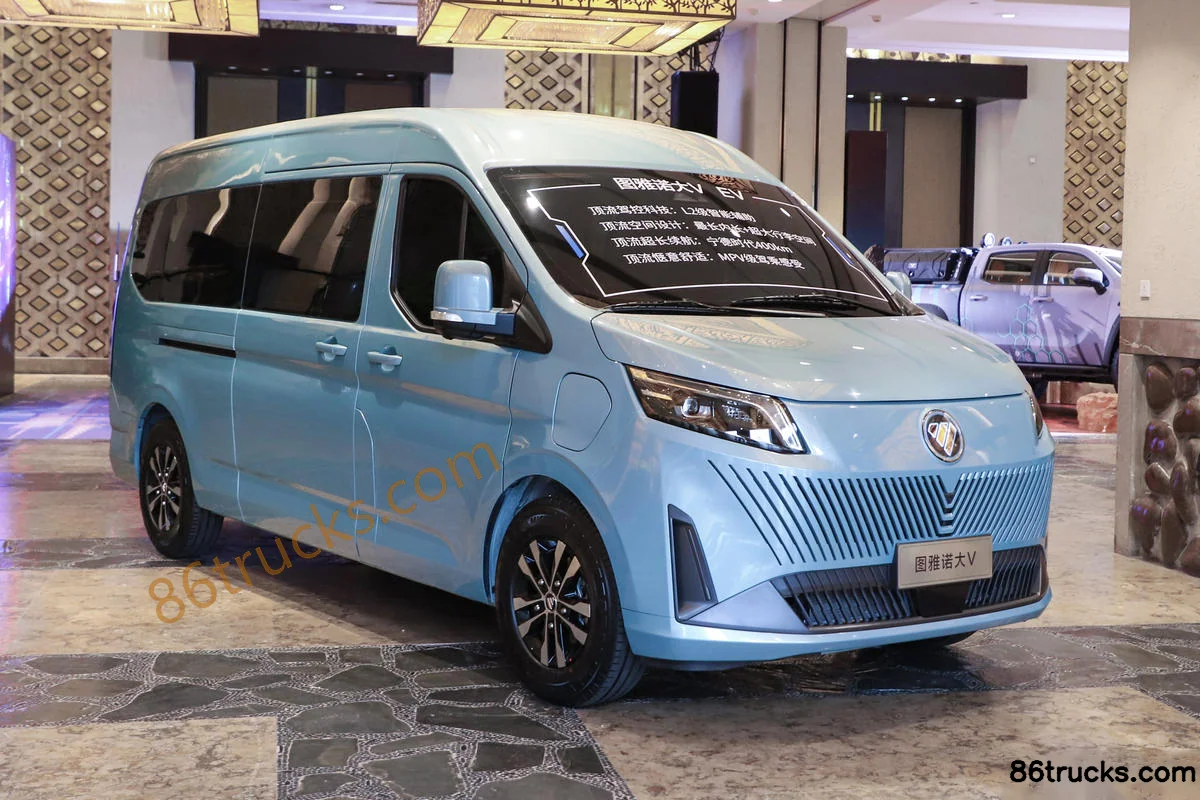

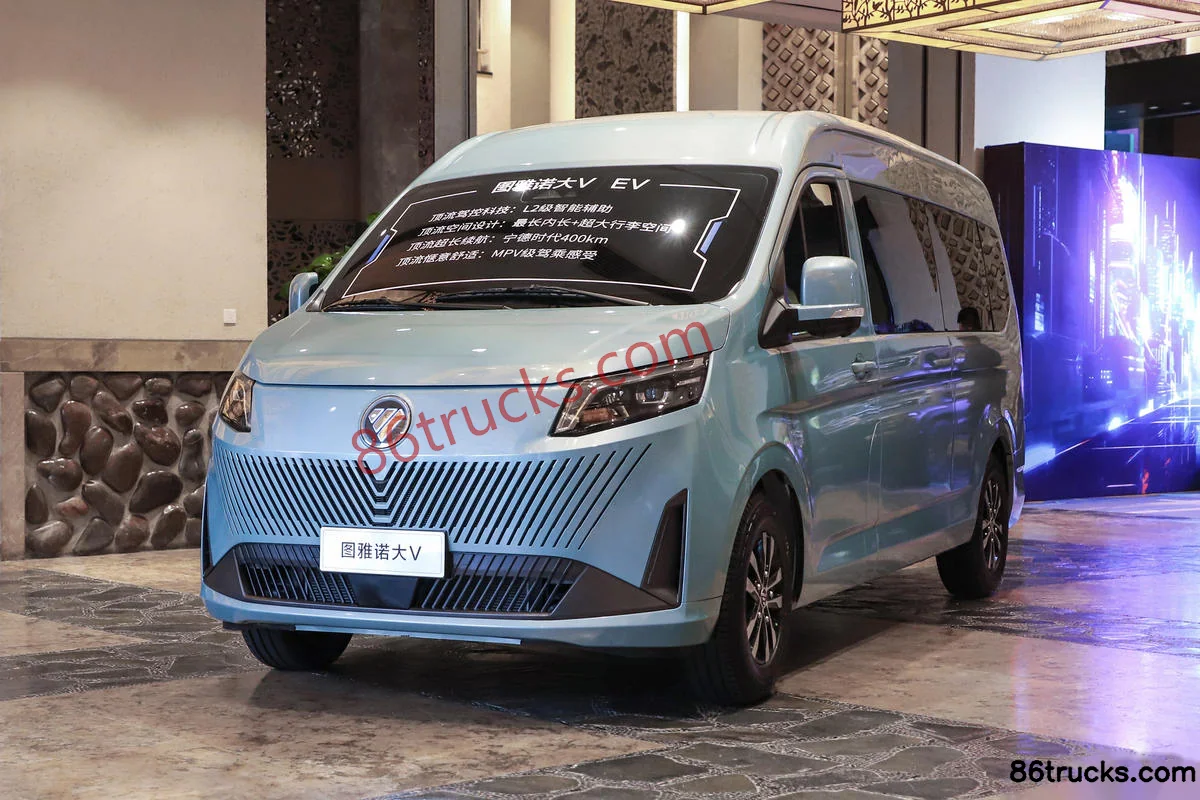

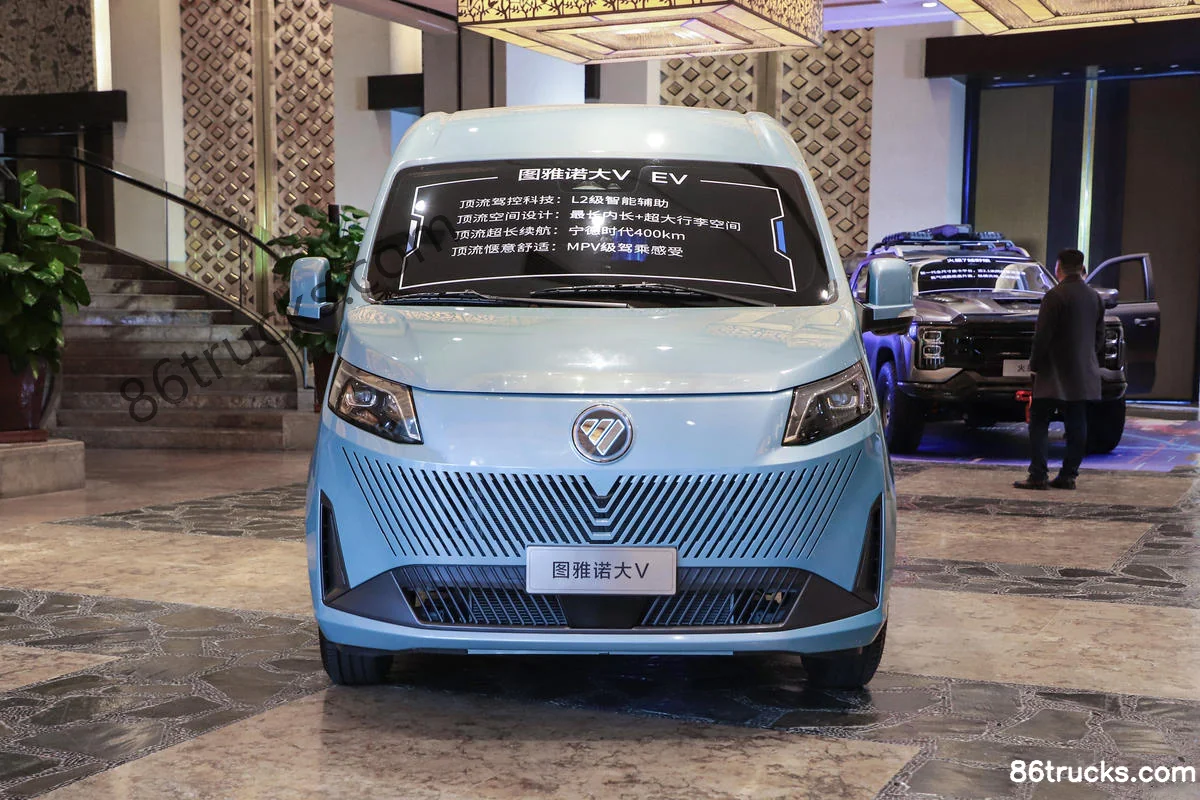

Exterior3

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Exterior (1) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Exterior (2) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Exterior (3) | 86Trucks

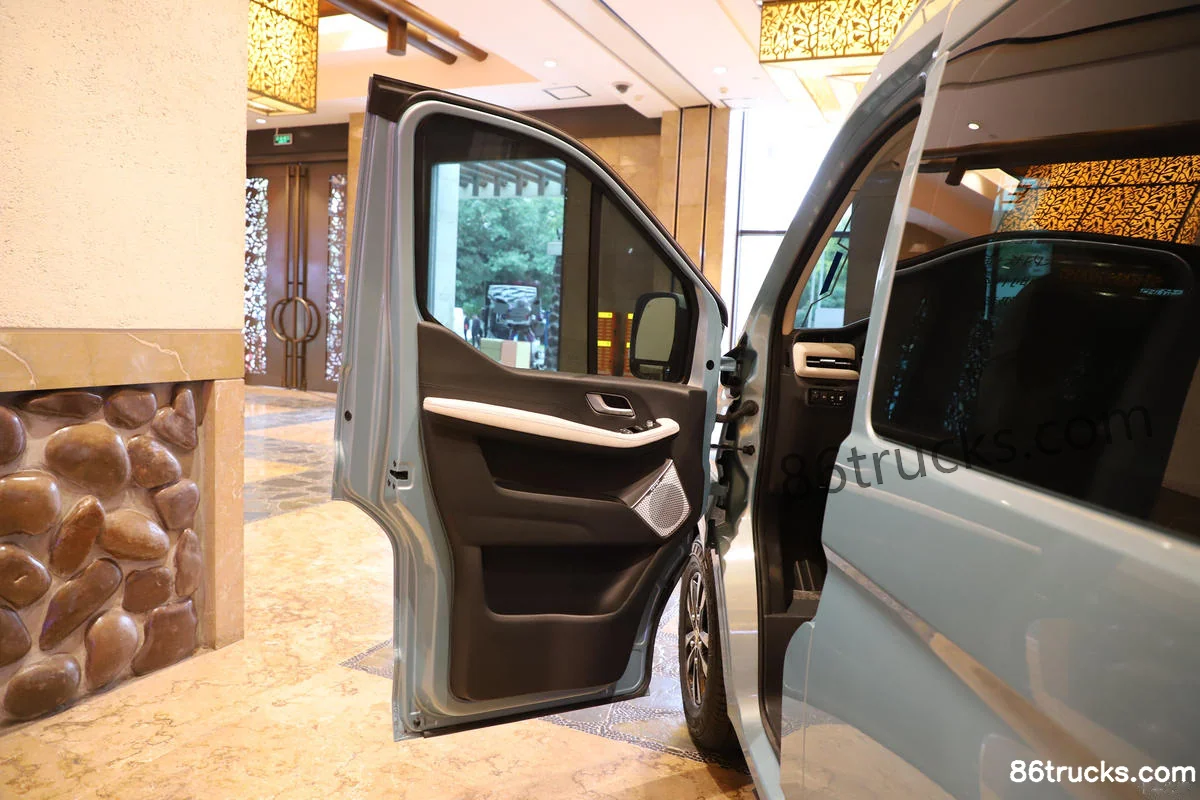

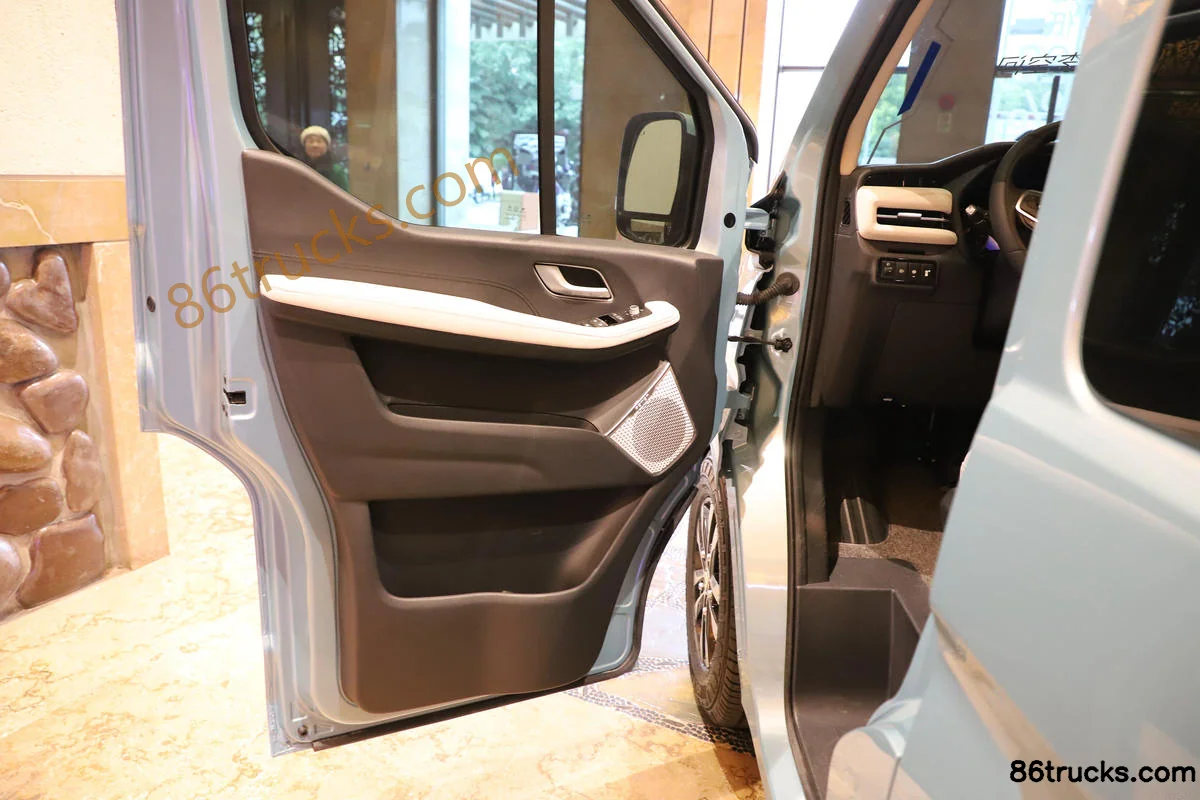

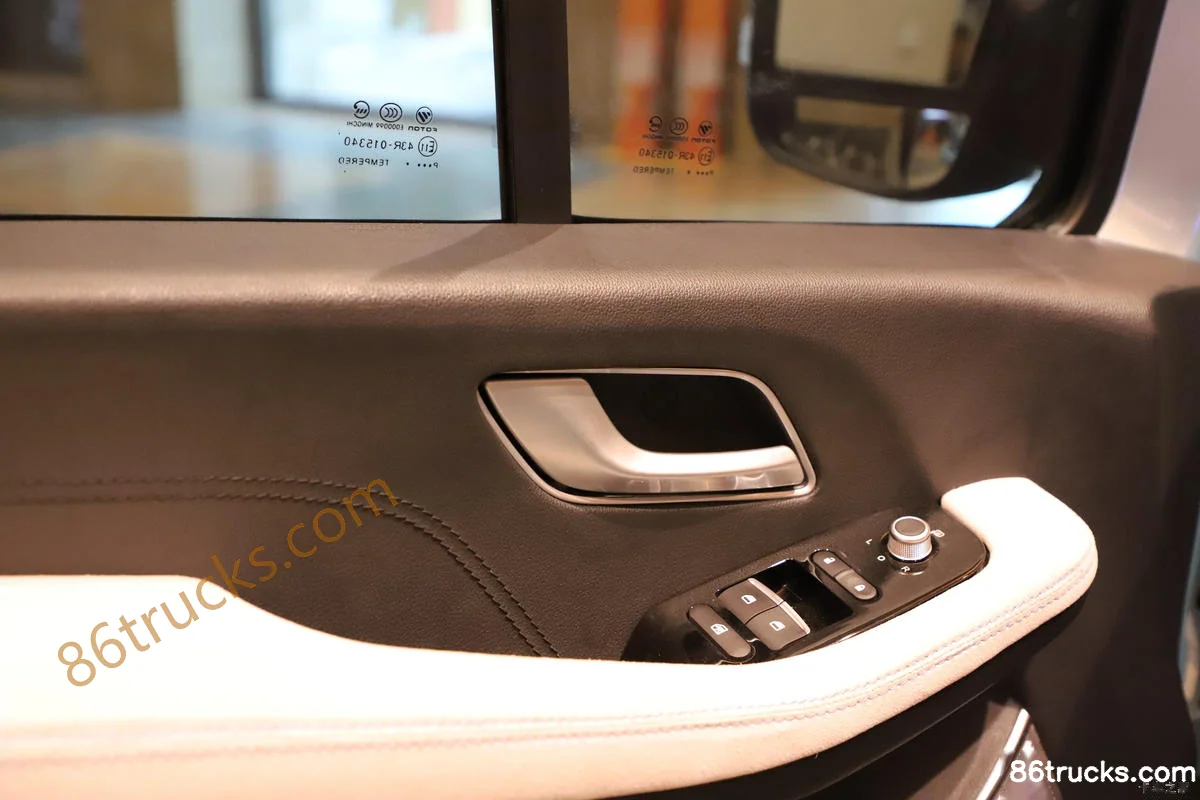

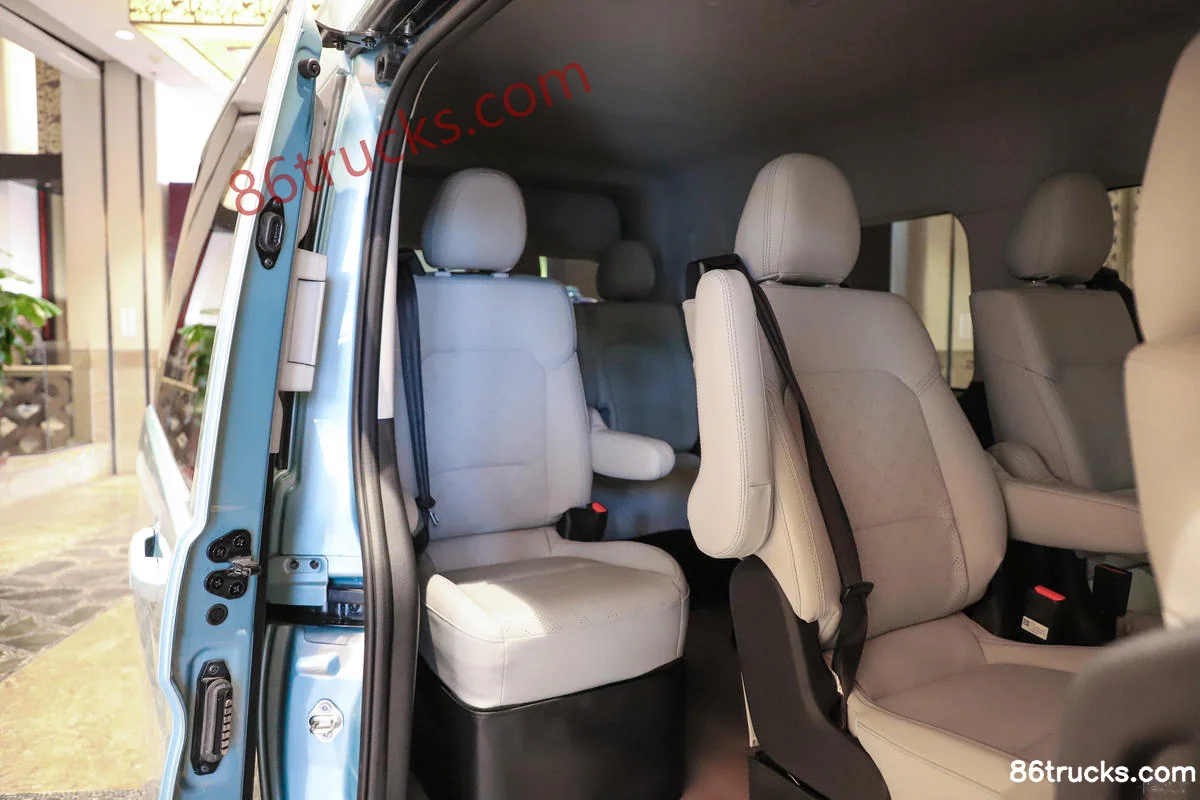

Cab3

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cab (1) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cab (2) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cab (3) | 86Trucks

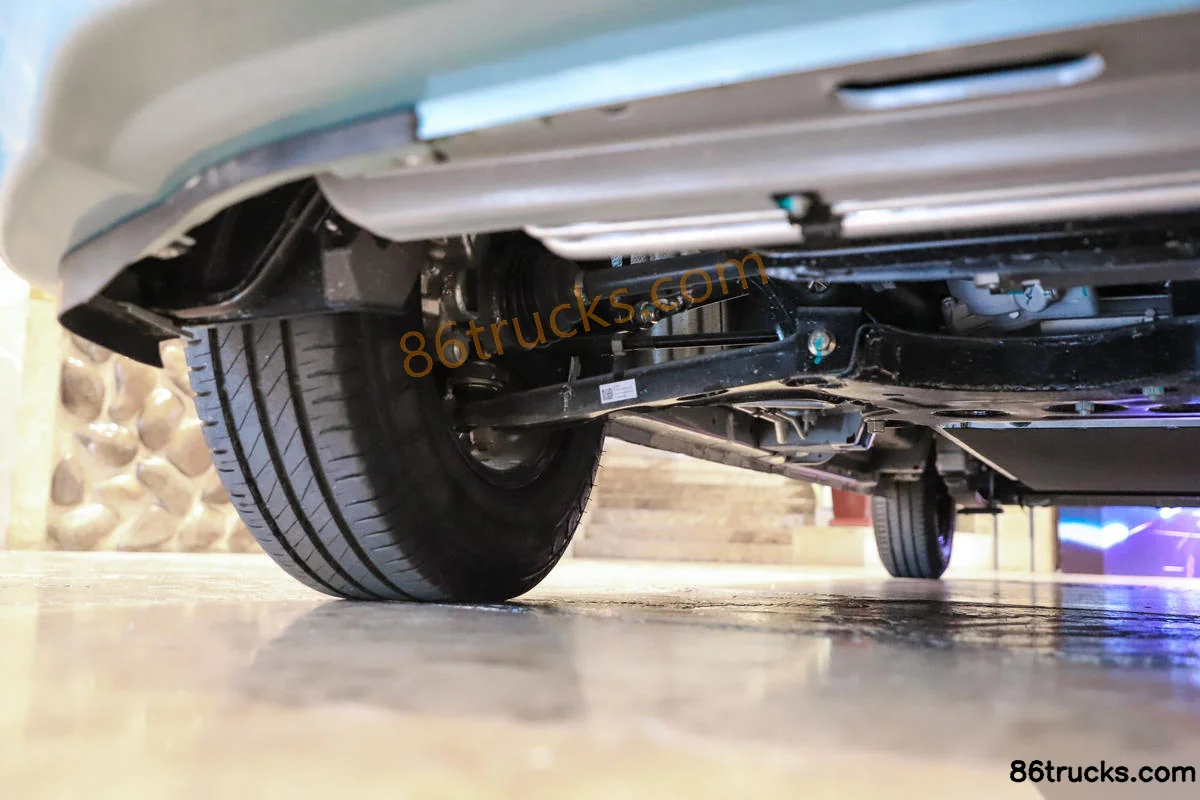

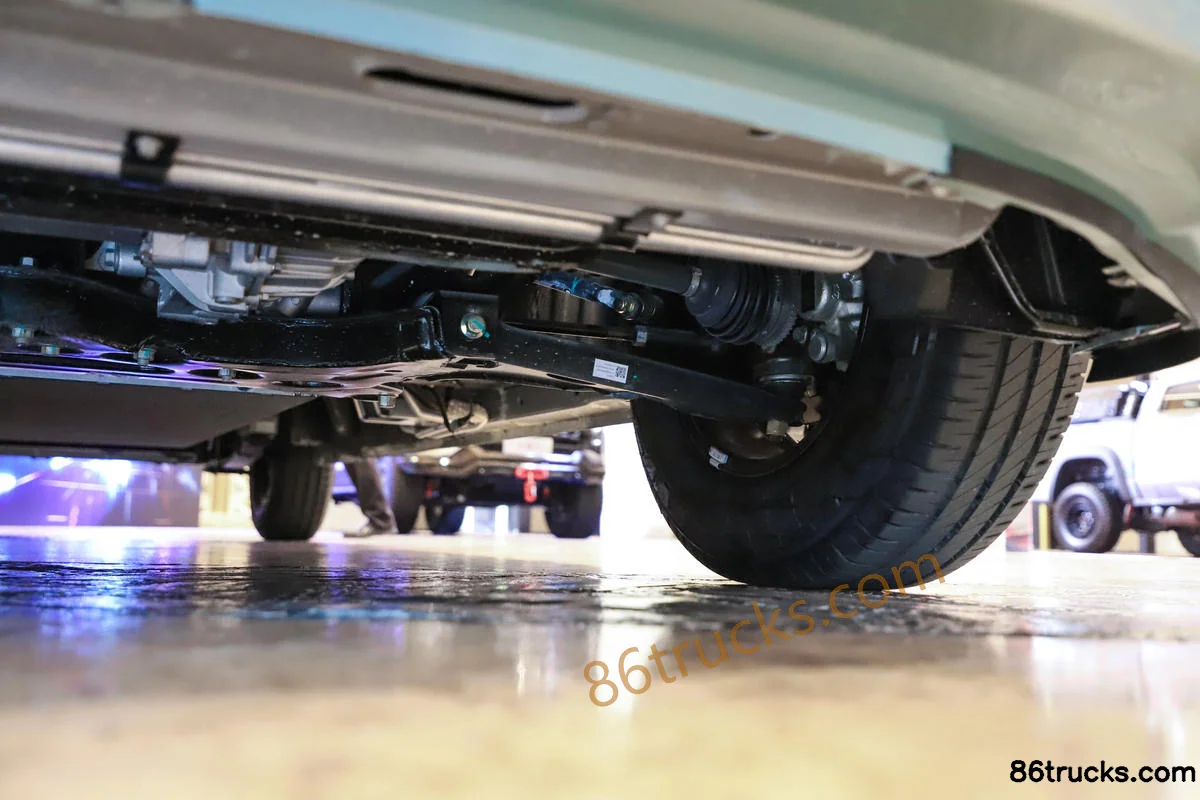

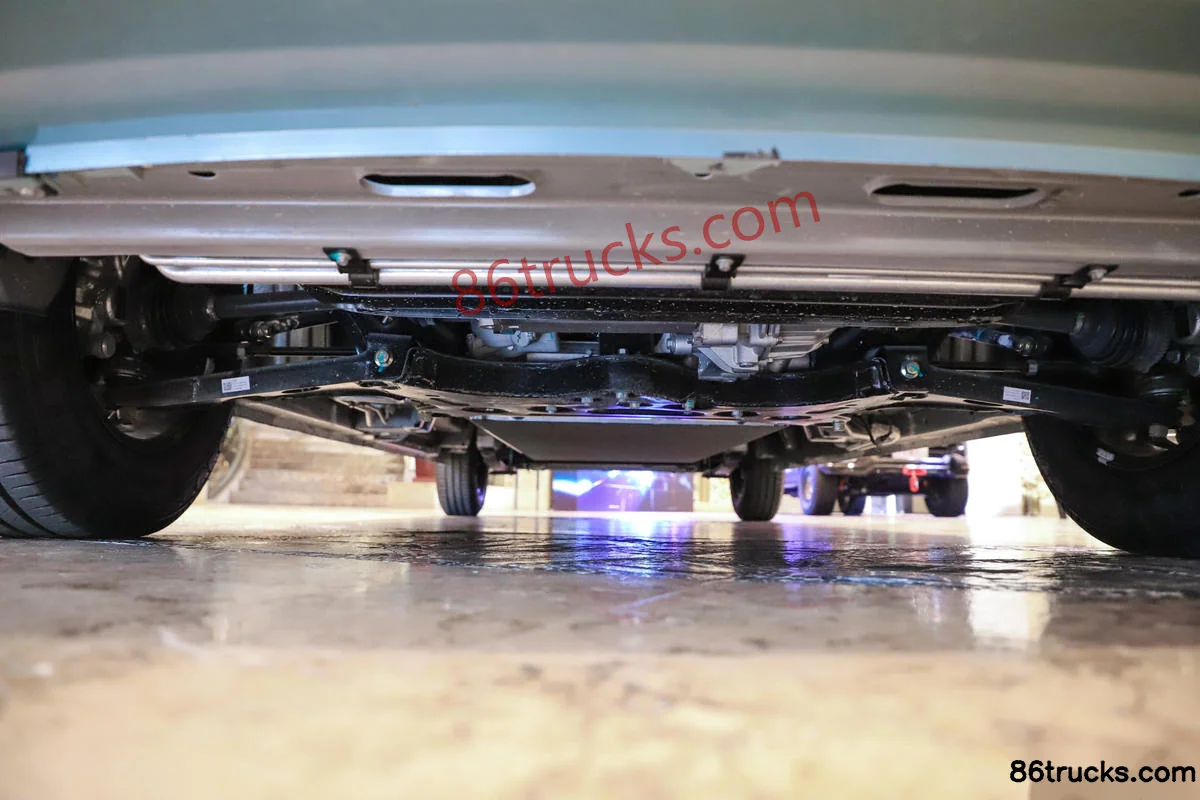

Chassis3

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Chassis (1) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Chassis (2) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Chassis (3) | 86Trucks

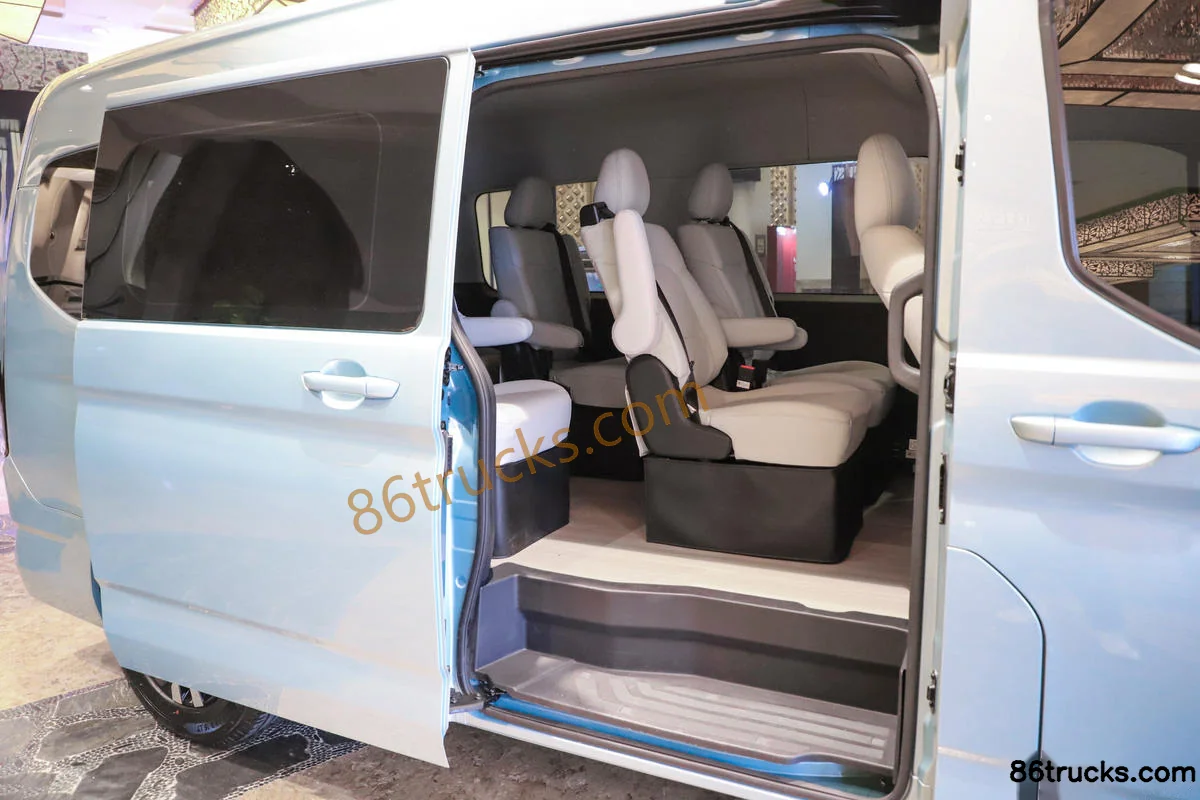

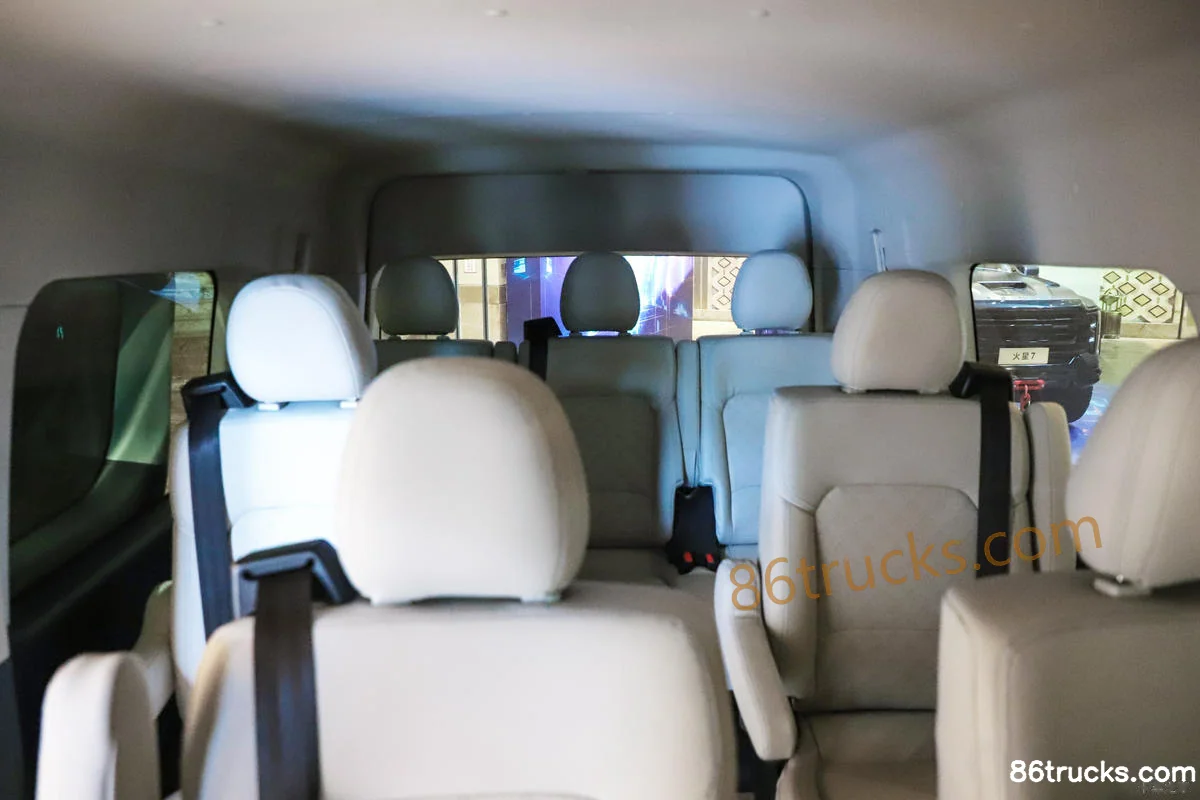

Cargo Box3

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cargo Box (1) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cargo Box (2) | 86Trucks Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh, and what does it include?

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh export reference is about From $33,028; MSRP is ¥23.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh suited for?

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh differ from other variants in the same series?

Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh belongs to Tuyano Light Bus Da V (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Tuyano Da V 2.4T 9-Seat 5.49m Pure Electric Mid-Roof Light Bus CATL 77.28kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
