Dongfeng Special Chassis Series 210 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi)
EXW
From $25,417
Export quote
Dongzheng (Yandi) Dongfeng chassis water sprinkler

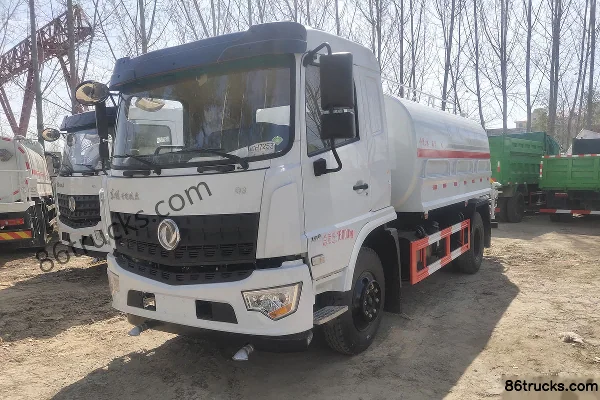

Main model photos
18 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Special Chassis Series 210 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi) | 4x2 / 210hp / China V | From $25,417 | |
| Dongfeng Special Chassis Series 180 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi) | 4x2 / 180hp / China V | From $24,167 | |
| Dongfeng Special Chassis Series 190 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi) | 4x2 / 190hp / China V | From $23,472 | |
| Dongfeng Special Chassis Series 170 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi) | 4x2 / 170hp / China V | From $20,833 | |
| Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi Brand) | 4x2 / 160hp / China V | From $19,722 |
Dongfeng Special Chassis Series 180 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi)
EXW
From $24,167
Export quote
Dongfeng Special Chassis Series 190 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi)
EXW
From $23,472
Export quote
Dongfeng Special Chassis Series 170 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi)
EXW
From $20,833
Export quote
Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) Water Sprinkler Truck (Yandi Brand)
EXW
From $19,722
Export quote
Series Specs
Basic Info
Cab dimensions: 7.7×2.5×3.2 / 7.7×2.48×3.1m
Truck Type: landscaping sprinkler truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 4500 / 3950mm
Front track width: 1900 / 1810mm
rear track: 1860 / 1800mm
Curb Weight: 5.705 / 6.305 / 6.905ton
Rated payload: 9.9 / 9.5 / 8.9ton
Max. speed: 90km/h
Front/rear suspension: 1.44/2.31 / 1.45/2.45m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: DongfengISB210 50 / YuchaiYC6JA180-50 / DongfengISB190 50 / DongfengISB170 50 / YuchaiYC4E160-56 / YuchaiYC4S150-50 / YuchaiYC4EG160-50
Number of cylinders: 6 / 4cylinder
Displacement: 5.9 / 6.87 / 4.26 / 3.767 / 4.7L
Emission standard: China V
Max output power: 155 / 132 / 140 / 125 / 118 / 110kW
Max hp: 210 / 180 / 190 / 170 / 160 / 150Horsepower
Rated speed: 2500 / 2300 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Body Parameters
Tank Dimensions (L×W×H): 4.2×2.35×1.45 / 4.3×2.4×1.6m
Vehicle certification code: SZD5165GPSED5 / SZD5160GPSEZ5
Body Brand: Yandi brand
Cargo box parameters
Box volume: 10.39 / 11.68m³
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dongfeng Special Chassis / Tuoxing D3 / special chassis series
Chassis Model: EQ1160GD5DJ / EQ1160GZ5DJ
rear axle description: 10T / 8T / 7.6T
Leaf spring count: 9/12+10,8/10+7,8/10+8,7/9+6,11/11+10,9/10+8 / 9/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed / Changtai 8-speed
Tire
Tire Size: 10.00R20 18PR / 10.00R20 / 9.00-20 16PR / 9.00R20 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Dongzheng (Yandi) Dongzheng (Yandi) Dongfeng chassis water sprinkler truck?
Dongzheng (Yandi) Dongzheng (Yandi) Dongfeng chassis is an export-oriented water sprinkler truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongzheng (Yandi) Dongfeng chassis water sprinkler?
Dongzheng (Yandi) Dongfeng chassis water sprinkler export reference is about $17,917 – $25,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongzheng (Yandi) Dongfeng chassis water sprinkler cover?
Dongzheng (Yandi) Dongfeng chassis water sprinkler mainly covers: Drive: 4x2; Horsepower: 160 hp / 170 hp / 180 hp / 190 hp / 210 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongzheng (Yandi) Dongfeng chassis water sprinkler?
For Dongzheng (Yandi) Dongfeng chassis water sprinkler: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongzheng (Yandi) Dongfeng chassis water sprinkler include?
Dongzheng (Yandi) Dongfeng chassis water sprinkler currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongzheng (Yandi) Dongfeng chassis water sprinkler?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
