Yuchai YC4A1130L-T20 130 hp 4.84L China II Diesel Engine
EXW
Export quote
Yuchai YC4A Series engine
Main model photos
12 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuchai YC4A1130L-T20 130 hp 4.84L China II Diesel Engine | 130hp / China II/Euro II | ||
| Yuchai YC4A110L-T20 110 hp 4.84L China II Diesel Engine | 110hp / China II/Euro II | ||
| Yuchai YC4A140L-T20 140 hp 4.84L China II Diesel Engine | 140hp / China II/Euro II | ||
| Yuchai YC4A125Z-T20 114 hp 4.84L China II Diesel Engine | 114hp / China II/Euro II |

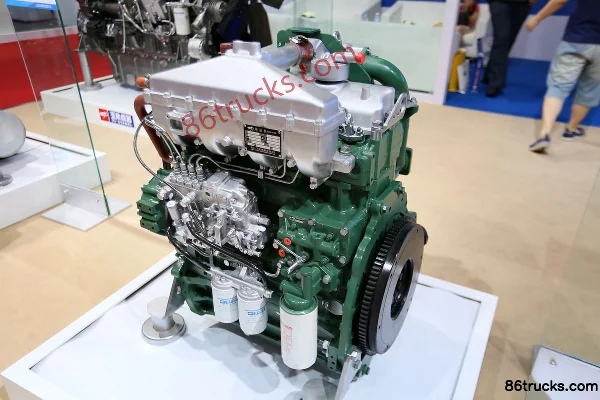

Yuchai YC4A110L-T20 110 hp 4.84L China II Diesel Engine
EXW
Export quote
Yuchai YC4A140L-T20 140 hp 4.84L China II Diesel Engine
EXW
Export quote
Yuchai YC4A125Z-T20 114 hp 4.84L China II Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: YC4A series
Engine manufacturer: Yuchai
Suitable Range: 125-160 hp wheat harvester, rice harvester/3-4 row corn harvester, 100-110 hp tractor
Intake type: Turbocharged Air-to-Air Intercooling / Turbocharged
Min. fuel consumption at full load: ≤205g/kW.h
Engine net weight: 500kg
noise at 1m: ≤112dB
Compression ratio: 17.5∶1
Bore × Stroke: 108X132mm
Engine Brand: Yuchai
Engine Model: YC4A130L-T20 / YuchaiYC4A110L-T20 / YC4A140L-T20 / YC4A125Z-T20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.84L
Emission standard: China II/Euro II
Max output power: 95 / 81 / 103 / 84kW
Max hp: 130 / 110 / 140 / 114Horsepower
Max torque: 460 / 420 / 480N·m
Max torque speed: 1600-1800rpm
Rated speed: 2300 / 2400rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
FAQ
What kind of truck is Yuchai Yuchai YC4A Series engine?
Yuchai Yuchai YC4A Series is an export-oriented engine lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yuchai YC4A Series engine cover?
Yuchai YC4A Series engine mainly covers: Horsepower: 110 hp / 114 hp / 130 hp / 140 hp; Emission: China II/Euro II; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yuchai YC4A Series engine?
For Yuchai YC4A Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Yuchai YC4A Series engine include?
Yuchai YC4A Series engine currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuchai YC4A Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
