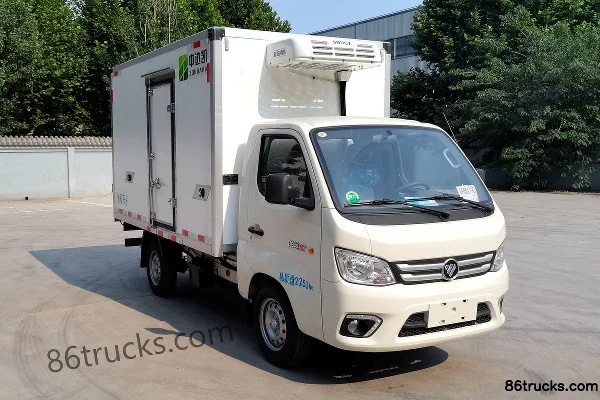

Foton Xiangling M1 122hp 4X2(6 wheels) 3.02m Refrigerated Truck (China VI) (Zhongdakai Brand)
EXW
Export quote
Zhongdakai Foton chassis Refrigerated Truck
Main model photos
26 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiangling M1 122hp 4X2(6 wheels) 3.02m Refrigerated Truck (China VI) (Zhongdakai Brand) | 4x2 / 122hp / China VI | ||
| Foton Xiangling M1 115hp 4X2(6 wheels) 3.02m Refrigerated Truck (China VI) (Zhongdakai Brand) | 4x2 / 116hp / China VI | ||
| Foton Xiangling M1 122hp 4X2(6 wheels) 2.79m Refrigerated Truck (China VI) (Zhongdakai Brand) | 4x2 / 122hp / China VI | ||
| Foton Xiangling M1 115hp 4X2(6 wheels) 2.79m Refrigerated Truck (China VI) (Zhongdakai Brand) | 4x2 / 116hp / China VI | ||
| Foton Xiangling M1 122hp 4X2(6 wheels) 3.12m Refrigerated Truck (China VI) (Zhongdakai Brand) | 4x2 / 122hp / China VI | From $21,111 |
Foton Xiangling M1 115hp 4X2(6 wheels) 3.02m Refrigerated Truck (China VI) (Zhongdakai Brand)
EXW
Export quote
Foton Xiangling M1 122hp 4X2(6 wheels) 2.79m Refrigerated Truck (China VI) (Zhongdakai Brand)
EXW
Export quote
Foton Xiangling M1 115hp 4X2(6 wheels) 2.79m Refrigerated Truck (China VI) (Zhongdakai Brand)
EXW
Export quote
Foton Xiangling M1 122hp 4X2(6 wheels) 3.12m Refrigerated Truck (China VI) (Zhongdakai Brand)
EXW
From $21,111
Export quote
Series Specs
Basic Info
Cab dimensions: 4.96×1.785×2.63 / 4.73×1.725×2.54 / 5.07×1.8×2.52 / 5.61×1.87×2.68m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Langfang, Hebei
Wheelbase: 2600 / 2400 / 2750 / 2850mm
Front track width: 1320 / 1410mm
rear track: 1410 / 1280 / 1320mm
Curb Weight: 1.625 / 1.68 / 2ton
Rated payload: 0.495 / 1.685 / 1.365ton
Max. speed: 110km/h
Front/rear suspension: 1.075/1.255 / 1.075/1.245 / 1.075/1.335m
Energy Type: gasoline
Engine parameters
Engine Model: DonganDAM16KR / DonganDAM15KL / DonganDAM16KL
Number of cylinders: 4cylinder
Displacement: 1.597 / 1.498L
Emission standard: China VI
Max output power: 90 / 85kW
Max hp: 122 / 116Horsepower
Max torque: 158N·m
Cargo box parameters
Cargo box dimensions: 3.02×1.62×1.67 / 2.79×1.56×1.58 / 3.12×1.62×1.56 / 3.7×1.75×1.75m
Cargo box width: 1.62 / 1.56 / 1.75m
Cargo box height: 1.67 / 1.58 / 1.56 / 1.75m
Body Parameters
Vehicle certification code: ZDK5020XLC / ZDK5031XLC / ZDK5032XLC
Body Brand: Zhongdakai
Chassis Specs
Chassis Brand: Foton
Chassis Series: Xiangling M1 / Xiangling M2
Chassis Model: BJ1021V3JV2-02 / BJ1031V5JV4-51 / BJ1032V5JV5-01
Leaf spring count: -/5 / 3/5,2/3 / 3/5+2,2/3+2,3/3+2
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed transmission
Tire
Tire Size: 175R14LT 8PR / 185R14LT 6PR,175R14LT 8PR
Number of tires: 4 / 6pcs
FAQ
What kind of truck is Zhongdakai Zhongdakai Foton chassis Refrigerated Truck?
Zhongdakai Zhongdakai Foton chassis is an export-oriented Refrigerated Truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Zhongdakai Foton chassis Refrigerated Truck?
Zhongdakai Foton chassis Refrigerated Truck export reference is about $21,111 – $25,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Zhongdakai Foton chassis Refrigerated Truck cover?
Zhongdakai Foton chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 116 hp / 122 hp; Emission: China VI; Fuel: gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Zhongdakai Foton chassis Refrigerated Truck?
For Zhongdakai Foton chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Zhongdakai Foton chassis Refrigerated Truck include?
Zhongdakai Foton chassis Refrigerated Truck currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Zhongdakai Foton chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
