Foton 4J28TC2 116hp 2.77L China IV Diesel Engine
EXW
Export quote
Foton 4J Diesel Series engine
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton 4J28TC2 116hp 2.77L China IV Diesel Engine | 116hp / China IV | ||
| Foton 4J28TC5 110hp 2.77L China V Diesel Engine | 110hp / China V | ||
| Foton 4J28TC3 110hp 2.77L China V Diesel Engine | 110hp / China V | ||
| Foton 4JB1TDi 116 hp 2.77L China V diesel engine | 116hp / China V | ||
| Foton 4J25TC 88 hp 2.5L China IV diesel engine | 88hp / China IV |
Foton 4J28TC5 110hp 2.77L China V Diesel Engine
EXW
Export quote
Foton 4J28TC3 110hp 2.77L China V Diesel Engine
EXW
Export quote

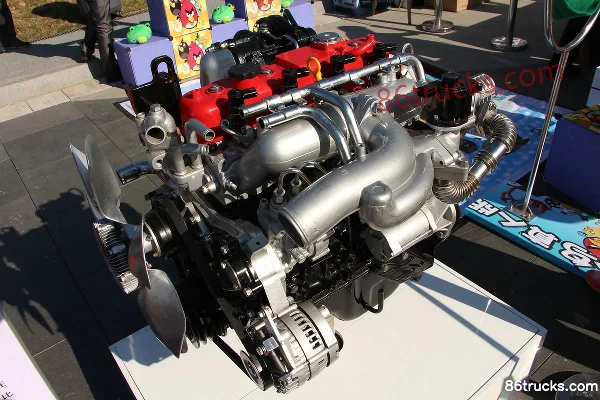

Foton 4JB1TDi 116 hp 2.77L China V diesel engine
EXW
Export quote
Foton 4J25TC 88 hp 2.5L China IV diesel engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 4J Diesel Series
Engine manufacturer: Foton Motor Co., Ltd. / Foton Co., Ltd., Beijing
Suitable Range: Ideal power for medium trucks, pickups, SUVs, MPVs, and also ideal for generator sets
Intake type: Turbocharged Naturally Aspirated
Min. fuel consumption at full load: 241g/kW.h
Engine net weight: 251kg
Engine Dimensions: 789.5X705.5X706.5mm
Compression ratio: 18.2:1
Bore × Stroke: 93x102mm
firing order: 1-3-4-2
Engine Brand: Foton
Engine Model: 4J28TC2 / 4J28TC5 / 4J28TC3 / 4JB1TDi / 4J25TC / 4J28TC
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771 / 2.499L
Emission standard: China IV / China V
Max output power: 85 / 81 / 65kW
Max hp: 116 / 110 / 88Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300 / 2000-2200rpm
Rated speed: 3200 / 3600rpm
Engine Type: Inline, vertical, water-cooled / Inline, vertical, water-cooled, SCR / BOSCH high-pressure common rail fuel system; DOC+POC/DOC+SCR
FAQ
What kind of truck is Foton Foton 4J Diesel Series engine?
Foton Foton 4J Diesel Series is an export-oriented engine lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Foton 4J Diesel Series engine cover?
Foton 4J Diesel Series engine mainly covers: Horsepower: 88 hp / 110 hp / 116 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton 4J Diesel Series engine?
For Foton 4J Diesel Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Foton 4J Diesel Series engine include?
Foton 4J Diesel Series engine currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton 4J Diesel Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
