Dongfeng T5 190 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)
EXW
From $23,056
Export quote
Chusheng Dongfeng chassis water sprinkler truck
Main model photos
38 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng T5 190 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) | 4x2 / 190hp / China V | From $23,056 | |
| Dongfeng T3 160 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) | 4x2 / 160hp / China V | From $19,167 | |
| Dongfeng T5 245hp 6X4(10 wheels) Water Sprinkler Truck (Chusheng Brand) | 6x4 / 245hp / China V | From $30,417 |

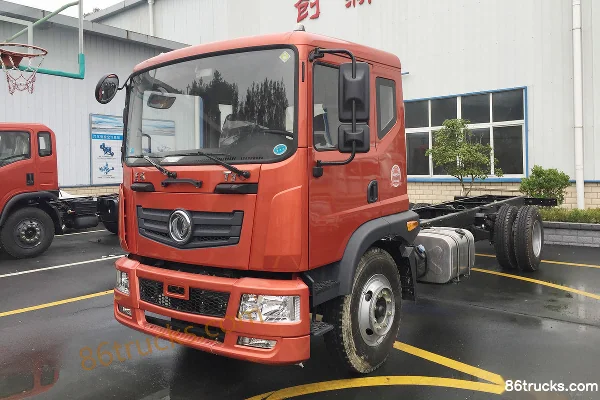

Dongfeng T3 160 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)
EXW
From $19,167
Export quote

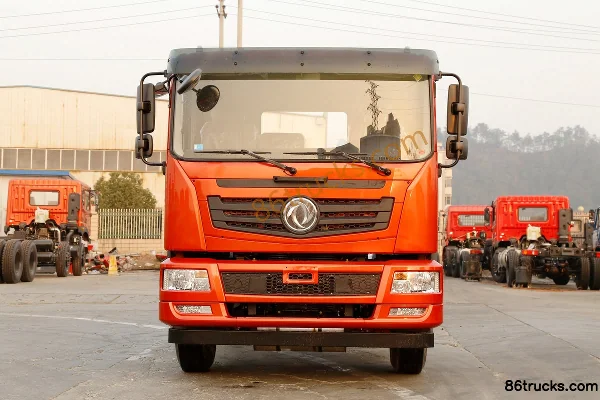

Dongfeng T5 245hp 6X4(10 wheels) Water Sprinkler Truck (Chusheng Brand)
EXW
From $30,417
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Teshang 140 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) | 4x2 / 140hp / China IV | From $15,556 |
Dongfeng Teshang 140 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)
EXW
From $15,556
Export quote
Series Specs
Basic Info
Cab dimensions: 8.5×2.48×3.05 / 10×2.48×3.37m
Drive type: 4X2 / 6X4
Truck Type: Water Sprinkler Truck
Vehicle origin: Suizhou, Hubei / Hubei
Wheelbase: 4500 / 3950 / 4350+1350 / 3800mm
Front track width: 1910 / 1960 / 1770mm
rear track: 1860 / 1860/1860 / 1640mm
Curb Weight: 7.3 / 10.04 / 4.3ton
Rated payload: 10.505 / 14.83 / 7ton
Max. speed: 90 / 95km/h
Front/rear suspension: 1.25/2.75 / 1.25/3.1 / 1.21/1.99m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: DongfengISB190 50 / YuchaiYC4E160-56 / DongfengISD245 50 / YuchaiYC4E140-42
Number of cylinders: 6 / 4cylinder
Displacement: 5.9 / 4.26 / 6.7L
Emission standard: China V / China IV
Max output power: 140 / 118 / 180 / 103kW
Max hp: 190 / 160 / 245 / 140Horsepower
Rated speed: 2500 / 2600rpm
Engine Type: SCR / Vertical, inline, water-cooled, four-stroke / Water-cooled, electronic high-pressure common rail, turbocharged intercooled, SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Body Parameters
Tank Dimensions (L×W×H): 5.2×2.2×1.43 / 4.3×2.35×1.58 / 6.8×2.25×1.5m
Vehicle certification code: CSC5180GSSEV / CSC5250GSSEV / CSC5112GSS4
Body Brand: Chusheng Brand
Others: Tank made of Q235 high-quality carbon steel plate, vehicle equipped with front flush, rear sprinkle, side spray, and high-pressure cannon for sprinkling functions; rear work platform can optionally be fitted with a mist cannon, equipped with fire hydrant water inlet, body-mounted dedicated water pump, equipped with pump-in and pump-out ports
Cargo box parameters
Box volume: 11 / 15.5 / 8m³
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen T5 / Huashen T3 / Special Commercial
Chassis Model: EQ5180GLVJ / EQ1250GLJ / DFA1110SJ11D3
Front axle description: 5T / 3.6T
Frame Dimensions: 280mm
rear axle description: 10T / 8T
Axle ratio: 4.875
Leaf spring count: 9/10+8,9/11+8,8/10+8,8/11+8,3/4+3 / 9/10,9/13 / 8/10+7，11/9+7
Transmission Parameters
Number of gears: 8 / 9 / 5Gear
Transmission Model: Dongfeng 8-speed / Fast Gear9JS119T-B / WLY 5-speed
Cab parameters
Cab: Single Row
Tire
Tire Size: 10.00-20 18PR / 11.00R20 18PR / 8.25-20 14PR，8.25R20 14PR
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Chusheng Chusheng Dongfeng chassis water sprinkler truck?
Chusheng Chusheng Dongfeng chassis is an export-oriented water sprinkler truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chusheng Dongfeng chassis water sprinkler truck?
Chusheng Dongfeng chassis water sprinkler truck export reference is about $15,556 – $30,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chusheng Dongfeng chassis water sprinkler truck cover?
Chusheng Dongfeng chassis water sprinkler truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 140 hp / 160 hp / 190 hp / 245 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng Dongfeng chassis water sprinkler truck?
For Chusheng Dongfeng chassis water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng Dongfeng chassis water sprinkler truck include?
Chusheng Dongfeng chassis water sprinkler truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng Dongfeng chassis water sprinkler truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
