Forland Linghang S1 120hp 4X2(6 wheels) 3.38m Refrigerated Truck
EXW
From $17,194
Export quote
Foton Forland Foton Times Pilot S1 Light Truck
Main model photos
908 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Forland Linghang S1 120hp 4X2(6 wheels) 3.38m Refrigerated Truck | 4x2 / 120hp / China VI | From $17,194 | |
| Times Leader S1 144 hp 4X2(6 wheels) Gasoline Manual 3.7m Refrigerated Truck | 4x2 / 144hp / China VI | From $10,097 | |
| Foton Forland S1 120hp 4X2(6 wheels) 3.7m Refrigerated Truck (China VI) | 4x2 / 120hp / China VI | From $17,611 | |
| Foton Times Linghang S1 120hp 4X2(6 wheels) 4.09m Refrigerated Truck (China VI) (Axle Ratio 4.33) | 4x2 / 120hp / China VI | From $12,319 | |
| Foton Times Leader S1 120hp 4X2(6 wheels) 4.09m Refrigerated Truck (China VI) | 4x2 / 120hp / China VI | From $12,319 |
Times Leader S1 144 hp 4X2(6 wheels) Gasoline Manual 3.7m Refrigerated Truck
EXW
From $10,097
Export quote
Foton Forland S1 120hp 4X2(6 wheels) 3.7m Refrigerated Truck (China VI)
EXW
From $17,611
Export quote
Foton Times Linghang S1 120hp 4X2(6 wheels) 4.09m Refrigerated Truck (China VI) (Axle Ratio 4.33)
EXW
From $12,319
Export quote

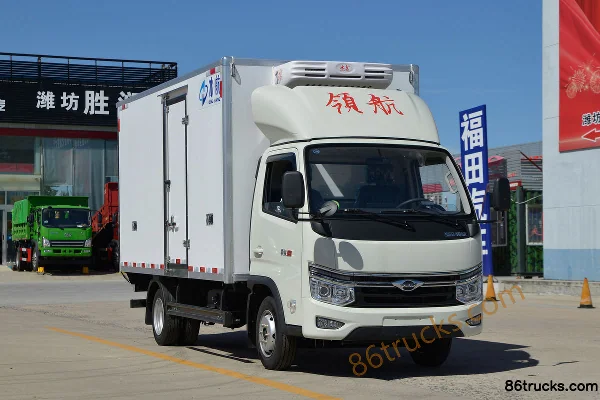

Foton Times Leader S1 120hp 4X2(6 wheels) 4.09m Refrigerated Truck (China VI)
EXW
From $12,319
Export quote
Series Specs
Basic Info
Cab dimensions: 5.275×2.07×2.955 / 5.76×2.01×2.85 / 5.595×2.07×2.955 / 5.995×2.07×2.955 / 5.6×2.07×2.85m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 2700 / 3000 / 3360mm
Vehicle origin: Shandong Zhucheng
Front track width: 1505mm
rear track: 1420mm
Curb Weight: 2.53 / 2.29 / 2.66 / 2.325ton
Rated payload: 1.835 / 1.075 / 1.705 / 1.04ton
GVWR: 4.495 / 3.495ton
Max. speed: 120 / 100km/h
Remarks: Standard: Shock-absorbing seat, daytime running lights, interior ambient lighting + welcome lights + driver-side rain shield, interior ambient lighting + welcome lights + driver-side rain shield. / Other features: central door lock + power windows + remote + heated rearview mirrors, ABS, T-BOX, power steering, A/C, shock-absorbing seat, daytime running lights, interior ambient lighting + welcome lights + driver-side rain guard, interior ambient lighting + welcome lights + driver-side rain guard
Front/rear suspension: 1.11/1.465 / 1.11/1.65 / 1.11/1.485 / 1.11/1.525 / 1.11/1.49m
Energy Type: Diesel / gasoline
Engine parameters
Engine Model: QuanchaiH20-120E60 / DAN20L / Great Wall PowerHY4G15F
Number of cylinders: 4cylinder
Displacement: 2 / 1.998 / 1.497L
Emission standard: China VI
Max output power: 90 / 106 / 100kW
Max hp: 120 / 144 / 136Horsepower
Max torque: 325 / 210N·m
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Cargo box parameters
Cargo box dimensions: 3.38×1.85×1.9 / 3.7×1.85×1.9 / 4.09×1.85×1.9 / 3.7×1.85×1.8m
Cargo box width: 1.85m
Cargo box height: 1.9 / 1.8m
Body Parameters
Vehicle certification code: BJ5045XLC9JB5-24 / BJ5035XLC5JV5-25 / BJ5045XLC9JB7-23 / BJ5035XLC5JV5-01
Body Brand: Foton Forland / Foton Times / Foton Times Linghang
Chassis Specs
Chassis Brand: Foton Forland / Foton Times
Chassis Series: Forland Linghang S1 / Foton Forland Linghang / Linghang S1
Chassis Model: BJ1045V9JB5-24 / BJ1035V5JV5-15 / BJ1045V9JB7-23 / BJ1035V5JV5-04
Frame Dimensions: 140×50×4/760mm
rear axle description: BJ121
Axle ratio: 4.333 / 4.33
Leaf spring count: 3/3+3 / 3/3+2
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: WLY5G32 / T25R / WLYWLY5G32 / LandaiLD626MR
Cab parameters
Cab: Single Row
fuel tank
Fuel tank capacity: 70 / 60L
Tire
Tire Size: 185R15LT 8PR / 185R15LT 6PR
FAQ
What kind of truck is Foton Forland Foton Times Pilot S1 Light Truck Refrigerated Truck?
Foton Forland Foton Times Pilot S1 Light Truck is an export-oriented Refrigerated Truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Forland Foton Times Pilot S1 Light Truck?
Foton Forland Foton Times Pilot S1 Light Truck export reference is about $10,097 – $17,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Forland Foton Times Pilot S1 Light Truck cover?
Foton Forland Foton Times Pilot S1 Light Truck mainly covers: Drive: 4x2; Horsepower: 120 hp / 144 hp; Emission: China VI; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Forland Foton Times Pilot S1 Light Truck?
For Foton Forland Foton Times Pilot S1 Light Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Forland Foton Times Pilot S1 Light Truck include?
Foton Forland Foton Times Pilot S1 Light Truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Forland Foton Times Pilot S1 Light Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
