Beiben V3 Heavy Truck 330hp 8X4(12 wheels) LNG Tanker Truck
EXW
Export quote

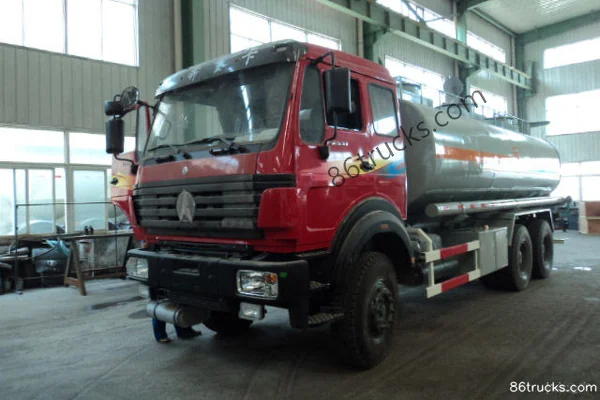

Beiben V3 heavy truck fuel tanker truck
Main model photos
279 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Beiben V3 Heavy Truck 330hp 8X4(12 wheels) LNG Tanker Truck | 8x4 / 330hp / China IV | ||
| Beiben V3 Heavy Truck 300 hp 8X4(12 wheels) Natural Gas Tanker Truck | 8x4 / 300hp / China IV | ||
| Beiben V3 Heavy Truck 270hp 8X4(12 wheels) Oil Tanker Truck | 8x4 / 270hp / China IV | ||
| Beiben V3 Heavy Truck 300 hp 8X4(12 wheels) Tank Truck | 8x4 / 300hp / China IV | ||
| Beiben V3 Heavy Truck 300 hp 6X4(10 wheels) Fuel Tanker Truck | 6x4 / 300hp / China III / Euro III |
Beiben V3 Heavy Truck 300 hp 8X4(12 wheels) Natural Gas Tanker Truck
EXW
Export quote
Beiben V3 Heavy Truck 270hp 8X4(12 wheels) Oil Tanker Truck
EXW
Export quote
Beiben V3 Heavy Truck 300 hp 8X4(12 wheels) Tank Truck
EXW
Export quote
Beiben V3 Heavy Truck 300 hp 6X4(10 wheels) Fuel Tanker Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.155 / 11.99X2.5X3.65 / 9.465×2.5×3.305 / 11.95×2.5×3.65m
Truck Type: Fuel tanker truck
Drive type: 8X4 / 6X4
Wheelbase: 1950+4350+1350 / 4450+1450 / 1700+4425+1350mm
Vehicle origin: Baotou / Suizhou City
Front track width: 2045/2045 / 1995 / 1940/1940mm
rear track: 1872/1872 / 1860/1860 / 1847/1847mm
Curb Weight: 16.75 / 11.5 / 12.27 / 11.53ton
Rated payload: 3.99 / 19.37 / 12.6 / 19.34ton
Max. speed: 90 / 80km/h
Front/rear suspension: 2.5 / 1515/2825 / 1.48/2.805 / 1.515/2.96m
Energy Type: Natural gas (LNG/CNG) / Diesel
Body Parameters
Tank Size: 6.76×*×1.5 / 9.2×2.45×1.75m
Tank Volume: 25.5 / 28.5 / 21 / 32m3
Transport medium: gasoline/diesel / gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: ND5310GJYZ03 / ND5310GJYZ00 / ND5257GJYZ / ND53104GJYZ
Body Brand: Beiben Truck
Others: Cab: V3 long cab flat roof; Frame section size (mm): 280×80×8+5 / NG80 Cab, tank wall thickness 5mm, trapezoidal tank, tank length 6760mm, top width 1900mm, bottom width 2200mm, height 1500mm, optional front grille guard, sun visor, A/C. Height with A/C: 3500mm. Protection material: Q235A, bolted connection, rear protection cross-section (mm) 50×100, ground clearance 500mm / Optional high-roof cab (height 3650mm; with deflector 3940mm). Deflector is optional.
Engine parameters
Engine Brand: Weichai
Engine Model: Weichai WP12NG330E40 / Weichai WP10NG300E40 / Weichai WP10.270E40 / Weichai WP10.300E40 / Weichai WP10.310 / Weichai WP7.300E30
Number of cylinders: 6cylinder
Displacement: 11.596 / 9.726 / 7.14L
Emission standard: China IV / China III / Euro III
Max output power: 243 / 221 / 199 / 228 / 220kW
Max hp: 330 / 300 / 270Horsepower
Max torque: 1350 / 1230 / 1270 / 1390 / 1500 / 1160N·m
Max torque speed: 1400-1600 / 1200-1500 / 1200-1600rpm
Rated speed: 2200 / 1900 / 2300rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn / Wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn / Electronic high-pressure common rail + SCR / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline
Chassis Specs
Chassis Brand: Beiben Truck
Chassis Series: BeibenV3
Chassis Model: ND13100D34J7 / ND13106D43J7 / ND5257GJYZ / ND1311D44J7
Front axle description: 5.5 tons / 7 T / 5.5T
rear axle description: 457 single reduction axle / 13T
Leaf spring count: 12/12/13 / 9/9/10 / 9/13 / 3/3/5
Transmission Parameters
Number of gears: 9Gear
Transmission Model: 9T1680 / 9T1280 / Fast Gear 9JS150A / Beiben 5S-112GP
Tire
Tire Size: 11.00R20 / 1200 / 11.00-20
Number of tires: 12 / 11pcs
FAQ
What kind of truck is Beiben Truck Beiben V3 heavy truck fuel tanker truck?
Beiben Truck Beiben V3 heavy truck is an export-oriented fuel tanker truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Beiben V3 heavy truck fuel tanker truck cover?
Beiben V3 heavy truck fuel tanker truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 270 hp / 300 hp / 330 hp; Emission: China III / Euro III / China IV; Fuel: Diesel / Natural gas (LNG/CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Beiben V3 heavy truck fuel tanker truck?
For Beiben V3 heavy truck fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Beiben V3 heavy truck fuel tanker truck include?
Beiben V3 heavy truck fuel tanker truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Beiben V3 heavy truck fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
