JAC Gallop K5 300hp 8X4(12 wheels) Flatbed Truck (Dali Brand)
EXW
From $39,167
Export quote
Dali JAC Gallop chassis flatbed truck
Main model photos
40 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5 300hp 8X4(12 wheels) Flatbed Truck (Dali Brand) | 8x4 / 300hp / China V | From $39,167 | |
| JAC Gallop K3L 300hp 8X4(12 wheels) Flatbed Truck (Dali Brand) | 8x4 / 300hp / China V | From $42,083 | |
| JAC Gallop A5L 165 hp 4X2(6 wheels) Flatbed Truck (Dali brand) | 4x2 / 165hp / China V | From $23,208 | |
| JAC Gallop K5L 180 hp 4X2(6 wheels) Flatbed truck (Dali brand) | 4x2 / 180hp / China V | From $23,472 | |
| JAC Gallop K3W 310 hp 8X4(12 wheels) Flatbed Truck (Dali Brand) | 8x4 / 310hp / China V | From $42,111 |

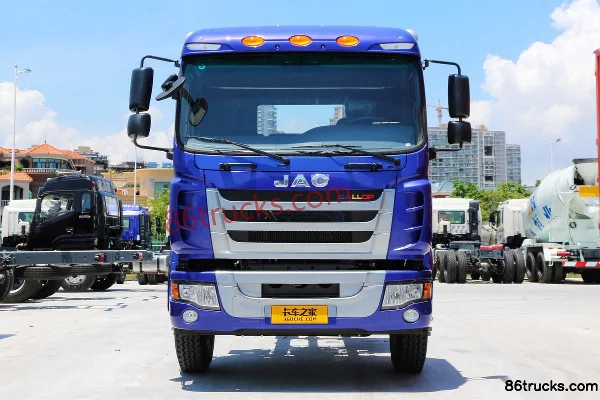

JAC Gallop K3L 300hp 8X4(12 wheels) Flatbed Truck (Dali Brand)
EXW
From $42,083
Export quote
JAC Gallop A5L 165 hp 4X2(6 wheels) Flatbed Truck (Dali brand)
EXW
From $23,208
Export quote
JAC Gallop K5L 180 hp 4X2(6 wheels) Flatbed truck (Dali brand)
EXW
From $23,472
Export quote
JAC Gallop K3W 310 hp 8X4(12 wheels) Flatbed Truck (Dali Brand)
EXW
From $42,111
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop A5 300 hp 8X4(12 wheels) Flatbed Truck (Dali brand) | 8x4 / 300hp / China V | From $40,139 |
JAC Gallop A5 300 hp 8X4(12 wheels) Flatbed Truck (Dali brand)
EXW
From $40,139
Export quote
Series Specs
Basic Info
Cab dimensions: 10.5×2.55×3.45 / 9.8×2.55×3.55 / 8.6×2.5×3.05 / 8.65×2.55×3.15 / 9.8×2.55×3.22 / 9.6×2.55×3.55 / 9.95×2.55×3.35 / 10.5×2.5×3.45 / 9×2.55×3.7 / 9×2.55×3.24 / 8.65×2.55×3.24m
Type: flatbed truck
Drive type: 8X4 / 4X2 / 6X4
Wheelbase: 1800+3200+1350 / 5000 / 4700 / 1800+3800+1350 / 4350+1350 / 5300mm
Rated mass: 15.57 / 15.405 / 9.205 / 10.3 / 15.355 / 15.505 / 12.37 / 10.305 / 8.905 / 10.705ton
GVWR: 31 / 16 / 18 / 25ton
Front/rear suspension: 1.495/2.655 / 1.4/2.5 / 1.4/2.18 / 1.495/1.355 / 1.495/1.755 / 1.495/2.755 / 1.495/1.955 / 1.4/2.3 / 1.4/2.6 / 1.4/2.55m
Energy Type: Diesel
Body Parameters
Other special notes: K5Ⅱ semi-high roof; factory body, A/C, air-suspension seat, power windows, remote key, power tilt, 200L fuel tank, tachograph. / K5Ⅱ semi-high roof; A/C, air suspension seat, power windows, remote key, power tilt, 200L fuel tank, tachograph. / A5 Mid-body Semi-high Roof; A/C, Air Suspension Seat, Power Windows, Remote Key, Power Tilt, 400L Aluminum Alloy Fuel Tank, Tachograph. / 245 double-layer high-strength steel frame / 245 high-strength steel frame / 153 reinforced double-layer frame, K5L new wide cab; A/C, air-suspension seat, power windows, remote key, power tilt, 200L fuel tank, tachograph. / K5L new wide cab
Vehicle certification code: DLQ5310TPBY5 / DLQ5313TPBF25 / DLQ5160TPBY5 / DLQ5181TPBXK5 / DLQ5311TPBY5 / DLQ5310TPBST5 / DLQ5250TPBXK5 / DLQ5180TPBXK5 / DLQ5160TPBXK5
Body Brand: Dali Brand
Engine parameters
Engine Model: WeichaiWP7.300E51 / Weichai WP4.165E50 / YuchaiYC6JA180-50 / Weichai WP10.310E53 / YuchaiYC6A270-50 / YuchaiYC6A290-50 / WeichaiWP4.1Q160E50 / YuchaiYC4EG170-50
Displacement: 7.47 / 4.5 / 6.87 / 9.726 / 7.52 / 4.088 / 4.73L
Emission standard: China V
Max output power: 220 / 121 / 132 / 228 / 199 / 213 / 115 / 125kW
Max hp: 300 / 165 / 180 / 310 / 270 / 290 / 160 / 170Horsepower
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5 / GallopK3 / GallopA5 / GallopK5L / GallopK3L
Chassis Model: HFC3311P2K4H32S3V / HFC5161XXYP3K1A47V / HFC1181P3K1A47V / HFC3311P1K4H38S3V / HFC1251P2K4E43V / DLQ5310TPBY5 / HFC5181XXYP3K2A47V / HFC1161P3K1A50S2V
rear axle description: 13T / 10400kg / 9T / Mercedes-Benz / 459 rear axle (4.875 ratio) / 457;459 / Ratio 4.875 / 10 tons / 1094 rear axle (4.875 ratio) / 1094 rear axle / 153 rear axle
Leaf spring count: 9/9/12 / 3/4+3,3/9+7,9/9+7 / 9/9+7,3/9+7,3/4+3 / 3/4 / 3/4+3 / 9/9+7
Transmission Parameters
Number of gears: 10 / 6 / 8 / 9Gear
Transmission Model: Fast Gear 10-Speed / Fast Gear6DS60T / Fast Gear8JS75C / Fast Gear10JSD160(T) / Fast Gear 9-speed / Fast Gear10JSD140B / Fast Gear9JS119 / Fast Gear10JSD140A / Fast Gear8JS85E / Fast Gear8JS75E
Tire
Tire Size: 10.00R20 / 9.00R20 16PR,10R22.5 16PR / 10.00R20,11R22.5 / 11.00R20 / 11.00R20 16PR / 11.00R20,295/80R22.5 / 11.00R20 16PR,10.00R20 / 9.00R20 16PR / 9.00R20
Number of tires: 6 / 12pcs
FAQ
What kind of truck is Dali Dali JAC Gallop chassis flatbed truck?
Dali Dali JAC Gallop chassis is an export-oriented flatbed truck lineup with about 23 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dali JAC Gallop chassis flatbed truck?
Dali JAC Gallop chassis flatbed truck export reference is about $22,083 – $51,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dali JAC Gallop chassis flatbed truck cover?
Dali JAC Gallop chassis flatbed truck mainly covers: Drive: 4x2 / 8x4; Horsepower: 165 hp / 180 hp / 300 hp / 310 hp; Emission: China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dali JAC Gallop chassis flatbed truck?
For Dali JAC Gallop chassis flatbed truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is flatbed truck typically used for?
flatbed truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dali JAC Gallop chassis flatbed truck include?
Dali JAC Gallop chassis flatbed truck currently lists about 23 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dali JAC Gallop chassis flatbed truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
