Luoxiang 13m Straight Beam Stake Semi-Trailer
EXW
Export quote
Luoxiang Trailer 13m Series Stake Semi-trailer
Main model photos
19 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Luoxiang 13m Straight Beam Stake Semi-Trailer | — | ||
| Luoxiang 13m Gooseneck Stake Semi-Trailer | — | ||
| Luoxiang 13m Lightweight Stake Semi-Trailer | — | ||
| Luoxiang 13m Ultra-Low Deck Stake Semi-Trailer | — |

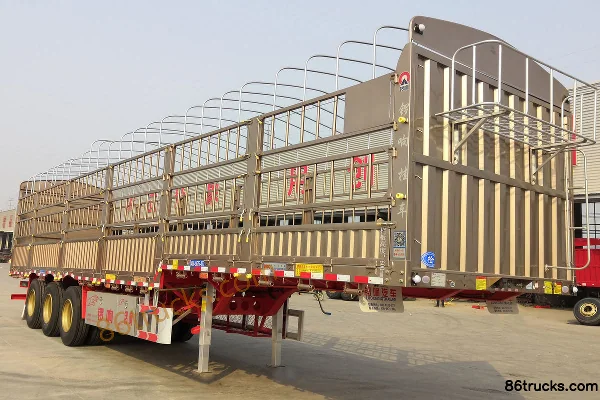

Luoxiang 13m Gooseneck Stake Semi-Trailer
EXW
Export quote

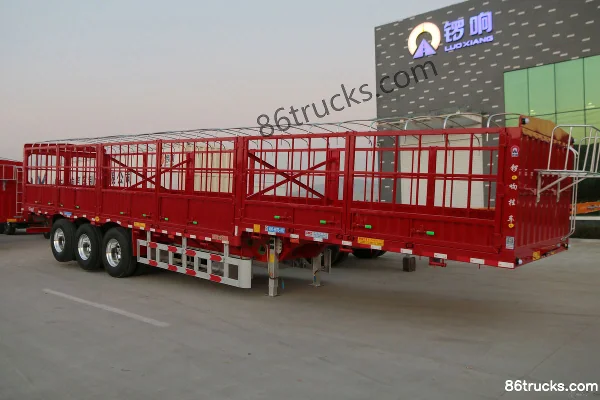

Luoxiang 13m Lightweight Stake Semi-Trailer
EXW
Export quote
Luoxiang 13m Ultra-Low Deck Stake Semi-Trailer
EXW
Export quote
Series Specs
Basic Info
Design load capacity: 33.8 / 33.5 / 31.76ton
Cab length: 13m
Cab width: 2.55m
Cab height: 3.9 / 3.85 / 3.05m
Curb Weight: 6.2 / 6.5 / 8.24ton
Chassis Specs
Axle Brand: Fuwa, BPW, Zhongqi / Fuhua
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Wheel brand: Better, Hengye, Rishang
Number of wheels: 12
suspension: Maintenance-free or air suspension / Maintenance-free reverse-mounted suspension
Wheel Material: Steel / aluminum alloy
Parts & accessories
Fifth Wheel Pin: 90#
Brake chamber: 2 single 4 double
Outrigger: aluminum alloy / Luoxiang special aluminum alloy
Toolbox: aluminum alloypcs
Spare Tire Carrier: 2pcs
ABS: Kemi, WABCO / WABCO / Luoxiang special aluminum alloy
Body Parameters
Frame material: Thick High-Strength Steel
Web Plate: 5mm
frame rail height: 500mm
upper wing panel: 8 / 10mm
Box panel:
Lower Wing Plate: 10mm
Side beam: 3
Number of openings: 4、5、6、3
Other notes
Lead time for customization: 15 days
warranty period: 12 months
warranty method: Three guarantees policy
Other: Toolbox, protective net, aluminum alloy toolbox / Rear loading platform height: 900mm
Tire
Tire brand: Goodyear, Dunlop, Chaoyang / Goodyear
Tire Size: 12R22.5 12PR / 245/70R17.5 18PR
Number of tires: 12pcs
FAQ
What kind of truck is Luoxiang Trailer Luoxiang Trailer 13m Series Stake Semi-trailer?
Luoxiang Trailer Luoxiang Trailer 13m Series is an export-oriented Stake Semi-trailer lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is Stake Semi-trailer typically used for?
Stake Semi-trailer specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Luoxiang Trailer 13m Series Stake Semi-trailer include?
Luoxiang Trailer 13m Series Stake Semi-trailer currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Luoxiang Trailer 13m Series Stake Semi-trailer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
