Sinotruk HOWO TX heavy truck 440 hp 10X4(14 wheels) folding crane truck (China VI)(Hongchang Tianma brand)(H6680)
EXW
Export quote
Hongchang Tianma Sinotruk HOWO Chassis
Main model photos
126 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TX heavy truck 440 hp 10X4(14 wheels) folding crane truck (China VI)(Hongchang Tianma brand)(H6680) | 10x4 / 440hp / China VI | ||
| Sinotruk HOWO TX Heavy Truck 350hp 8X4(12 wheels) Truck Mounted Crane (China VI) (Hongchang Tianma Brand) (S3505) | 8x4 / 350hp / China VI | ||
| Sinotruk HOWO TX7 Heavy Truck 440 hp 10X4(14 wheels) Truck-mounted Crane (Hongchang Tianma Brand)(Z6680) | 10x4 / 440hp / China VI | ||
| Sinotruk HOWO TX7 Heavy Truck 440 hp 10X4(14 wheels) Truck-mounted Crane (Hongchang Tianma Brand)(K2280) | 10x4 / 440hp / China VI |

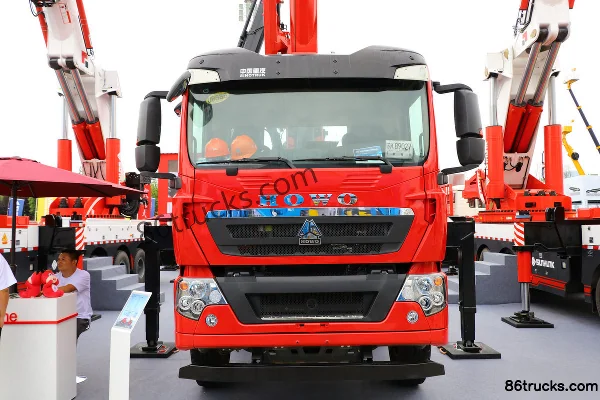

Sinotruk HOWO TX Heavy Truck 350hp 8X4(12 wheels) Truck Mounted Crane (China VI) (Hongchang Tianma Brand) (S3505)
EXW
Export quote

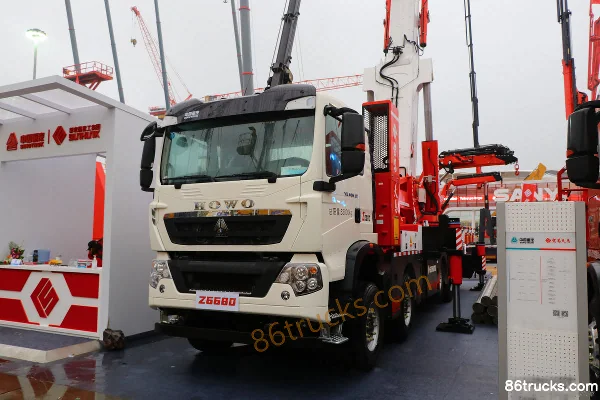

Sinotruk HOWO TX7 Heavy Truck 440 hp 10X4(14 wheels) Truck-mounted Crane (Hongchang Tianma Brand)(Z6680)
EXW
Export quote
Sinotruk HOWO TX7 Heavy Truck 440 hp 10X4(14 wheels) Truck-mounted Crane (Hongchang Tianma Brand)(K2280)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T7H Heavy Truck 440hp 10X4(14 wheels) Knuckle Boom Crane Truck (Hongchang Tianma Brand) (H4500) | 10x4 / 440hp / China V |
Series Specs
Basic Info
Cab dimensions: 12.44×2.55×3.53 / 12×2.55×3.9 / 12×2.55×3.85m
Type: truck crane / Truck with crane
Drive type: 10X4 / 8X4
Wheelbase: 1950+3625+1375+1350 / 2100+4300+1350 / 1950+3075+1375+1350mm
Rated mass: 8.37ton
GVWR: 53 / 31ton
Front/rear suspension: 1.5/2.42 / 1.43/2.82 / 1.54/2.16m
Energy Type: Diesel
Body Parameters
Crane model: H6680 / S3505 / H4500 / Z6680 / K2280
Lifting capacity: 135 / 14 / 92 / 58ton
crane self-weight: 53 / 24ton
Vehicle certification code: HCM5532JQZ / HCM5311JSQTX6
Body Brand: Hongchang Tianma / Hongchang Tianma brand
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC11.44-60 / SinotrukMC07H.35-60 / MC11.44-50
Displacement: 10.518 / 7.36L
Emission standard: China VI / China V
Max output power: 324 / 257 / 327kW
Max hp: 440 / 350Horsepower
Max torque: 2100 / 1400N·m
Max torque speed: 1000-1400 / 1200-1600rpm
Rated speed: 1900 / 2200rpm
Chassis Specs
Chassis Brand: Sinotruk / Sinotruk HOWO
Chassis Series: HOWOTX / HOWO T7H
Chassis Model: ZZ5537V31BGF1 / ZZ1317N436GF1 / ZZ5537V31BHE1 / ZZ5537V31BHF1
Leaf spring count: 11/11/-/12 / 11/11/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Sinotruk 12-speed transmission / SinotrukHW19712TC
Cab parameters
Cab: HOWOTX / T7H
Tire
Tire Size: 385/65R22.5 20PR/12.00R20 18PR / 12R22.5,12.00R20 18PR / 385/65R22.5/12.00R20
Number of tires: 14 / 12pcs
FAQ
What kind of truck is Hongchang Tianma Hongchang Tianma Sinotruk HOWO Chassis truck-mounted crane?
Hongchang Tianma Hongchang Tianma Sinotruk HOWO Chassis is an export-oriented truck-mounted crane lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Hongchang Tianma Sinotruk HOWO Chassis cover?
Hongchang Tianma Sinotruk HOWO Chassis mainly covers: Drive: 8x4 / 10x4; Horsepower: 350 hp / 440 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hongchang Tianma Sinotruk HOWO Chassis?
For Hongchang Tianma Sinotruk HOWO Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Hongchang Tianma Sinotruk HOWO Chassis include?
Hongchang Tianma Sinotruk HOWO Chassis currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hongchang Tianma Sinotruk HOWO Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
